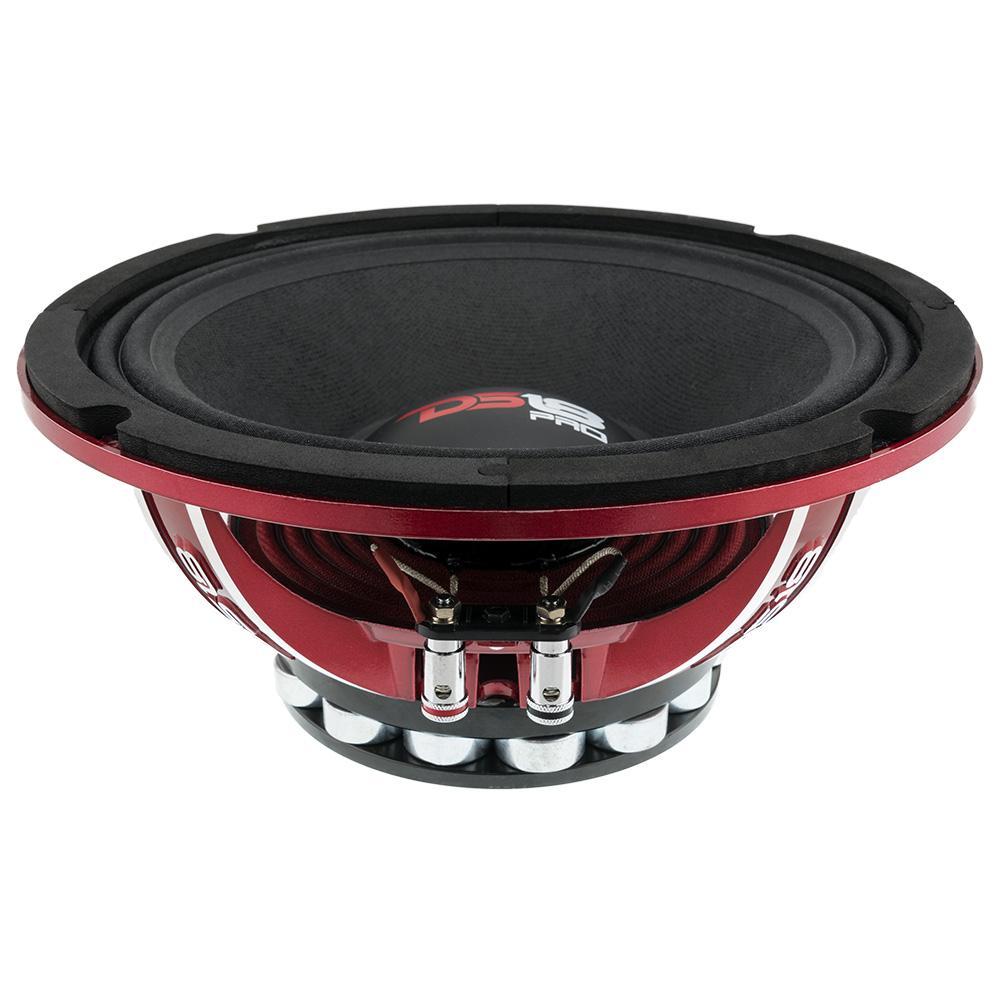

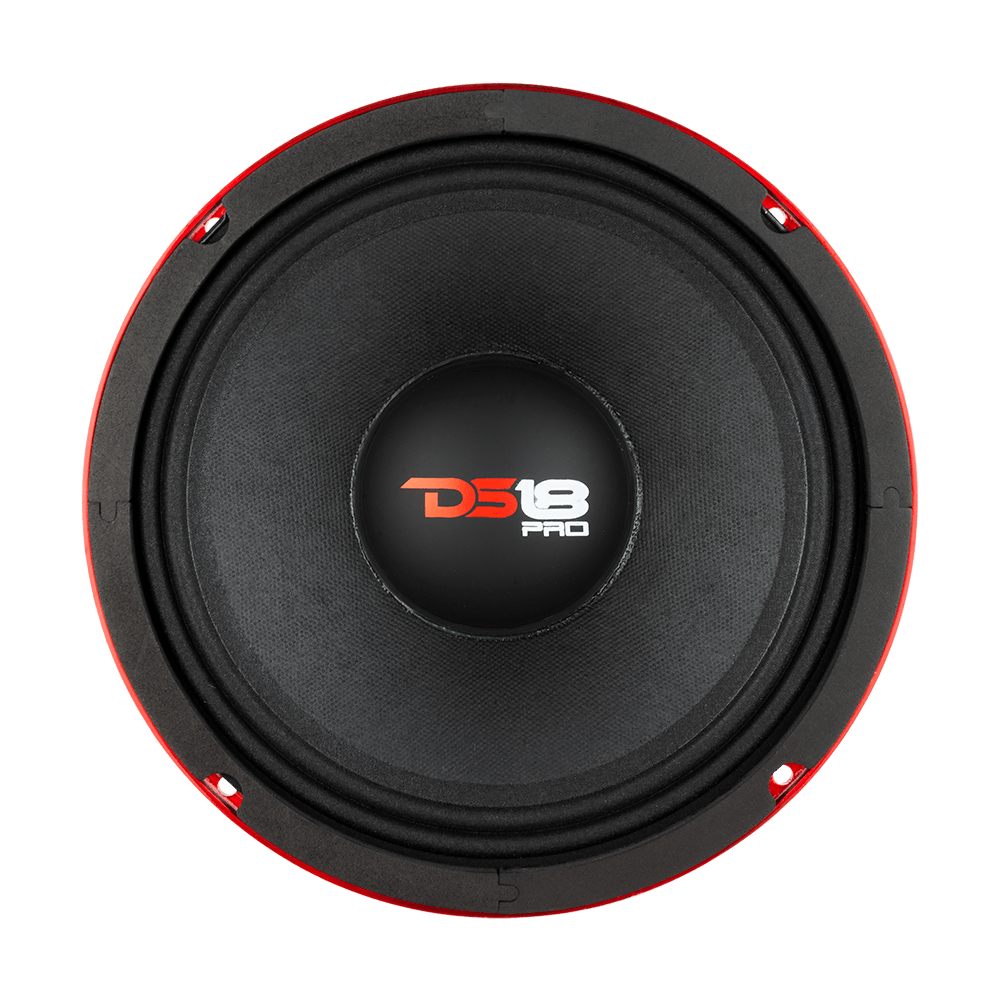

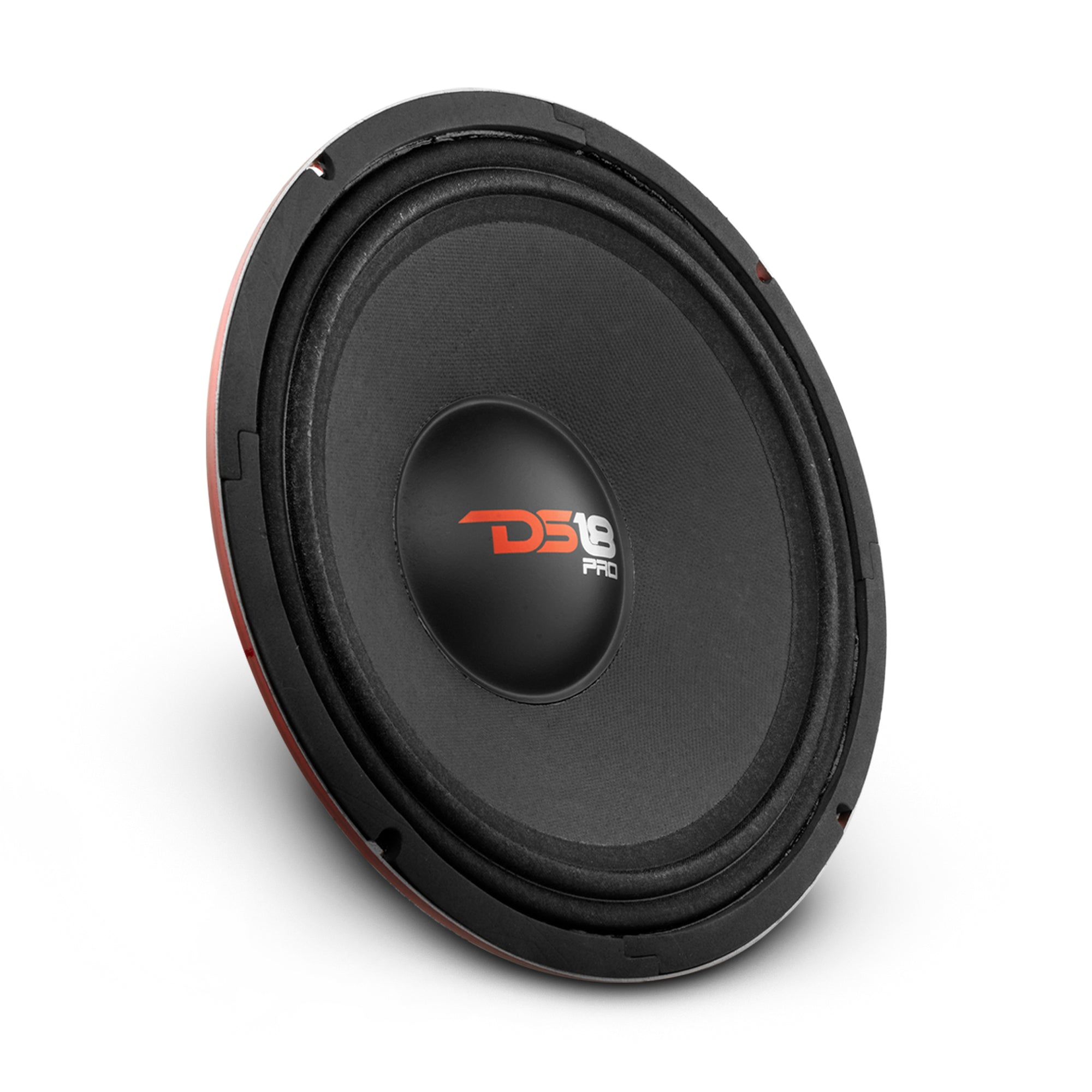

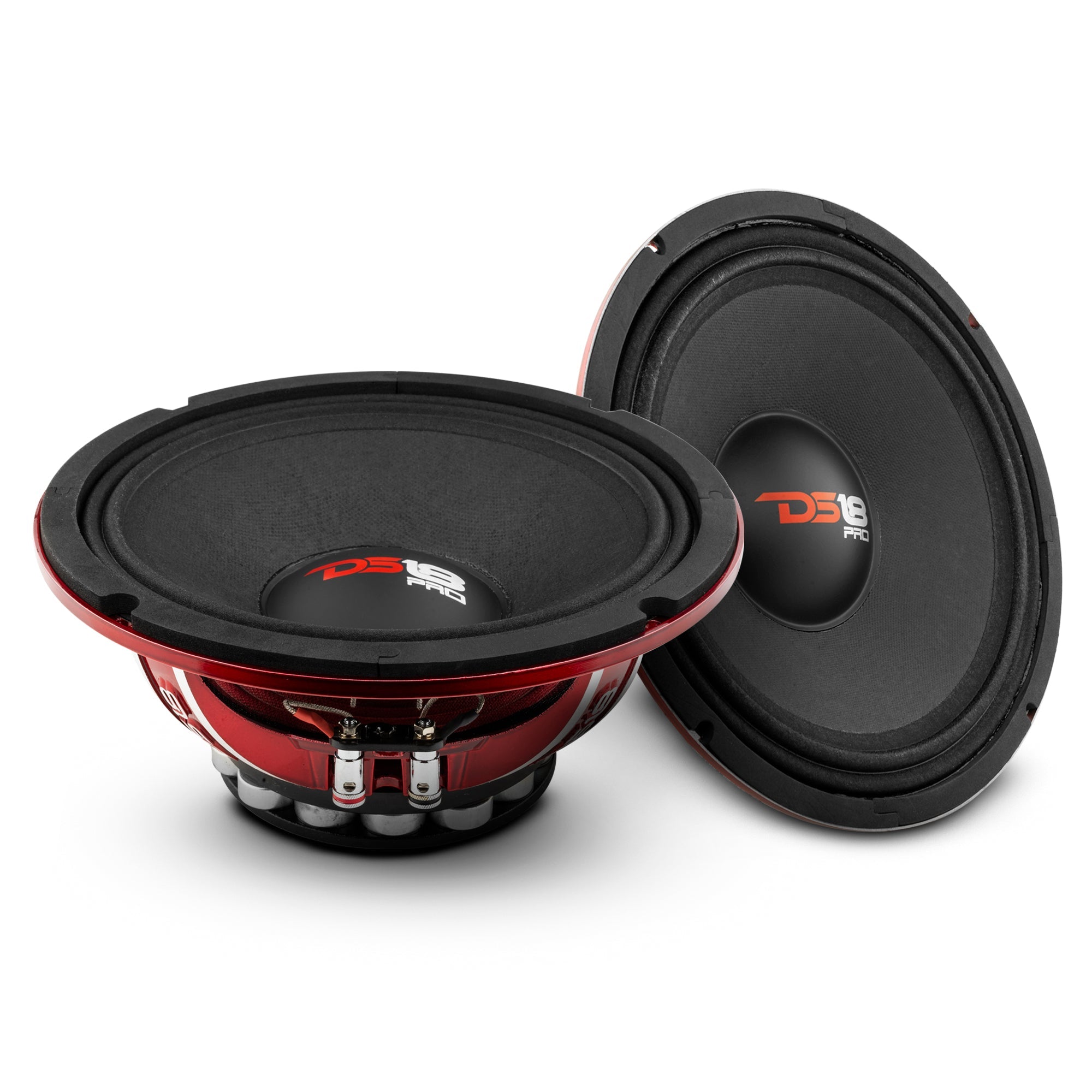

PRO 10" Neodymium Mid-Bass Loudspeaker 500 Watts Rms 4-Ohm
Product Overview DS18 PRO-NEO10R 10" Neodymium Mid-Range Loudspeaker 1000 Watts 4-Ohm DS18 amassed a wealth of experience...
Vendor:
DS18
Manufacturer SKU
PRO-NEO10R
Availability:
Out Of Stock
Product Type:
Midrange Loudspeakers
- $287.95
- $287.95
- Unit price
- per
Subtotal:
$287.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
DS18 PRO-NEO10R 10" Neodymium Mid-Range Loudspeaker 1000 Watts 4-Ohm

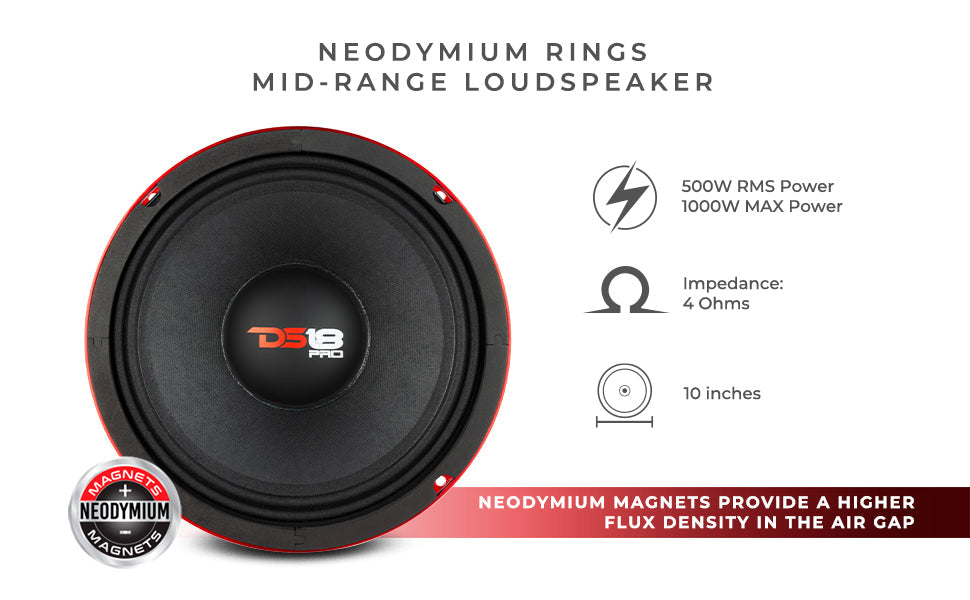

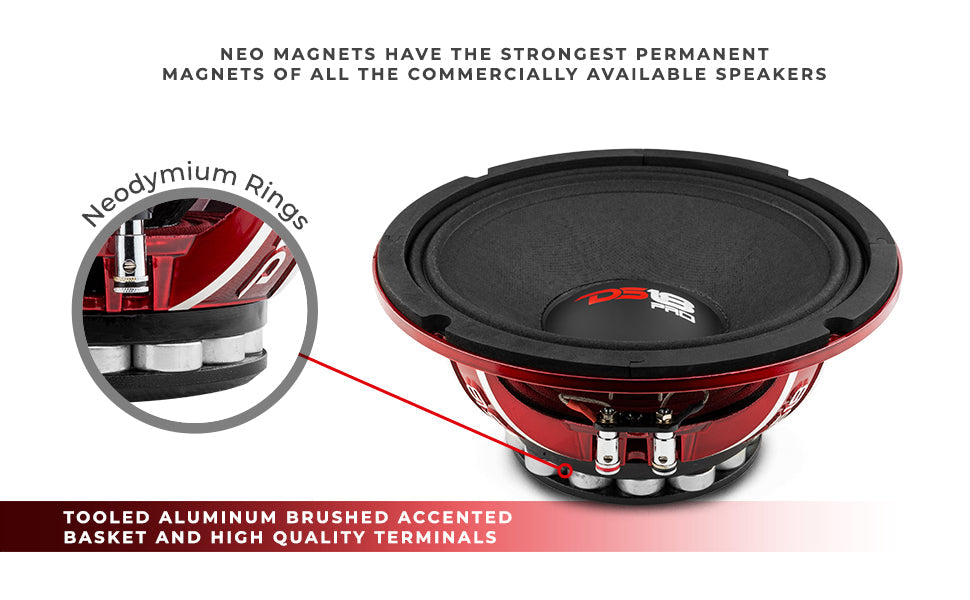

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.
Highlights

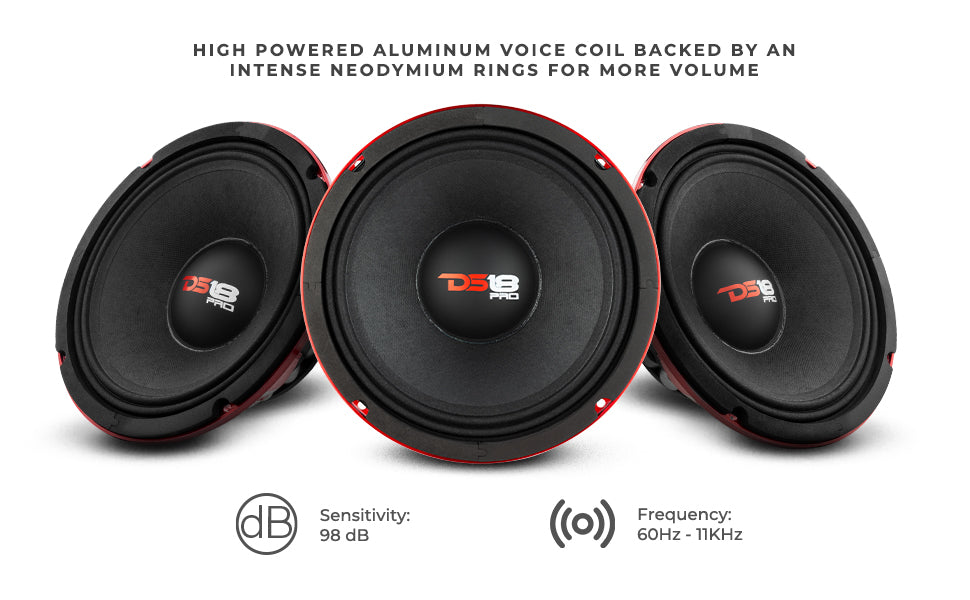

- High powered aluminum voice coil backed by an intense neodymium rings magnet for more volume at the highest efficiency on the market.
- Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals.
- Solid cone design that slays the midrange but is best accompanied by a pro audio super tweeter.
Technical Details
| Model: | PRO-NEO10R |
| Type: | Midrange Loudspeaker |
| Size: | 10" |
| RMS Power: | 500W |
| MAX Power: | 1000W |
| Frequency Response: | 60Hz - 11KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 98dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Neodymium Rings |
| Voice Coil Wire: | TICCAW |
| Measurements | |
| Voice Coil Size: | 2.5" |
| Magnet Weight: | 18 oz |

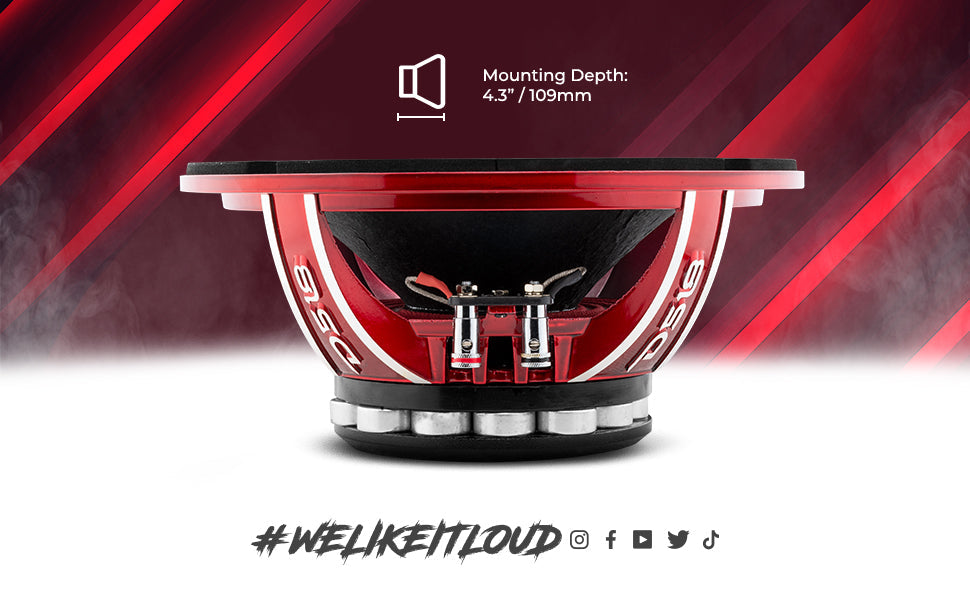

| Mounting Depth: | 4.28" (109mm) |
| Cut-Out Dimensions: | 9.02" (229mm) |
| Net Weight: | 3.65 Kg |
Key Features
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- Aluminum Basket
Specifications
| SKU | PRO-NEO10R |
|---|---|
| Nominal Diameter | 10" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 500W |
| Maximum Power Handing | 1000W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 60Hz - 11KHz |
| Recommended Hi Pass Crossover | 120 Hz |
| Voice Coil Diameter | 2.5" /65.5 mm |
| Voice Coil Former Material | Ti |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Vas | 12.5 L |
| Xmax | 12 mm |
| Fs | 102 Hz |
| Qms | 1.158 |
| Qes | 0.316 |
| Qts | 0.248 |
| Re | 3.2 ohms |

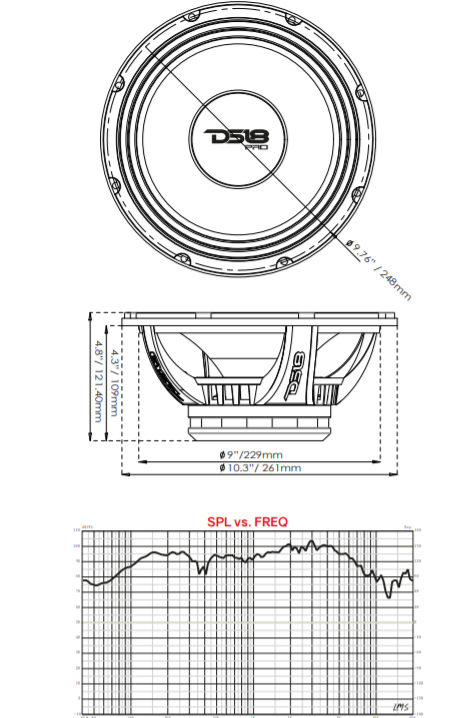

| Overall Diameter | 10.3" / 261mm |
| Front Mount Baffle Cutout | 9" / 229mm |
| Mounting Depth | 4.3" / 109 |
| Overall Depth | 4.8" / 121.4mm |
| Product Weight | 8.5 lbs |
| Product Dimensions | 10.875 x 10.875 x 5.25 |
| M/C Weight | 36 lbs |
| M/C Dimensions | 22.5 x 11.75 x 12 |
| M/C QTY | 4 |
| Sold In | Piece |
