PMX-1 Compact Digital Media Receiver w/ 2.7" Display

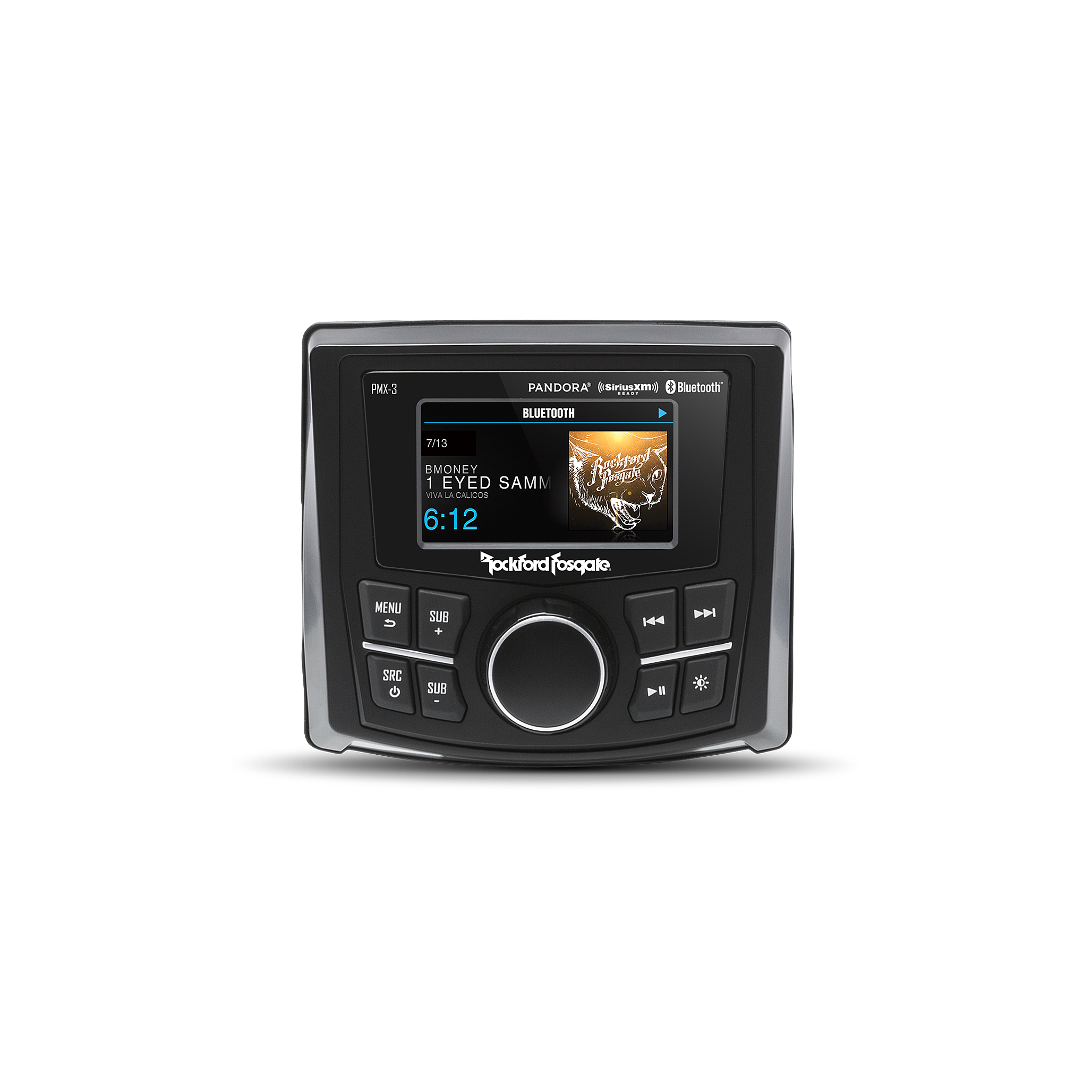

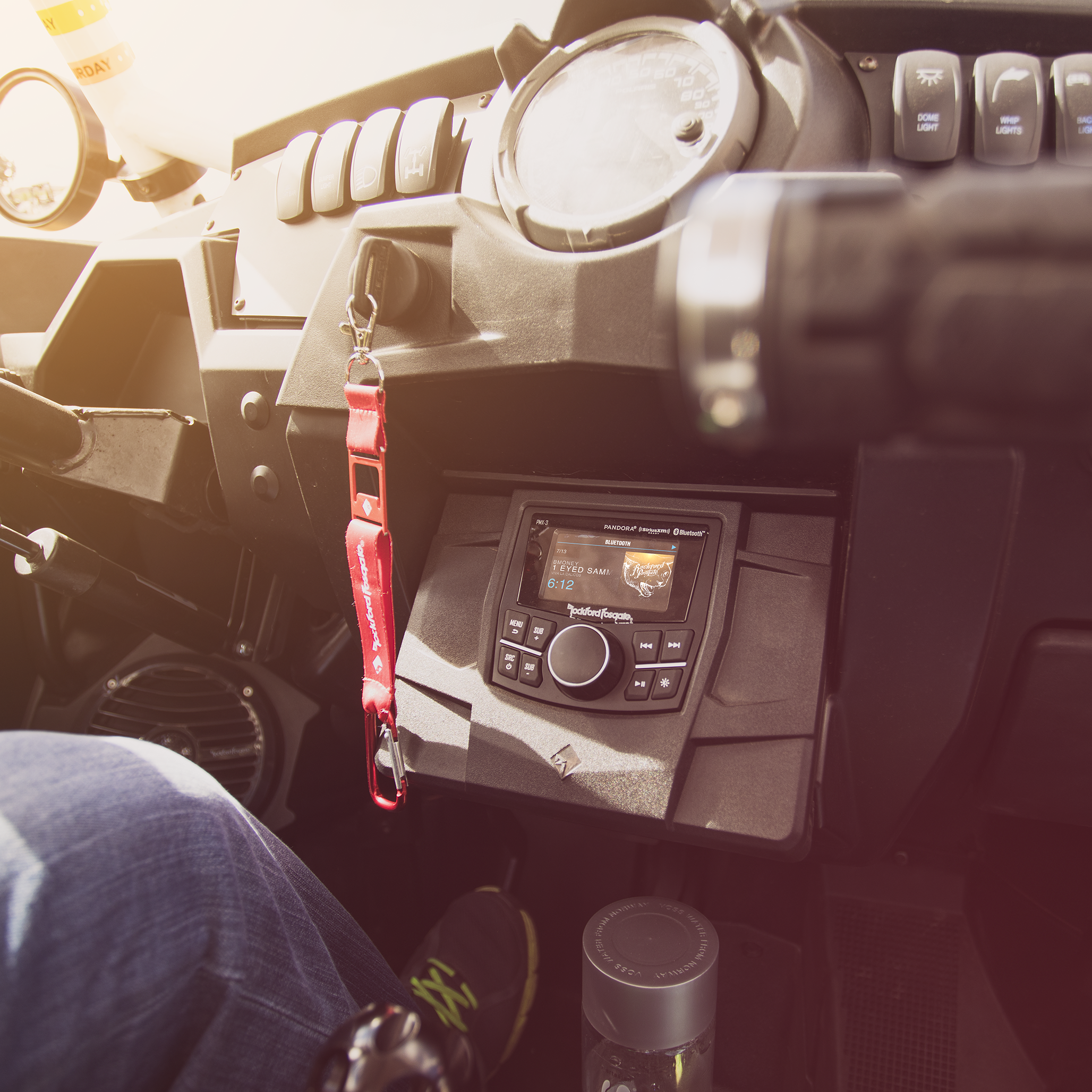

The PMX-3 is a ground-up designed digital media receiver for marine and motorsports applications with a full-color 2.7" TFT display.

Features

• 2.7" Full color Thin Film Transistor display
• SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
• Wired remote ready (up to 3 remotes)

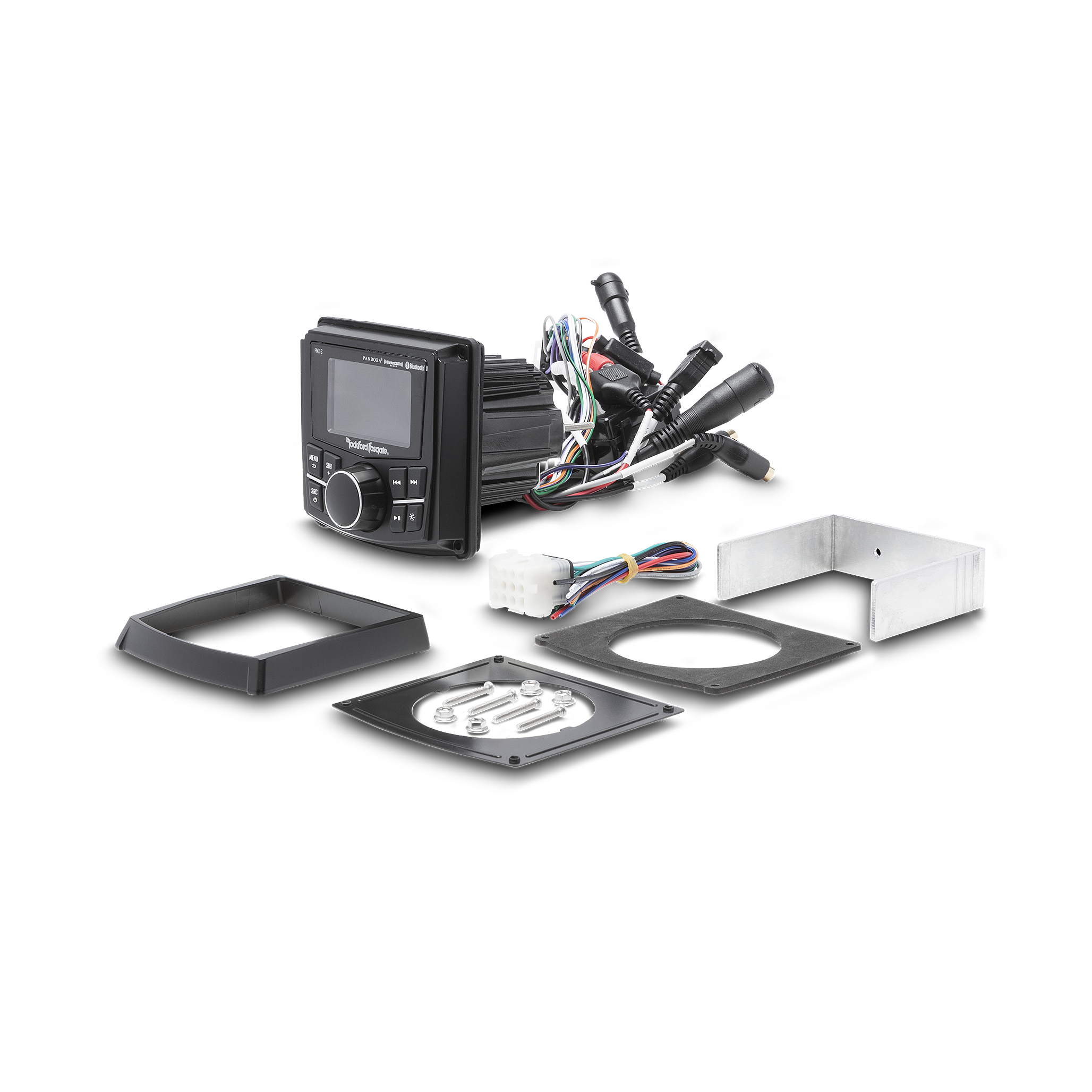

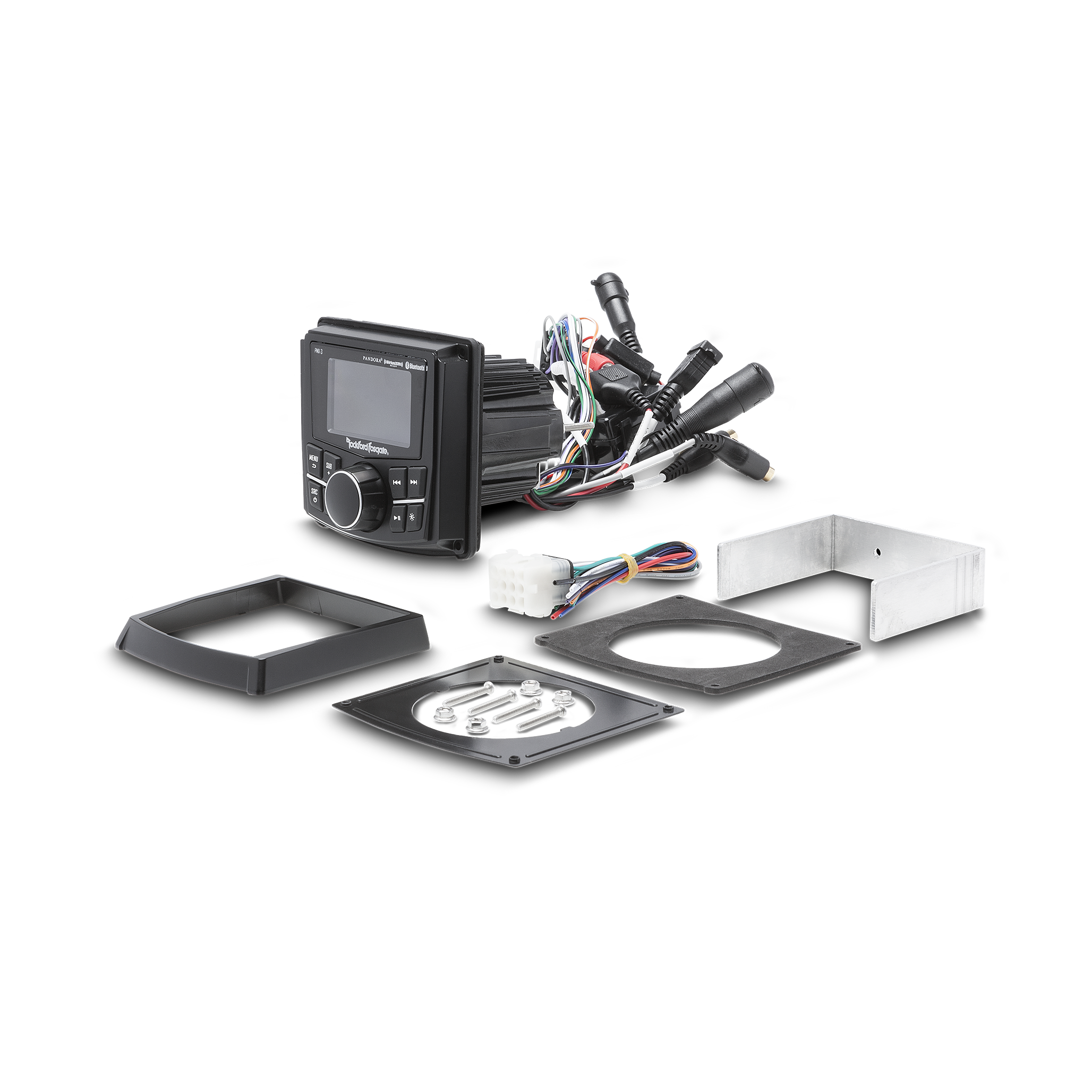

• Two-piece mounting system to secure panel to mounting surface
• Upgradeable Firmware and Bluetooth Software via USB
• IPX6 Marine Grade for prevention of water intrusion
• Integrated voltage gauge w/ low voltage alert
• ASTM: B117 Salt Fog & D4329 UV Exposure Tested
• Rear AUX-In (L/R)
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Bluetooth streaming audio (A2DP) protocol version 1.4 installed
• Internal power amplifier 4x45W 2Ω stable
• Front Panel Sub Control
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
• Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
• Rear USB With 1A Charging Only
• Simple Secure Pairing (SSP)
• Selectable crossover slopes of 12dB or 24 dB for each zone
• Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
• Folder browsing via BT connected iPhones
• Made for iPhone apple certified
• Dedicated DSP per zone with 7-band graphic EQ + Punch EQ
• Selectable high pass and low pass crossover points for each zone
• Display album art from connected iPhones on the radio display
• Waterproof Rotary Encoder Volume Control
• White LED Button Illumination
• Adjustable input gain for each source
• Wired and front panel illumination control
• Tactile convex buttons for easy identification
• Wet Bonded Display
• Epoxy coated circuit board for water resistance
• Direct composite video input connection
• External trigger input to activate reverse camera mode
• Day/Night display mode
• 2-Year Warranty

Technologies

• SiriusXM-Ready®: This radio is ready to accept SiriusXM® satellite programming.
• IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects.
• ASTM B117 & D4329 Tested: ASTM B117 & D4329 Tested
• Made for Android: This device supports the Google "Made for Android" protocol.
• Built In Bluetooth®: Built In Bluetooth®
• USB Playback: This source unit supports playback from a USB device.
• Made for iPod/iPhone: This device supports the Apple "Made for iPod/iPhone" protocol.
• Element Ready™ | Source Units: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• Pandora® Internet Radio: Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
• FLAC: The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.

Specifications

FEATURES
Bluetooth® (Yes/No)	Yes 3.0+EDR, A2DP 1.3
Pandora® Internet Radio (Yes/No)	Yes
SiriusXM-Ready® (Yes/No)	Yes
Apple®/Android™ Compatible (Yes/No)	Yes Limited functionality on Android. See owners manual.
Clock (Yes/No)	No
Steering Wheel Control Ready (Yes/No)	No
Multi-Zone/Multi-Source (Yes/No)	No
Speaker Outputs (Yes/No)	Yes
USB Charging (Yes/No)	Yes
AUX Input (Yes/No)	Yes (1pr)
TUNER
FM TUNER Frequency Range	87.5 MHz - 107.9 MHz
TUNER Number Of Presets	18 FM / 12 AM / 6 WB
FM TUNER Sensitivity	8 dB
AM TUNER Frequency Range	530 kHz - 1710 kHz
AM TUNER Usable Sensitivity	40 dB
WB TUNER Frequency Range	162.40 - 162.55 (US & Canada)
PREAMP OUTPUTS
RCA Outputs	(1 pr) Front (1 pr) Rear (or Sub-out)
RCA Output Voltage	2V RMS Does not clip at full output
RCA Output Impedance	500Ω
SPEAKER OUTPUTS
Speaker Impedance	2-Ohms
Power Output	CEA-2006 Power Rating 25W x 4 @ 4Ω RMS 50W x 4 @ 2Ω Peak ≤1.0% THD+N
Frequency Response	20 Hz - 20 kHz
MEDIA PLAYER
Audio Format Compatibility	MP3 WMA FLAC
Made for iPod Models	iPod Touch (5th generation) iPod Touch (4th generation) iPod Nano (7th generation) iPod Nano (6th generation)
Made for iPhone Models	iPhone XS (pending) iPhone XS Max iPhone XR (pending) iPhone X iPhone 8 iPhone 8 Plus iPhone 7 iPhone 7 Plus iPhone 6s iPhone 6s Plus iPhone 6 iPhone 6 Plus iPhone 5S iPhone 5C iPhone 5 iPhone 4 iPhone 4S Phone 3GS
Android Compatibility	Bluetooth® Only
GENERAL
Device Type	Digital-Media Receiver
Display Size	2.7” Color TFT
USB Capacity	32Gb max 999 Folders max 999 Songs max
USB Version	2
USB Output Current	1A
Compatible Remotes	PMX-1R PMX-0R (3 Remote Limit, 100 ft Total Wired Distance)
Operating Voltage	10.5 V - 16 V
Back Panel Cutout	3" (77mm)
Fuse Rating	20 A
Dimensions (HxWxD)	Width 4.5" (11.5 cm) Face Depth 1.5" (3.8 cm) Mount Depth 3.0" (76.2 cm) Height 4.2" (10.6 cm)
Shipping Weight	3.1 Lbs. (1.41 Kg)
