PANCADÃO Mid-Bass Loudspeaker 8" 1000 Watts Rms 4-Ohm
Product Overview DS18 PRO-1KP8.4 PANCADÃO Mid-Bass/Woofer Loudspeaker 8" 1000 Watts RMS 4-Ohm The Pancadao from DS18 has...
- $203.95
- $203.95
- Unit price
- per
Subtotal:
$203.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

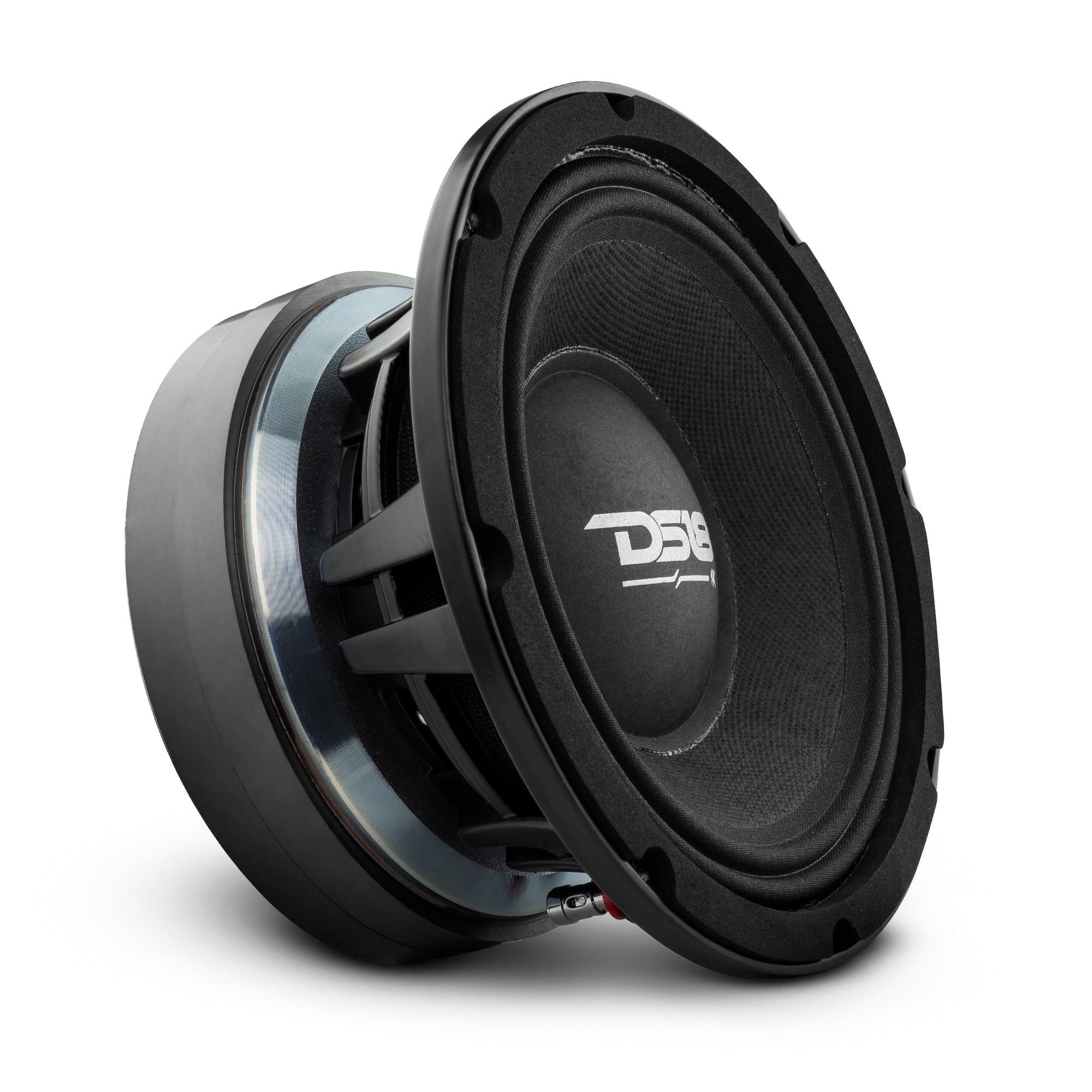

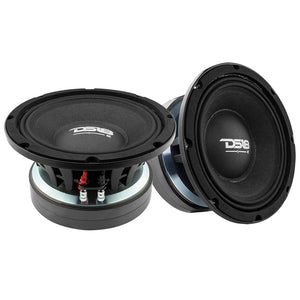

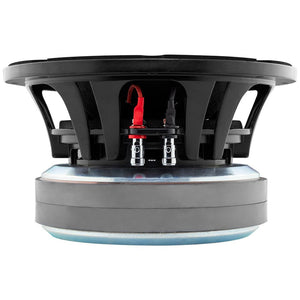

DS18 PRO-1KP8.4 PANCADÃO Mid-Bass/Woofer Loudspeaker 8" 1000 Watts RMS 4-Ohm
The Pancadao from DS18 has new siblings to complement anyone's high performance pro audio system! Now, not only do we offer them in 12", but also 10", and 8" so everyone can get a piece of Pancadao in their build. These high performance "do all" woofers can play an amazing range of frequencies. From hard punching mid-bass to mid high vocals at an unbelievable volume. These are the go to DS18 Pro Audio speakers to set your sound above the rest.
Highlights
- The most powerful mid-bass DS18 has to offer that not only plays intense punch mid-bass, it also has the ability to play mid to high vocals as well.
- Large high strength ferrite magnet and reinforced basket for great power handing and durability.
- Designed for intense mid-bass and high powered audio systems needing massive mid-bass.
Technical Details
| Model: | PRO-1KP8.4 |
| RMS Power Handling: | 1000 Watts |
| MAX Power Handling: | 2000 Watts |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response: | 110Hz-15kHz |
| Minimum Impedance: | 4 Ohms |
| Voice Coil Diameter: | 3" |
| Winding Material: | CC AW |
| Magnet Weight: | Ferrite 90oz |
| Basket Material: | Aluminum |
| Overall Diameter: | 8.38" |
| Baffle Cutout Diameter: | 7.28" |
| Overall Depth: | 4.92" |
| Mounting Depth: | 4.33" |
Key Features
- 8" Mid-Bass
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- Easily Repaired With The PRO-1KP8.4RCK
Specifications
| SKU | PRO-1KP8.4 |
|---|---|
| Nominal Diameter | 8" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 1000W |
| Maximum Power Handing | 2000W |
| Sensitivity (1w/1m) | 96dB |

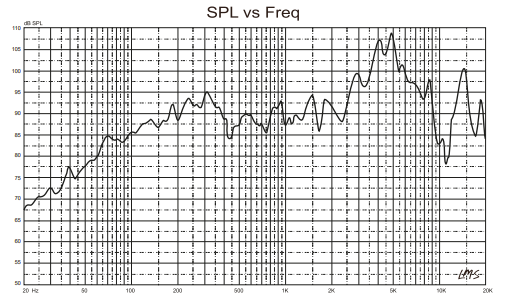

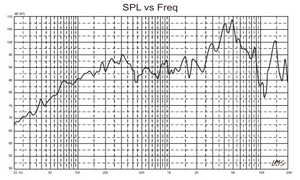

| Frequency Response | 110Hz-15KHz |
| Recommended Hi Pass Crossover | 120 Hz |
| Voice Coil Diameter | 3" |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 90 oz |
| Vas | 4.737 L |
| Fs | 120Hz |
| Qms | 11.44 |
| Qes | 0.312 |
| Qts | 0.304 |
| Re | 2.8 ohm |

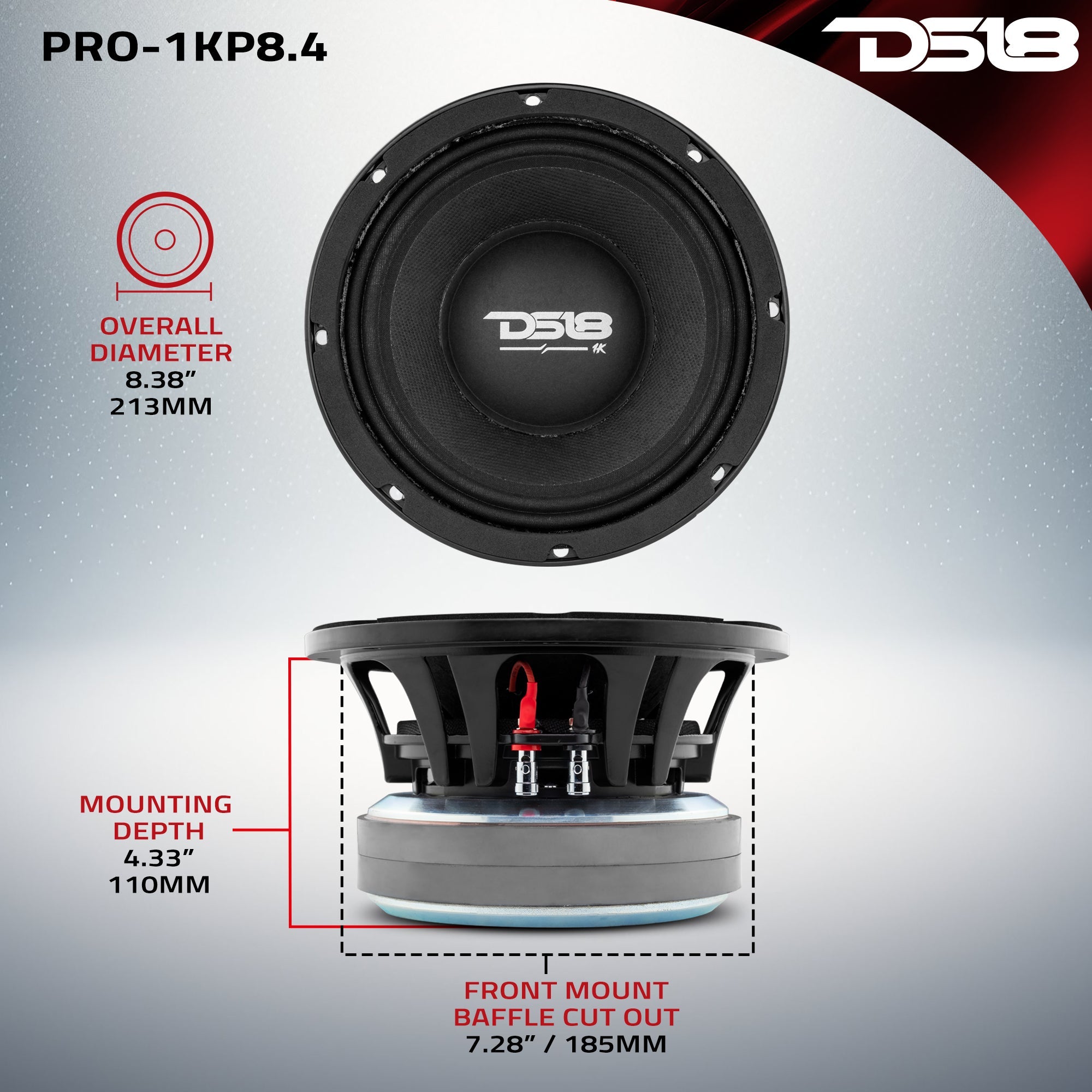

| Overall Diameter | 8.38" / 213 mm |
| Front Mount Baffle Cutout | 7.28" / 185 mm |
| Mounting Depth | 4.33" / 110 mm |
| Overall Depth | 4.92" / 125 mm |
