P3SD2-8
P3SD2-8
P3SD2-8
Overview

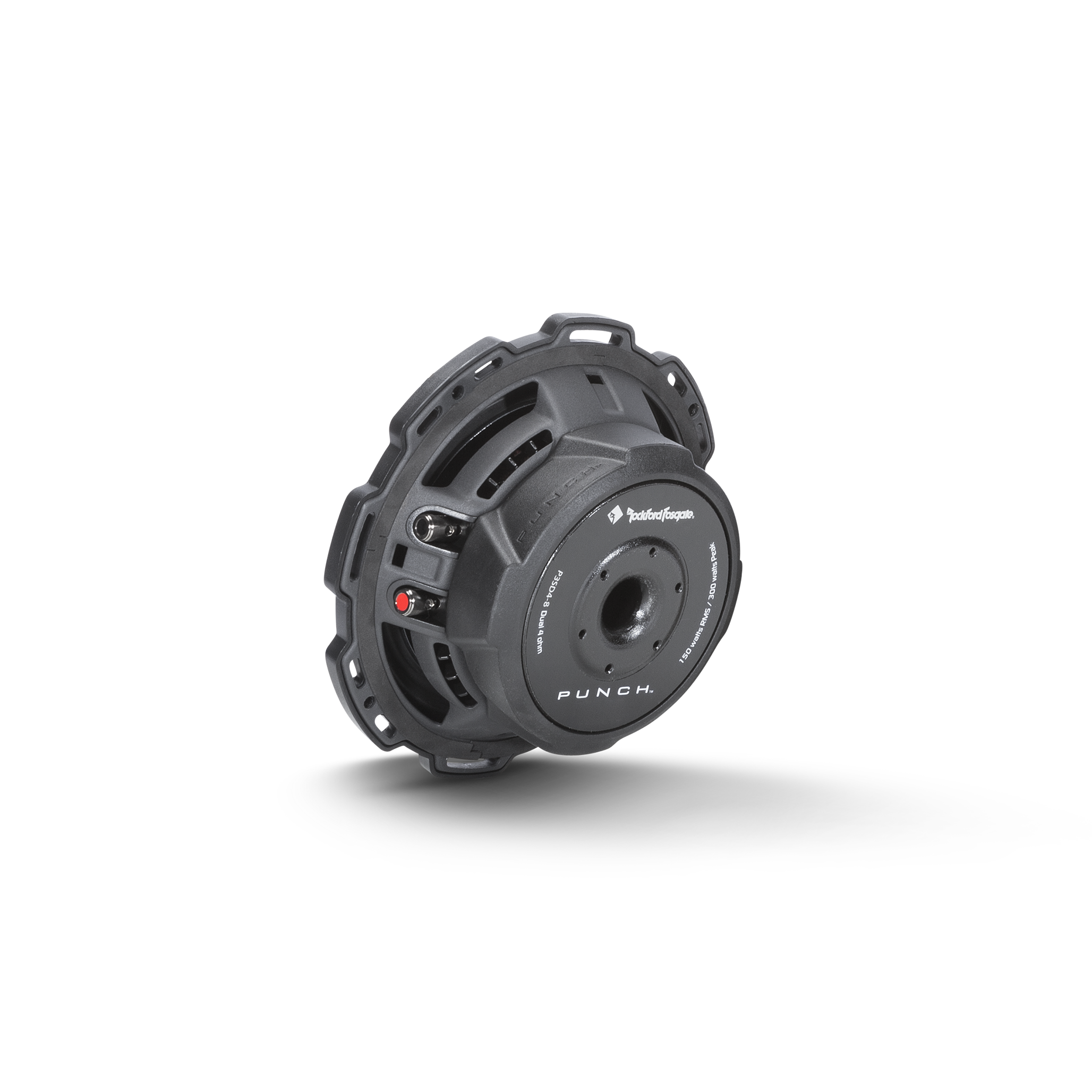

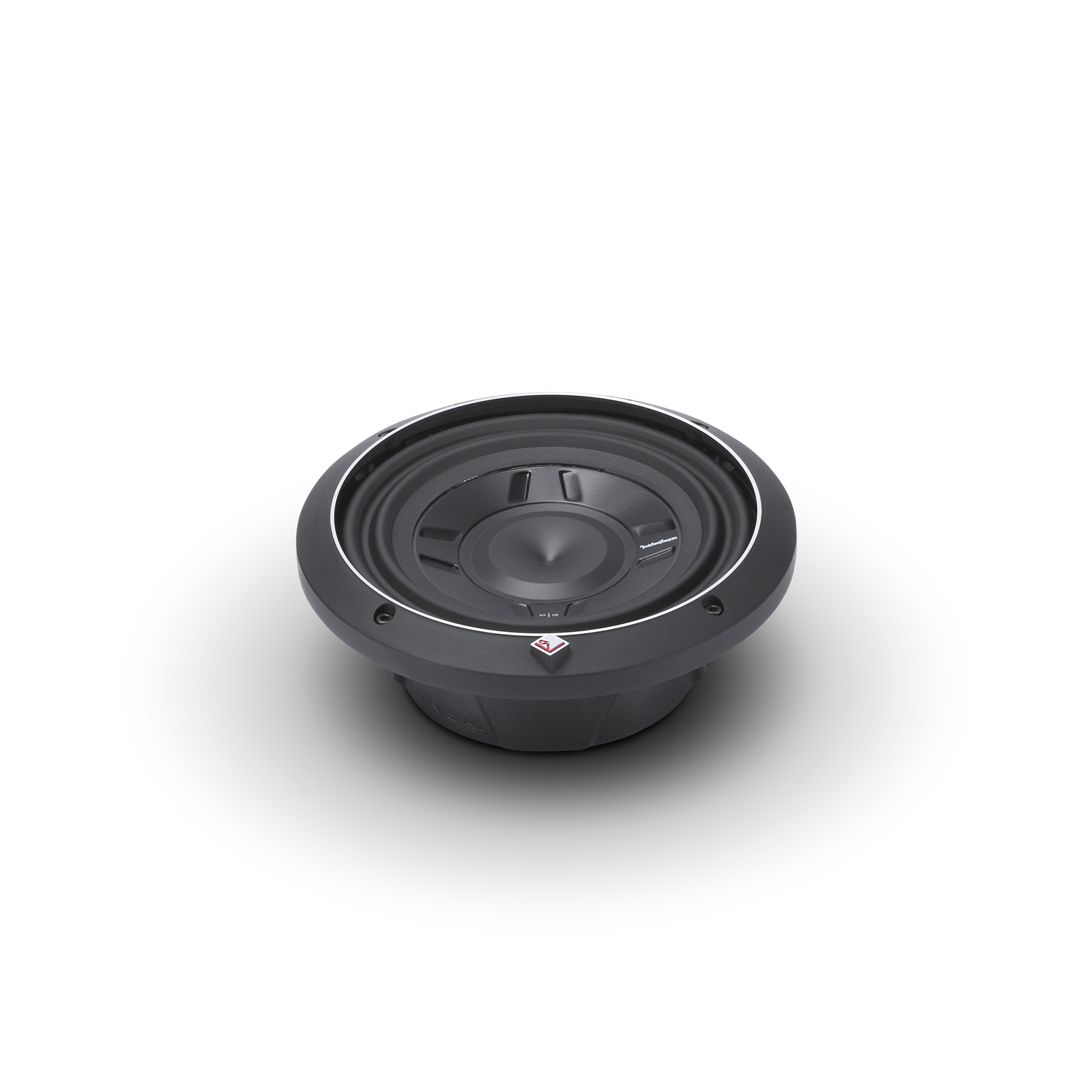

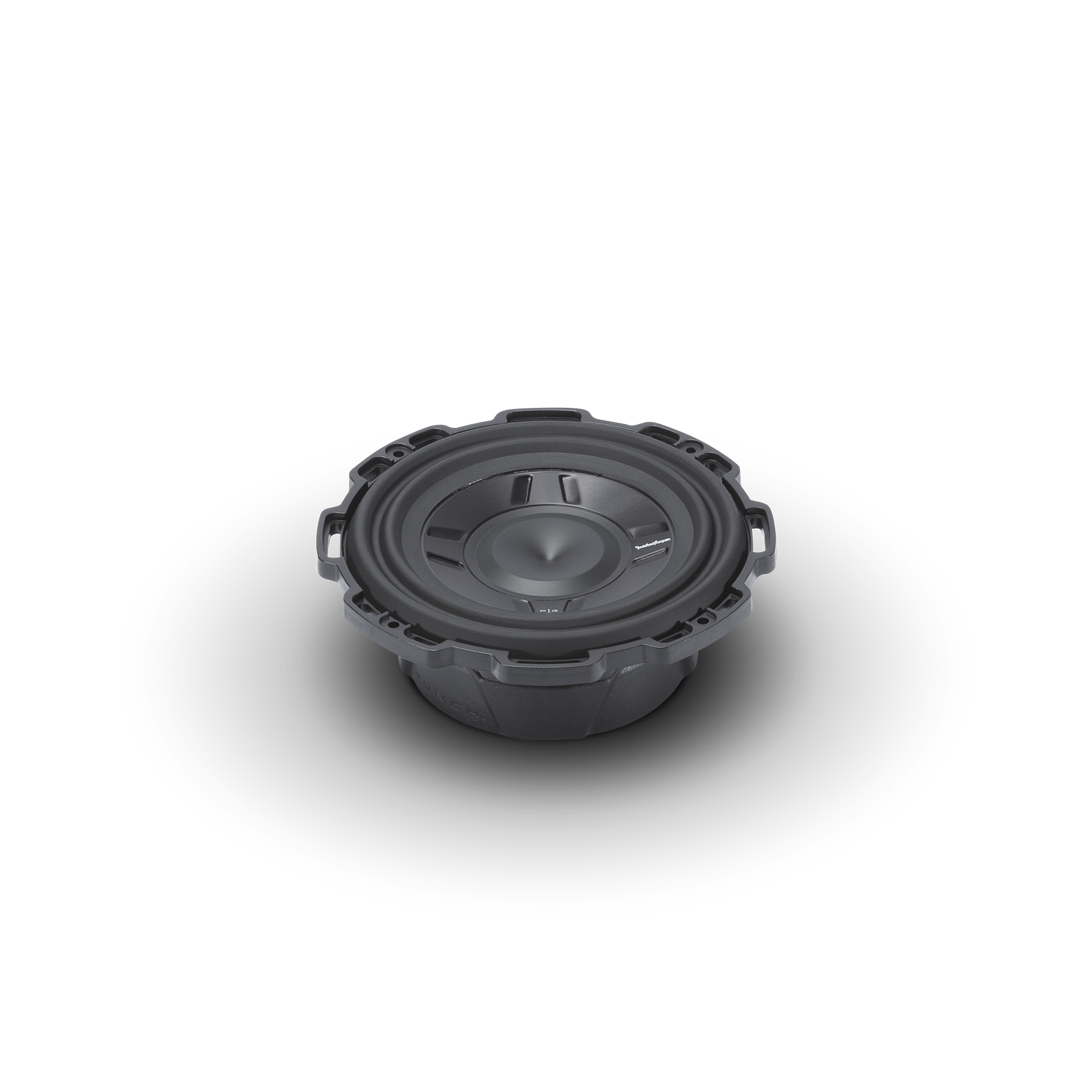

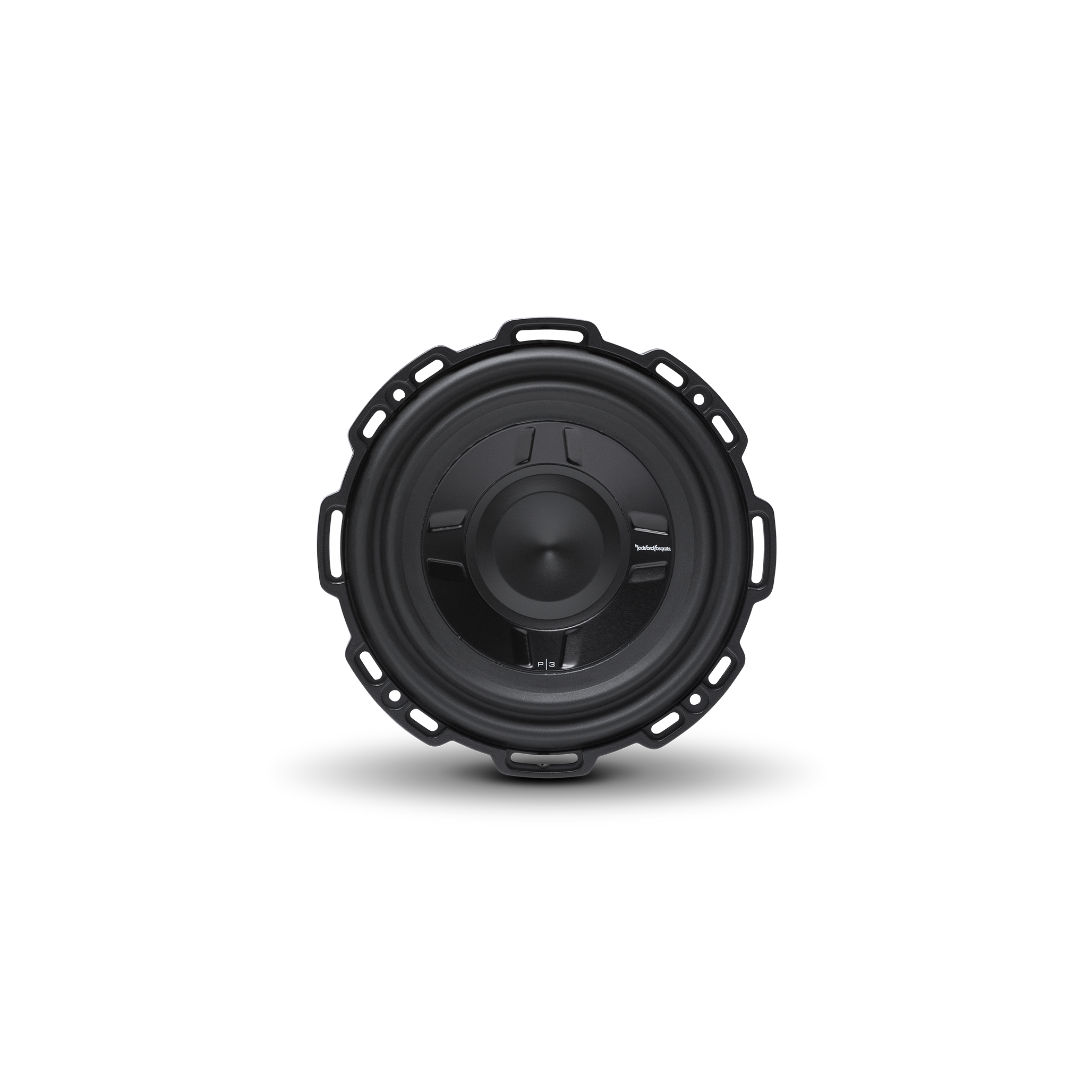

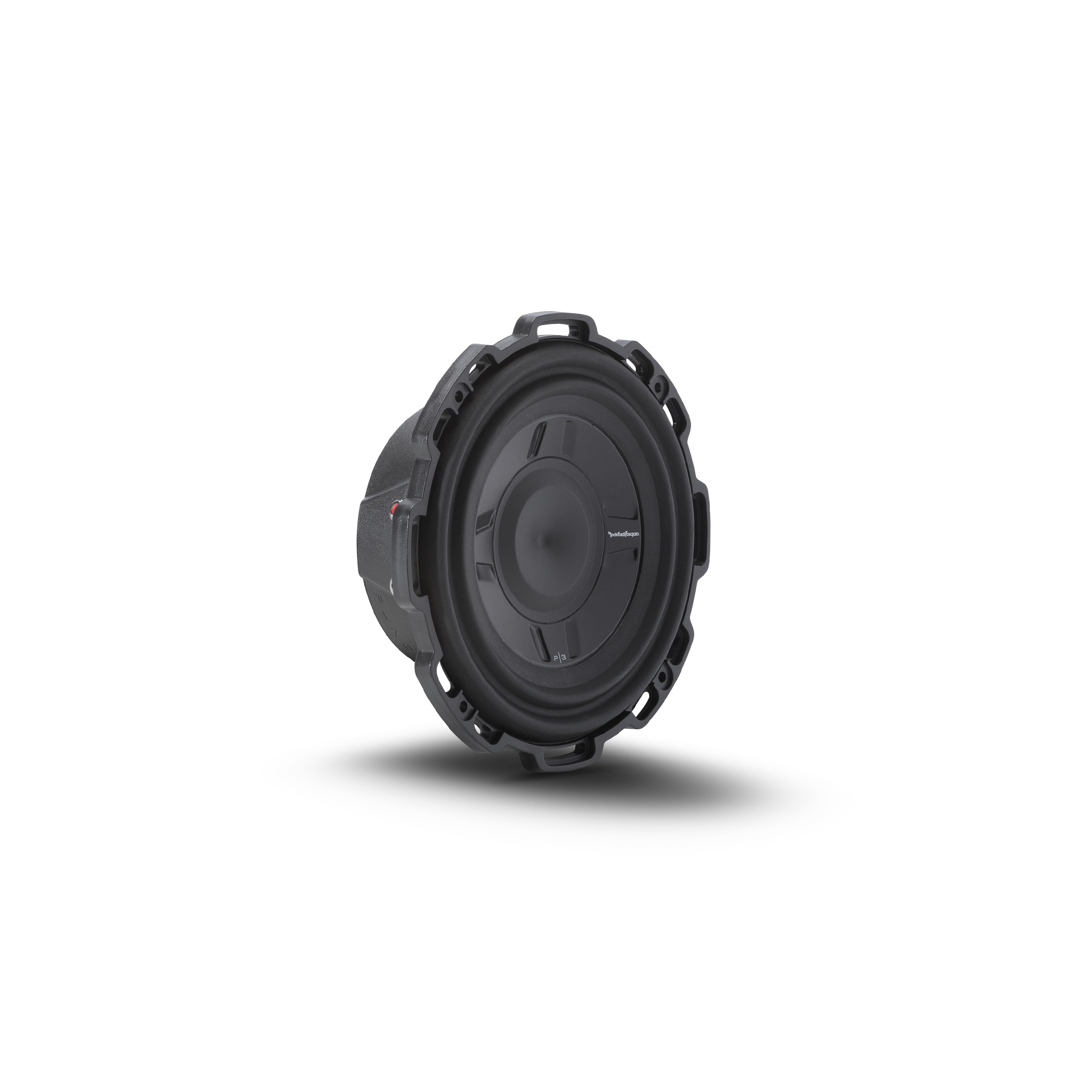

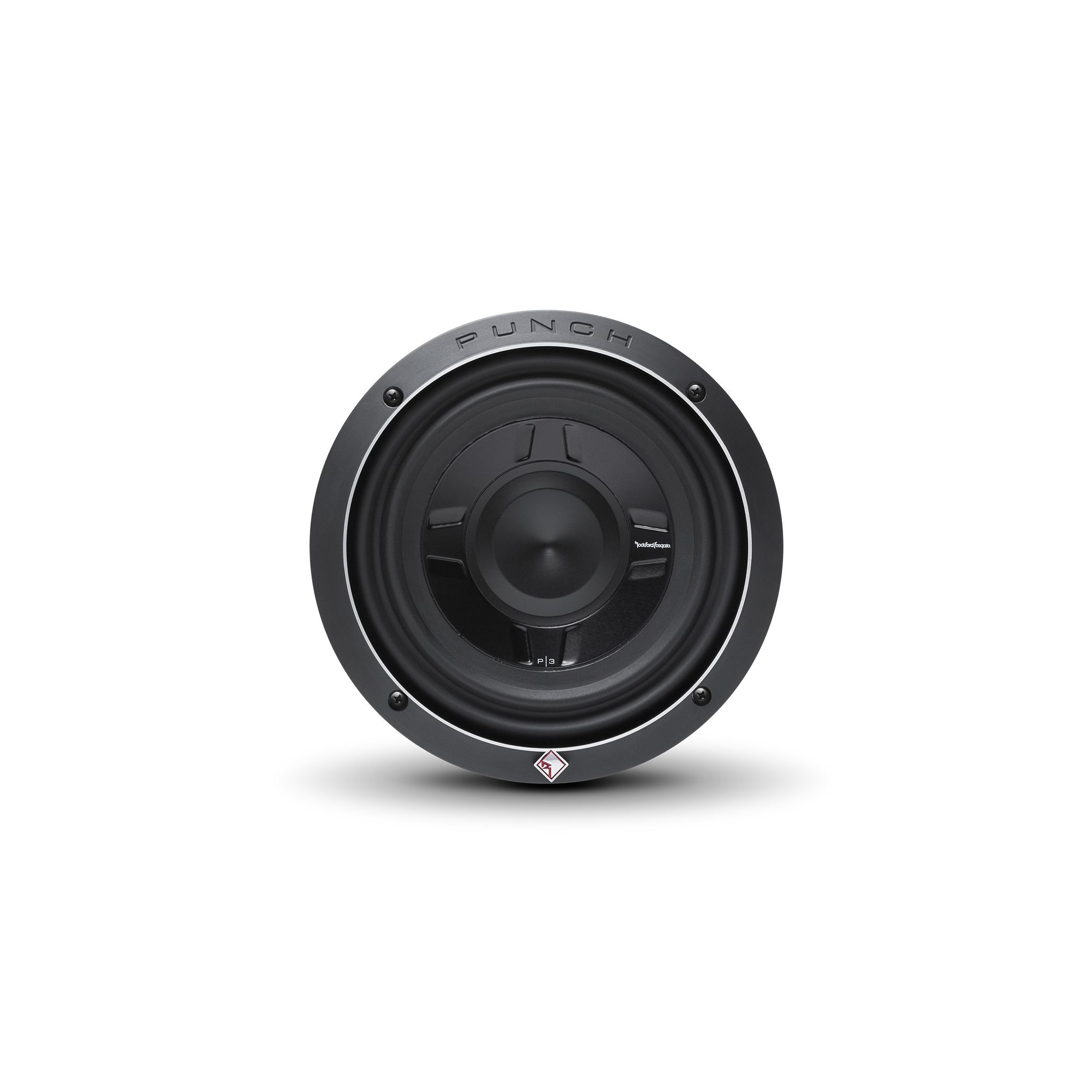

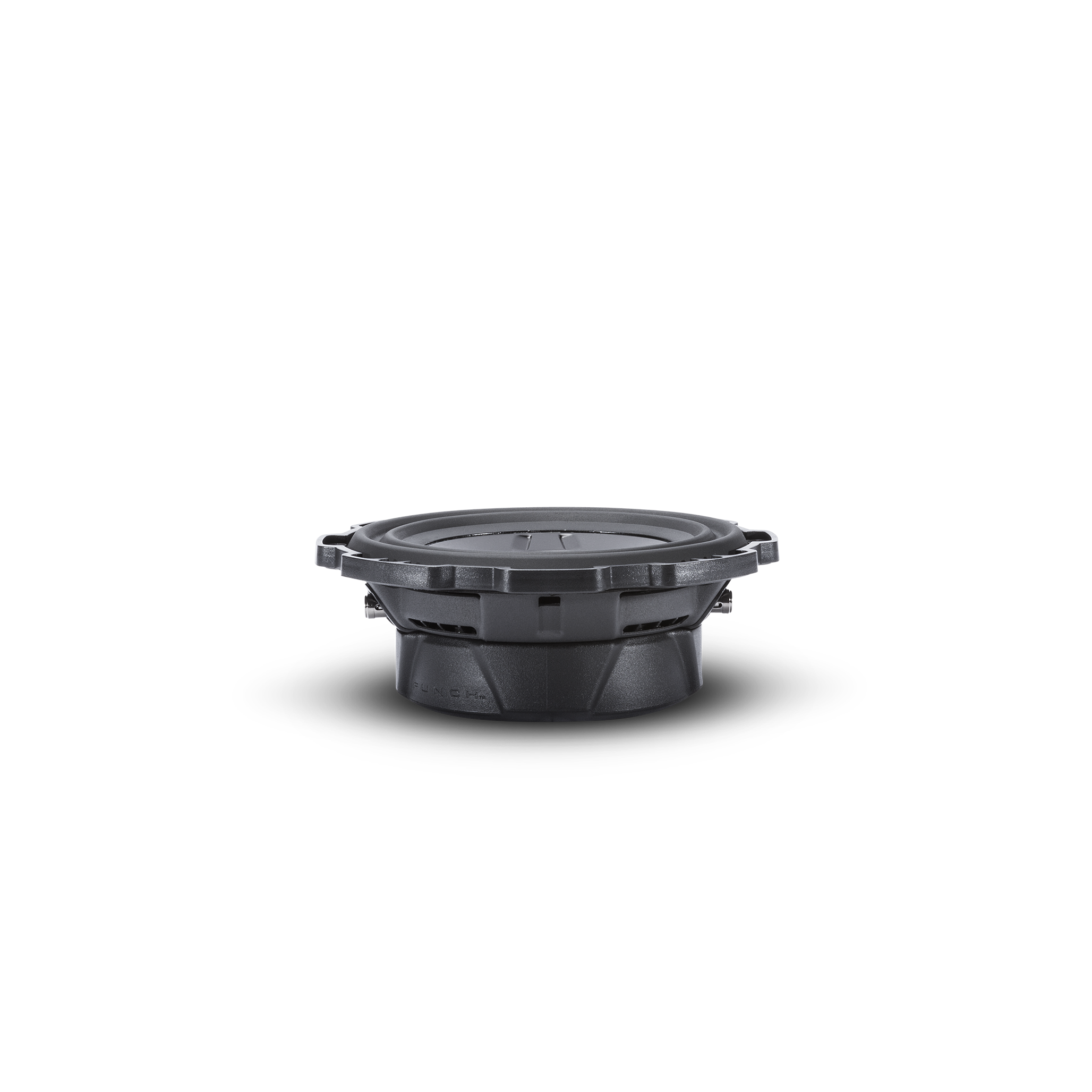

Rockford Fosgate P3S 8" shallow mount subwoofer delivers "Punch" even when depth is limited. The P3SD2-8 features Dual 2-Ohm voice coils for wiring.
Features
- 1 Year Warranty
- M-Roll SantopreneTM surround
- StampCast basket with integrated spider venting
- Anodized aluminum cone and dustcap
- Diamond cut cast aluminum trim ring with optional grille
- Dual linear spider with embedded 16 AWG tinsel leads
- Optimized for both sealed and vented enclosures
- Shallow Motor Assembly
Specifications
- Magnet Weight (kg) NOT USED: 1.06 oz. (37.5 kg.)
- Qms: 5
- Size: 8"
- Vas (Liters): 15.8
- Speaker Connector: Dual 10 AWG Compression
- Mounting Depth: 2.66 in. (67.5 mm)
- Voice Coil Diameter: 2" (51.6mm)
- Shipping Weight: 8.8 Lbs. (3.99 Kg.)
- SPL (dB @ 1w/1m): 82
- Woofer Displacement: 0.040 cu. ft. (1.13 Liters)
- Re (Ohms): 3.2
- Le (mH): 0.9
- Nominal Impedance: Dual 2-Ohm
- Power Handling (Watts RMS): 150 Watts RMS; 300 Watts Max
- Qts: 0.72
- Magnet Weight (oz): 37.5 oz. (1.06 Kg)
- Qes: 0.837
- Xmax (mm): 8.3
- Cutout Diameter: 7.13 in. (181.0 mm)
- Fs (Hz): 38
- Sd (cm2): 220
- Subwoofer Type: Shallow
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.25 cu. ft. (7.0 Liters)
- Vented Box Volume (Vb): 0.75 cu. ft. (21.2 Liters)
