Overview

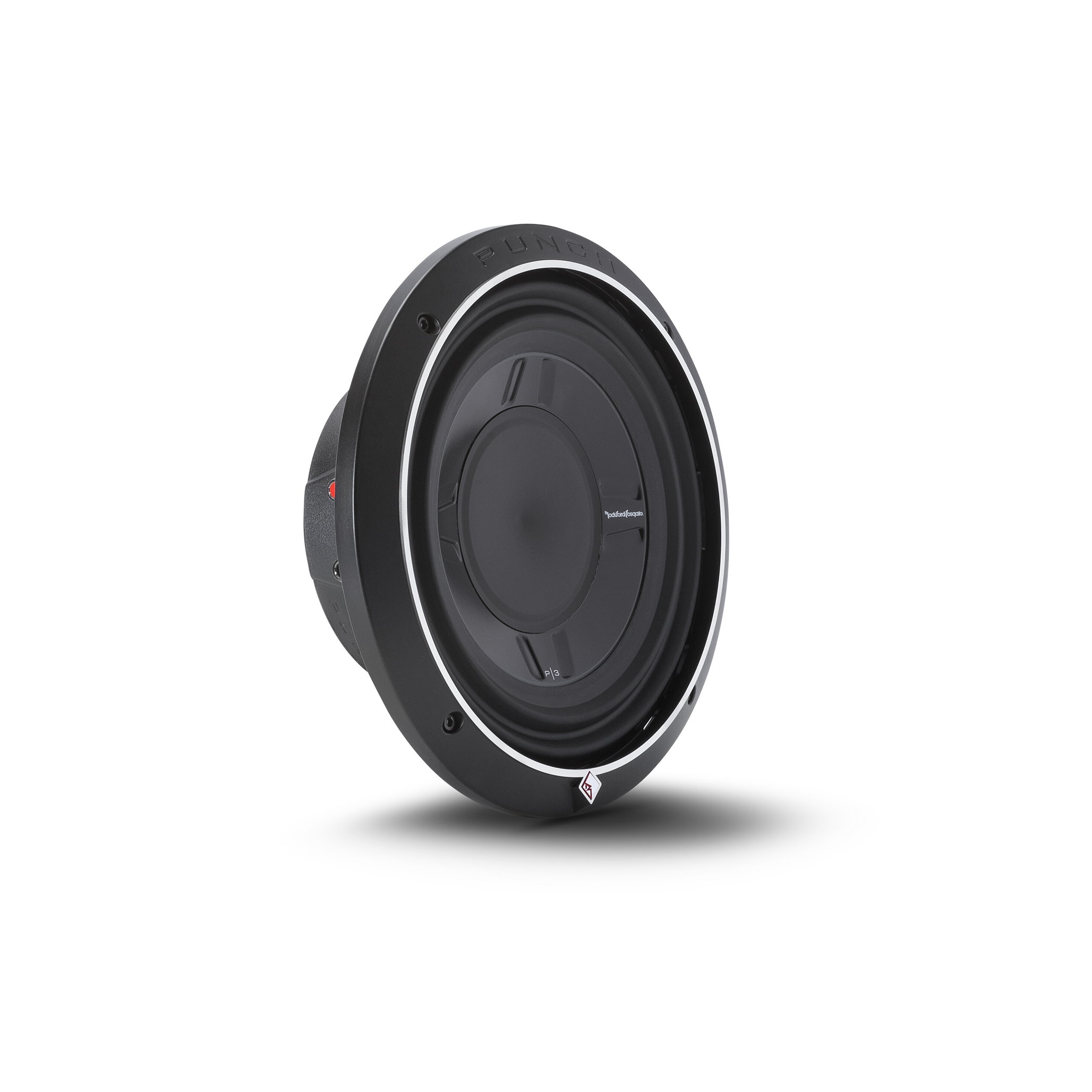

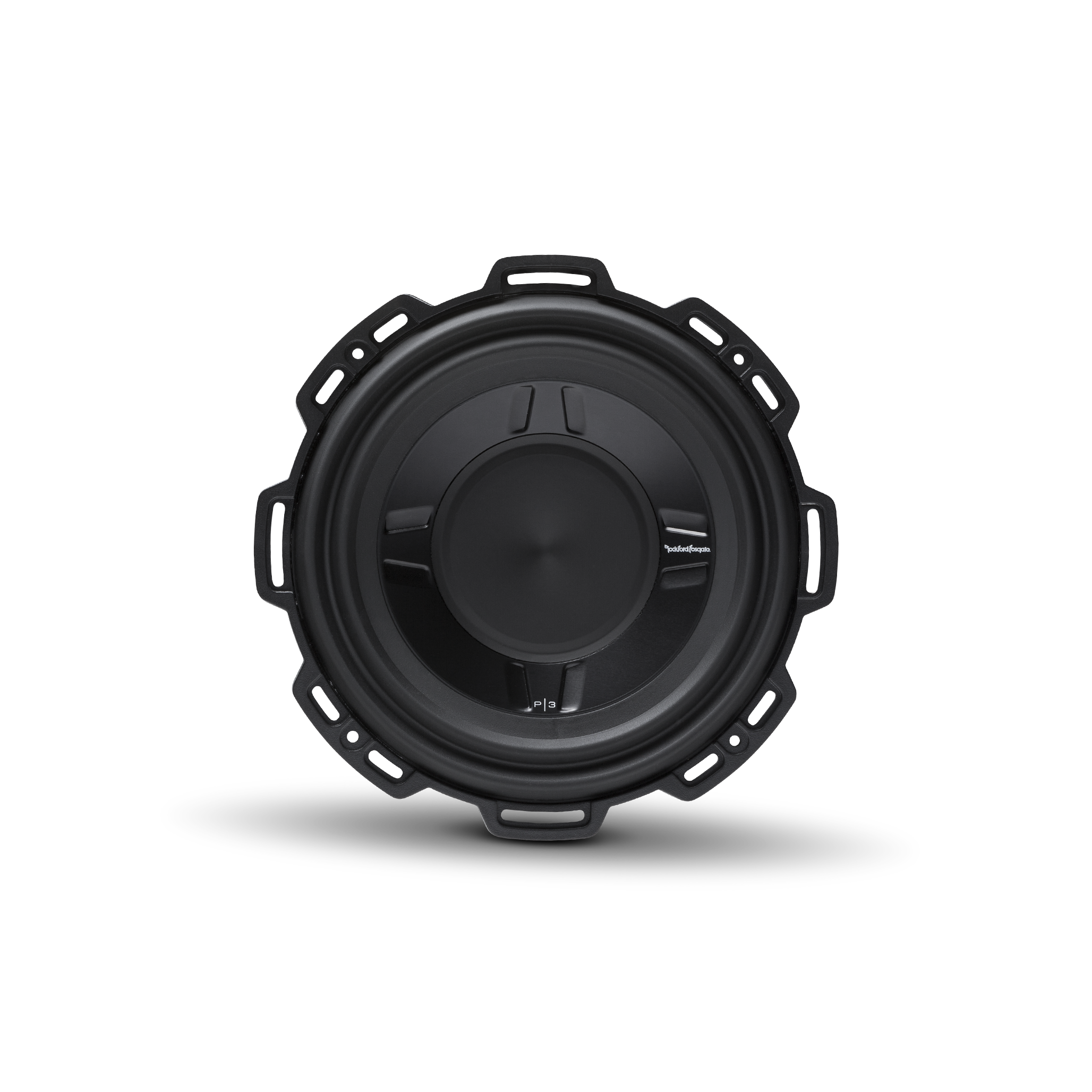

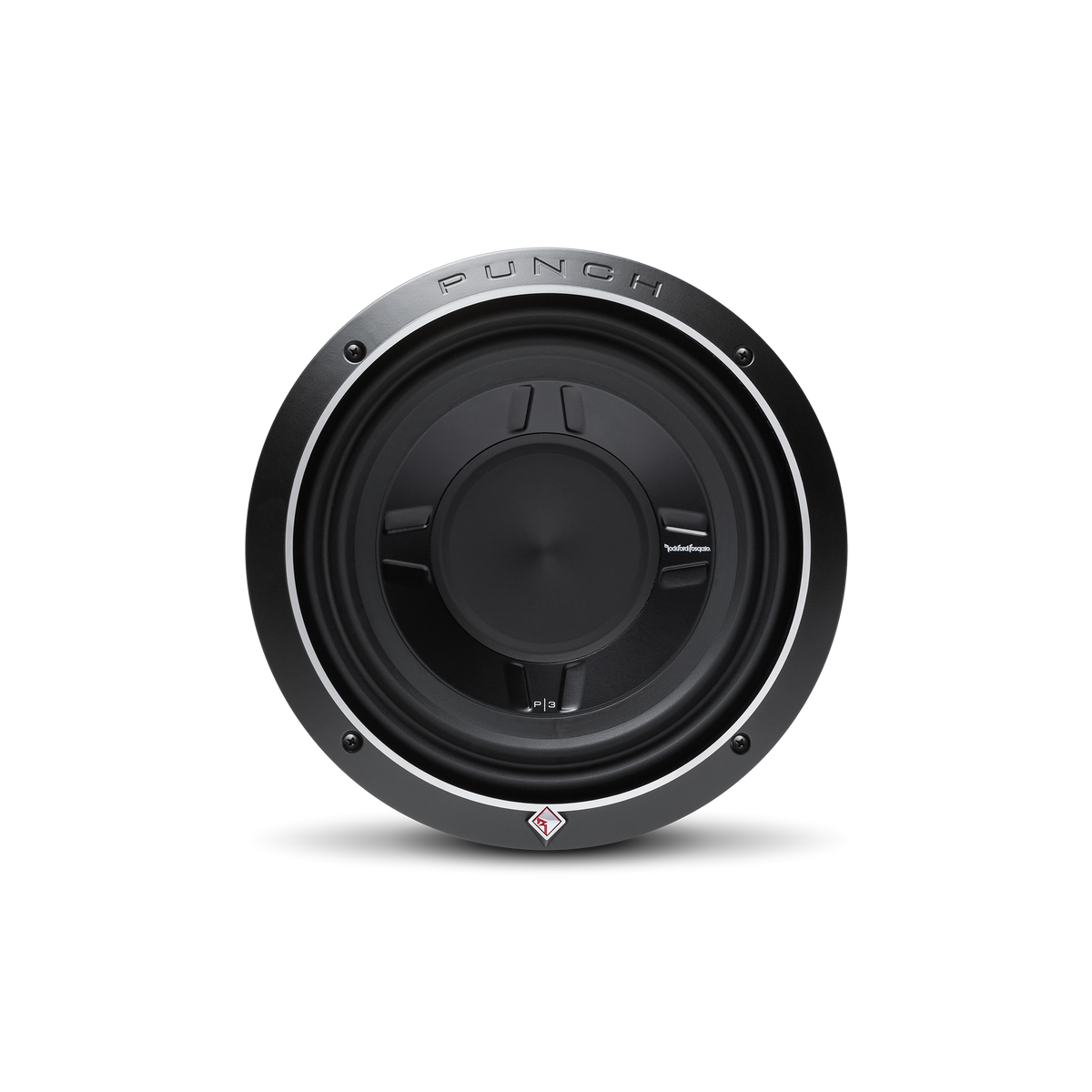

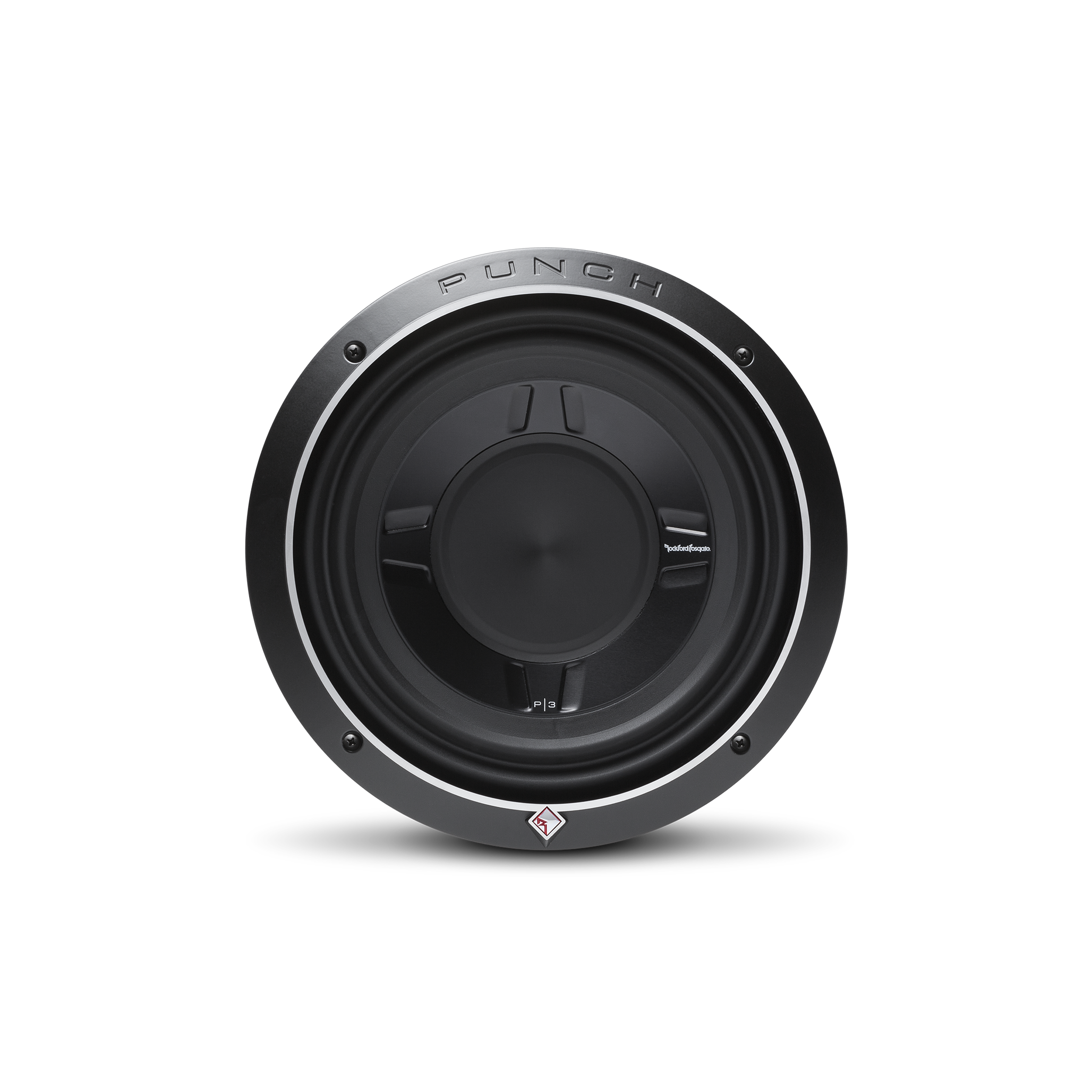

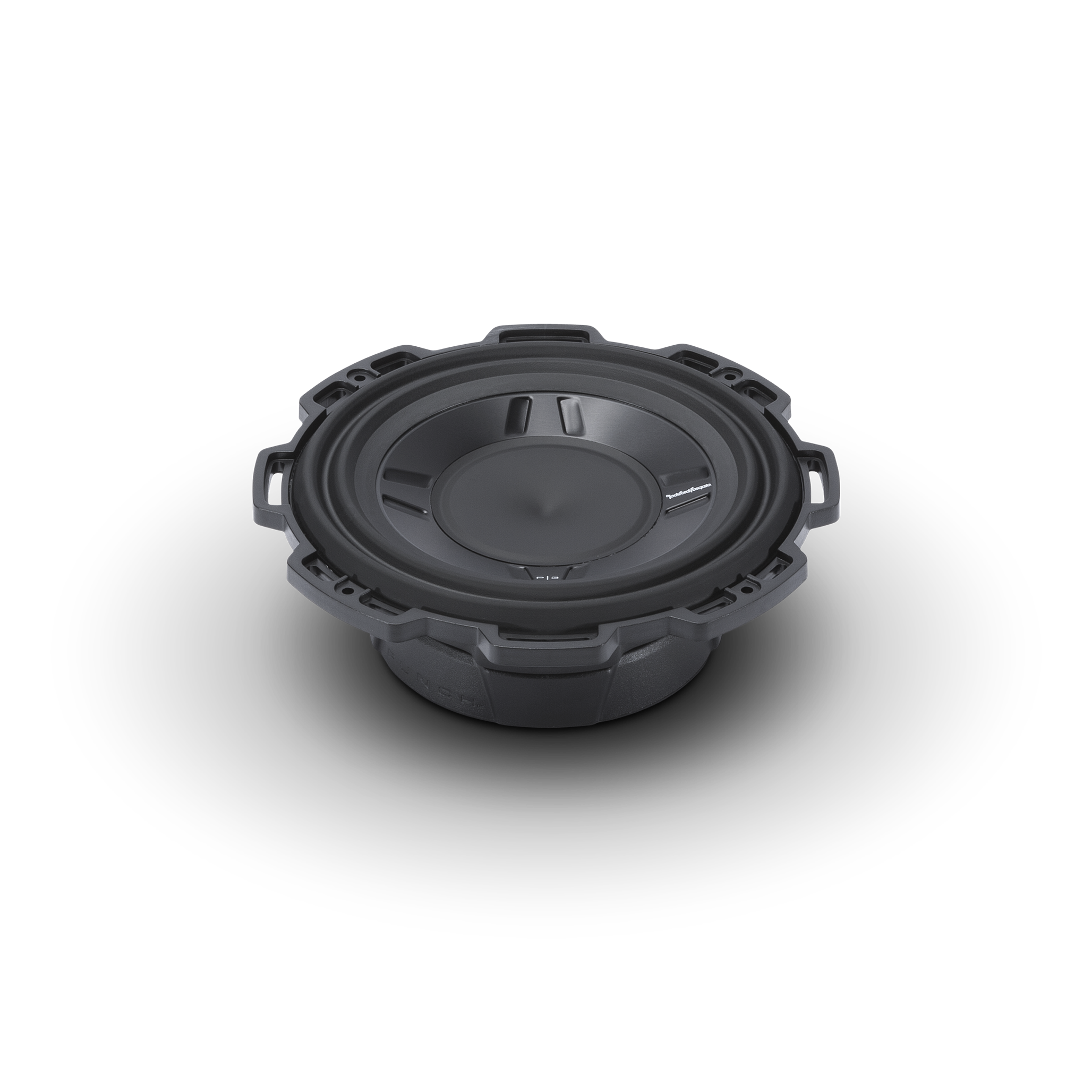

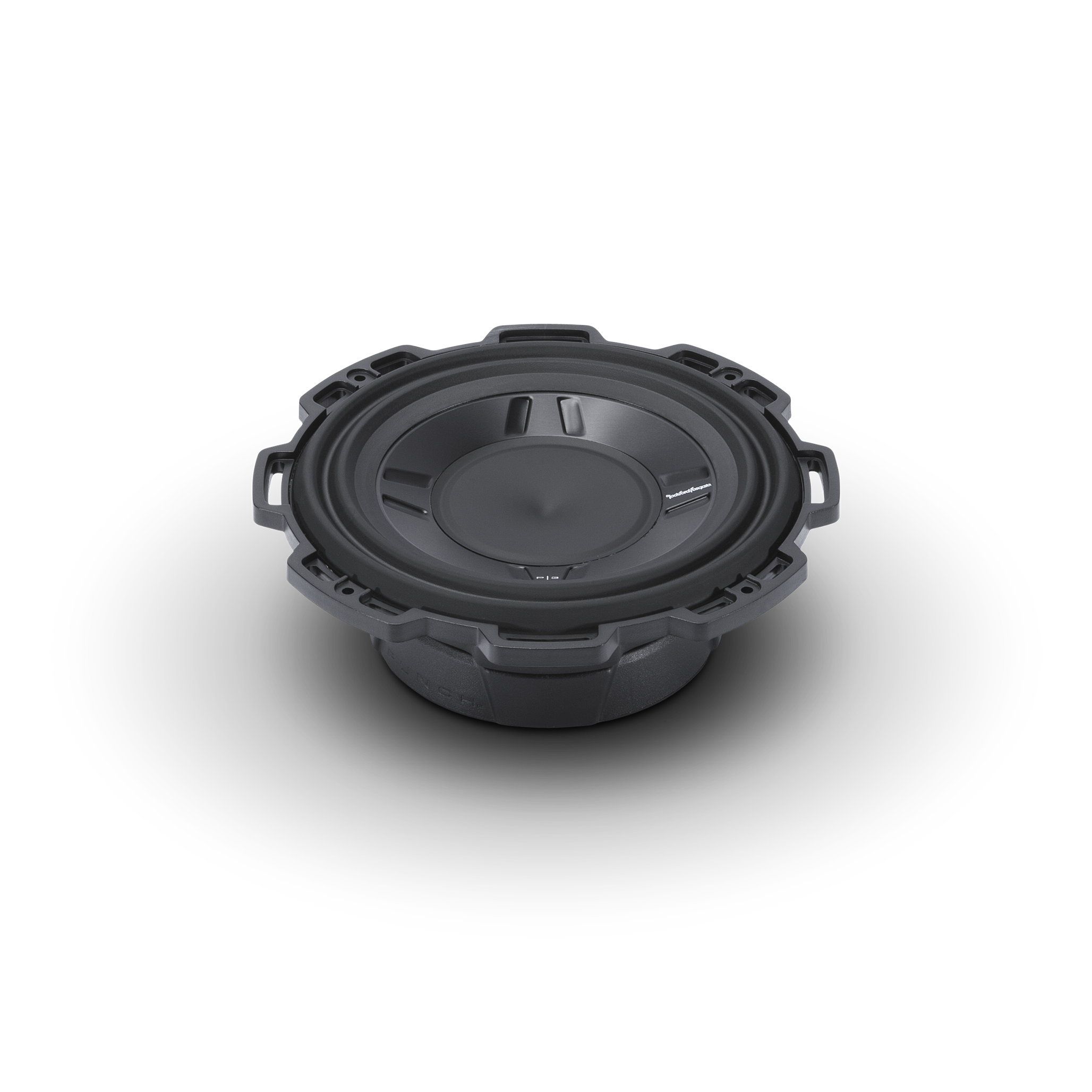

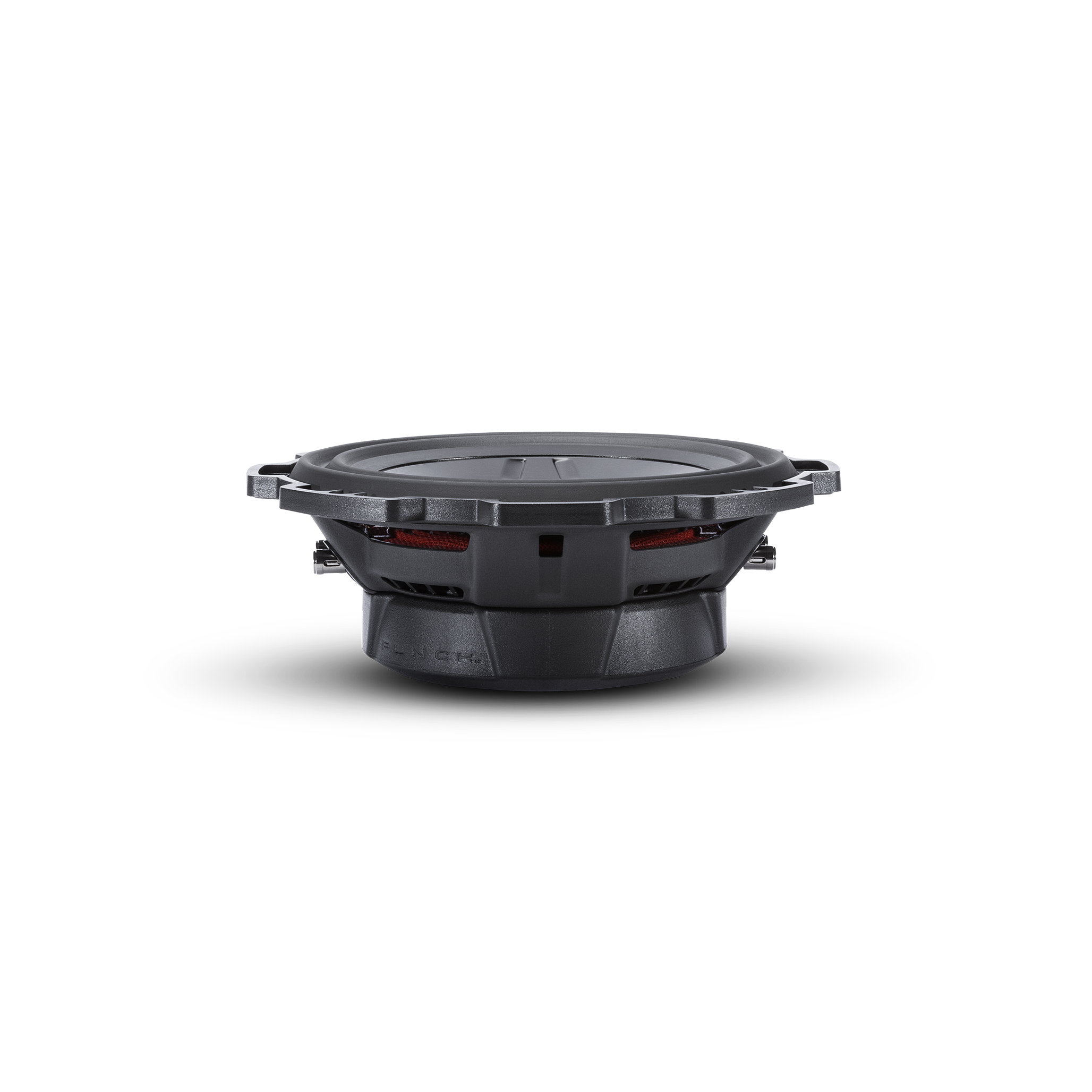

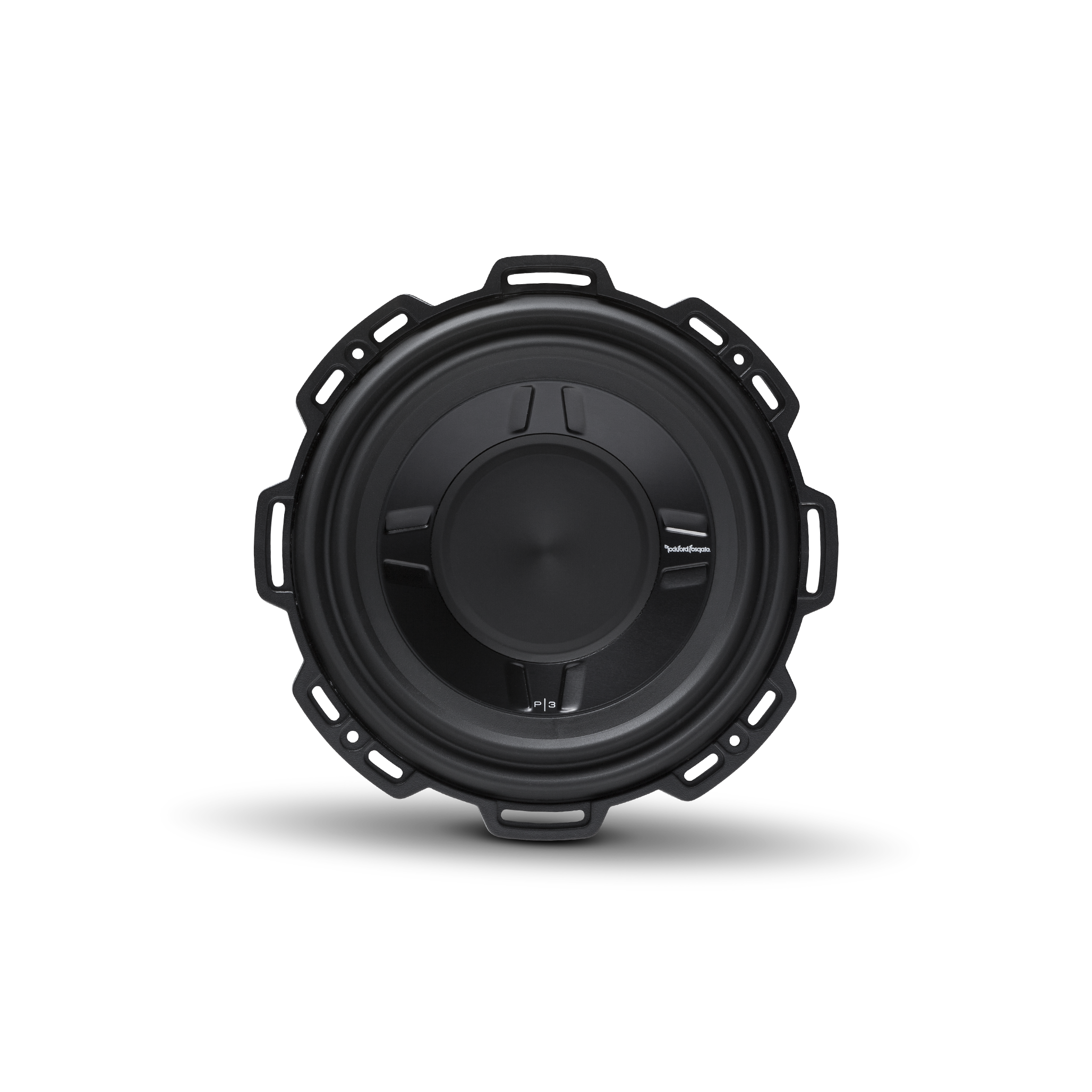

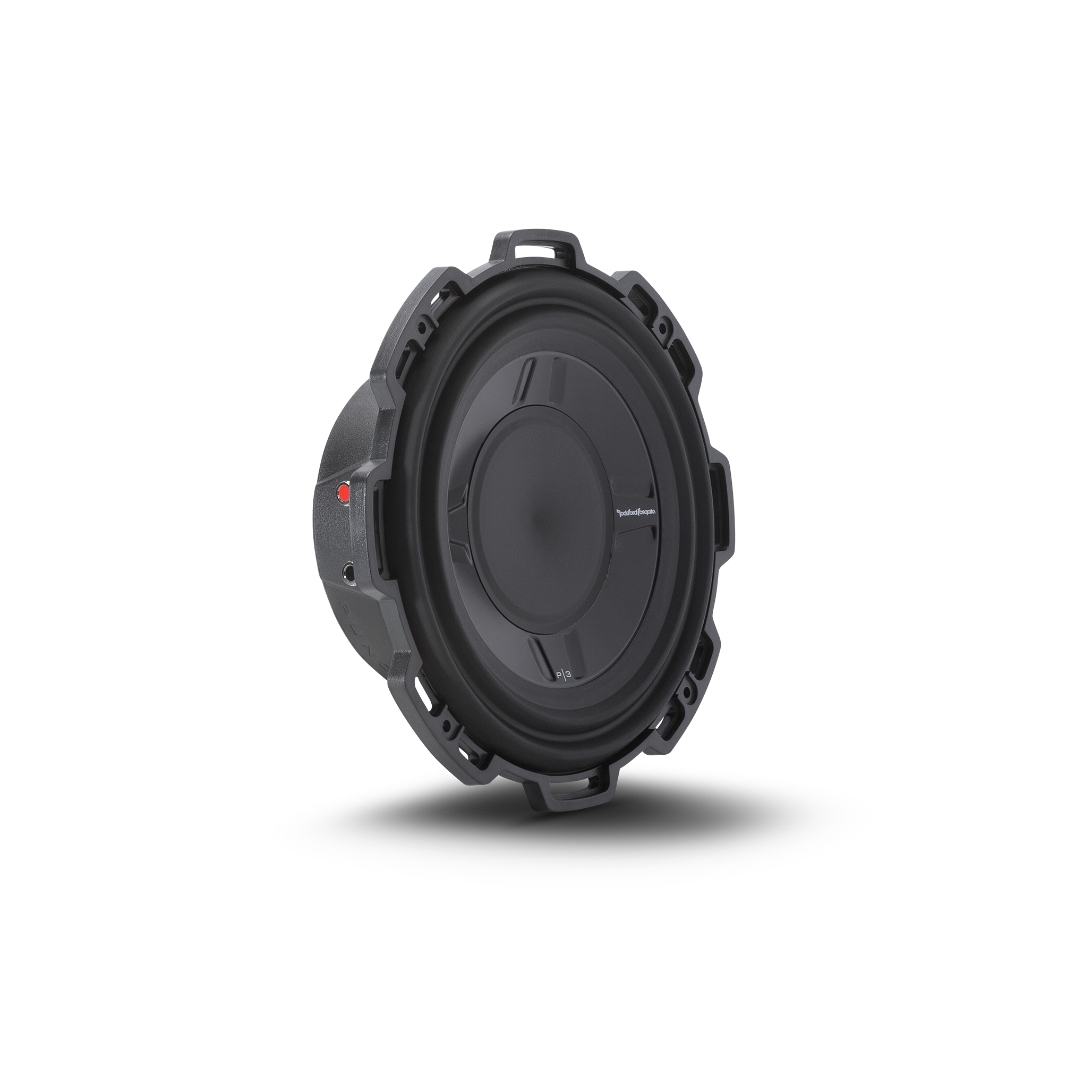

Rockford Fosgate P3S 10" shallow mount subwoofer delivers "Punch" even when depth is limited. The P3SD2-10 features Dual 2-Ohm voice coils for wiring.
Features

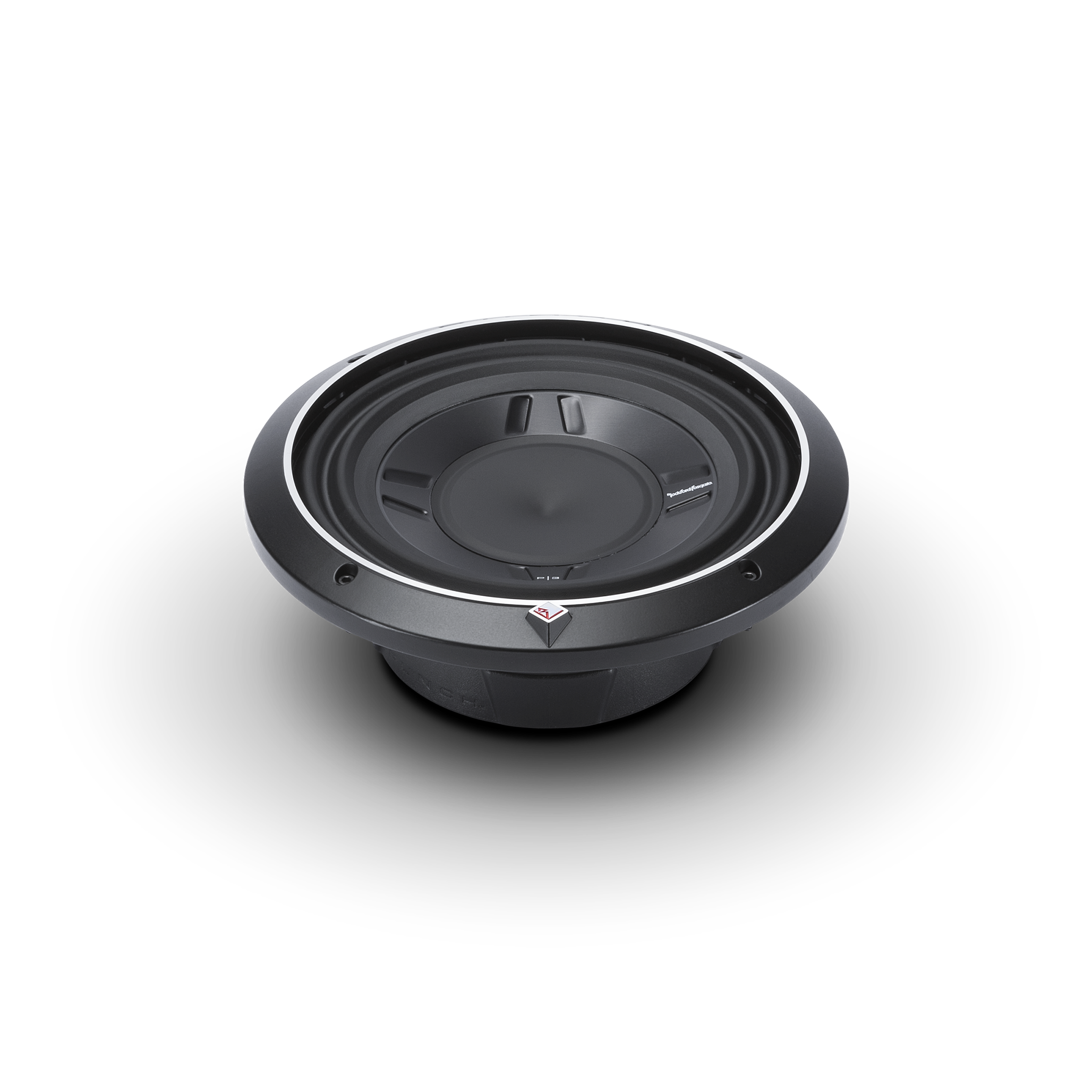

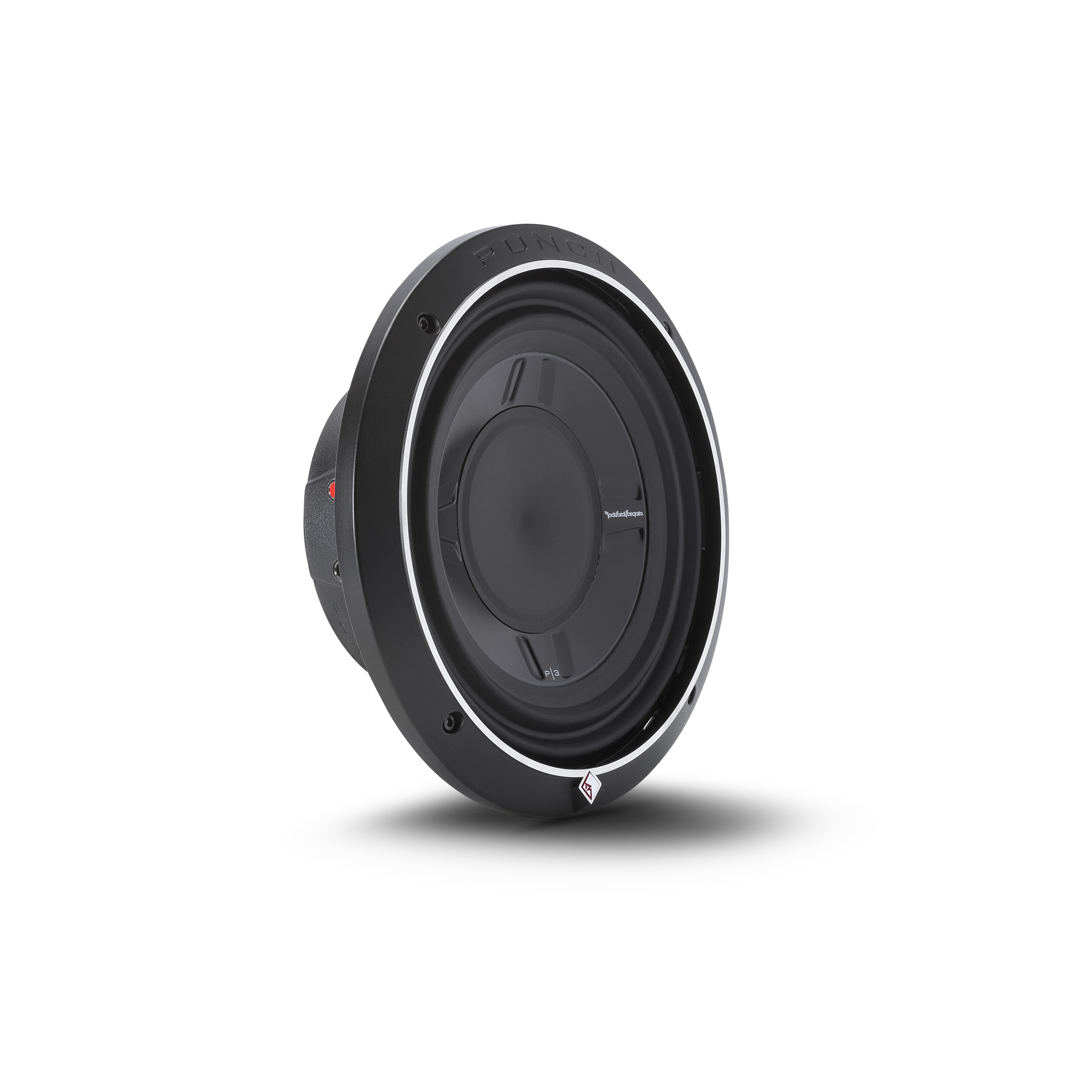

- Diamond cut cast aluminum trim ring with optional grille
- Dual linear spider with embedded 16 AWG tinsel leads
- StampCast basket with integrated spider venting
- Anodized aluminum cone and dustcap
- M-Roll SantopreneTM surround
- Optimized for both sealed and vented enclosures

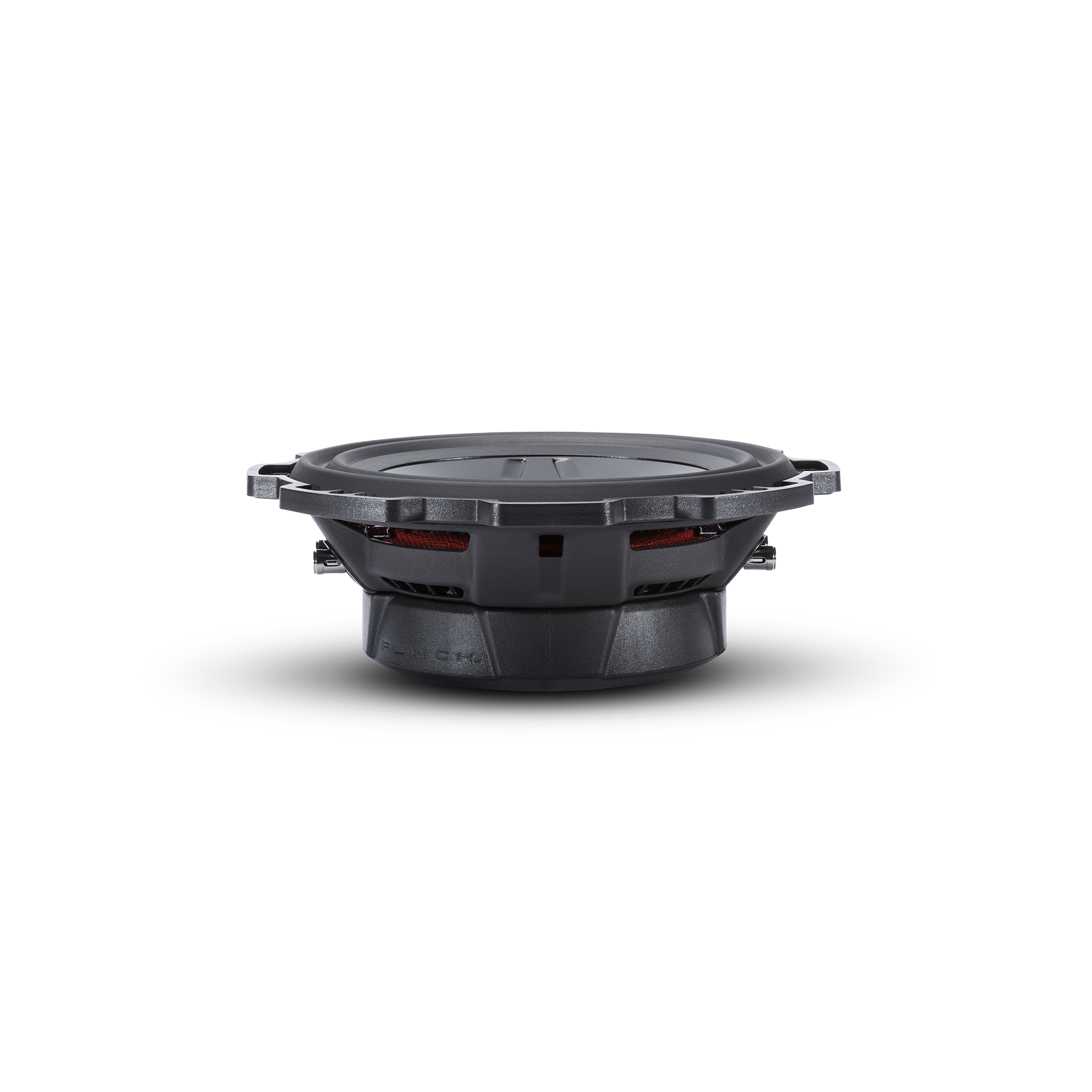

- Shallow Motor Assembly
- 1 Year Warranty
Specifications
- Size: 10"
- Nominal Impedance: Dual 2-Ohm
- Le (mH): 2.8

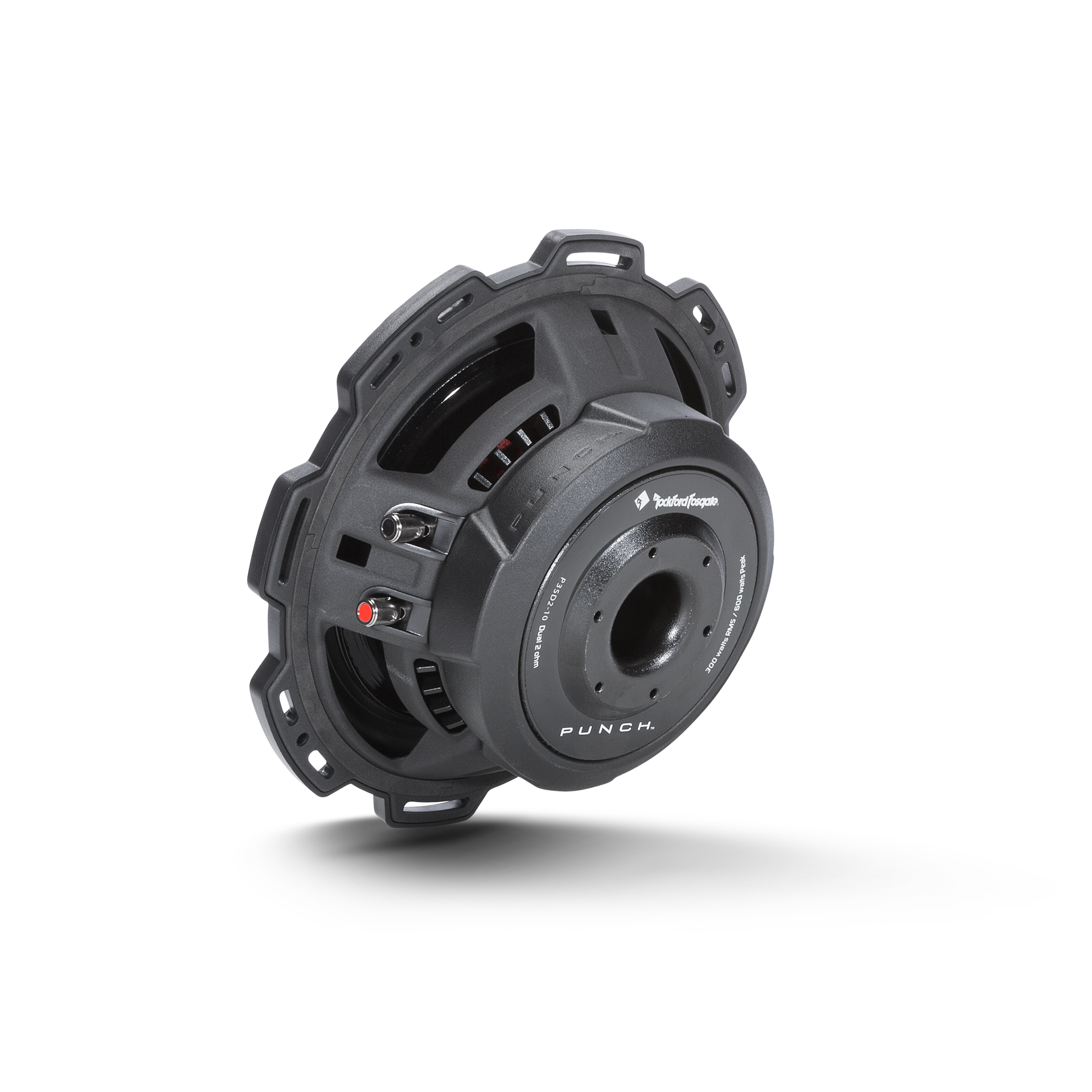

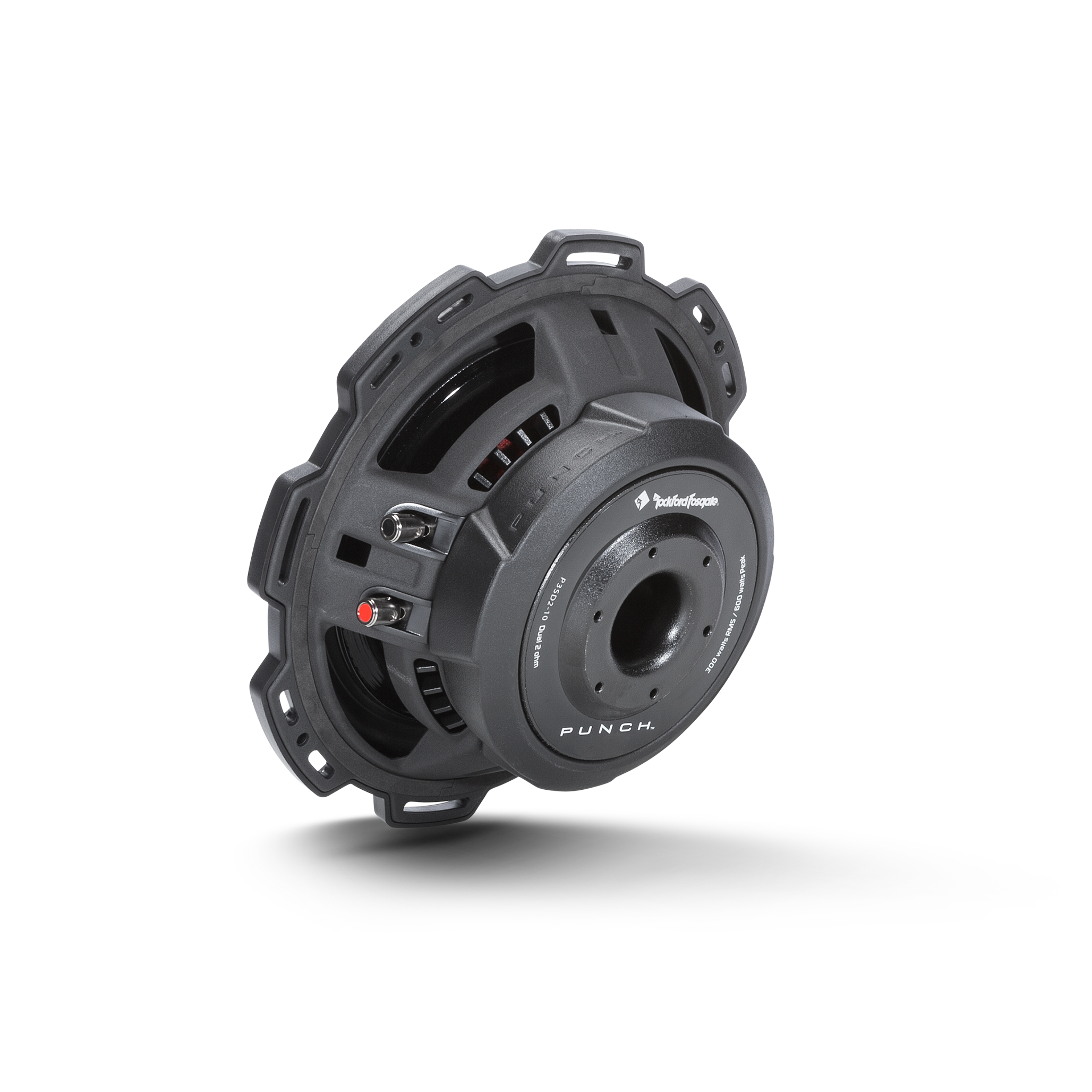

- Speaker Connector: Dual 10 AWG Compression
- Mounting Depth: 3.50 in. (89.0 mm)
- Magnet Weight (oz): 1.32 oz. (47 kg)
- Voice Coil Diameter: 2.5" (65.5 mm)
- Shipping Weight: 11.9 Lbs. (5.39 kg.)
- SPL (dB @ 1w/1m): 83
- Woofer Displacement: 0.074 cu. ft. (2.1 Liters)
- Re (Ohms): 3.4
- Qts: 0.64
- Vas (Liters): 14.3
- Fs (Hz): 40
- Power Handling (Watts RMS): 300 Watts RMS; 600 Watts Max
- Qes: 0.71
- Qms: 6.2
- Cutout Diameter: 9.06 in. (230.0 mm)
- Sd (cm2): 333
- Xmax (mm): 8.4
- Subwoofer Type: Shallow
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.5 cu. ft. (14.1 Liters)
- Vented Box Volume (Vb): 1.0 cu. ft. (28.3 Liters)
