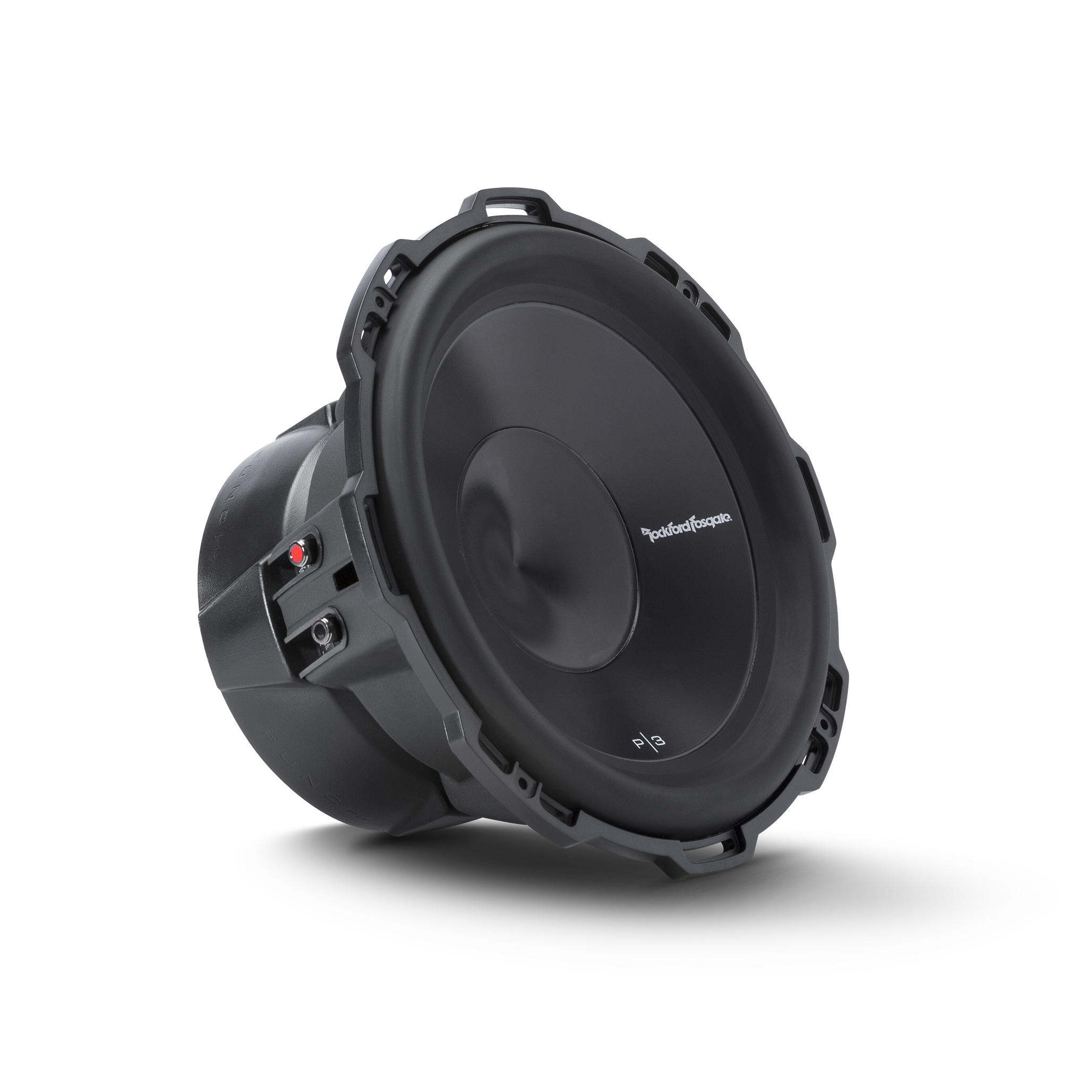

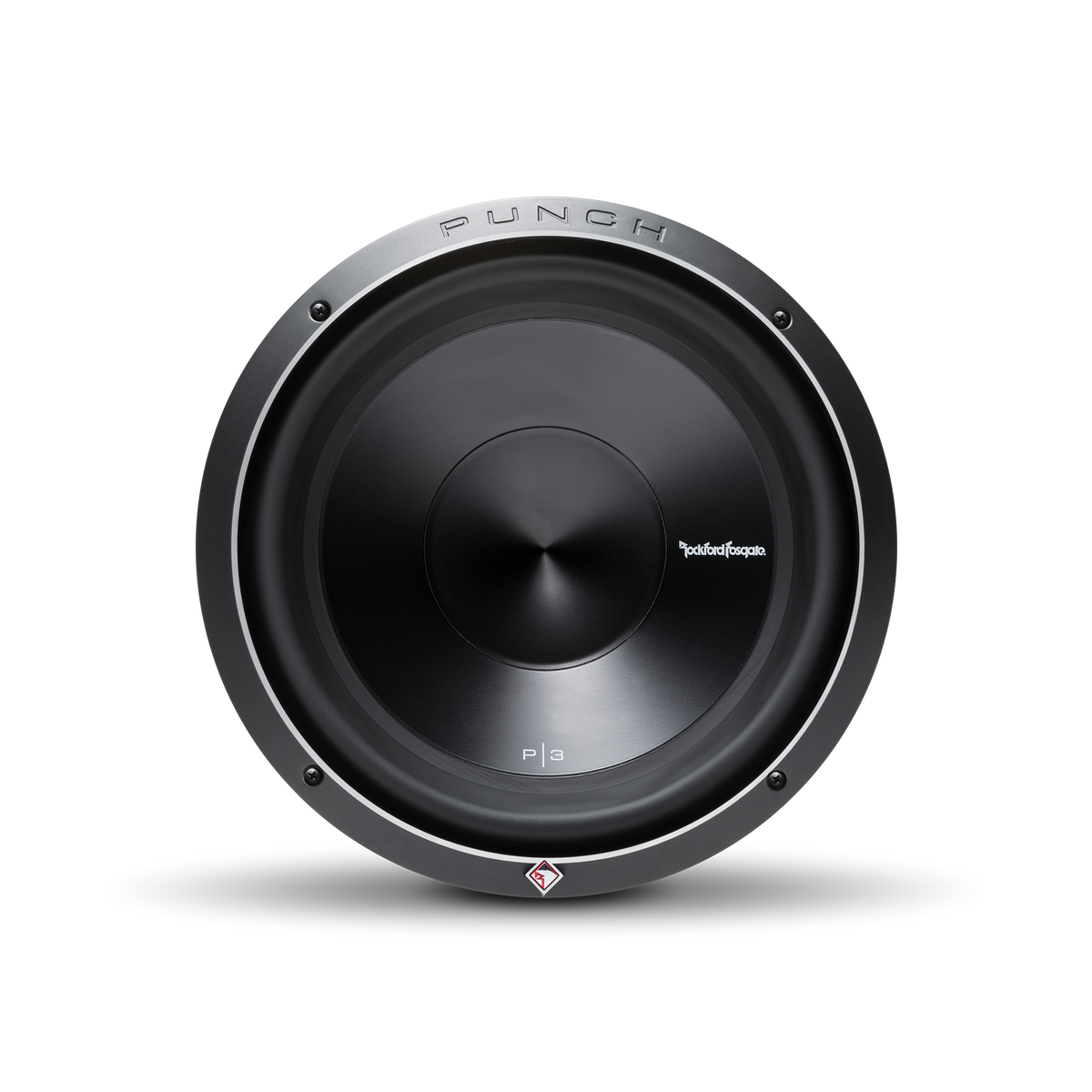

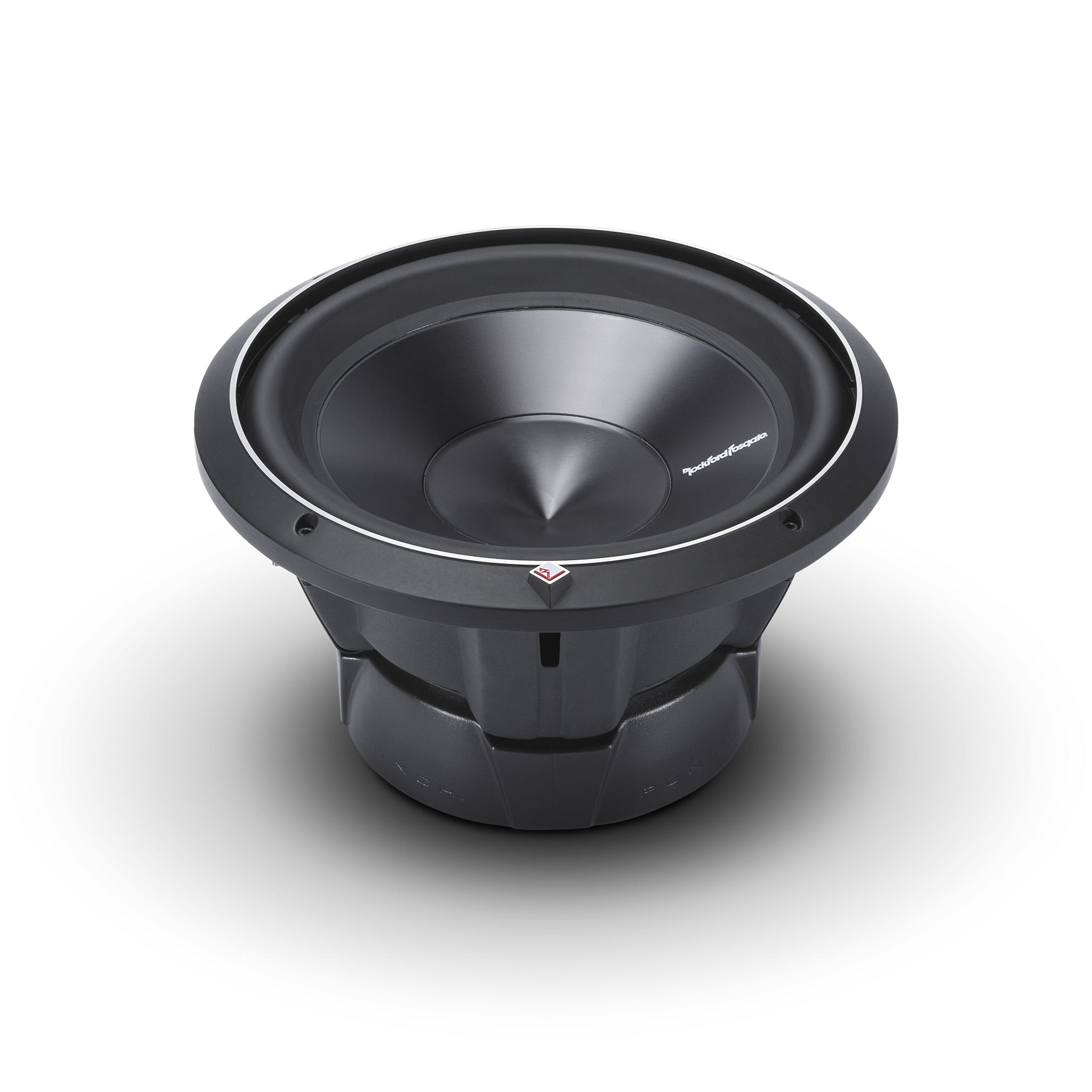

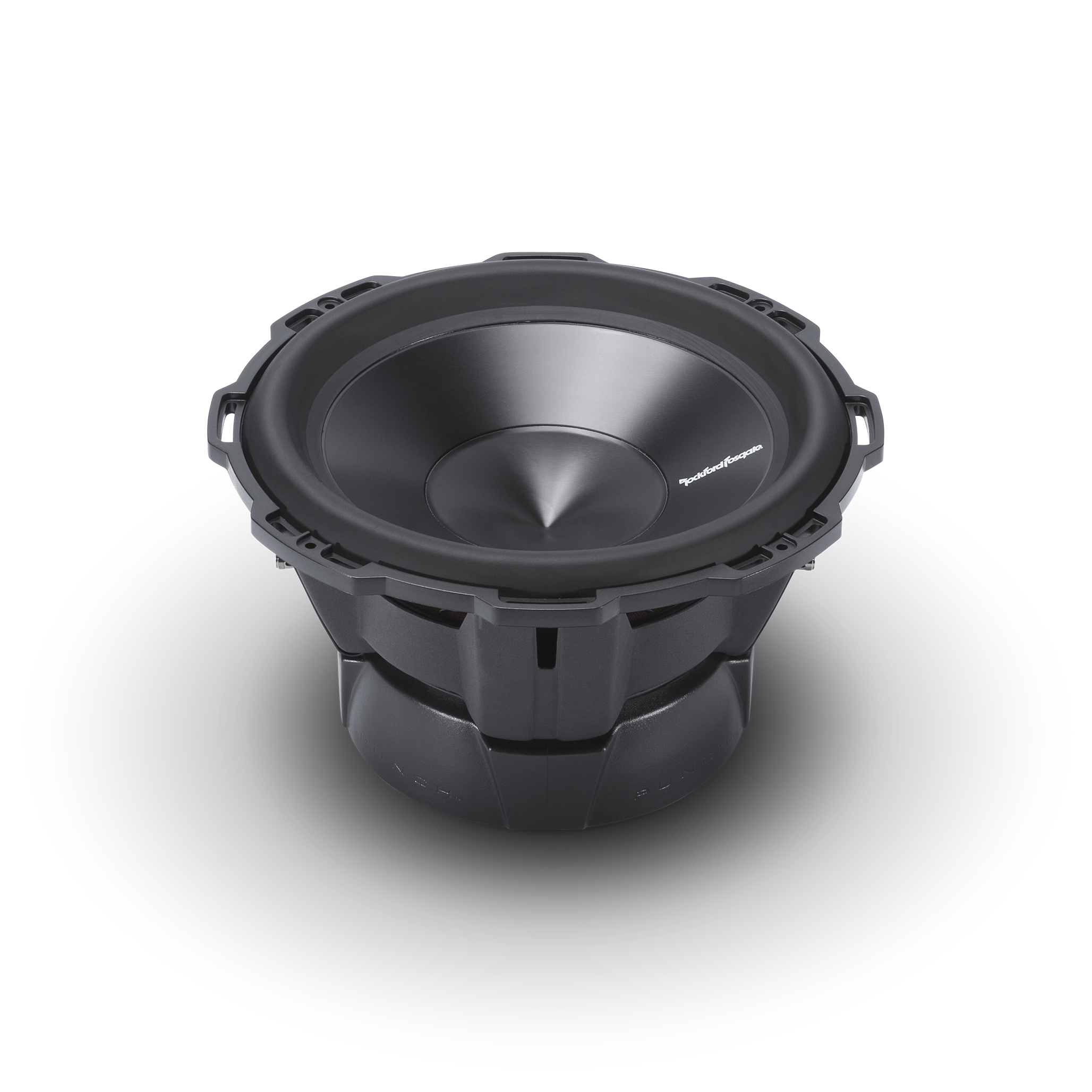

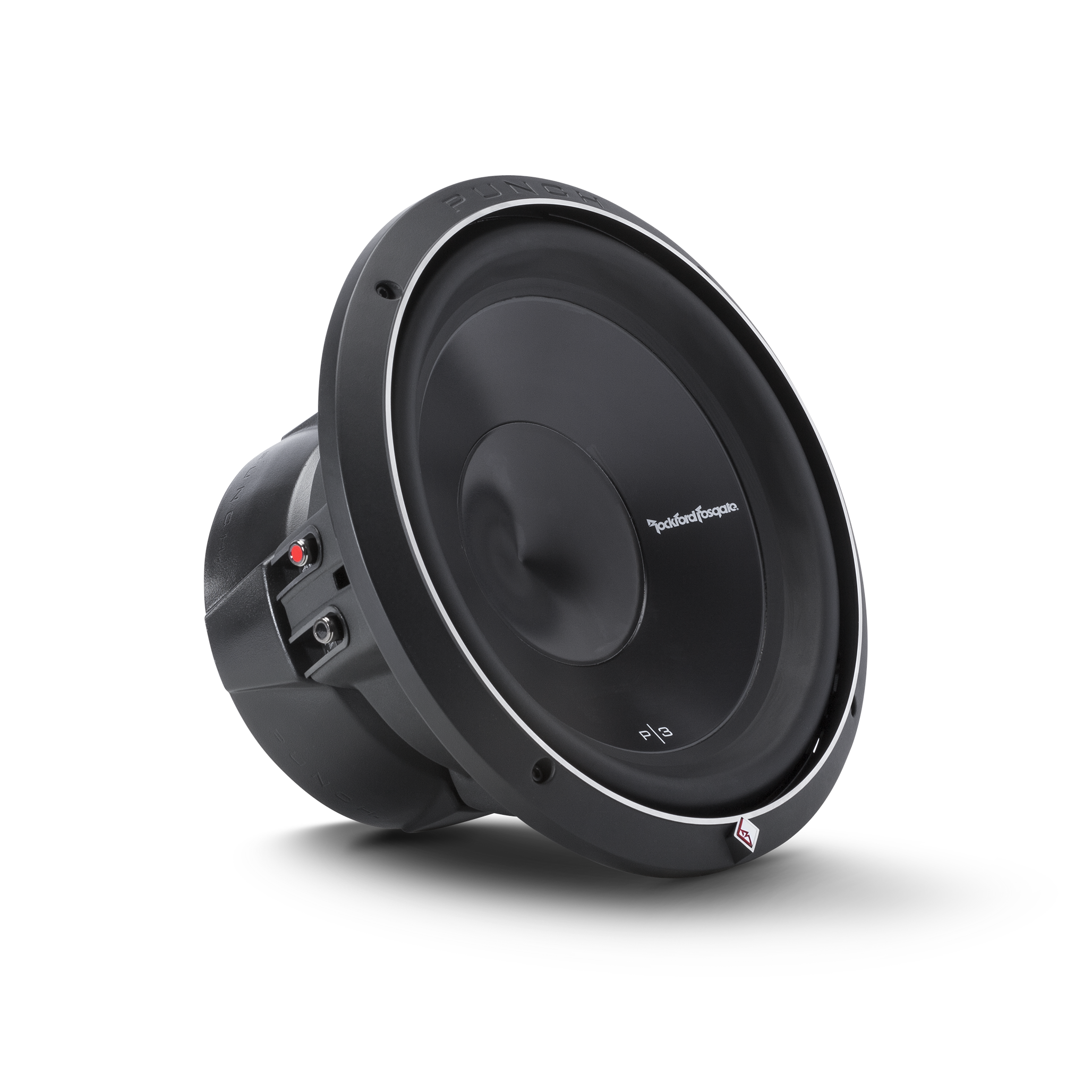

P3D2-12

Overview

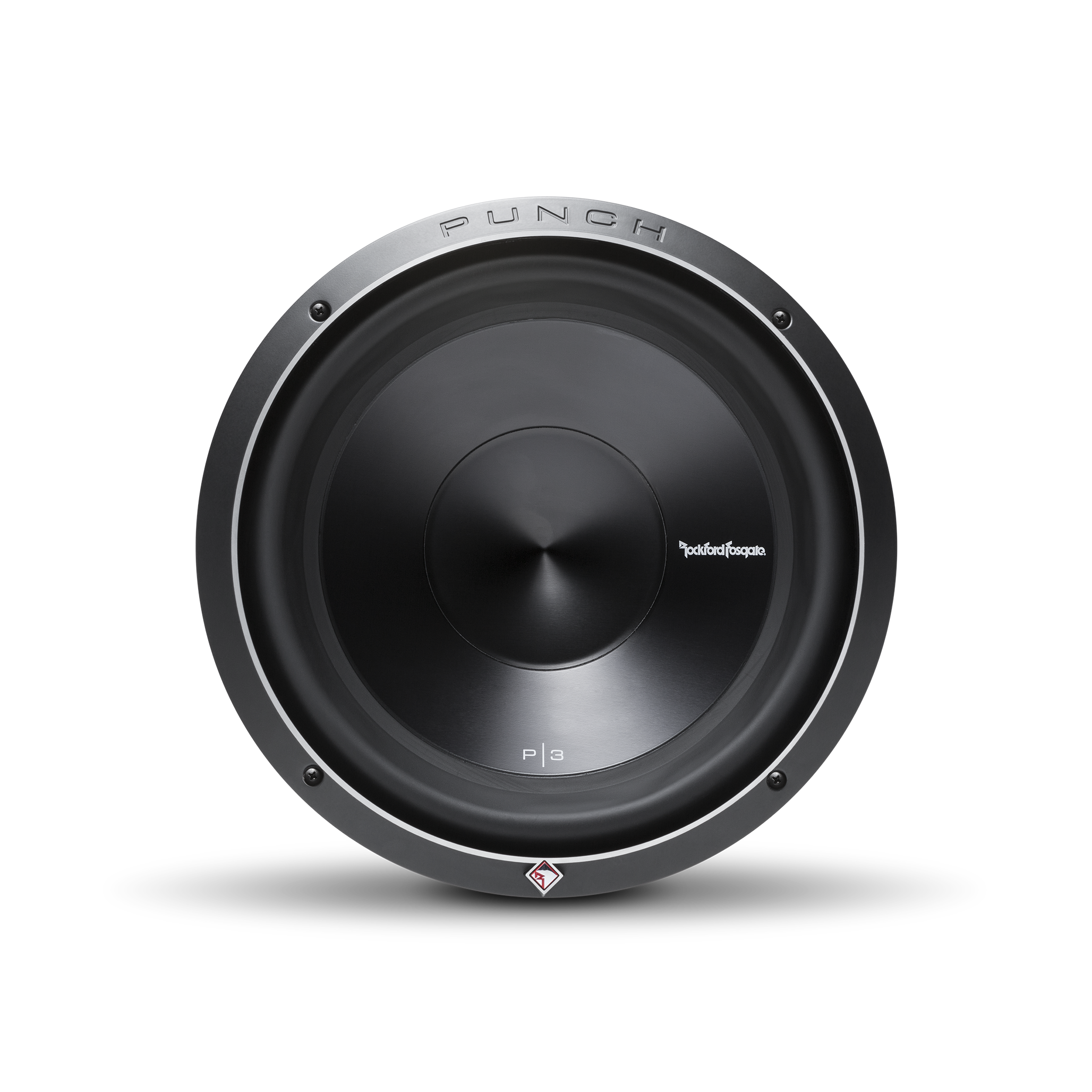

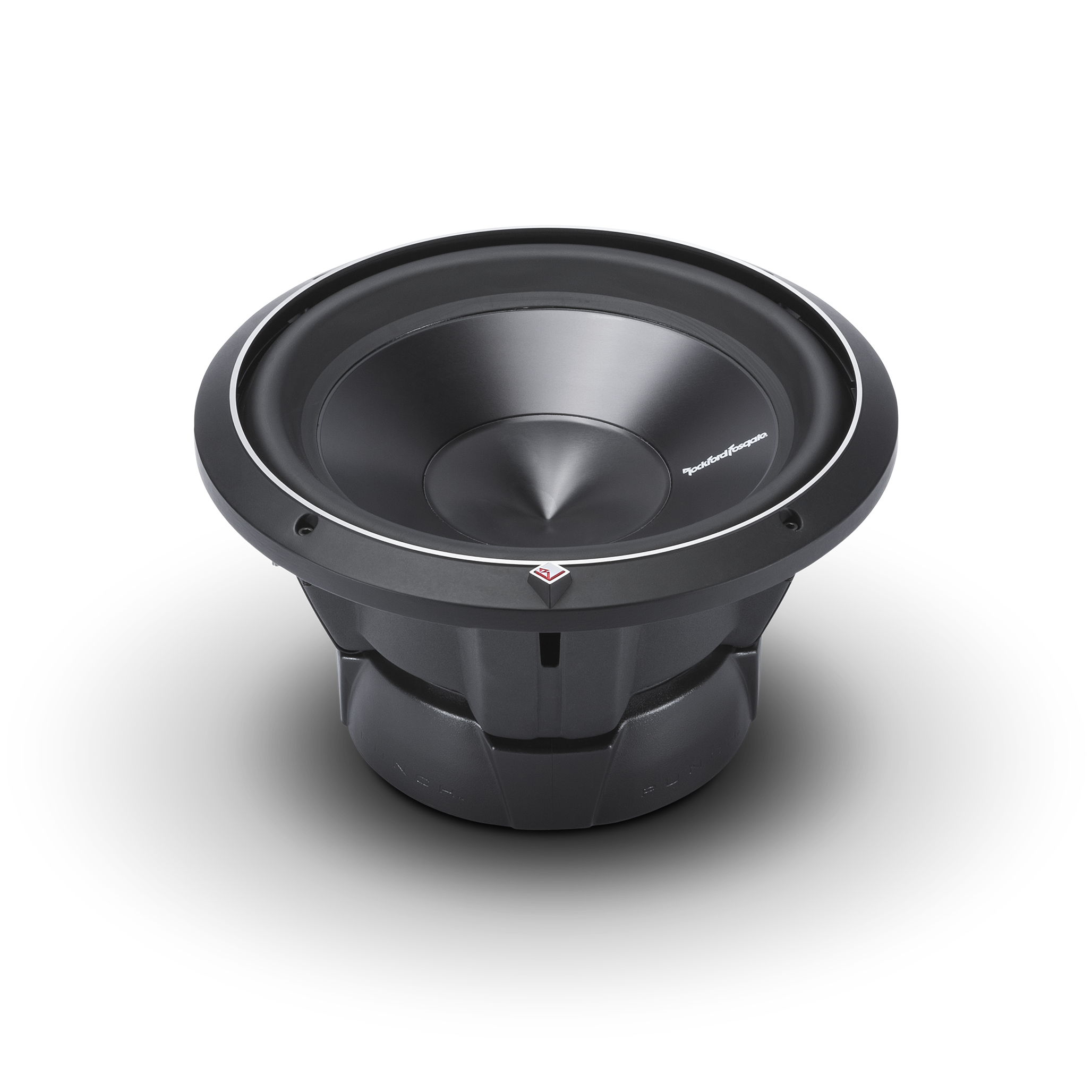

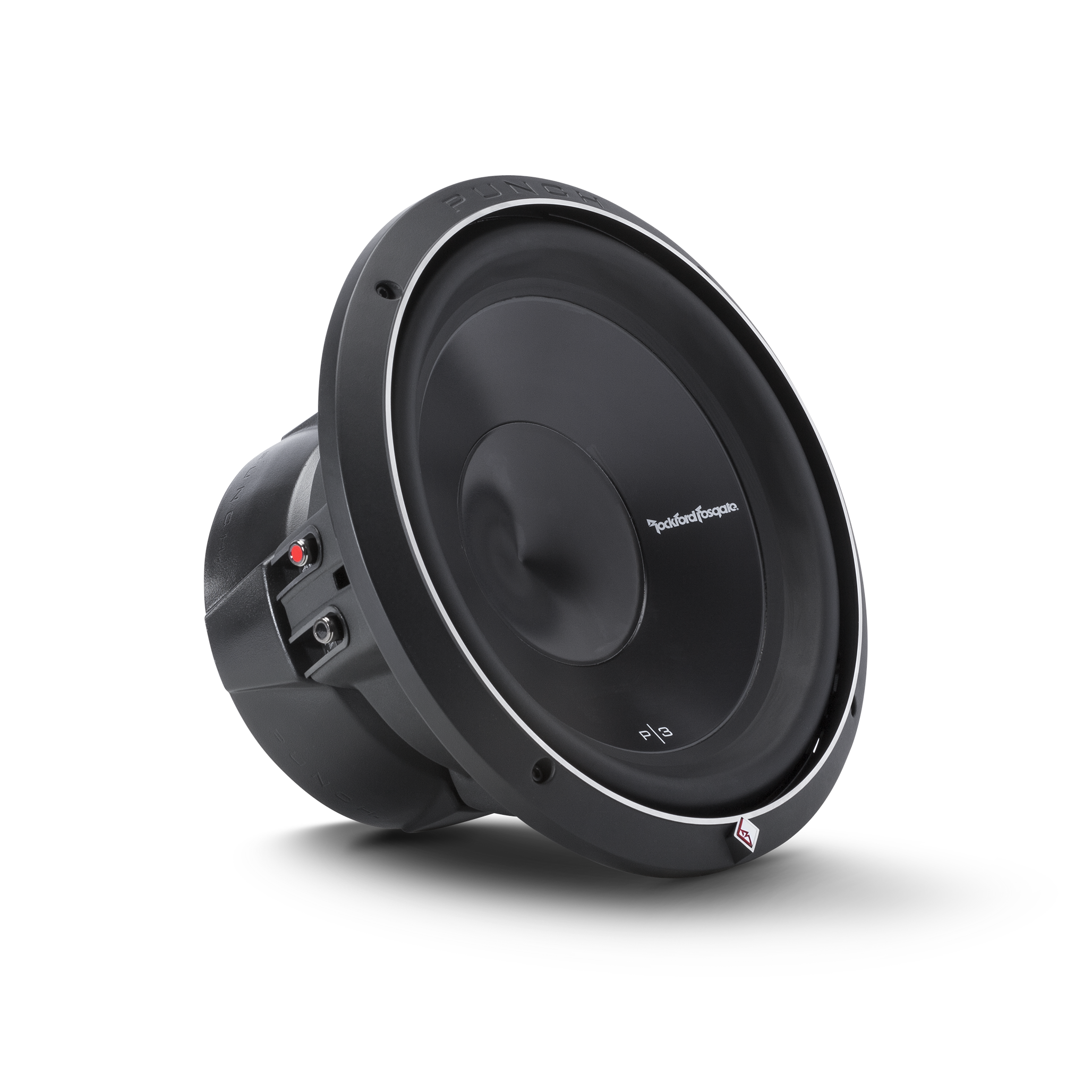

The P3D2-12 Punch 12" P3 2-Ohm DVC Subwoofer is the best performing Rockford Fosgate Punch series subwoofer.

Features

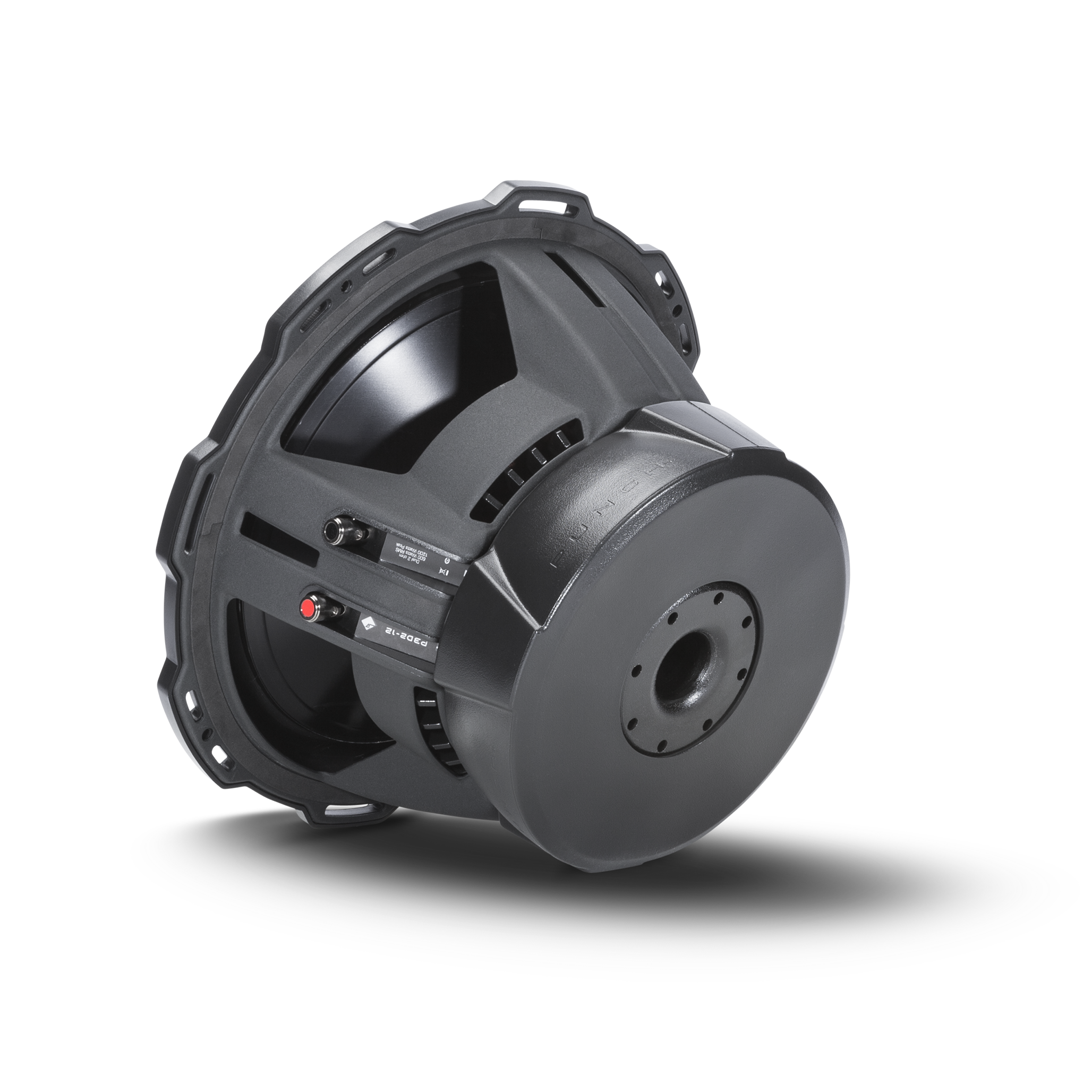

• Custom 10-AWG nickel plated push terminals
• Dual linear spider with embedded 16 AWG tinsel leads
• High-temp voice coil with spun-laced Nomex re-inforcement collar
• Anodized aluminum cone and dustcap

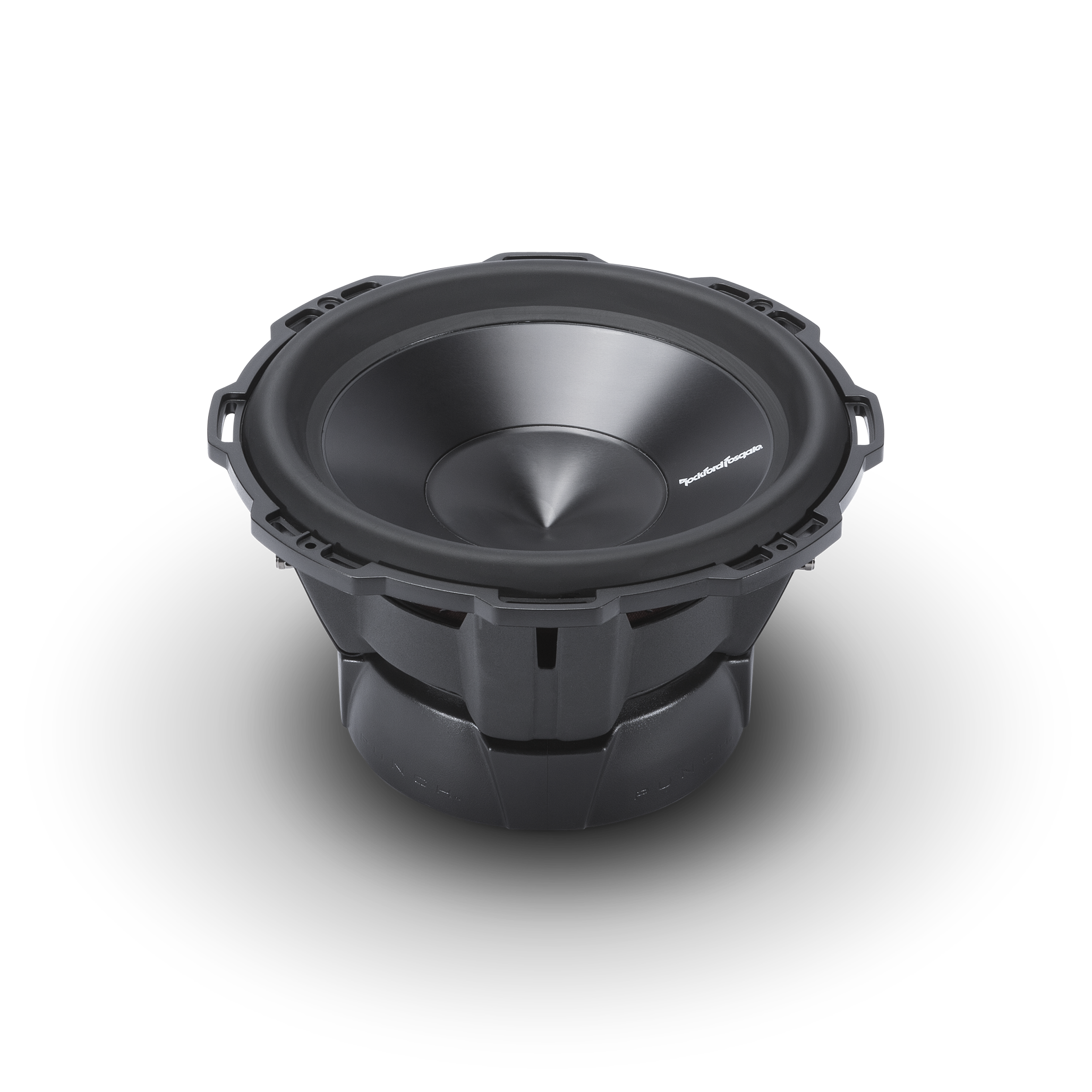

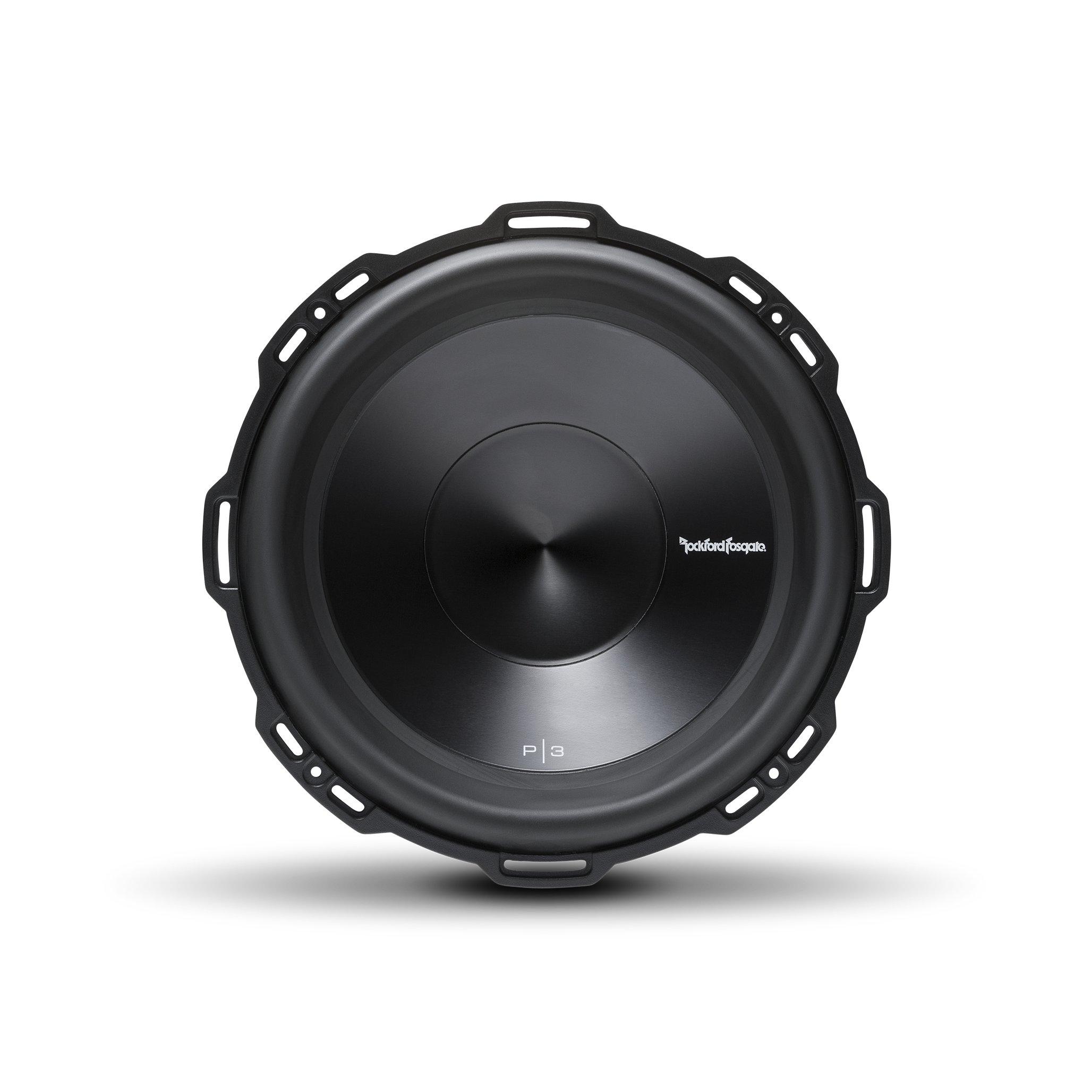

• Diamond cut cast aluminum trim ring with optional grille
• Extended pole piece and bumped vented backplate

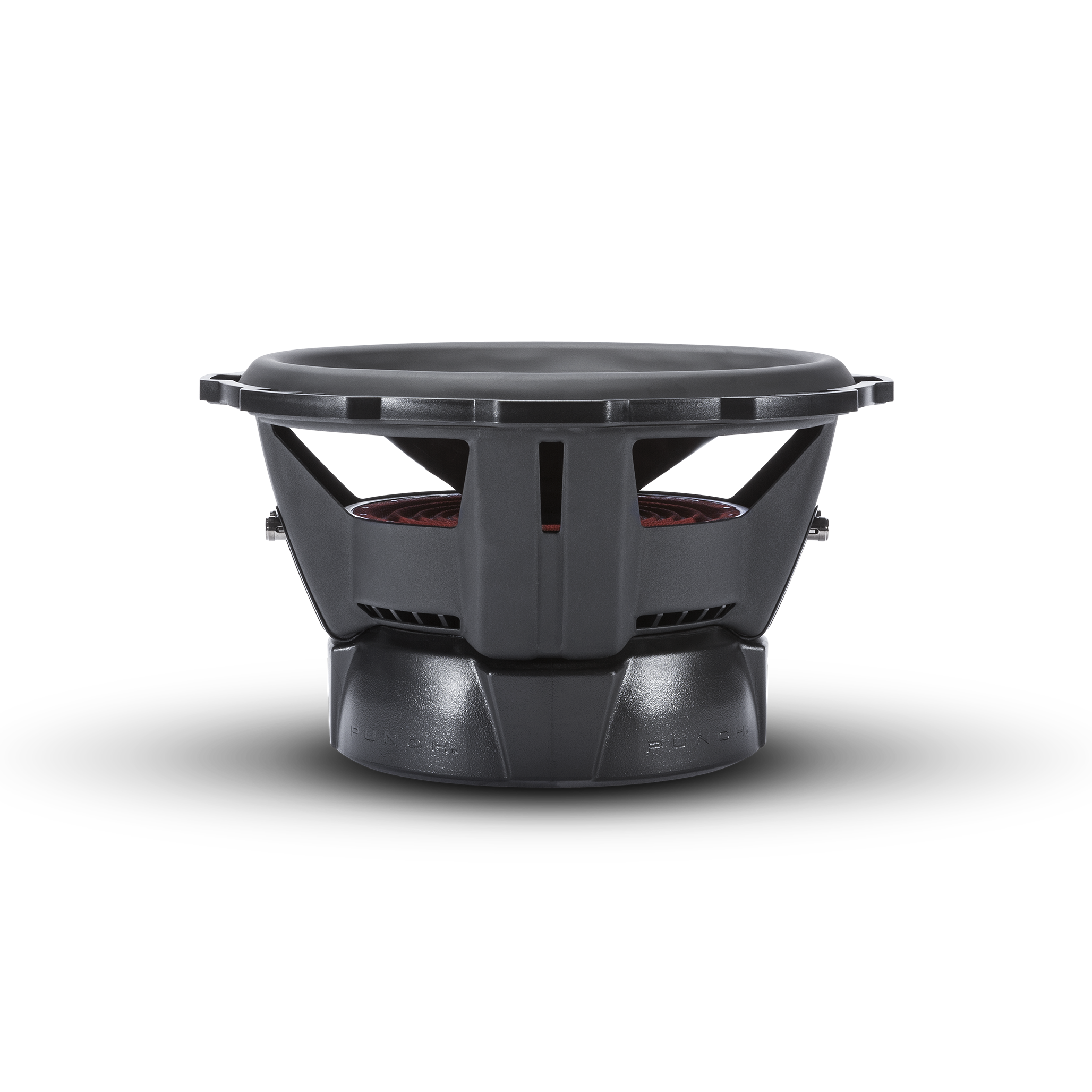

• StampCast basket with integrated spider venting
• 1 Year Warranty
• Protective PVC textured magnet cover

Specifications

• Power Handling (Watts RMS): 600 Watts RMS; 1200 Watts Max
• Speaker Connector: Dual 10 AWG compression
• Magnet Weight (oz): 96 oz. (2.73 kg.)
• Shipping Weight: 20.9 Lbs. (9.48 kg)
• Size: 12"
• Mounting Depth: 6.66 in. (169.3 mm)
• Nominal Impedance: Dual 2-Ohm
• Voice Coil Diameter: 2.5" (65.5 mm)
• Woofer Displacement: 0.106 cu. ft. (3.0 Liters)
• Re (Ohms): 3.2
• SPL (dB @ 1w/1m): 85
• Fs (Hz): 26.5
• Qts: 0.49
• Qes: 0.53
• Qms: 6.7
• Cutout Diameter: 11.25 in. (285 mm)
• Le (mH): 4.25
• Vas (Liters): 57.7
• Xmax (mm): 15.2
• Sd (cm2): 570
• Subwoofer Type: Standard
• Voice Coil Type: Dual Voice Coil
• Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
• Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
