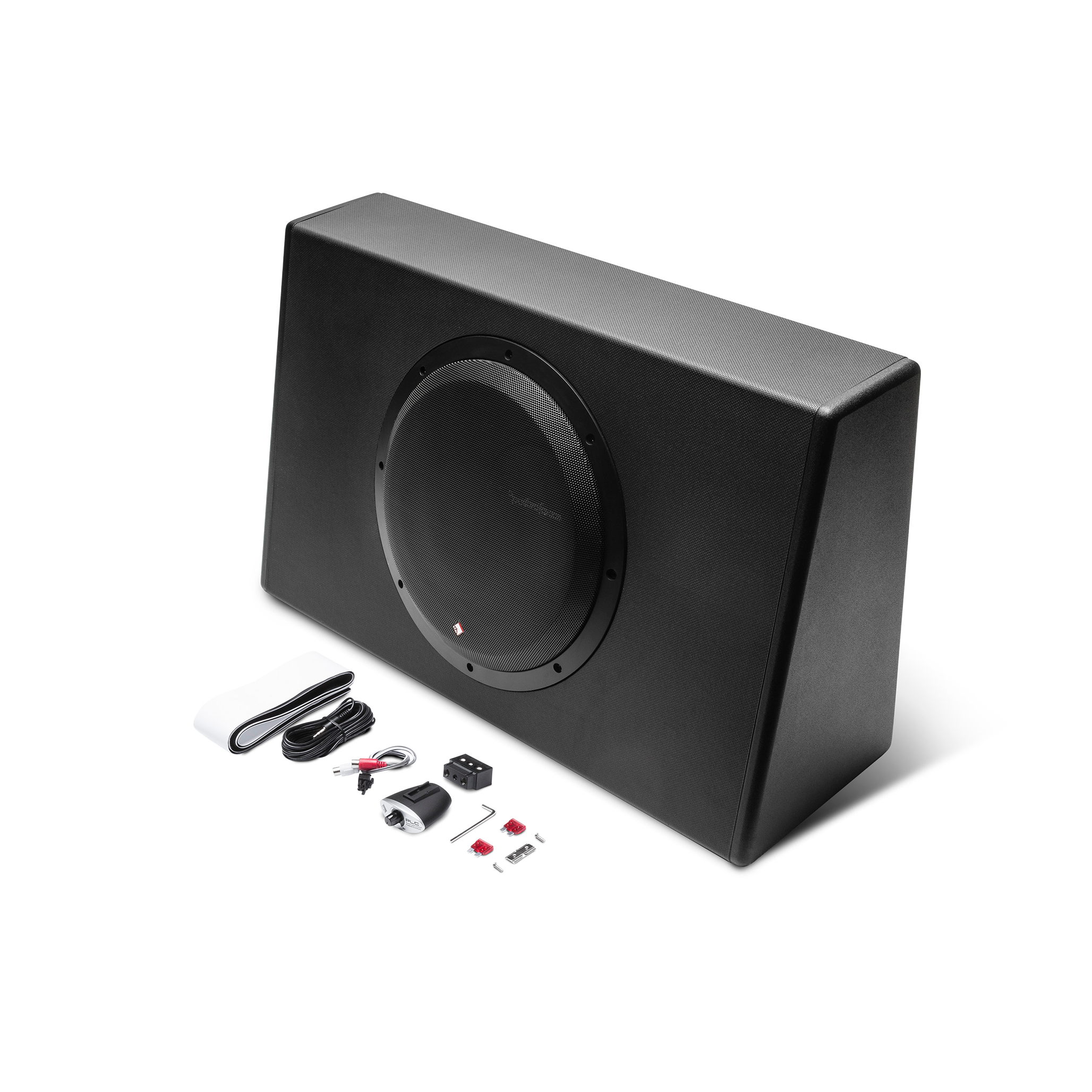

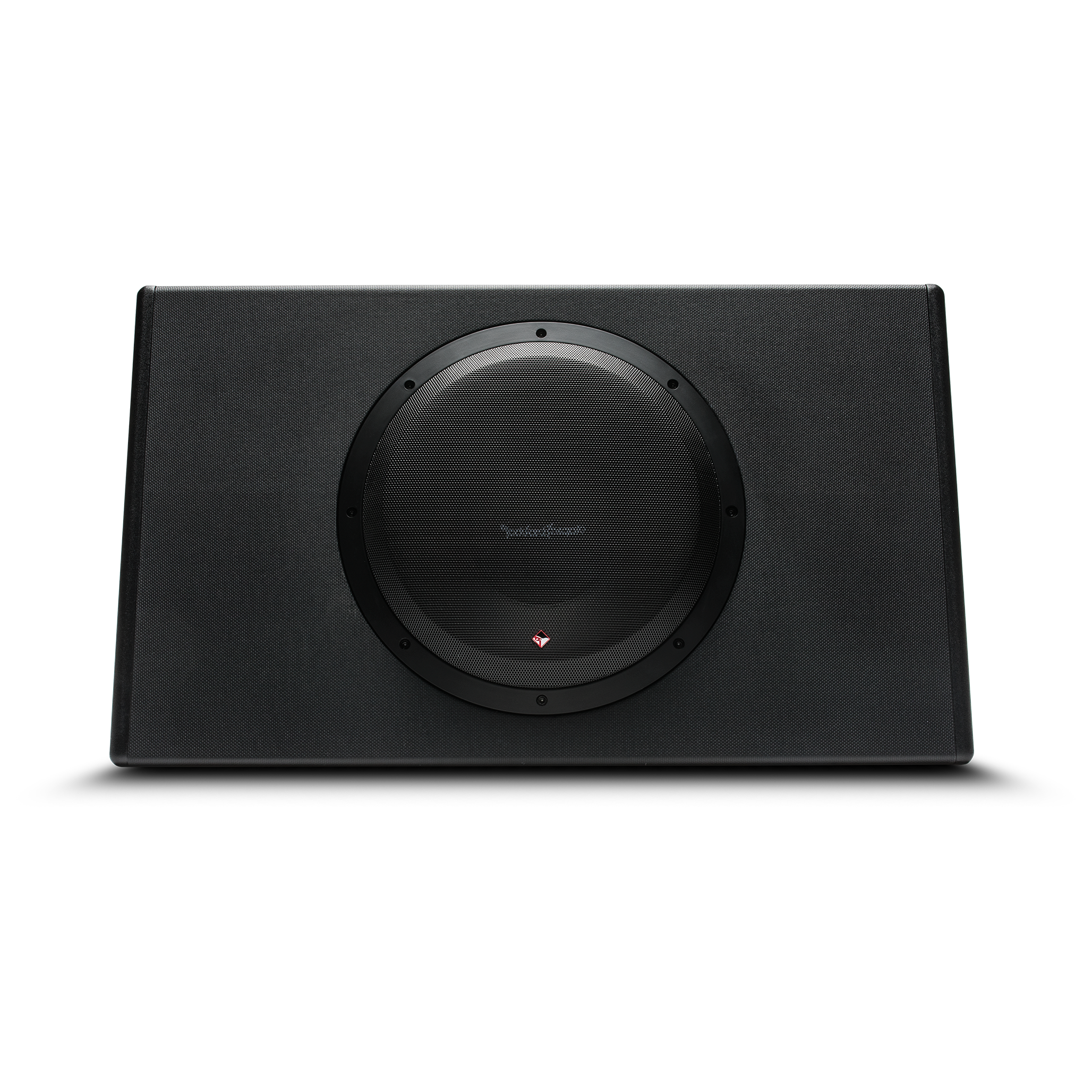

P300-12T

Overview

The 12" high output subwoofer is impedance optimized for the built-in 300-watt class-D amplifier that features a low-pass crossover, bass EQ, and phase switch.

Features

• Adjustable 12db/Octave low pass crossover
• On Board Phase Switch
• Optimized 12" Low Impedance Woofer
• Remote bass level control included
• Intelligent auto turn on/off function
• On Board Adjustable Bass EQ
• Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
• Quick Input Connections for Easy Removal
• Robust Power/Ground connections
• 1 Year Warranty
• 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
• Separate low level and speaker level inputs
• Slim Design For Truck Applications
• Thermal and over/under voltage protection

Specifications

• Frequency Response: 20 Hz to 200 Hz
• Woofer Quantity: 1
• Woofer Size: 12"
• Nominal Impedance: -
• Woofer Series: Proprietary
• Power Handling; (Watts RMS): 300 Watts RMS
• Enclosure Type: Sealed
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Speaker Connector: -
• Integrated Amplifier: 300 Watts RMS
• Crossover Controls: Variable 50 Hz to 200 Hz; 12dB/Octave Butterworth
• Tone Controls: Bass Boost; 0 dB to +12 dB
• Phase Control: 0 deg to 180 deg
• Auto Turn-On Selector: Remote Trigger; DC Offset Sense; Audio Sense
• Remote Control: Punch Level Control (Included); Replacement Part: 1130-59232-01
• Input Switch: High-Level (Speaker Line); Low-Level (RCA)
• Signal Input: Low/High-Level: 1 RCA Pair (L/R Summed); Replacement Part: 1130-59232-01
• Input Sensitivity: Low-Level: 150 mV to 6 V; High-Level: 300 mV to 12 V
• Input Impedance: 20k Ohms
• Power Input Connector: Quick Disconnect; Replacement Part: 1130-59232-01
• Power Wire Gauge: B+/GND: 8 AWG; REM: 18 AWG
• Circuit Topology Class: Class-D
• Heatsink Type: Extruded Aluminum
• Cooling: Convection
• Visual Indicators: Power/Protect LED
• Fuses: 20 Amp (2 x 10 Amp ATO Fuse)
• Dimensions; Box H x W x D; Wedge H x W x D1 x D2: 15" x 25.8" x 4.8" x 8.5"; 380 mm x 656 mm x 122 mm x 215 mm
• Shipping Weight: 32 Lbs. (14.5 kg)
