Overview

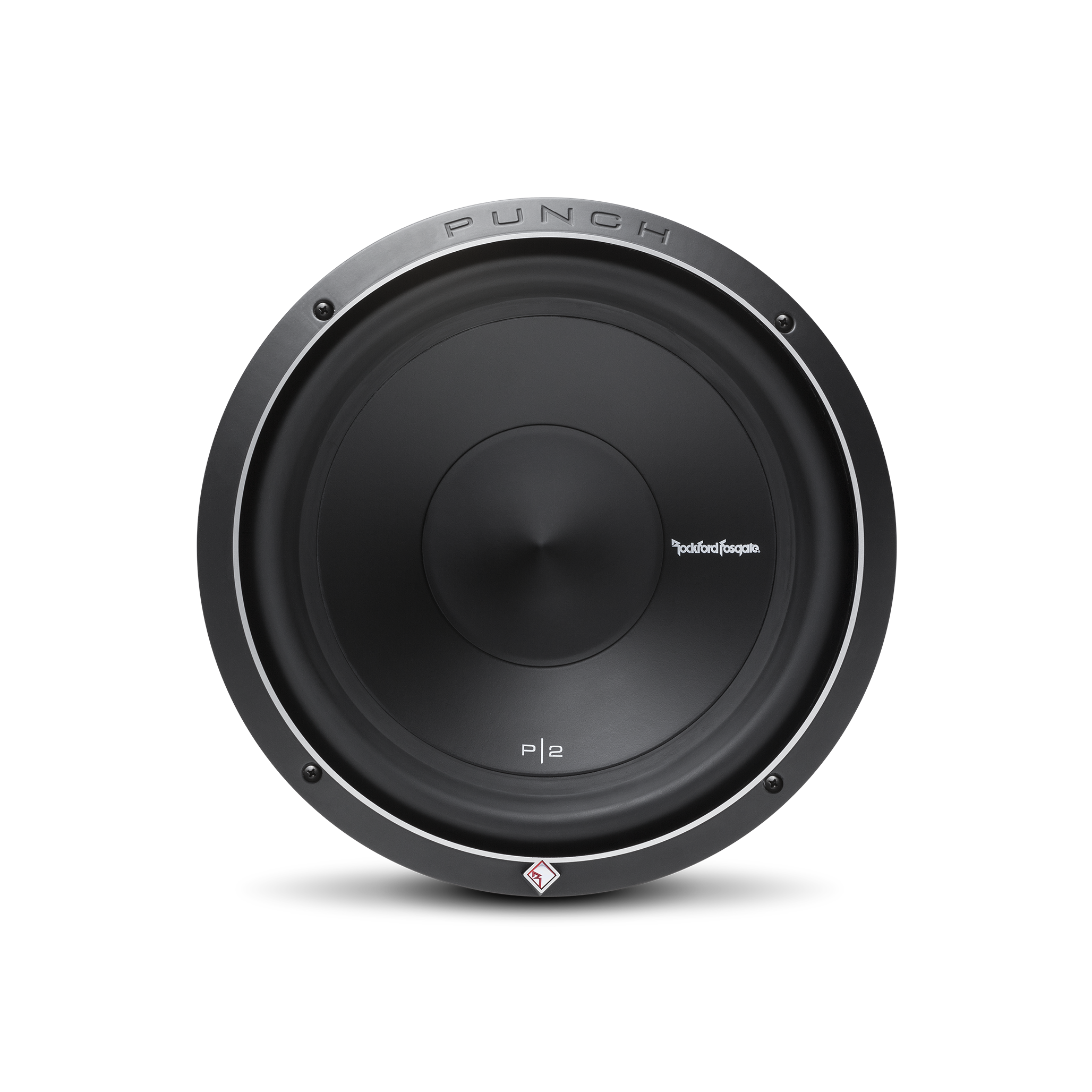

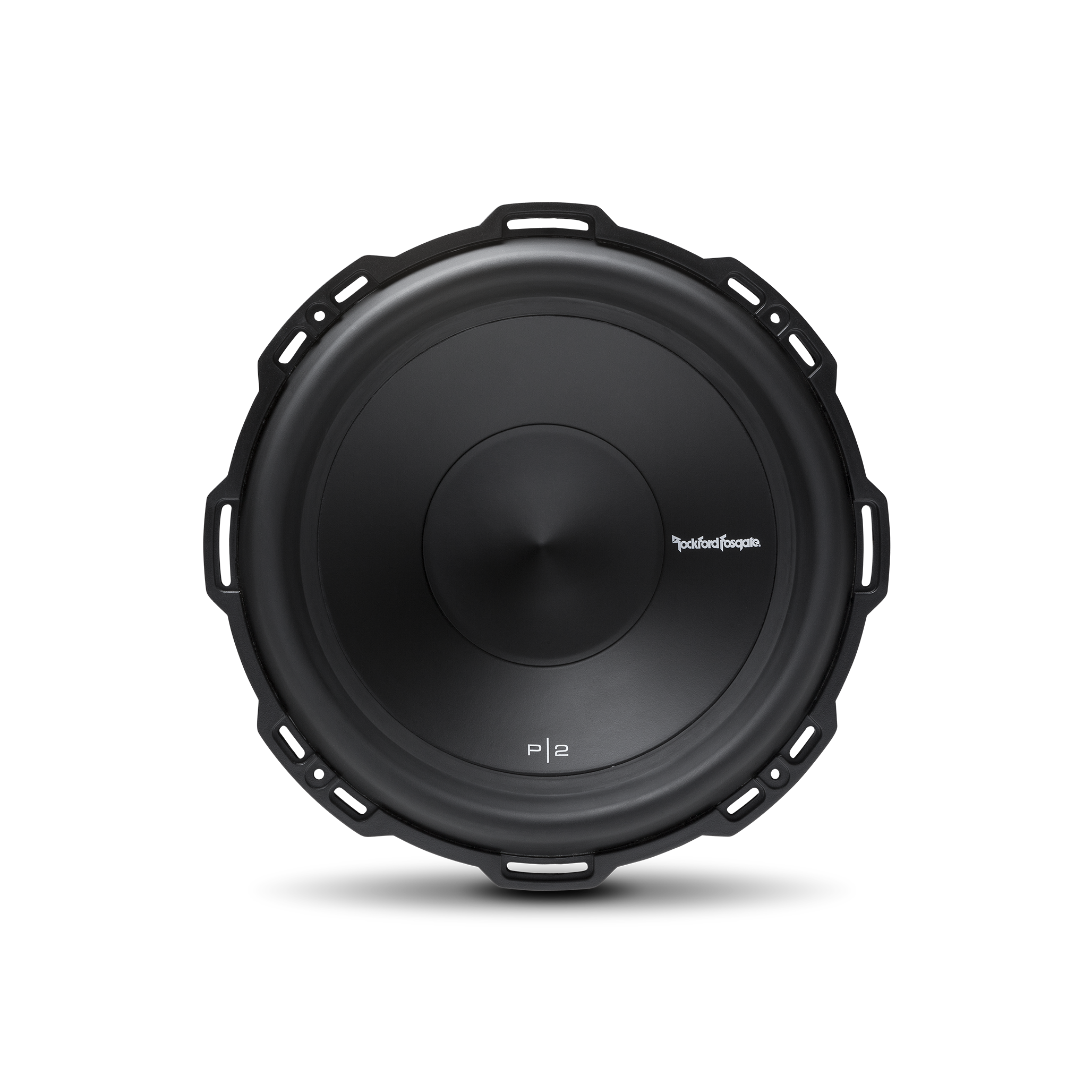

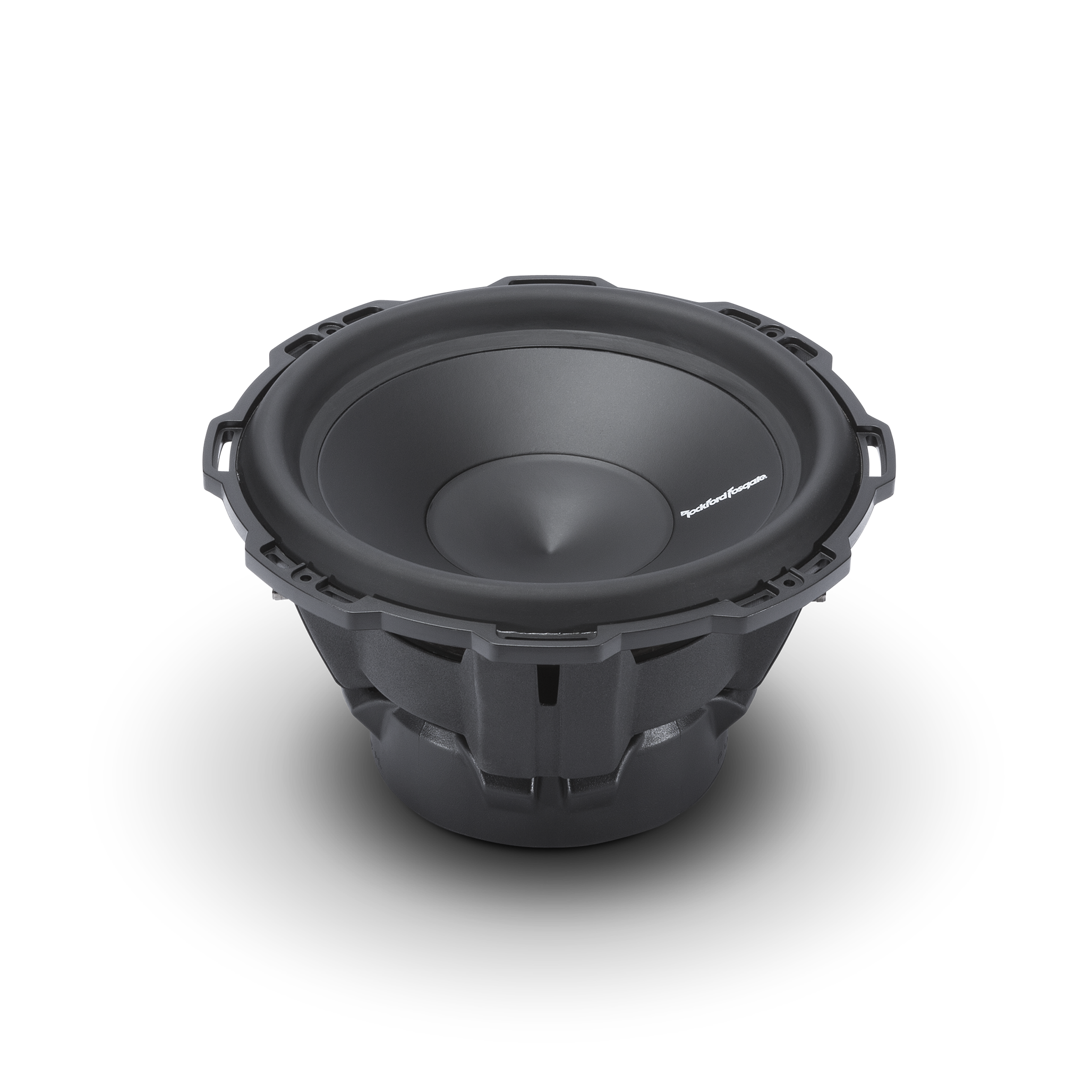

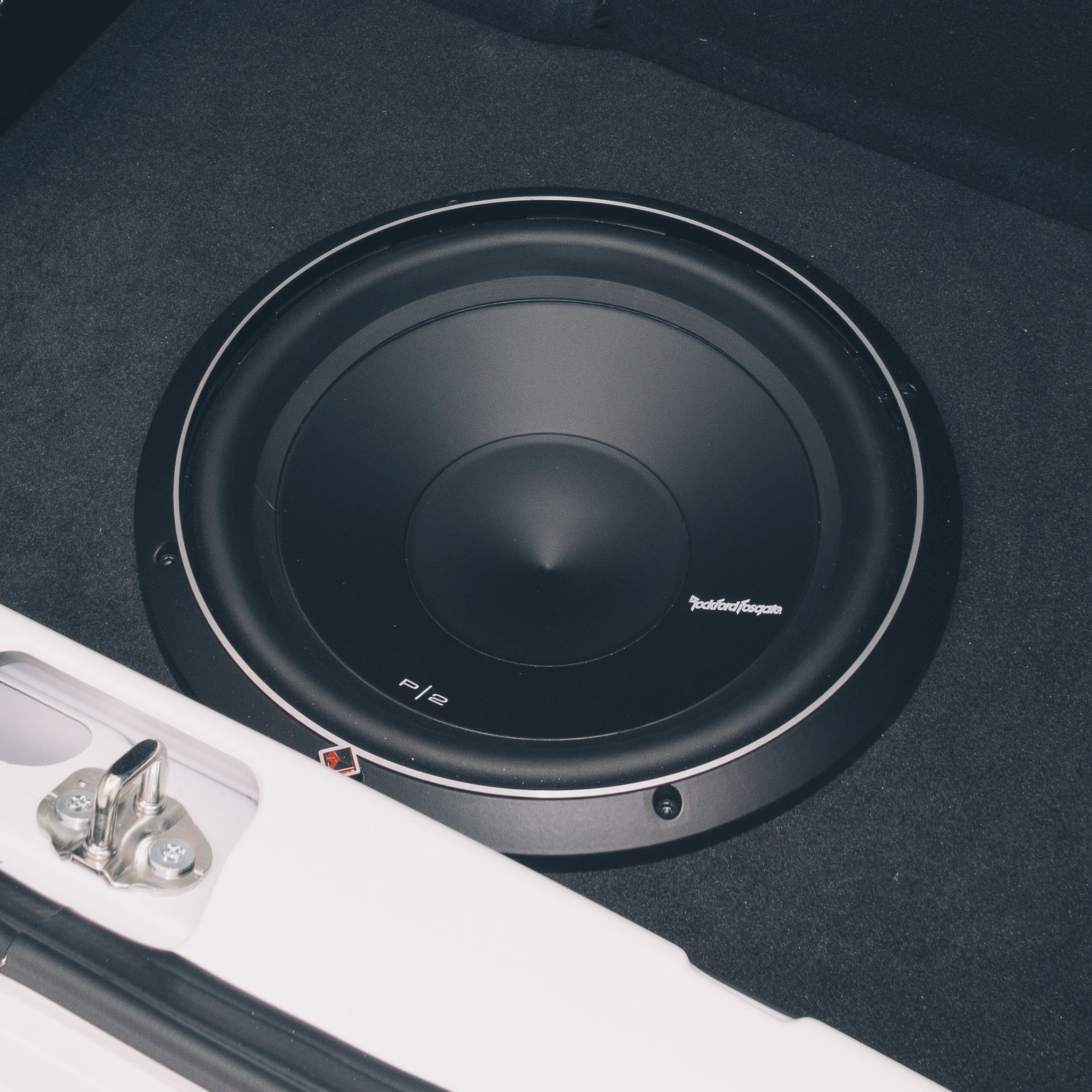

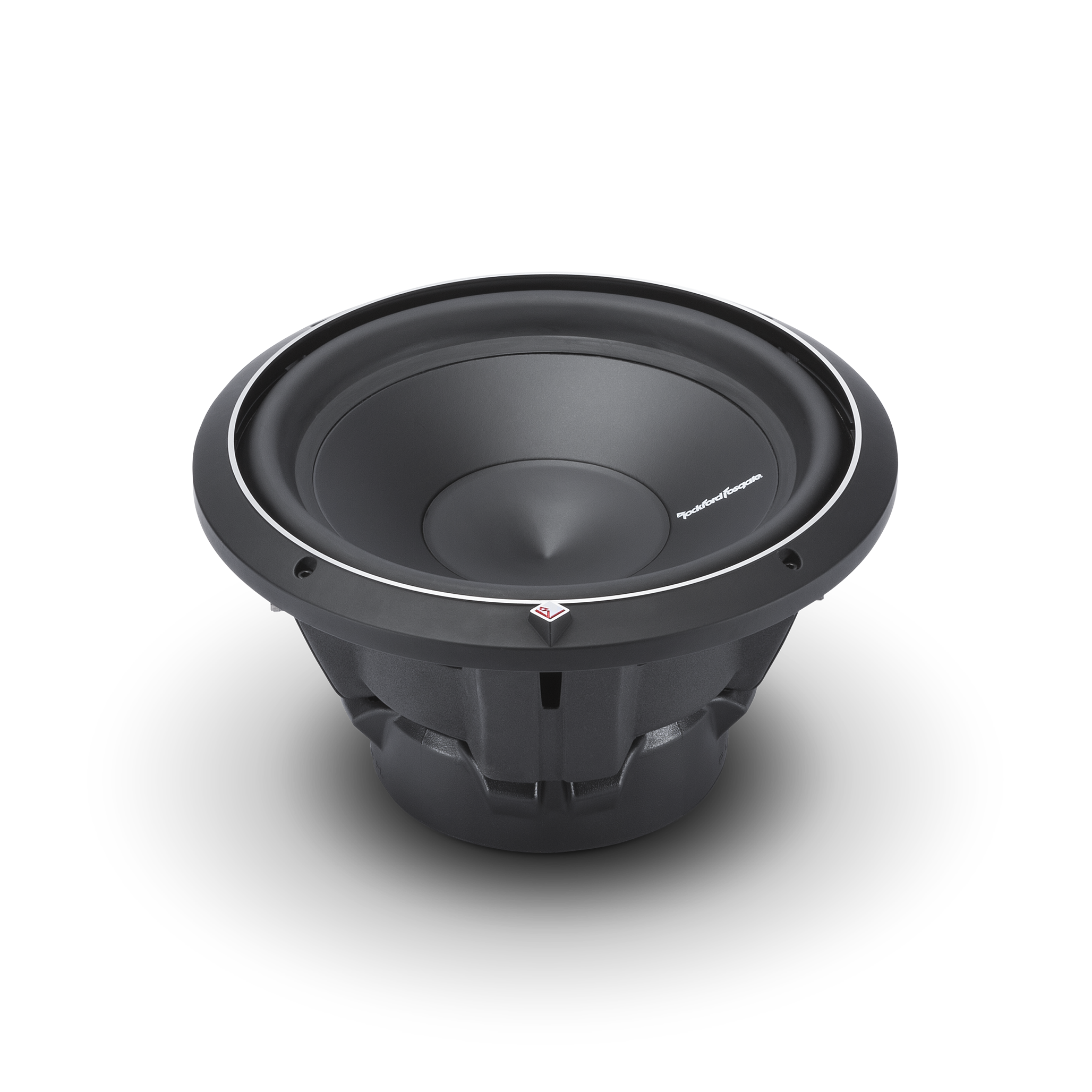

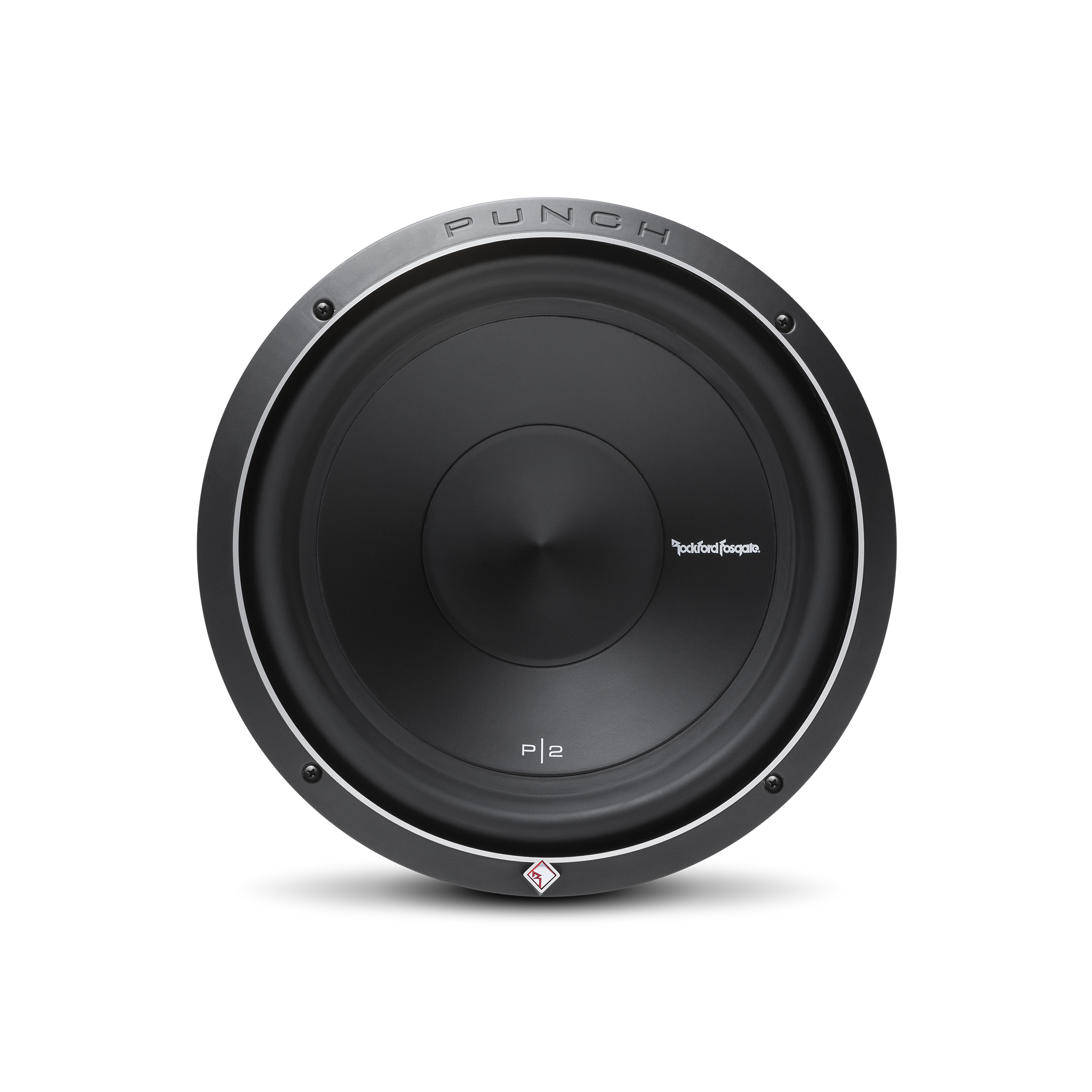

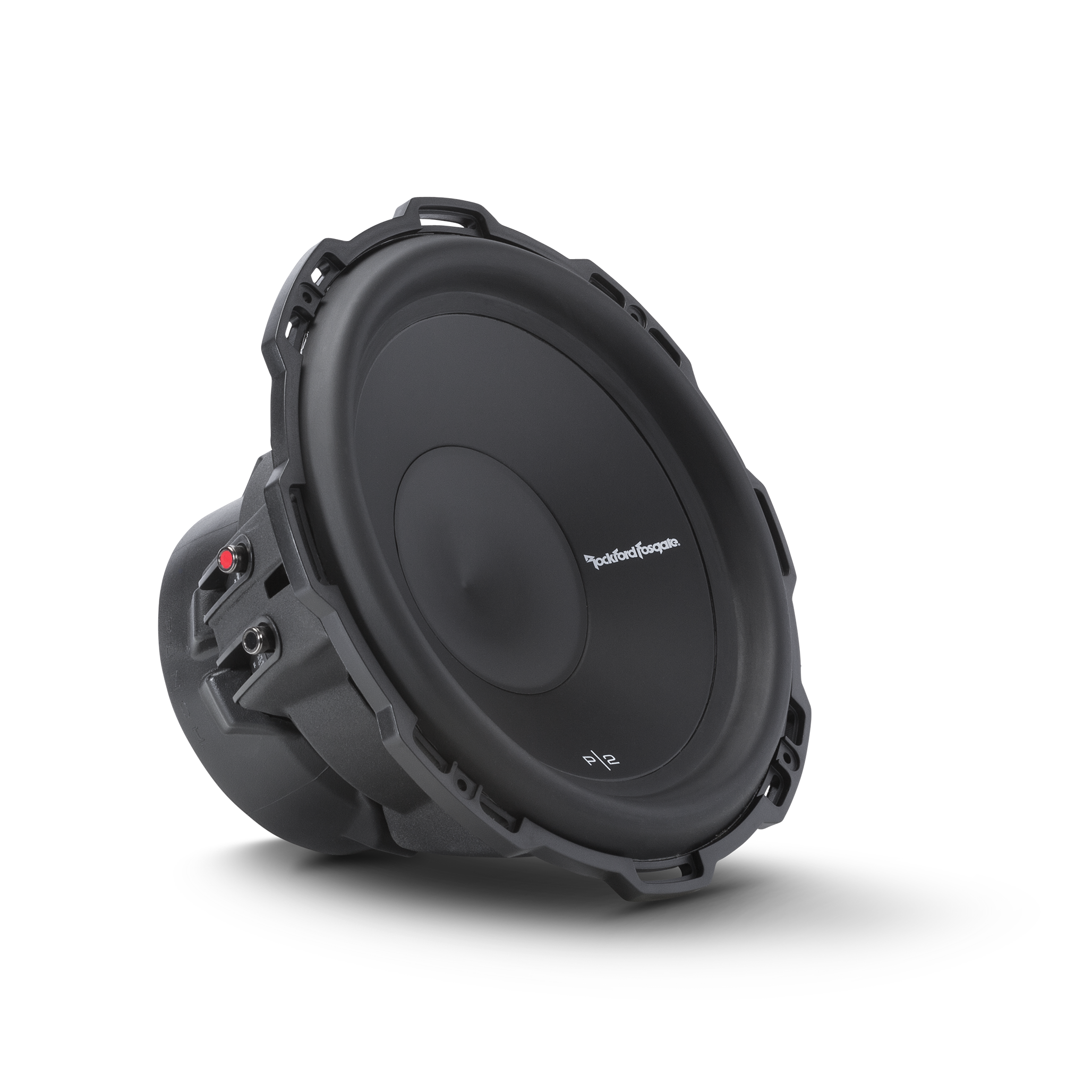

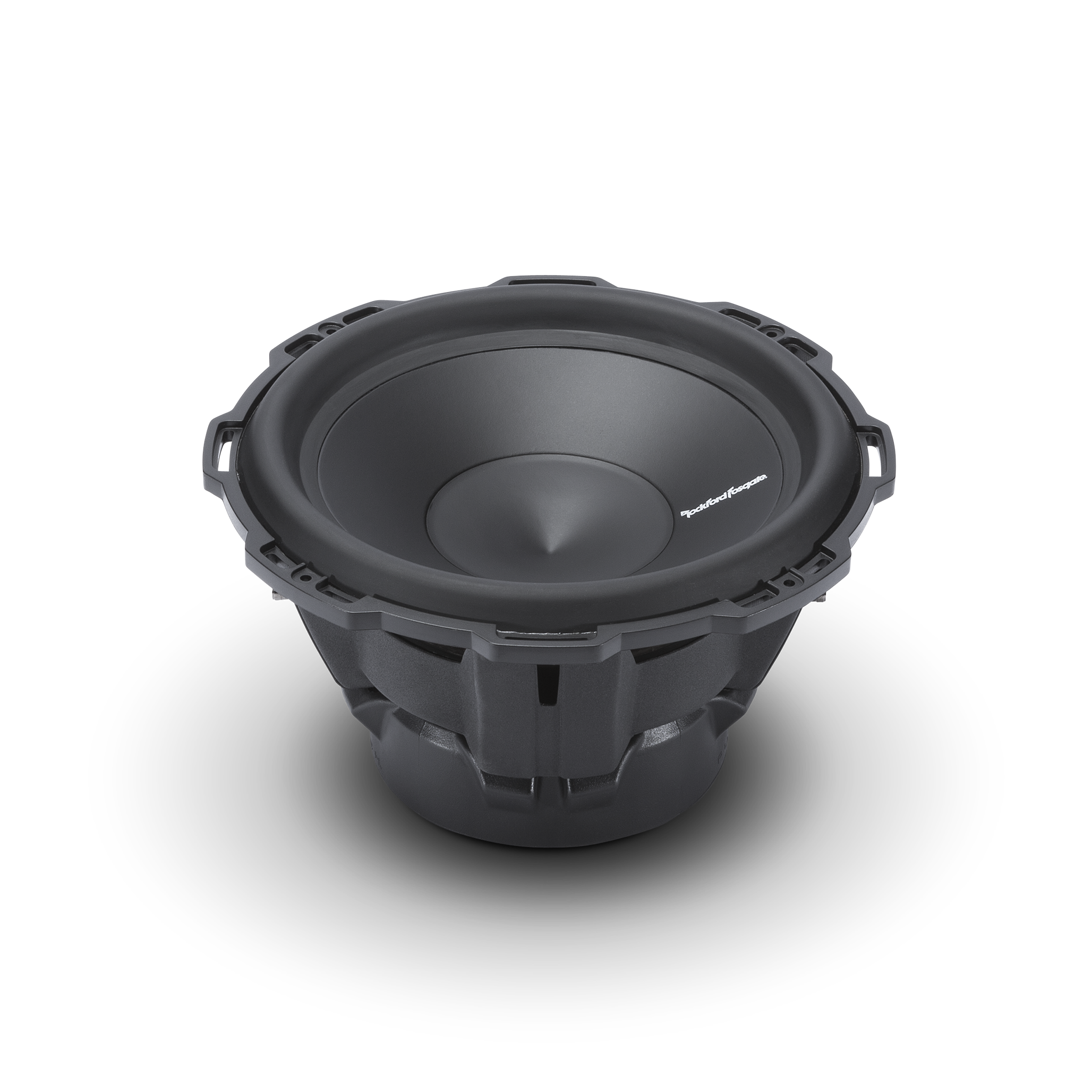

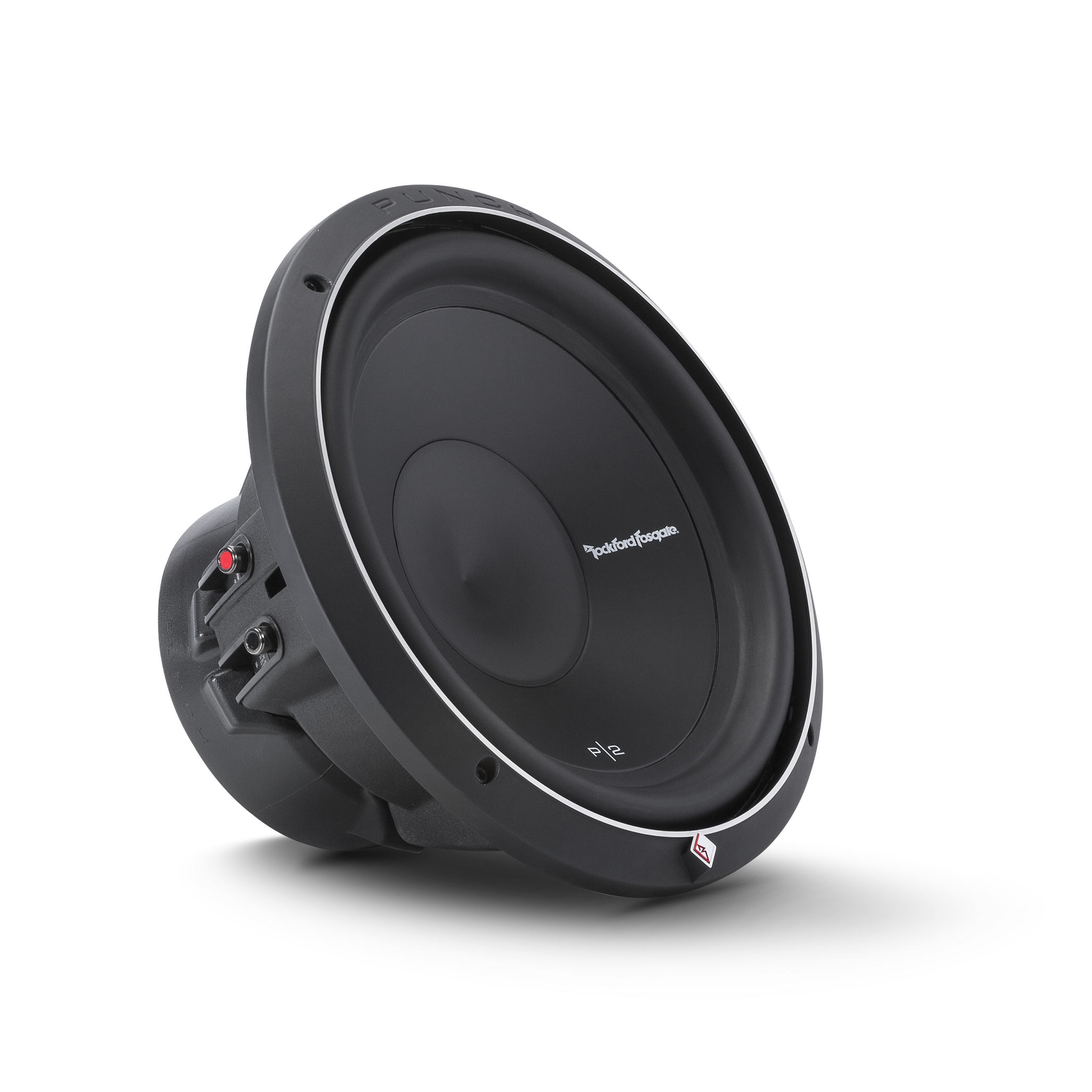

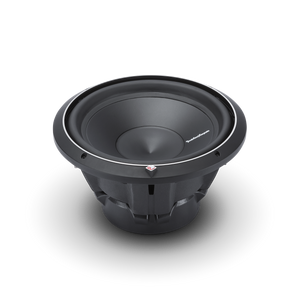

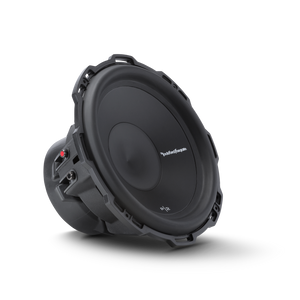

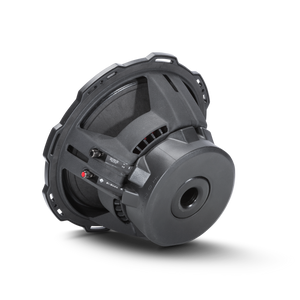

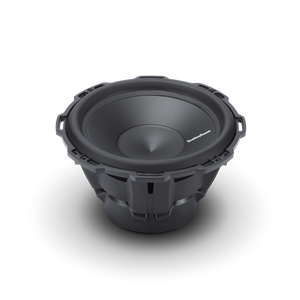

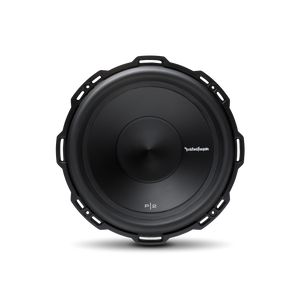

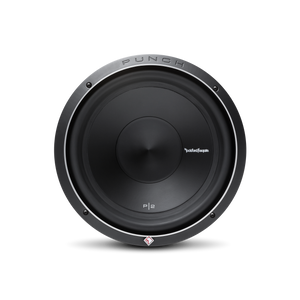

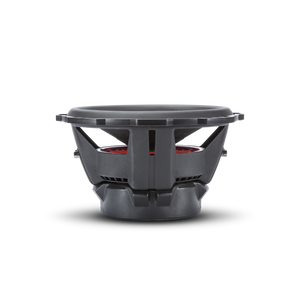

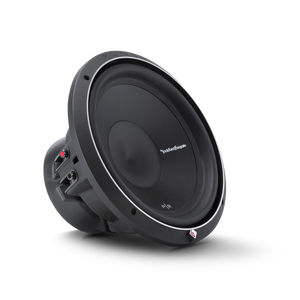

The Rockford Fosgate P2 12" subwoofer continues "The PUNCH" tradition of generating powerful mobile audio. The P2D2-12 features a 2-Ohm DVC and 400 Watts.
Features
- Dual linear spider with embedded 16 AWG tinsel leads

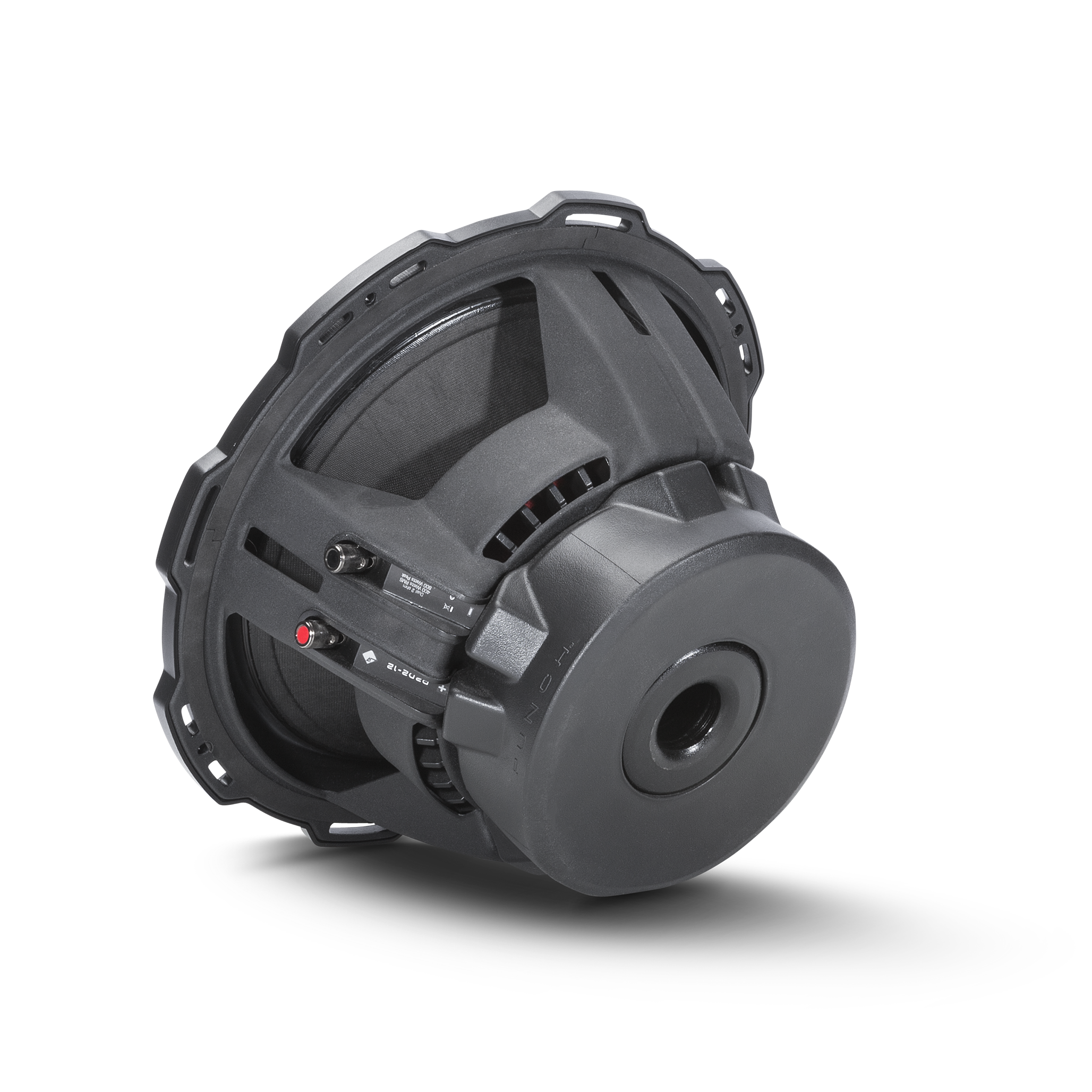

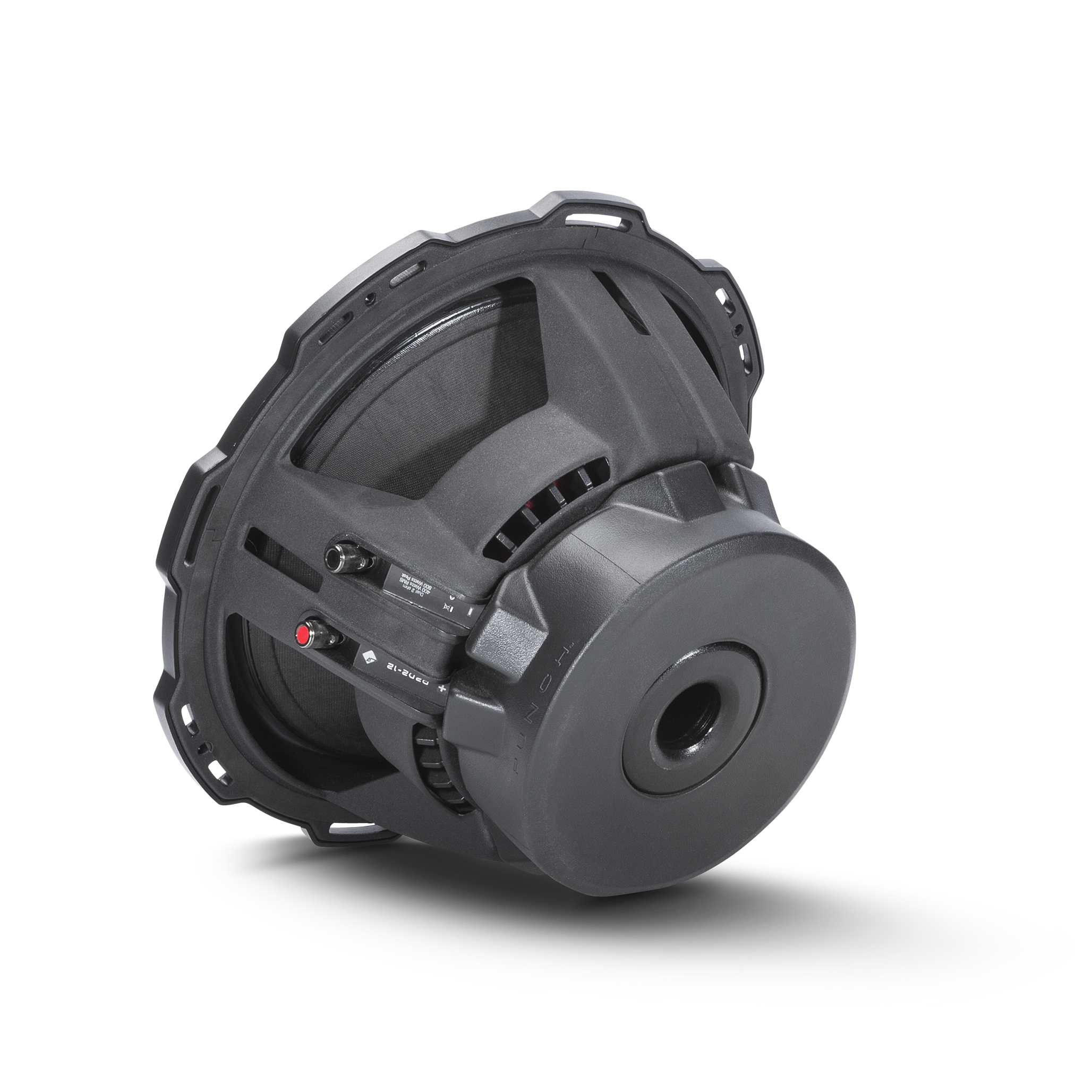

- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar

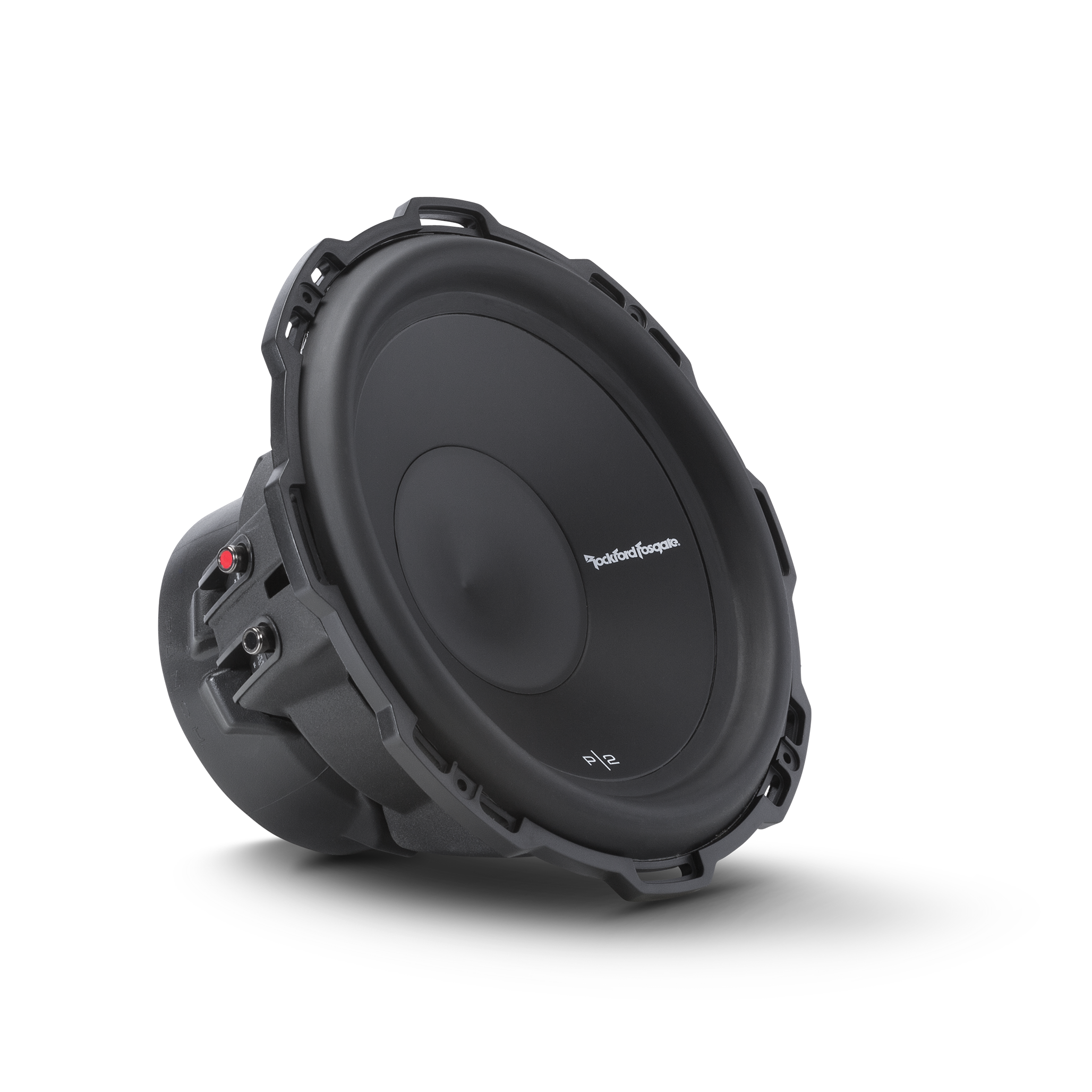

- Custom 10-AWG nickel plated push terminals

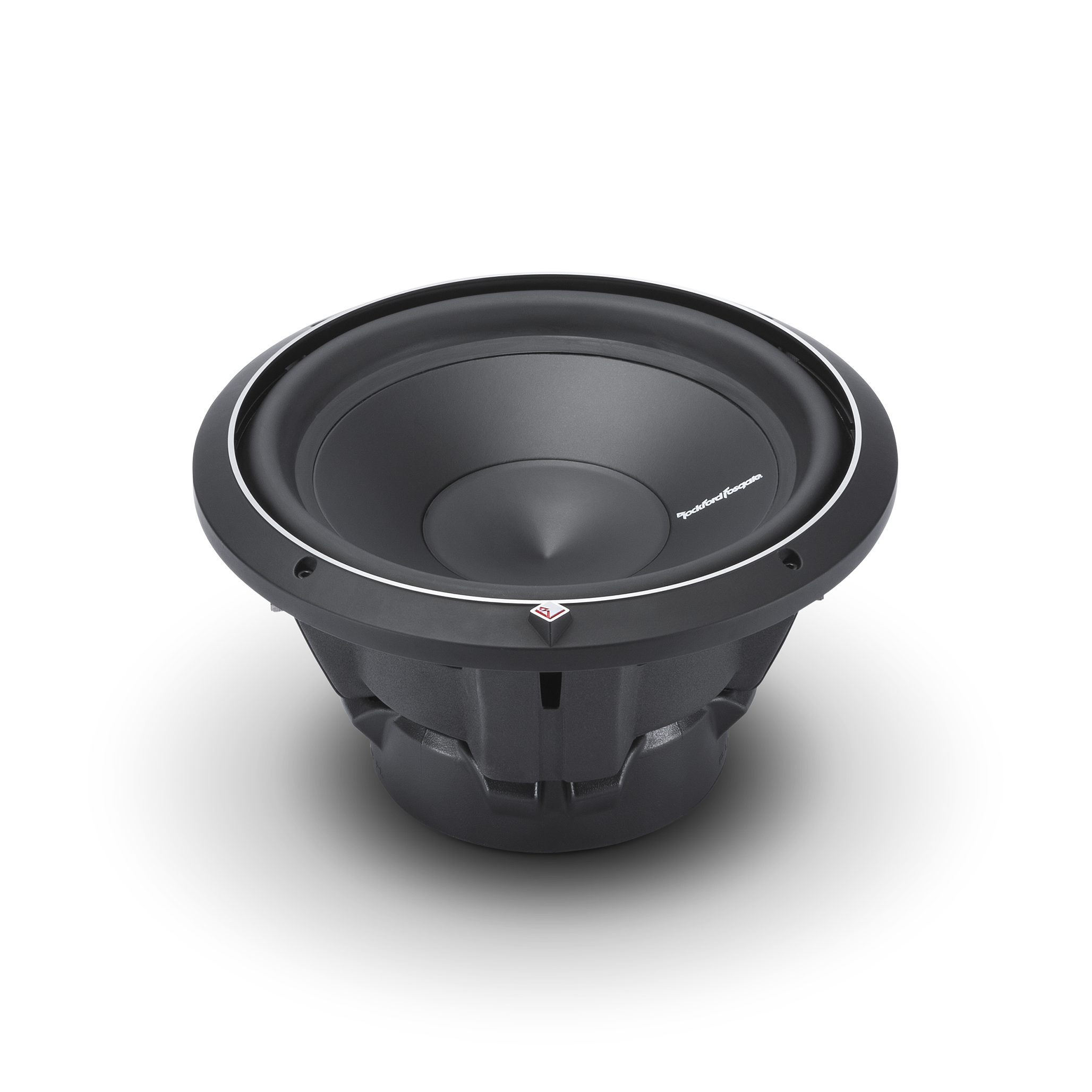

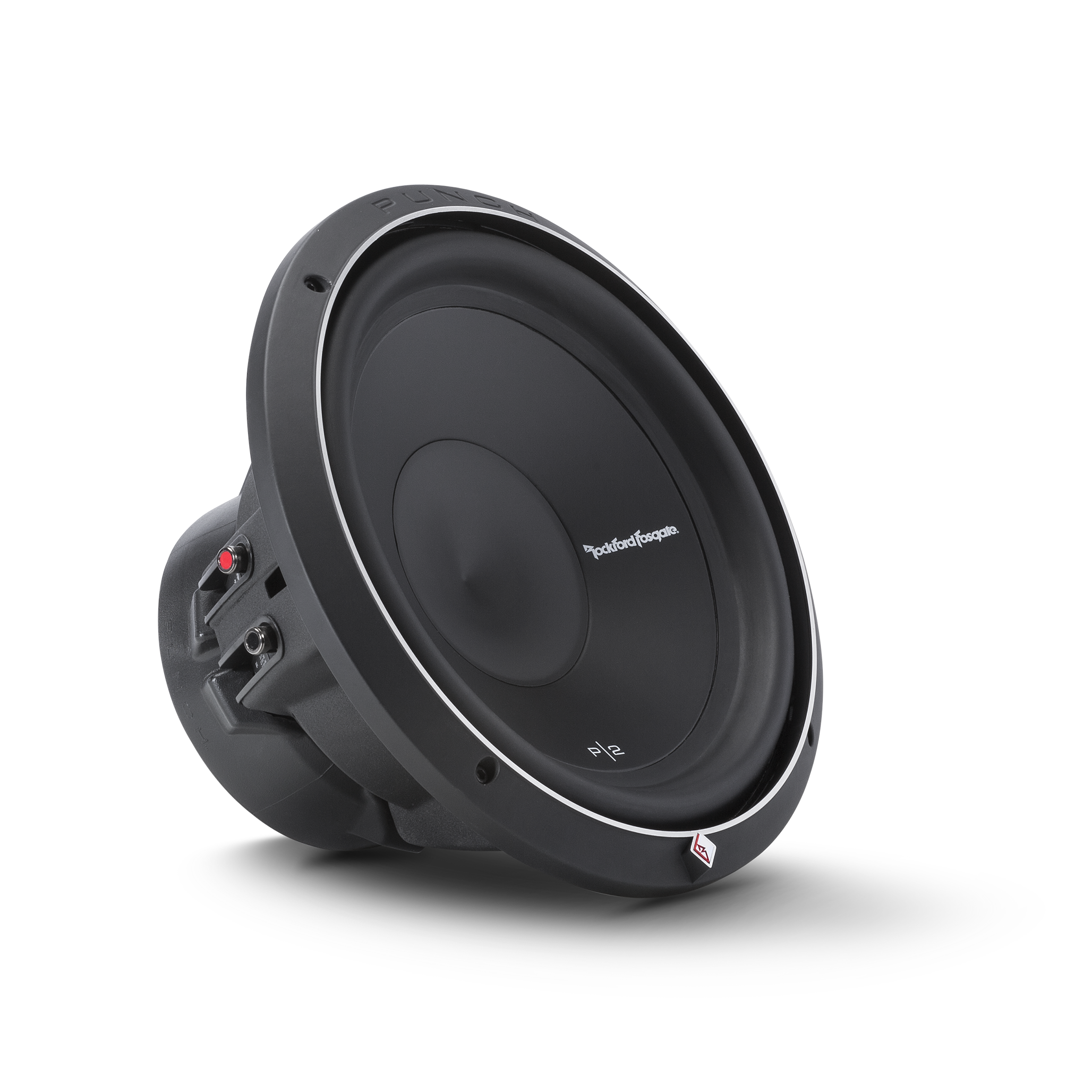

- Diamond cut cast aluminum trim ring with optional grille
- Protective PVC textured magnet cover

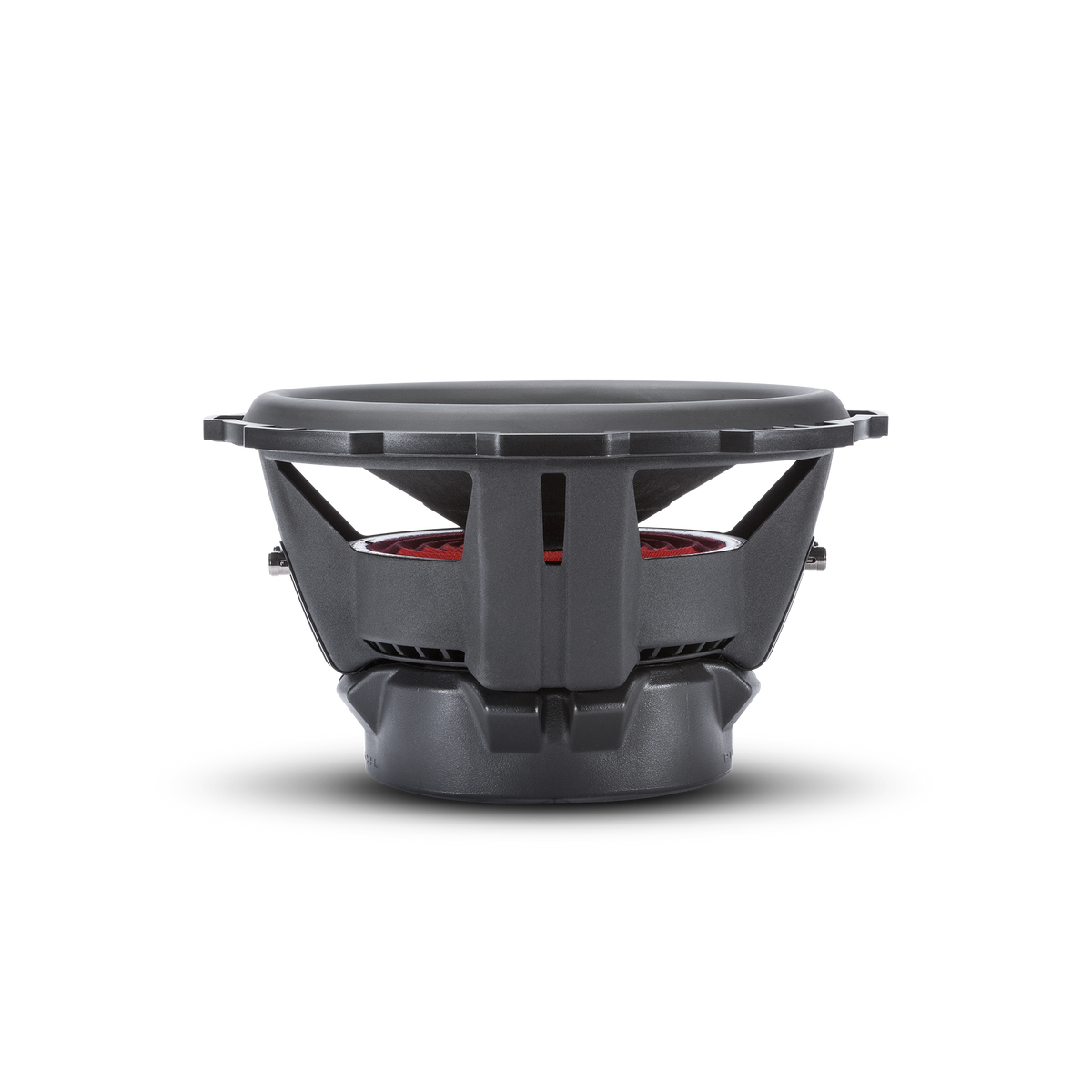

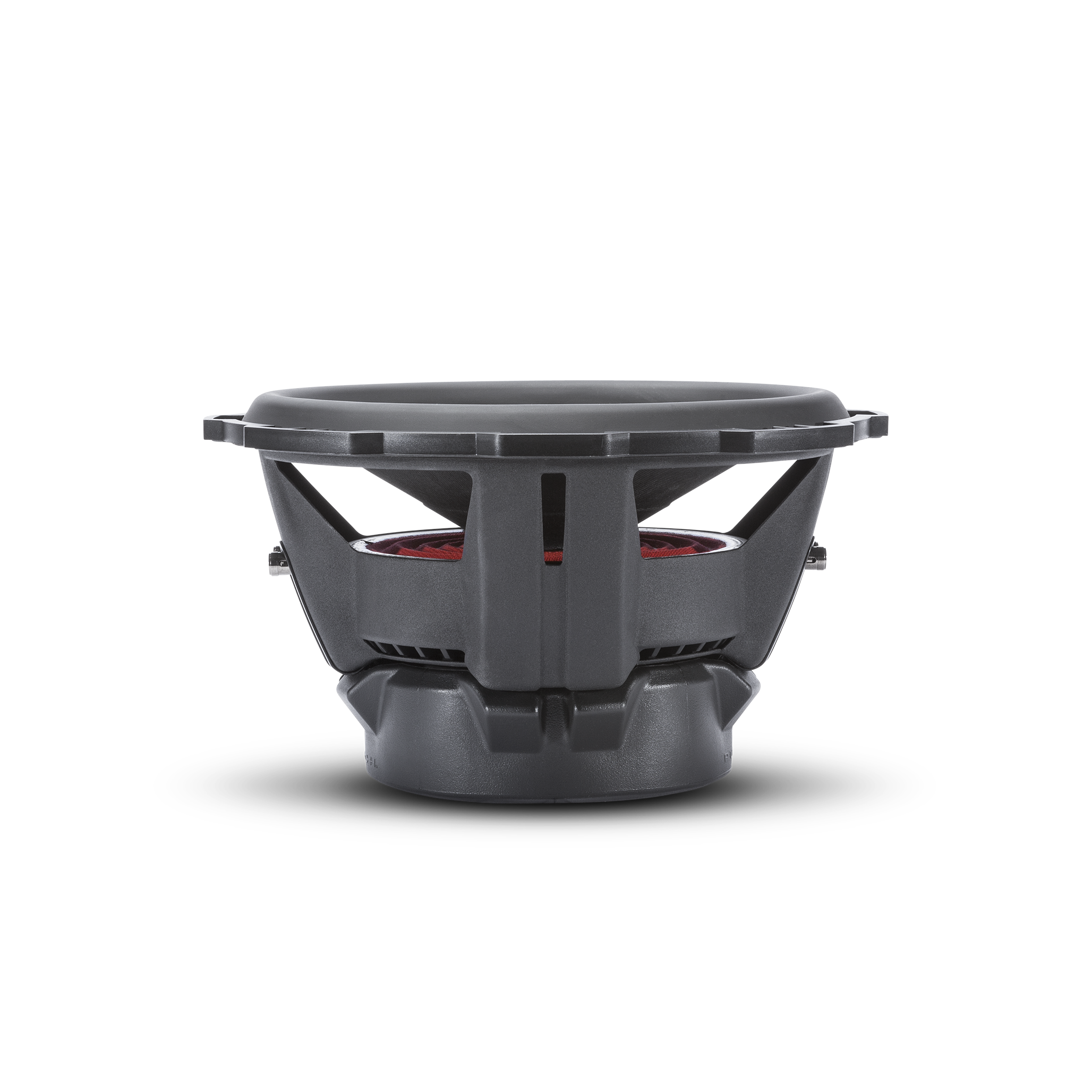

- StampCast basket with integrated spider venting
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
Specifications
- Power Handling (Watts RMS): 400 Watts RMS; 800 Watts Max
- Nominal Impedance: Dual 2-Ohm
- Mounting Depth: 6.40 in. (162 mm)
- Size: 12"
- Voice Coil Diameter: 2.25" (57.15 mm)
- Fs (Hz): 26
- SPL (dB @ 1w/1m): 86
- Woofer Displacement: 0.085 cu. ft. (2.4 Liters)
- Le (mH): 3.7
- Xmax (mm): 13.3
- Speaker Connector: Dual 10 AWG compression
- Qts: 0.52
- Shipping Weight: 15.6 Lbs. (7.07 kg)
- Magnet Weight (oz): 72.8 oz. (2.06 kg.)
- Qes: 0.56
- Qms: 6.5
- Re (Ohms): 3.3
- Cutout Diameter: 11.22 in. (285 mm)
- Vas (Liters): 81.5
- Sd (cm2): 570
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
