P165-SI
Overview

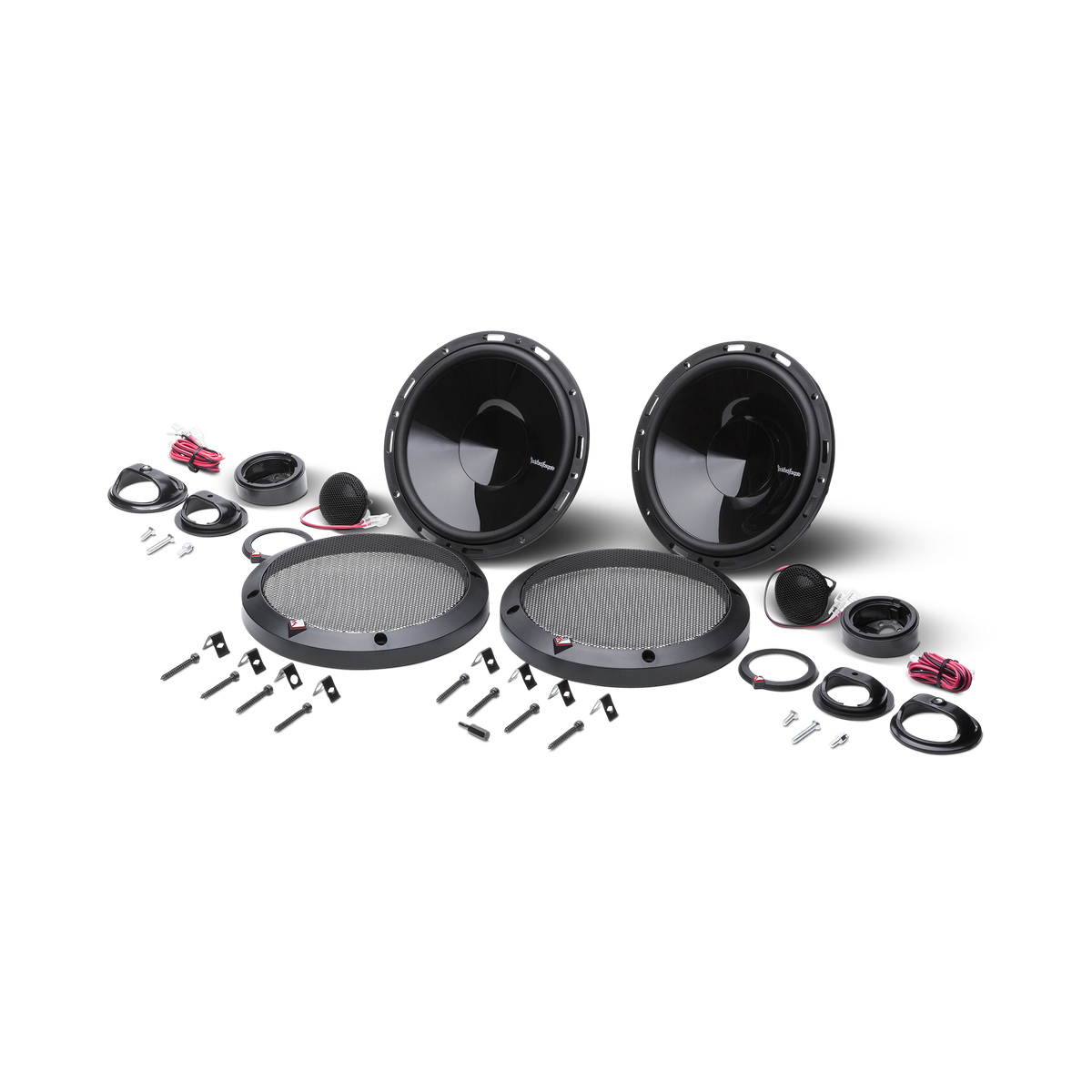

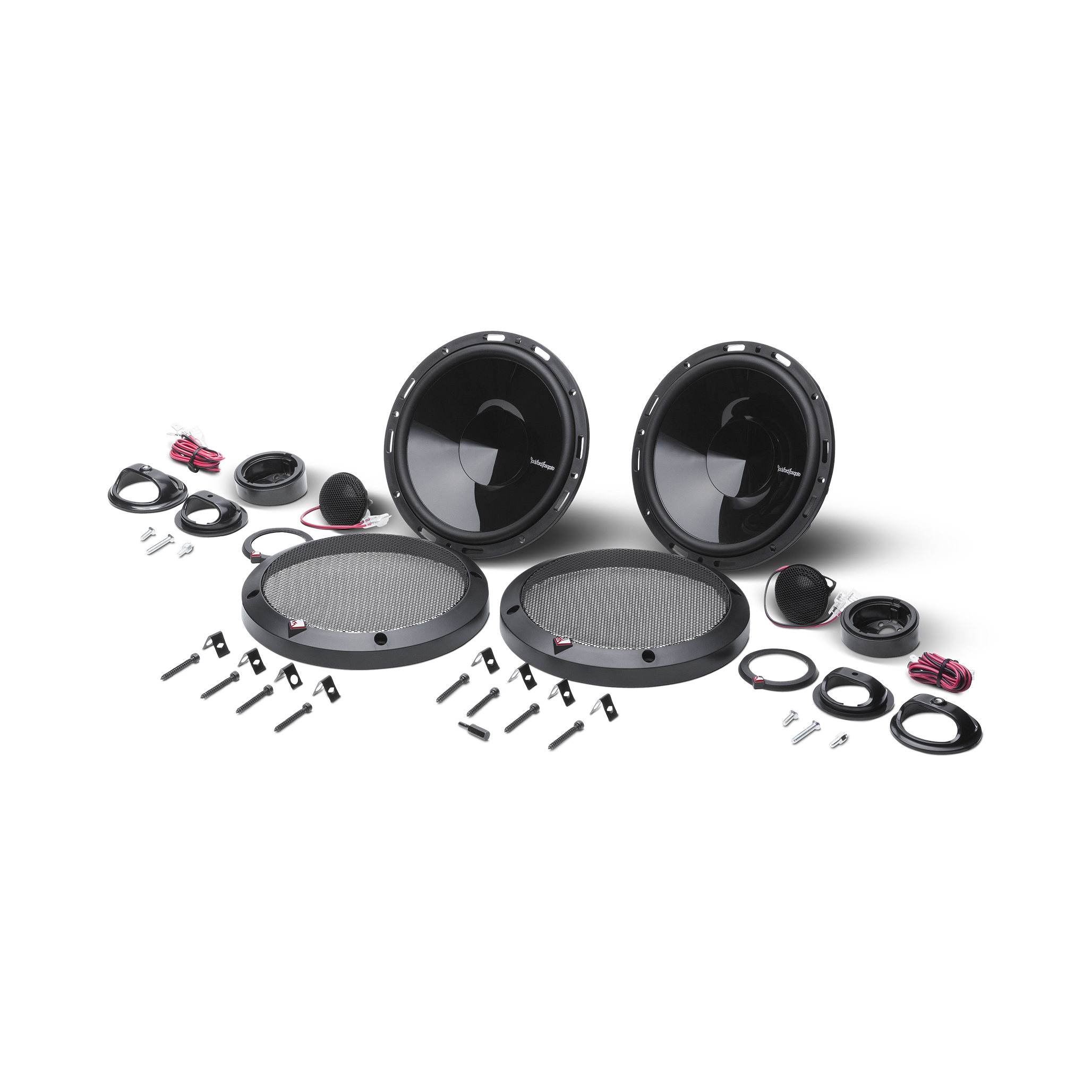

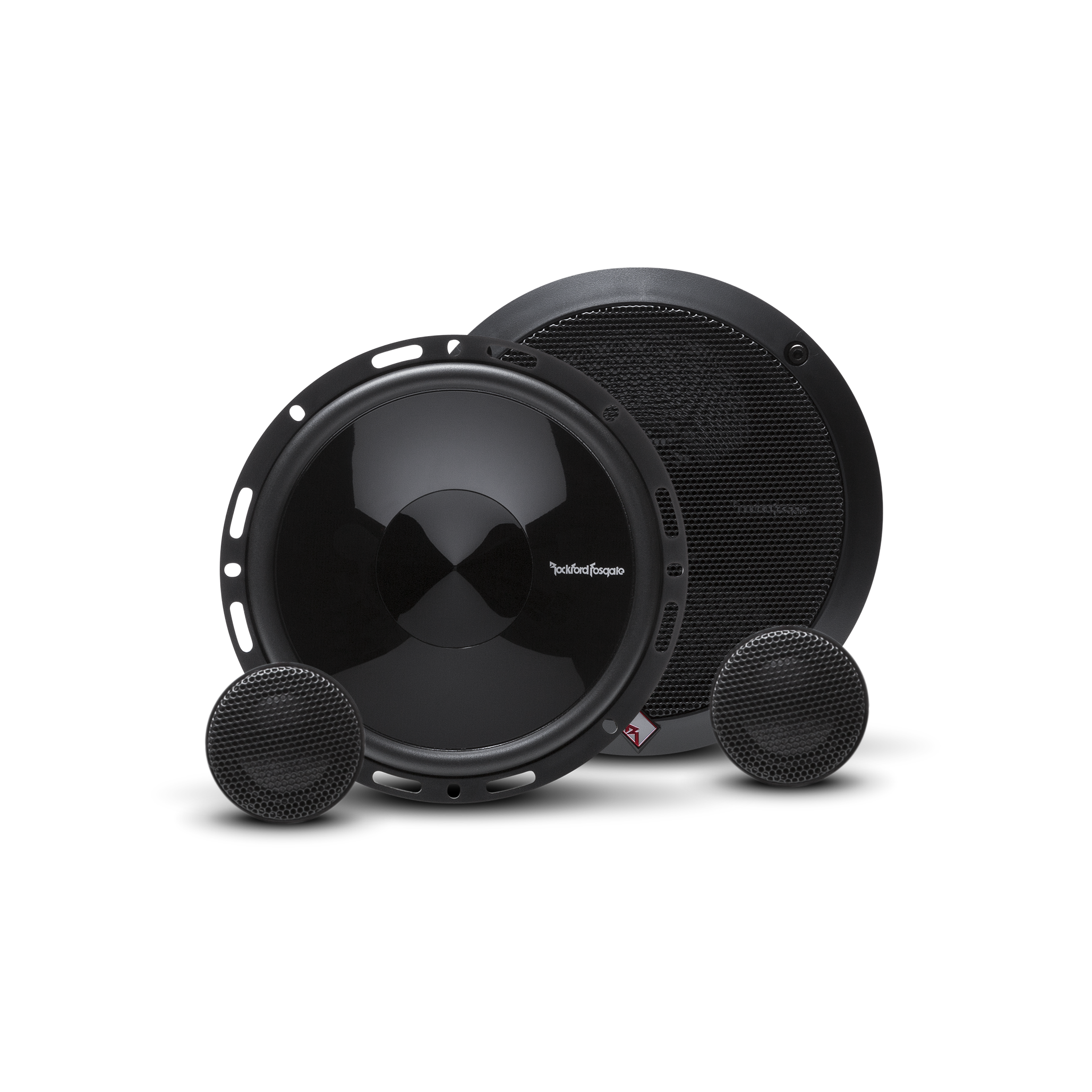

The Punch P165-SI is a P1 component system with a separate tweeter and a true 6.5" midrange optimized for a wide variety of U.S., European, and import vehicles. Supplied with integral tweeter crossover. Sold in pairs (2 each).
Features
- 1 Year Warranty
- Linear high excursion matched motor magnetics and suspension design
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Santoprene rubber surround
- FlexFit 2 mounting
- Integrated concealed 12dB/Octave crossover components
- Sold in pairs (2 each)
- Flush and surface (angled) tweeter mounting hardware included
- DDC (Discreet Dual Clamp) tweeter mounting system
- Grilles and mounting hardware included
- Stamp-cast aluminum frame
- Injection molded mineral filled polypropylene cone
- 1" treated PEI dome tweeter
Specifications
- Midrange Size; (Nominal Diameter): 6.5"
- Speaker Type: Component System
- Midrange Mounting Depth: 2.24" (57 mm)
- Frequency Response (Hz): 44Hz - 20kHz
- Crossover: Tweeter crossover built into midrange basket; 12dB/octave
- Tweeter Size; (Nominal Diameter): 1.0" (25.4 mm)
- Tweeter Mounting Depth: 0.50" (13 mm)
- Sensitivity; (dB @ 1W/1M): 88
- Nominal Impedance (Ohms): 4-Ohm
- Mounting Hardware: Yes
- Power Handling (RMS): 60 Watts RMS; 120 Watts Max
- Grille/Trim Ring Included: Yes
