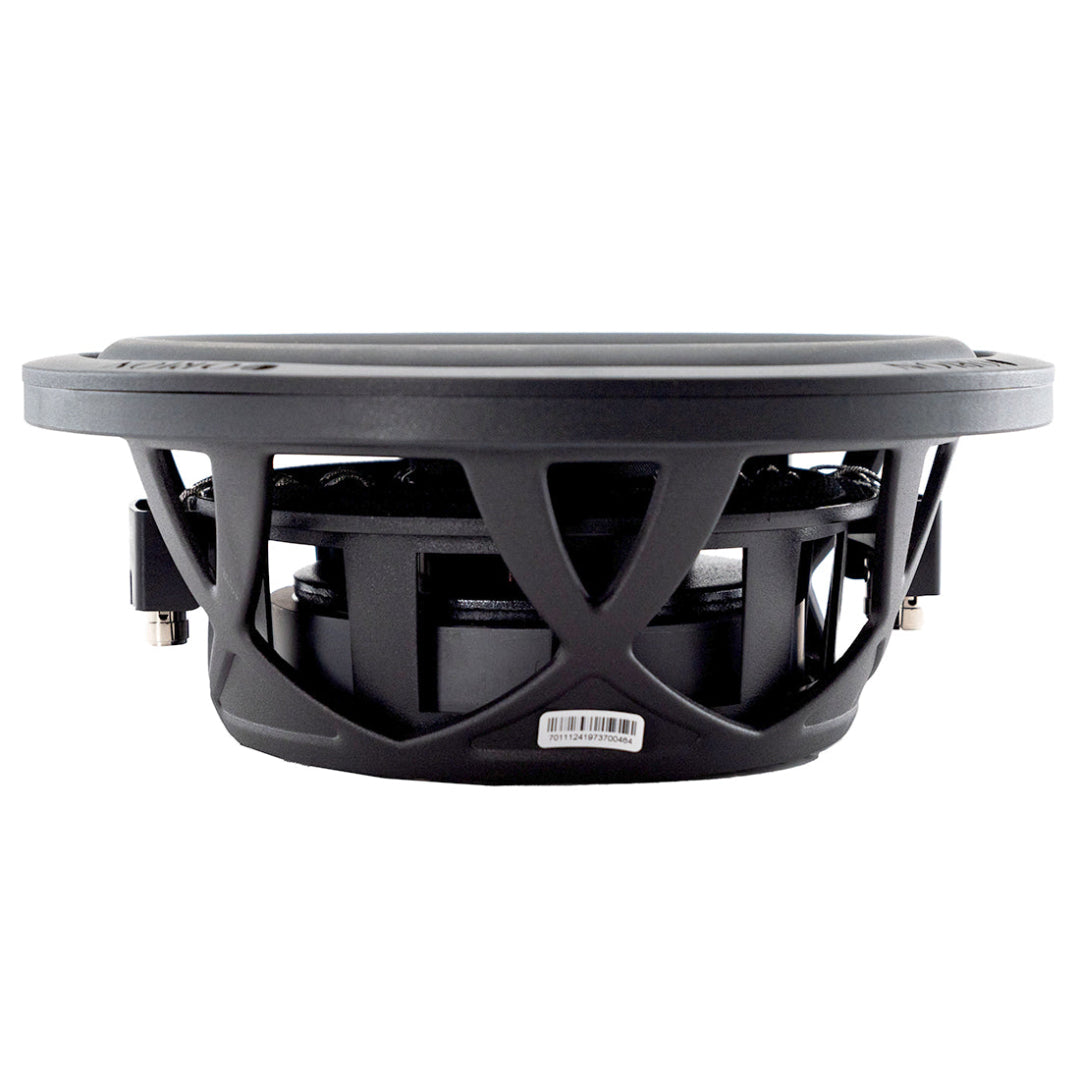

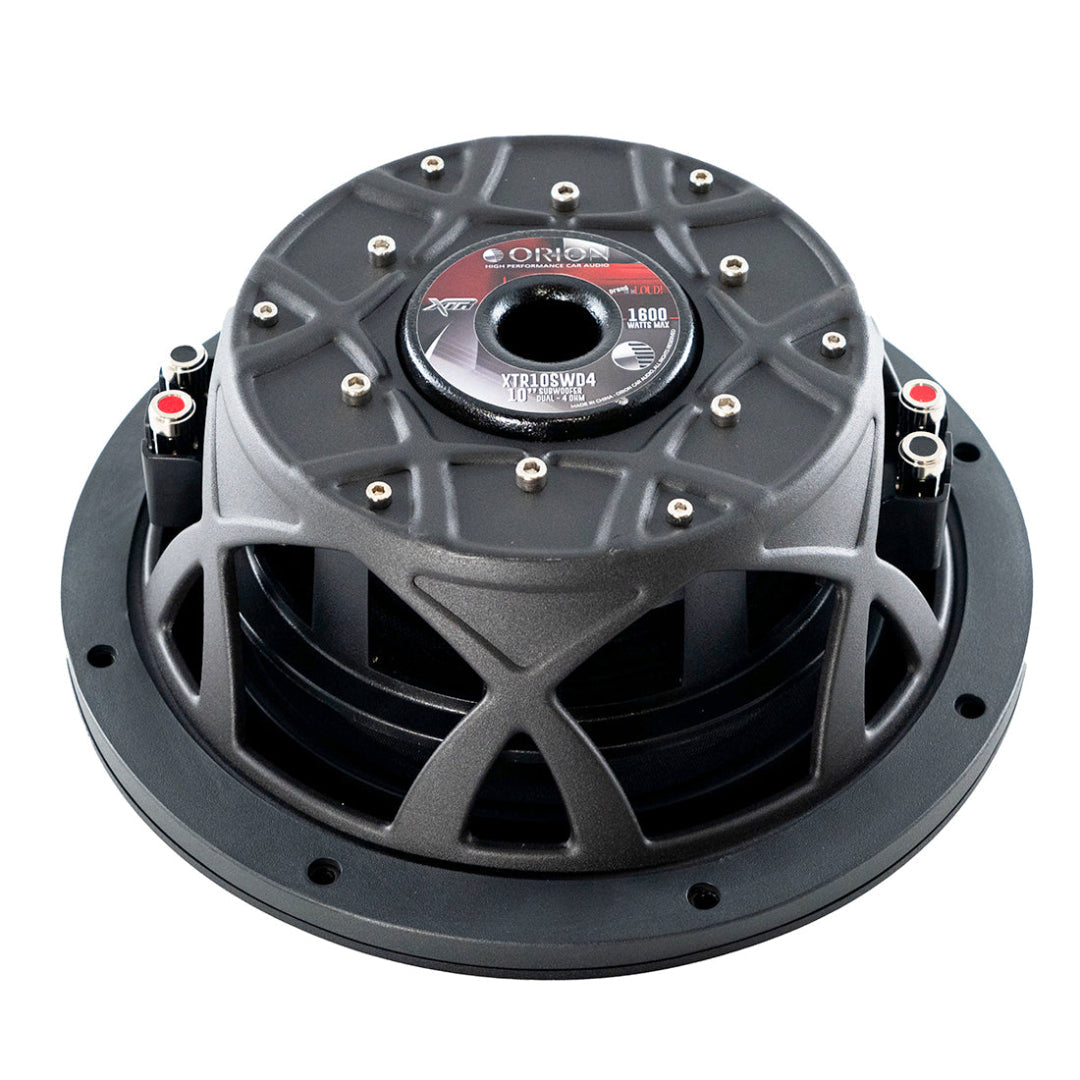

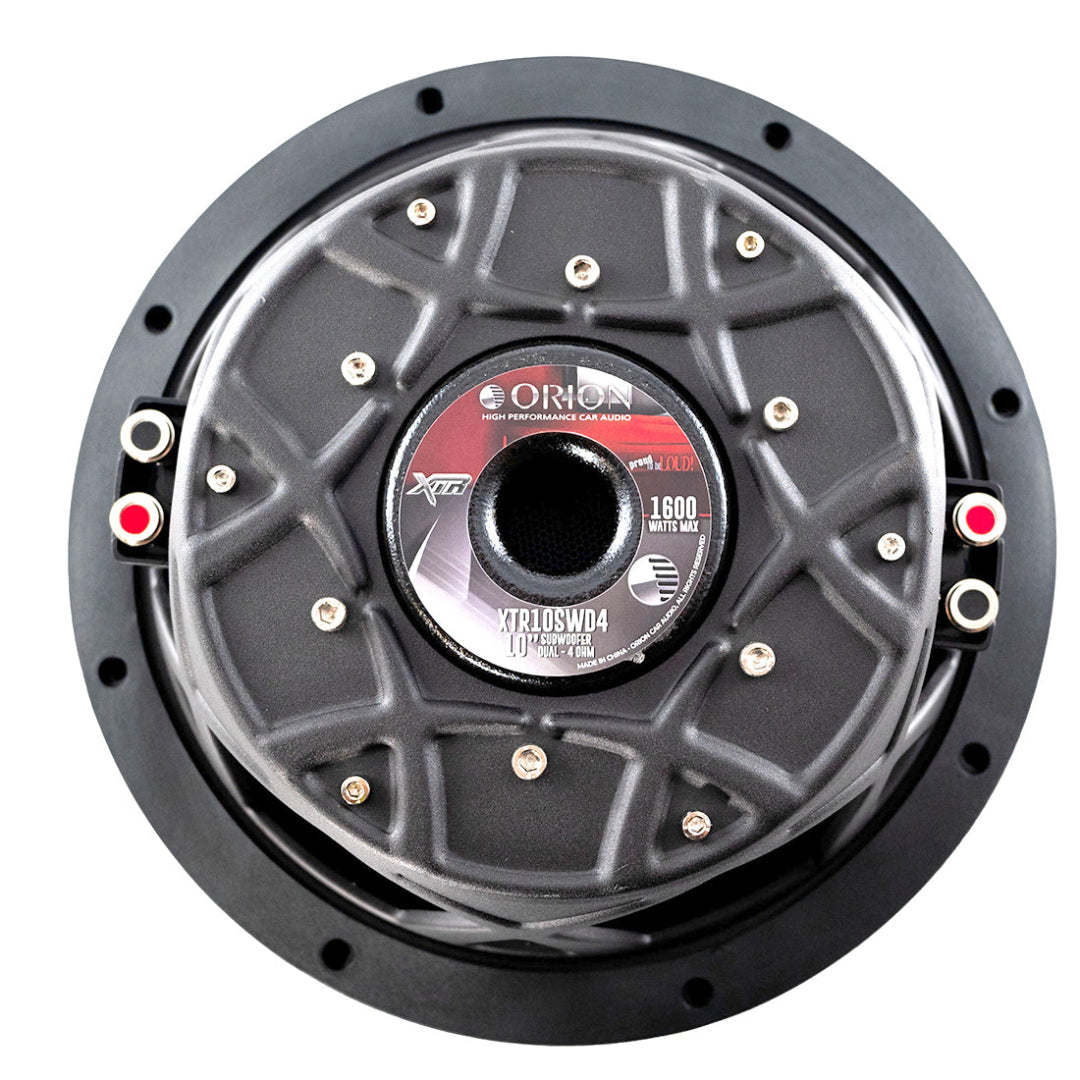

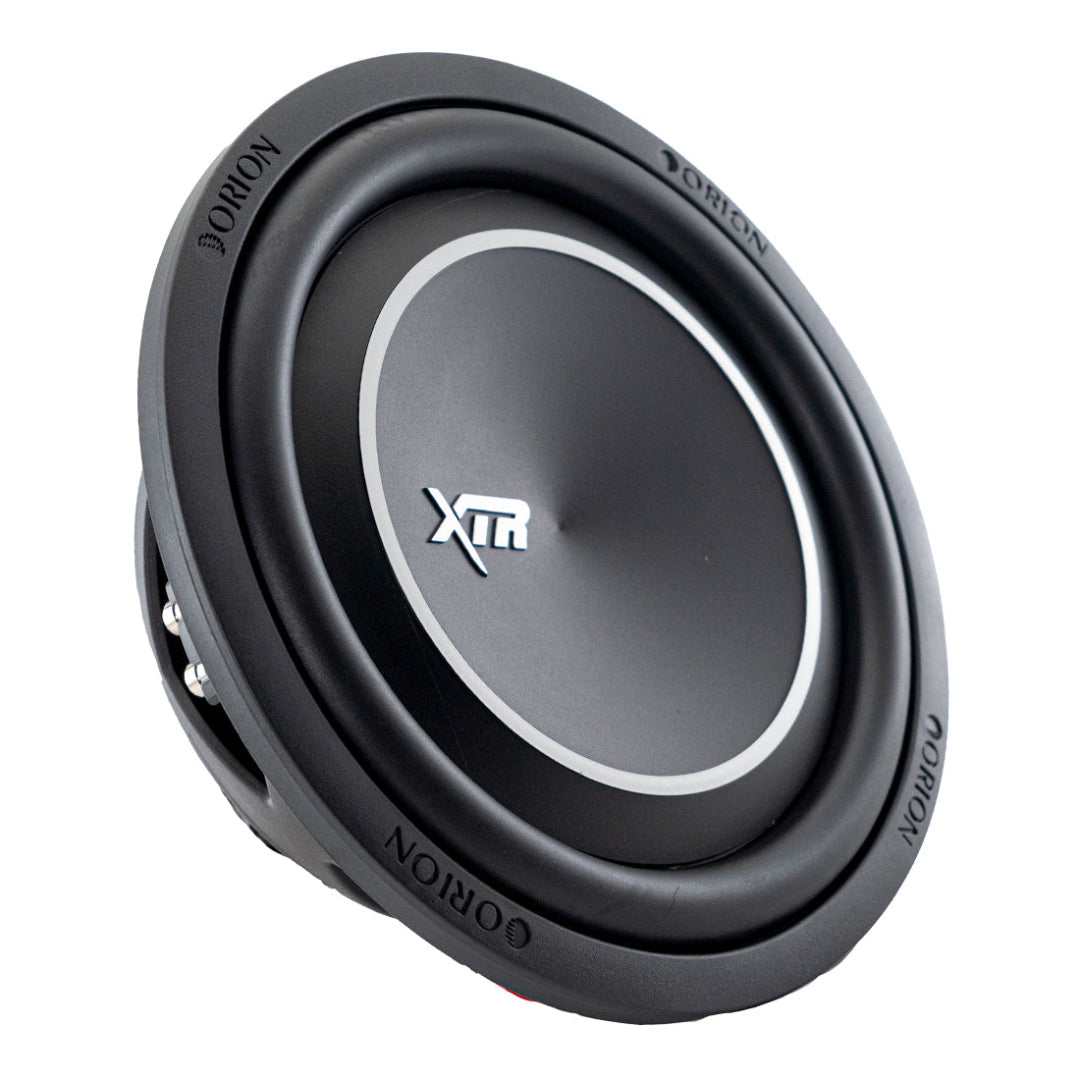

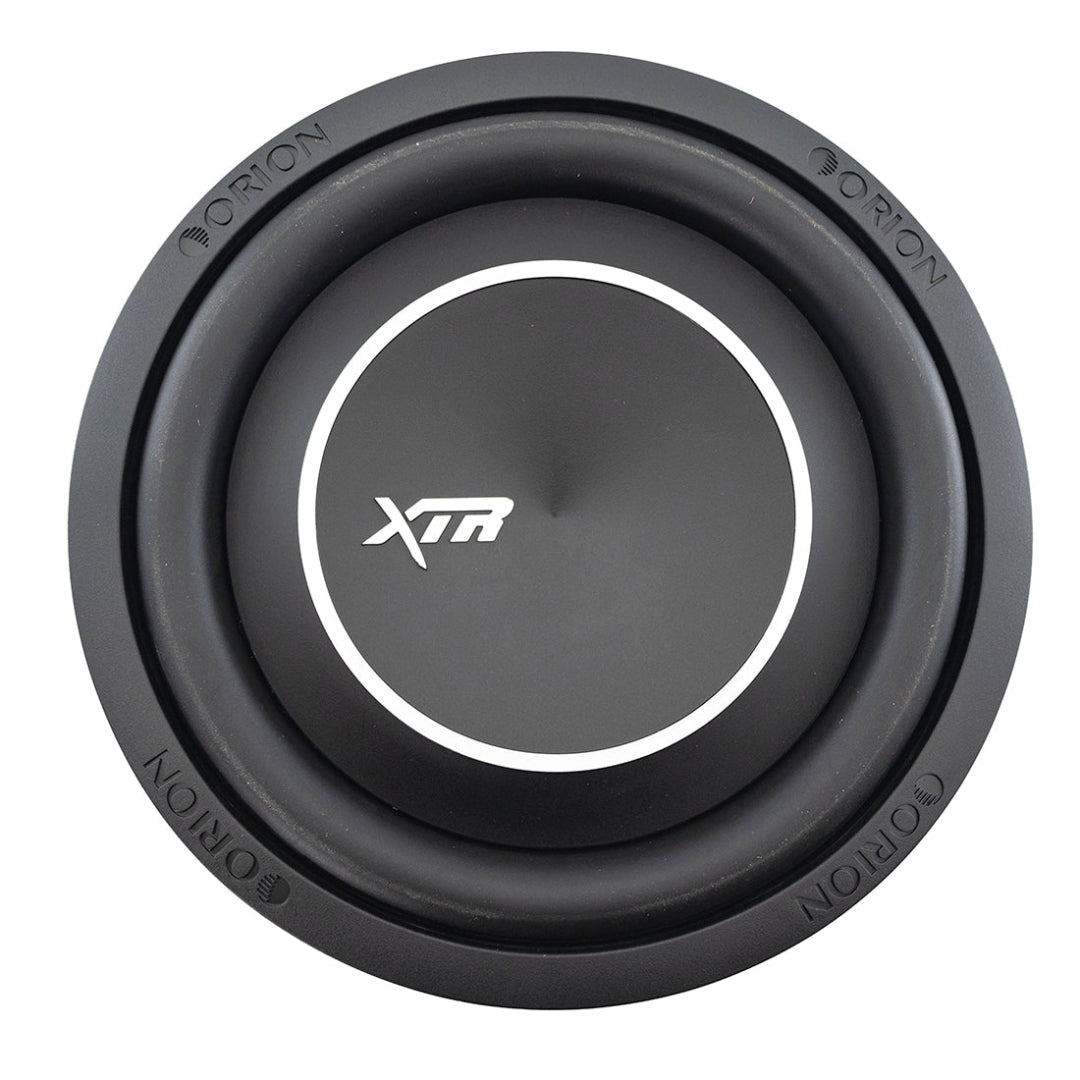

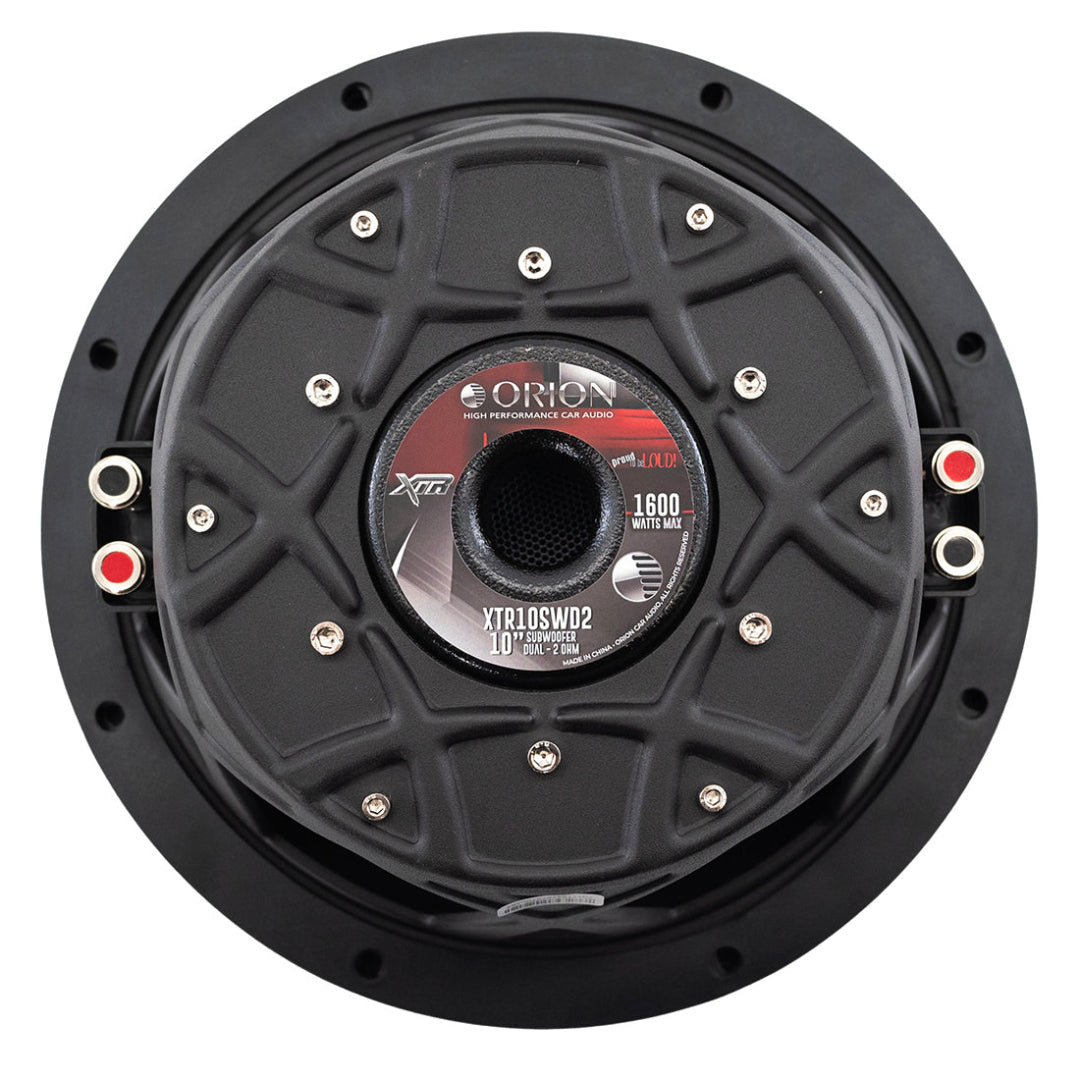

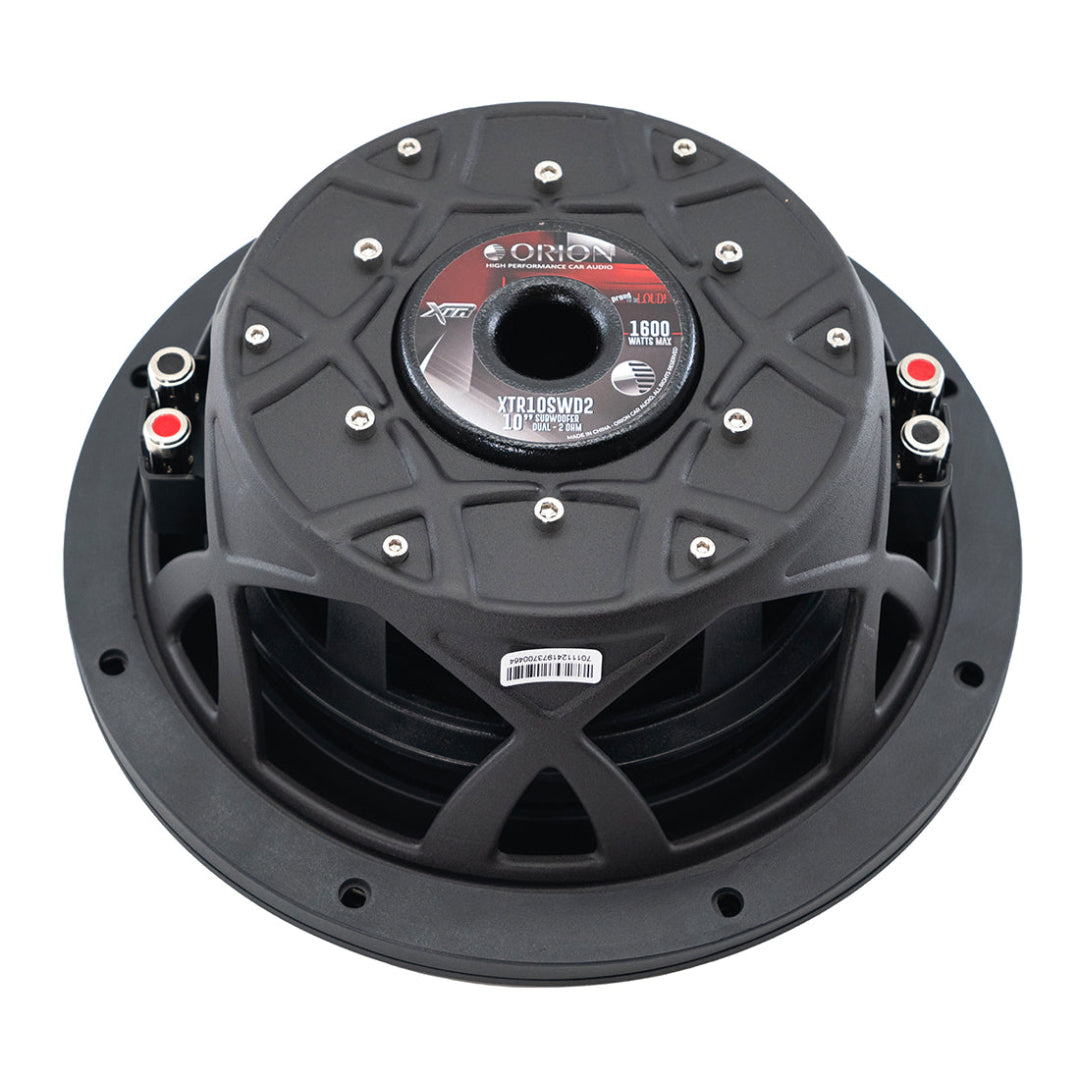

Orion XTR 10 Inch Shallow Subwoofer - 400 Watts RMS
Orion XTR 10 Inch Shallow Subwoofer - 400 Watts RMS
Orion XTR 10 Inch Shallow Subwoofer - 400 Watts RMS
Orion XTR 10 Inch Shallow Subwoofer - 400 Watts RMS. Available manufacturer models: XTR10SWD2 (Dual 2 Ohm), XTR10SWD4 (Dual 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTR10SWD2 - Dual 2 Ohm
- Subwoofer Size: 10 (Inches)
- Voice Coil Configuration: Dual 2-ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 83 dB
- Frequency Response: 35 Hz - 300 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: NBR
- Magnet Information: Ceramic
- Mounting Depth: 87mm / 3.43 (Inches)
- Cutout Diameter: 231mm / 9.09 (Inches)
- Overall Diameter: 275mm / 10.83 (Inches)
XTR10SWD4 - Dual 4 Ohm
- Subwoofer Size: 10 (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 83 dB
- Frequency Response: 35 Hz - 300 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: NBR
- Magnet Information: Ceramic
- Mounting Depth: 87mm / 3.43 (Inches)
- Cutout Diameter: 231mm / 9.09 (Inches)
- Overall Diameter: 275mm / 10.83 (Inches)
