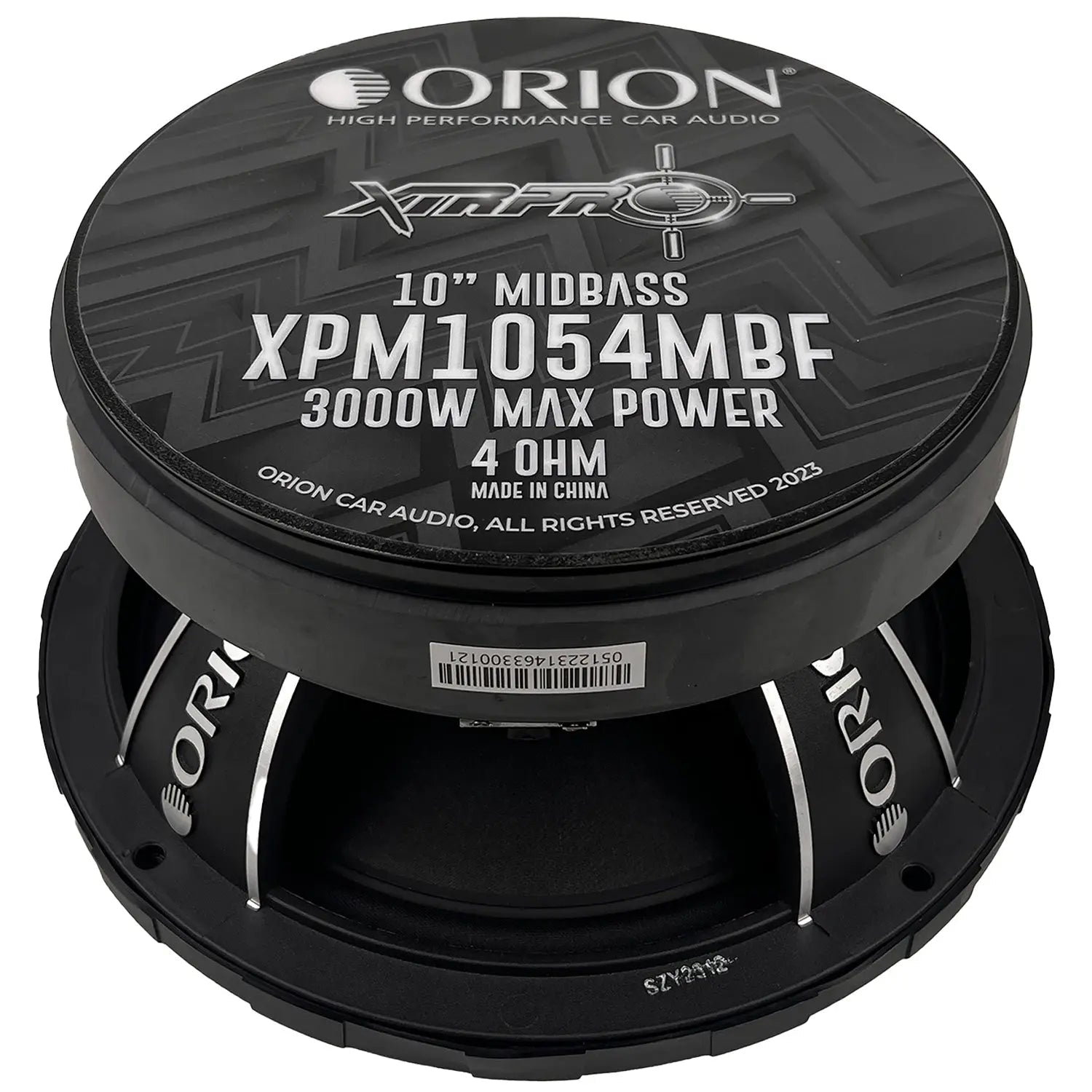

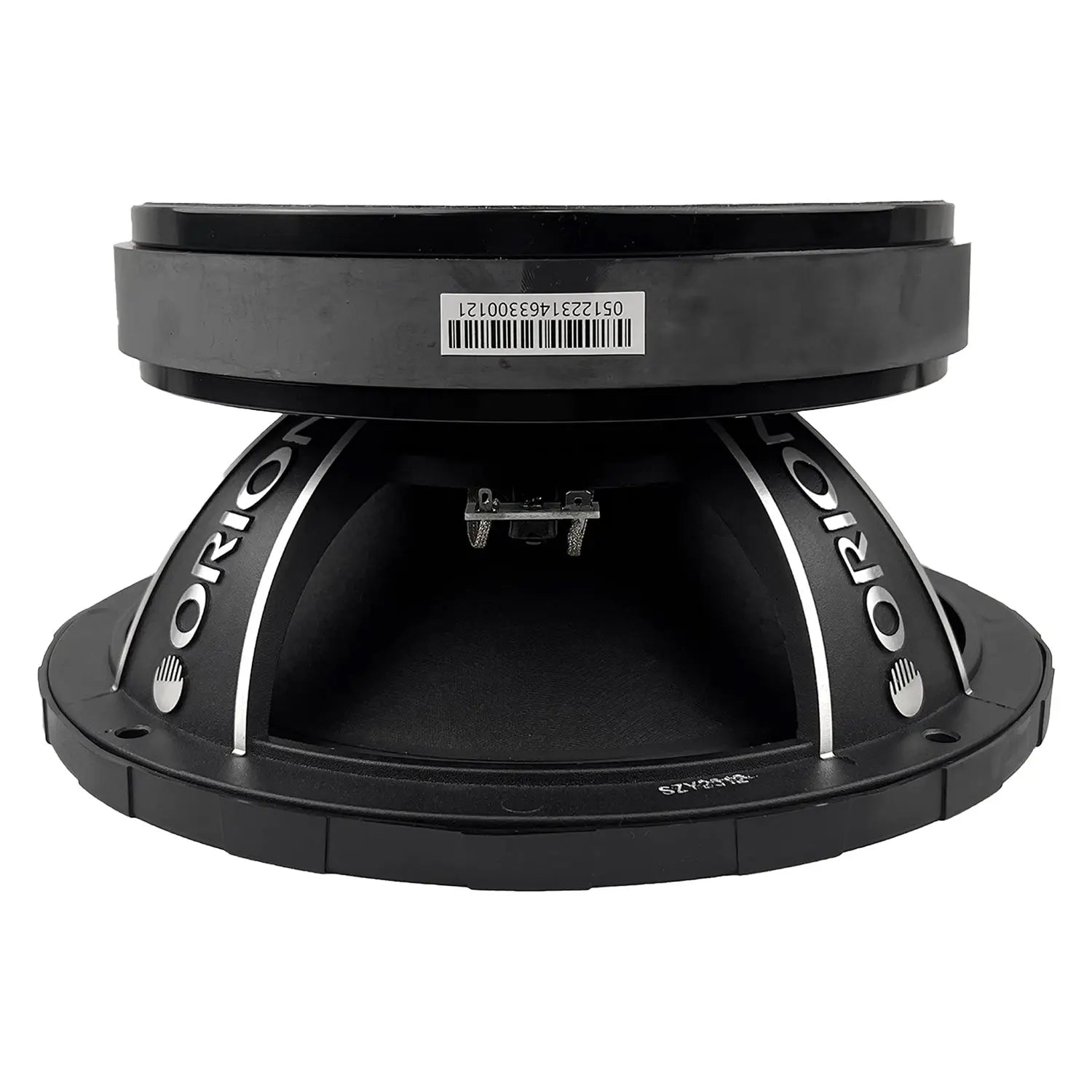

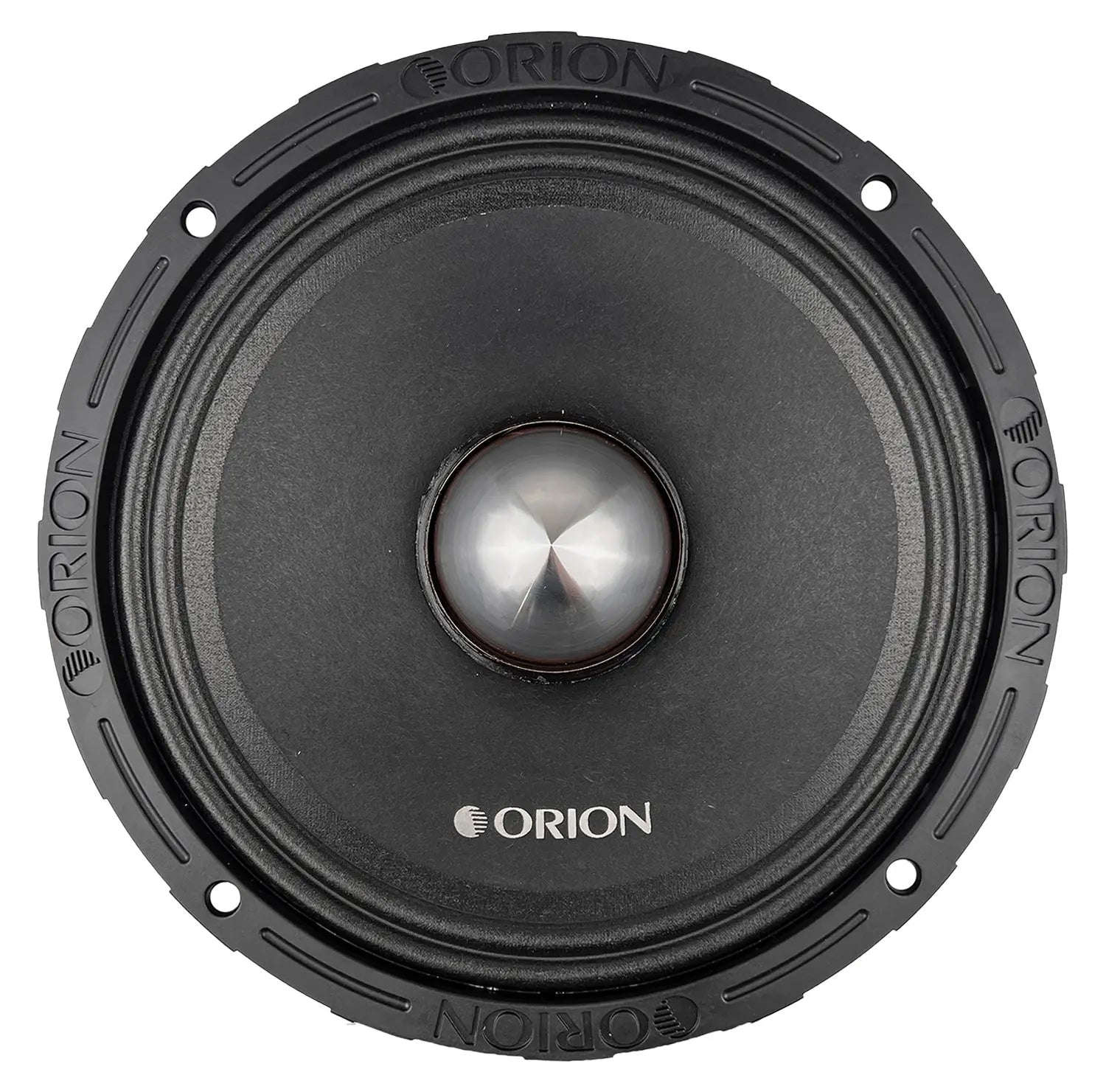

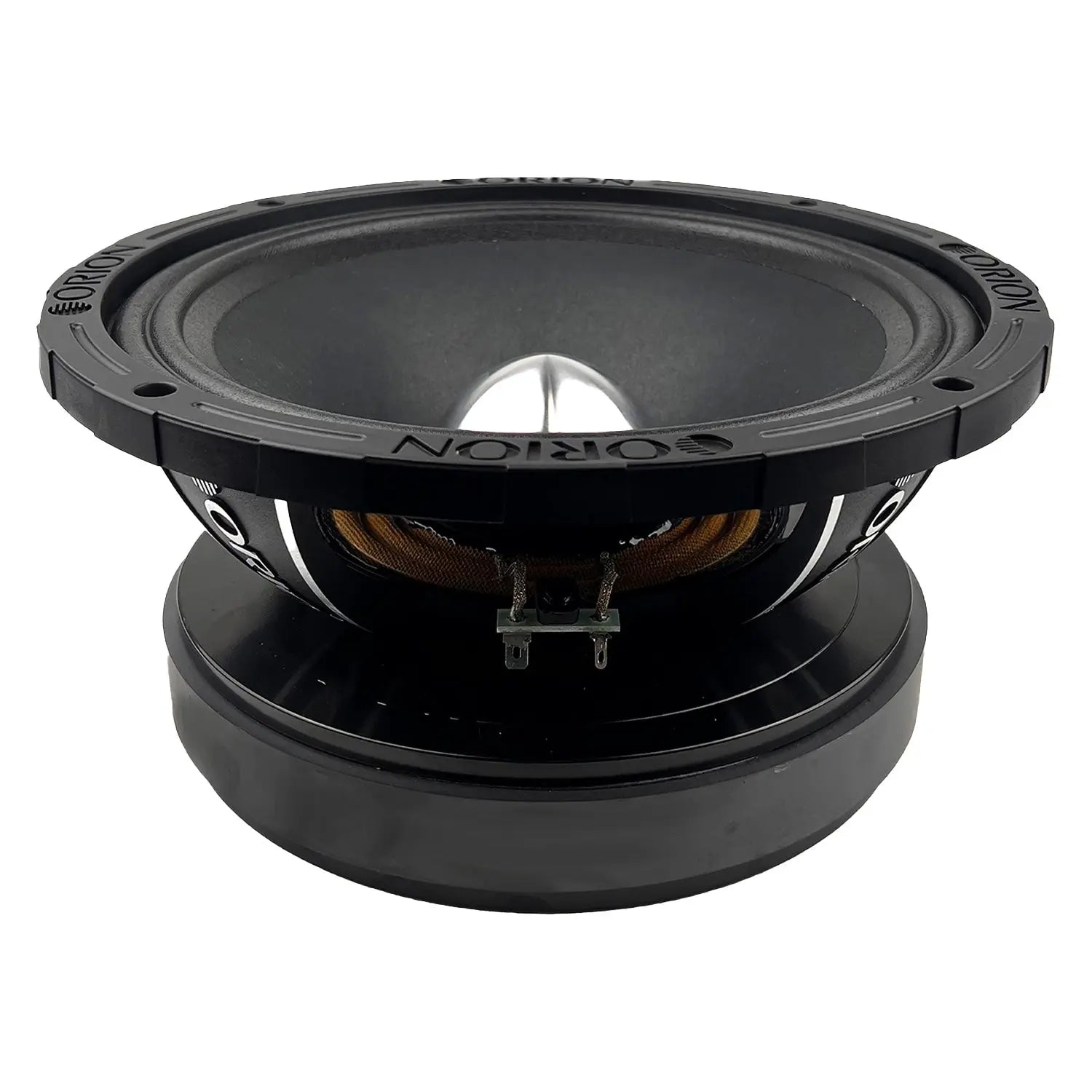

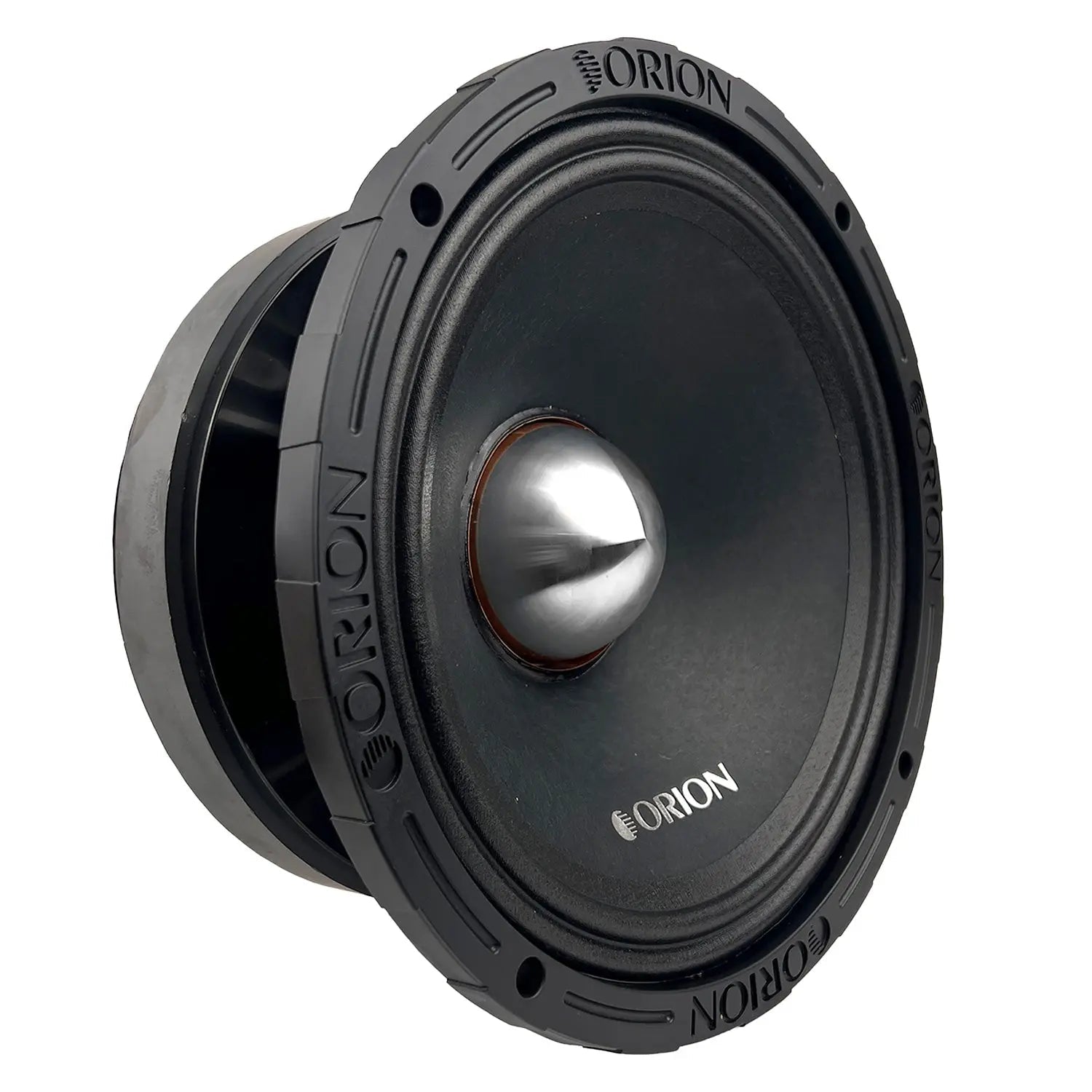

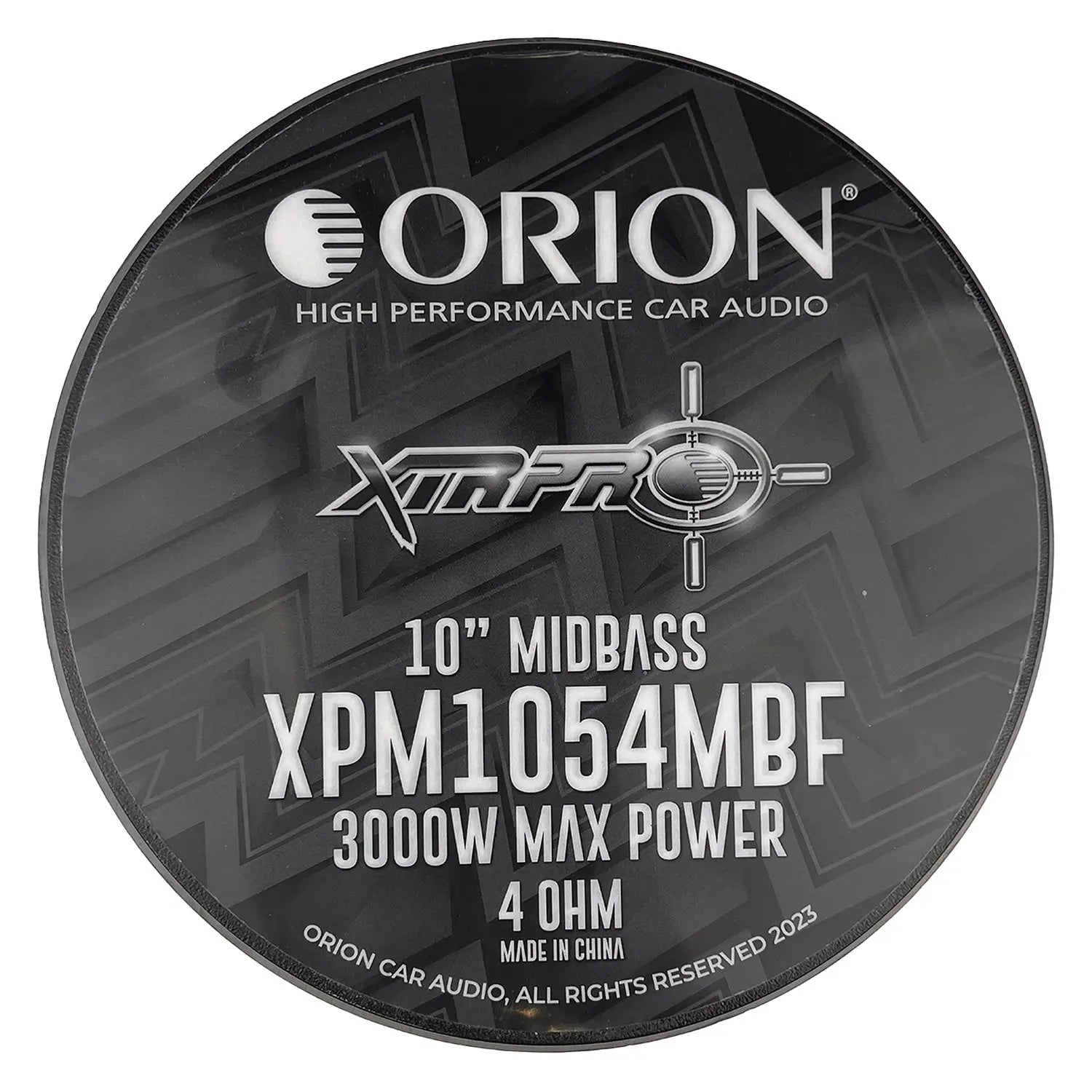

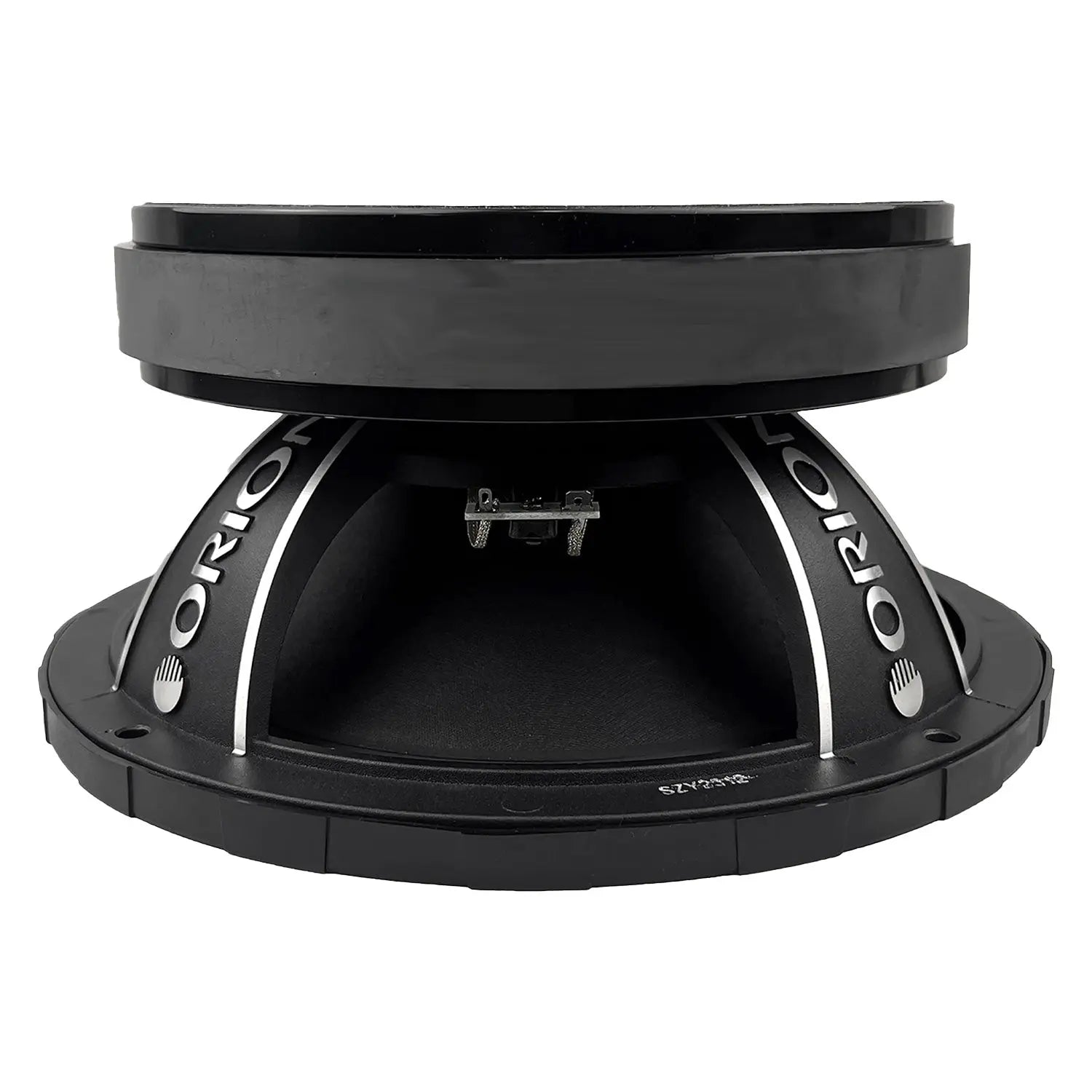

Orion XPM 10 Inch MBF Midbass Speaker
Orion XPM 10 Inch MBF Midbass Speaker
Orion XPM 10 Inch MBF Midbass Speaker
Orion XPM 10 Inch MBF Midbass Speaker. Available manufacturer models: XPM1054MBF (4 Ohm), XPM1058MBF (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XPM1054MBF - 4 Ohm
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 3000 Watts
- Power Handling (RMS): 750 Watts
- Sensitivity: 101.4 dB
- Frequency Response: 140 kHz - 5.5 kHz
- Voice Coil Diameter: 3" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 128 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 112mm / 4.41 (Inches)
- Overall Depth: 126mm / 4.96 (Inches)
- Cutout Diameter: 229mm / 9.02 (Inches)
- Overall Diameter: 265mm / 10.43 (Inches)
XPM1058MBF - 8 Ohm
See the Orion product page for detailed specifications.
