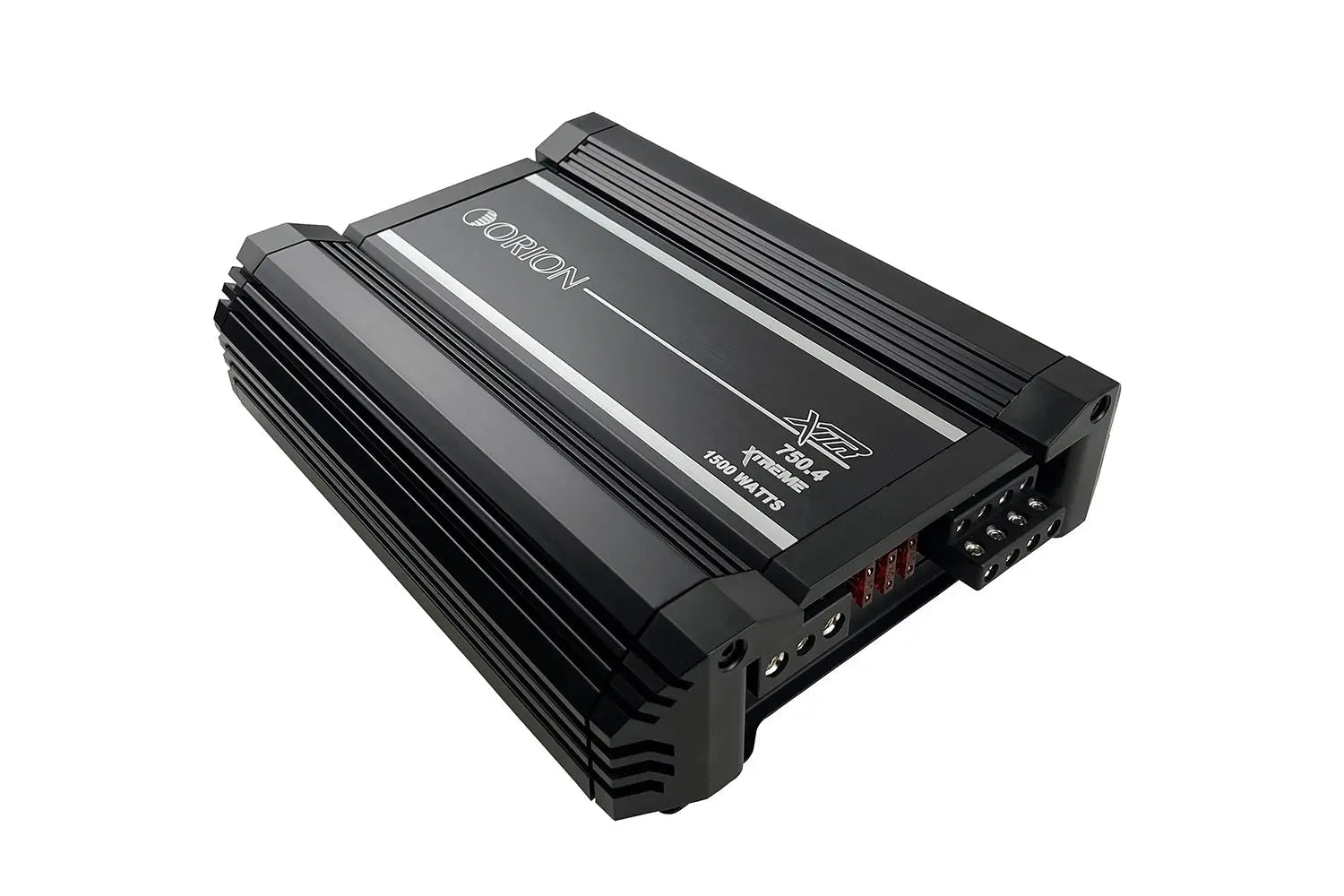

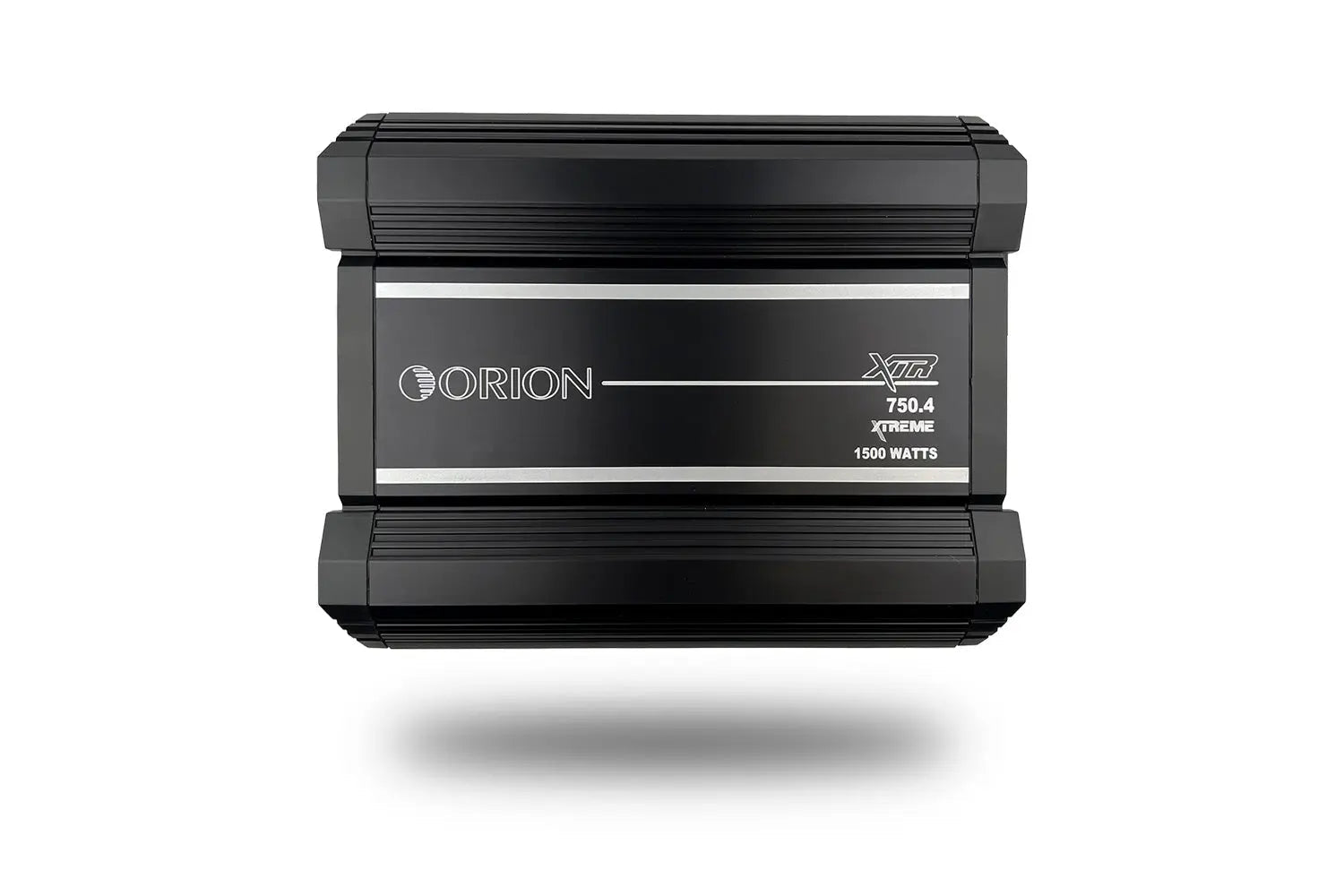

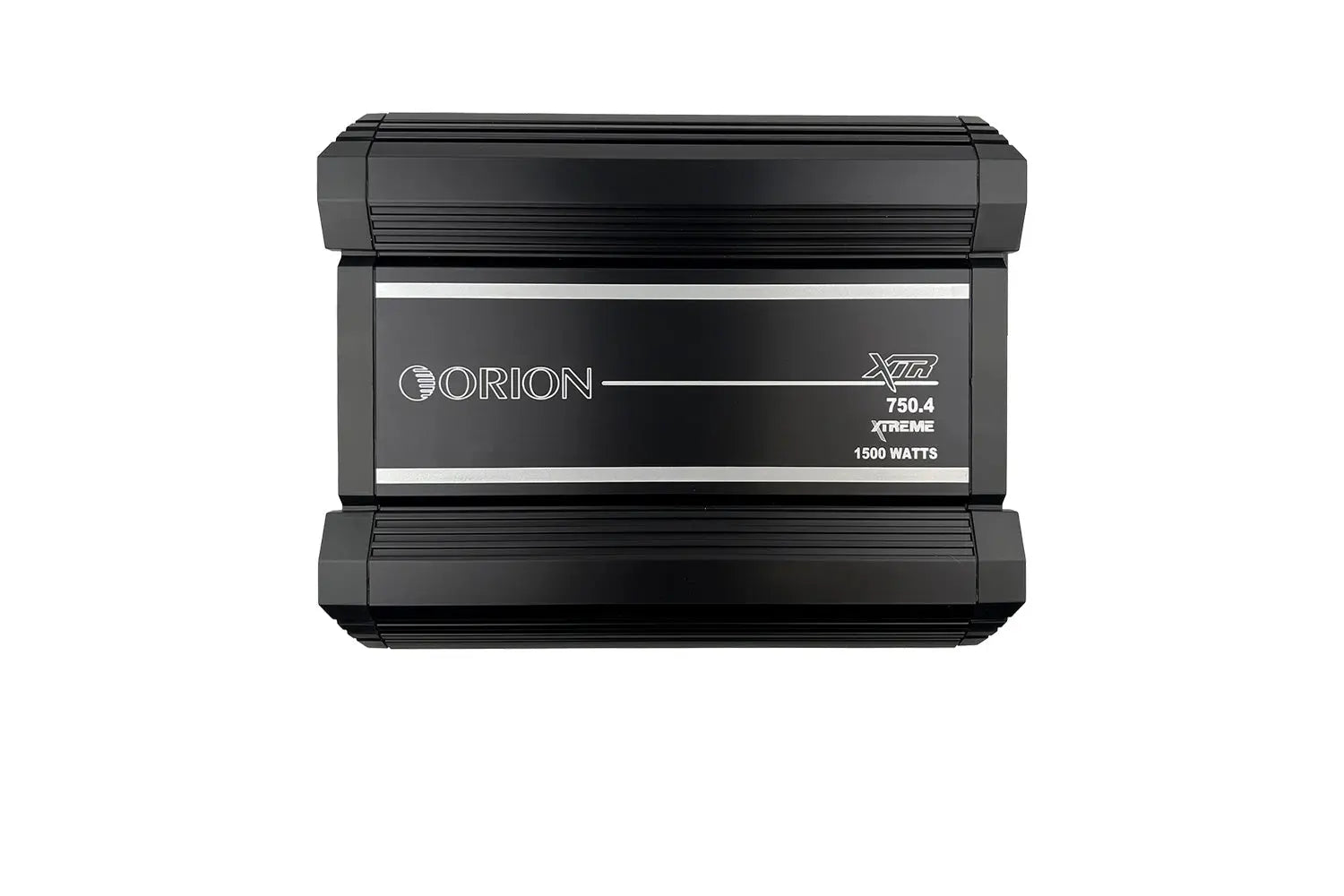

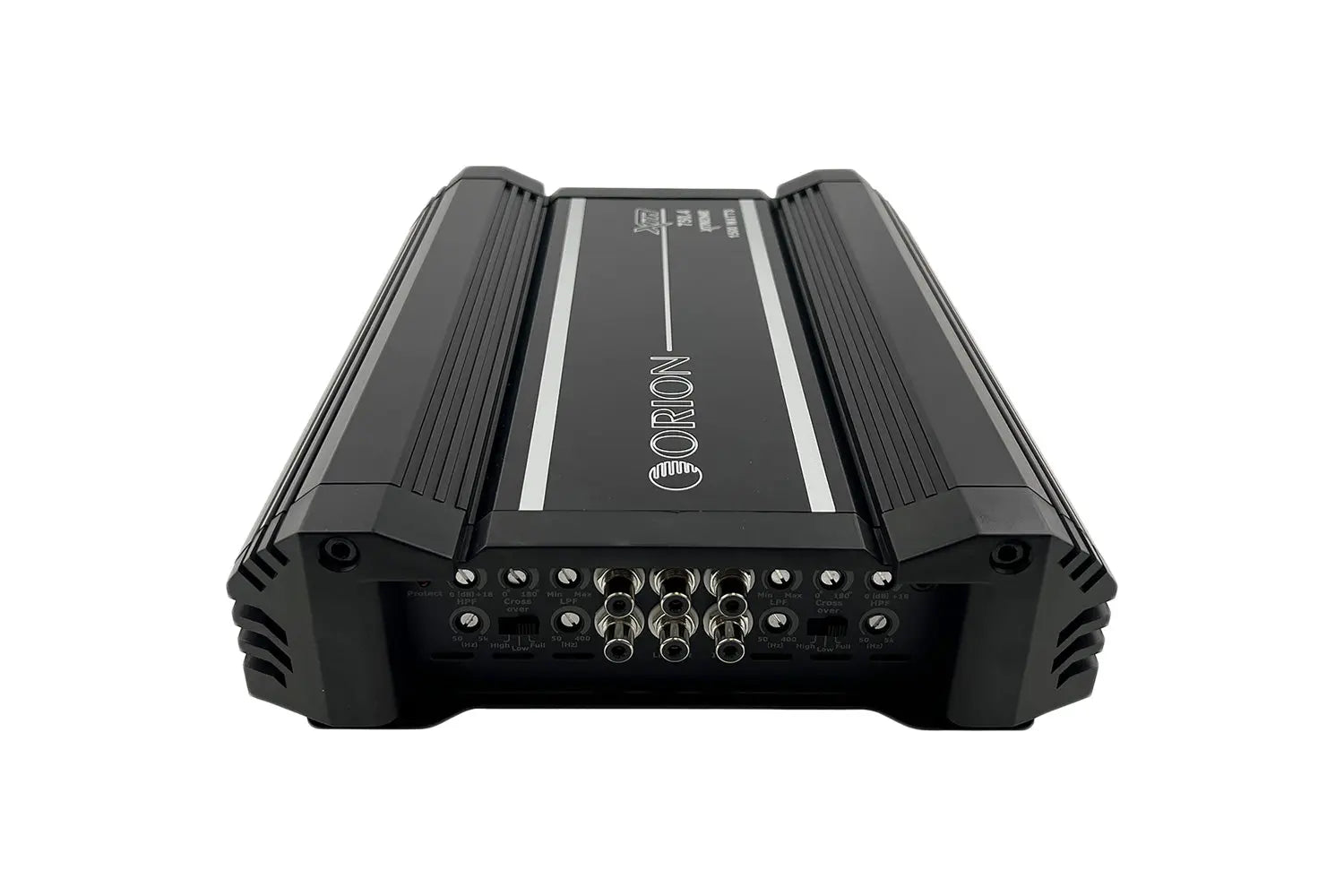

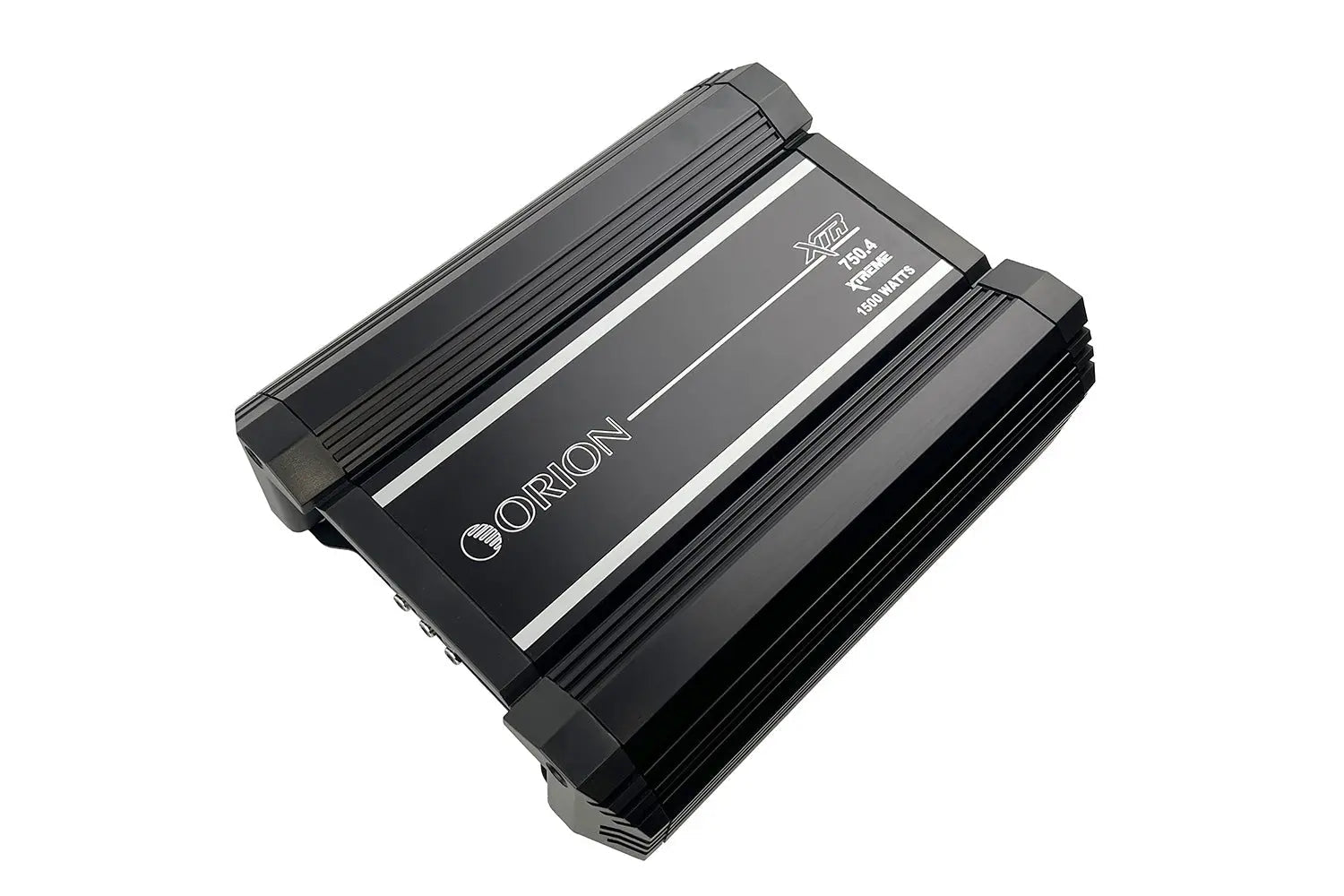

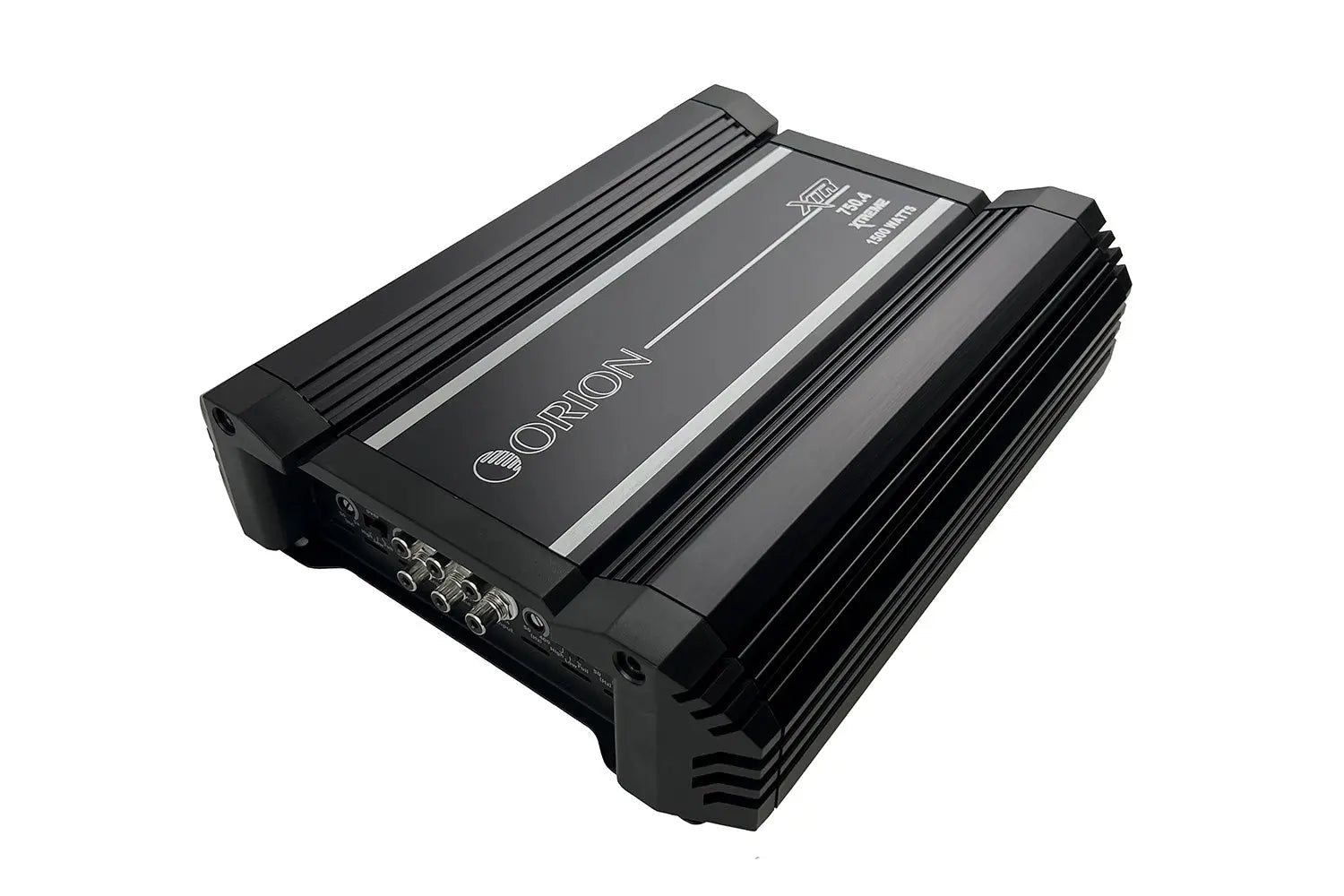

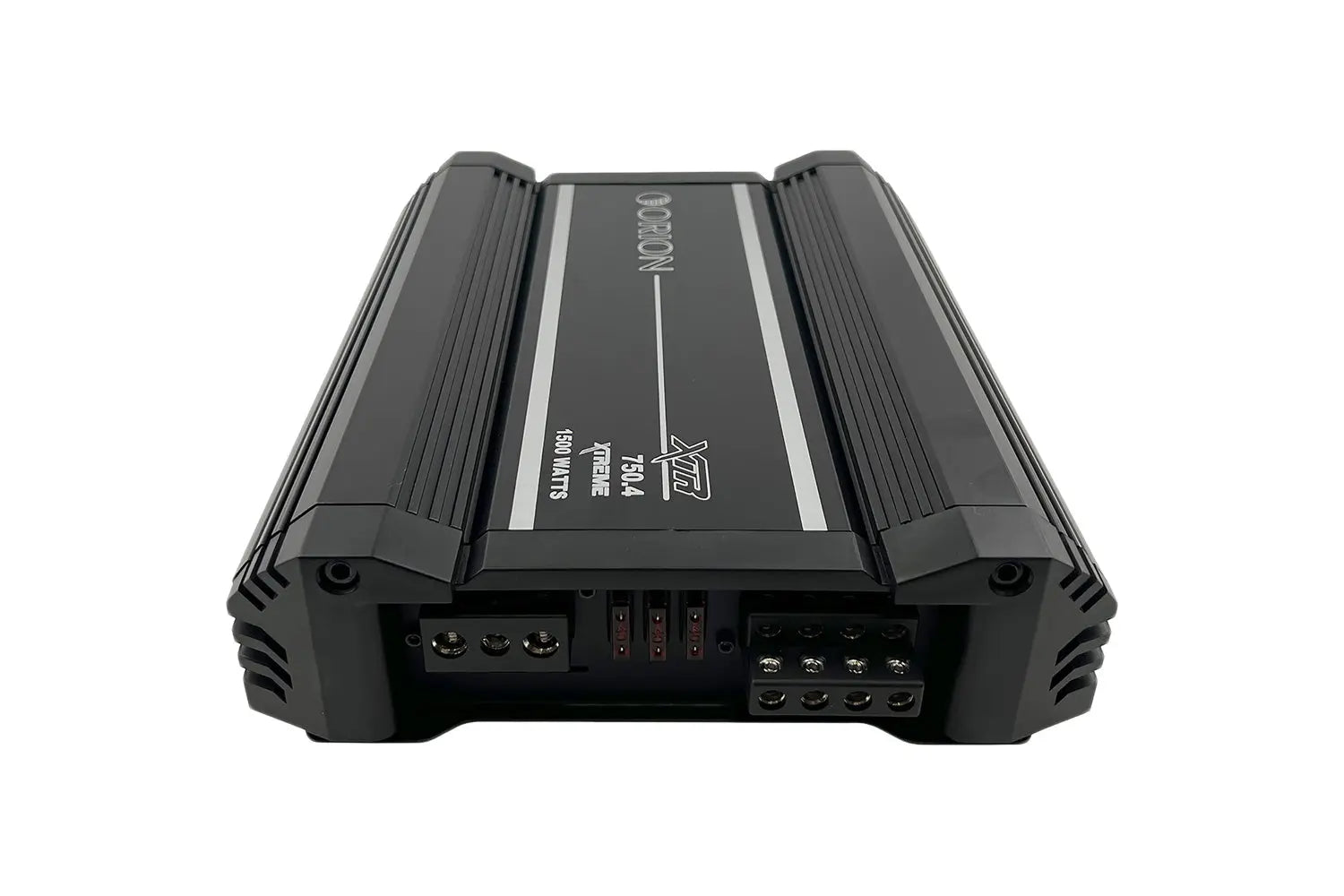

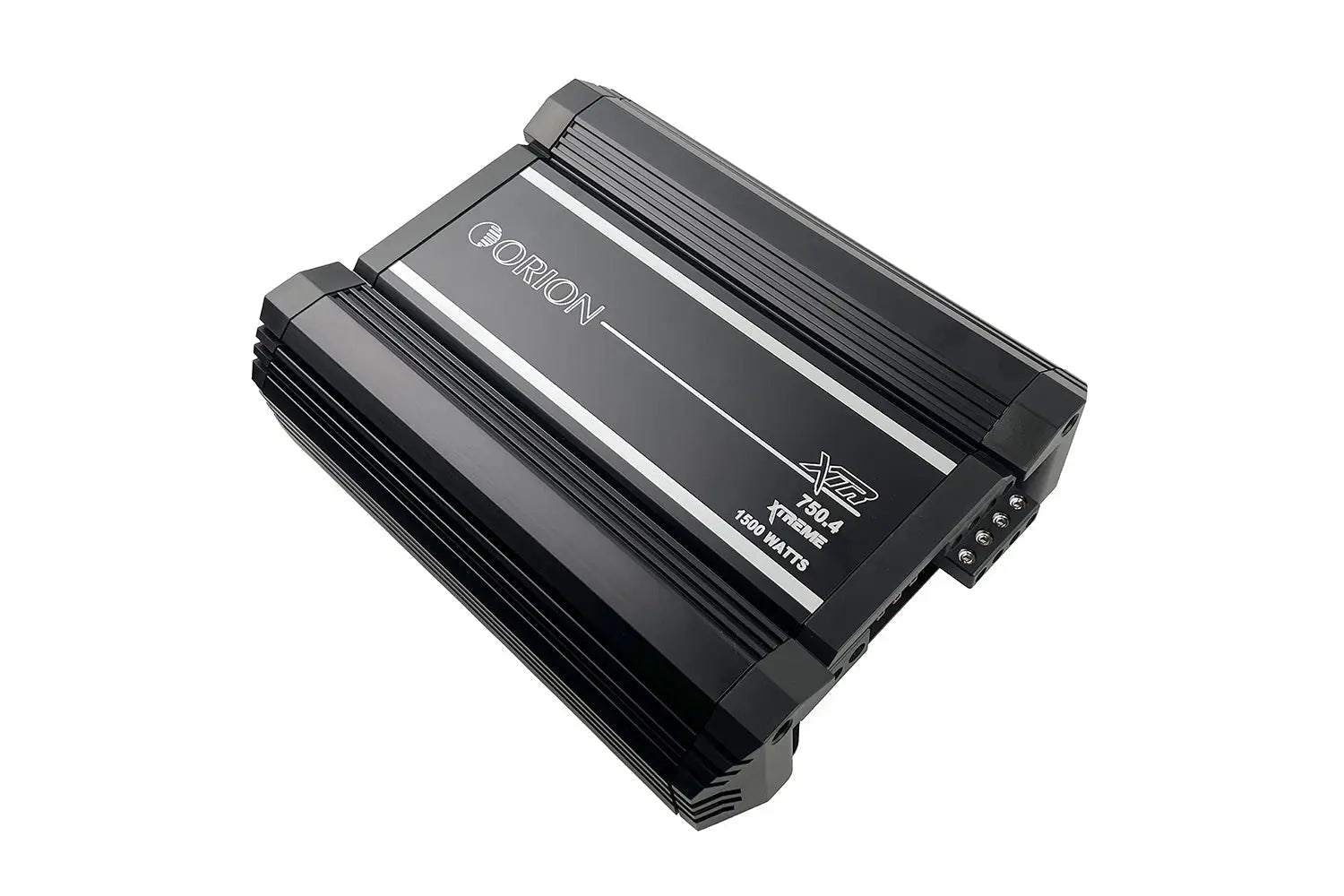

XTR750.4 - 750 Watt RMS Class A/B 4 Channel Amplifier

ORION XTR750.4 XTR Series 750W RMS 4-Channel Class-AB Amplifier

Unleash Auditory Excellence: The ORION XTR750.4 XTR Series 750W RMS 4-Channel Class-AB Amplifier sets the stage for dynamic audio performance. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.

Immersive Sound Reproduction: Rediscover your music in its purest form. Every note, beat, and melody - from the softest to the most intense - is meticulously reproduced for an immersive and authentic listening experience.

Dynamic Power and Precision: Experience your music with dynamic force and precision. The ORION XTR750.4 XTR Series Amplifier seamlessly combines dynamic power with exceptional audio quality, crafting a sonic masterpiece that resonates deeply.

Elevate Your Drive: Step into the realm of dynamic excellence with the ORION XTR750.4 XTR Series 750W RMS 4-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.

Key Features

• Class AB Amplification: Experience the dynamic combination of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
• 750 Watts RMS: Immerse yourself in a world of dynamic audio excellence with 750 Watts RMS, delivering robust and clear sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

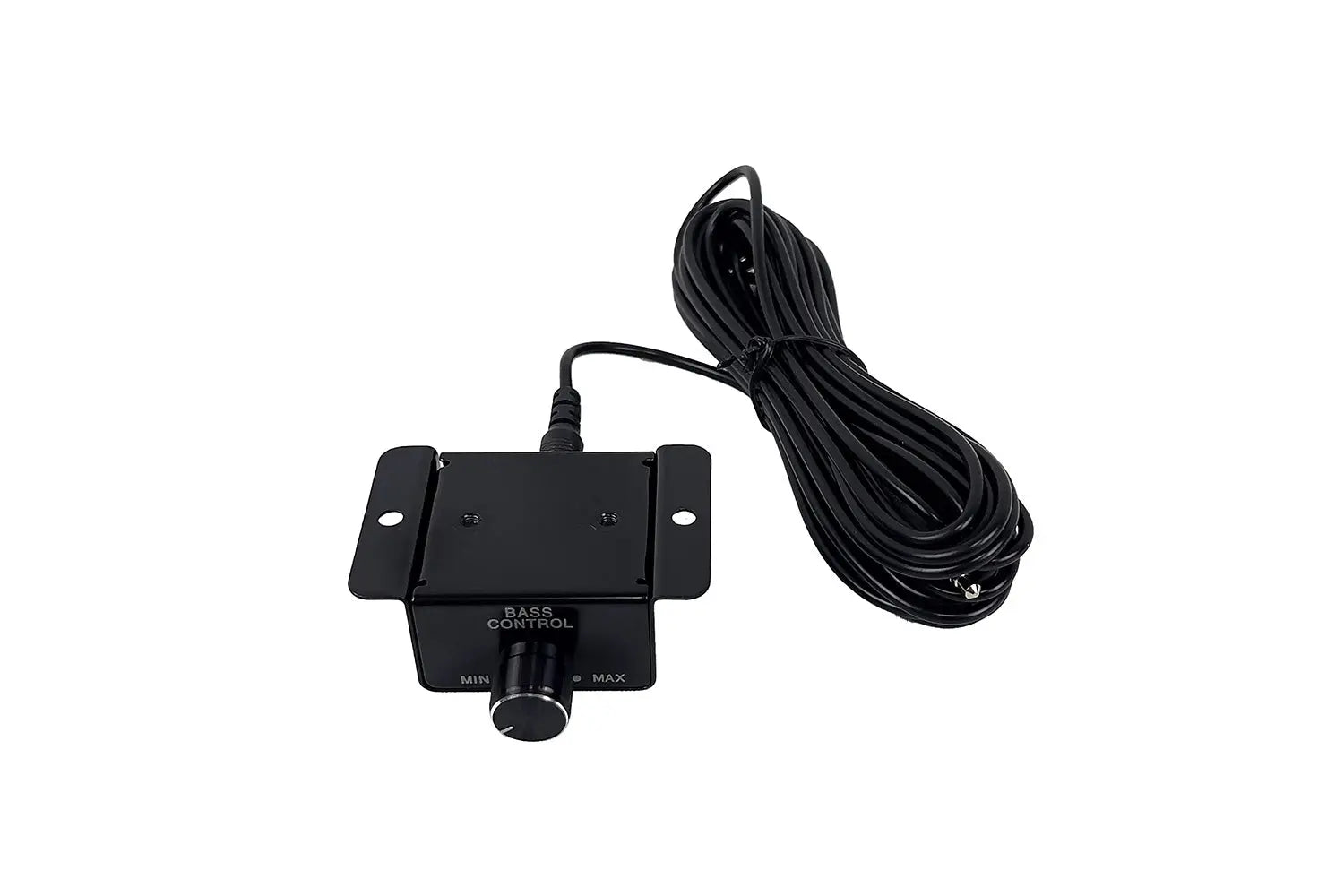

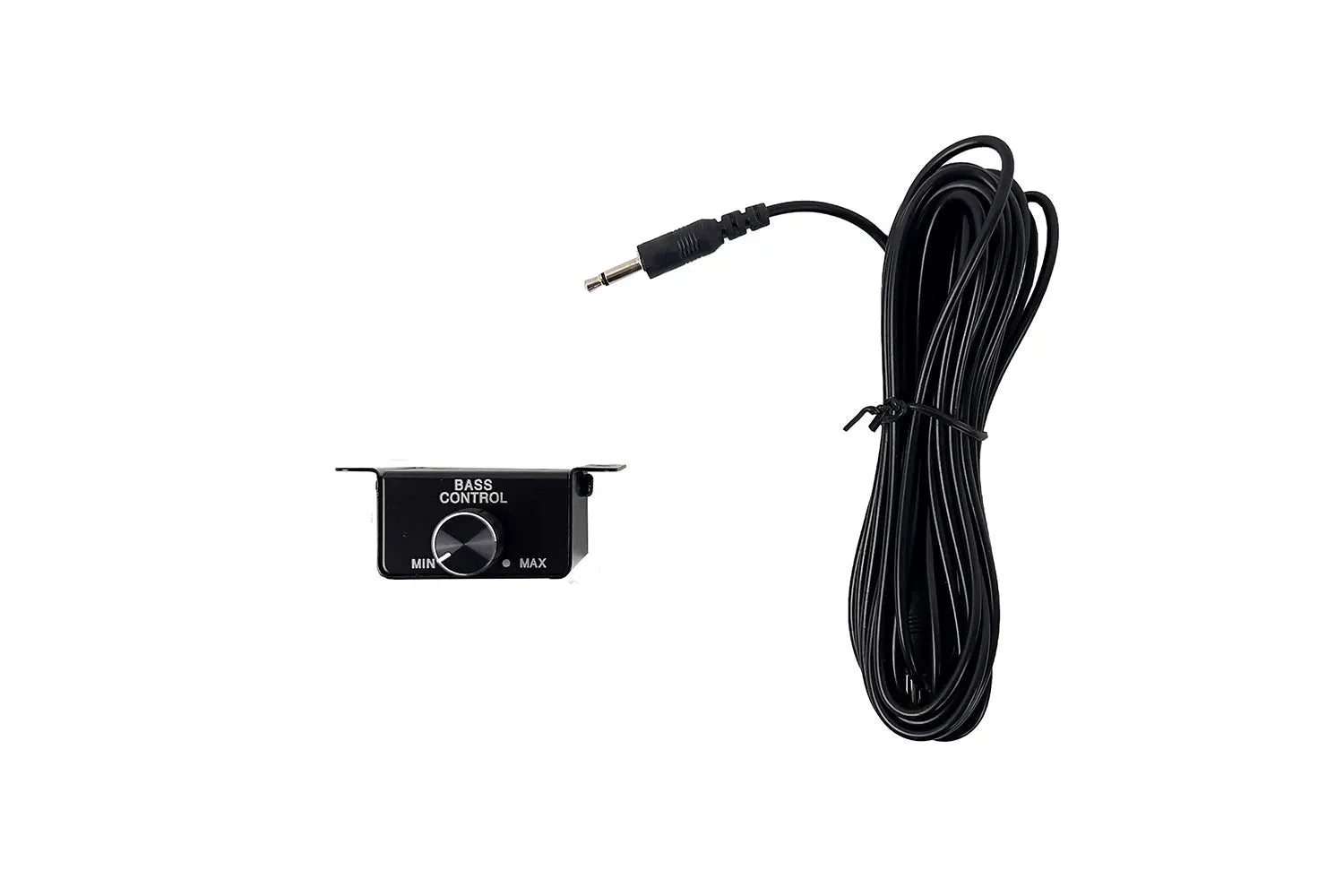

• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• -All MOSFET Power Supply & Output Stage
• -Heavy Gauge / High Current Custom Power and Speaker Terminals
• -2-Ohm Stable
• -RCA Out Throughput
• -12dB Octave Low-Pass Filter
• -Electronic Crossover Network
• -Bass Boost Circuit
• -Intelligent Power and
• -Protection LED Indicator
• -Soft Turn-on/Turn-off
• -Turn-On Delay
• -Fault and Protection Monitoring
• -4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 135W
• - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 188W
• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 375W

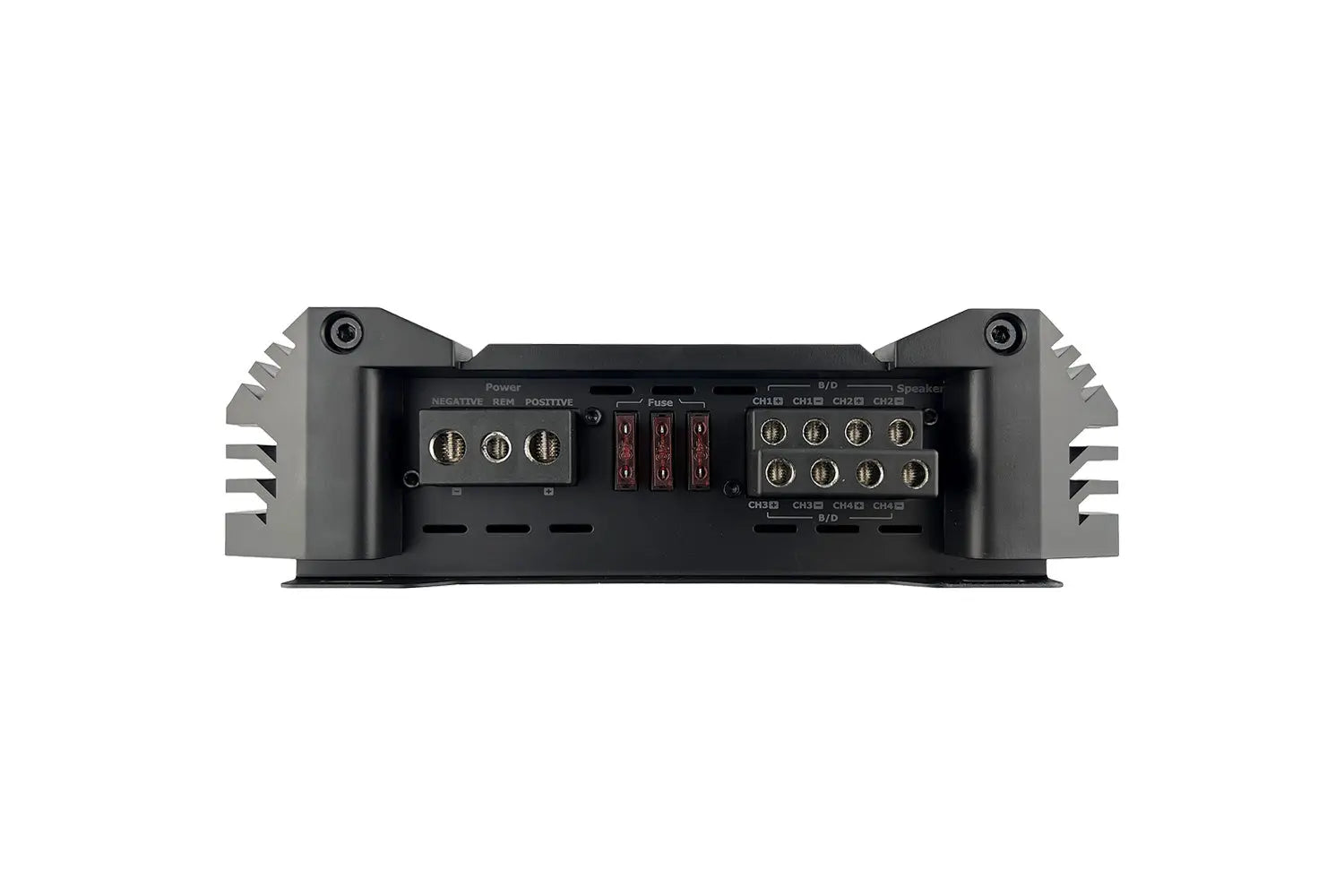

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.

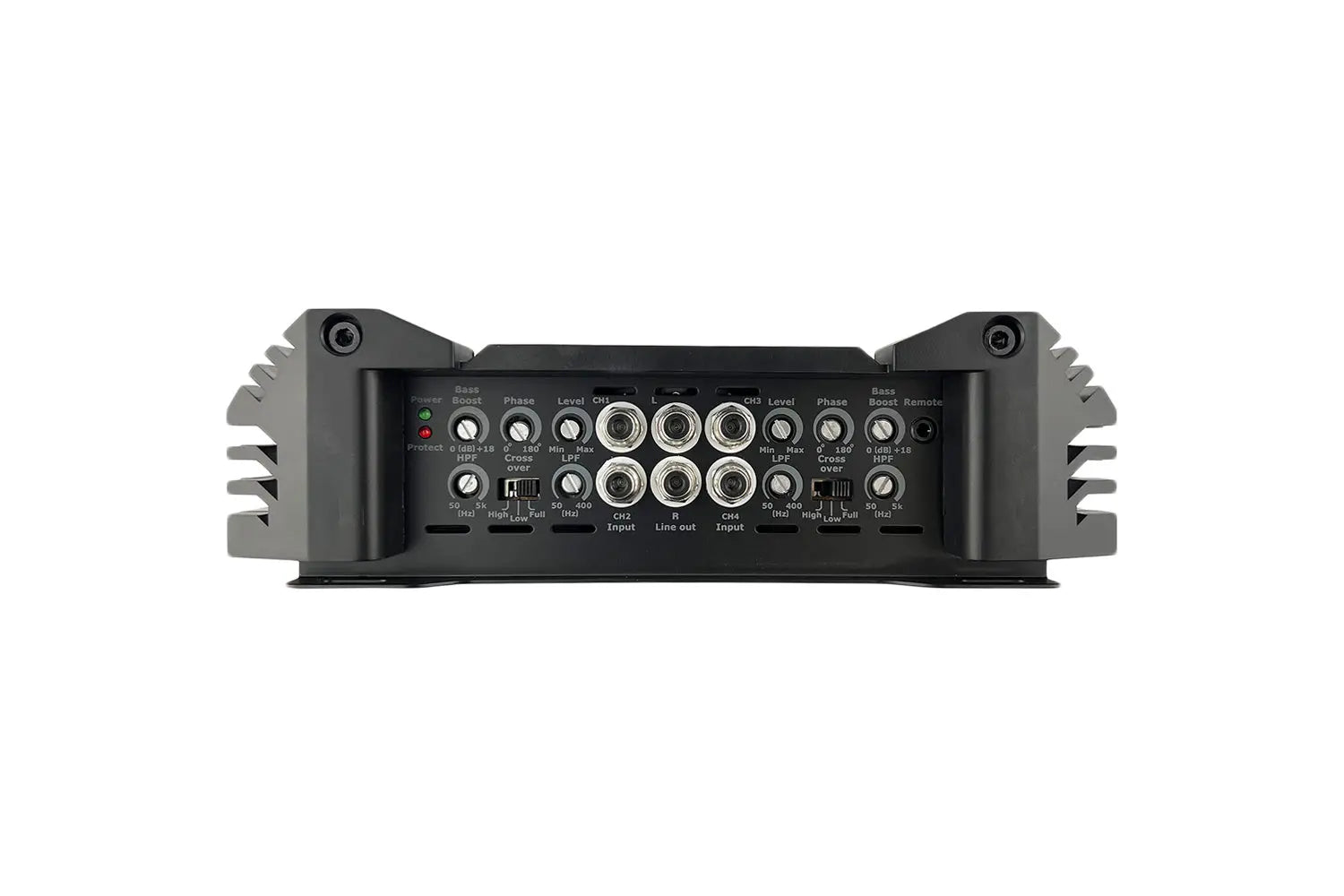

Specifications

• -Frequency Response: 20Hz - 35kHz
• -Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• -High Pass Crossover Continuously variable (50-5kHz)
• -Low Pass Crossover Continuously variable (50-400Hz)
• -Supply Voltage: 9 - 16V
• -Amplifier Efficiency: >60%
• -Damping Factor: 100dB
• -Signal to Noise Ratio: >95dB
• -T.H.D. & Noise: 0.5%
• -Phase Shift: 0 - 180
• -Bass Boost: 0-18dB Variable
• -Variable Input Level Control: 0.2V - 6.0V
• -Fuses: 120A recommended (3 x 40A ATC Fuses)
• -Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)

The Kaos Run Down

• Manufacturer SKU: ORI-XTR750.4
• Product Type: Amplifiers
• Audio Type: Amplifier
• Amplifier Channels: 4ch
• Amplifier Class: Class AB
• RMS Watts: 750
• Source: Orion
