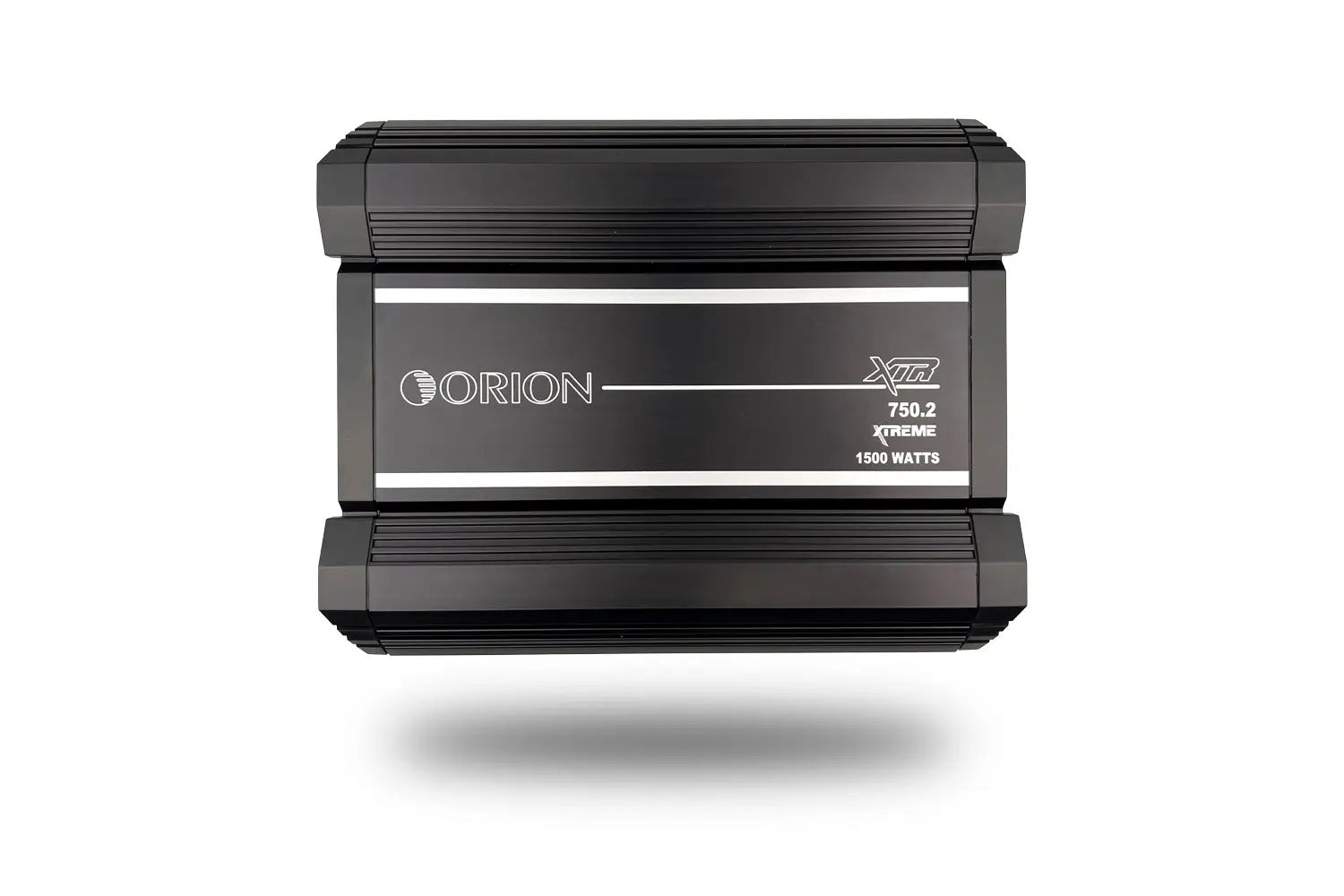

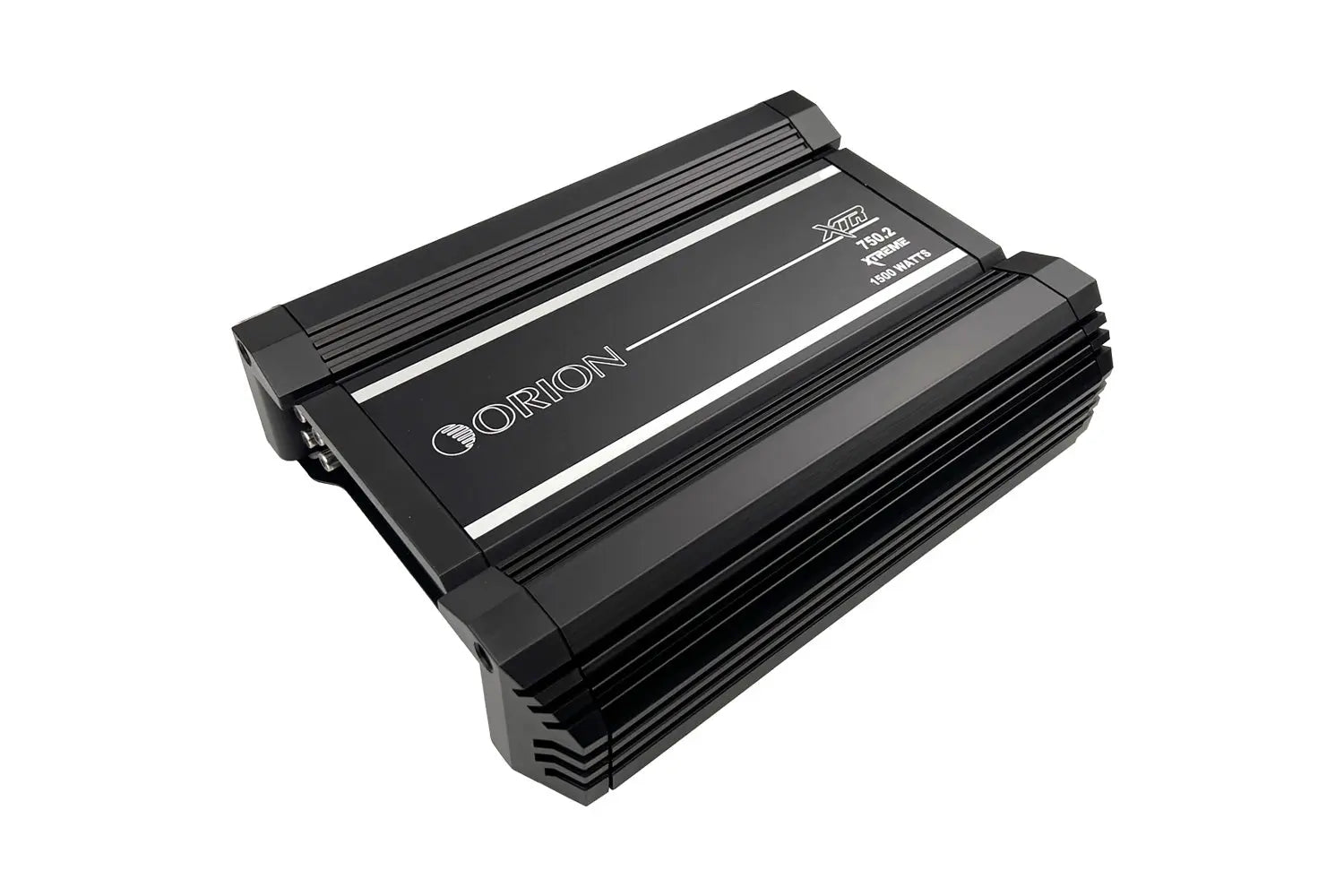

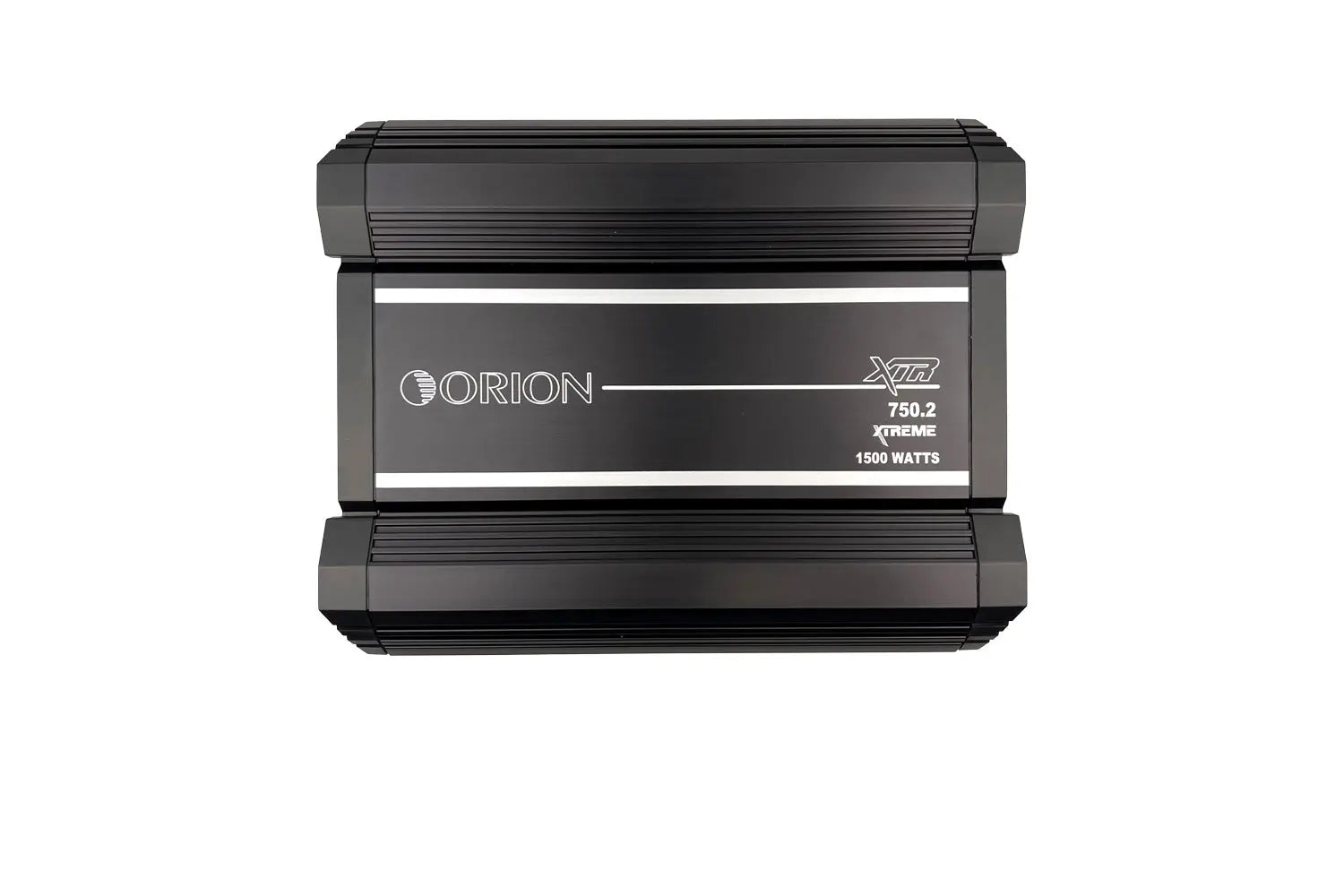

XTR750.2 - 750 Watt RMS Class A/B 2 Channel Amplifier

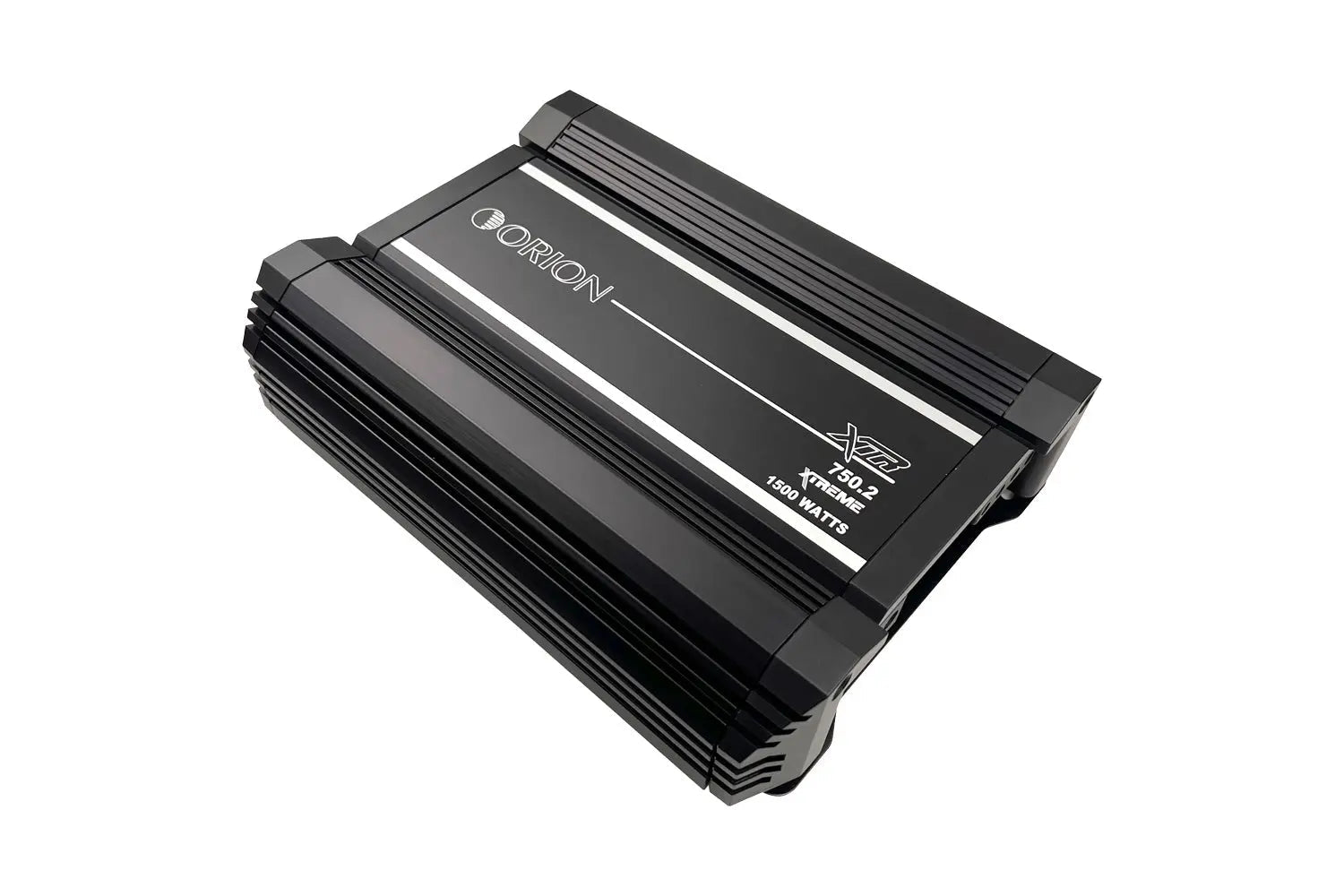

ORION XTR750.2 XTR Series 750W RMS Class-AB 2-Channel Amplifier

Unleash Auditory Excellence: The ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier empowers your audio experience. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.

Immersive Sound Reproduction: Rediscover your music in its truest form. Every note, beat, and melody - from the softest to the most dynamic - is faithfully reproduced for an immersive and authentic listening experience.

Power and Precision Combined: Experience your music with remarkable power and precision. The ORION XTR750.2 XTR Series Amplifier seamlessly blends commanding power with exceptional audio quality, creating an unforgettable auditory journey.

Elevate Your Drive: Step into a world of sonic magnificence with the ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.

Key Features

• Class AB Amplification: Experience the harmonious blend of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
• 750 Watts RMS: Immerse yourself in a world of audio excellence with 750 Watts RMS, delivering dynamic and clear sound performance.

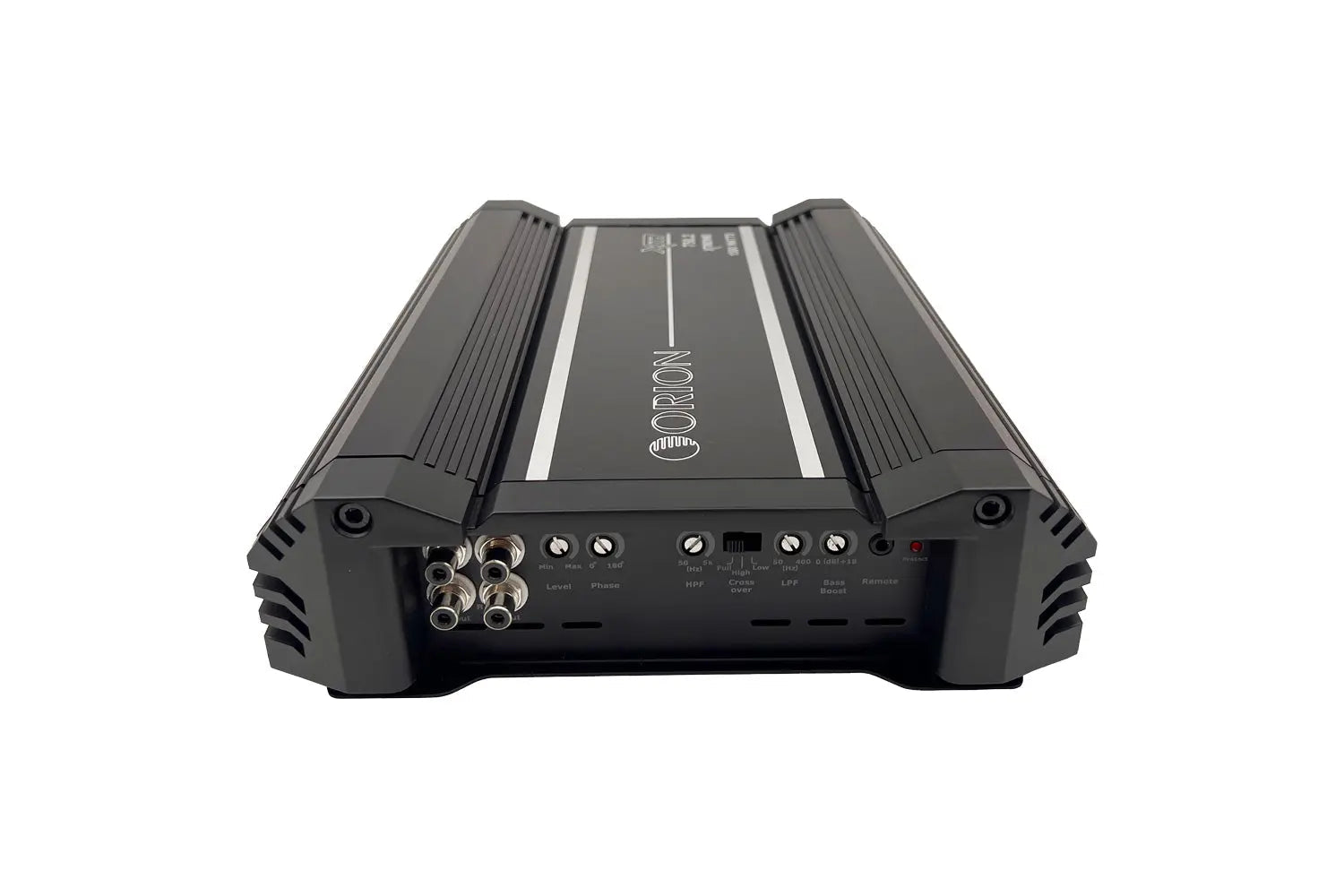

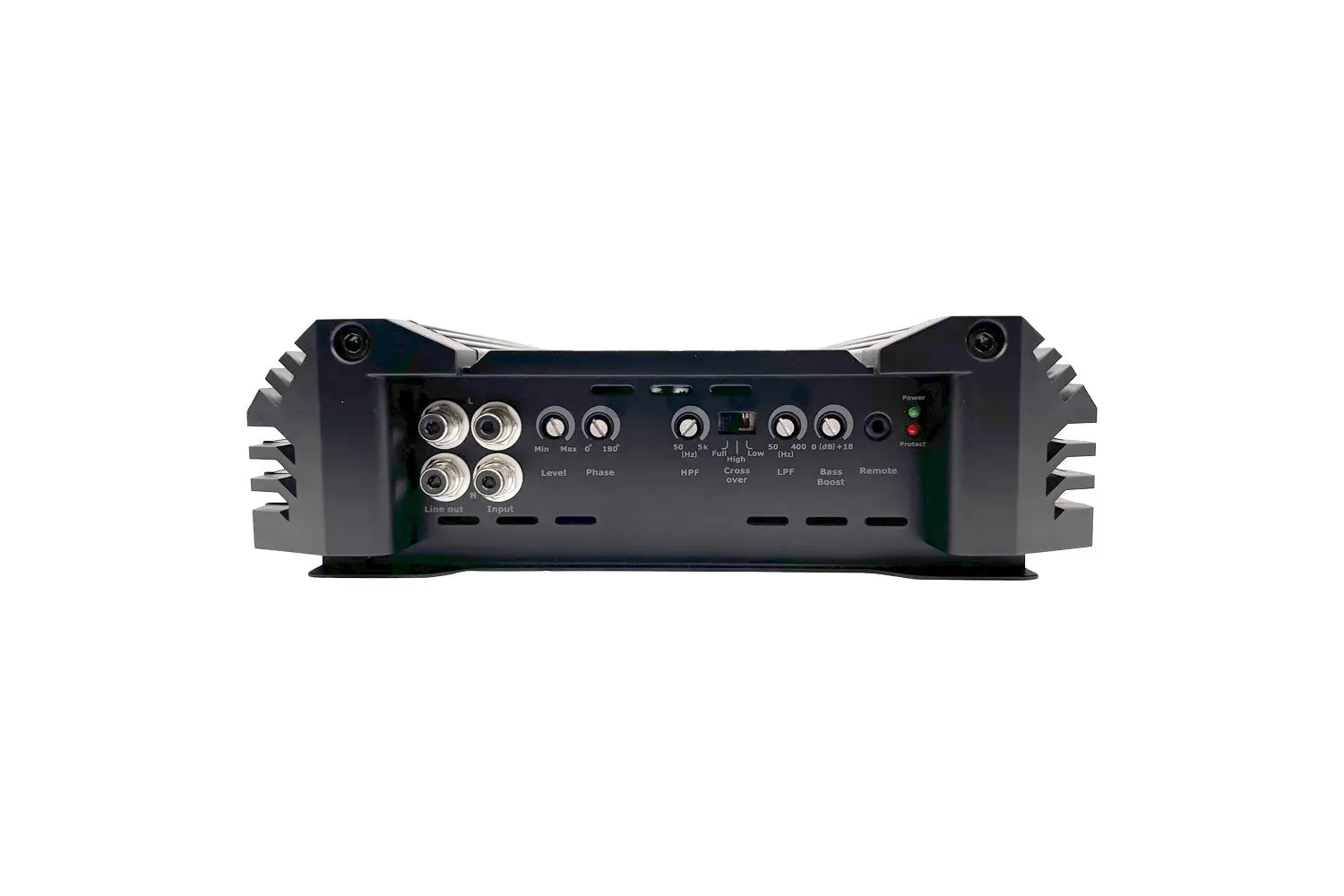

• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

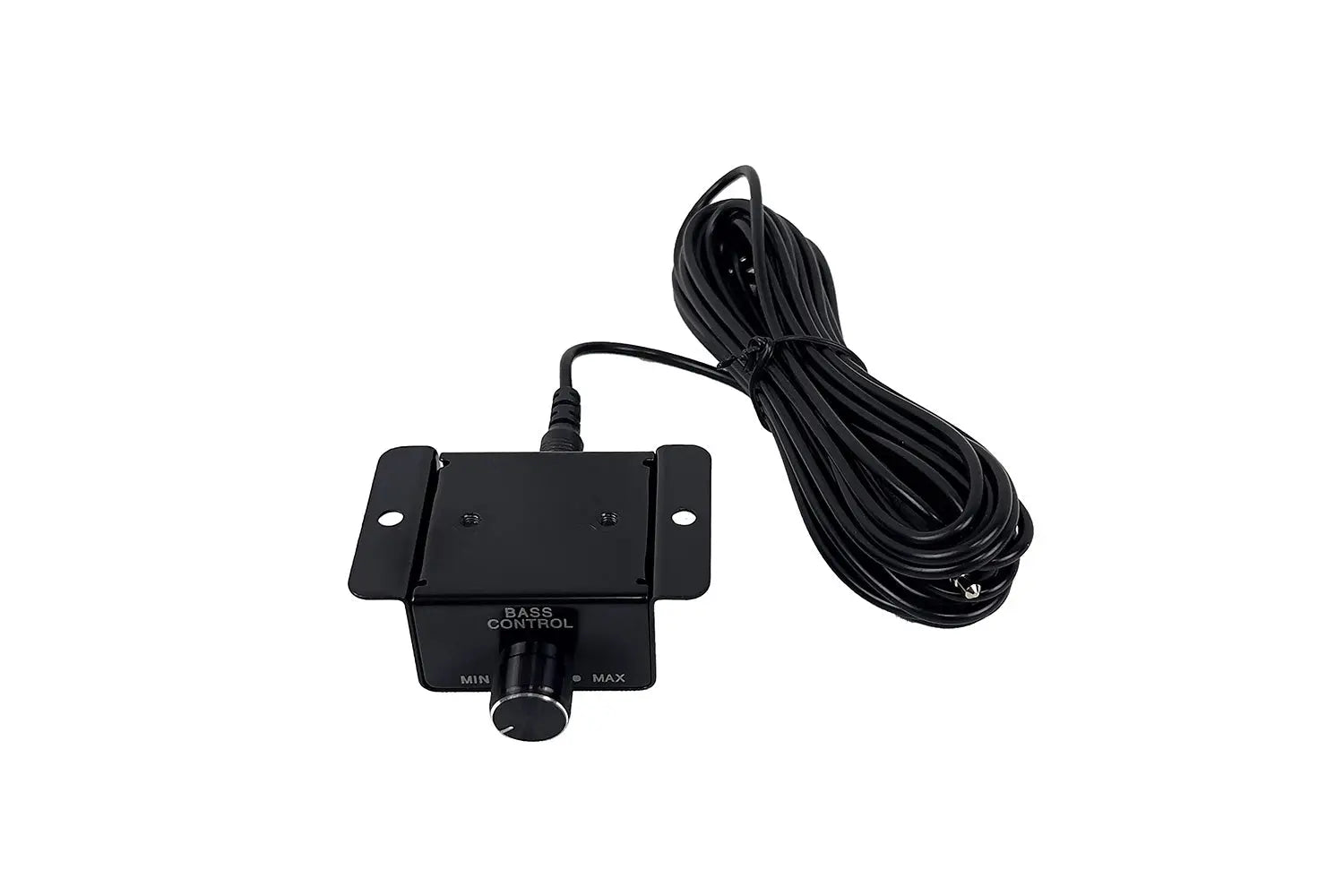

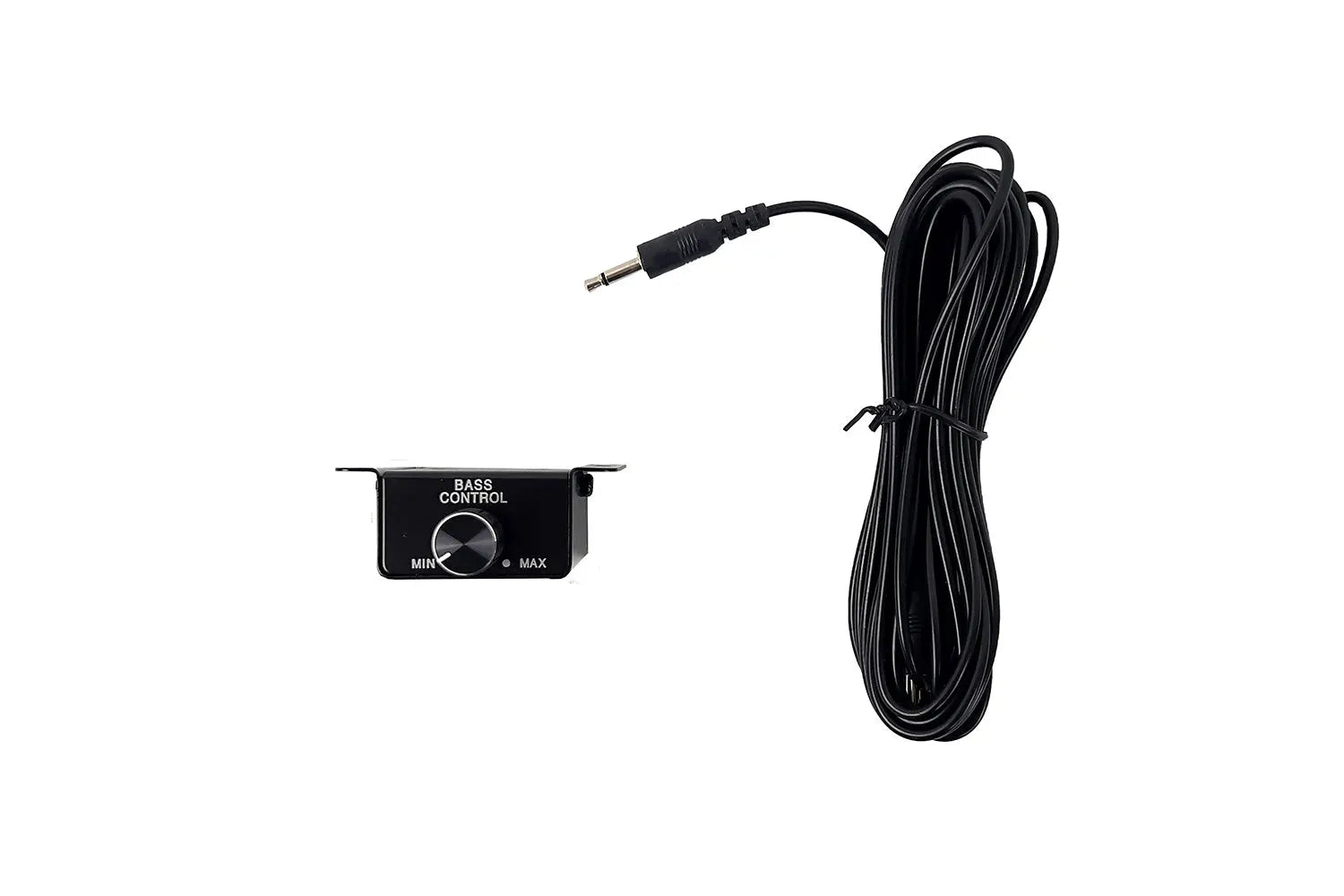

• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Efficient Design: The amplifier's compact design offers versatile installation options without sacrificing performance.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• -All MOSFET Power Supply & Output Stage
• -Heavy Gauge / High Current Custom Power and Speaker Terminals
• -2-Ohm Stable
• -RCA Out Throughput
• -12dB Octave Low-Pass Filter
• -Electronic Crossover Network
• -Bass Boost Circuit
• -Intelligent Power and
• -Protection LED Indicator
• -Soft Turn-on/Turn-off
• -Turn-On Delay
• -Fault and Protection Monitoring
• -4-Way Protection- Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 225W
• - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 375W
• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 750W

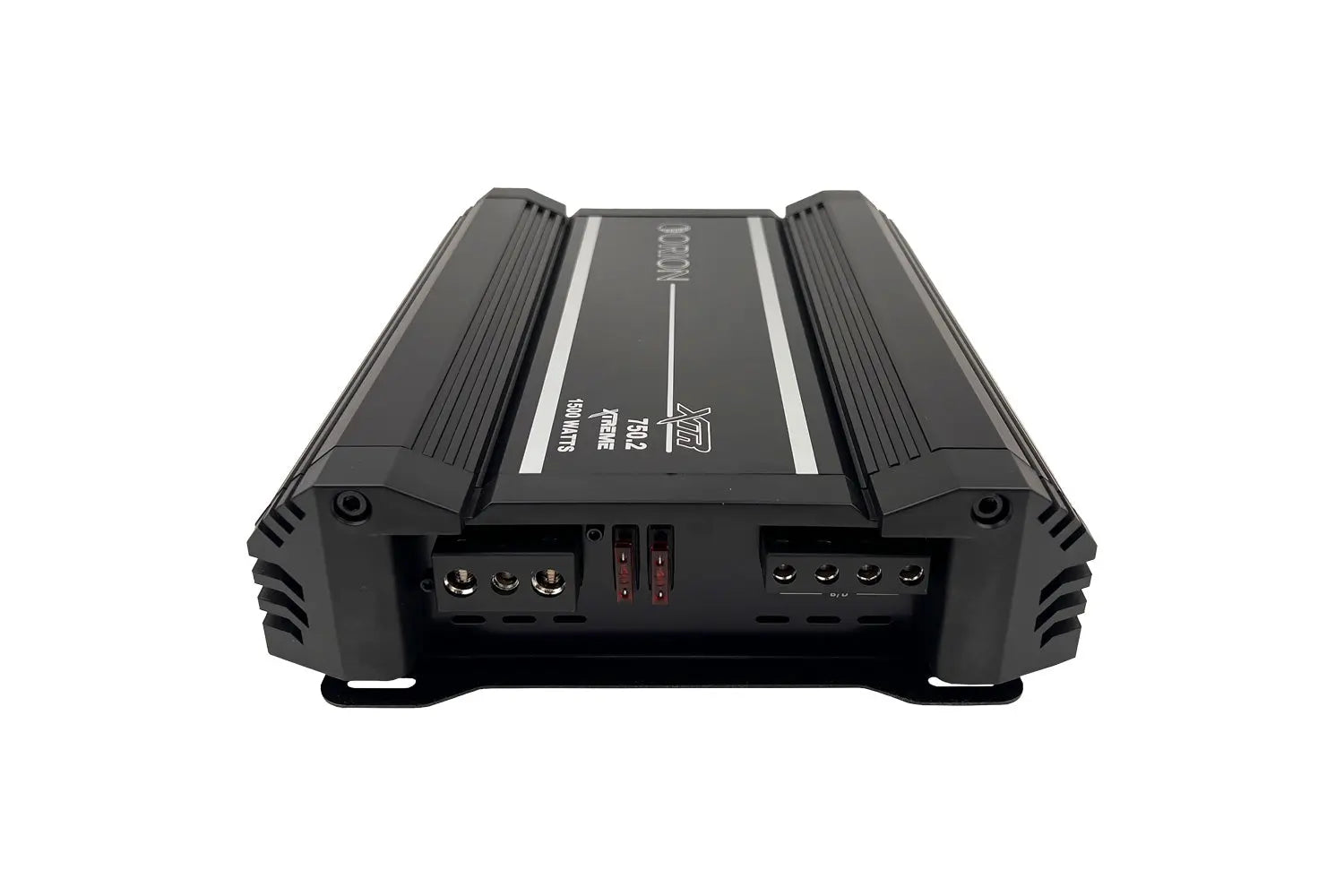

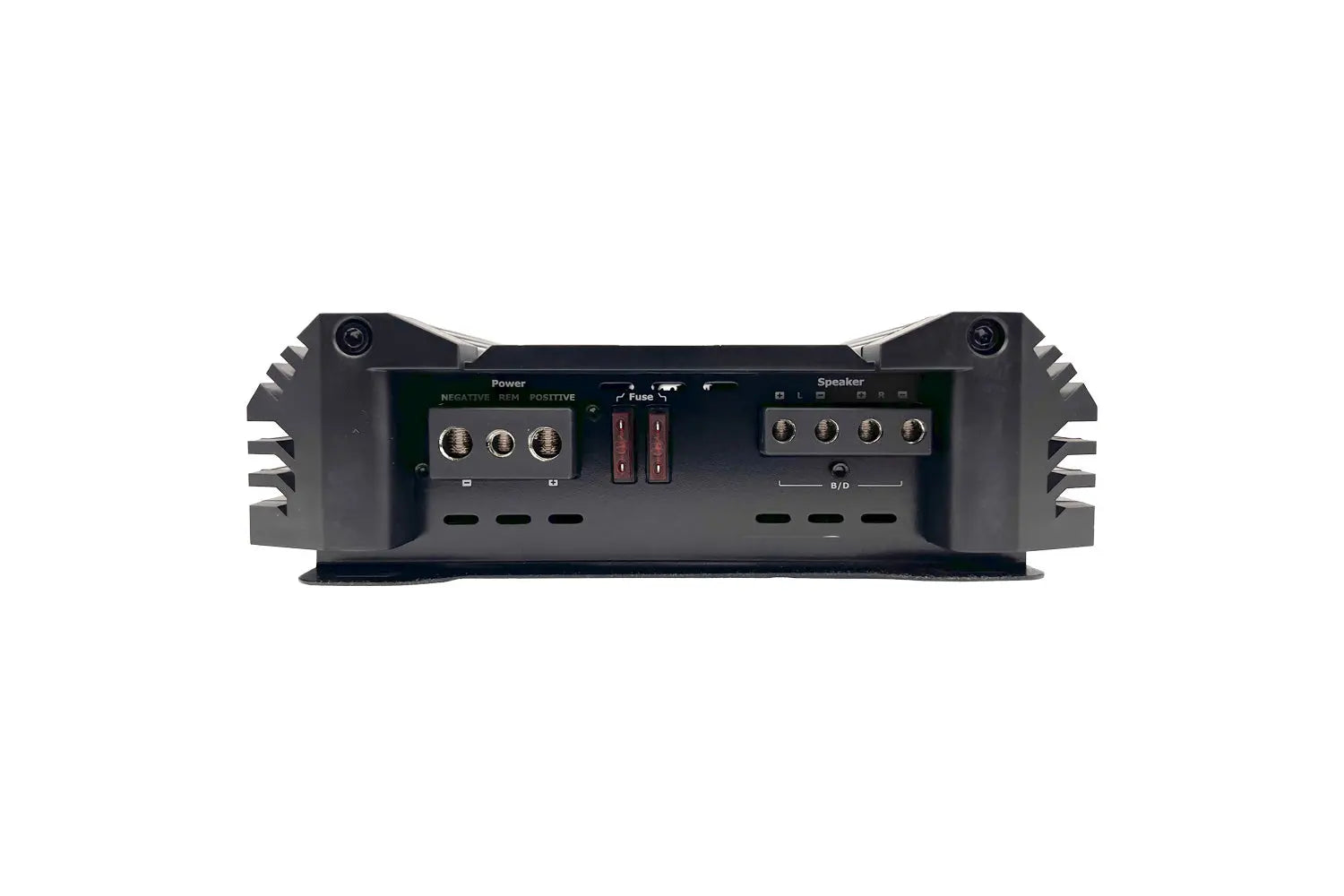

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 12 AWG.

Specifications

• Frequency Response: 10Hz - 35kHz
• Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
• Low Pass Crossover Continuously variable (50-400Hz)
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >80%
• Damping Factor: 100dB
• Signal to Noise Ratio: >95dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: 80A recommended (2 x 40A ATC Fuses)
• Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)

The Kaos Run Down

• Manufacturer SKU: ORI-XTR750.2
• Product Type: Amplifiers
• Audio Type: Amplifier
• Amplifier Channels: 2ch
• Amplifier Class: Class AB
• RMS Watts: 750
• Source: Orion
