Orion XTR-X4R 4-Way Electronic Crossover - Ultimate Sound Control

Upgrade your system with the Orion XTR-X4R 4-Way Electronic Crossover. It delivers precise sound and full control for serious car audio setups.

This high-performance crossover separates frequencies with accuracy. As a result, your subwoofers, midbass, midrange, and tweeters perform at their best.

Precision-Tuned Performance

The XTR-X4R delivers clean and balanced sound across all frequencies. In addition, it improves clarity and depth in every track.

Whether you enjoy casual listening or detailed tuning, this crossover enhances your overall audio experience.

Complete Frequency Control

You get full control over crossover points. Therefore, you can fine-tune each part of your system.

For example, adjust the low end for deep bass. At the same time, refine the midrange for smooth tones. You can also tune the highs for crisp detail.

Moreover, precision components reduce signal loss. As a result, you get maximum performance from your system.

Advanced Tuning Features

The XTR-X4R makes system tuning simple and effective. In addition, it includes:

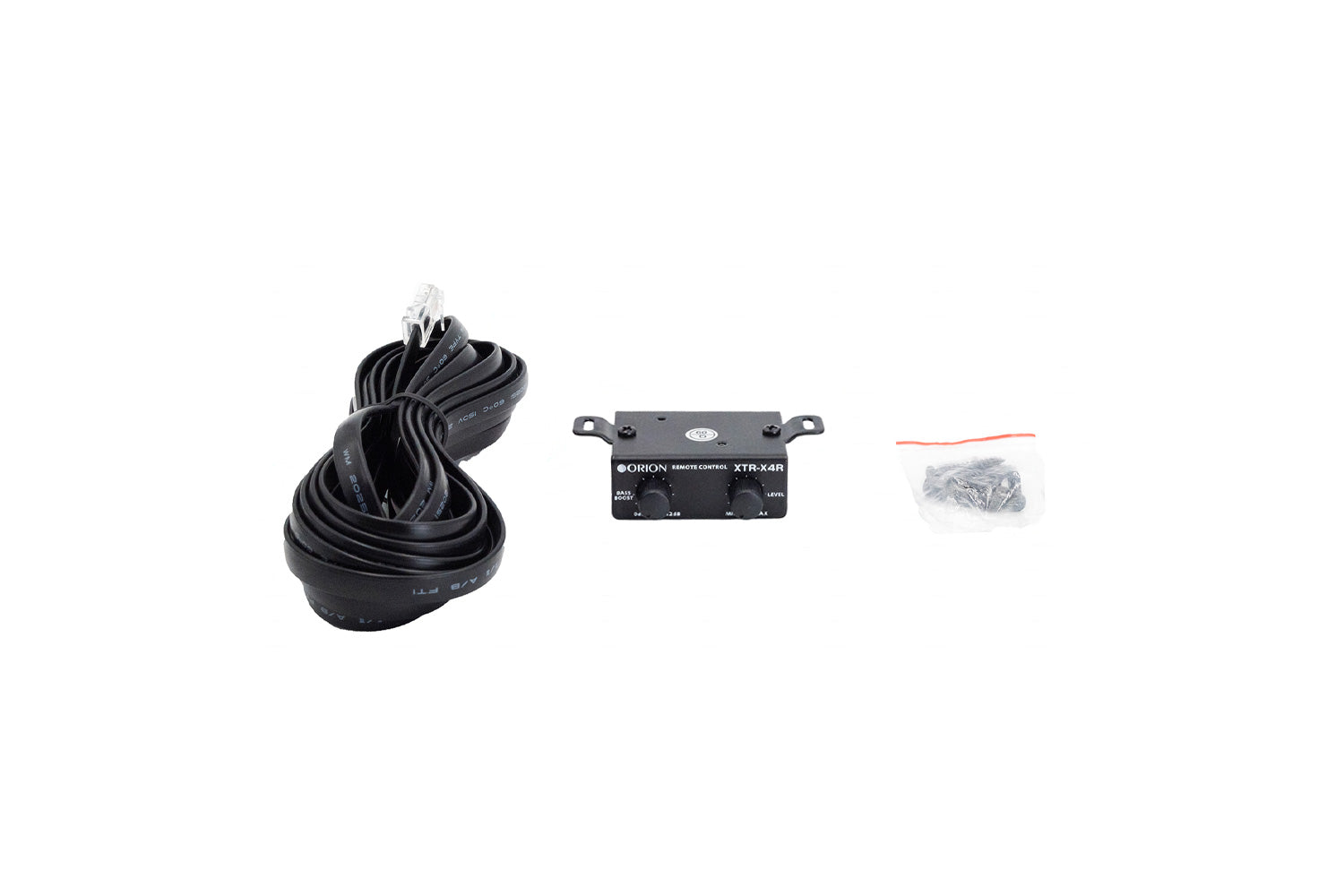

• Remote subwoofer bass boost and level control

• Phase alignment adjustments

• Variable frequency control for each channel

Because of these features, your system stays balanced and synchronized.

Easy Installation and Durable Build

The Orion XTR-X4R features a compact and durable design. Therefore, it fits easily into most car audio setups.

Its strong construction ensures long-term reliability. At the same time, the compact size allows flexible installation.

Upgrade Your Sound System

Whether you are building a new setup or upgrading an existing one, the XTR-X4R is a smart choice.

In conclusion, it delivers precise, powerful, and customizable sound. Take full control of your system and enjoy every detail of your music.

Key Features

• 4-Way Electronic Crossover: Separates subwoofer, midbass, midrange, and high frequencies for precise sound reproduction.
• Adjustable Frequency Points: Customize crossover frequencies for each channel to suit your setup.
• Remote Subwoofer Control: Features bass boost and level adjustments for powerful, controlled bass.
• High Signal-to-Noise Ratio: >90dB for clear, distortion-free sound quality.
• Phase Alignment: Adjustable phase control for seamless speaker integration and enhanced sound staging.
• Compact Design: Easy to install without taking up excessive space in your setup.

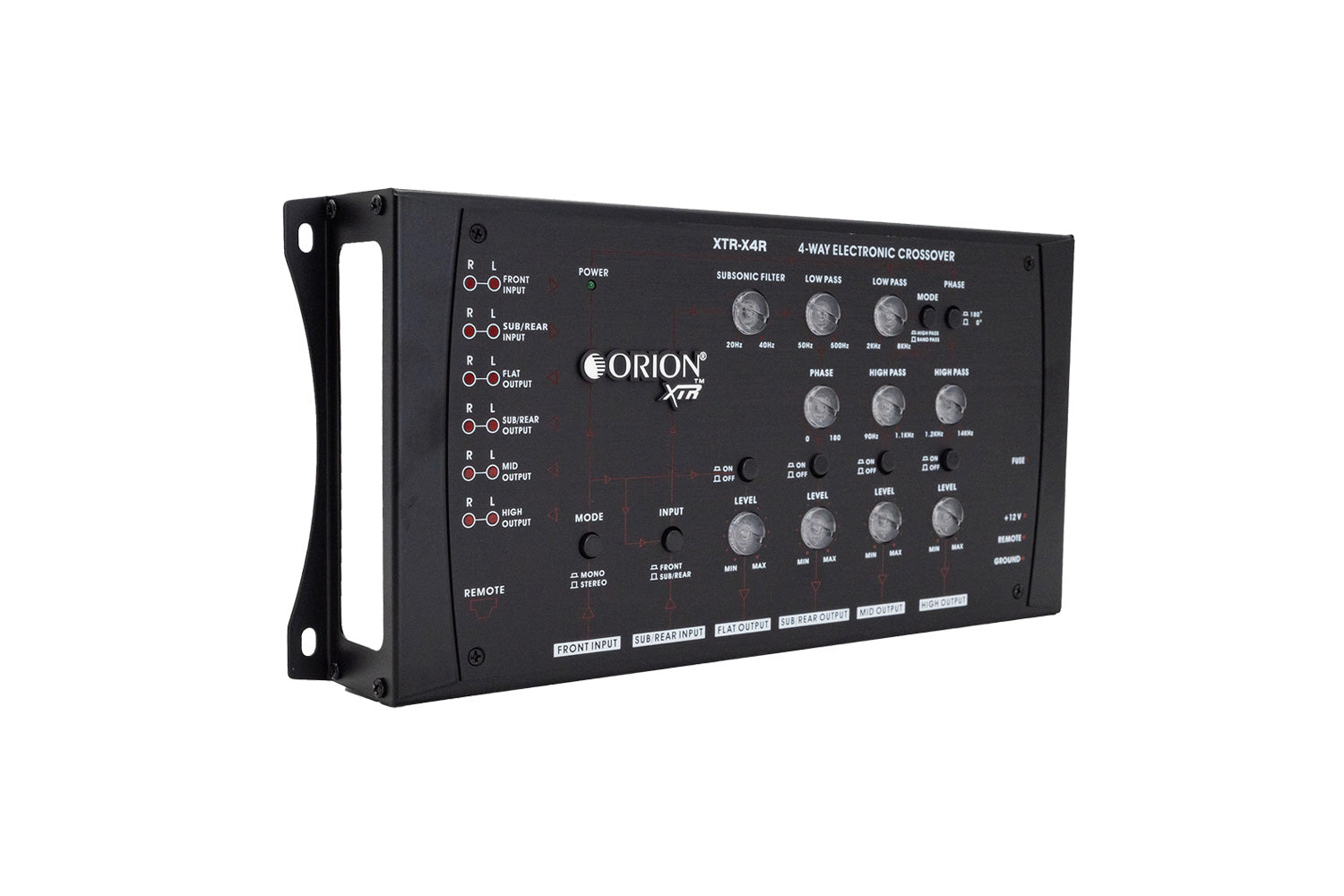

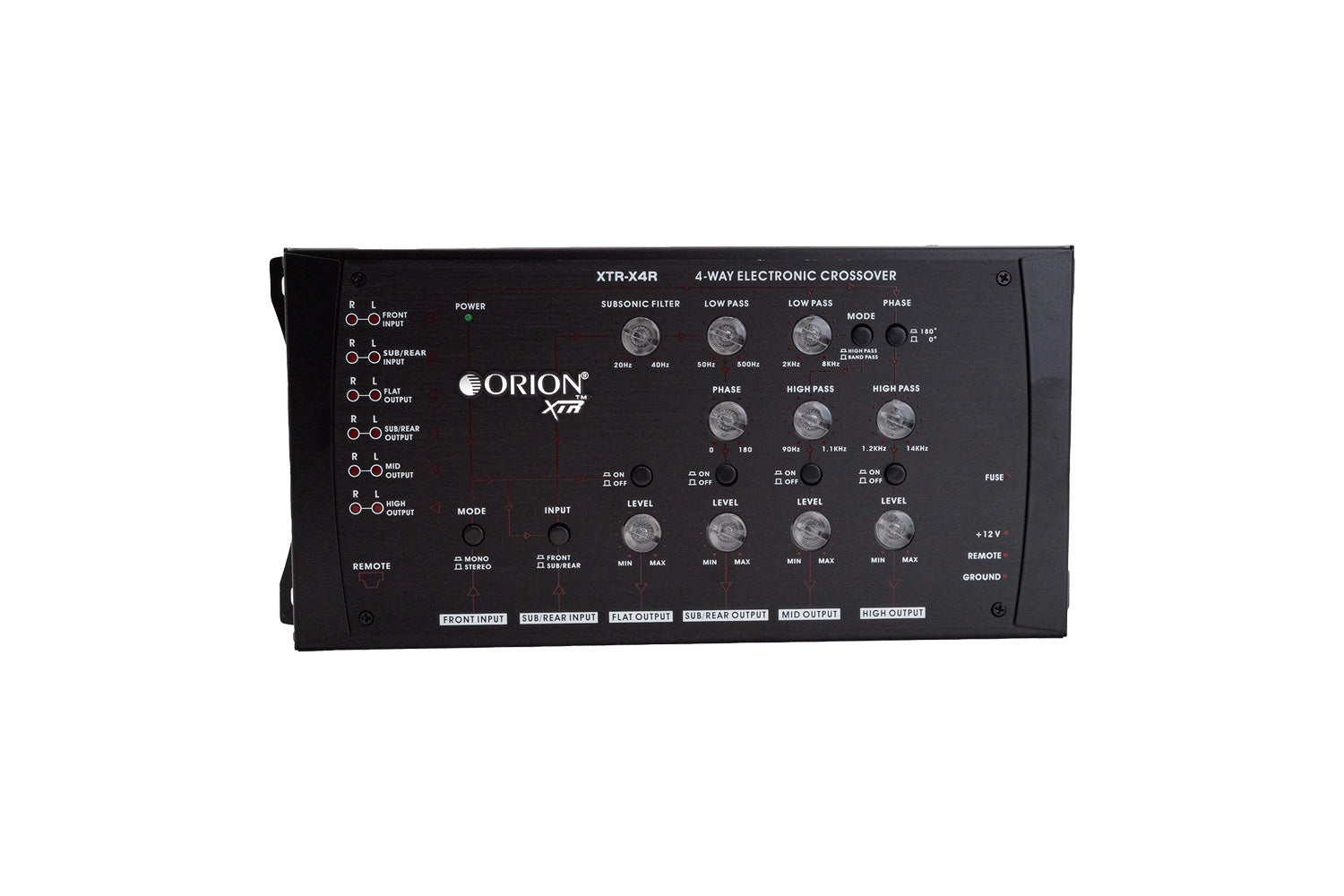

• Light Illuminated Control Panel: Easy-to-read illuminated panel for quick and precise adjustments.
• Durable Construction: Built for long-lasting performance and reliability in demanding environments.

Specifications

• Adjustable Bass Boost: 0 - 18dB
• Selectable Crossover Frequency
• High Pass: 1.2kHz - 8kHz
• Mid High Pass: 90Hz - 1.1kHz
• Mid Low Pass: 2kHz - 8kHz
• Subwoofer (LowPass): 50Hz - 500Hz
• Subsonic Filter: 20Hz - 40Hz

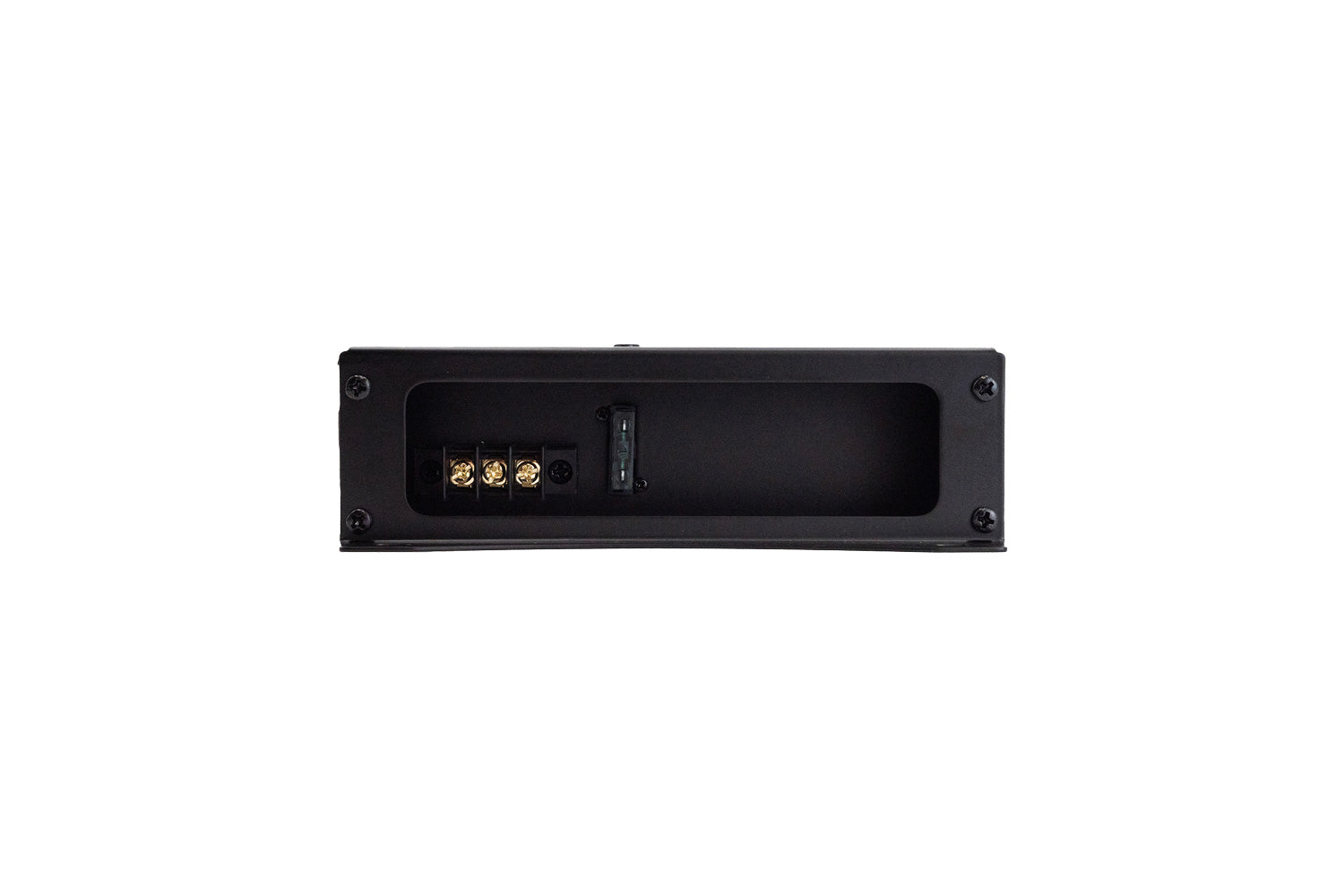

• Power Supply: 10-16V DC, negative ground
• Input Impedance: 10K Ohm
• S/N ratio: >90dB
• Slope Rate: 12dB/Octave
• Max Output Signal Level: 11V
• Channel Separation: 60dB
• Distortion: less than 0.05%
• Dimensions: WxDxH: 5.91" x 12.68" x 1.77" Inches (150x322x45mm)
