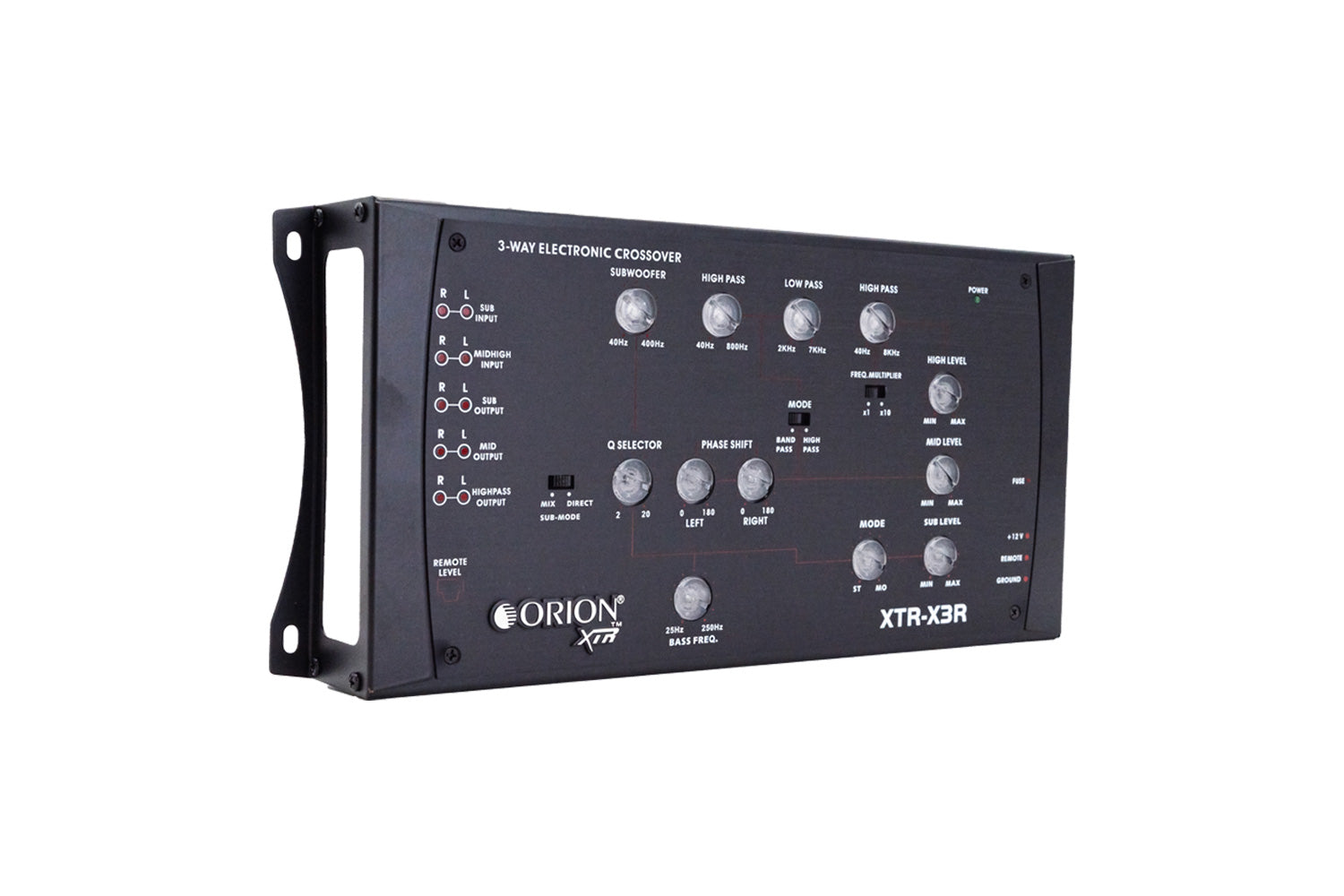

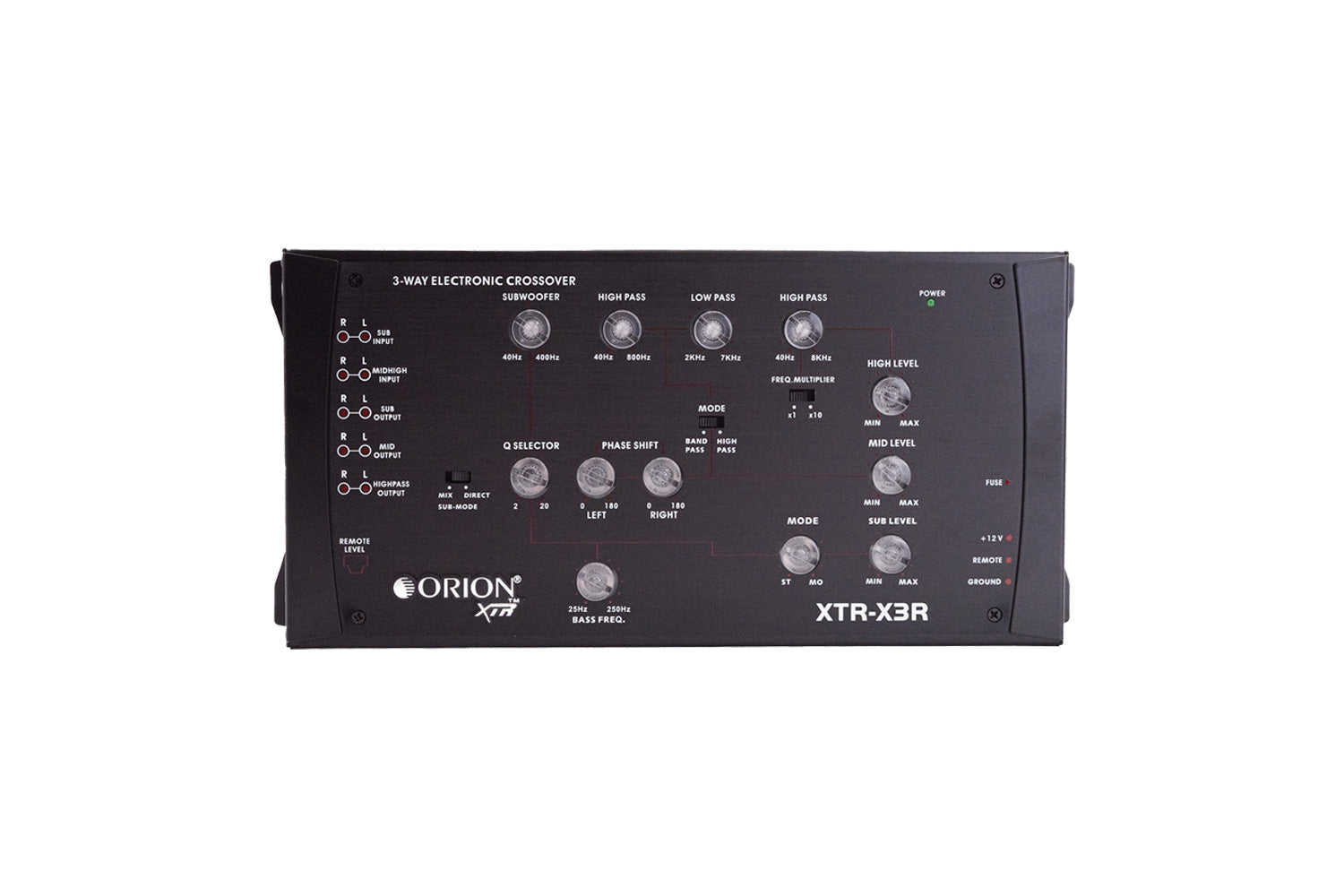

Orion XTR-X3R - 3-Way Electronic Crossover

Orion XTR-X3R 3-Way Electronic Crossover - Precision Sound Control Introducing the Orion XTR-X3R 3-Way Electronic Crossover. It is a cutting-edge solution for audiophiles who want better sound quality and control in their car audio systems.

This high-performance crossover delivers precision-tuned sound across all frequency ranges. As a result, it improves audio separation between subwoofers, midrange drivers, and tweeters.

Whether you are a casual listener or a serious enthusiast, the XTR-X3R delivers clear and accurate sound. In addition, you hear every detail with depth and balance.

Advanced Sound Customization

The Orion XTR-X3R stands out because it gives you full control over crossover points. Therefore, you can adjust each frequency range to match your setup.

For example, tune the low end for strong and distortion-free bass. At the same time, adjust the midrange for smooth and balanced tones. You can also set the highs for crisp and detailed treble.

Moreover, its precision-engineered components help reduce signal loss. As a result, you get better performance from every note.

Built for Total System Control

Manufacturer specifications

XTR-X3R

• -Adjustable Bass Boost Frequency: 25Hz-250Hz
• -Adjustable Bass Boost: 0-18dB.
• -Adjustable Q Control: 2-20
• -High Pass: 40Hz-8KHz
• -Mid High Pass: 40Hz-800Hz
• -Mid Low Pass: 2KHz-7KHz
• -Subwoofer (Low Pass): 40Hz-400Hz
• -Power Supply: 10-16V DC, negative ground
• -Input Impedance: 10K Ohm
• -S/N ratio: >85dB
• -Slope Rate: 12dB/Octave
• -Max Output Signal Level: 7.0V/RMS
• -Channel Separation: 60dB
• -Distortion: less than 0.05%
• -Dimensions: WxDxH: 5.91" x 12.68" x 1.77" Inches (150x322x45mm)
