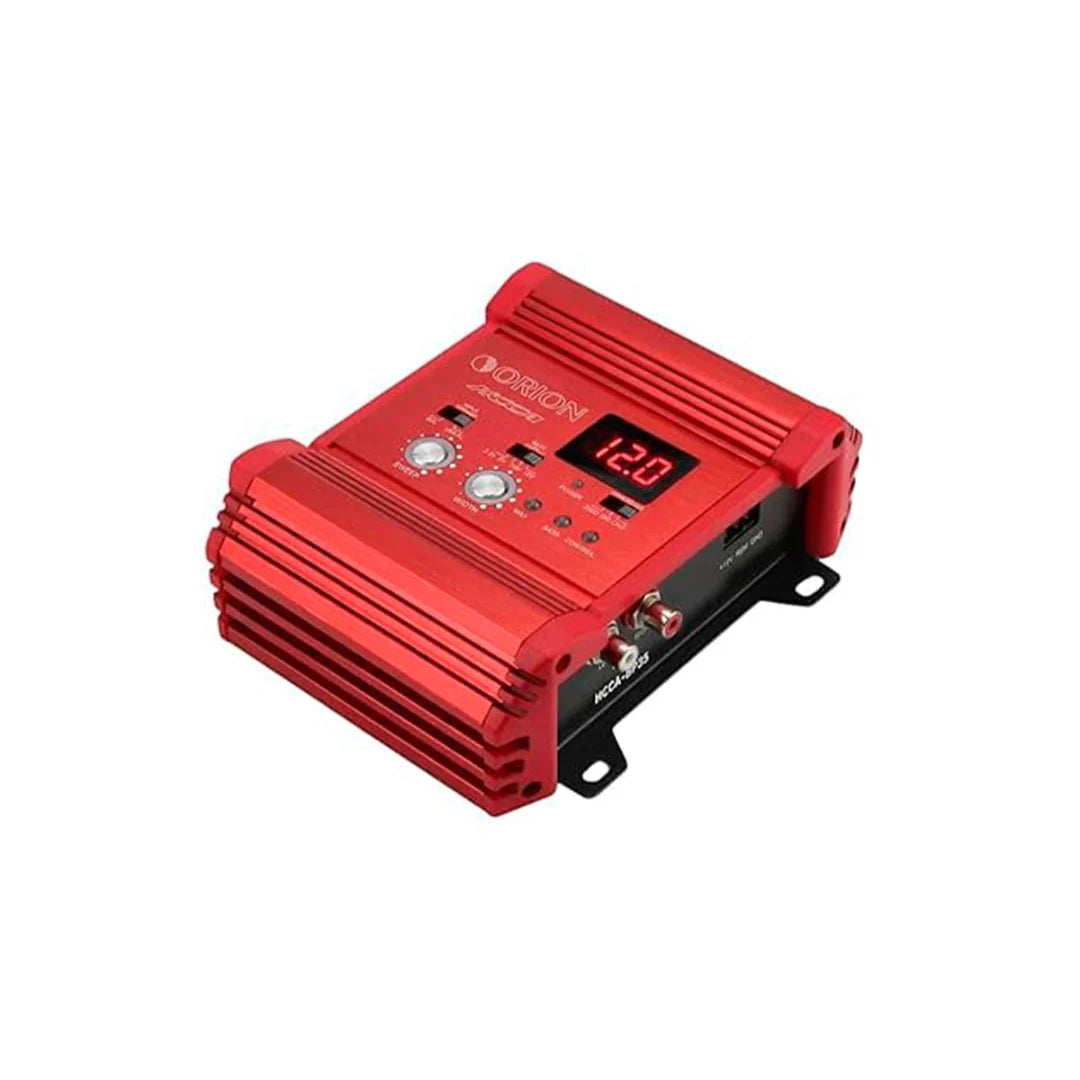

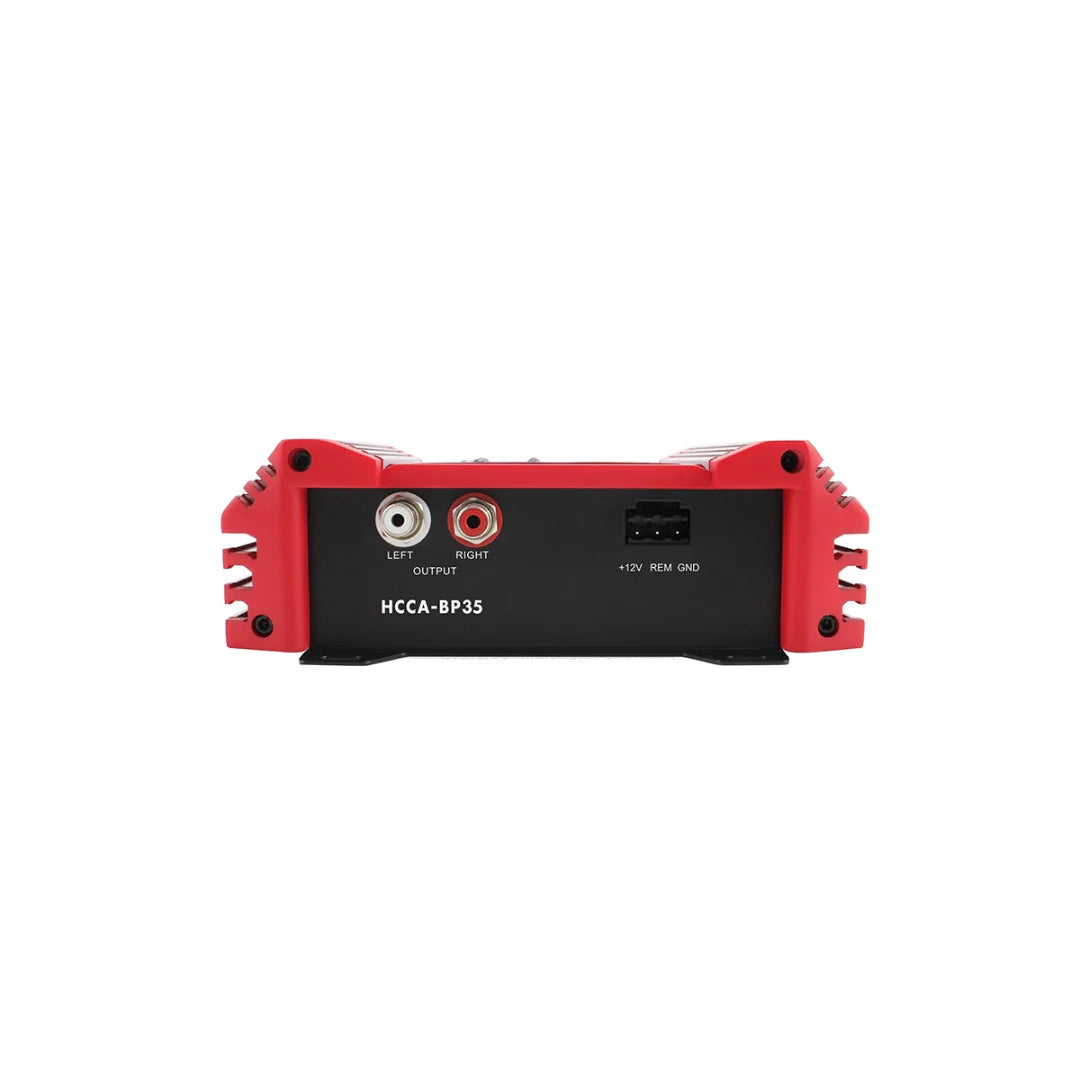

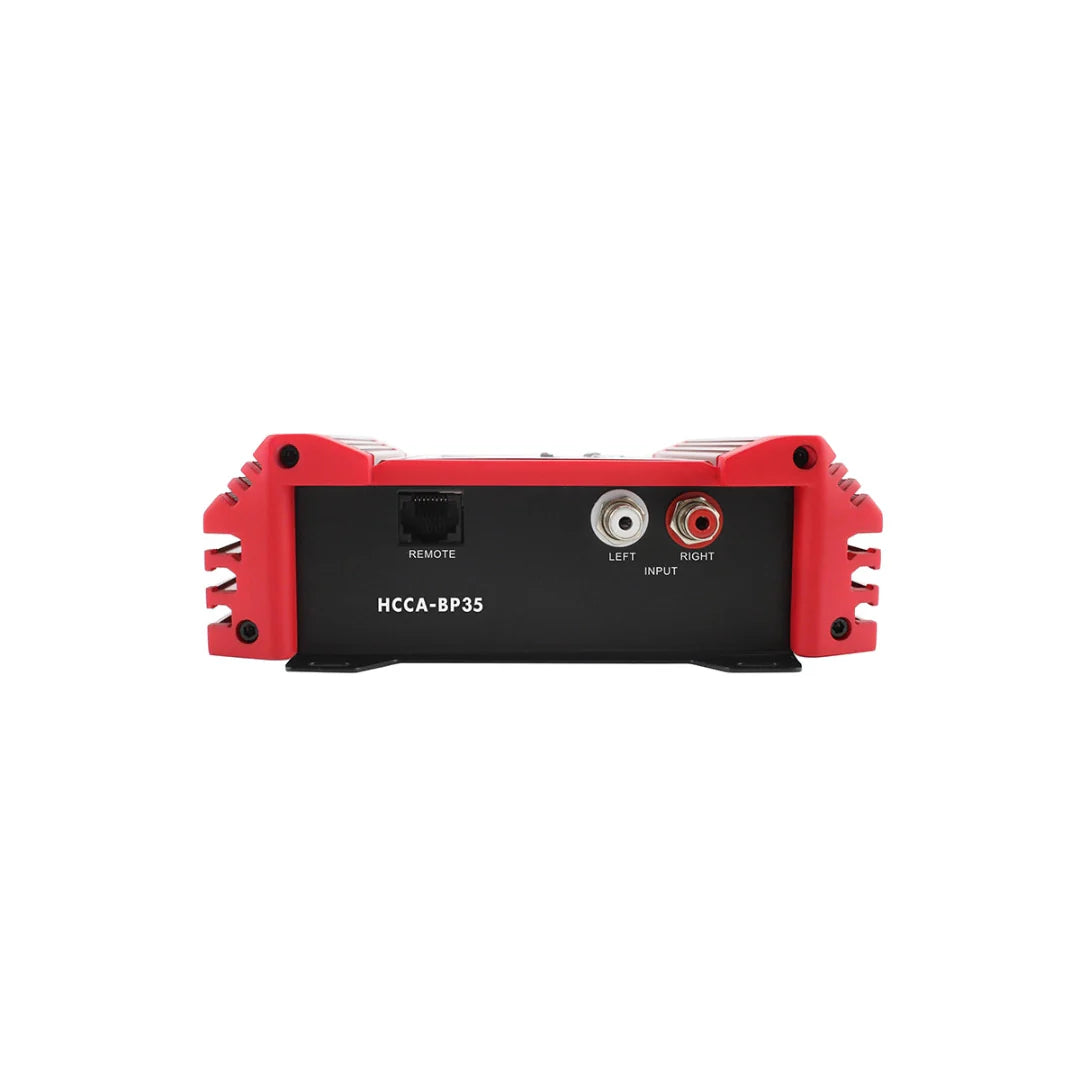

Orion HCCA-BP35 High Performance Bass Processor with 10V Output & Voltage Display

HCCA-BP35 Bass Processor - Extreme Low-Frequency Control

Upgrade your system with the HCCA-BP35 Bass Processor. It delivers powerful low-frequency enhancement for high-performance car audio setups.

This processor restores bass often lost in compressed music and factory systems. As a result, your subwoofer produces deeper and harder-hitting bass. In addition, it improves clarity and control.

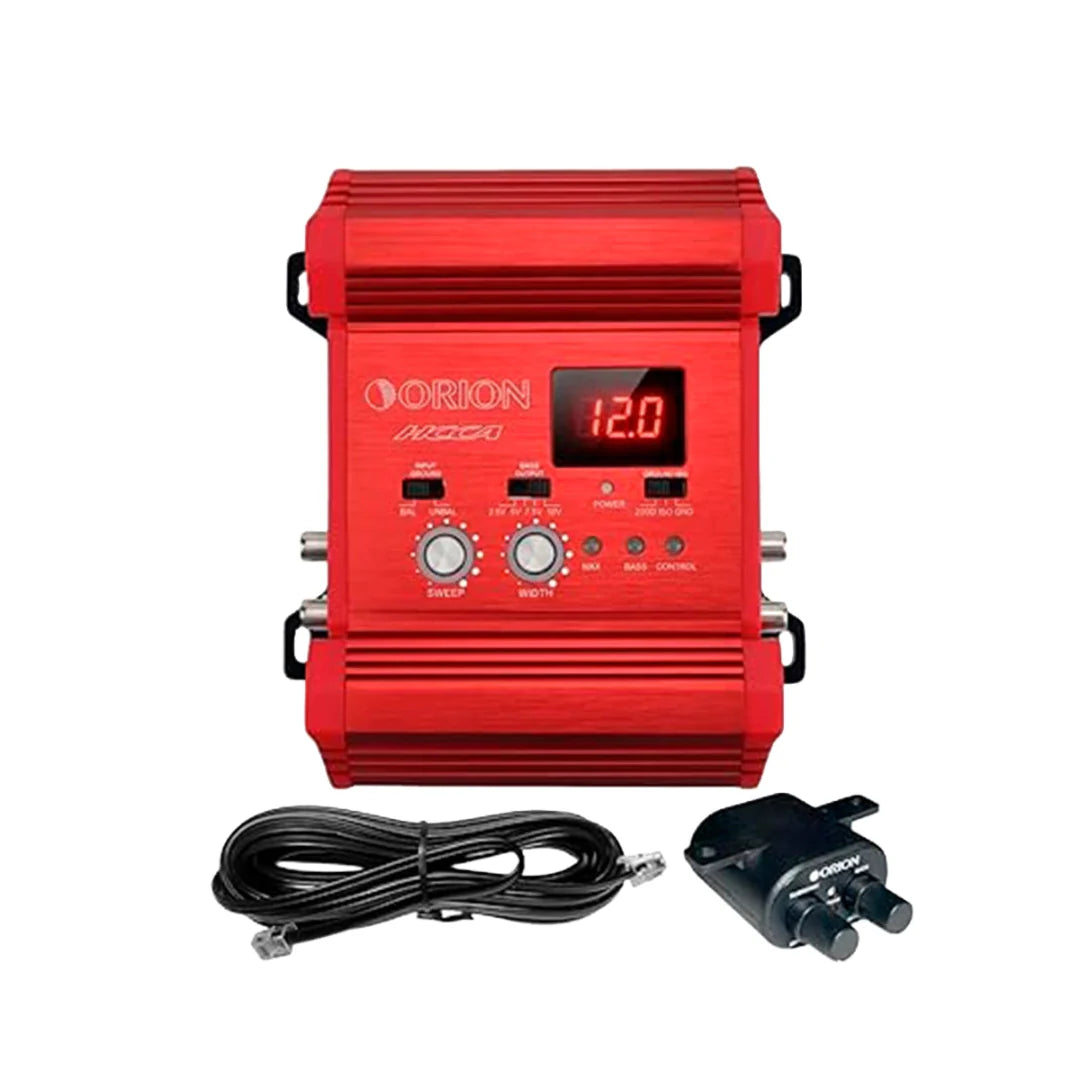

Precision Bass Tuning

The HCCA-BP35 gives you full control over your bass. Therefore, you can fine-tune your system to match your setup.

You can adjust:

Sweep control to set the frequency center

Width control to fine-tune the bandwidth

The Kaos

Kaos Fitment and Install Note

This audio product is sold with real-world support from Kaos Offroad. Side-by-side, marine, truck, and powersports audio builds need the right match between speakers, subwoofers, amplifiers, wiring, enclosure design, and tuning.

If you are building a Polaris RZR, Can-Am X3, Ranger, Defender, truck, or boat system, message Kaos Offroad before you order and we can help confirm the right setup.

Run Down

• Manufacturer SKU: ORI-HCCA-BP35
• Product Type: Processor
• Audio Type: Processor

Manufacturer specifications

HCCA-BP35

• Power Supply: 6.5V – 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.7V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -73 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz – 30 kHz
• Subsonic Filter: 27 Hz – 72 Hz
• Current Draw: 230 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 3.98” x 6.38” x 2.09”
