Product Overview
DS18 NXL-X1500.1FR NXL 1-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 1 x 1500 Watts Rms @ 1-Ohm
Elevate your marine sound experience to new heights with DS18's NXL-X1500.1FR. Designed to deliver the best performance for your marine speakers, this digital class amplifier is the ultimate choice for those who refuse to settle for anything less than exceptional.
Featuring an innovative Input Selector, this amplifier allows you to effortlessly choose between multiple signal sources. This flexibility ensures that you can easily customize your audio setup according to your preferences. This amplifier’s Full Range Capabilities also gives users the options of powering either subs, or mids and highs.
Not only does DS18's NXL-X1500.1FR deliver unparalleled performance, but it also boasts an IPX6 Waterproof Rating, providing protection against water intrusion.
Additionally, this amplifier is built to withstand harsh marine conditions with its UV, Salt, and Fog protection. It's designed to endure whatever nature throws at it without compromising on sound quality.

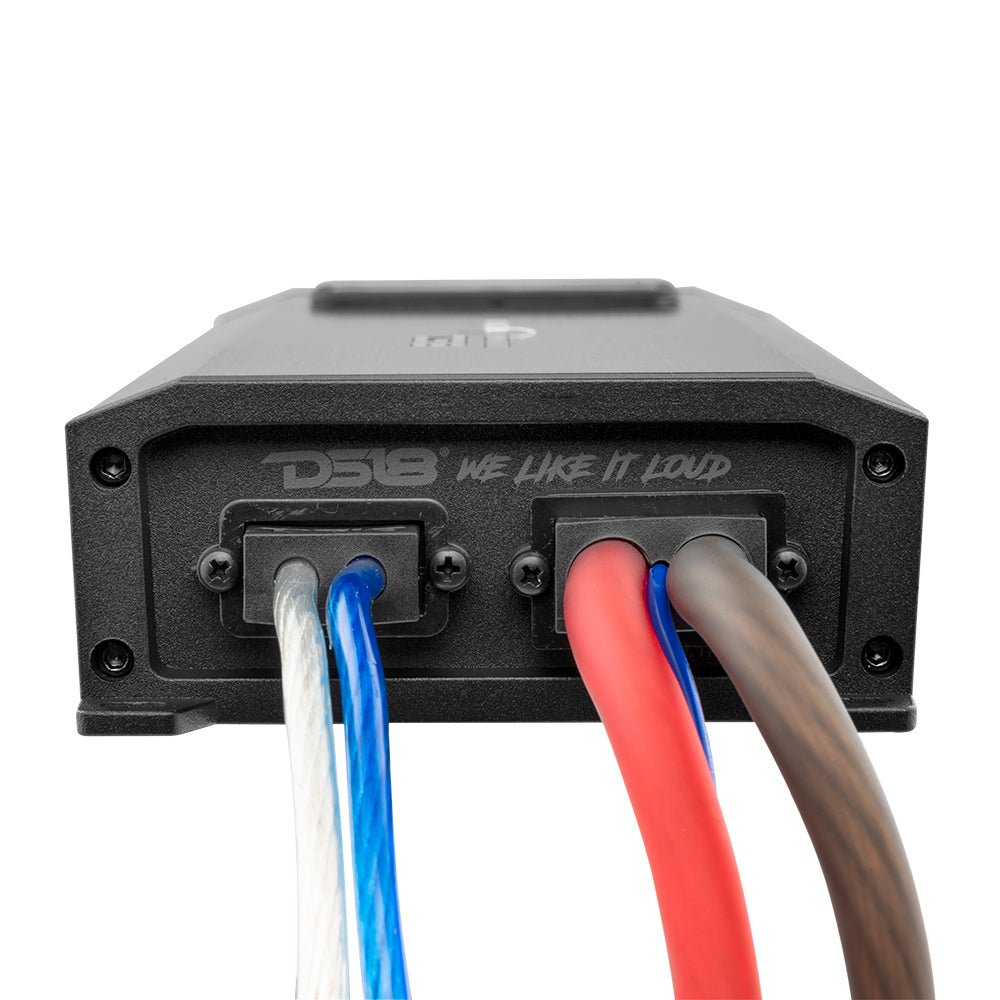

With its Direct Power harness design featuring marine-grade OFC tinned wires, this amplifier ensures optimal power transfer and efficiency. We’ve also included a 150A Fuse to protect you and your boat from almost any electrical short related to the amp's installation. Every detail has been carefully crafted to provide you with a seamless and hassle-free installation process.
Experience the future of marine amplification with the latest digital amplifier design and SMC technology, including both high pass and low pass filters for the one output channel. This band pass filter system enhances audio clarity and precision, allowing you to enjoy every note with exceptional clarity and detail.
Prepare to be blown away by the NXL-X1500.1FR's staggering performance, delivering 700W RMS at 4-ohms, 1000W RMS at 2-ohms, and 1500W RMS @ 1-ohm. These power settings are guaranteed to supercharge any custom marine build.
Don't settle for mediocre sound on your boat or powersport vehicle. Upgrade to the DS18 NXL-X1500.1FR Marine & Powersports Digital Amplifier and unleash the true potential of your marine speakers.
Key Features
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Specifications
| SKU | NXL-X1500.1FR |
|---|---|
| Total Watts (Peak) | 3000W |
| RMS Power @ 4 ohm | 1 X 700W |
| RMS Power @ 2 ohm | 1 X 1000W |
| RMS Power @ 1 ohm | 1 X 1500W |
| Frequency Response | 10Hz-250Hz |
| Signal to Noise Ratio 1W @ 4? | >81dB |
| Efficiency @ 4 ohm | 92% |
| Input Impedance | 20K OHM |
| Total Harmonic Distortion (THD) | <0.05% |
| Low Level Input Range | 200mV-5V |
| Selectable X-Over | Band-Pass |

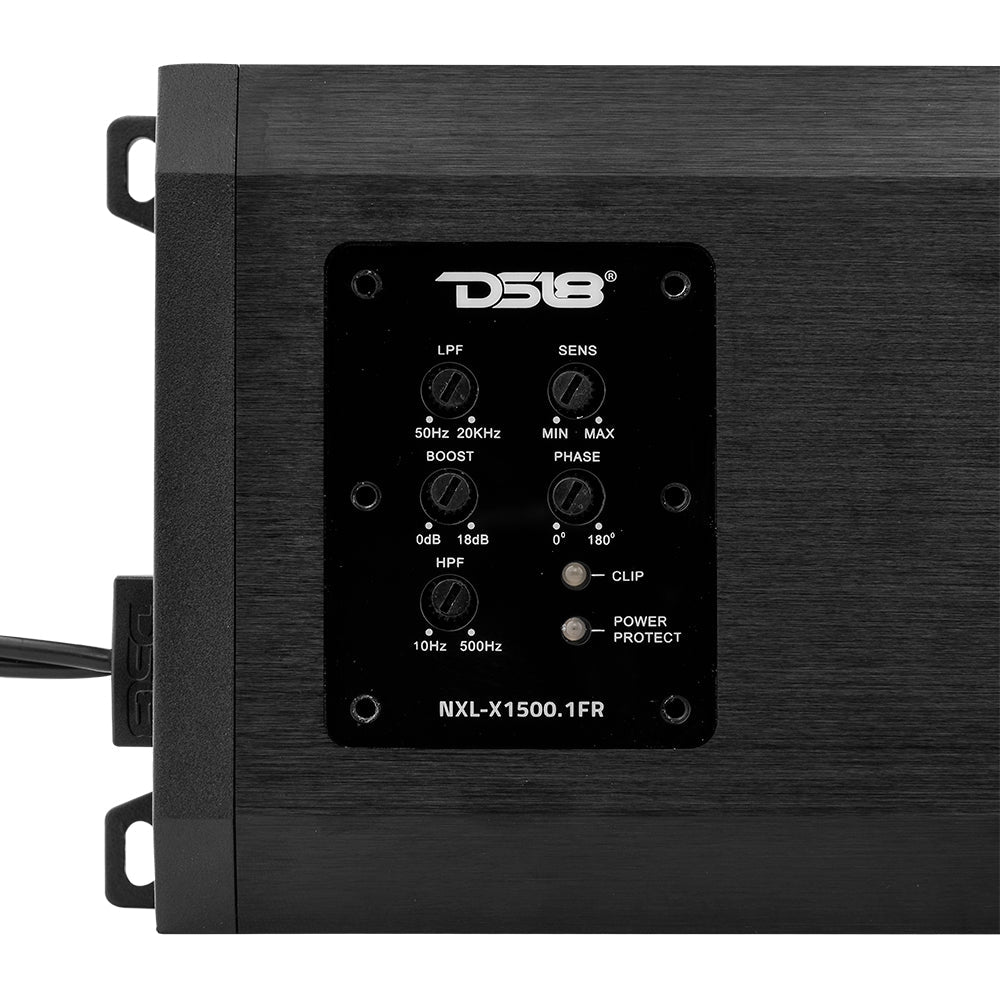

| X-Over Filter Range | LPF: 50Hz-20KHz / HPF: 10Hz-500Hz |
| Bass Boost Range | 0-18dB |
| Bass Boost Frequency | 42Hz |
| Phase Selector | 0-180 |
| Amplifier Class | Digital |
| Amplifier Type | Full Range |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| Led Indicator | Power | Protection | Clip |
| Power Input Size | 4GA Tinned OFC |

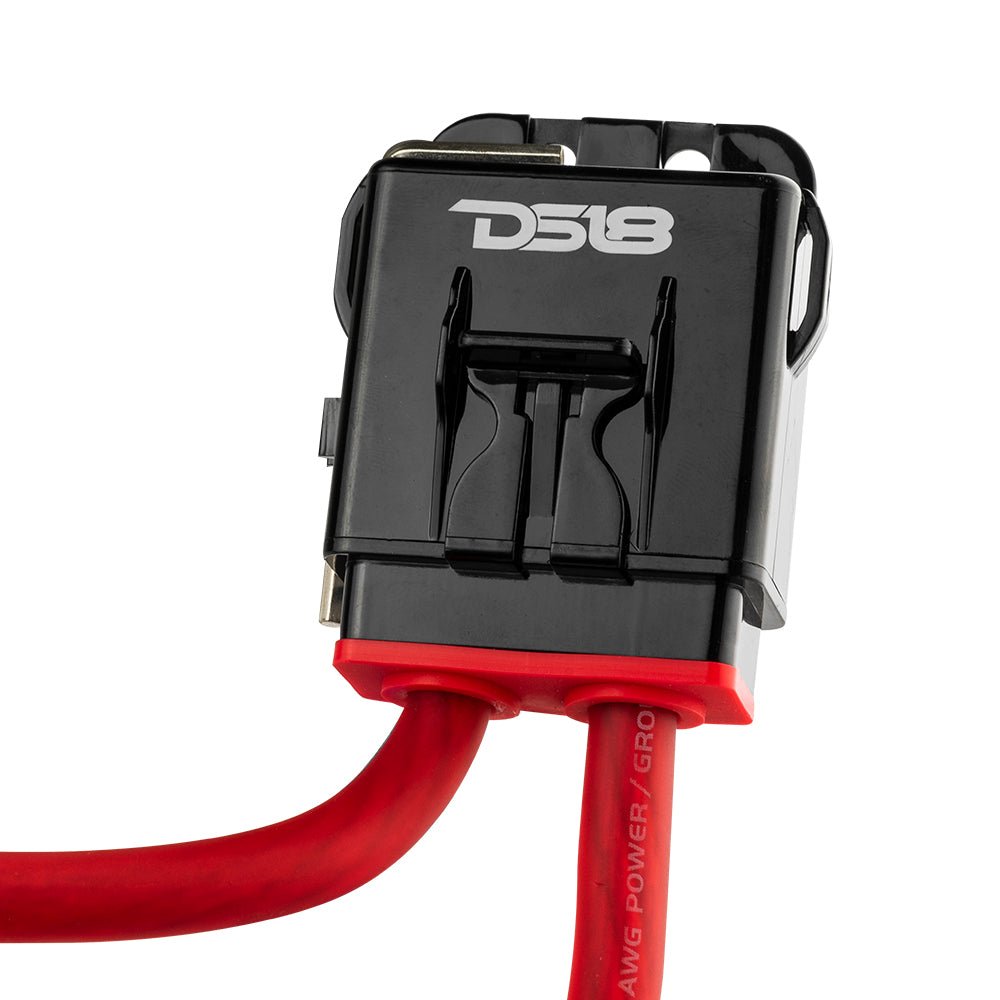

| Fuse Size | 150A |
| Thermal Protection | Yes (75C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7-16V) |
| Body Color | Finish | Black Brushed Aluminum |
| Waterproof Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Quick Connect Plug | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
| Overall Length | 13.4" / 341mm |
| Overall Wide | 4.4" / 112mm |
| Overall Height | 1.77" / 45mm |
| Heatsink Length | 11.8" / 301mm |
| Gross Single Unit Weight | 2.7kg |
