Product Overview
6-Channel Marine Grade Class D Amplifier
DS18’s NXL-M6 pumps out 150W RMS per channel at 4 ohms, 230W at 2 ohms, and when bridged, it delivers 440W across 3 channels at 4 ohms. It’s a perfect match for multi-speaker setups on boats, ATVs, and more.
Complete Audio Control
Customize your sound with adjustable gain controls (0.2V to 6V), selectable high-pass, low-pass, or full-range crossovers adjustable between 40Hz and 2kHz, and a variable bass boost up to 12dB at 45Hz. This amp fine-tunes AND optimizes your setup’s performance.
Endure the Elements
With an IP55 water-resistant rating, corrosion-resistant hardware, and a coated 4-layer PCB, the NXL-M6 thrives in the harshest marine environments. Thermal, overload, DC output, short circuit, voltage input, and clipping protections keep your system safe and reliable.
Installation Made Simple

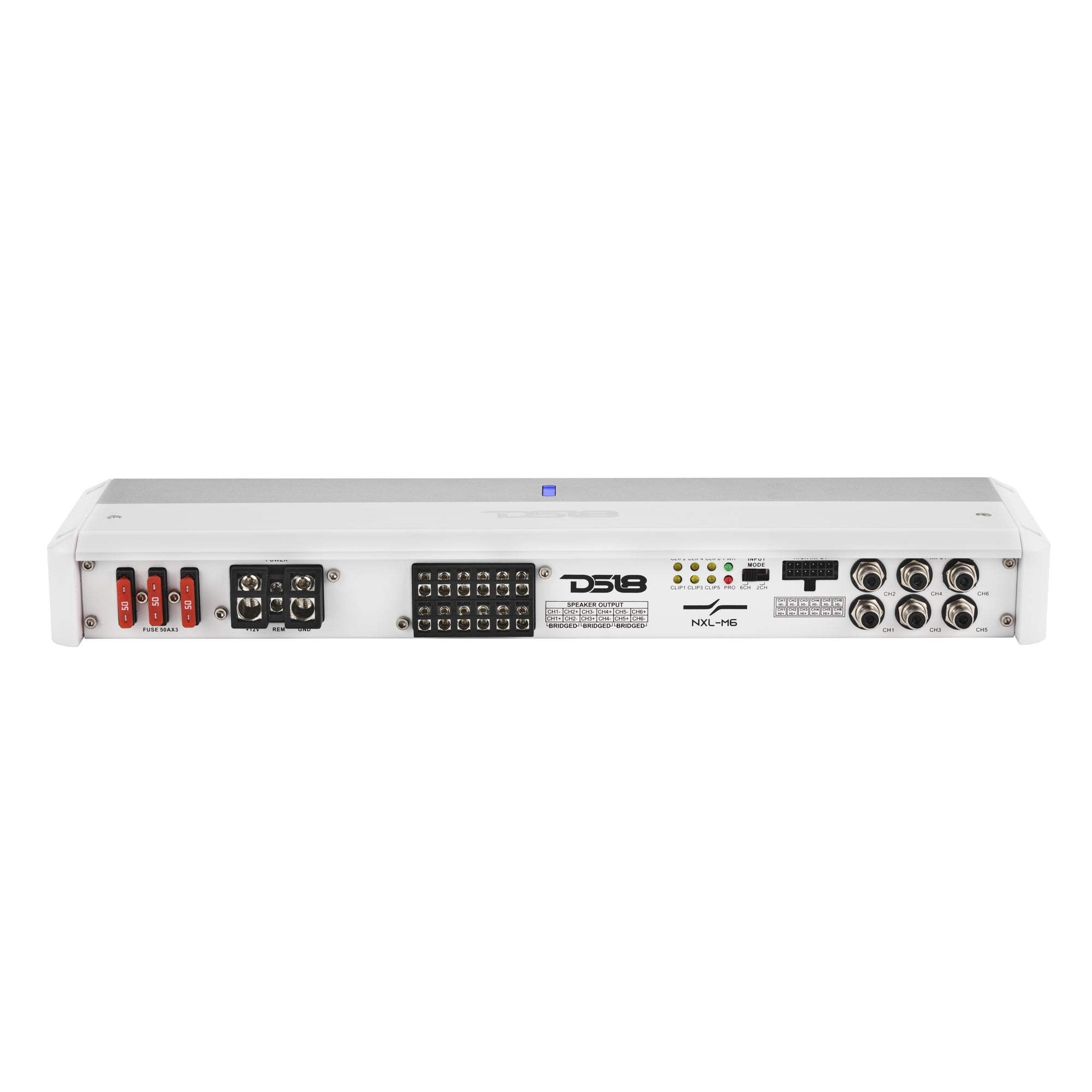

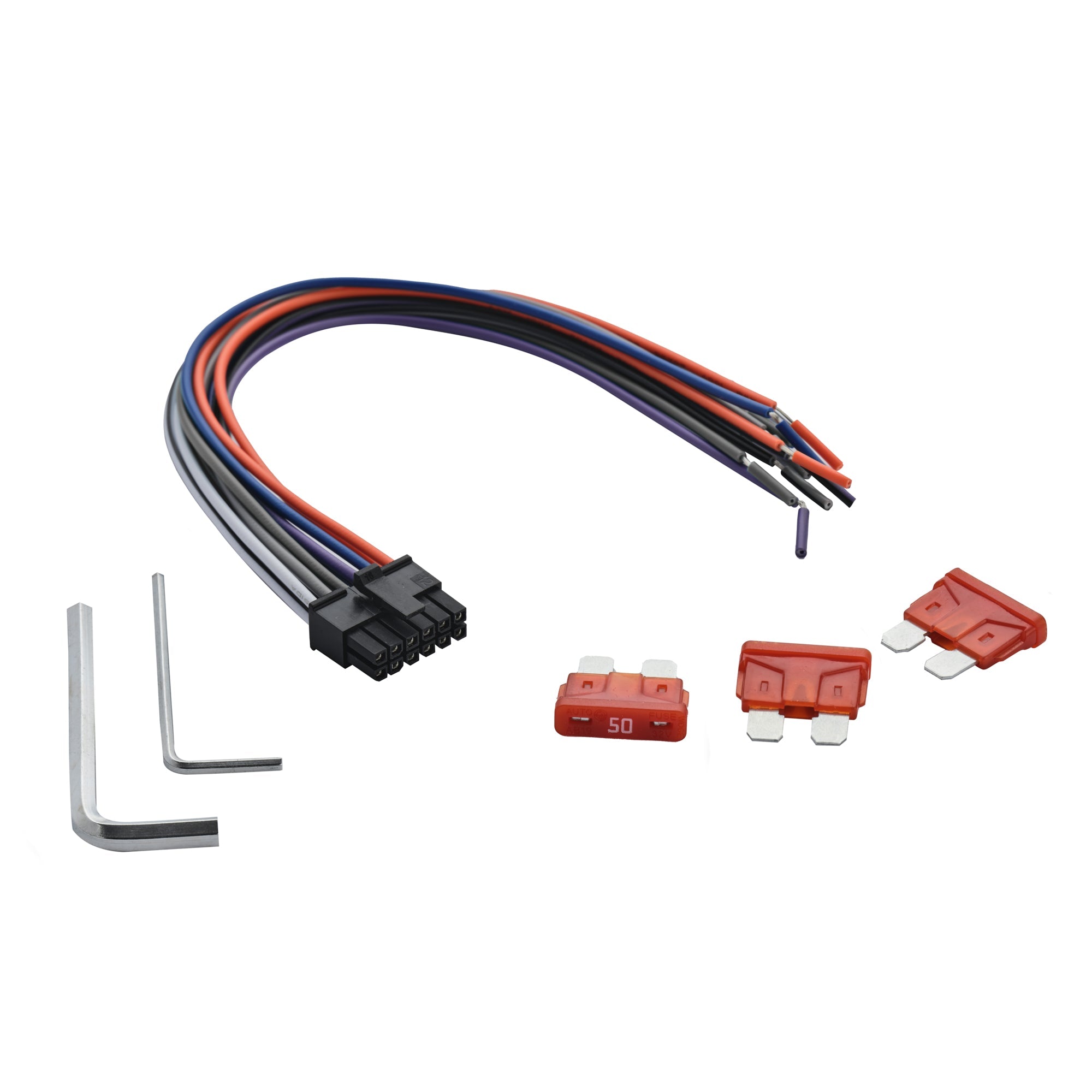

The M6 comes with marine-grade mounting hardware and direct-insert power and speaker terminals for secure, clean connections. With clear LED indicators for power, clip, and protection status, you’ll always know your amp’s performance status.
Upgrade your marine or powersports audio setup today with DS18’s NXL-M6 and experience quality on the water or off-road!
Key Features
- IP55 water-resistant with UV-protected, corrosion-resistant hardware
- Tiffany-style RCA, high-quality potentiometers, and coated 4-layer PCB
- 2CH/6CH input sum selector & high-level input
- Short-circuit, thermal, and voltage safeguards
- Compact size with direct-insert power & speaker terminals
Specifications
| Total Watts (Peak) | 2700W |
|---|---|
| RMS Power @ 4 ohm | 6 x 150W |
| RMS Power @ 2 ohm | 6 x 230W |
| RMS Power @ 4 ohm Bridge | 3 x 440W |
| Frequency Response | 20Hz - 20KHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4ohm | >97% |
| Channel Separation | >55dB |
| Total Harmonic Distortion (THD) | <0.15% |
| Low Level Input Range | 0.2V-6V |
| High Level Input | Yes: 5V / Yes, 6ch Speaker level |
| Selectable X-Over | HPF/LPF/FULL |
| X-Over Filter Range | 40Hz - 2KHz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 45Hz - 5Hz |
| Phase Selector | No |
| Amplifier Class | Digital (D) |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 6 Channels |
| Minimum Impedance | 2 ohm (Stereo) / 4 ohm (Bridge) |
| Led Indicator | Clipping / Protect / Power |
| Power Input Terminal Size | 4 Ga |
| Fuse Size | 150A (3x50A) |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Gray+White / Aluminum+ABS |
| Water Resistant Rated | IP55 |
| PCB Layout Design | 4 Layers / Coated |
| RCA Output | No |
| UV Compliant | Yes, UV Protected and PCB Coated |
| Input Sum Selector | Yes, 2Ch or 6Ch Input Mode |
| Tiffany Style RCA | Yes |
| Stainless Steel Hardware | Yes, (Screws) |
| Potenciometers | High Quality Metal Knob |
| Remote Level Control | No |
| Overall Length | 15" / 385mm |
| Overall Wide | 4.5" / 116mm |
| Overall Height | 1.7" / 43mm |
| Heatsink Length | 14" / 360mm |
| Gross Single Unit Weight | 2.2Kg |
