Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm

Availability: In stock SKU: NXL-LXY8/WH
Sale price $499.95

Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm - DS18

Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm

$499.95

Product Overview

DS18 NXL-LXY8

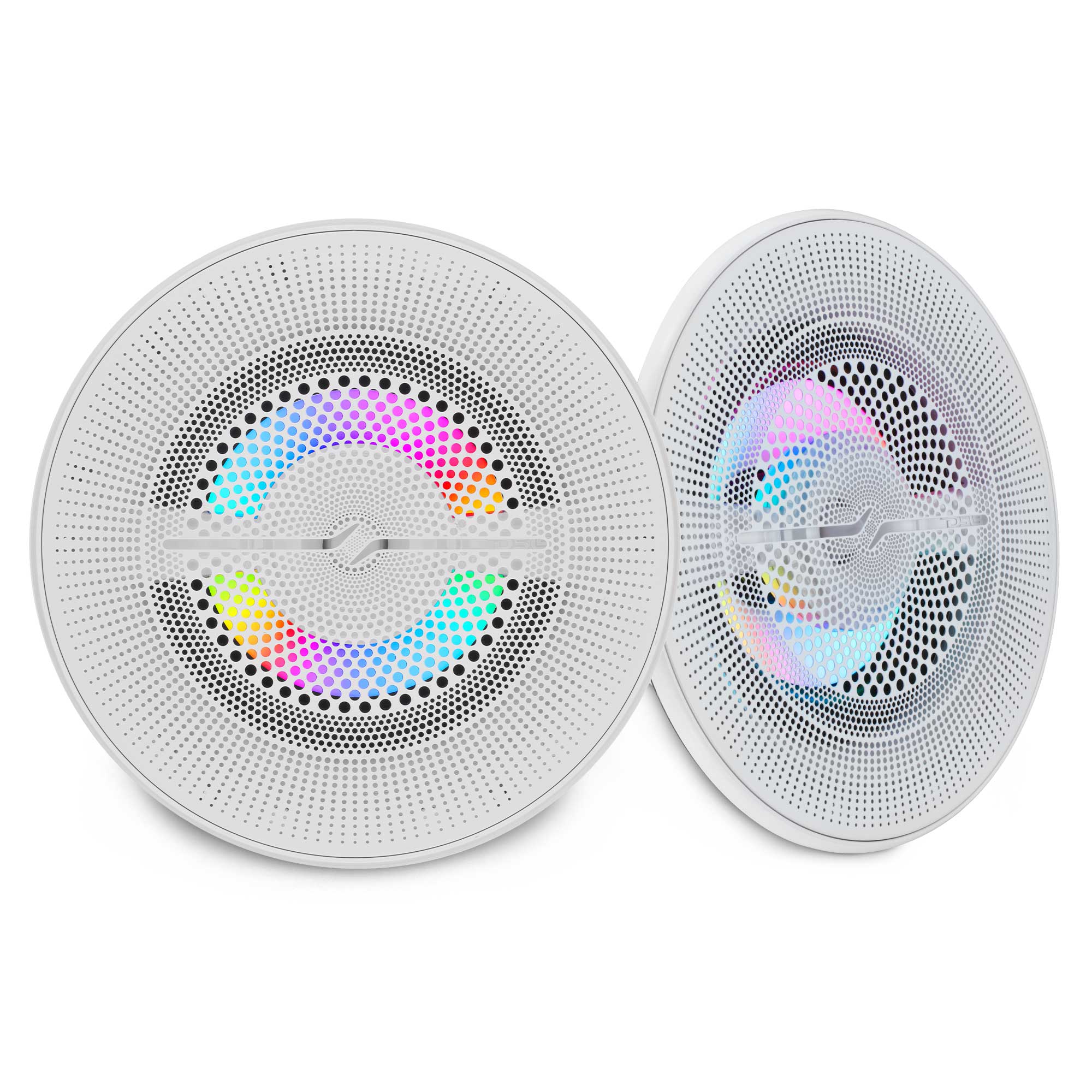

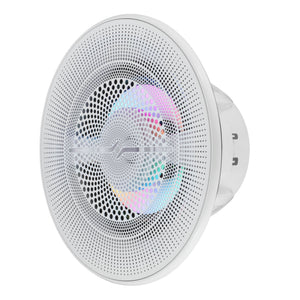

8” 2-Way Marine Coaxial with Floating Bullet Tweeter + Flush Magnetic Grille + RGB LED Lighting

The NXL-LXY8 gives your system full-range DS18 sound, show-ready RGB lighting, and a clean, screwless flush-mount fit that holds up through anything.

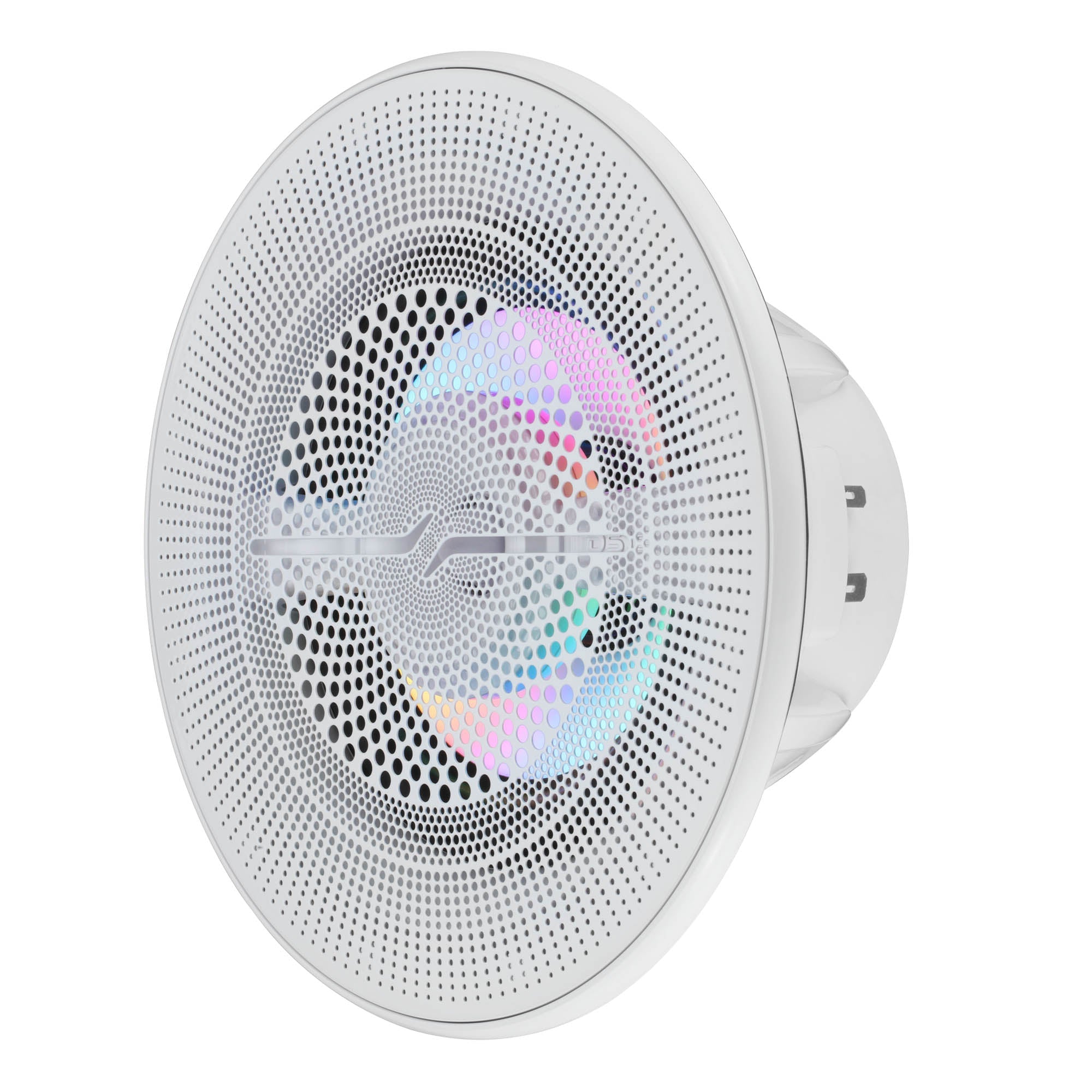

Flush-Mount Magnetic Grille
The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.

Full-Range Takeover
With a high-output neodymium-loaded tweeter suspended in front of the cone, the NXL-LXY8 gives you crisp, clean highs and tight midbass in one drop-in upgrade.

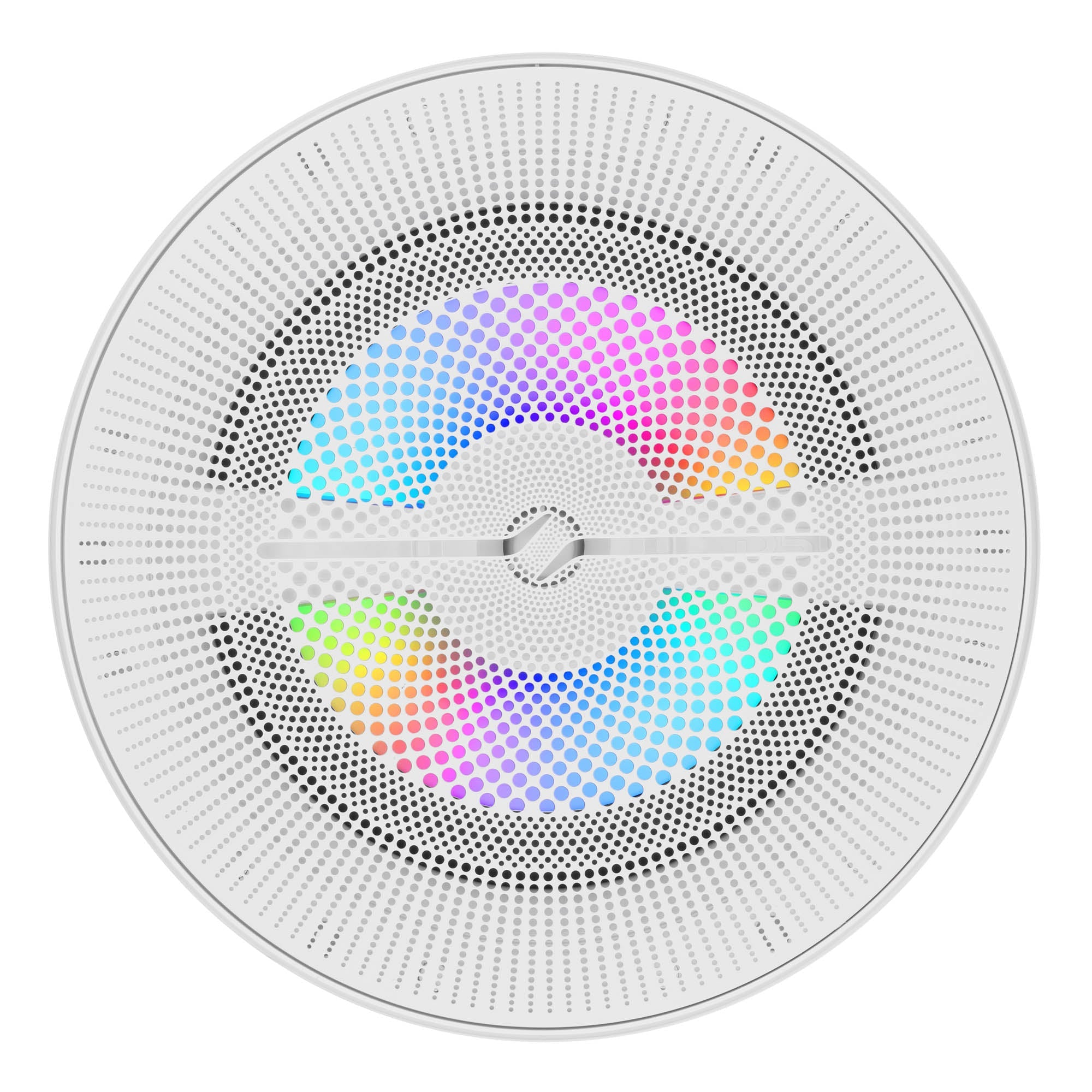

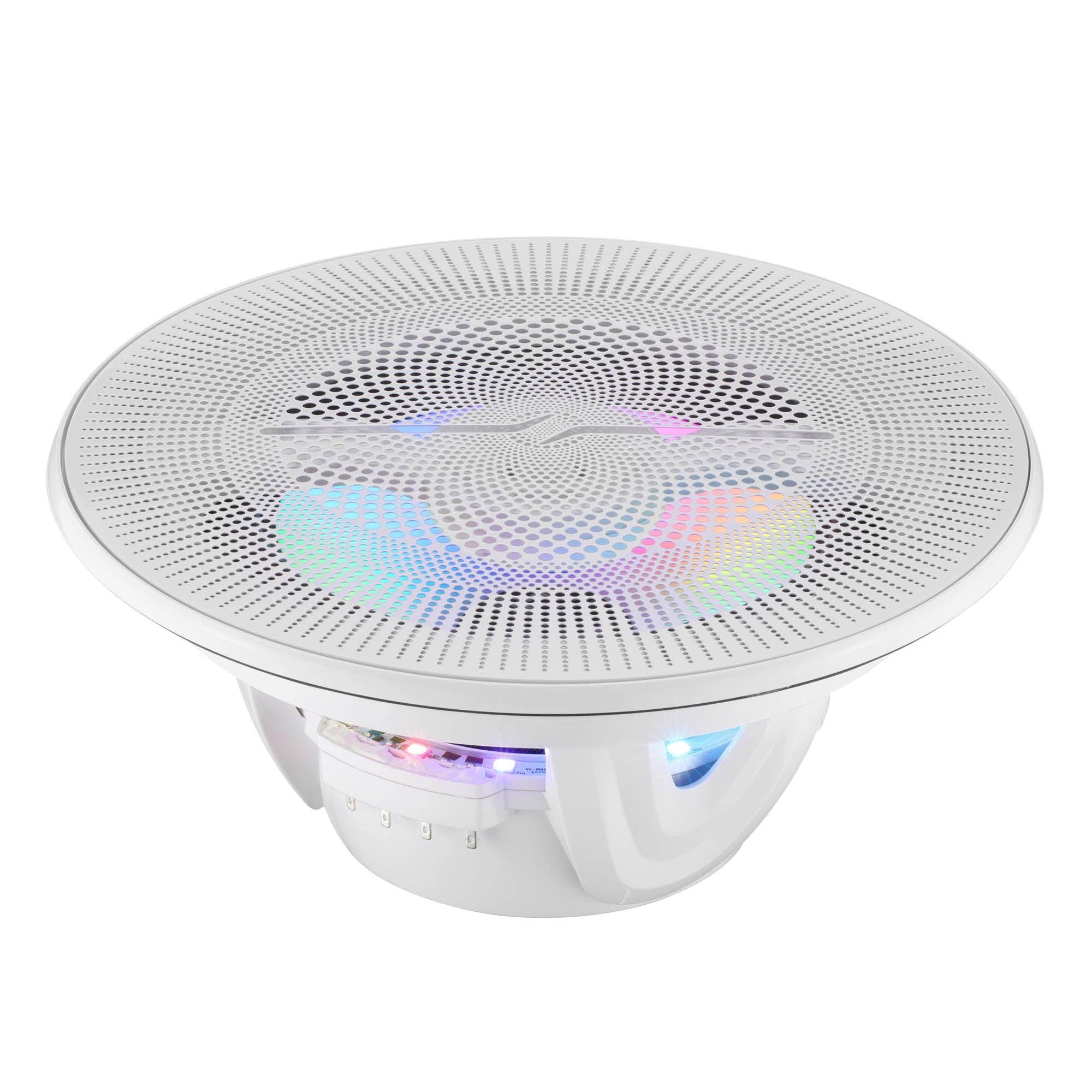

Digital LED Glow
A full digital LED ring sits behind the cone, creating a backlit glow that matches your vibe. Add DS18’s LC-DRM (sold separately) to unlock full color control.

Marine-Rated Strength for All Terrains
IP65-rated with UV-resistant housing and rubber surround, the NXL-LXY8 is built for boats, UTVs, bikes, and open-air builds that see water, salt, heat, and impact.

Bring LOUD full-range sound to your marine or powersports vehicle with DS18’s NXL-LXY8!

Key Features

  • 8” 2-Way Marine-Grade Coaxial Speaker
  • IP65 Water & UV Resistant Construction
  • Floating Bullet Tweeter with Neodymium Magnet
  • Digital LED Ring (LC-DRM Compatible)
  • Flush-Mount Magnetic Grille for Clean Install

Specifications

Nominal Diameter 8" / 203mm
Nominal Impedance 4 ohms
RMS Power Handling 175W
MAX Power Handling 350W
Sensitivity (1w/1m) 96 dB
Frequency Response 40Hz-20KHz
Recommended HI Pass Crossover 50Hz
Sold in Pair or Single Pair
Grill Type PC+Stainless Steel
Marine Grade Type IP65
RGB LED Yes, Digital LED integrated (behind cone)
Digital LED Chip Type 1815S
Basket Material Injection Molded Composite ASA with UV Protection Coating / PC
Color / Finish Gloss White
Voice Coil Diameter 1.5" / 38.6mm / 1" / 25.5mm
Voice Coil Former Material Glass Fiber / Kapton
Winding Material CCAW
Cone Material PPI
Surround Material Rubber
Magnet Material Ferrite+Neodymium / Neodymium (N35H)
Magnet Weight 24oz + 1.1 oz / 0.4oz
Diaphragm Material Aluminium
Equivalent Volume 16.92L / 0.59ft3
Excursion (one way) 3mm
Free Air Resonance 58Hz
Mechanical Factor 7.599
Electrical Factor 0.834
Total Factor 0.752
Moving Mass 25.604g
Compliance 0.2875mm/N
Bl Factor 6.016
Voice Coil Inductance 1.4mH
Diaphragm Area 203.58cm2
DC Resistance 3.2 Ohms
Efficiency Bandwidth Product 69.5

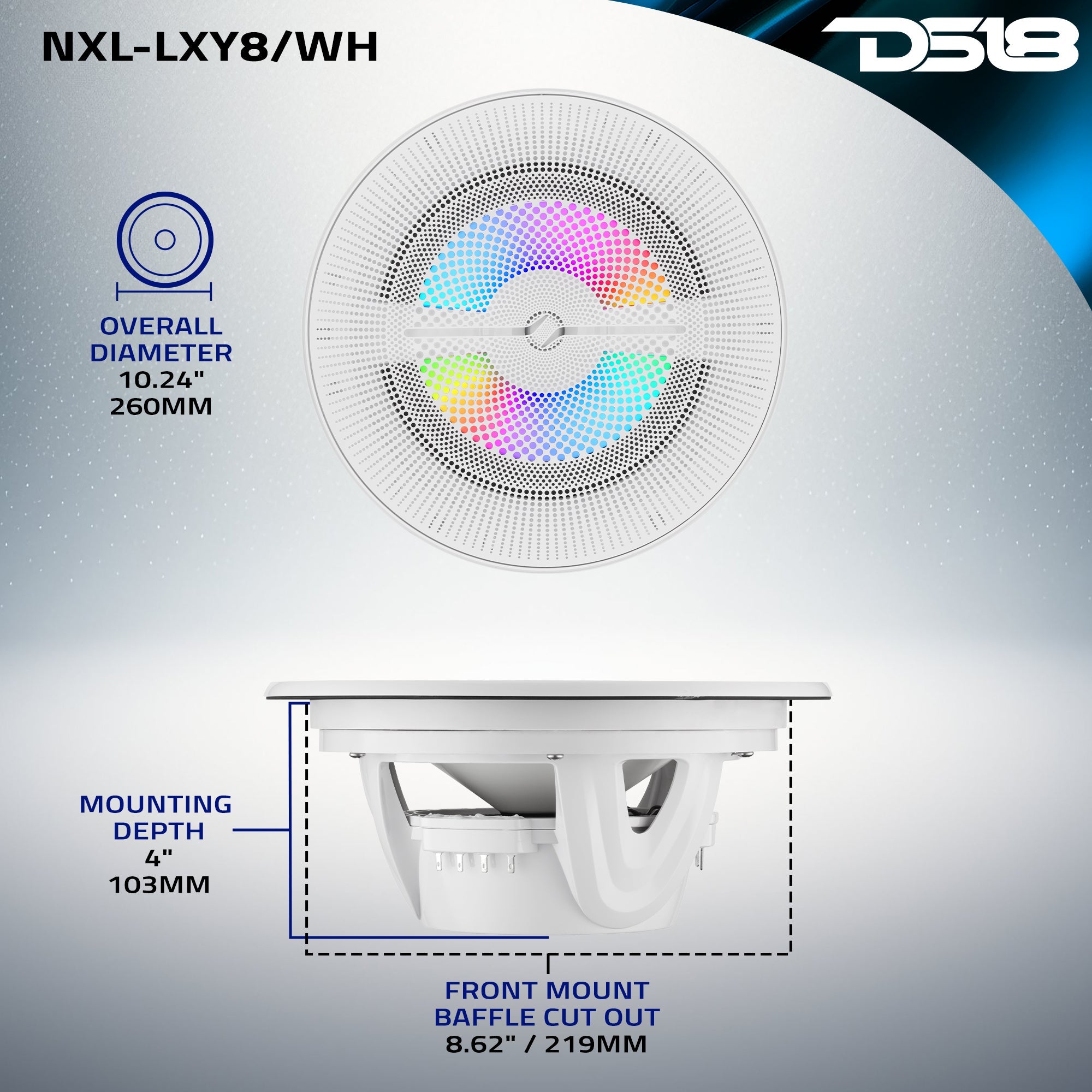

Overall Diameter 10.24" / 260mm
Overall Depth 4.5" / 114mm
Front Mount Baffle Cutout 8.62" / 219mm
Mounting Depth 4" / 103mm
Motor Diameter 4.33" / 110mm
