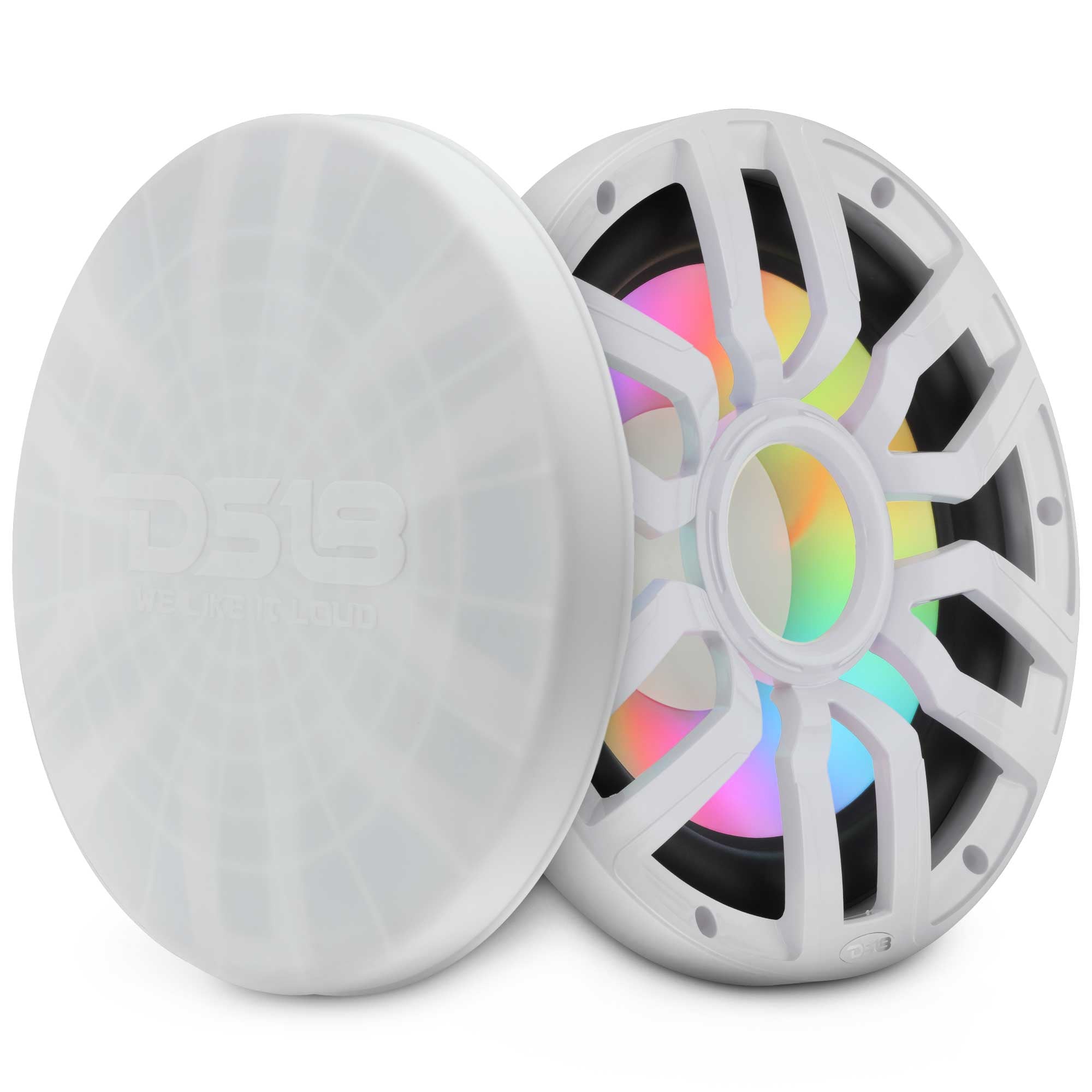

12” Marine Subwoofer with Hybrid Magnet Motor, Removable Grille and Digital LED Lights - 600W RMS 4-Ohm
Product Overview Bass Ready for All ElementsThe NXL-iQSUB12 is a 12” marine-grade subwoofer built to bring bass...
- $624.95
- $624.95
- Unit price
- per
Subtotal:
$624.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
Bass Ready for All Elements
The NXL-iQSUB12 is a 12” marine-grade subwoofer built to bring bass to your marine and powersports vehicles. Its smart design, combined with the latest subwoofer technology make these subwoofers the ultimate bass upgrade. Included subwoofer covers help protect your investment.
Functional Design

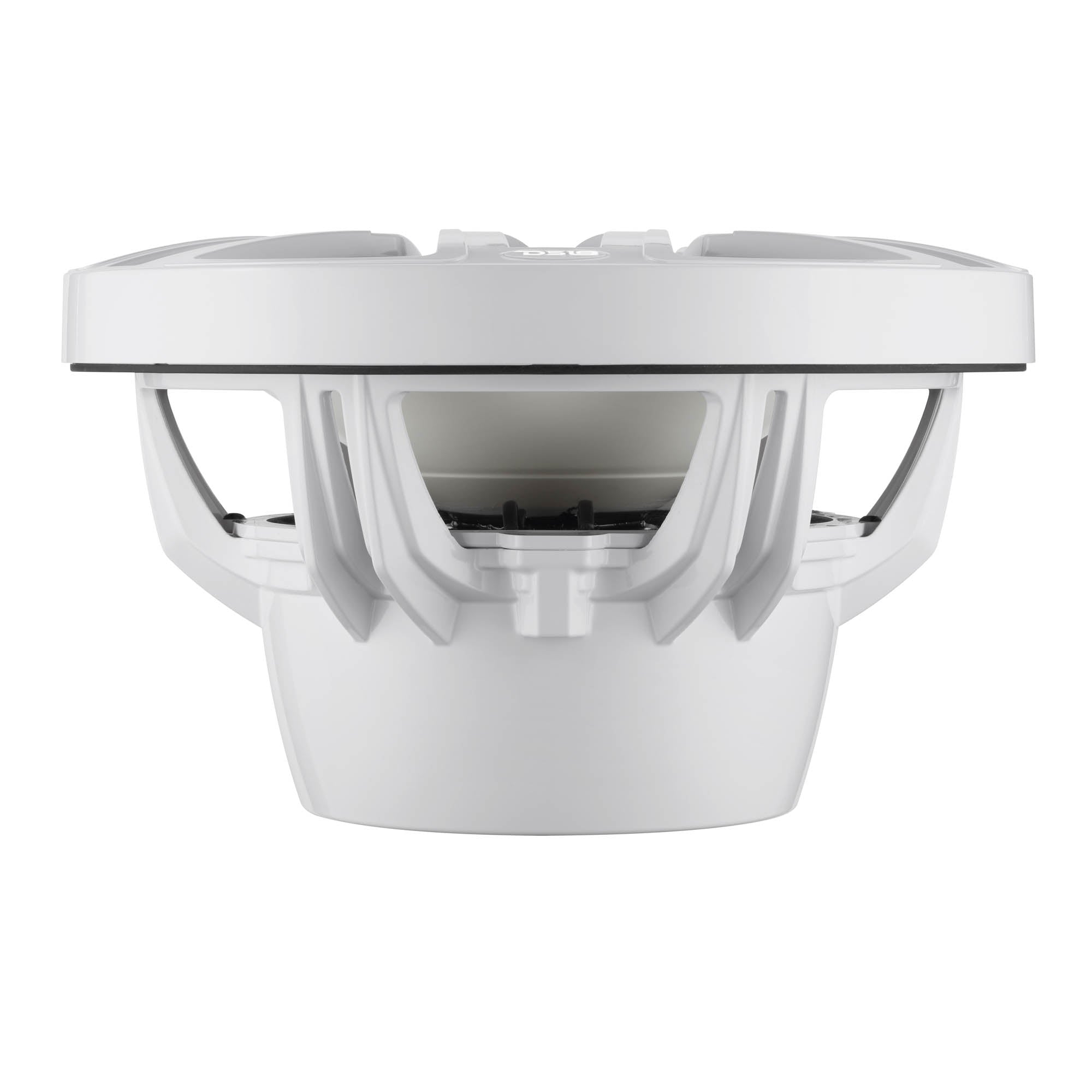

With 600W RMS and 88 dB sensitivity at 1W/1m, this subwoofer delivers deep, controlled bass with authority. Its motor structure pairs a ferrite main magnet with reverse neodymium for added strength and precision. A 5.77” mounting depth allows for versatile installation across a variety of applications.
Built-In Digital LEDs

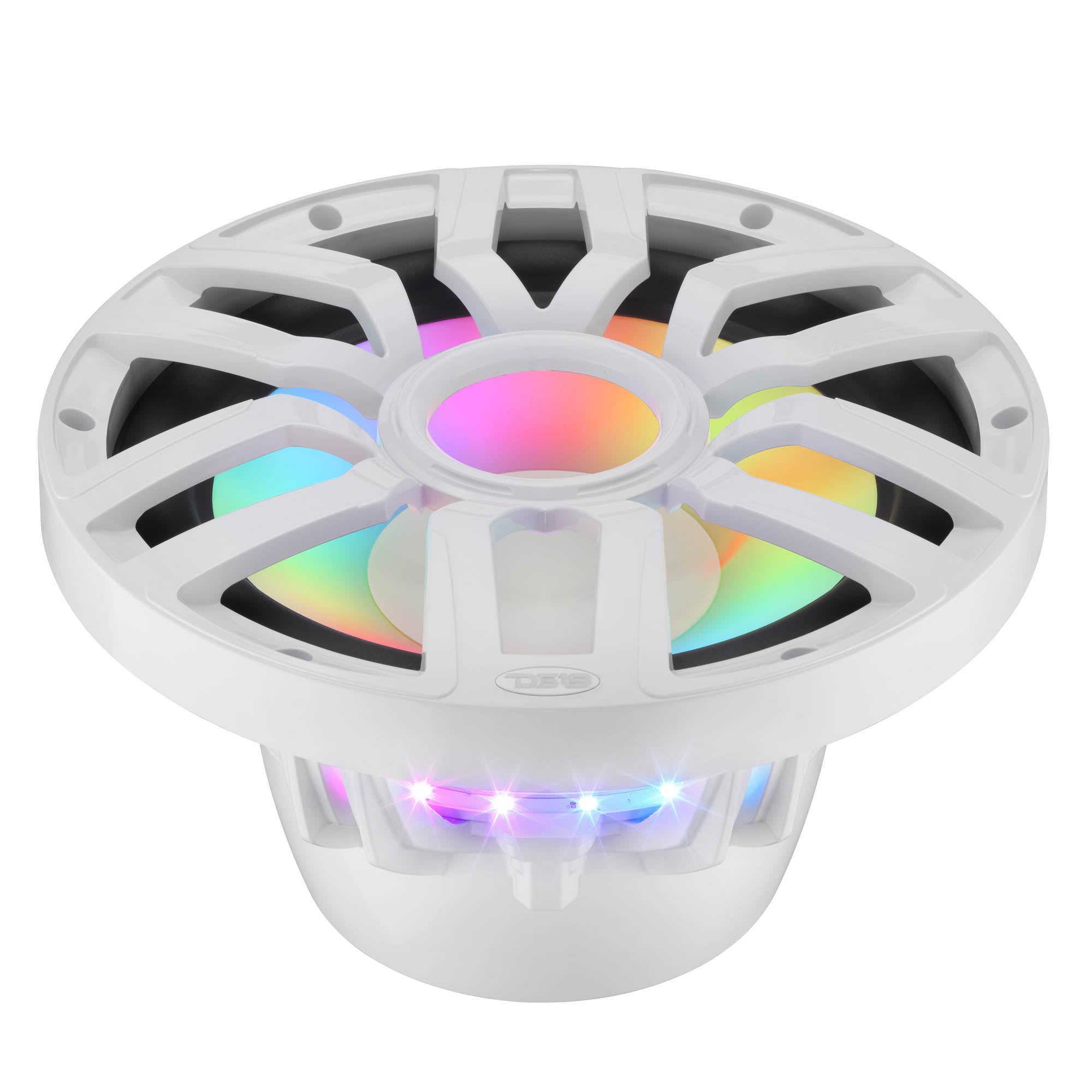

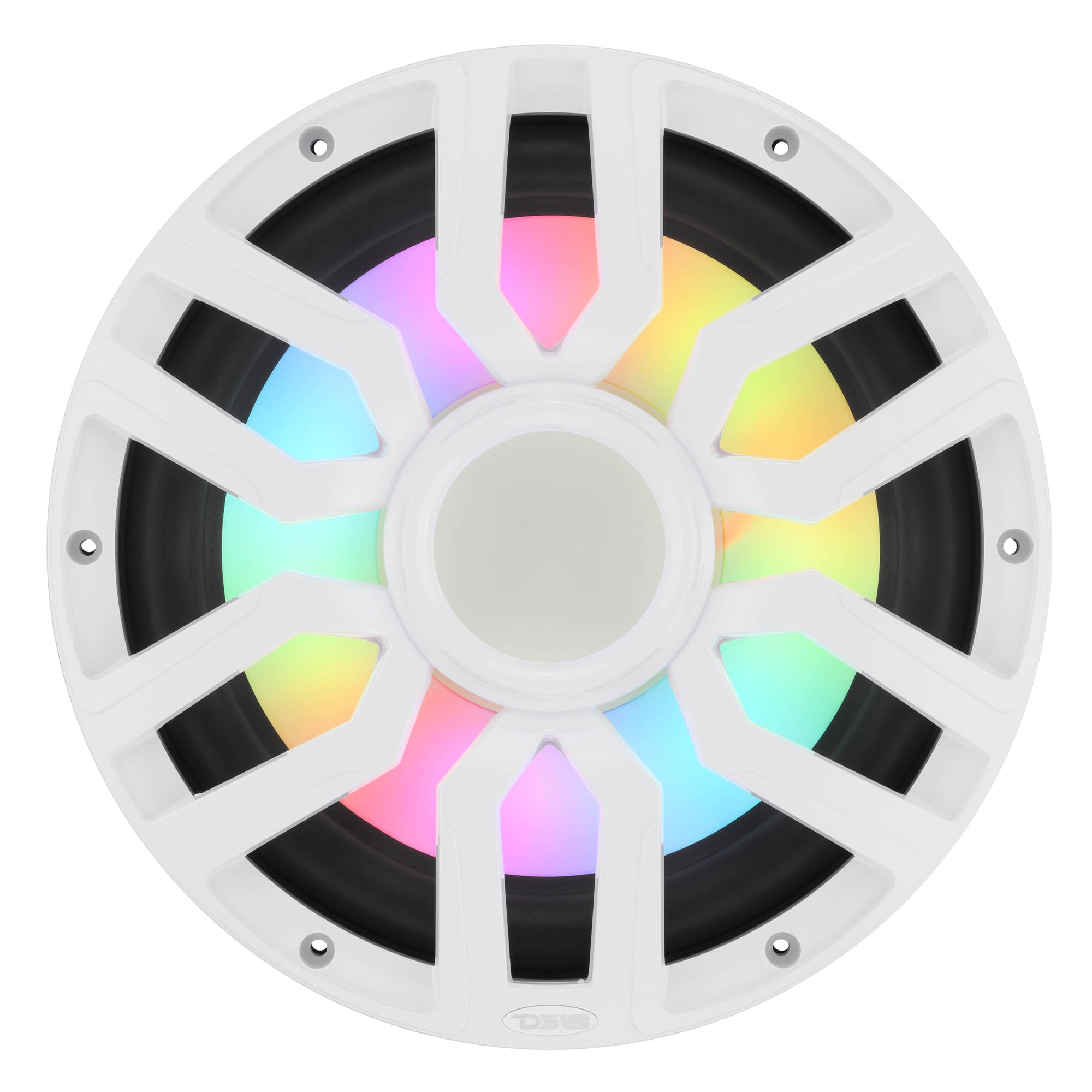

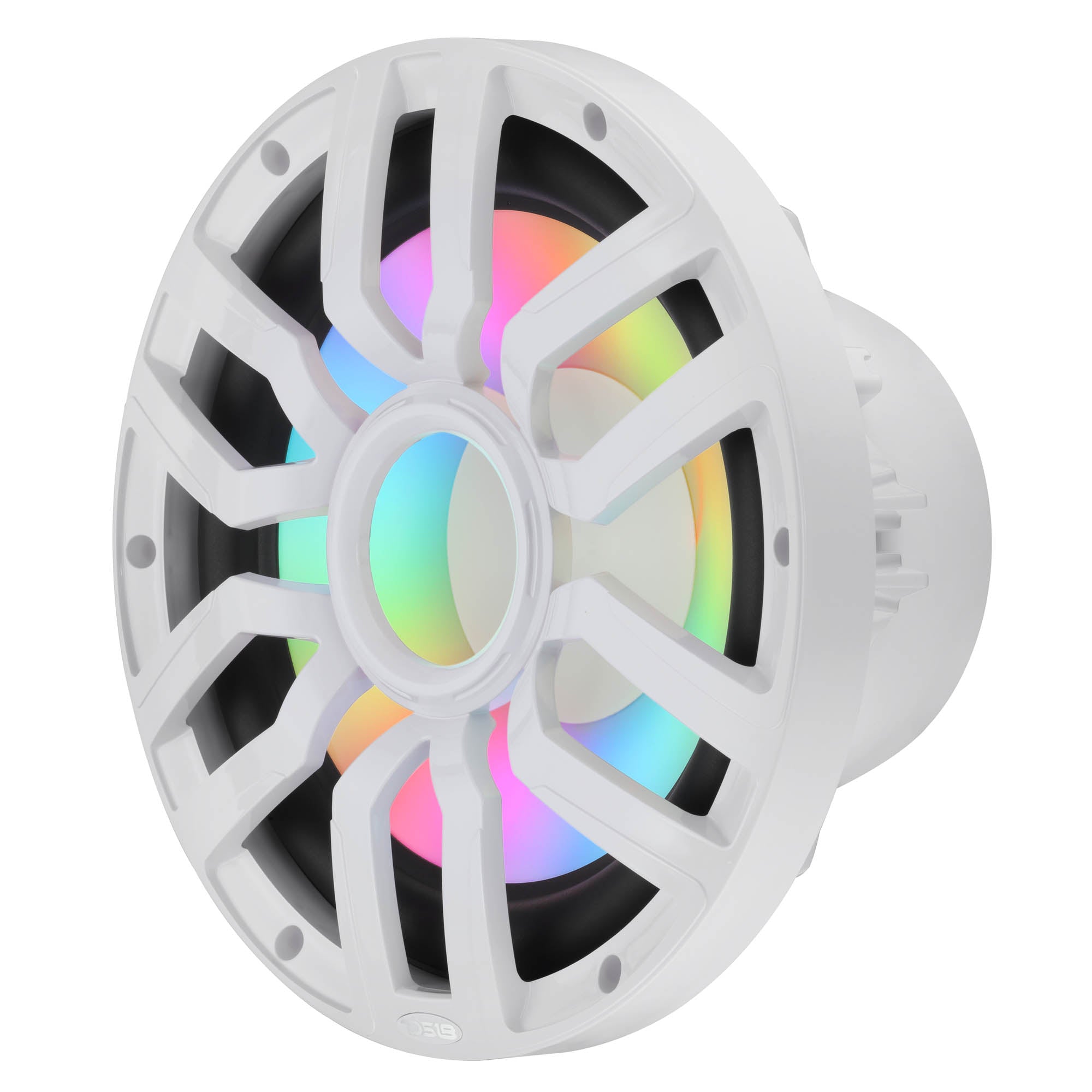

Integrated digital LEDs behind the cone give this 12” subwoofer a bold, vibrant glow that elevates your build and brings it to life. Control the lighting with the LC-DRM Bluetooth controller (sold separately) through the DS18 LC app for full customization.
IP65 Rated, UV Stable
The NXL-iQ12SUB is engineered for performance and practicality, featuring a removable grille for quick cleaning after every ride. Its aluminum basket and UV coating resist heat and harsh elements for lasting reliability. A PPI cone and UV-protected grille preserve its bold look season after season.
Bring the Boom
The NXL-iQSUB marine subwoofers feature advanced audio technology with protected components, so you can enjoy powerful sound on the water. Digital LEDs enhance your build’s look while maintaining marine-grade durability. Available in black or white in 10” and 12” options.
Key Features
- 600W RMS Power Handling
- Marine-Grade Durability (IP65 Rated)
- Digital LED Lighting
- Hybrid Magnet Motor (Ferrite main magnet and reverse neodymium magnet)

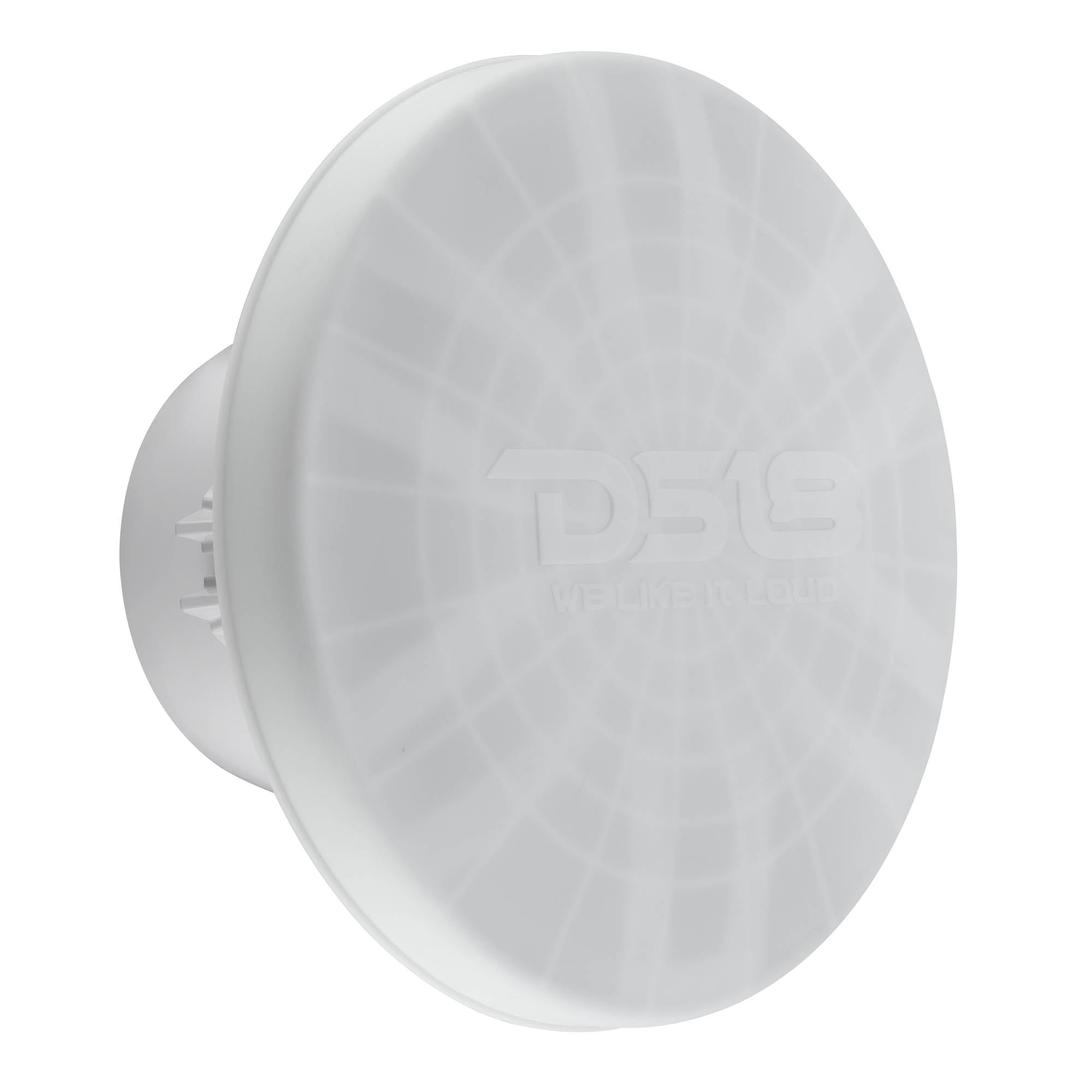

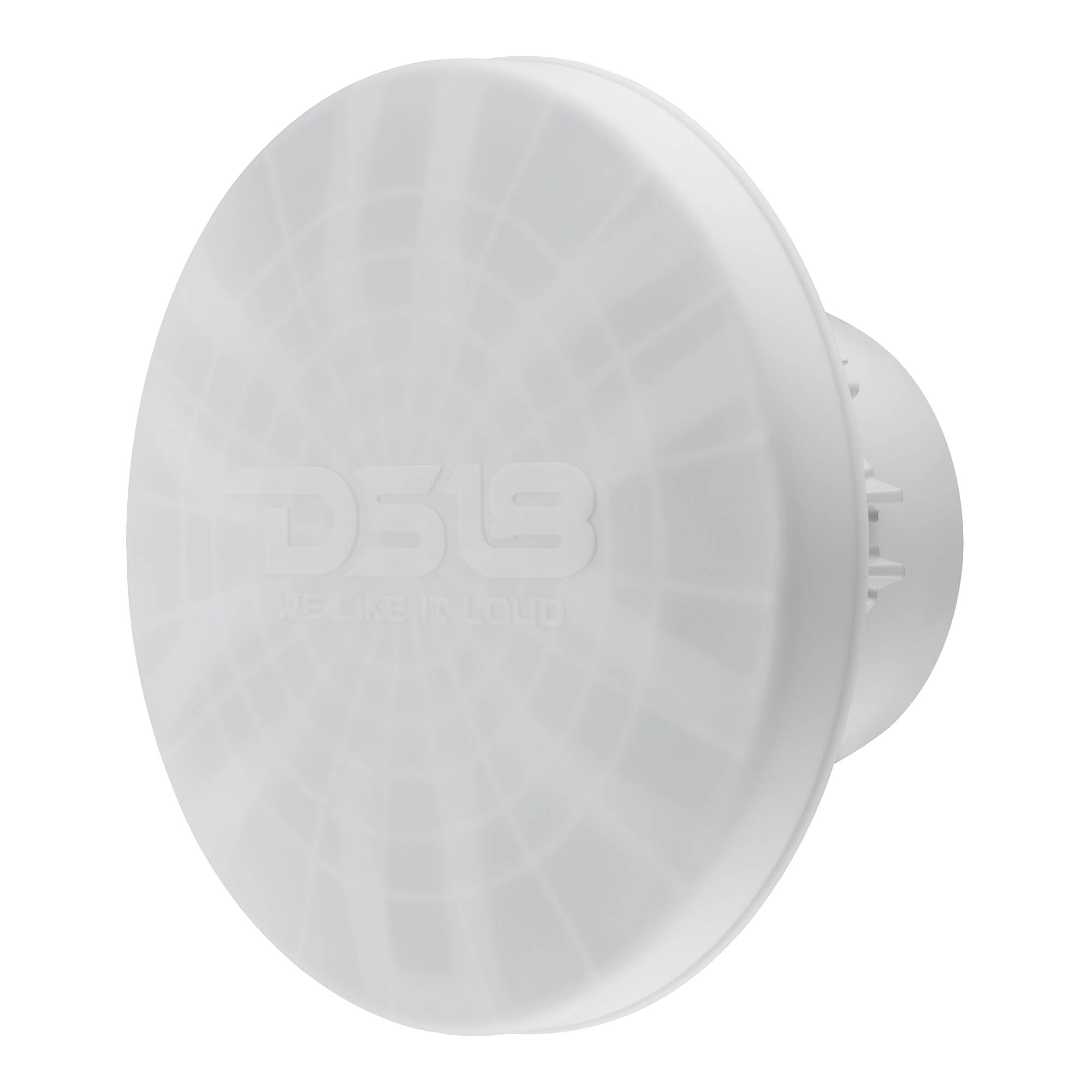

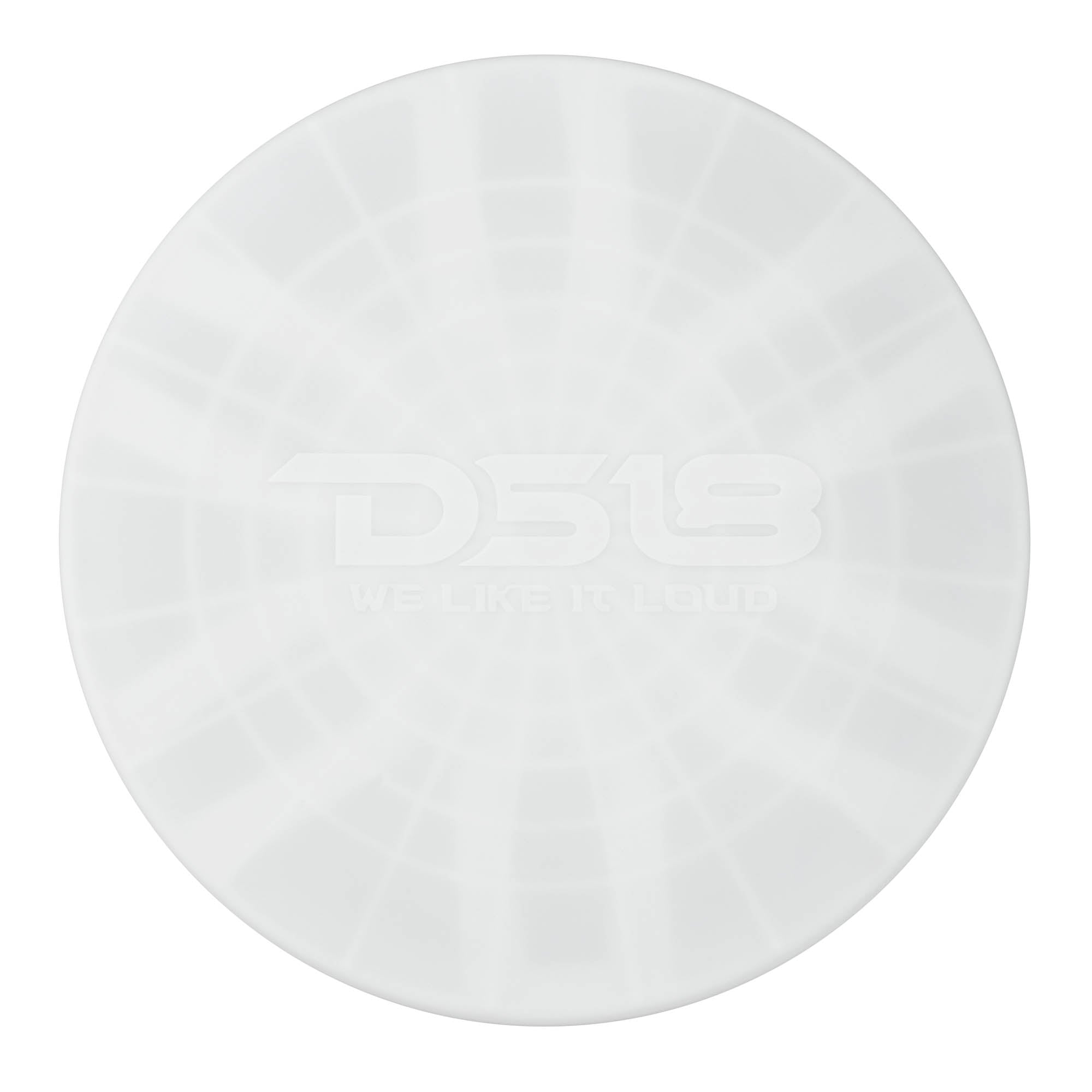

- Silicone Cover Included / Removable Grille Design
- Aluminum Basket
Specifications
| Nominal Diameter | 12" / 325mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 600W |
| MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 20Hz-250Hz |
| Recommended High-Pass Crossover | 80Hz |
| Sold in Pair or Single | Single |
| UV Protection | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| LED Lights | Yes, Digital LED integrated (behind cone) |
| LED Connection Type | 12V & Digital IN (Water-Resistant Terminal) |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection Molded Composite ASA with UV Protection coating and electroplated decorative strips |
| Color / Finish | White |
| Voice Coil Diameter | 2.4" / 61.1mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Aluminum |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 77oz + 1.8oz |
| Equivalent Volume | 44.69L / 1.578ft3 |
| Excursion (one way) | 8.8mm |
| Free Air Resonance | 38 Hz |
| Mechanical Factor | 7.272 |
| Electrical Factor | 0.478 |
| Total Factor | 0.448 |
| Moving Mass | 154.727g |
| Compliance | 126.520 uM/N |
| BL Factor | 15.3 |
| Voice Coil Inductance | 0.887 mH |
| Cone Area | 498.76 cm_ |
| DC Resistance | 3.2 Ohms |
| Efficiency Bandwidth Product | 75.3 |
| Sealed Internal Volume | 0.6~2ft3 |
| Sealed Box Output Response | 60~35Hz |
| Free Air or Baffle Mount | Yes (Recommended) |

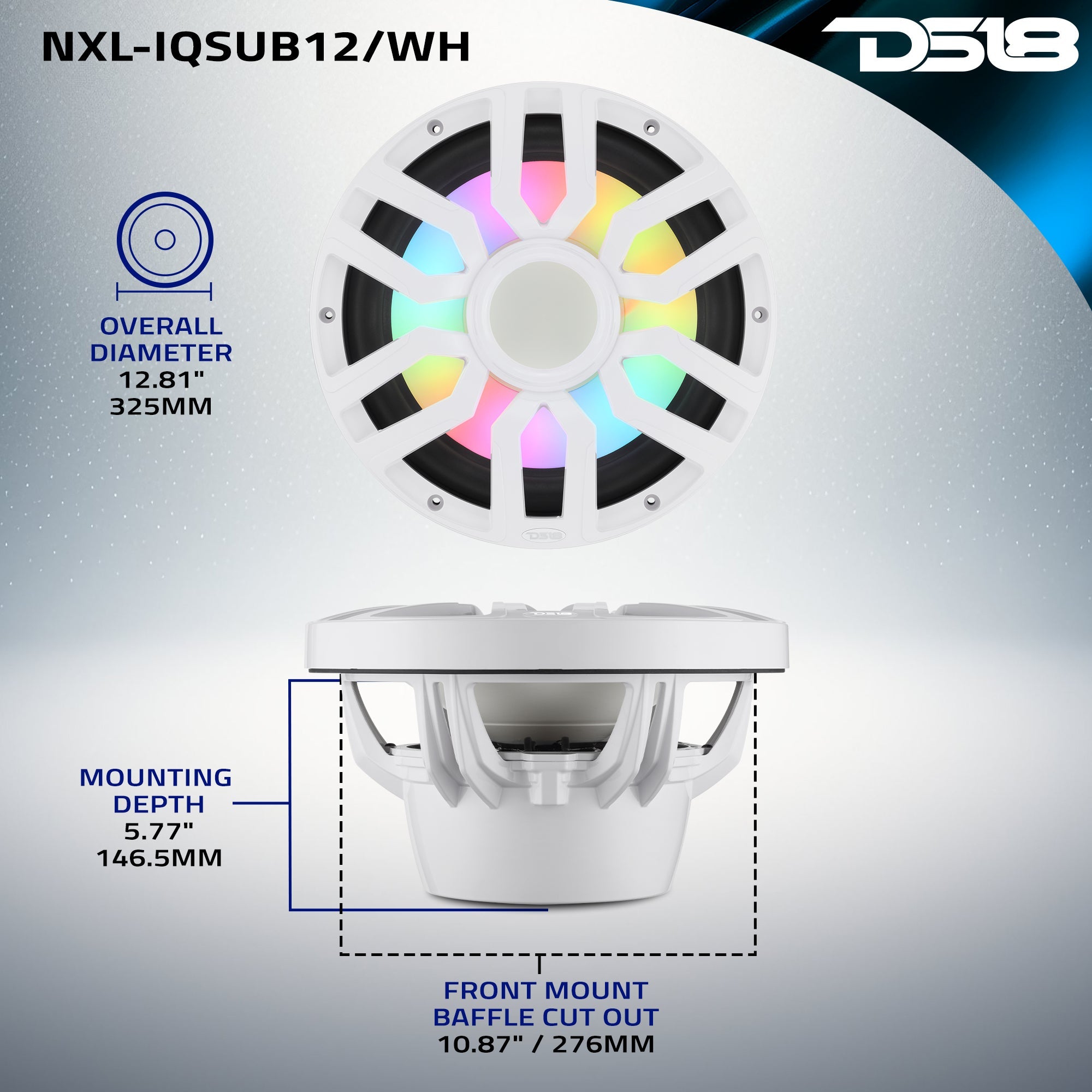

| Overall Diameter | 12.81" / 325mm |
| Overall Depth | 7.55" / 192mm |
| Front Mount Baffle Cutout | 10.87" / 276mm |
| Mounting Depth | 5.77" / 146.5mm |
| Motor Diameter | 6.14" / 156mm |
