10” Marine 2-Way Hybrid Speaker with RGB LED, Compression Driver and Neodymium Magnet | 450W RMS 4-Ohm
Product Overview 10” Marine Grade Hybrid Speaker with RGB LED, Compression Driver, Neodymium Magnet Rated at 450W...
Vendor:
DS18
Manufacturer SKU
NXL-10MD/BK
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $1,299.95
- $1,299.95
- Unit price
- per
Subtotal:
$1,299.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

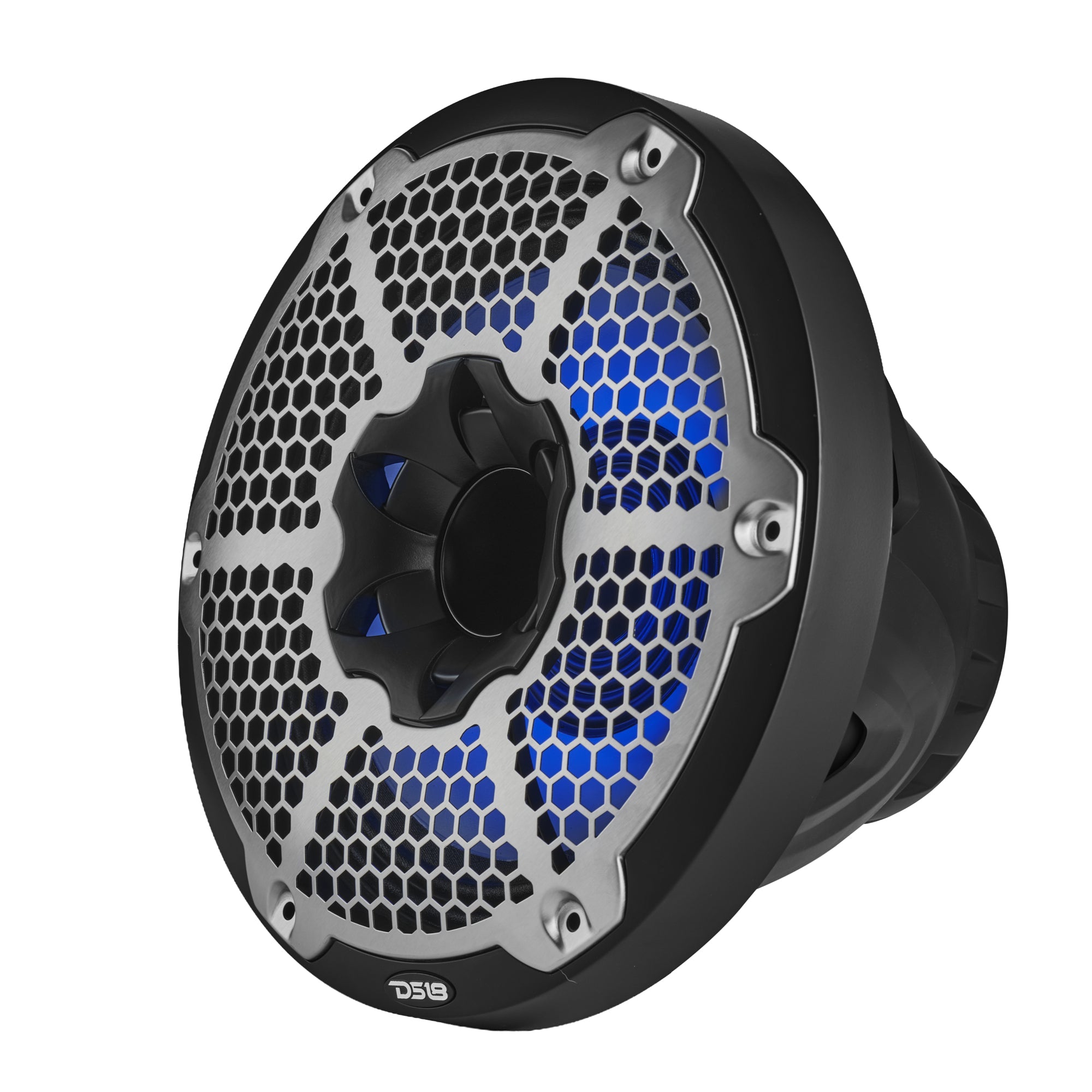

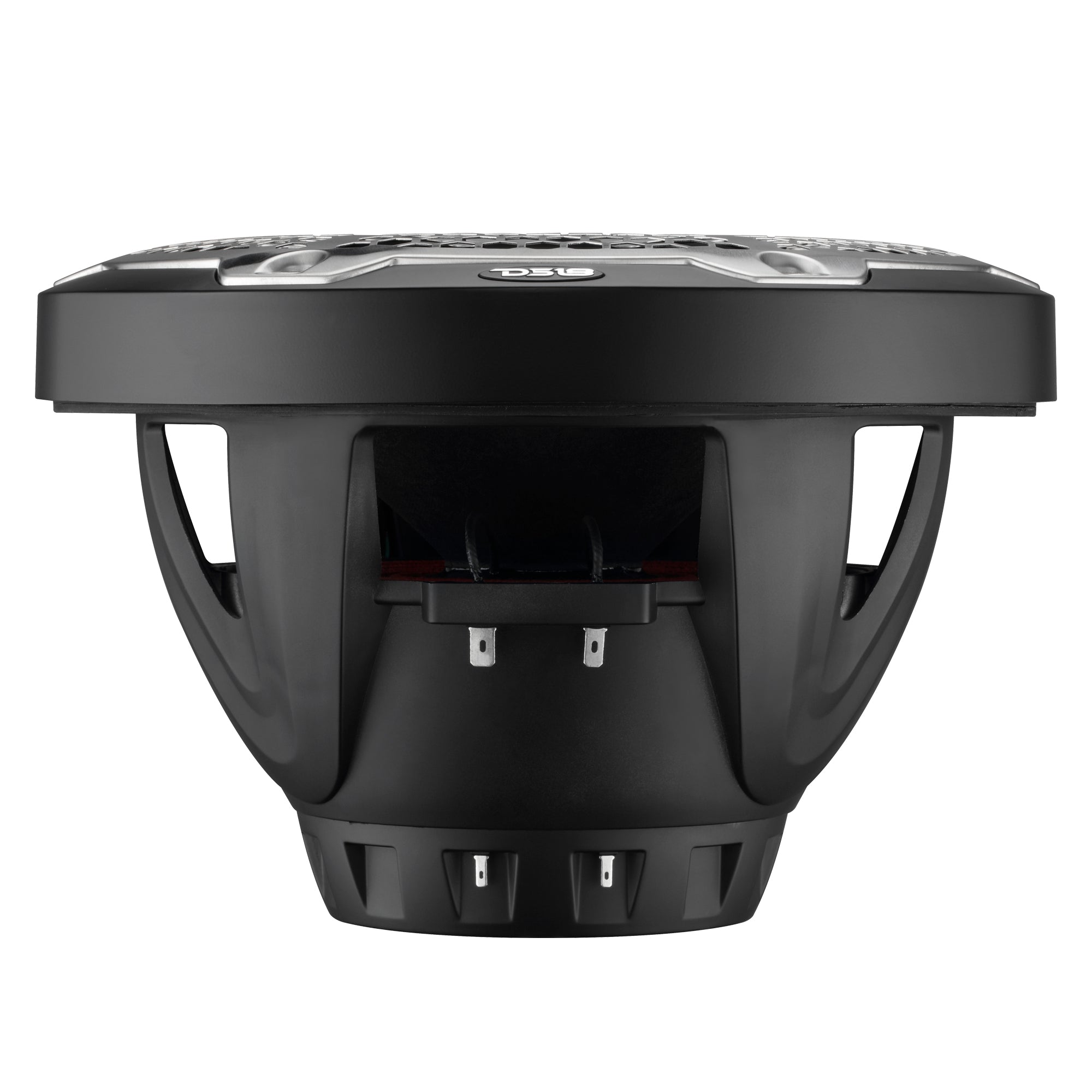

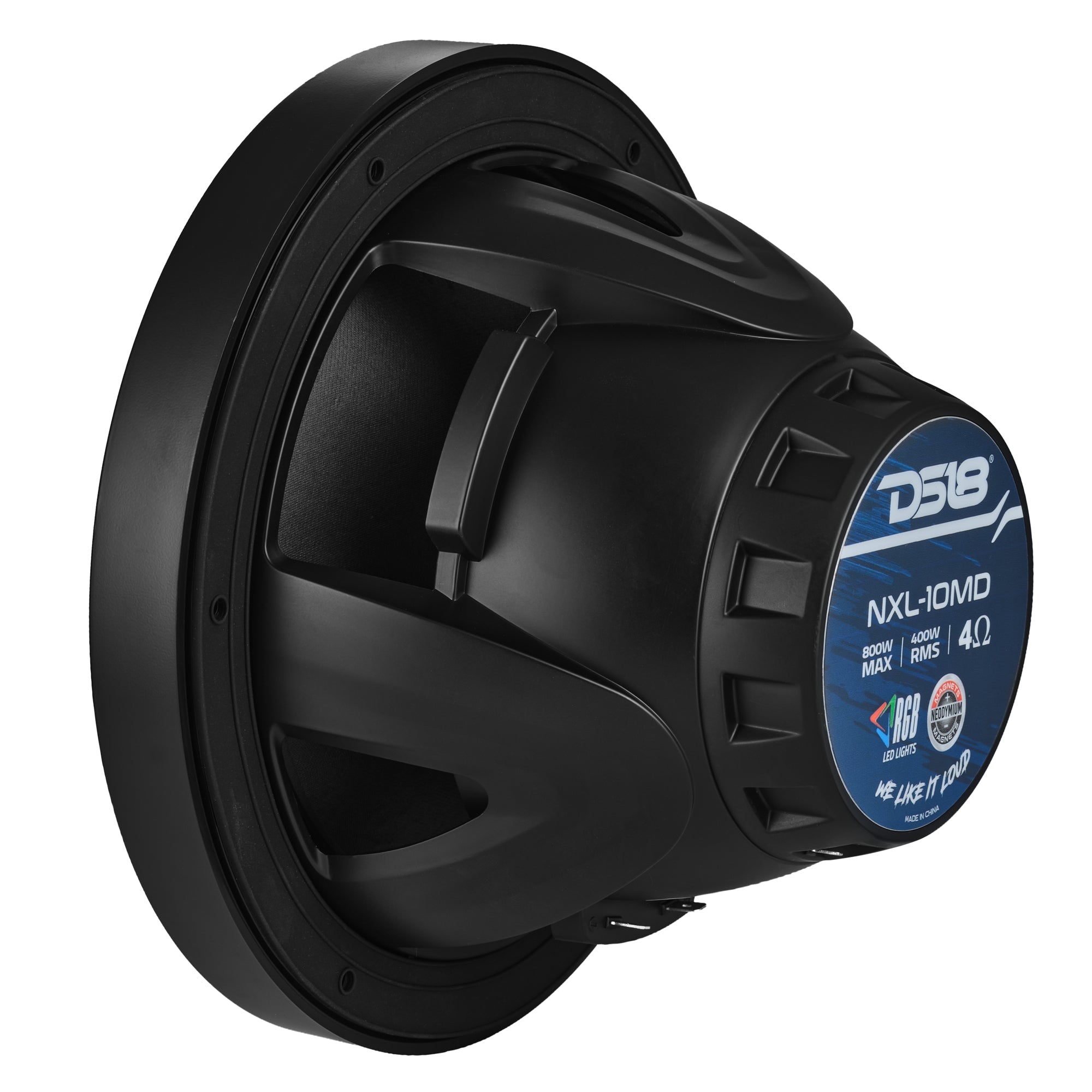

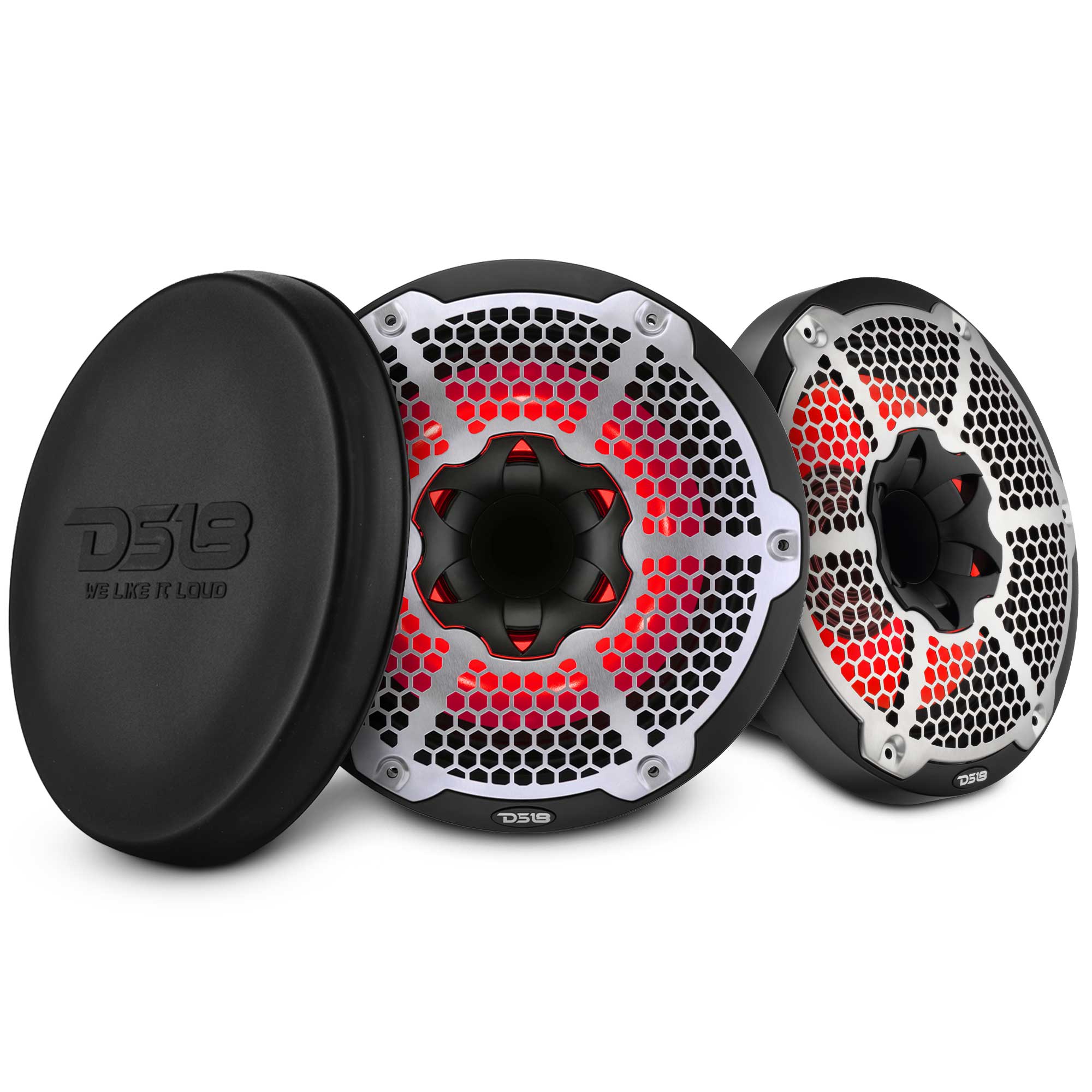

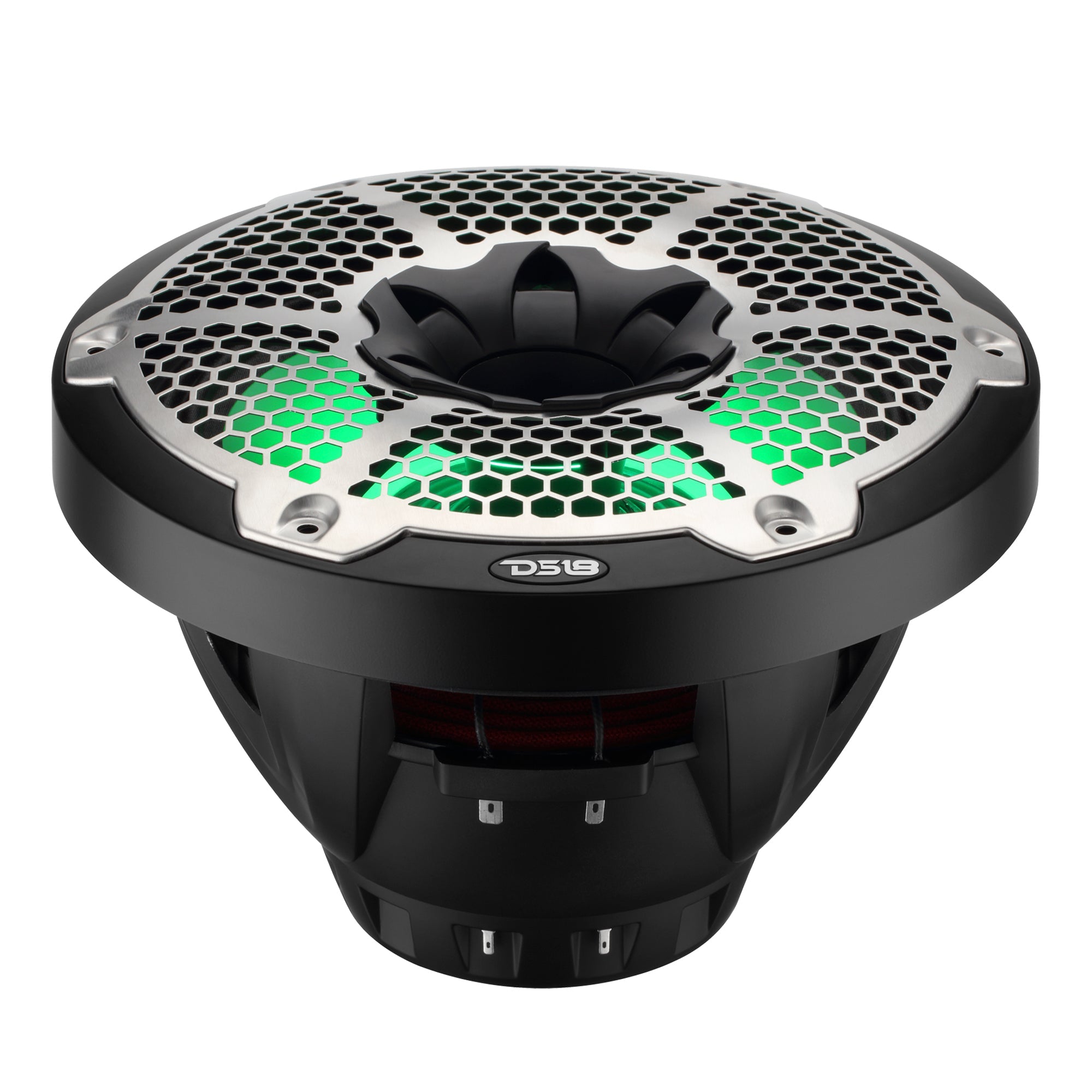

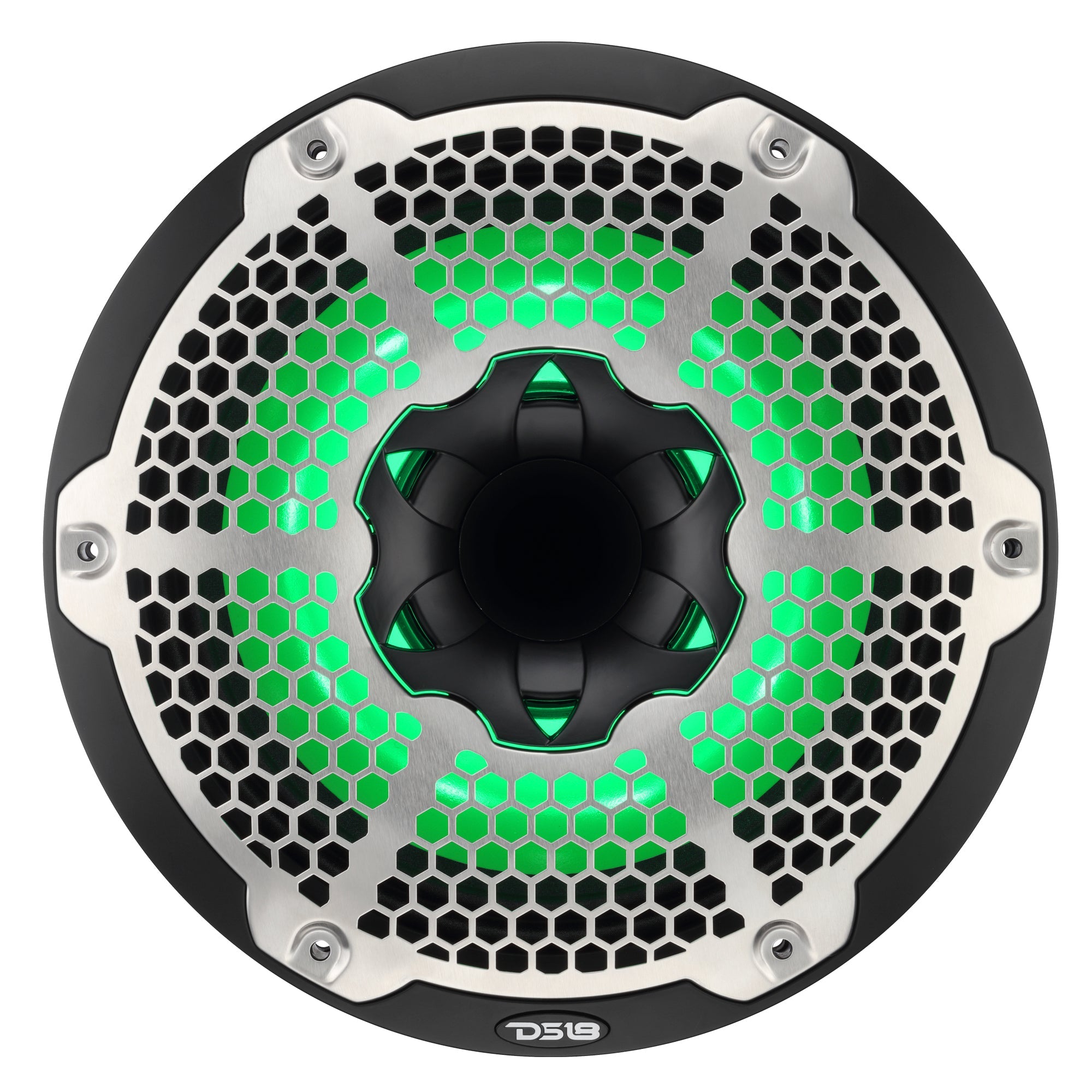

10” Marine Grade Hybrid Speaker with RGB LED, Compression Driver, Neodymium Magnet
Rated at 450W RMS and 900W MAX, the NXL-10MD is the ultimate marine hybrid speaker for those who demand pristine clarity on the water or trail.
Hybrid Design
This speaker combines a large 2” voice coil woofer with a water-resistant paper cone and a 1.5” neodymium compression driver with a solid aluminum CNC horn. Covering an expansive 40Hz to 20kHz frequency range, the NXL-10MD delivers full-spectrum sound to complement any system.
Built Tough
Constructed with IP65 rated injection-molded ASA basket, 316 stainless steel removable grills, and finished in stylish carbon fiber texture. The integrated 12V RGB LED system lets you customize your lighting for night cruises or off-road parties.
Simple Installation
Designed for 10.75” cutouts with a 5.35” mounting depth, the NXL-10MD installs easy and comes in pairs for complete stereo setups.
Ready for Every Adventure
Finished in a sleek texture and available in Black, White, or Carbon Fiber: the NXL-10MD is as stylish as it is durable.
Take your marine or outdoor sound to the next level with DS18’s NXL-10MD!
Key Features

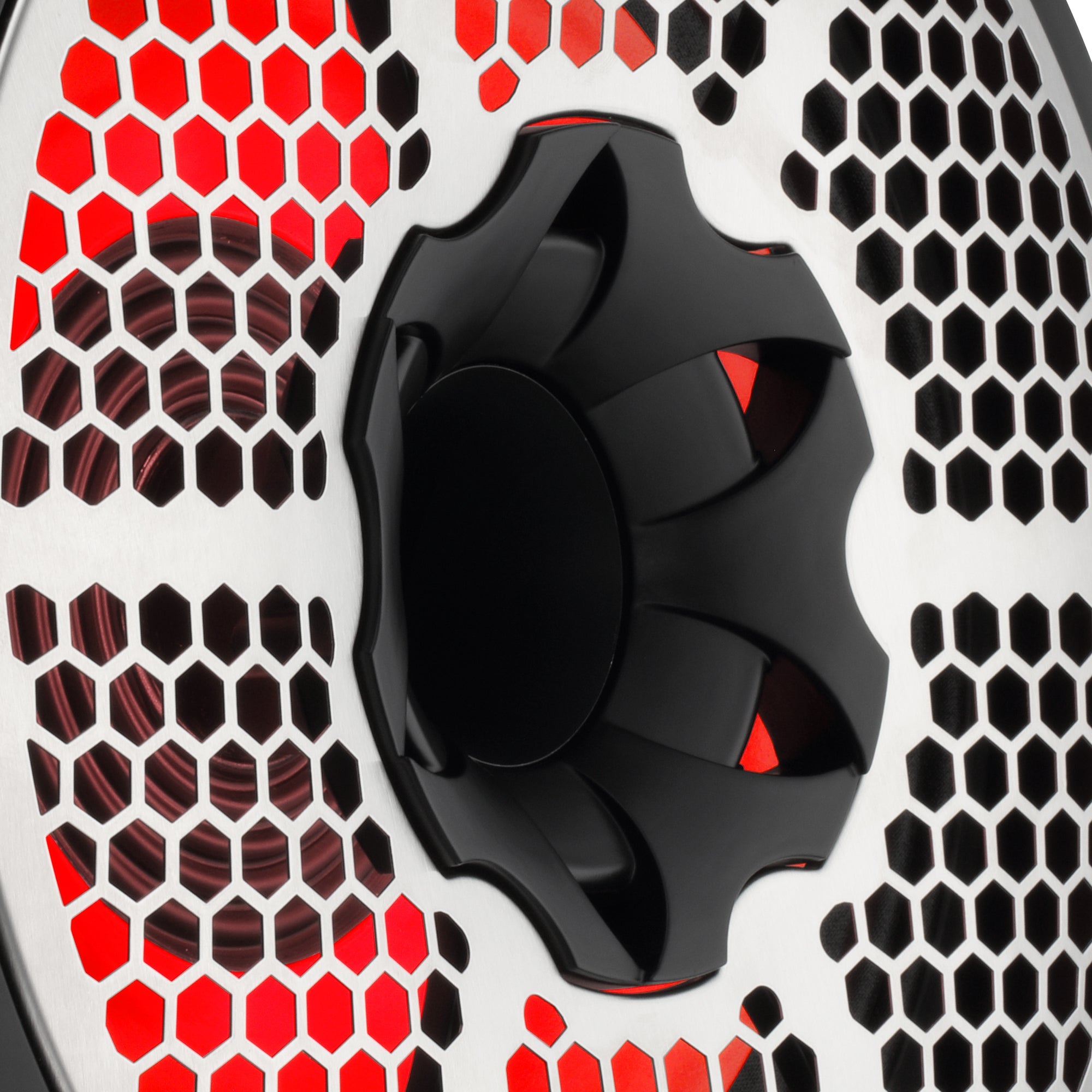

- Neodymium compression driver with CNC aluminum horn for crisp highs
- Waterproof and UV-protected for all-weather durability IP65

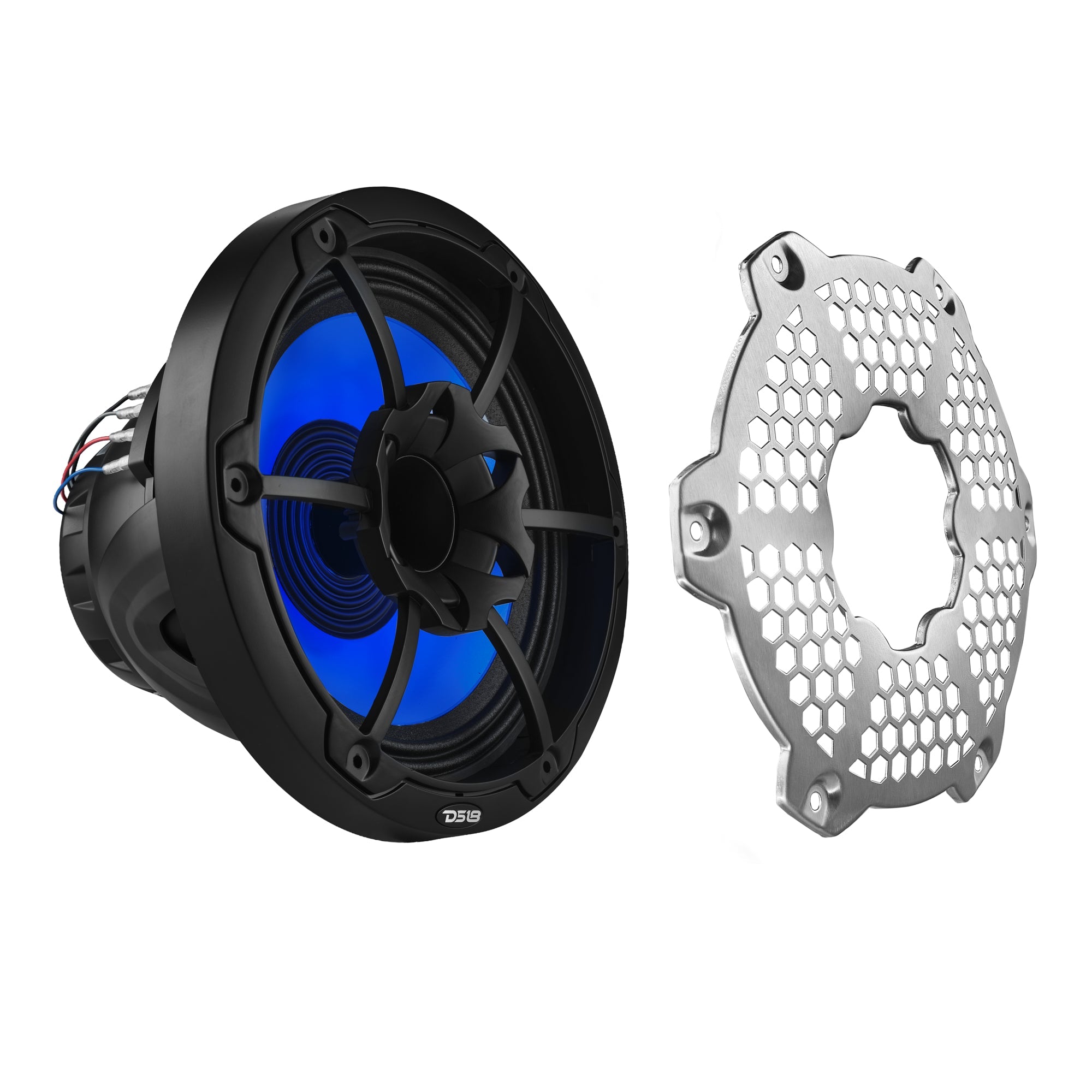

- Removable Stainless Steel Grill
- Vibrant RGB Lighting

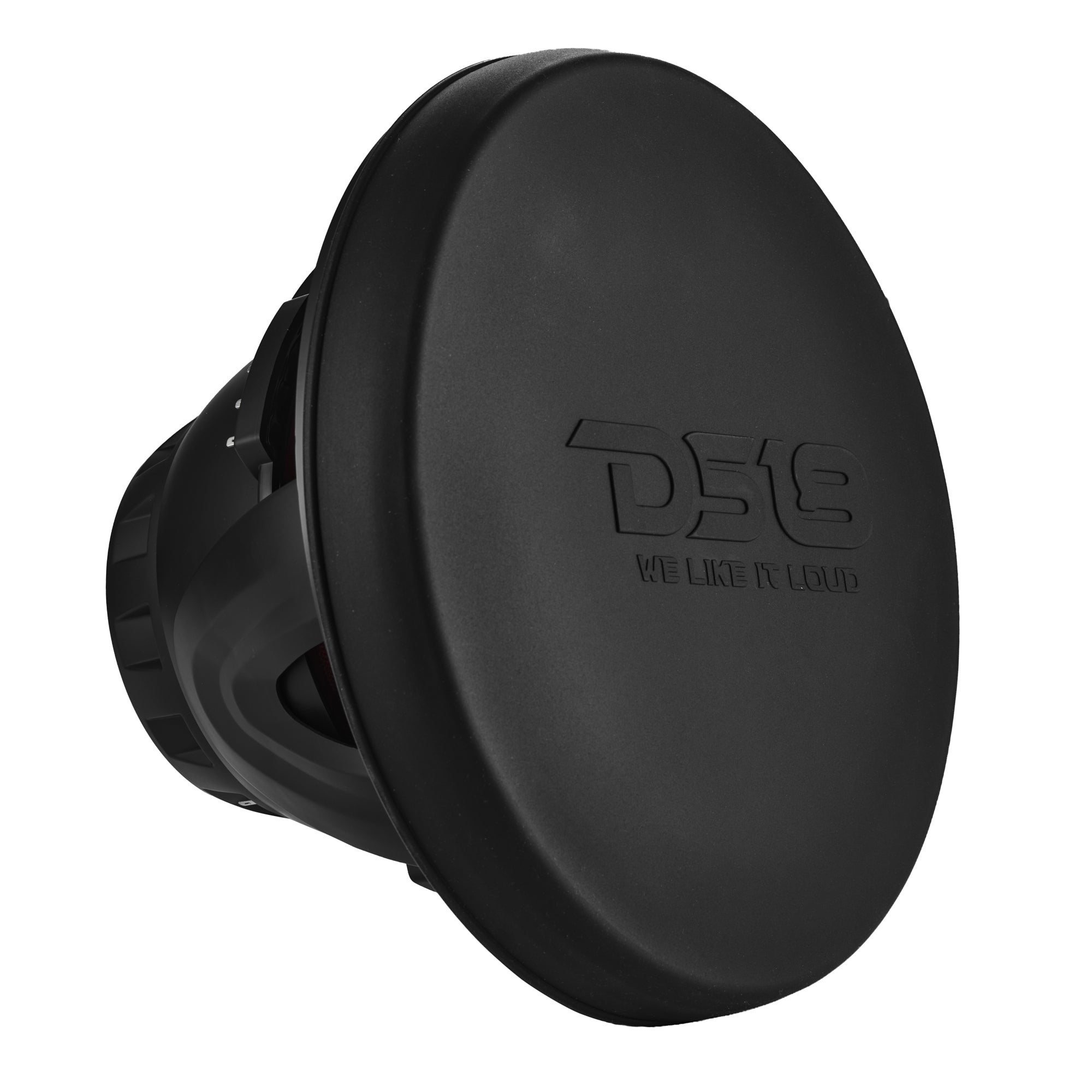

- Speaker covers included
Specifications
| Nominal Diameter | 10" / 254mm |
|---|---|
| RMS Power Handling (Combined) | 450W |
| MAX Power Handling (Combined) | 900W |
| Sensitivity (1w/1m) (Combined) | 109dB |
| Frequency Response (Combined) | 40Hz-20kHz |
| Number of Ways | 2-Ways |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, 12VDC LED integrated |
| Grill Type | Injection Molded Composite ASA with UV Protection coating + Removable 316 Stainless Steel metal mesh |
| Sold in Pair | Yes |
| Color / Finish | Matte Black |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 400W / 50W |
| MAX Power Handling | 800W / 100W |
| Sensitivity (1w/1m) | 96dB / 109dB |
| Frequency Response | 40Hz-5kHz / 1kHz-20kHz |
| Recommended Band-Pass Crossover | 60Hz-2.5kHz |
| Voice Coil Diameter | 2" / 50.8mm / 1.5" / 38mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW / Round Aluminium Wire |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Injection Molded PC with UV Protection coating |
| Magnet Material | Neodymium (N40H) / Neodymium (N38H) |
| Magnet Weight | 14.2 oz / 2.4 oz |
| Type | Compression driver with CNC solid aluminum horn |
| Crossover | Built-In 12dB/Oct with overload protection |
| Recommended High-Pass Crossover | 2.5kHz |
| Diaphragm Material | PI |
| Equivalent Volume | 18.18L / 0.642ft3 |
| Excursion (one way) | 5.5mm |
| Free Air Resonance | 72Hz |
| Mechanical Factor | 5.786 |
| Electrical Factor | 0.987 |
| Total Factor | 0.844 |
| Moving Mass | 37.721g |
| Compliance | 129.768uM/N |
| Bl Factor | 6.953 |
| Voice Coil Inductance | 0.40mH |
| Cone Area | 314.16CM? |
| DC Resistance | 3 Ohms |
| Efficiency Bandwidth Product | 73 |

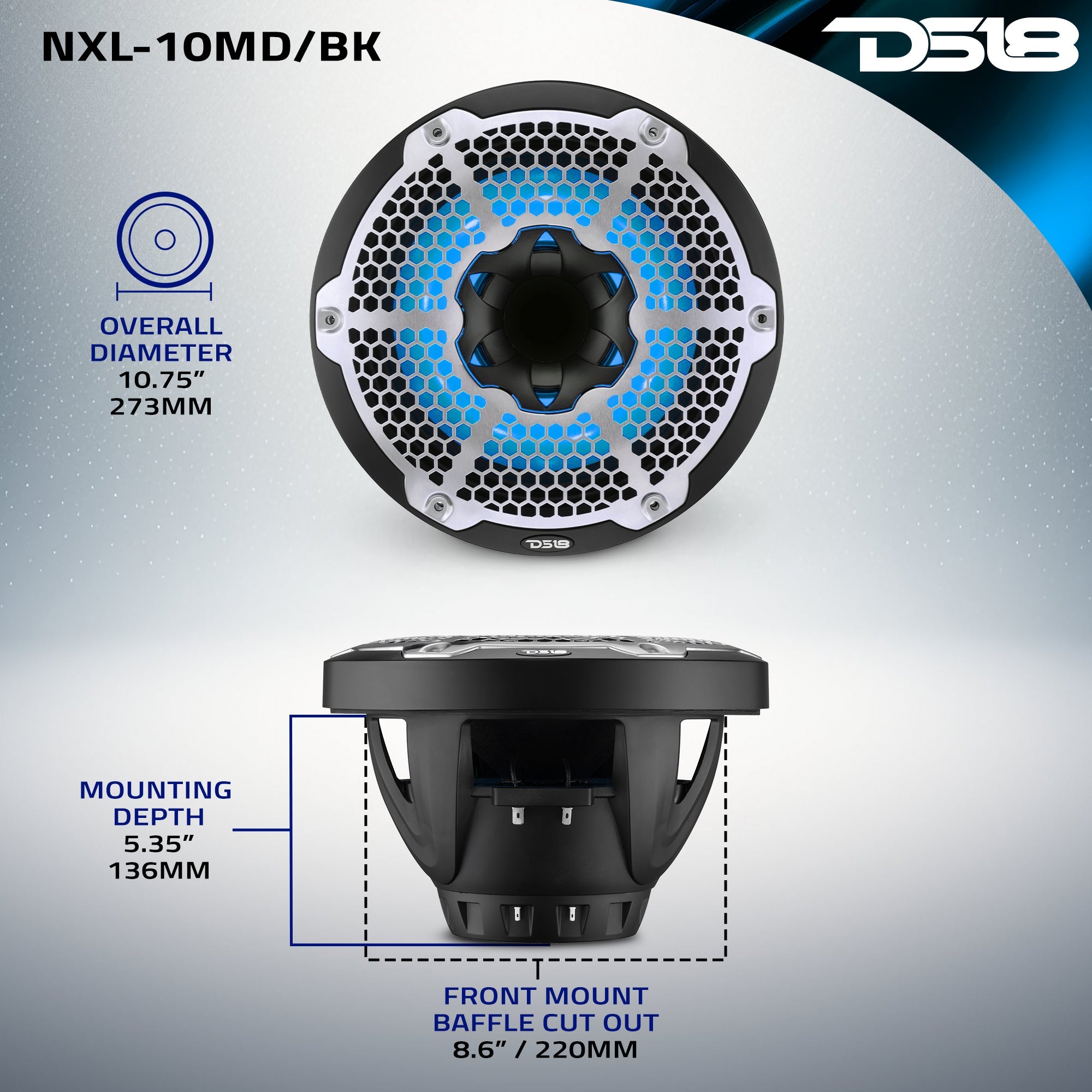

| Overall Diameter | 10.75" / 273mm |
| Overall Depth | 7.1" / 180mm |
| Front Mount Baffle Cutout | 8.6" / 220mm |
| Mounting Depth | 5.35" / 136mm |
| Motor Diameter | 4.3" / 110mm |
