Product Overview

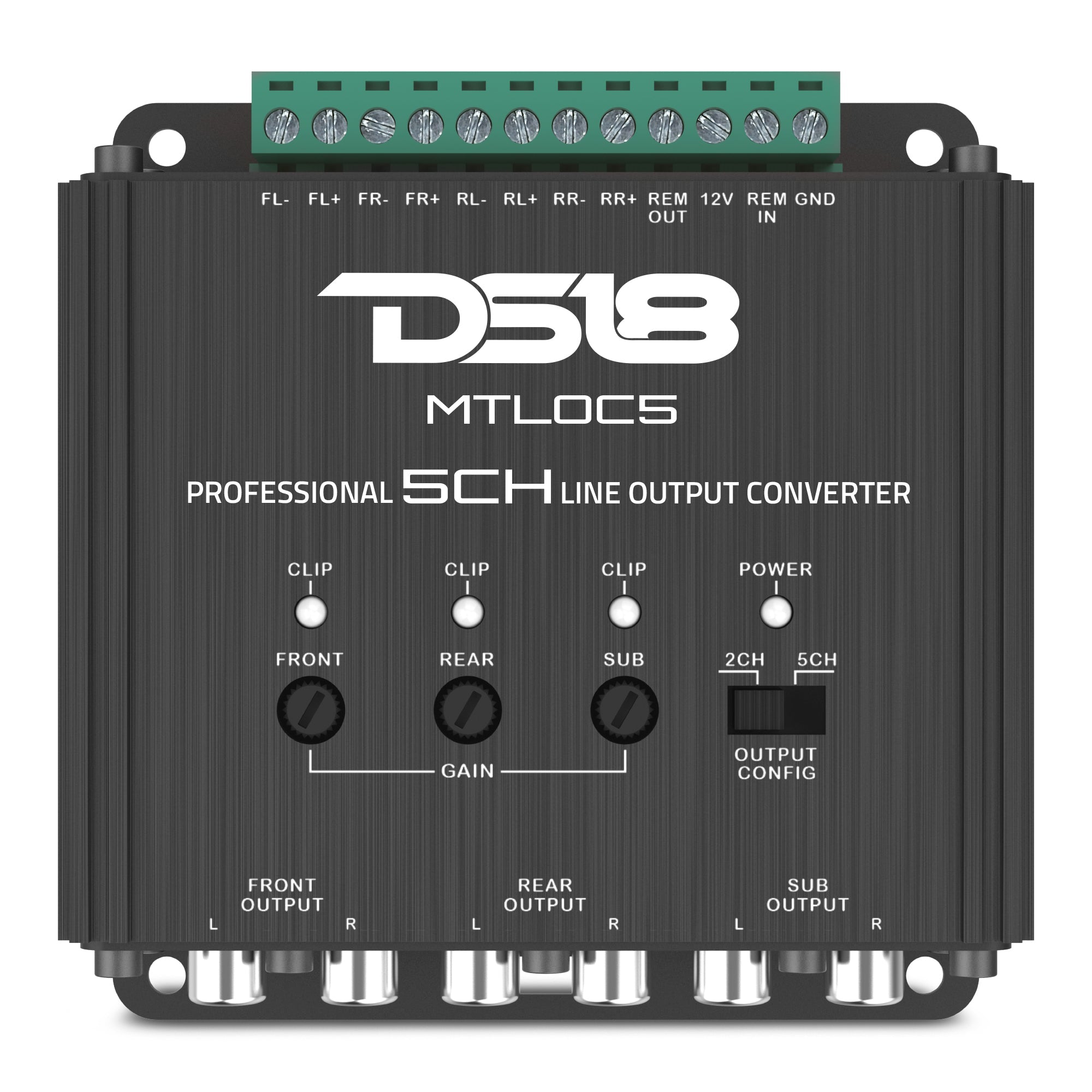

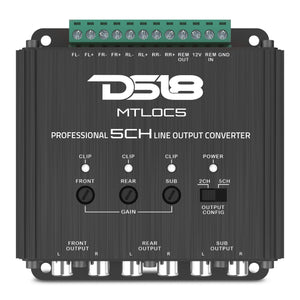

5-Channel High-to-Low Level Line Output Converter with Remote Turn-On
The MTLOC5 supports 2 or 5 channel factory input configurations, converting speaker-level outputs into clean RCA signals for multi-channel amplifier setups without fault codes.
Smart Auto Power
Audio sensing, DC offset, and remote trigger auto turn-on provide effortless amp activation for smooth system operation.
Durable, Compact Design

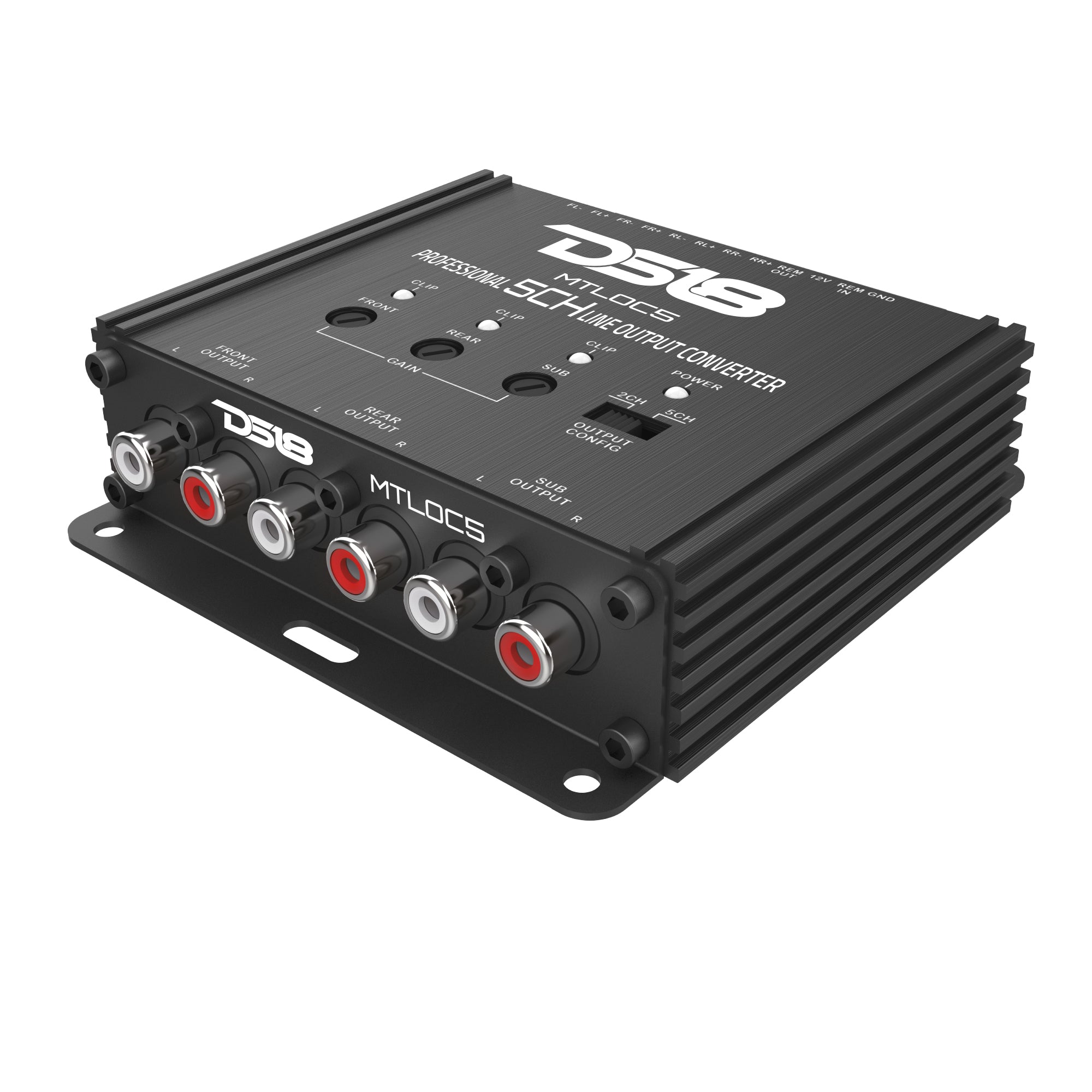

Housed in rugged aluminum with surface mount tech, the MTLOC5 protects against heat and noise while fitting easily into confined spaces.
High Fidelity Audio
Operating from 10Hz to 20kHz with minimal distortion, the MTLOC5 ensures your music sounds as intended.
Maximize your vehicle’s audio upgrade with the MTLOC5!
Key Features
- 5-Channel High-to-Low Conversion
- 2 / 5 Channel Input Configurations
- Auto Turn-On (Audio / DC / Remote)
- Rugged Aluminum Housing & Noise Rejection
- 10Hz–20kHz Frequency Range (<0.01% THD)
Specifications
| Maximum Speaker Level Input | Up to 40V (400 watts RMS) |
|---|---|
| Maximum Preamp Output | Up to 11V |
| Nominal Conversion Ratio | 4:1 |
| Frequency Response | 10Hz - 20kHz |
| Total Harmonic Distortion | 0.01% |
| Signal To Noise Ratio | >110dB |
| Input Impedance | 100 ohms |
| Output Impedance | 100 ohms |
| Power Draw | 130mA |
| Recommended Fuse Rating | 1A |
| Bass Boost | No |
| Auto Turn-On | Yes (Audio Sens / REM / DC) |
| Remote Output | Yes |
| Level Matching Controls | Yes |
| Dash Remote Level Control | No |
| Led Indicators | Power / Clip |
| Housing Material / Color | Aluminum / Black |
| Wiring Connector | 14ga Quick Connector |
| Ground Isolation | Selectable (200 ohms / Isolated / Grounded) |
| Step-Down Method | Transformer |
| Input Selector | Selectable (2ch / 4ch) |
| Overall Length | 5.7" / 145mm |
| Overall Width | 3.5" / 88mm |
| Overall Height | 1.1" / 28mm |
