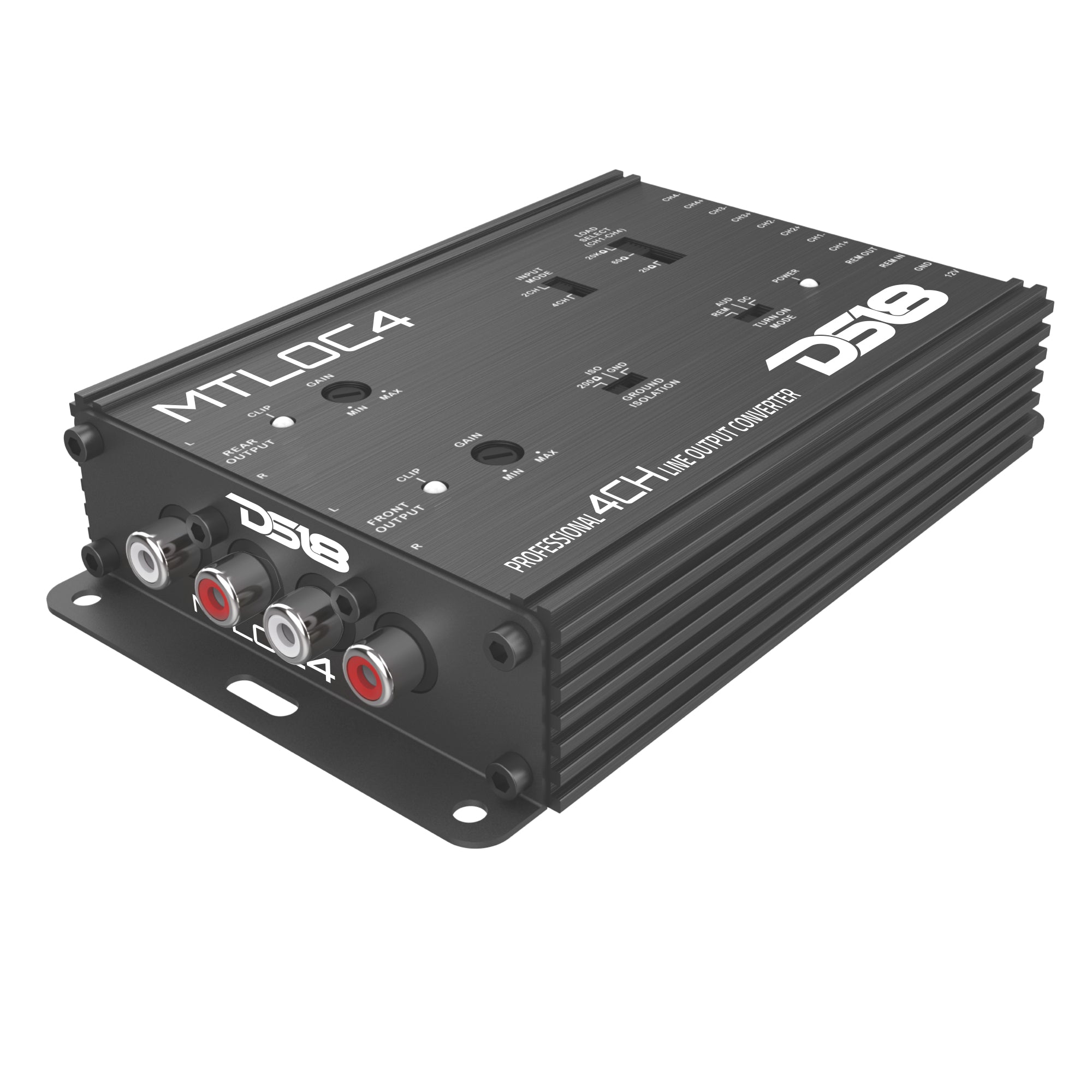

4-Channel High-to-Low Level Line Output Converter with Remote Turn-On

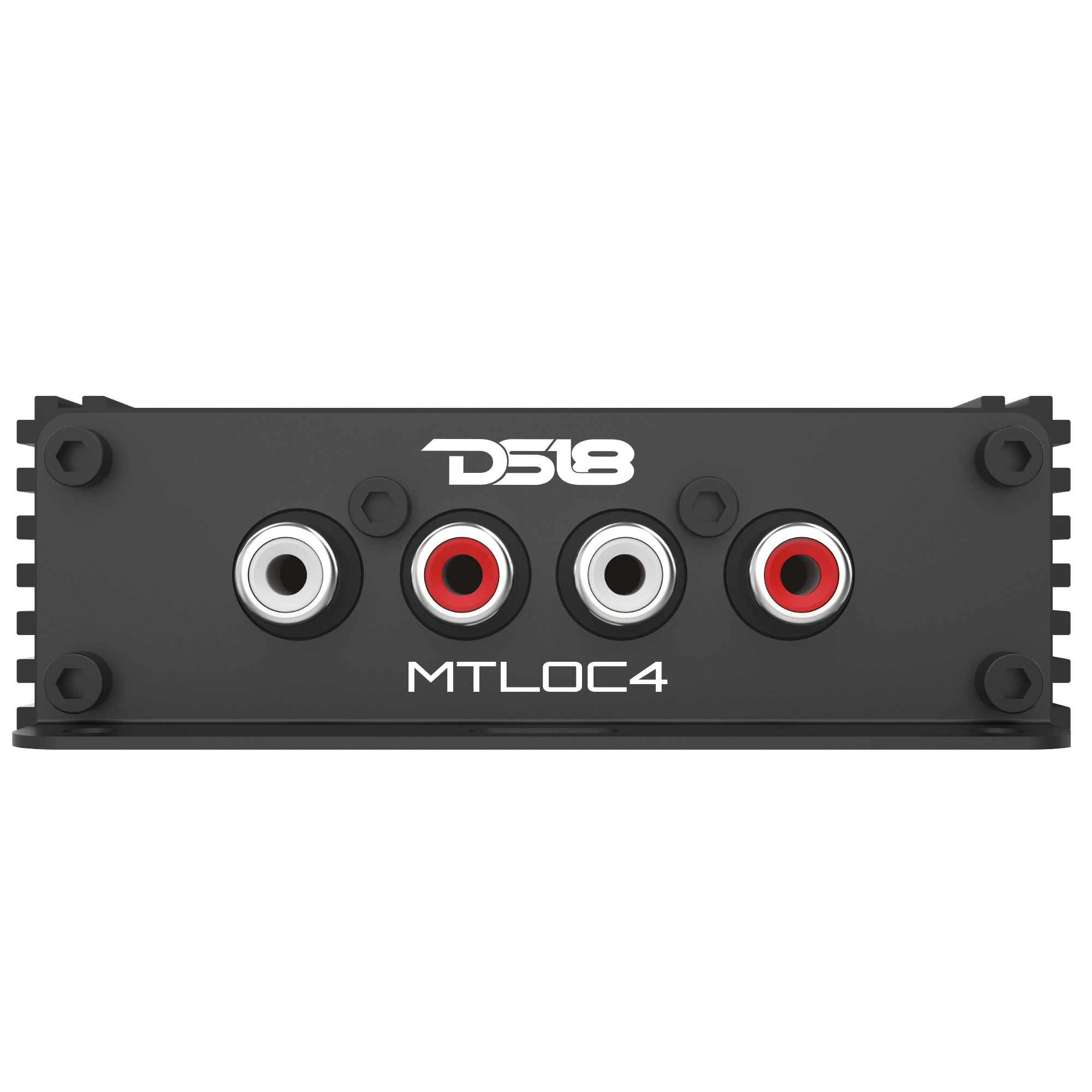

The MTLOC4 converts four factory speaker outputs into four RCA outputs, expanding your upgrade options. It offers selectable input impedance (20, 60, or 20k ohms) to prevent factory system errors.
Effortless Amplifier Activation
Auto turn-on via audio detection, DC offset, or remote trigger allows plug-and-play convenience and reduces installation complexity.
Built Tough and Compact
Constructed with an anodized aluminum shell and surface mount components, the MTLOC4 resists interference and runs cool. Its small footprint fits most vehicle setups.
Crystal-Clear Sound
Delivering less than 0.01% THD from 10Hz to 20kHz, this converter keeps your audio sharp and clean.
Unlock the full potential of your factory system with the MTLOC4!

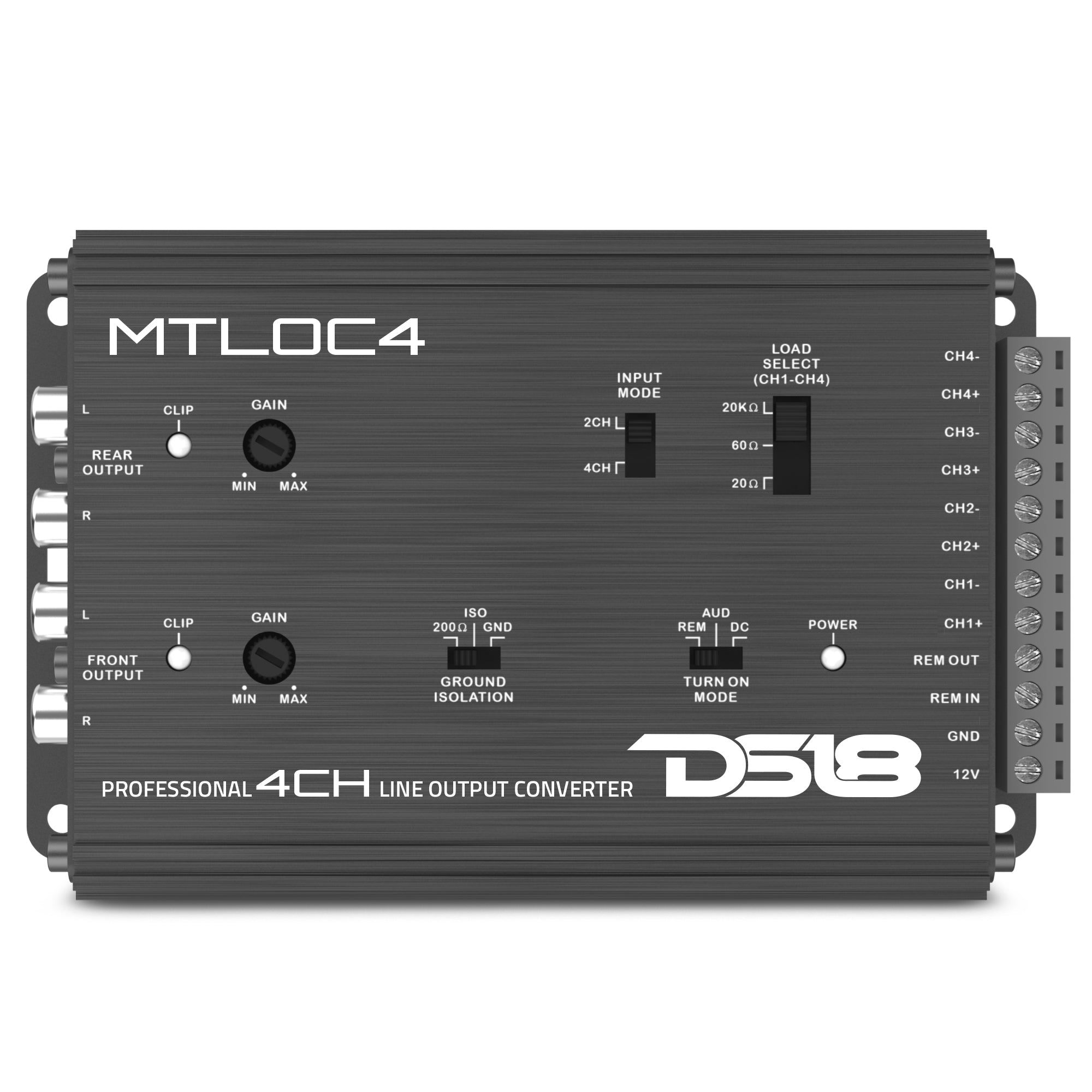

Key Features
- 4-Channel High-to-Low Conversion
- Selectable Input Impedance (20 / 60 / 20k Ohms)
- Auto Turn-On (Audio / DC / Remote)
- Anodized Aluminum Shell & Noise Rejection
- 10Hz–20kHz Frequency Range (<0.01% THD)
Specifications
| Maximum Speaker Level Input | Up to 40V (400 watts RMS) |
|---|---|
| Maximum Preamp Output | Up to 11V |
| Nominal Conversion Ratio | 4:1 |
| Frequency Response | 10Hz - 20kHz |
| Total Harmonic Distortion | 0.01% |
| Signal To Noise Ratio | >110dB |
| Input Impedance | Selectable 20 / 60 / 20k ohms |
| Output Impedance | 100 ohms |
| Power Draw | 130mA |
| Recommended Fuse Rating | 1A |
| Bass Boost | No |
| Auto Turn-On | Yes (Audio Sens / REM / DC) |
| Remote Output | Yes |
| Level Matching Controls | Yes |
| Dash Remote Level Control | No |
| Led Indicators | Power / Clip |
| Housing Material / Color | Aluminum / Black |

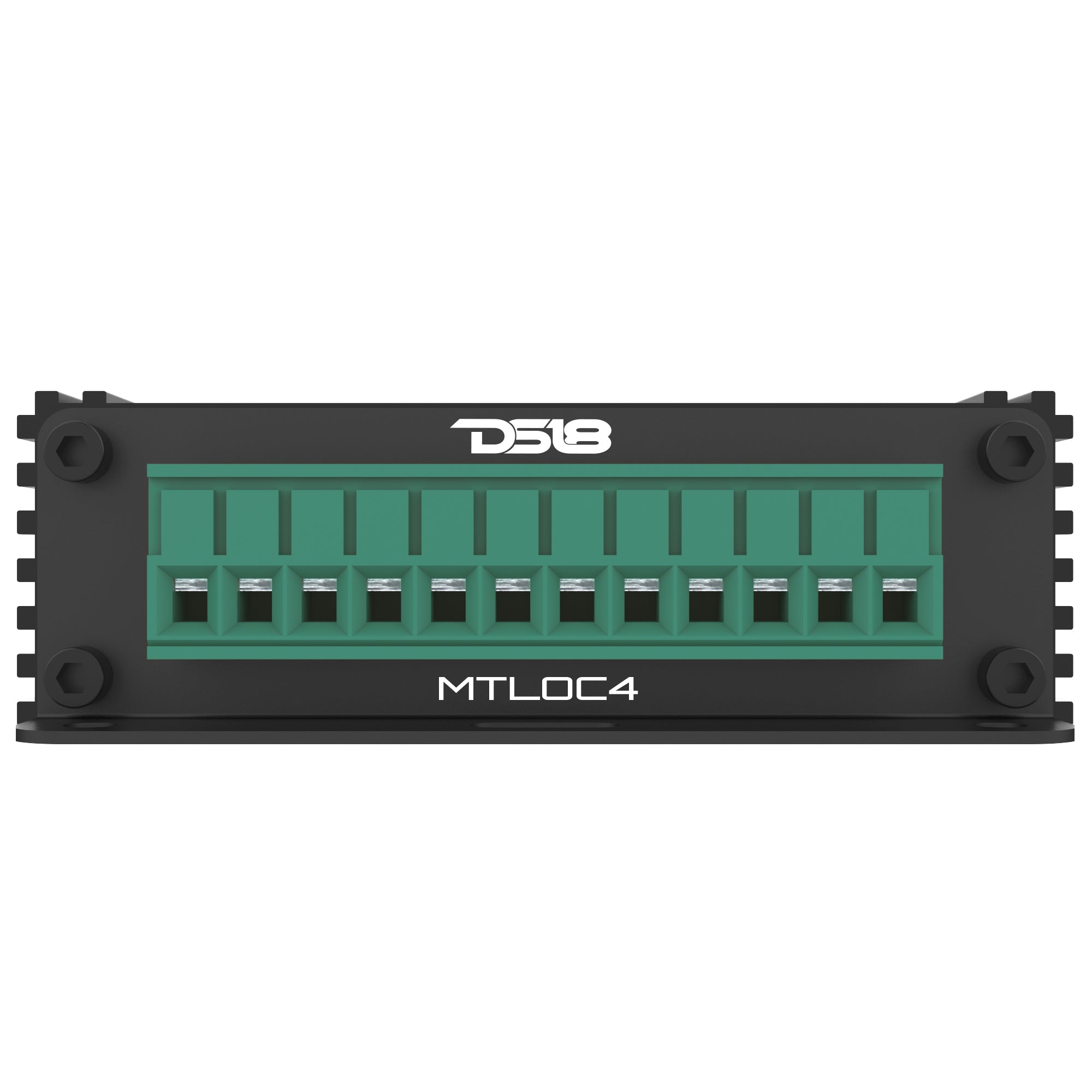

| Wiring Connector | 14ga Quick Connector |
| Ground Isolation | Selectable (200 ohms / Isolated / Grounded) |
| Step-Down Method | Transformer |
| Input Selector | Selectable (2ch / 4ch) |
| Overall Length | 5.7" / 145mm |
| Overall Width | 3.5" / 88mm |
| Overall Height | 1.1" / 28mm |
