8" Loudspeaker Horn Diffuser Horn
Product Overview DS18 PRO-SDF8 8" Loudspeaker Horn Diffuser Horn - Black The PRO-SDF midrange diffuser innovated design...
Vendor:
DS18
Manufacturer SKU
PRO-SDF8
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $59.95
- $59.95
- Unit price
- per
Subtotal:
$59.95
Couldn't load pickup availability
10 in stock
Product Overview

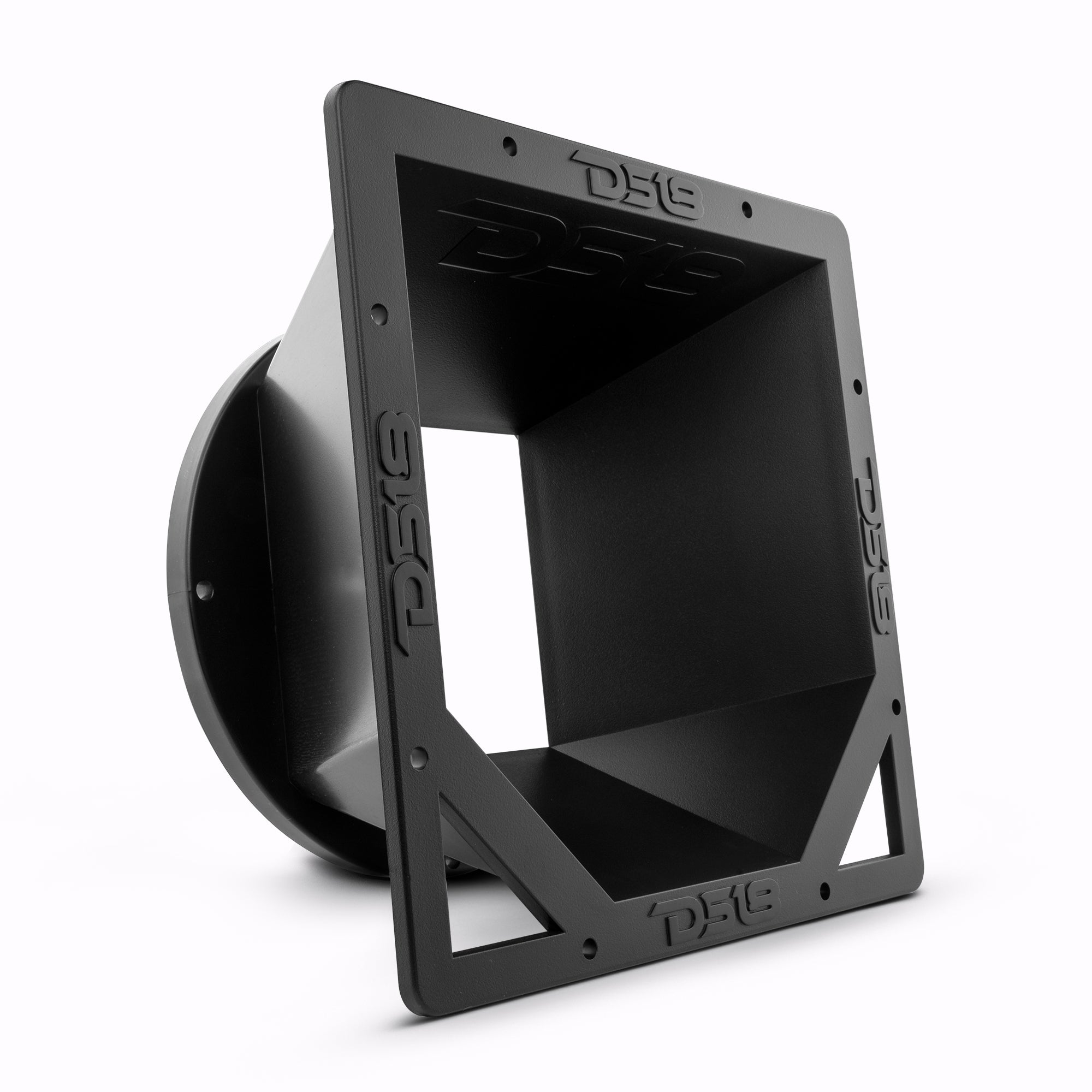

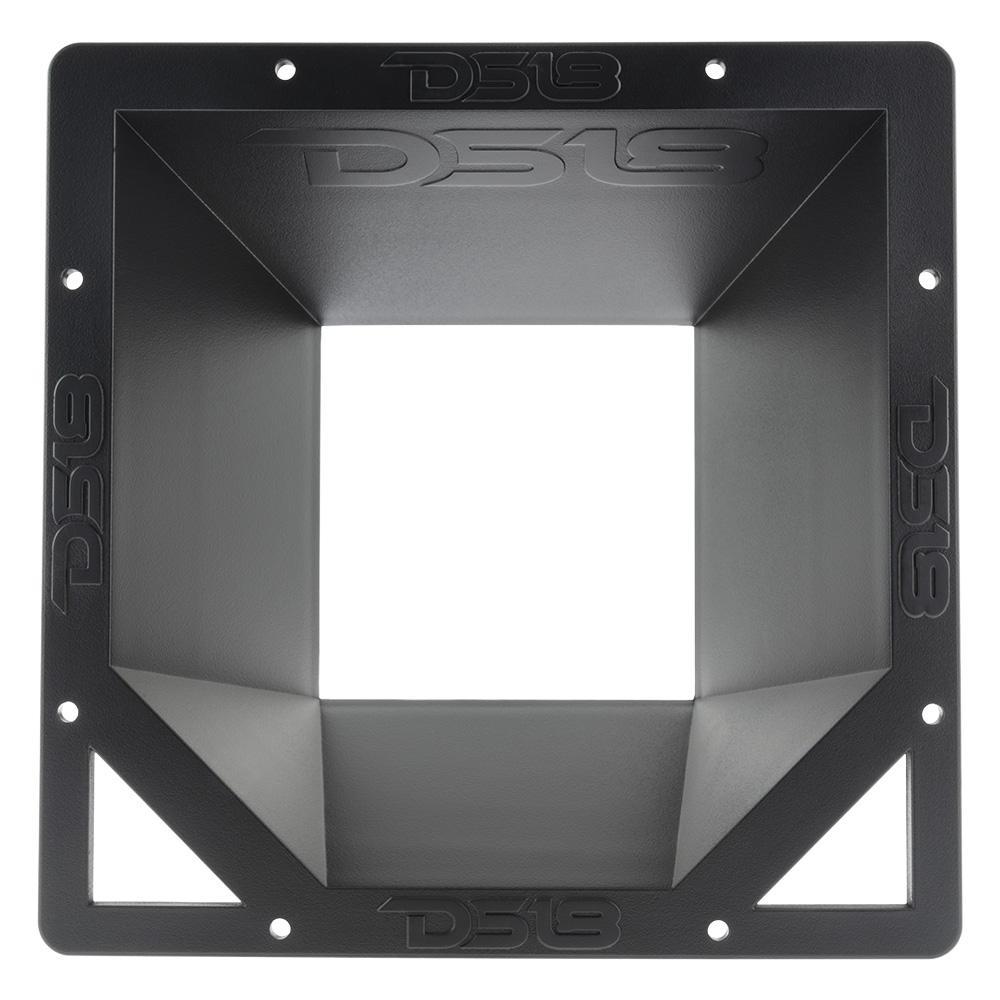

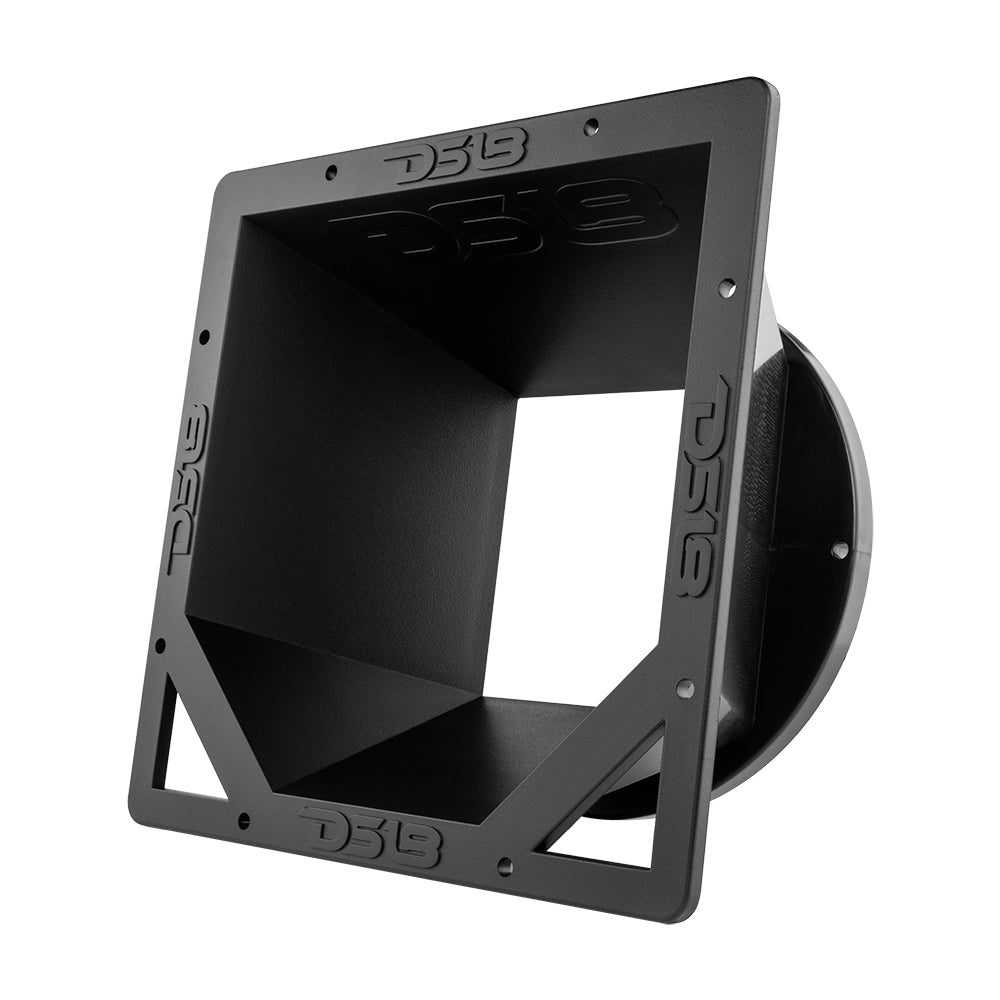

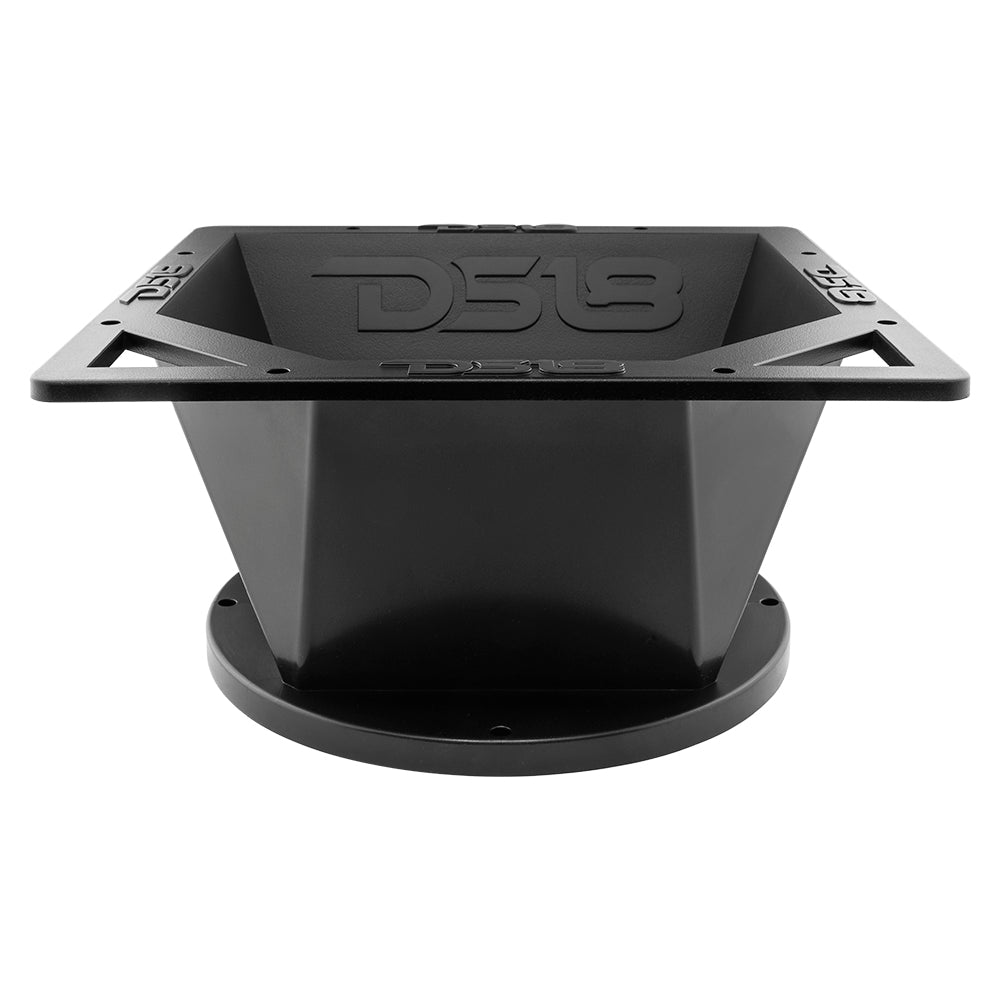

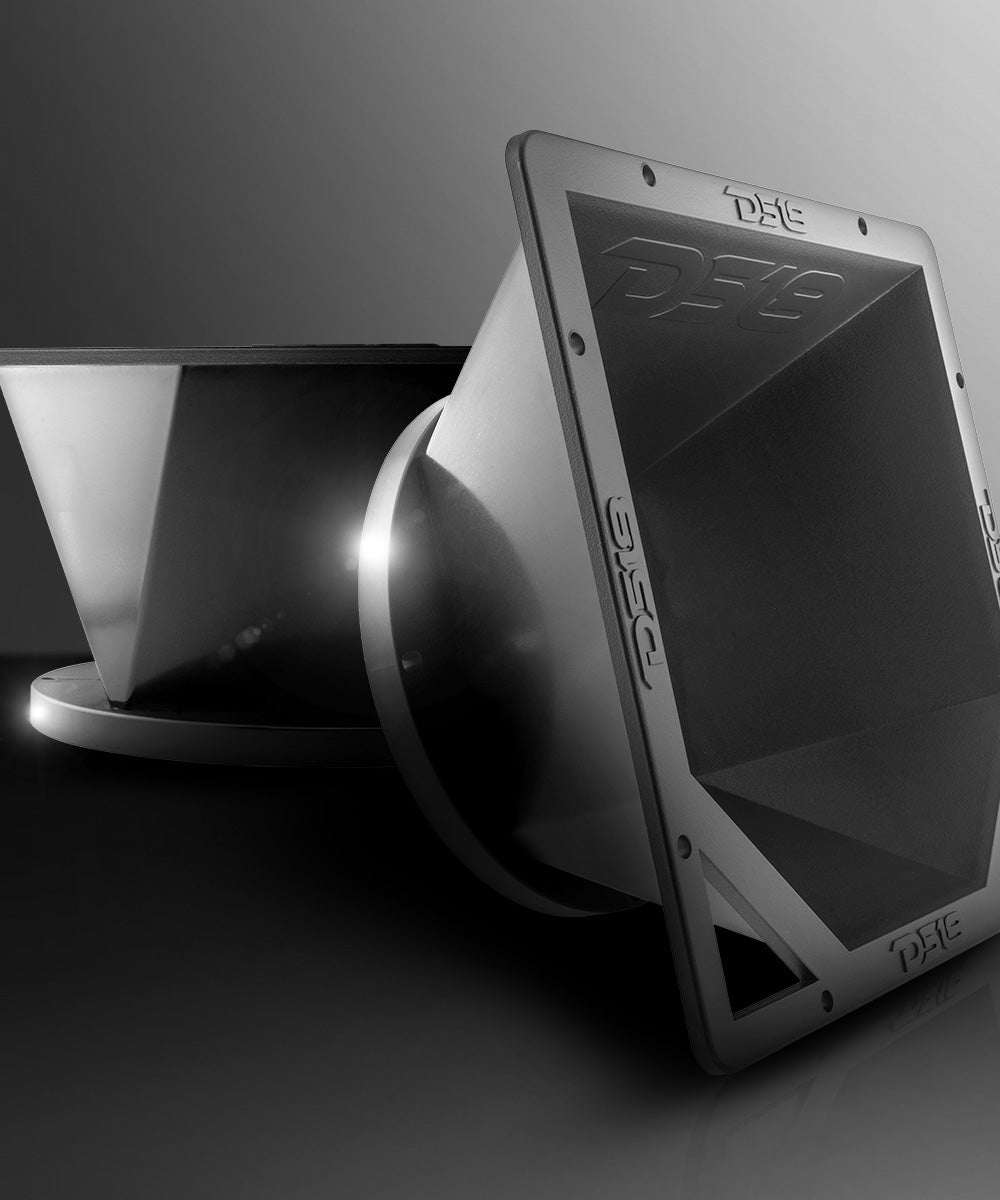

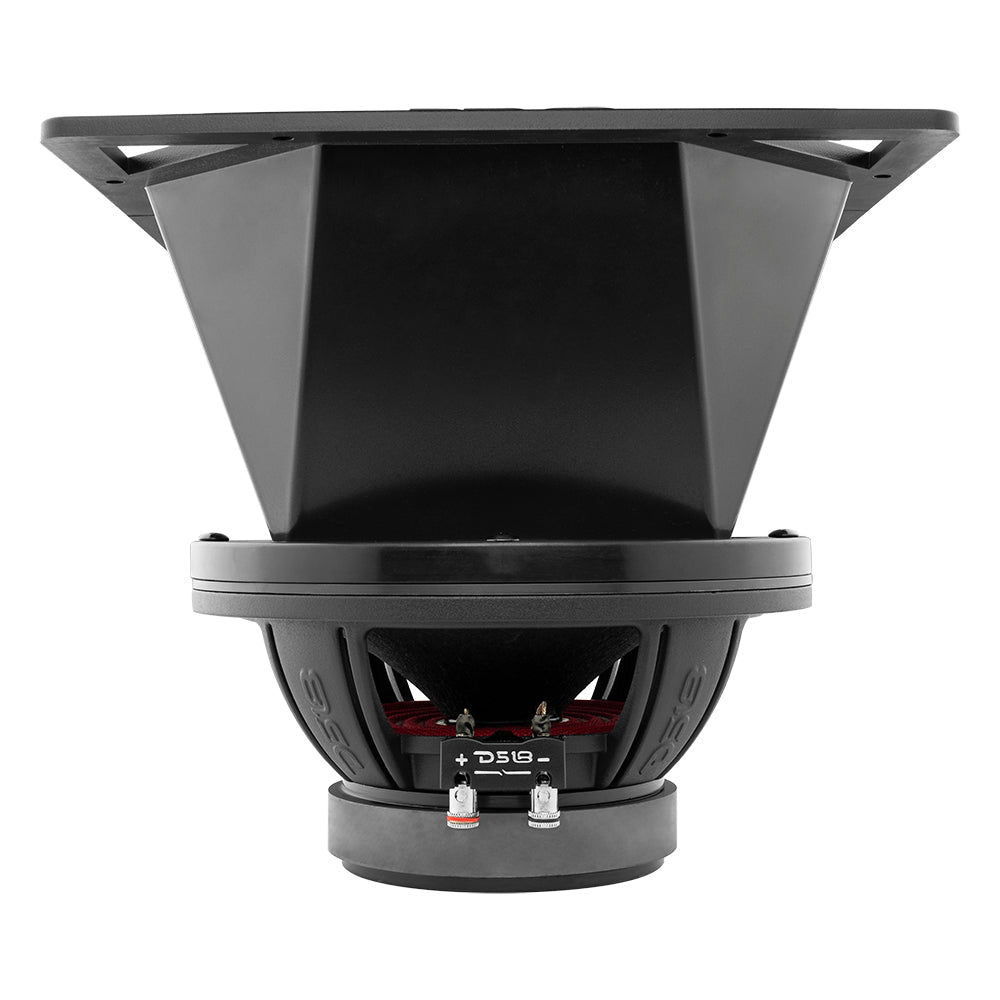

DS18 PRO-SDF8 8" Loudspeaker Horn Diffuser Horn - Black
The PRO-SDF midrange diffuser innovated design was dreamed up and brought to life by the DS18 team. Its unique design allows music to be projected for miles and miles without affecting the quality of sound. This diffuser works best with our EXL line, but can also be used with any of our other midrange speakers.
Technical Details
Download PRO-SDF8 Manual
| Speaker Bolt: | 198mm |
| Injection: | ABS |
| Features: | 6mm Thickness 4-M4 Nut-Inserts Hardware Included |
Key Features
- Loudspeaker Horn Diffuser Horn
- 8"
- Bolt on Installation
- Mounting Hardware Included
- Black ABS
Specifications
| SKU | PRO-SDF8 |
|---|---|
| Nominal Speaker Diameter (Not included) | 8" / 203.2mm |
| Nominal Horn Size | 10" / 254mm |
| Throat Diameter | 4.92x4.92" / 125x125mm |
| Installation Type | Bolt-On |
| Sound Coverage | 90° |
| Body Material | ABS |
| Color | Black Matte |
| Overall Diameter | 10" / 254mm |
| Overall Depth | 5.15" / 131mm |
| Mounting Depth | 4.88" / 124mm |
| Mounting Hole Diameter | 8.9x8.9" / 226x226mm |
| Bolt Pattern (Speaker) | 7.79" / 198mm |
