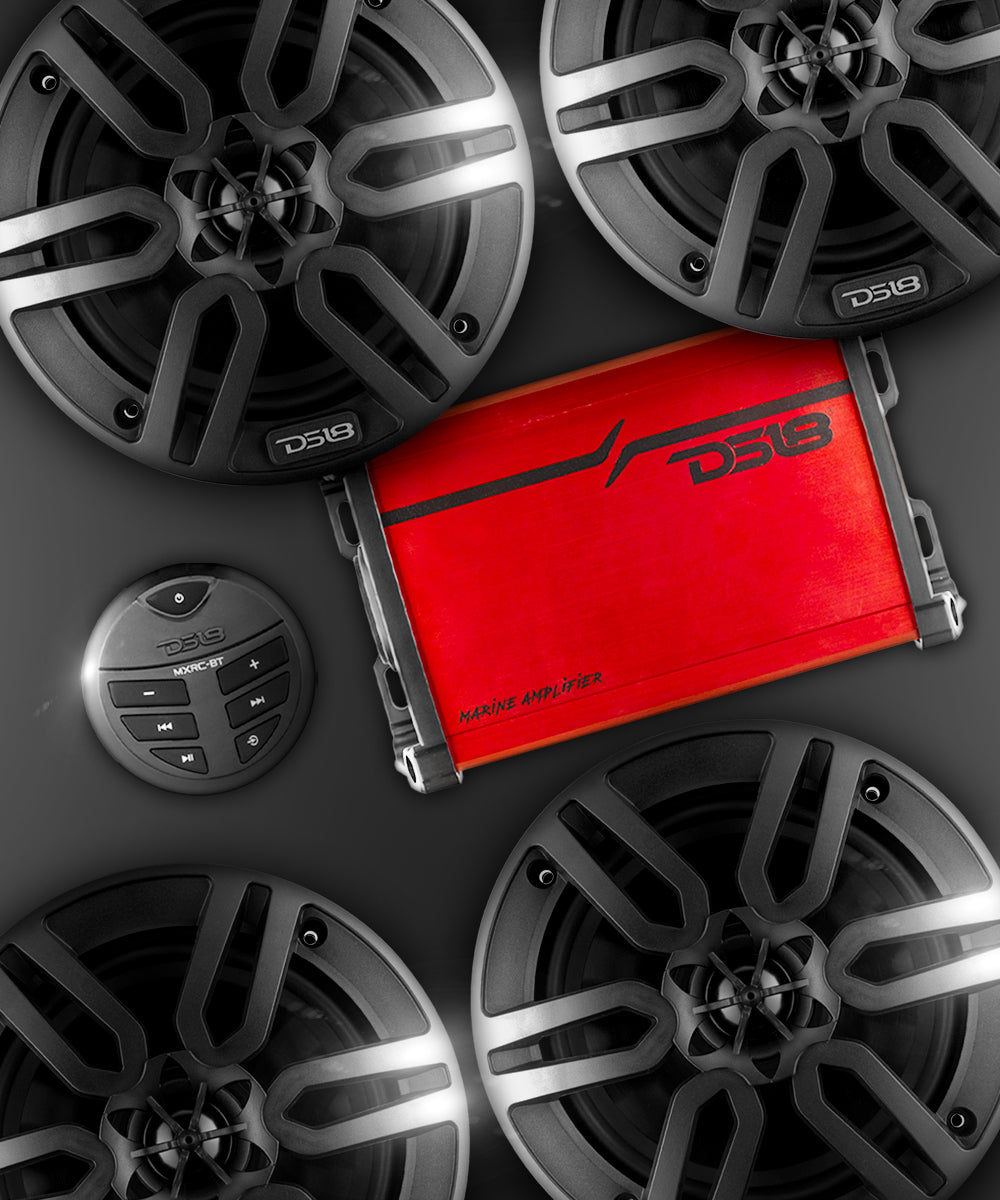

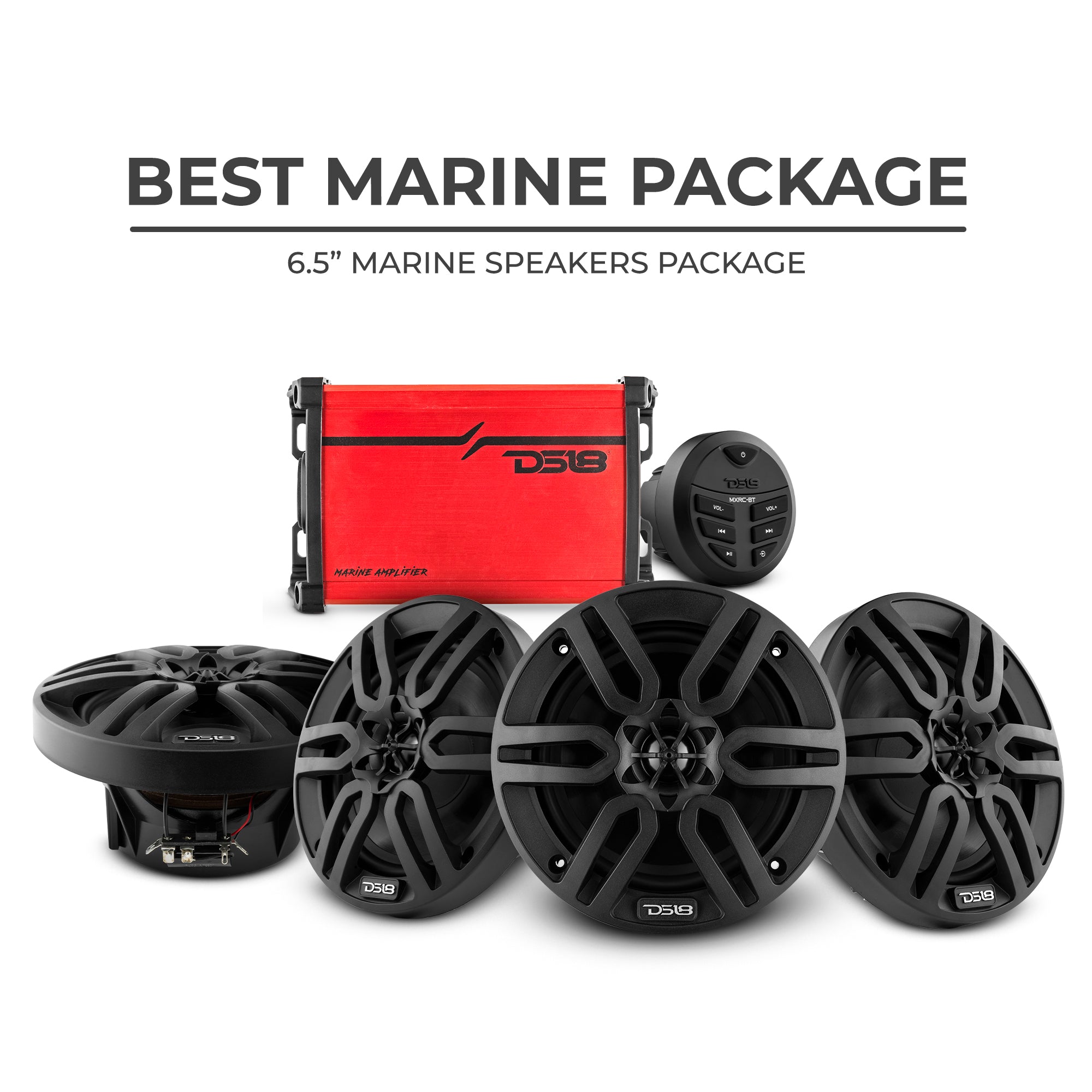

Best Marine Audio Package - 4 X 6.5" Speakers with Head Unit & 4 Channel Amplifier
Product Overview
Best Marine Audio Package - 4 X 6.5" Speakers with Head Unit & 4 Channel Amplifier is part of the DS18 marine and off road : package lineup. Review the listed specifications, options, and compatibility information before ordering.
Key Features
- Best Marine Audio Package
- 1 X MP.4A
- 4 X MP6
- 1 X MXRC-BT

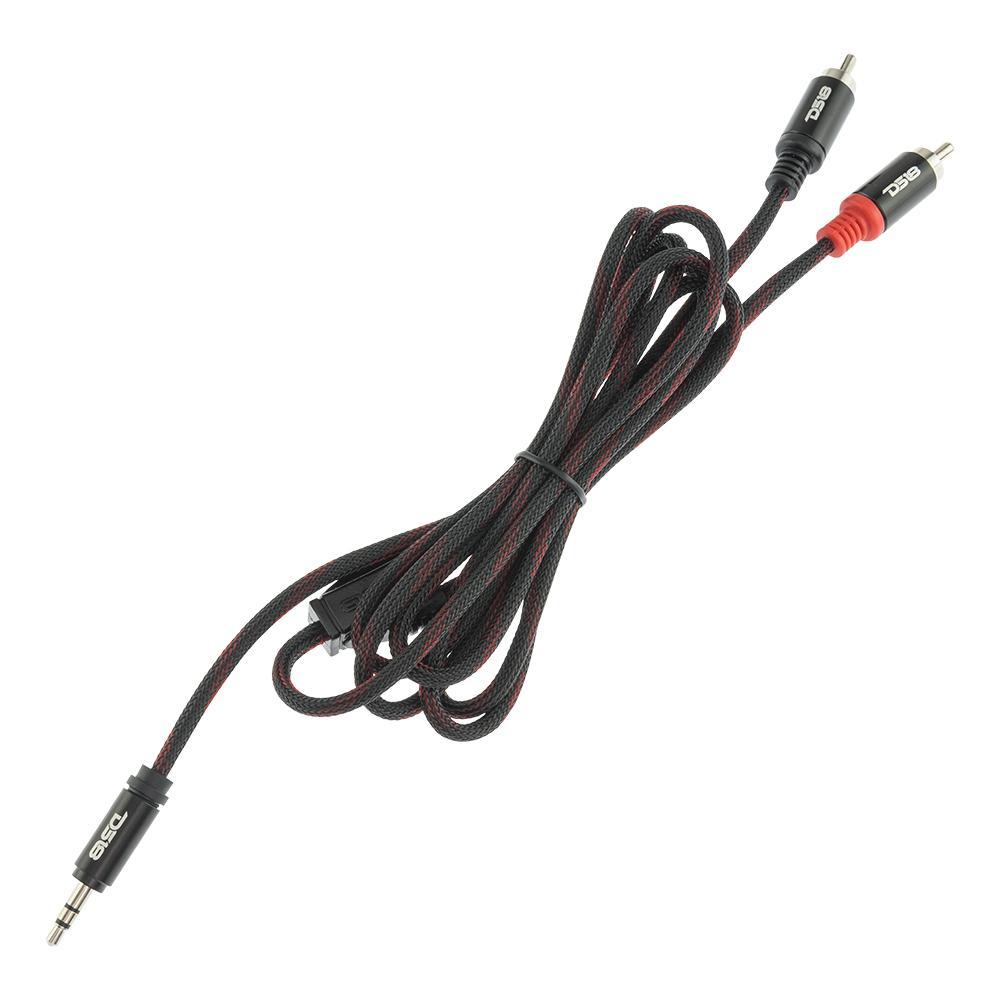

- 1 X HQMP3DUALRCA3FT
- Black ~ White
Specifications

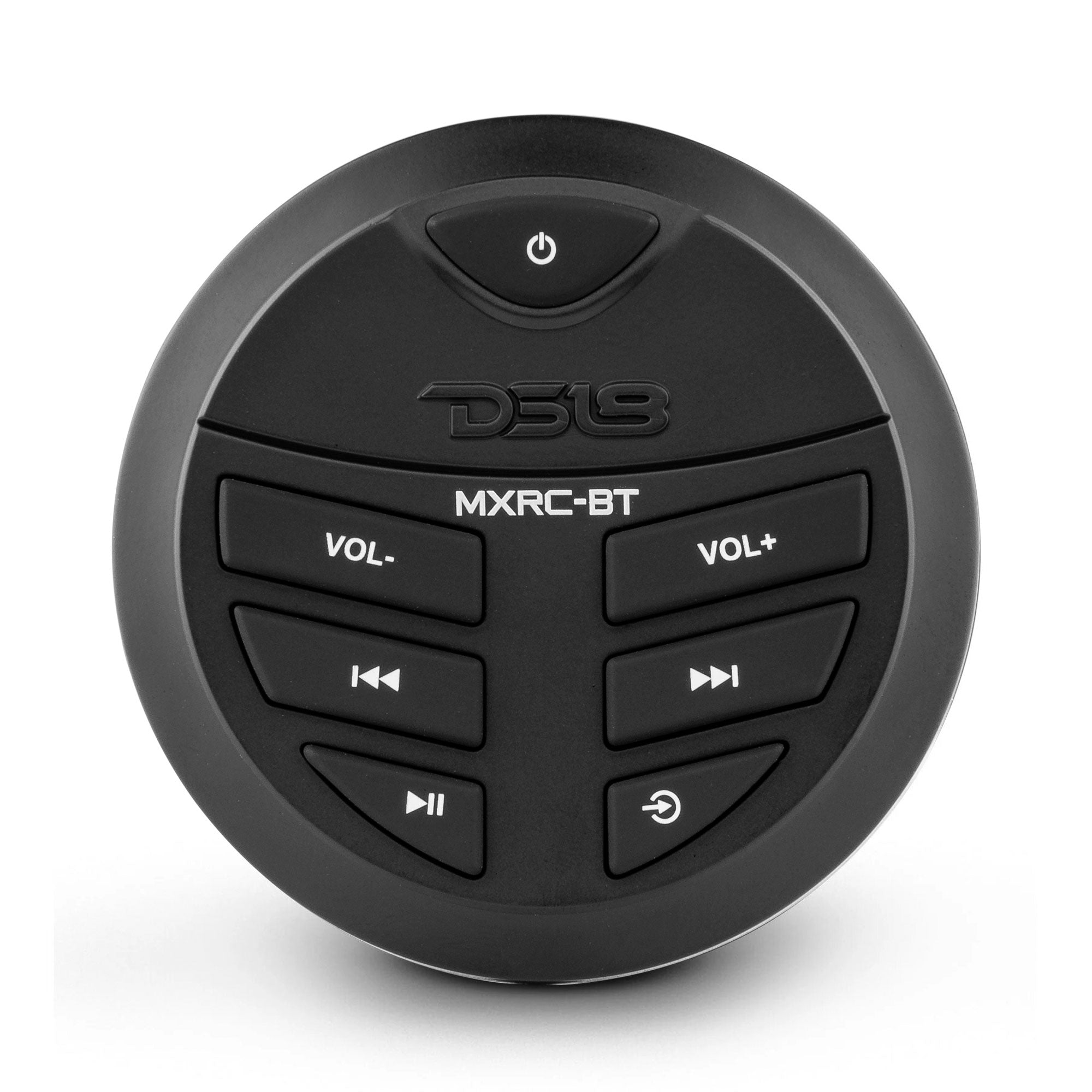

| Marine And Powersports Waterproof Bluetooth Audio Receiver With Controls | MXRC-BT |
|---|---|

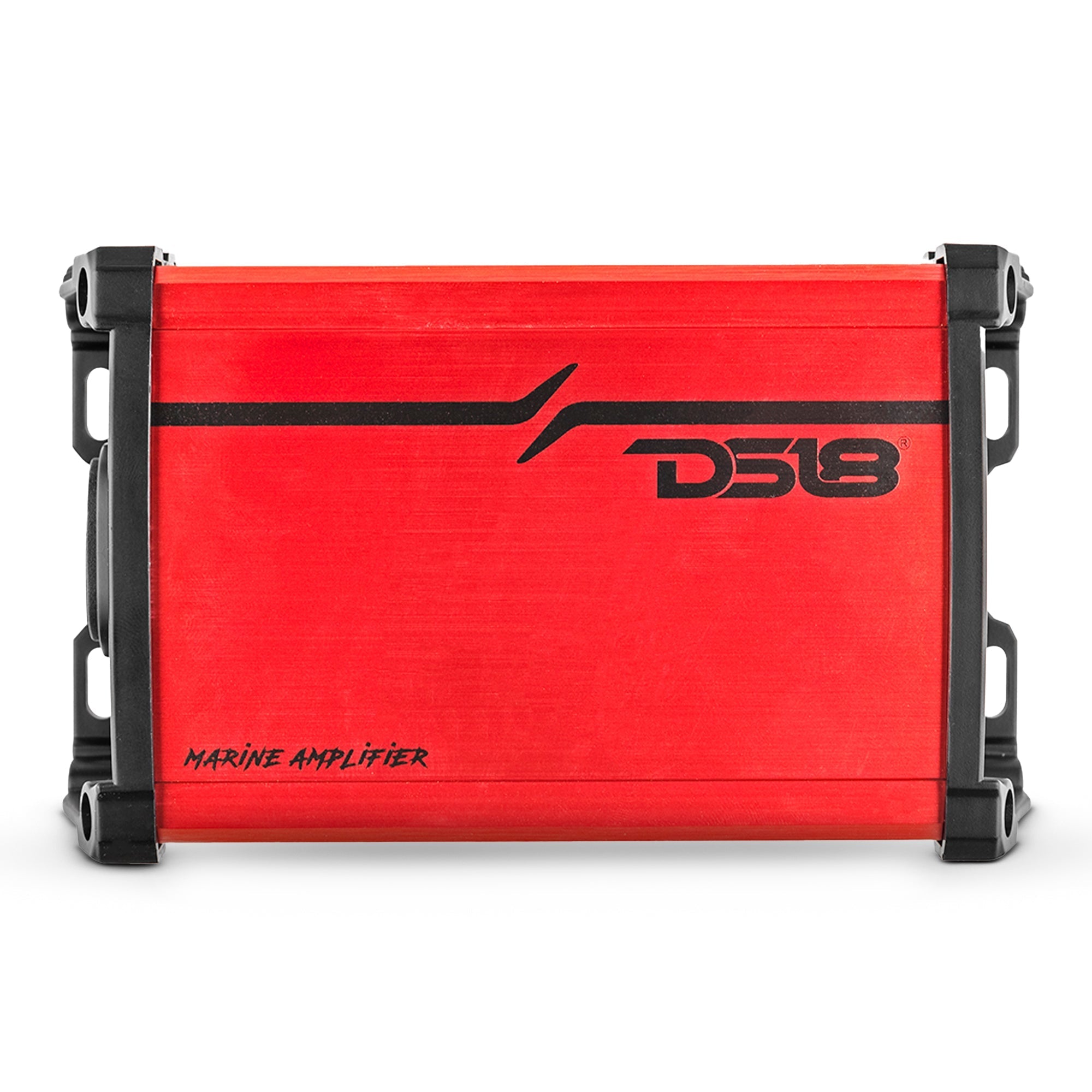

| 4 Channel Marine & Powersports Amplifier | MP.4A |

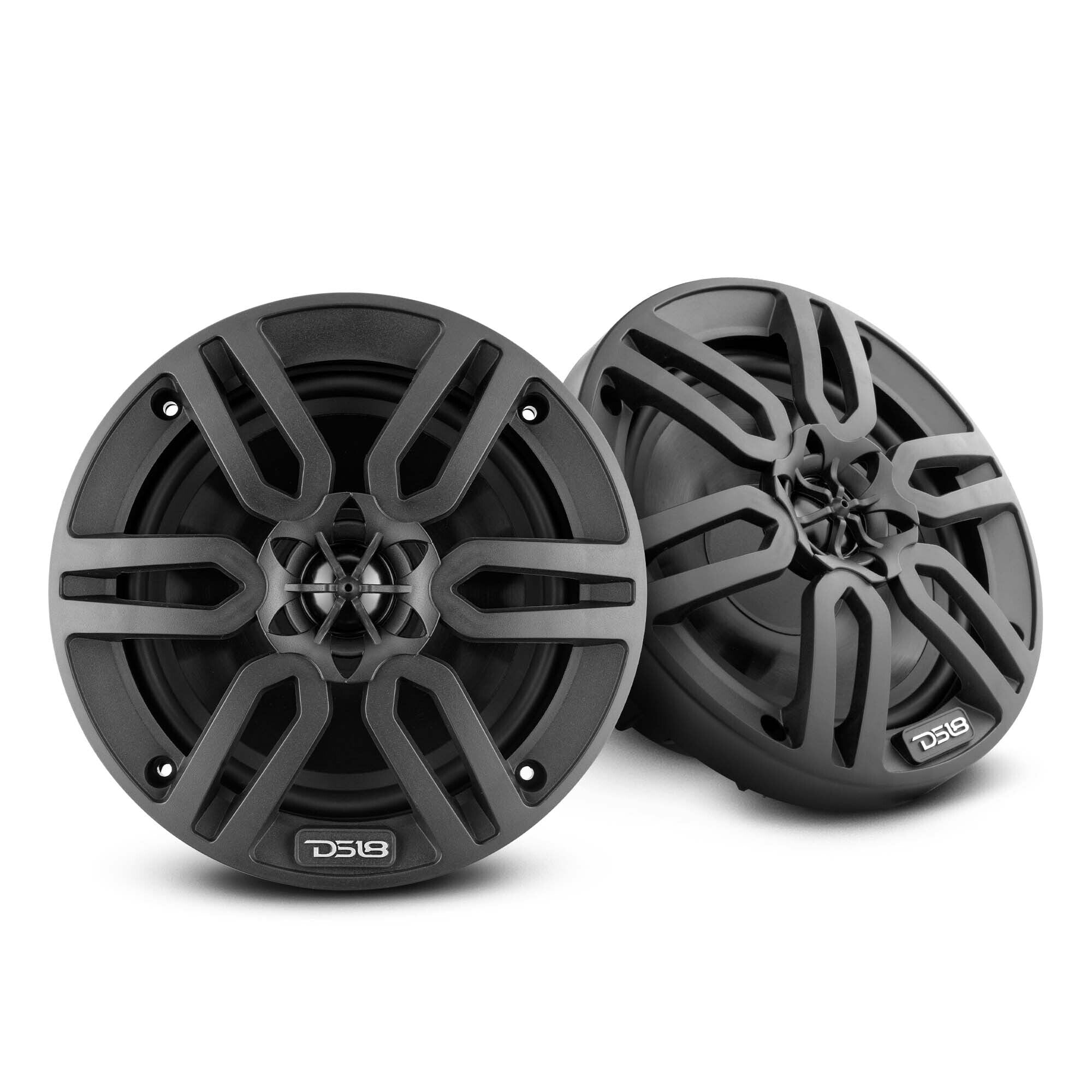

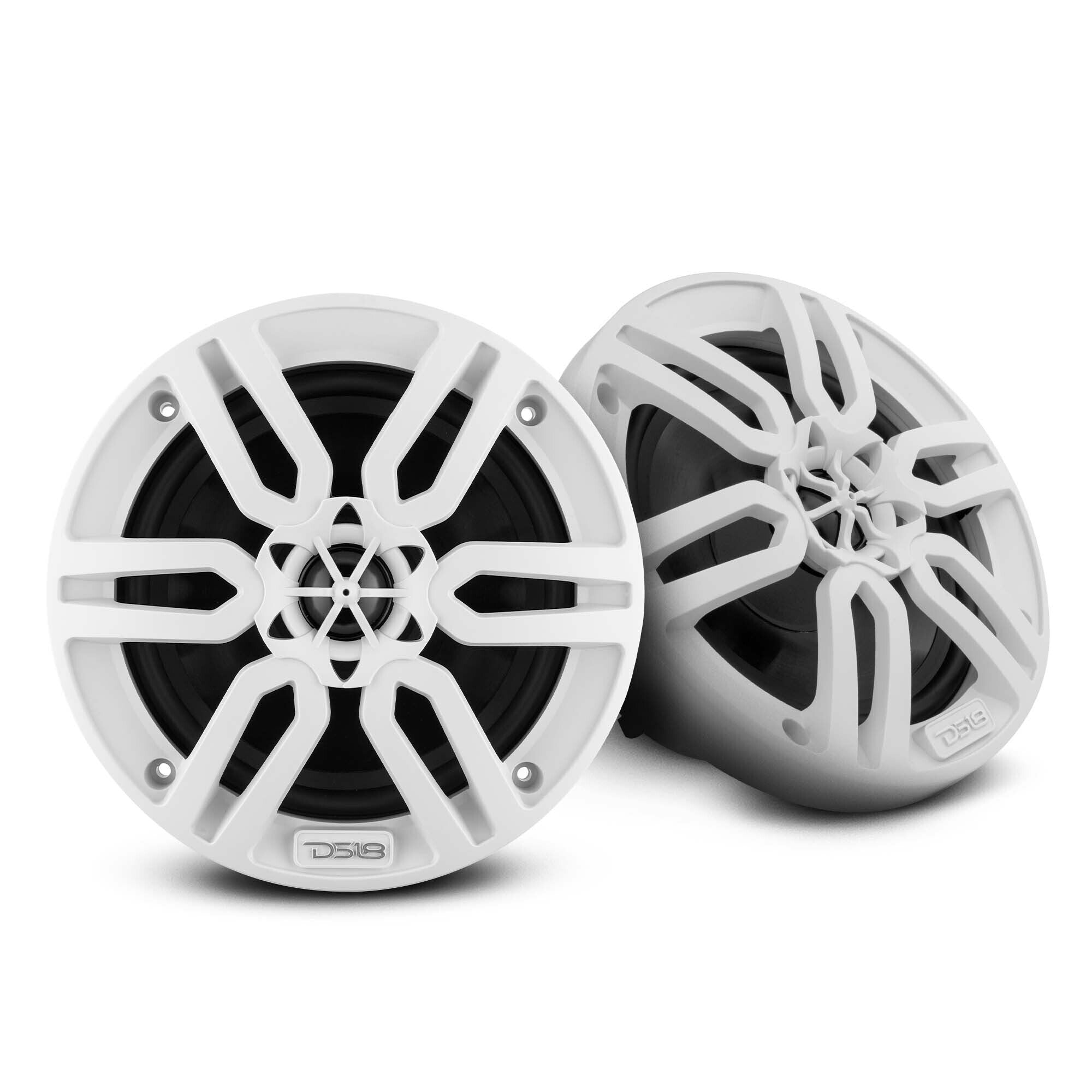

| 2x Pair 2-Way Coaxial Marine Speaker | MP6 |
| Frequency Response | 20Hz - 20KHz / 20Hz-20KHz / 40Hz-20KHz |
| Signal to Noise Ratio | 80dB / 82dB |
| Total Harmonic Distortion | 0.1% |
| Channel Separation | 60dB |
| Operation Voltage | 10V - 15V DC |
| BT Wireless Audio Version | 5.0 + A2DP |
| RCA Line Out | 1 Pair (Left & Right) 2.5 Volts |
| Remote Output | Up to 200mA |
| Wireless Connection Range | up to 35Ft (conditions may vary) |
| Aux Line Input | Plug 3.5mm |
| USB Player | Up to 32GB |
| Water Resistance Rating | IPX5 |
| UV + Salt Resistance | YES |
| Conformal Coating | YES |
| LED Backlit Push Button | YES (blue) |
| Buttons Material | Rubber |
| Total Watts (Peak) | 480W |
| RMS Power (Continuous Power @ 4 ohm) | 4 x 40W |
| Efficiency @ 4ohm | 80% |
| Damping Factor | 200 |
| Total Harmonic Distortion (THD) | 0.1% |
| Low Level Input Range | 2.5V (Fixed) |
| Selectable X-Over | No |
| Amplifier Class | Digital (D) |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 4 Ohm Stereo (Not Bridgeable) |
| LED Indicator | No |
| Power Input Terminal Size | 16Ga |
| Fuse Size | 20A |
| Voltage Operation | 9-15V DC |
| Thermal Protection | Yes (>75C / 167F) |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (<9.2V / >16V) |
| Body Color / Finish | Brushed Red Aluminum |
| Input Audio Connector | 3.5mm jack |
| Audio Output | Yes, RCA left and right |
| Waterproof Rating | IPX5 |
| Salt Fog Protection | Yes |
| Power Direct Harness Design | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
| Overall Length | 6" / 153mm |
| Overall Width | 3.66" / 93mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 4.72" / 120mm |
| Gross Single Unit Weight | 1.62 lbs / 735g |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 60W |
| MAX Power Handling | 180W |
| Sensitivity (1w/1m) | 91dB |
| Recommended HI Pass Crossover | 60Hz |
| UV Compliant | YES |
| Marine Grade Type | IPX5 |
| RGB LED | NO |
| Grill Type | Injection PC+ABS |
| Pair | YES |
| Woofer Specs Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | KSV / ASV |
| Winding Material | PEPSV / CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | ABS + UV Compliant |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 11 Oz / 45g |
| Tweeter Specs Voice Coil Diameter | 1" / 25mm |
| Type | Dome |
| Diaphragm Material | PEI |
| Crossover | 6dB/Oct |
| Overall Diameter | 7.16" / 182mm |
| Overall Depth | 3.8" / 97mm |
| Front Mount Baffle Cutout | 5.7" / 145mm |
| Mounting Depth | 2.51" / 64mm |
| Motor Diameter | 4" / 104mm |
