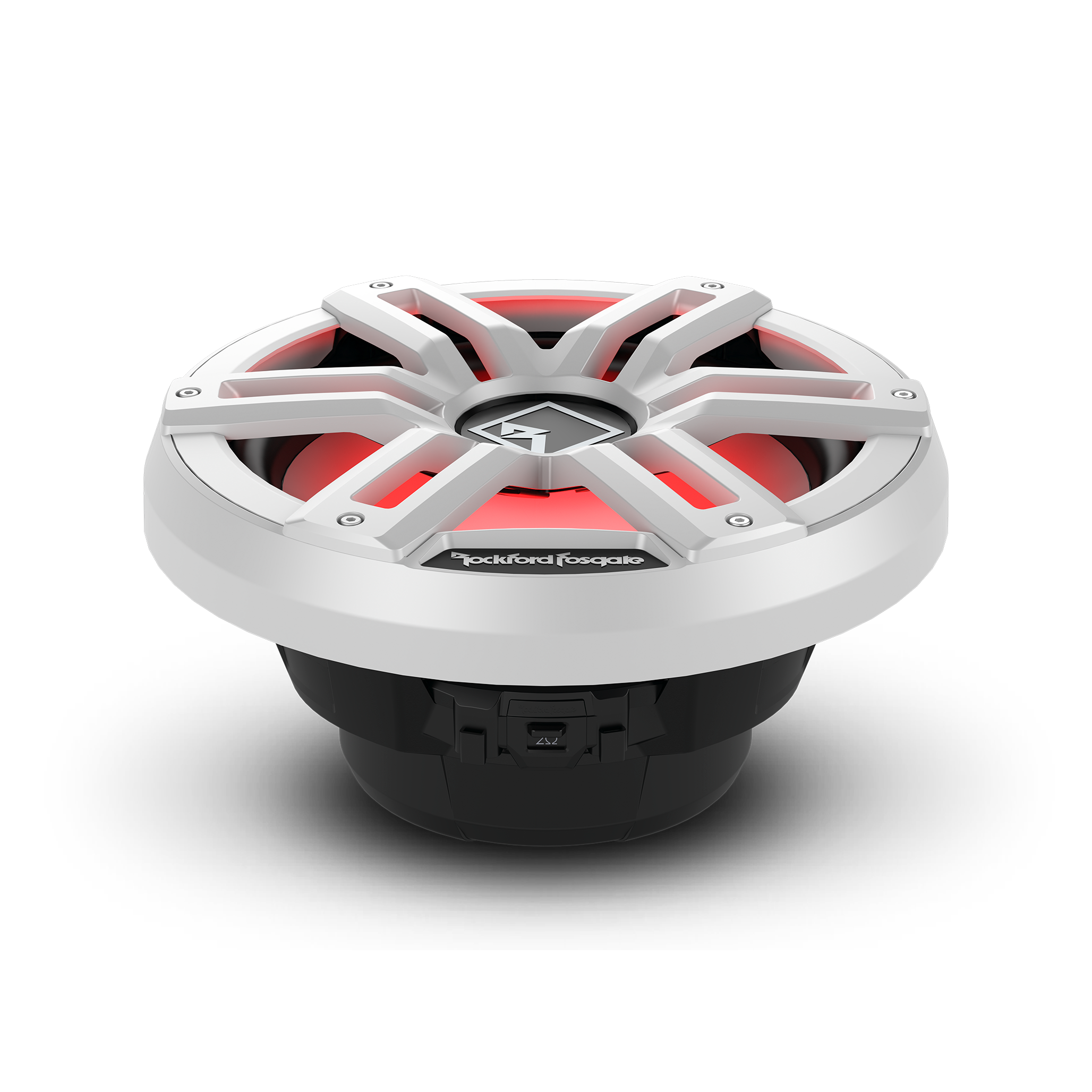

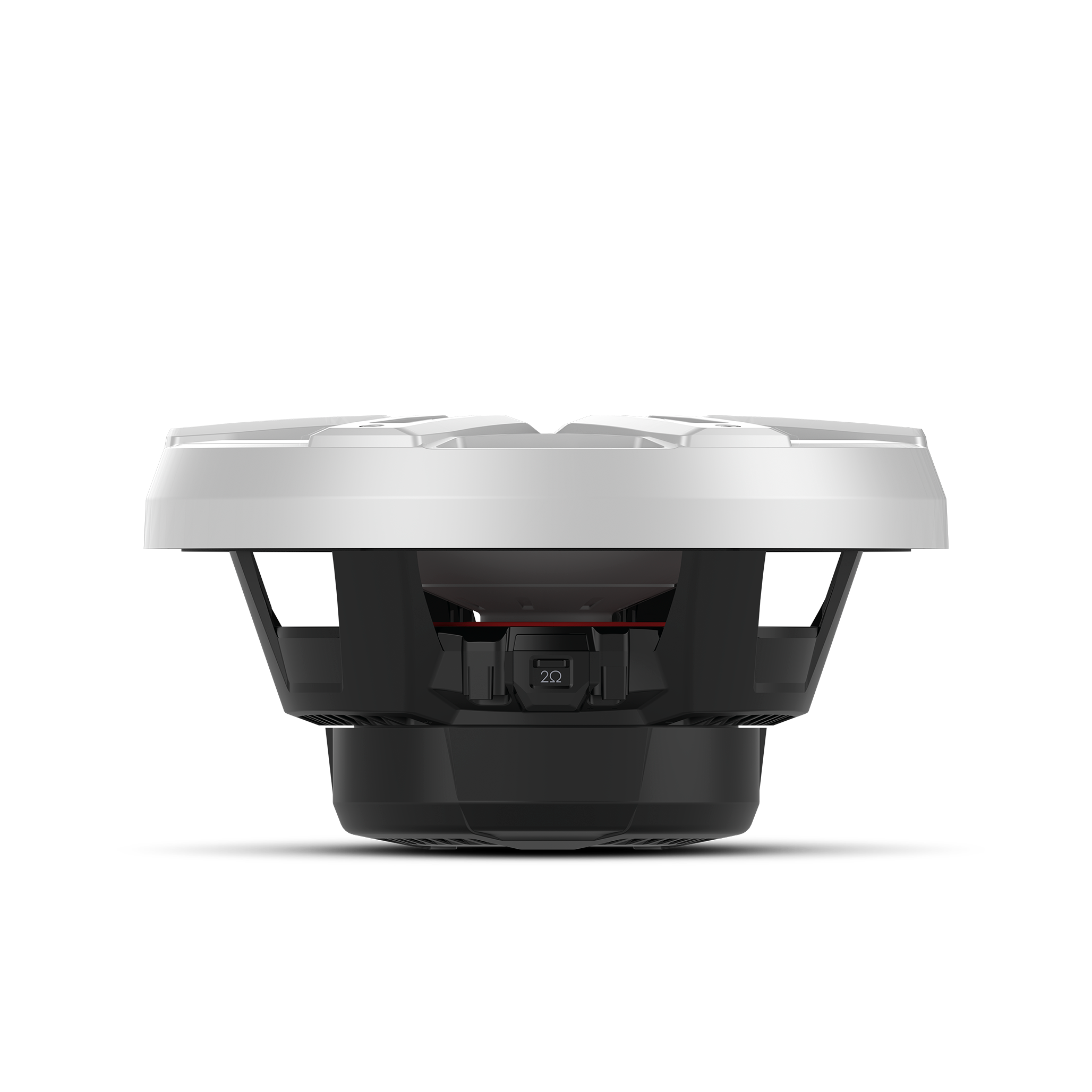

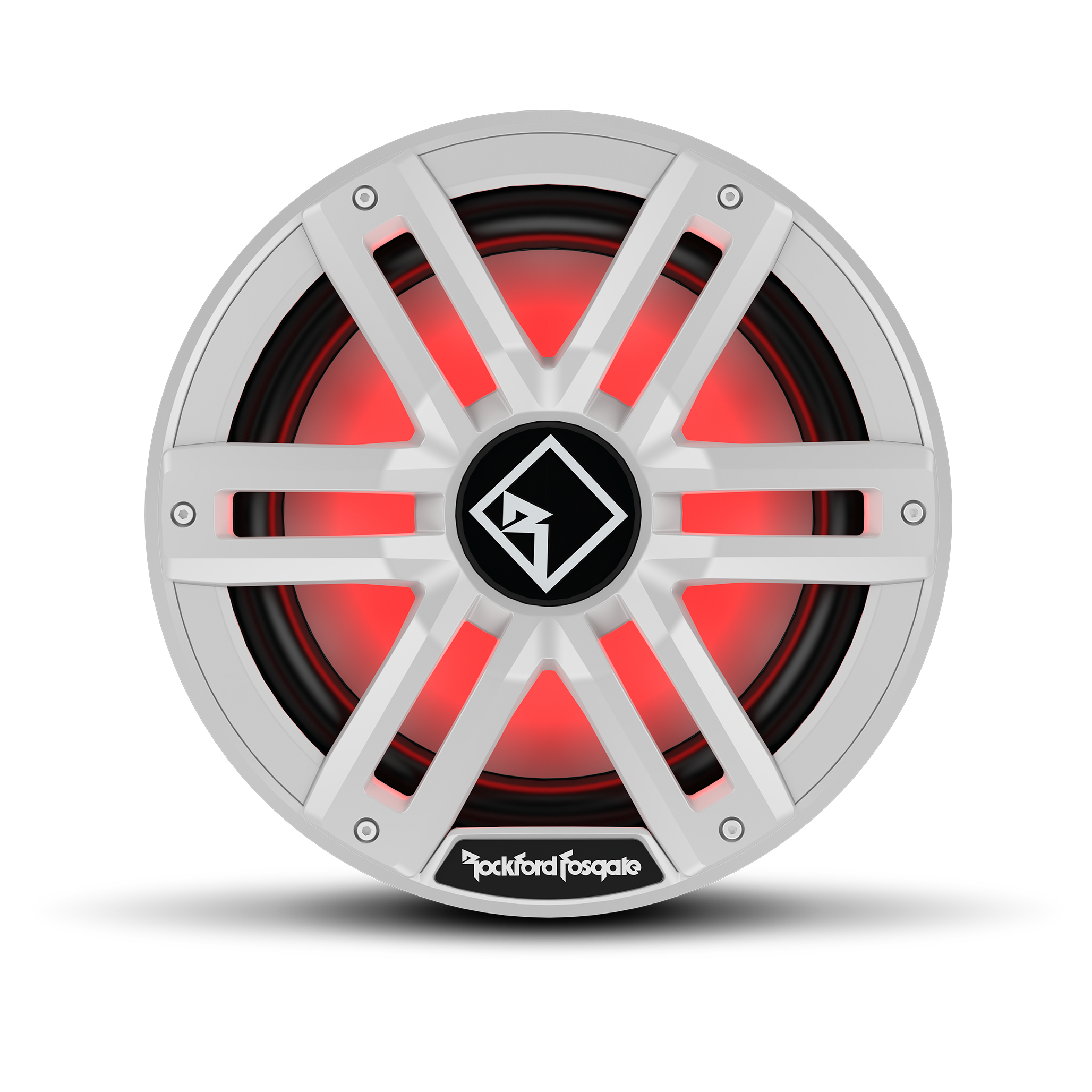

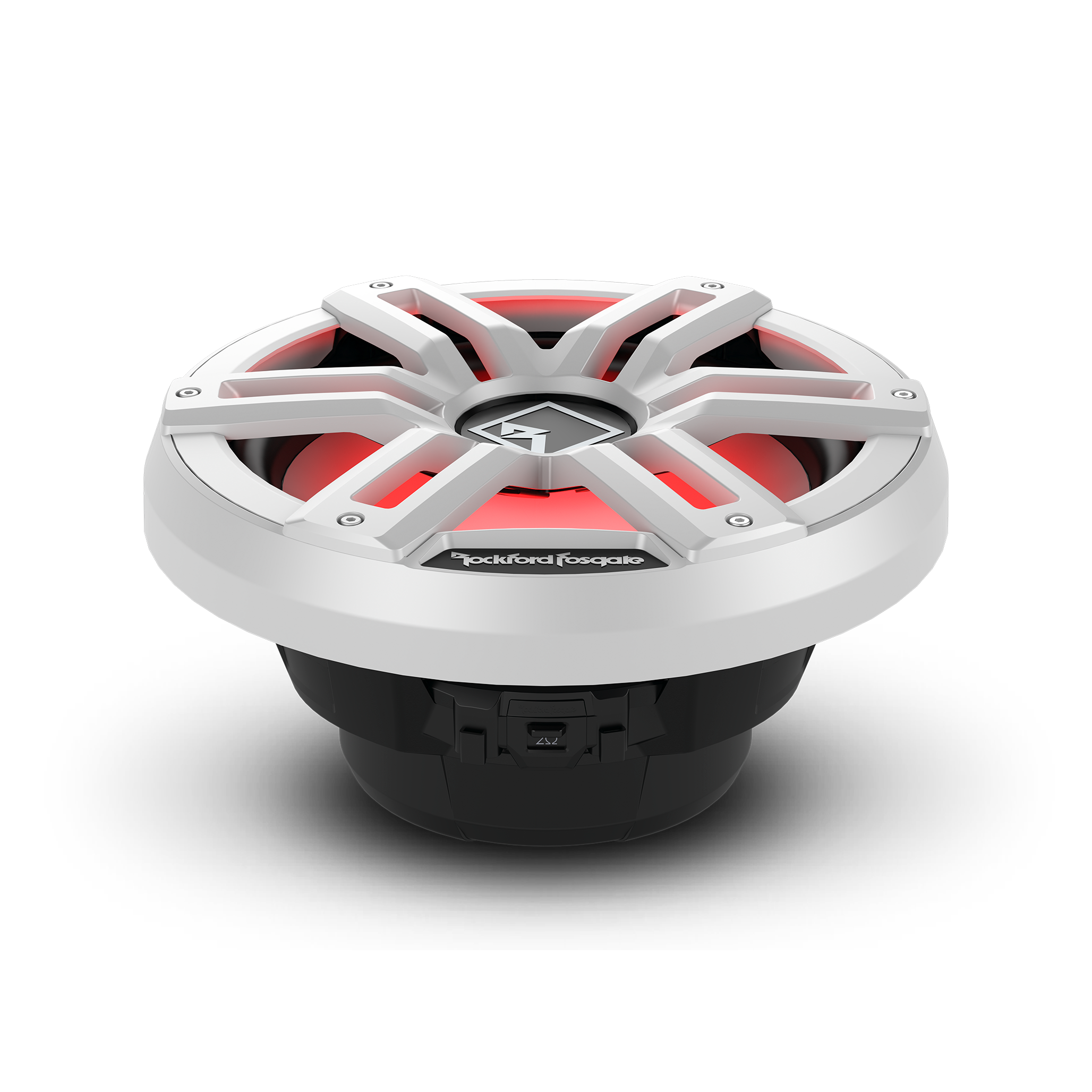

M2D4-12S

Overview

The M2D4-12S Color Optix TM 12" DVC 4-Ohm sealed enclosure subwoofers deliver loud, clear, accurate bass, & light the way for your journey! Shop today!

Features

• Bright, wide-angle LEDs provide rich, reliable illumination
• Adjust color experience to suit your taste with Rockford Fosgate Color Optix TM controller (optional)
• Element Ready TM design protects lighting from exposure

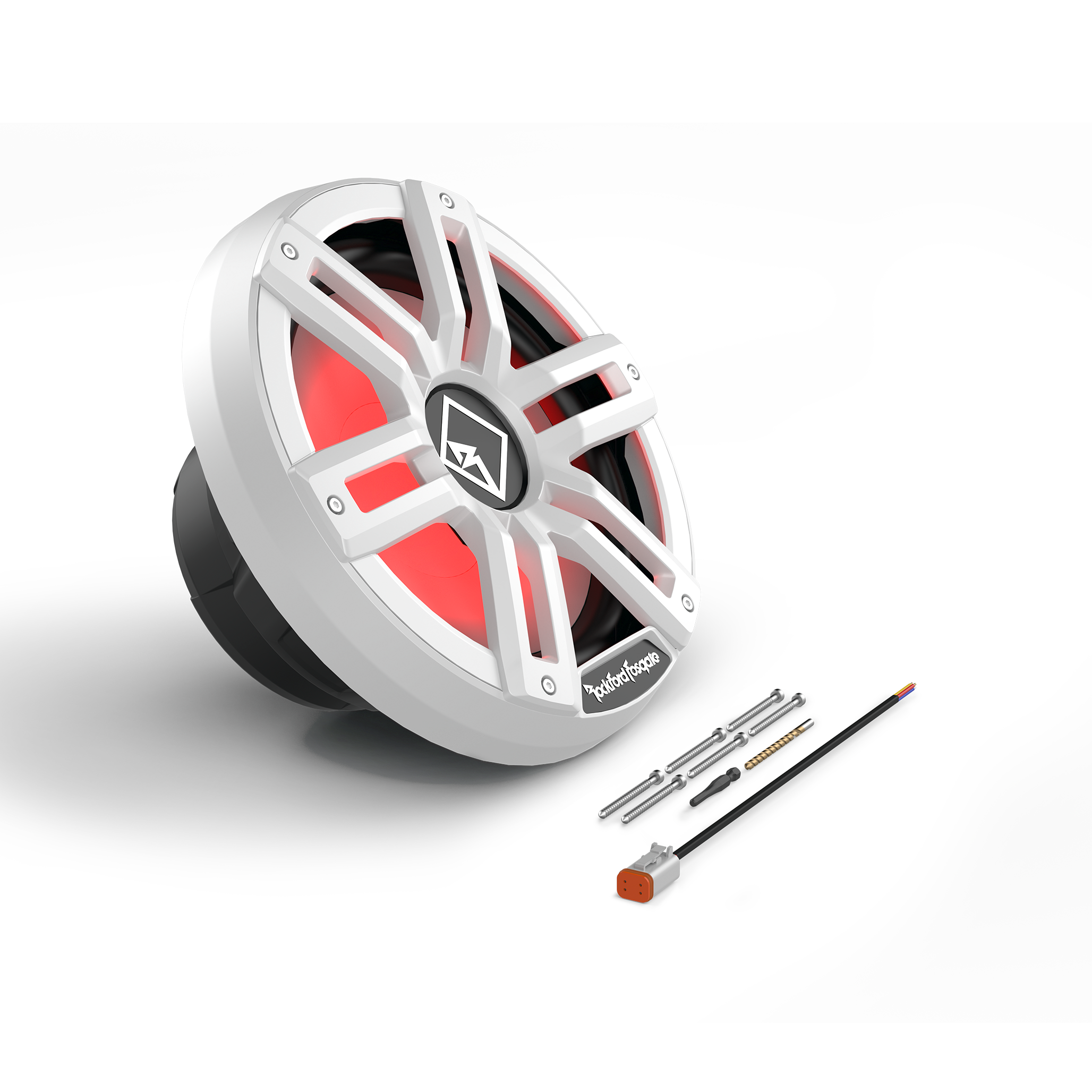

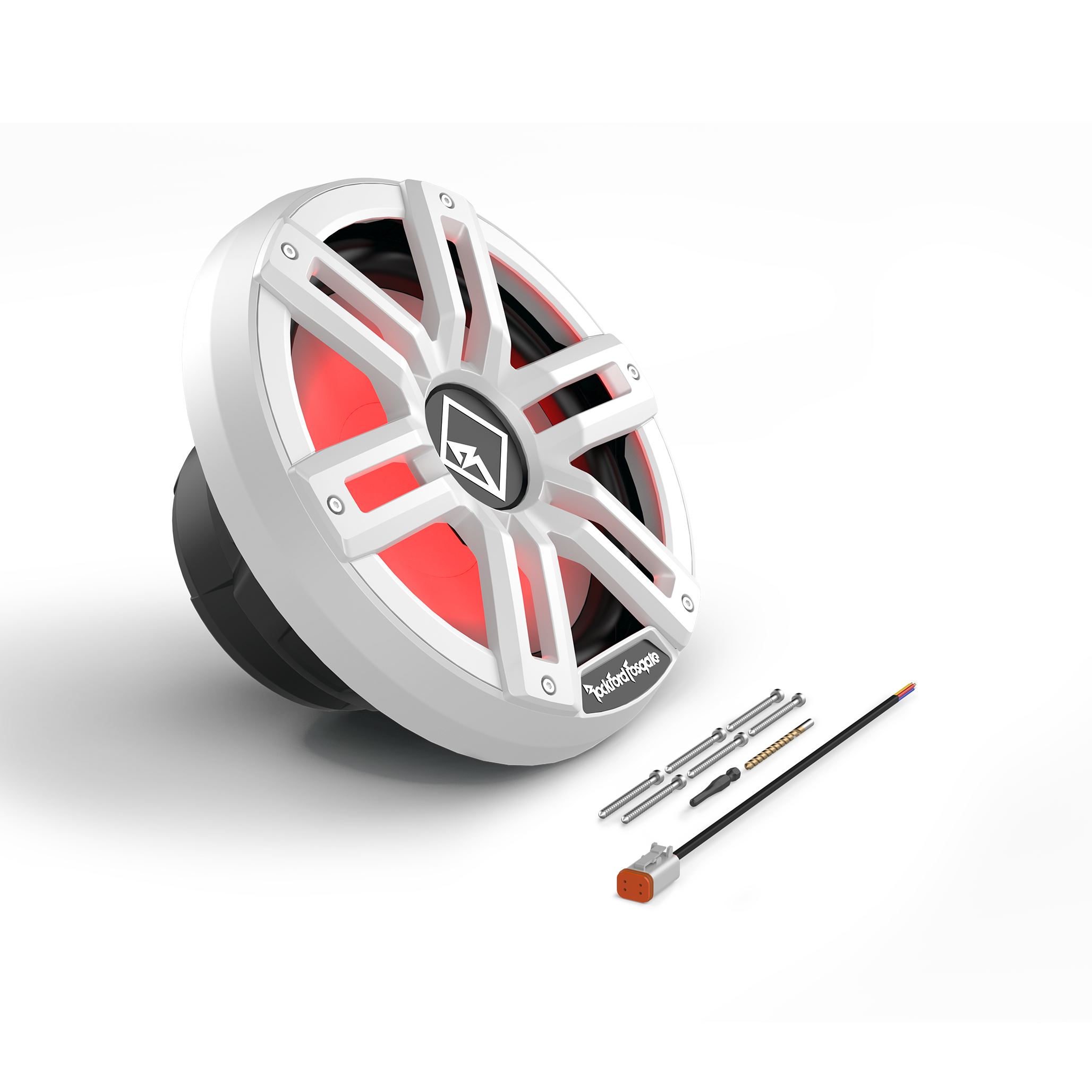

• Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
• Optimized for small sealed enclosures when there is very little space for an enclosure

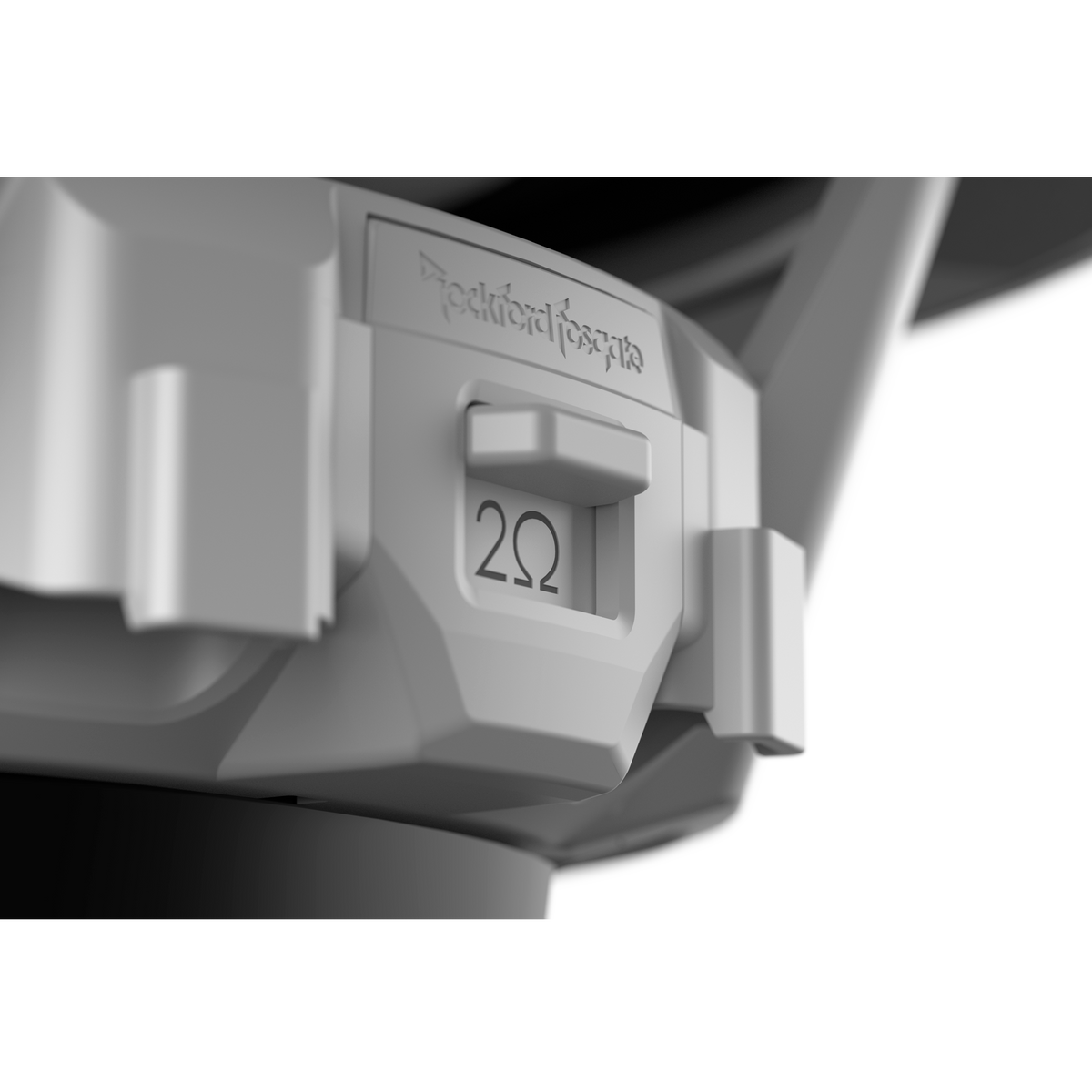

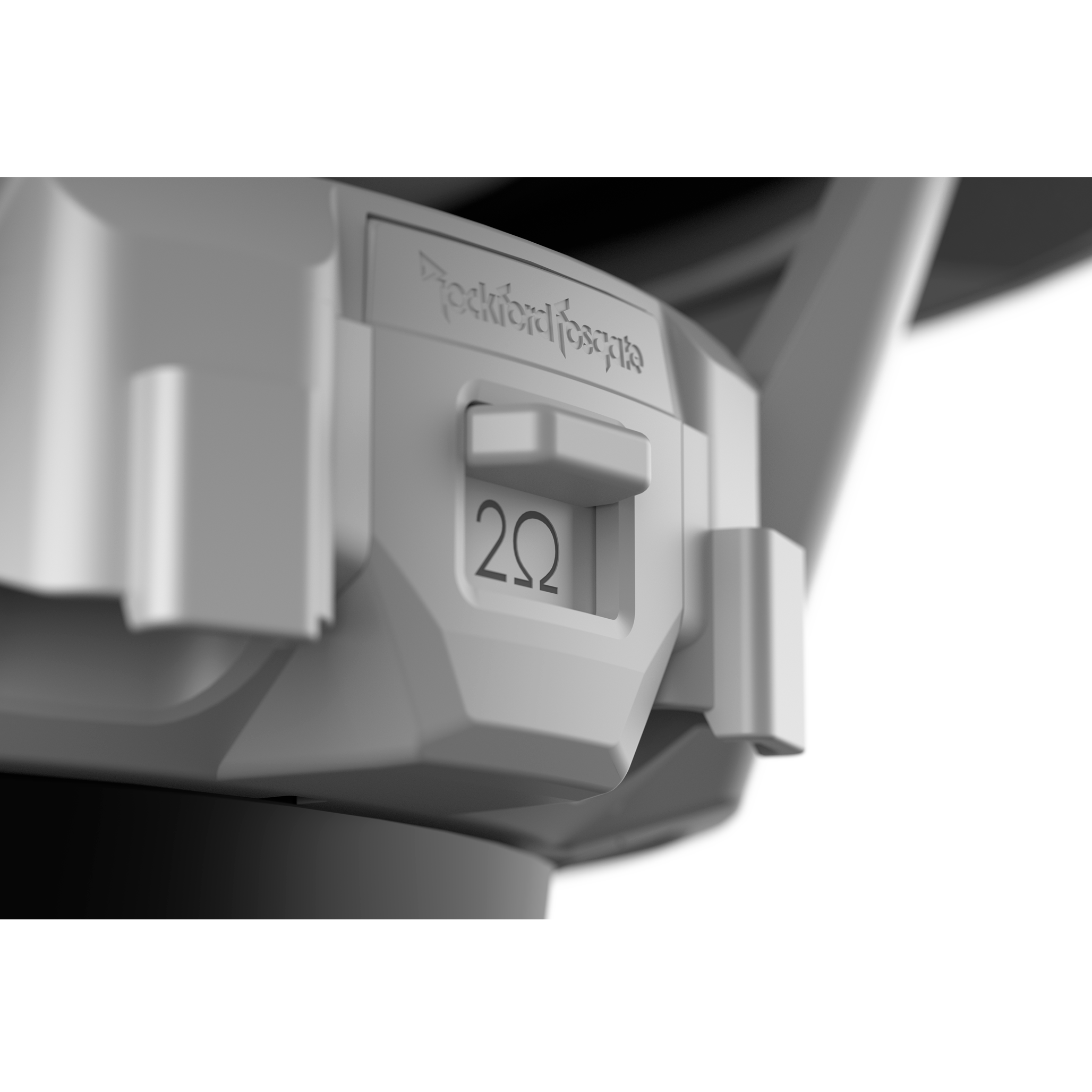

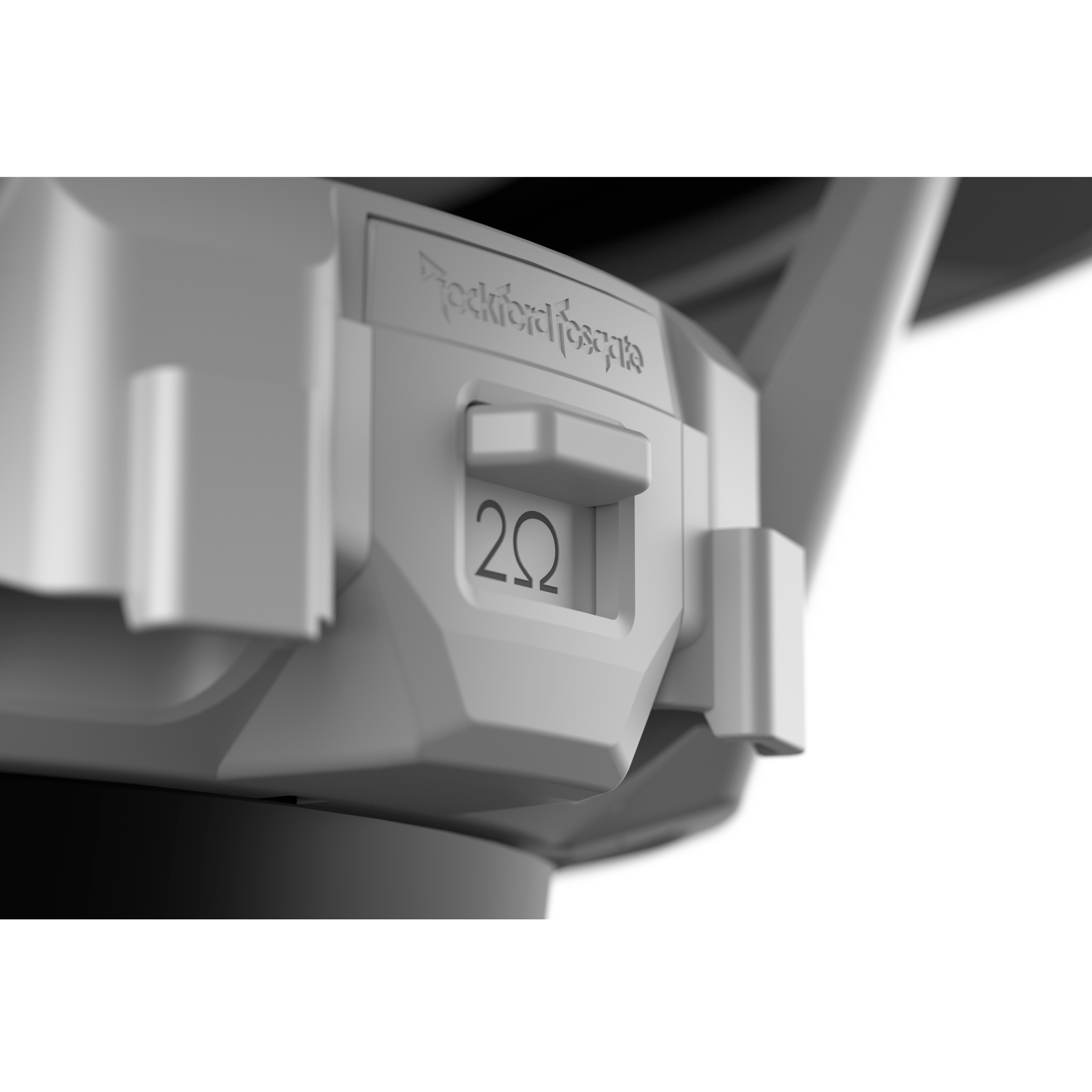

• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress

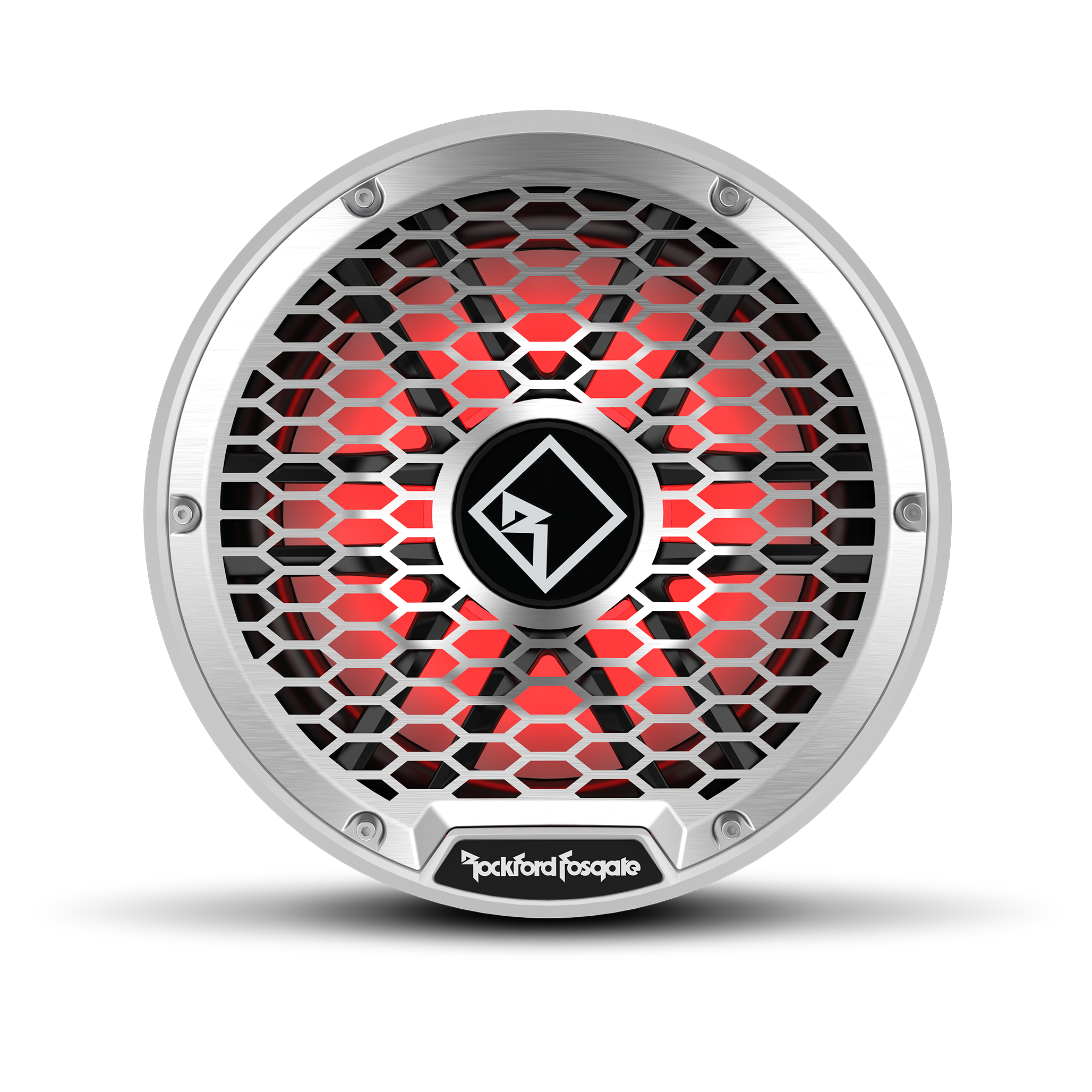

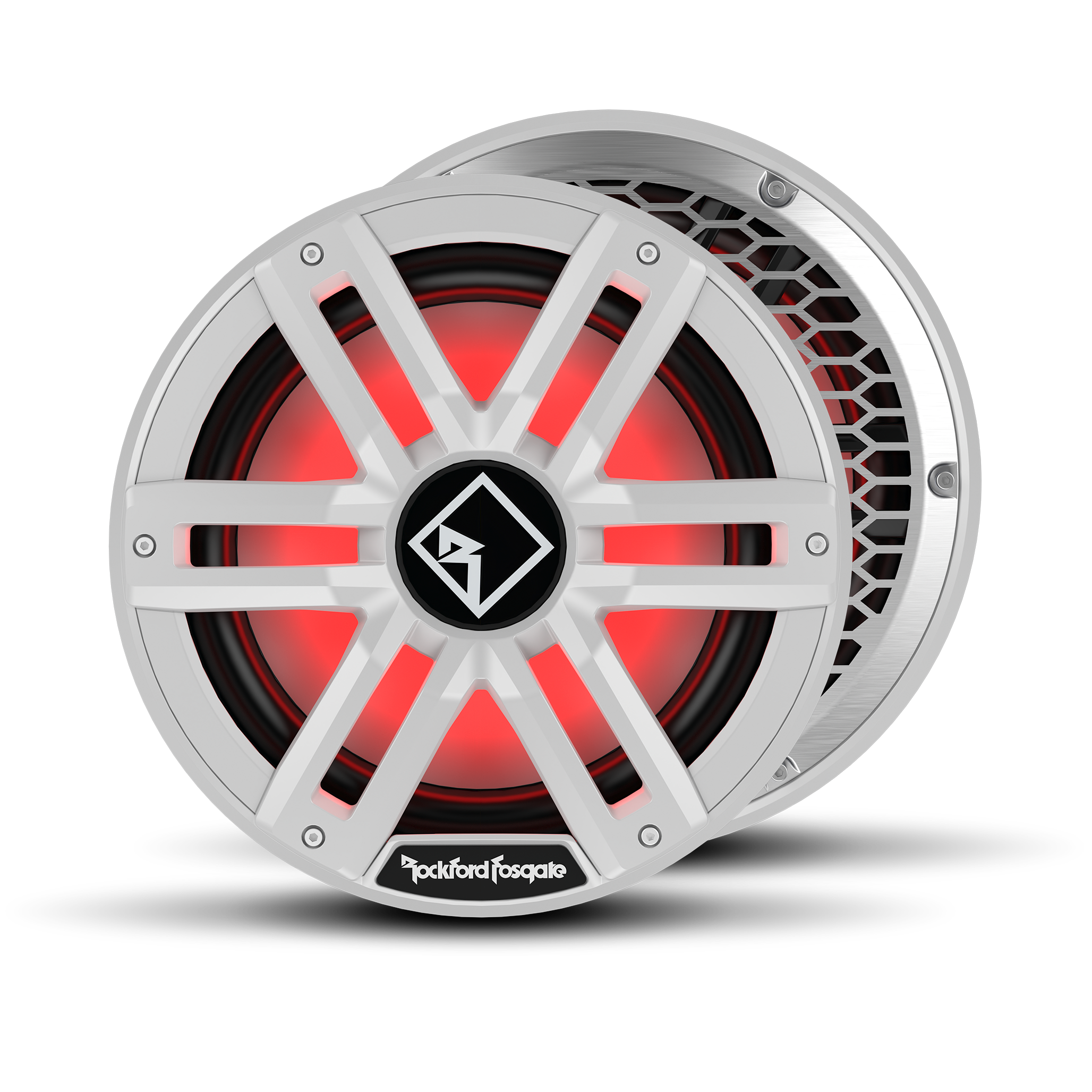

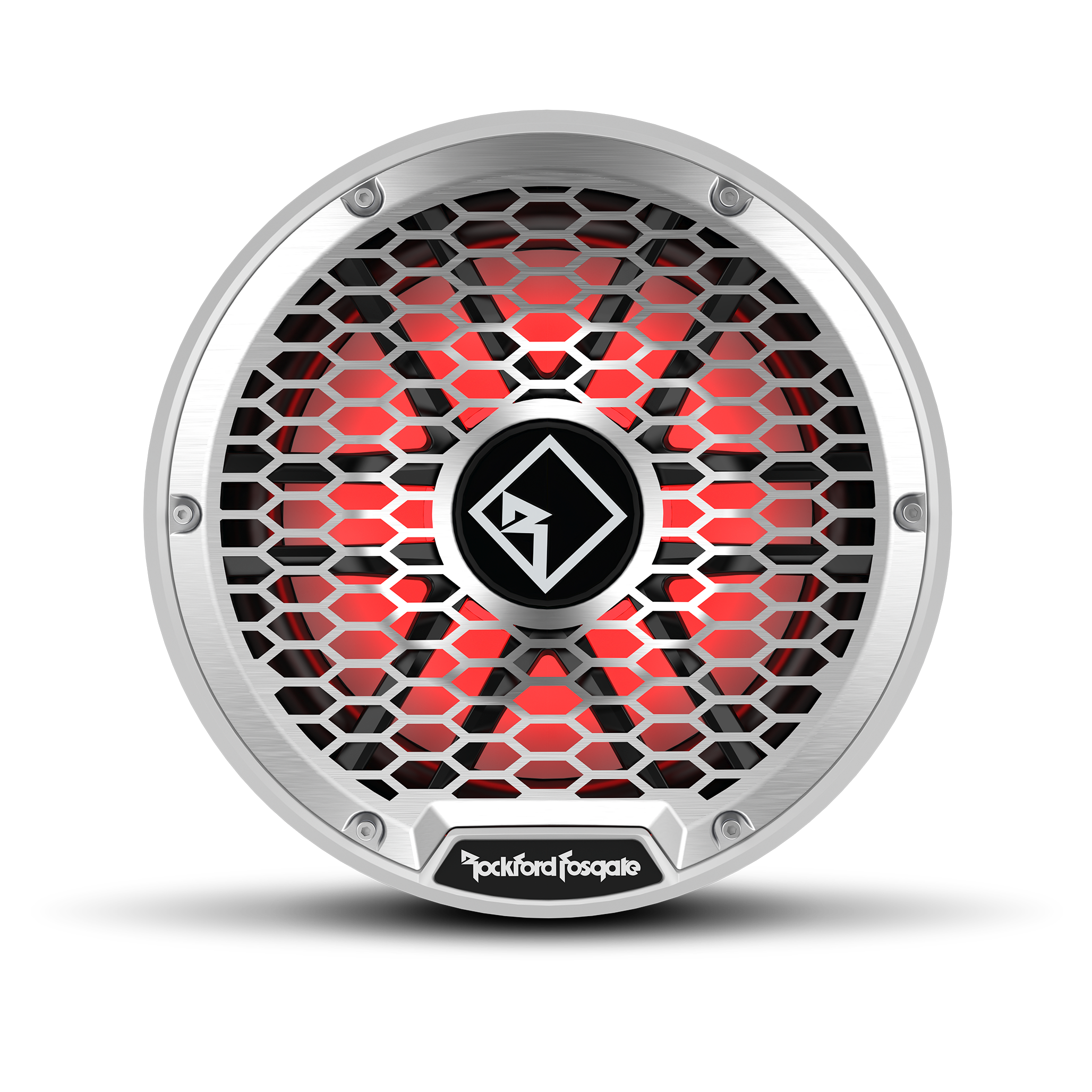

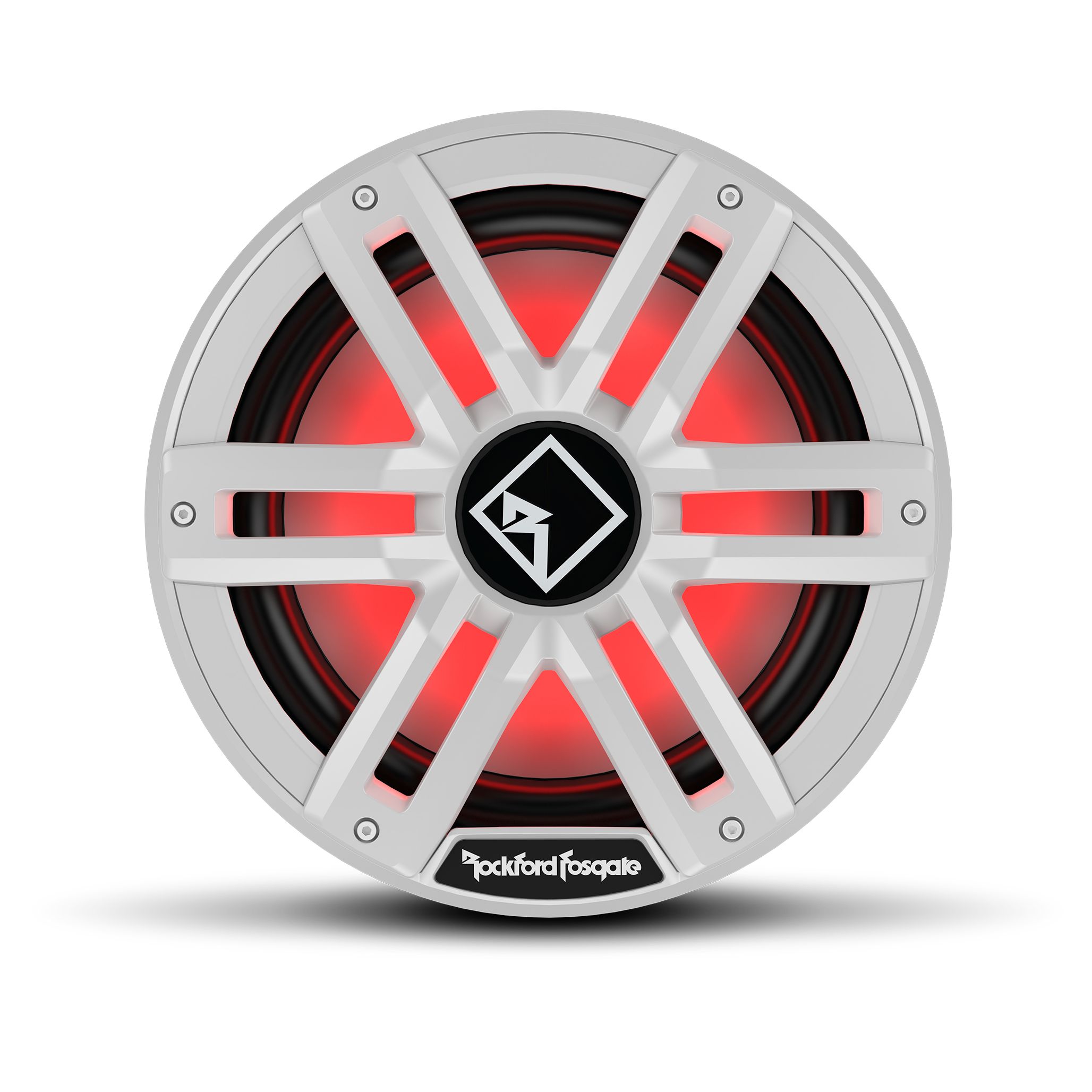

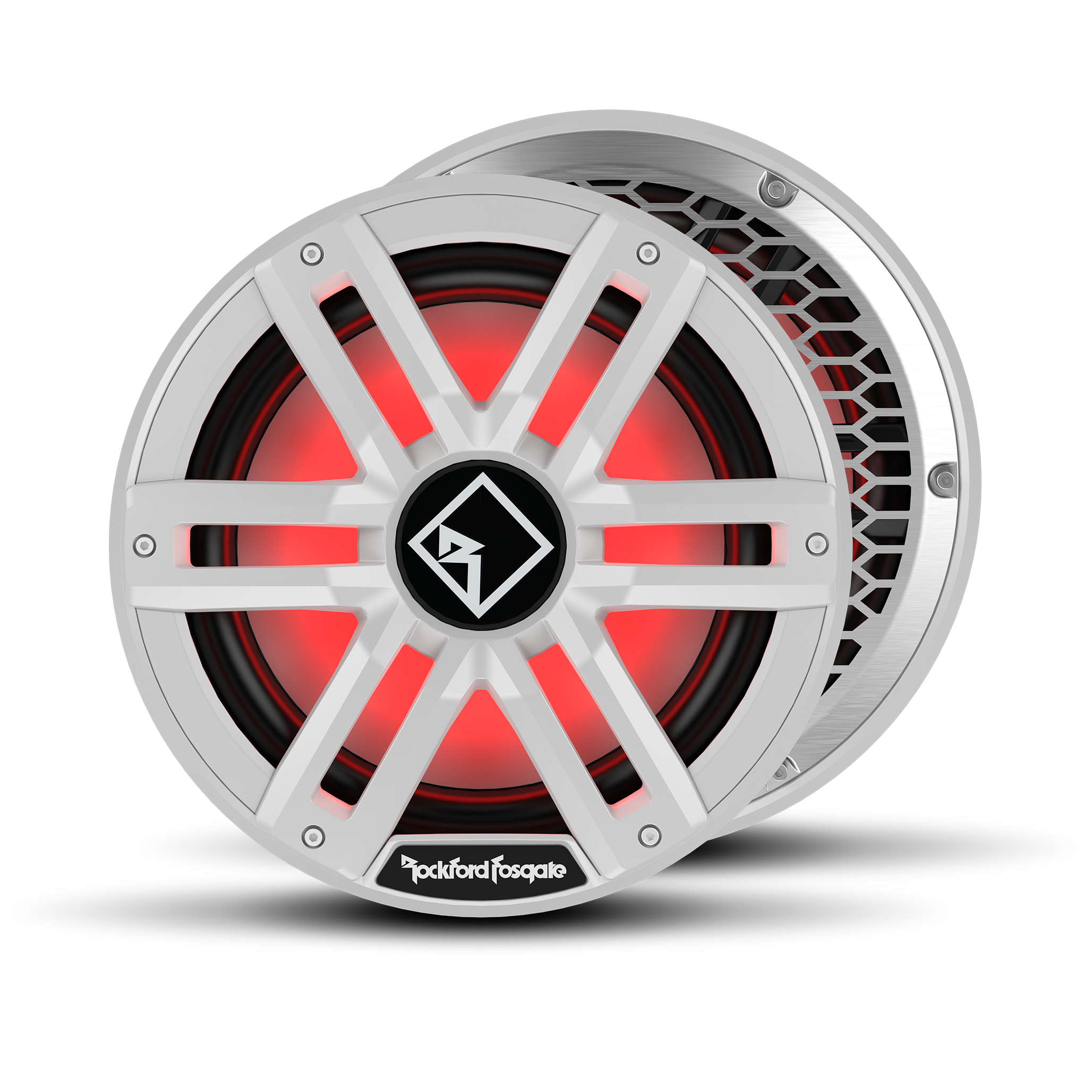

• 2-piece grille allows for interchangeable stainless-steel or "sport" option
• IPX6 Water Intrusion Rated
• Gold plated marine grade brass terminals provide a corrosion resistant connection
• Klippel Verified certification program delivers the best possible loudspeakers
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• 2-Year Warranty

Specifications

• Size: 12"
• Re (Ohms): 6.5
• Fs (Hz): 32
• Le (mH): 3.43
• Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
• Power Handling (Watts RMS): 400 Watts RMS; 1,600 Watts PEAK
• Voice Coil Type: Dual Voice Coil
• Voice Coil Diameter: 1.95" (49.53 mm)
• Magnet Weight (oz): 61.09 oz. (1.7 Kg)
• Frequency Response (Hz): 20 Hz - 750 Hz
• Sd (cm2): 539
• Qms: 4.26
• Qts: 0.85
• Qes: 1.08
• Vas: 7
• SPL (dB @ 1w/1m): 88
• Speaker Connector: 2-pin DeutschTM and 1/8" Spade
• Xmax (mm): 15
• SPL (dB @ 2.8v): 89
• Cutout Diameter: 11" (279.4 mm)

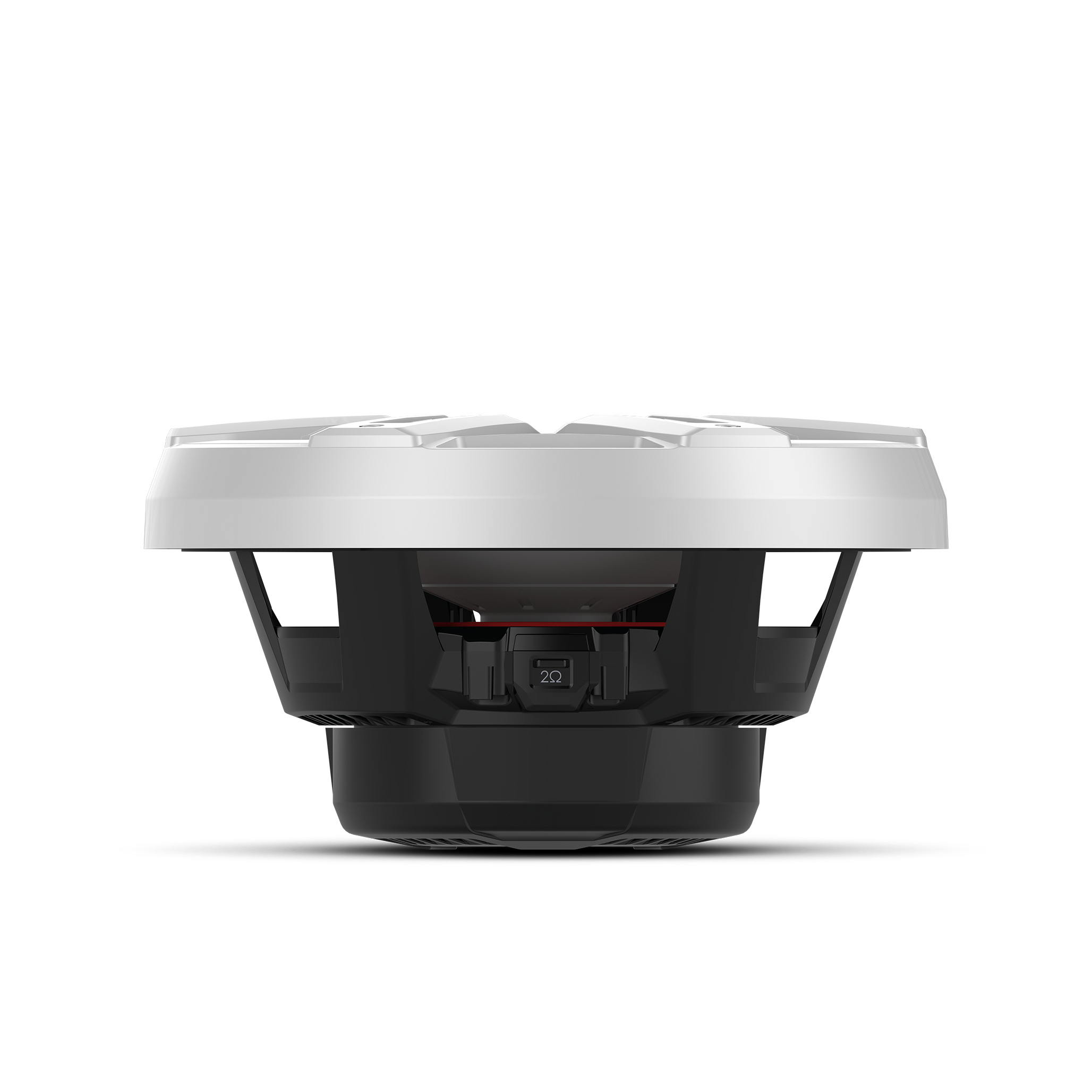

• Mounting Depth: 4.87" (123.8 mm)
• Sealed Box Volume (Vb): 0.75 (21 Liters)
• Woofer Displacement: 0.121 (3.43 Liters)
• Shipping Weight: 10.64 Lbs. (4.83 Kg.)
