Overview

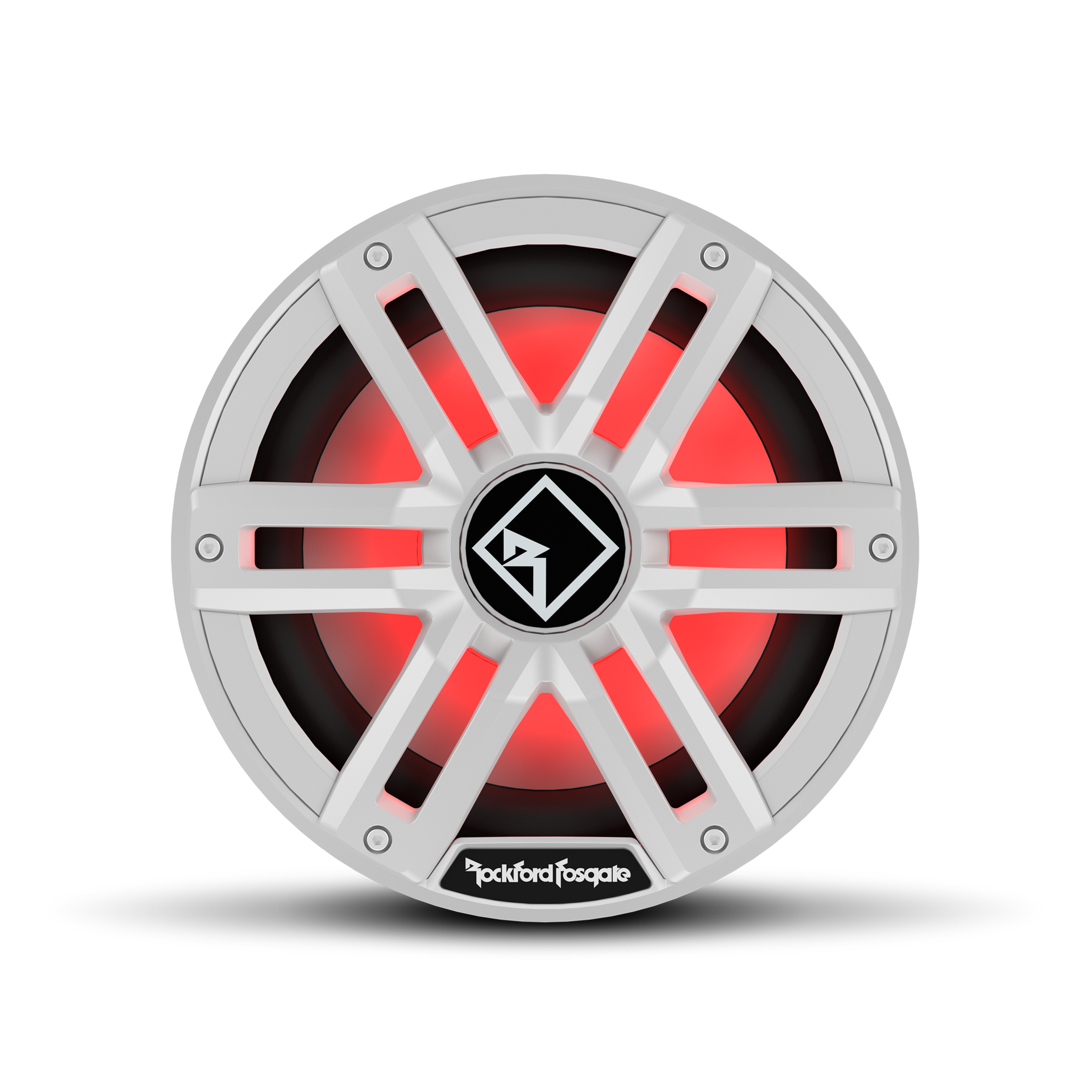

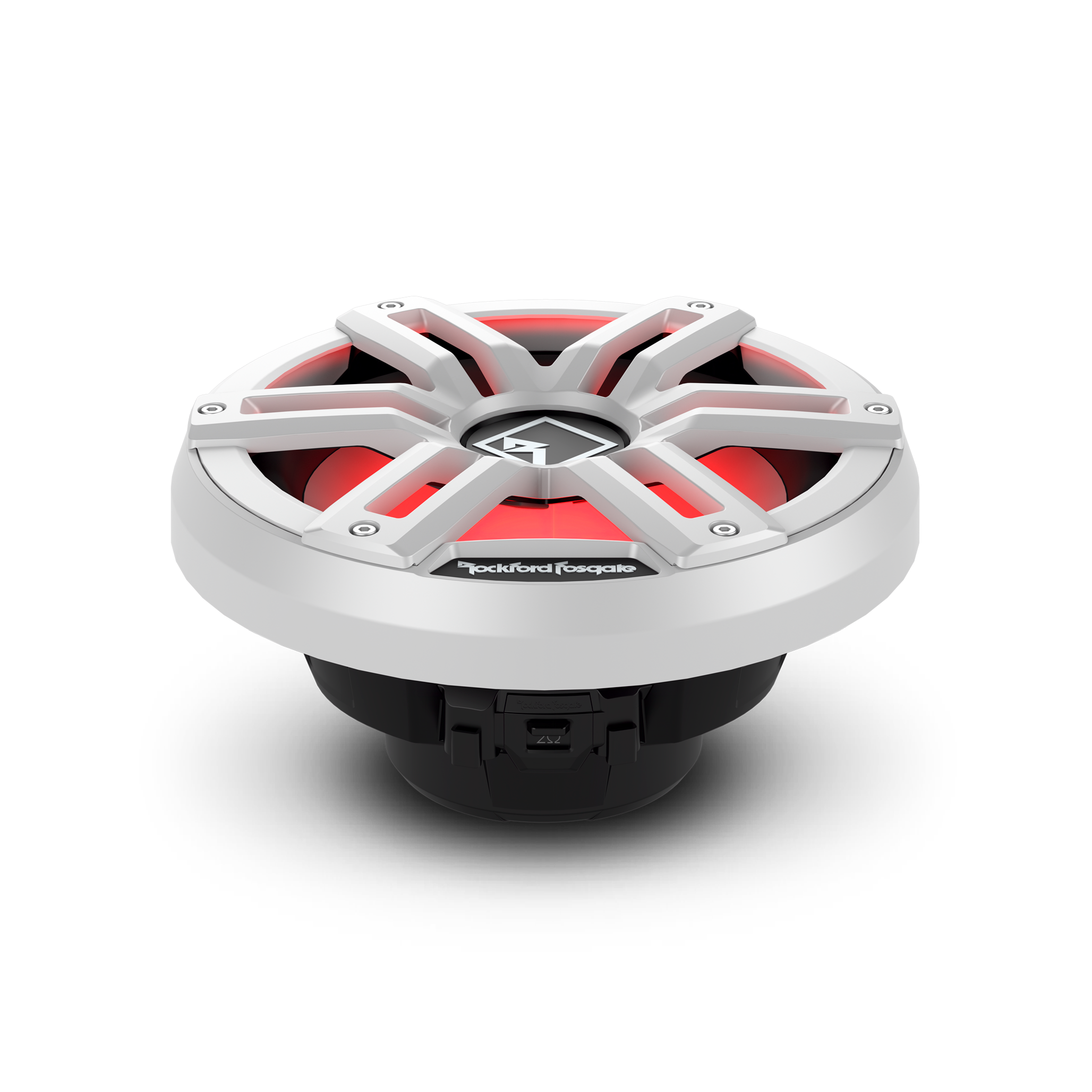

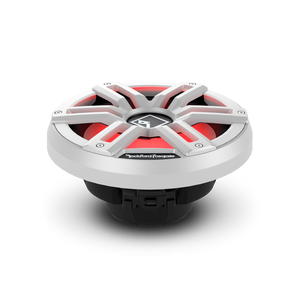

M2D4-10S is a 10" DVC 4-Ohm "S" model for small sealed enclosures. Includes 2-piece grille with interchangeable plastic & stainless-steel insert. Shop today!
Features

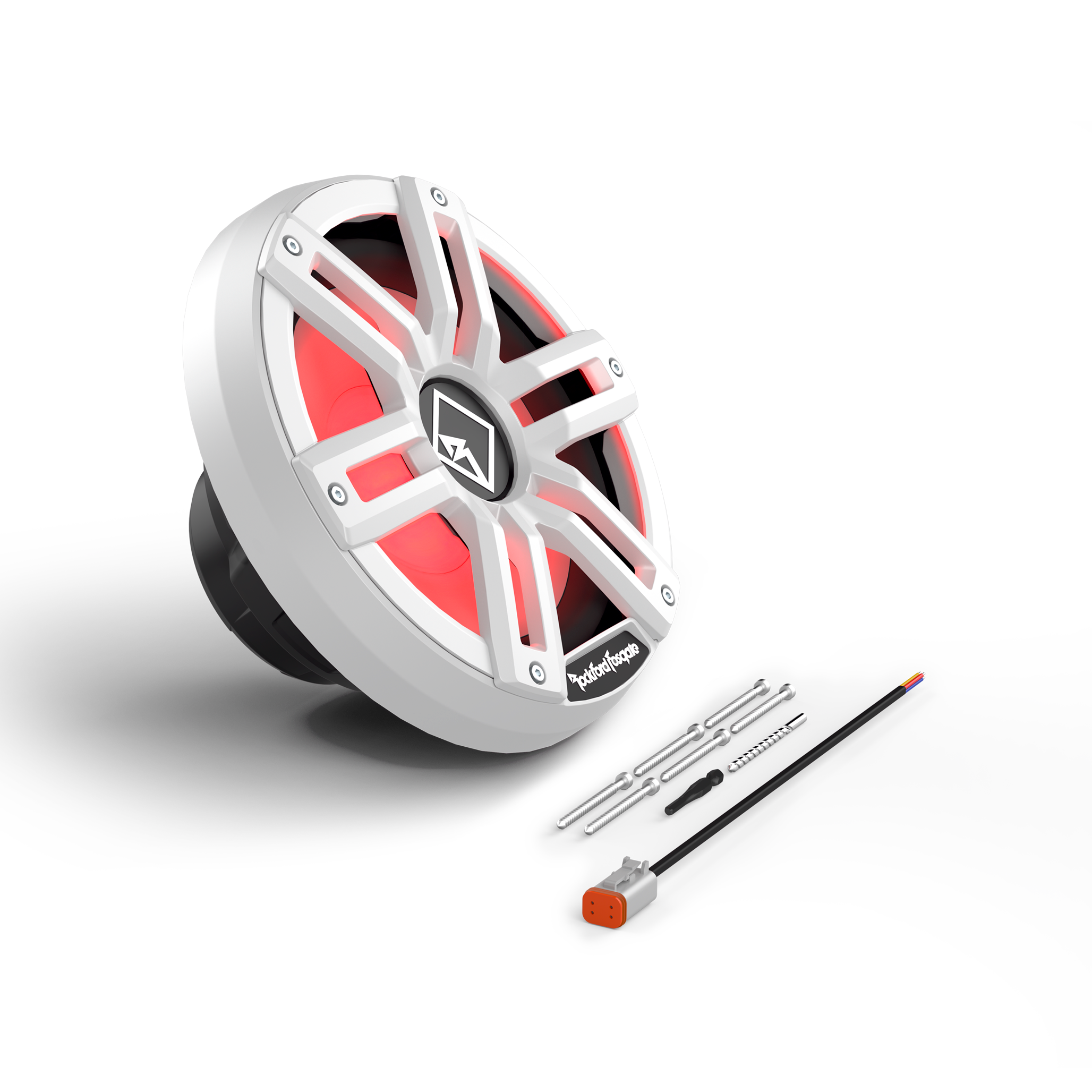

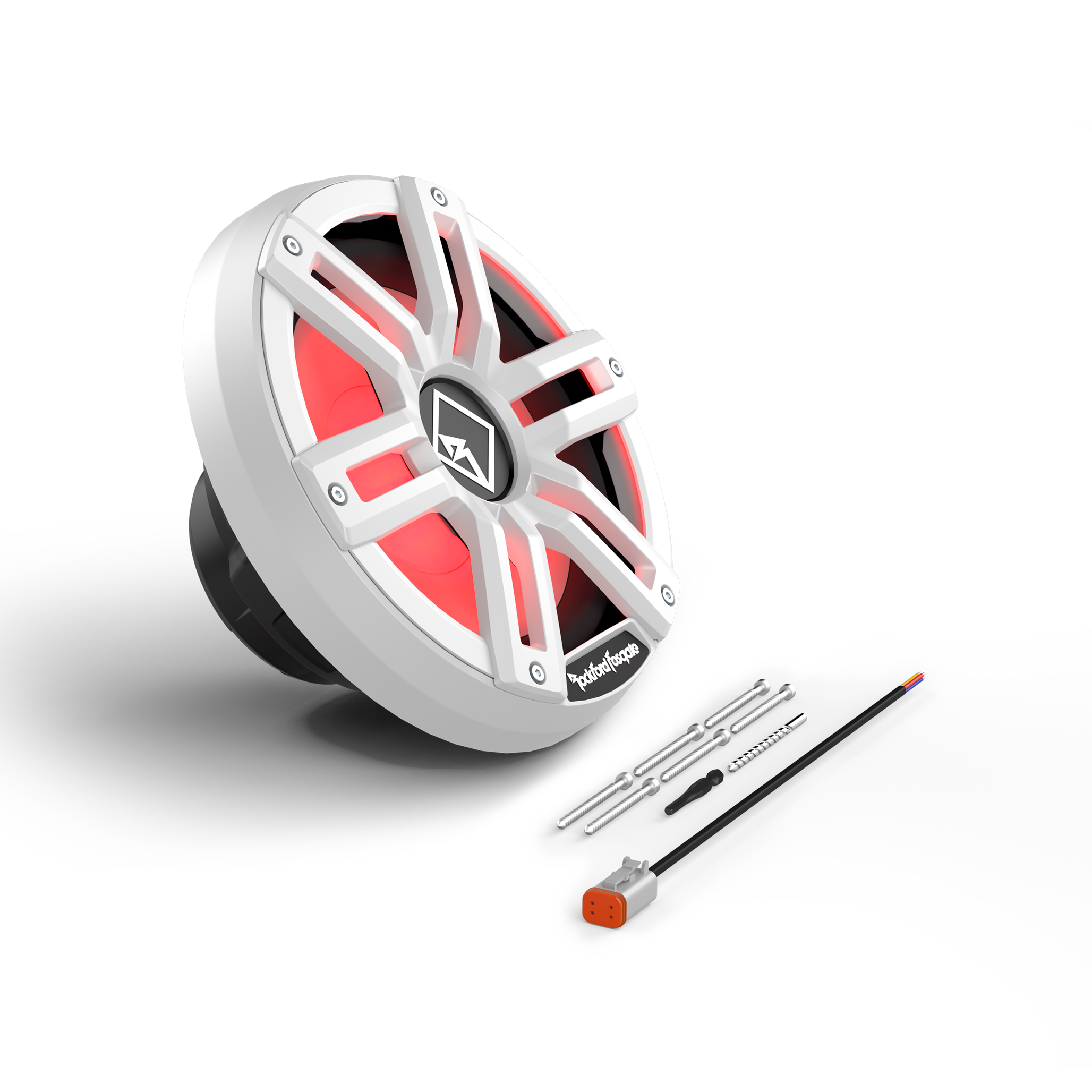

- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- Optimized for small sealed enclosures when there is very little space for an enclosure
- Element Ready TM design protects against outdoor exposure

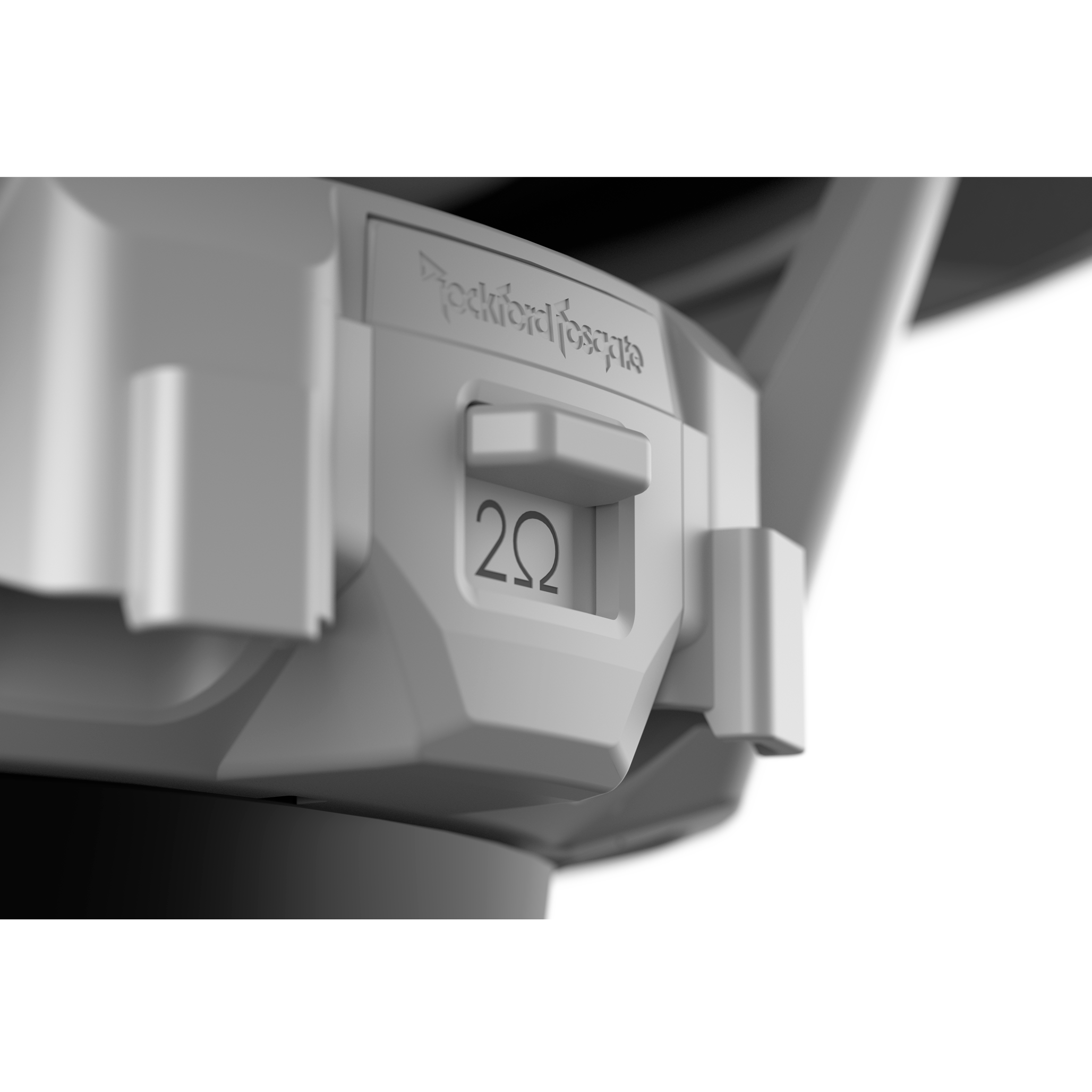

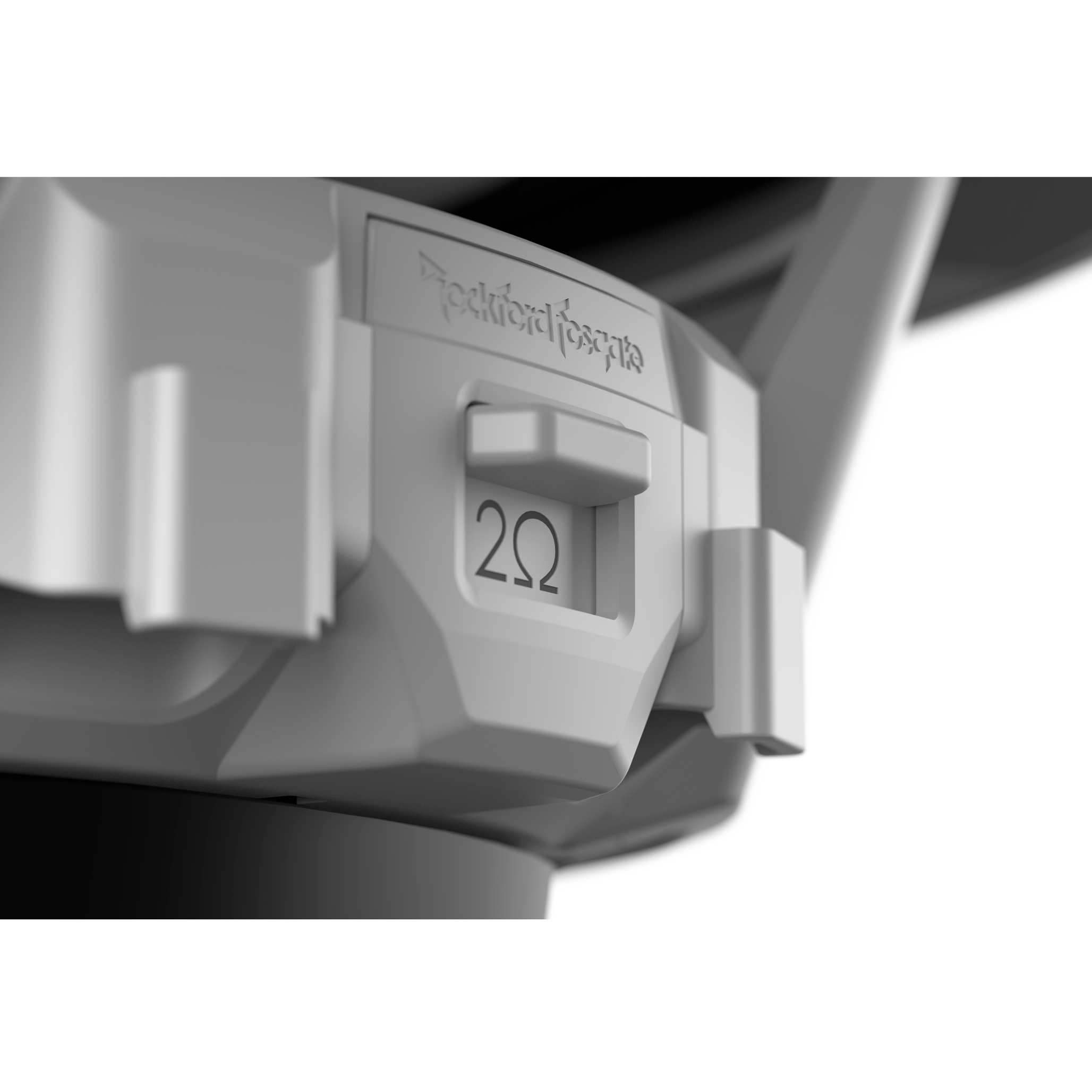

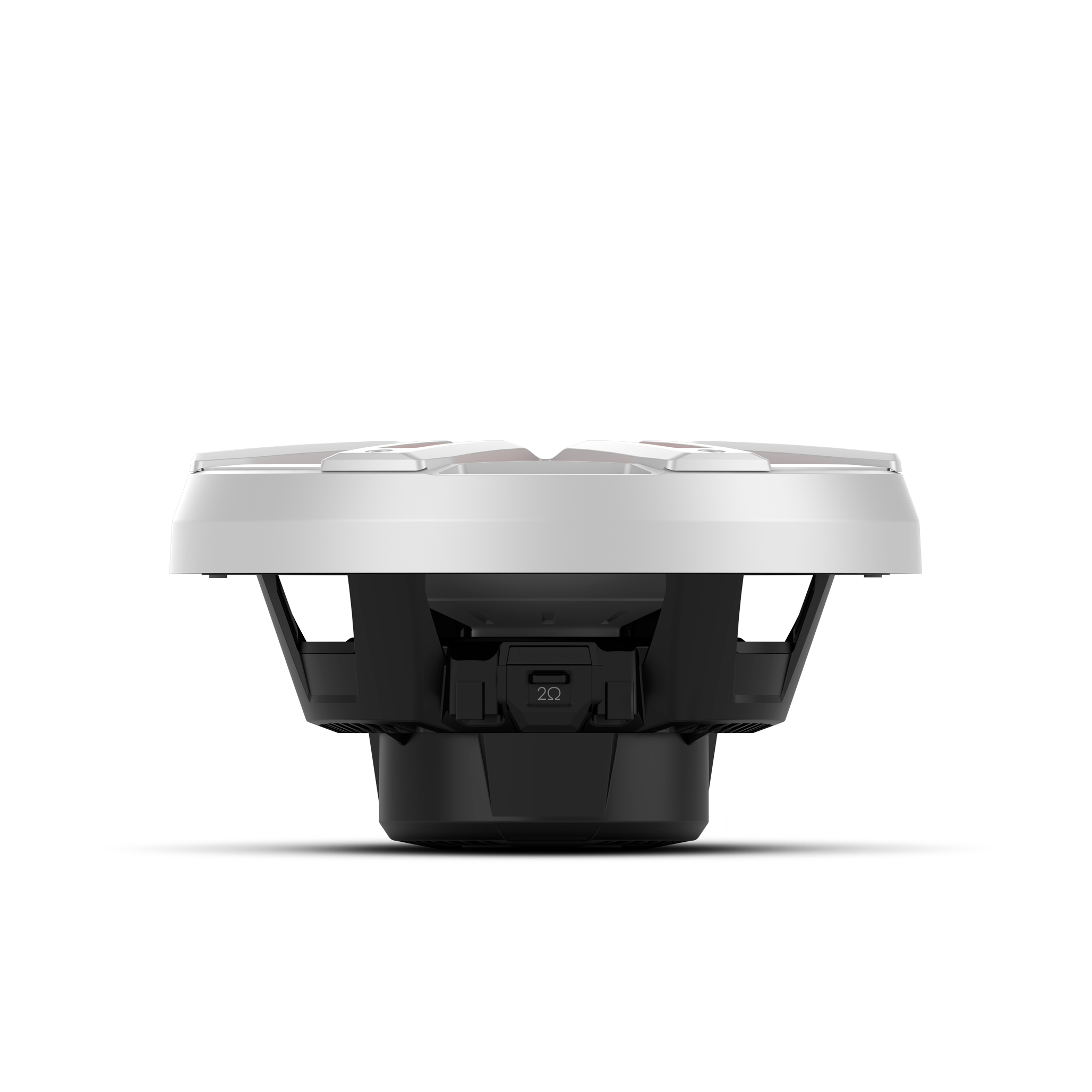

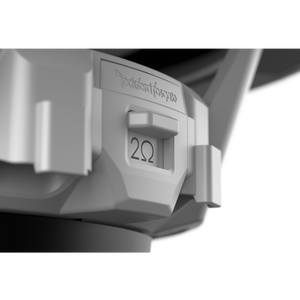

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Adjust color experience to suit your taste with Rockford Fosgate Color Optix TM controller (optional)
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination

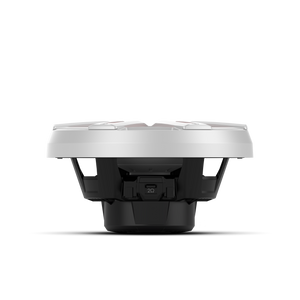

- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals

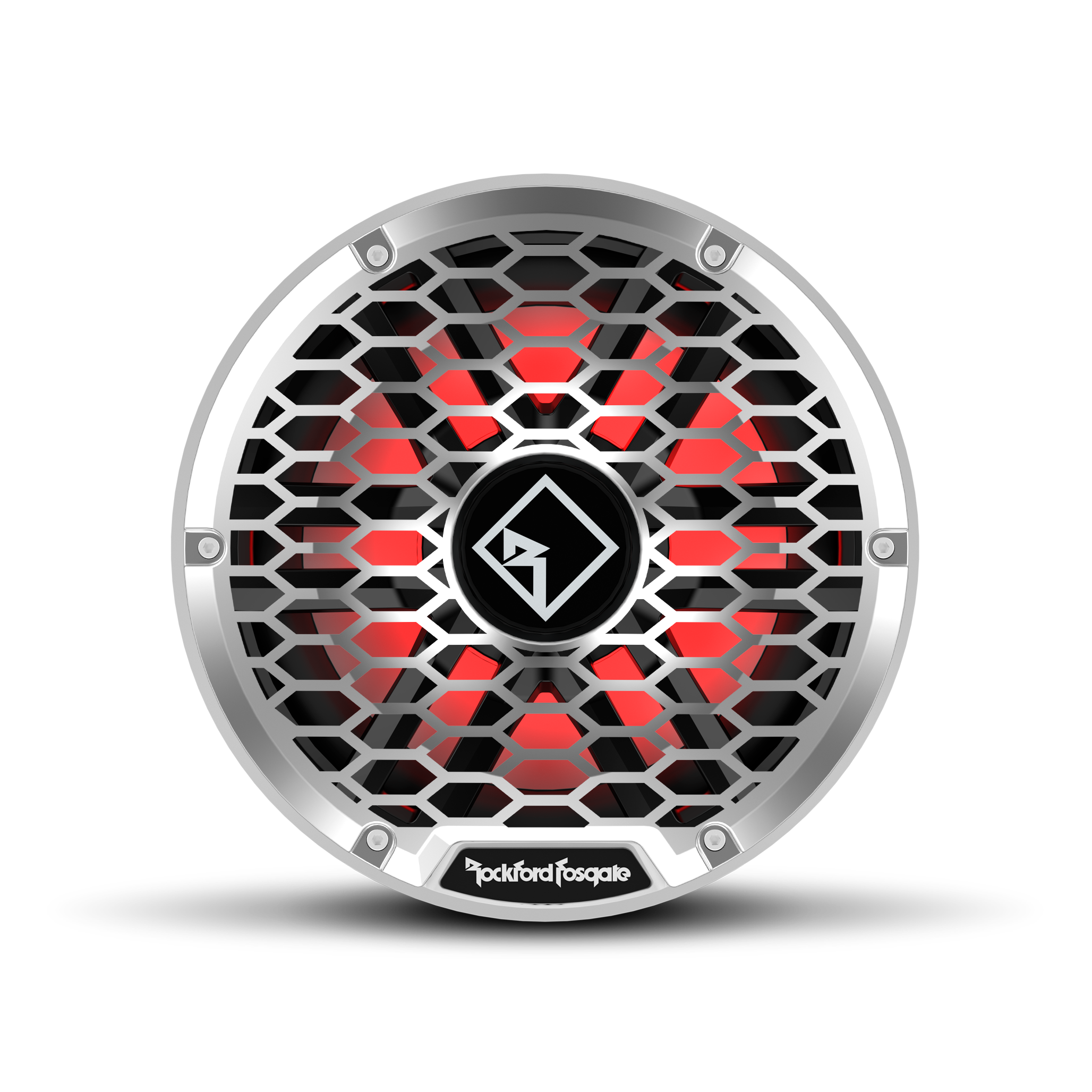

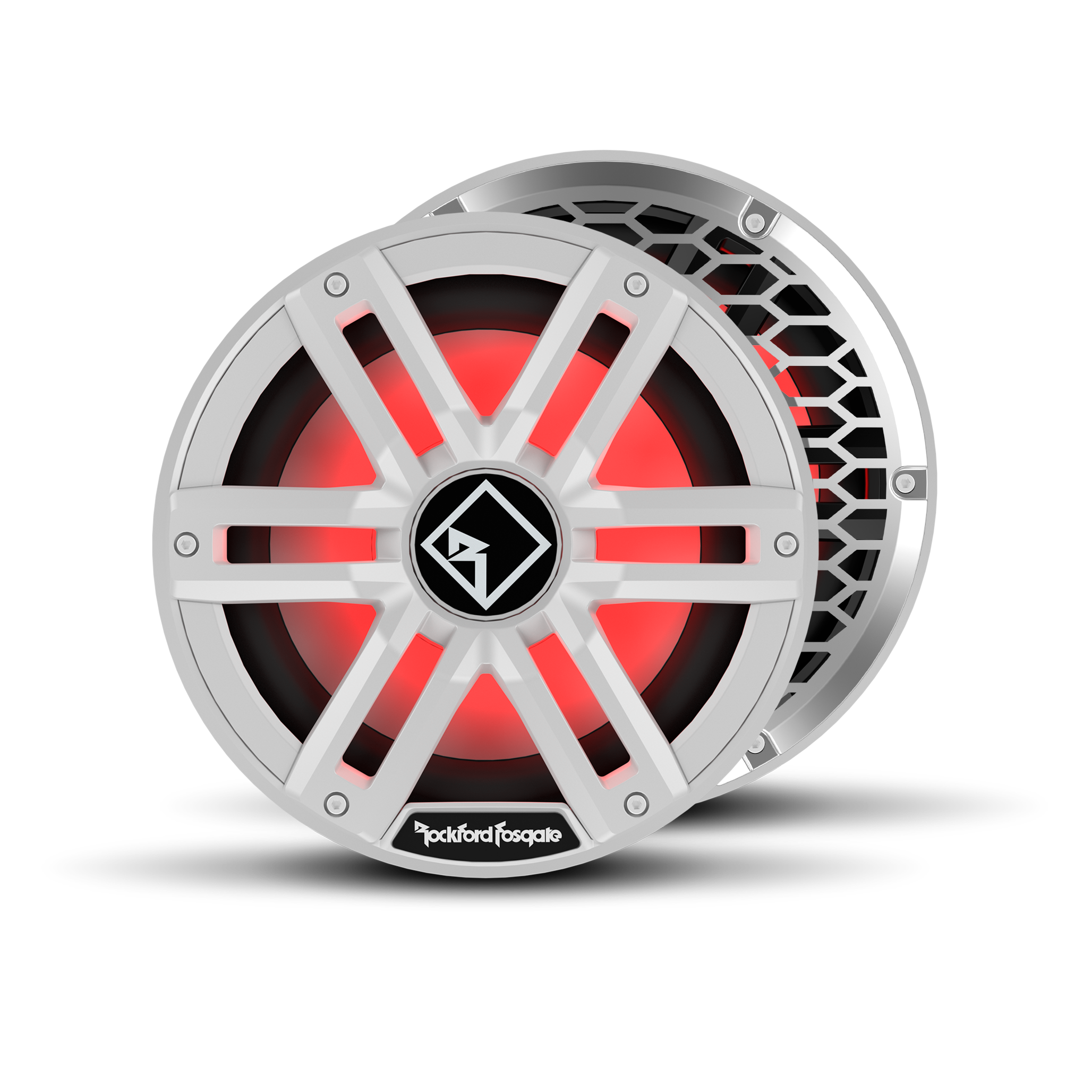

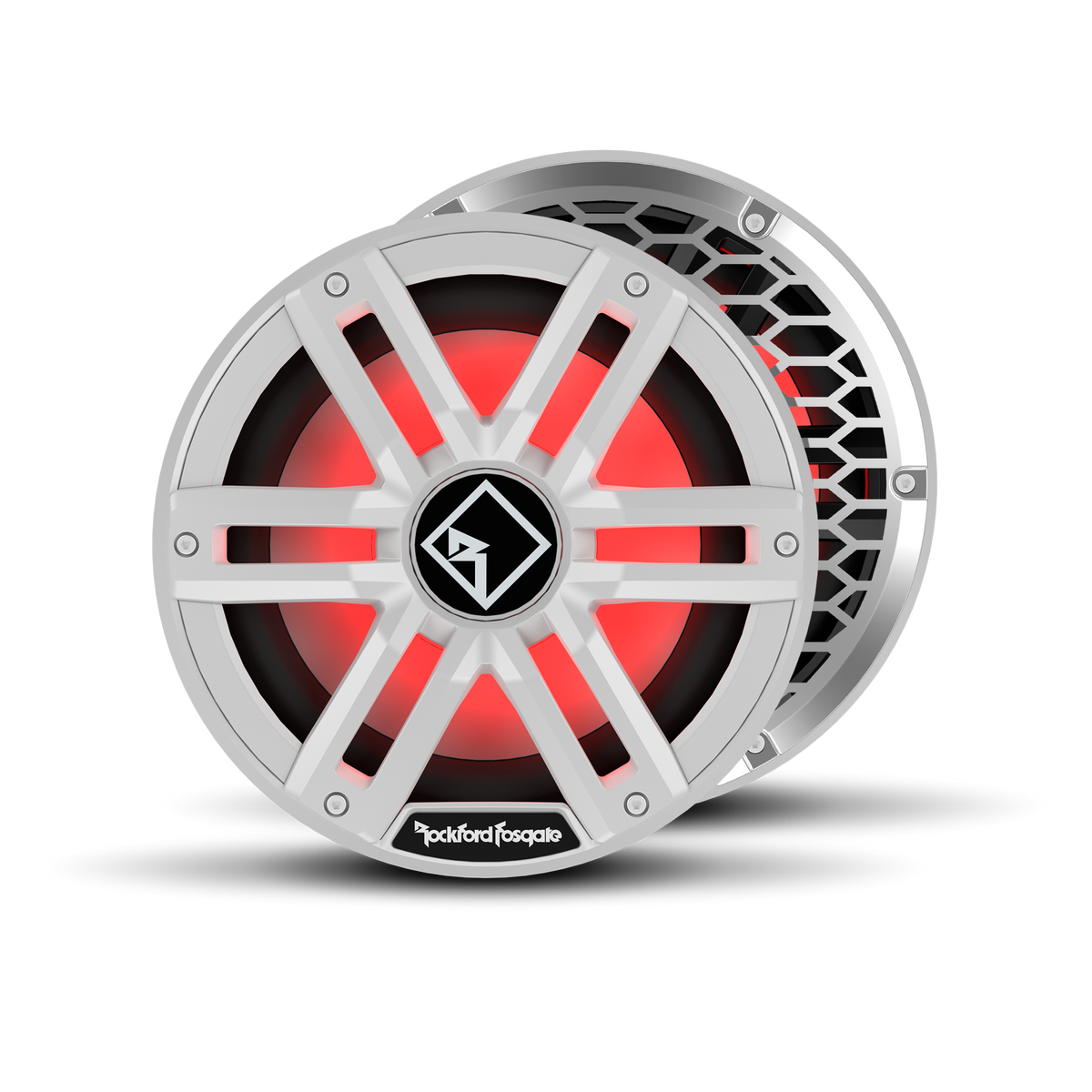

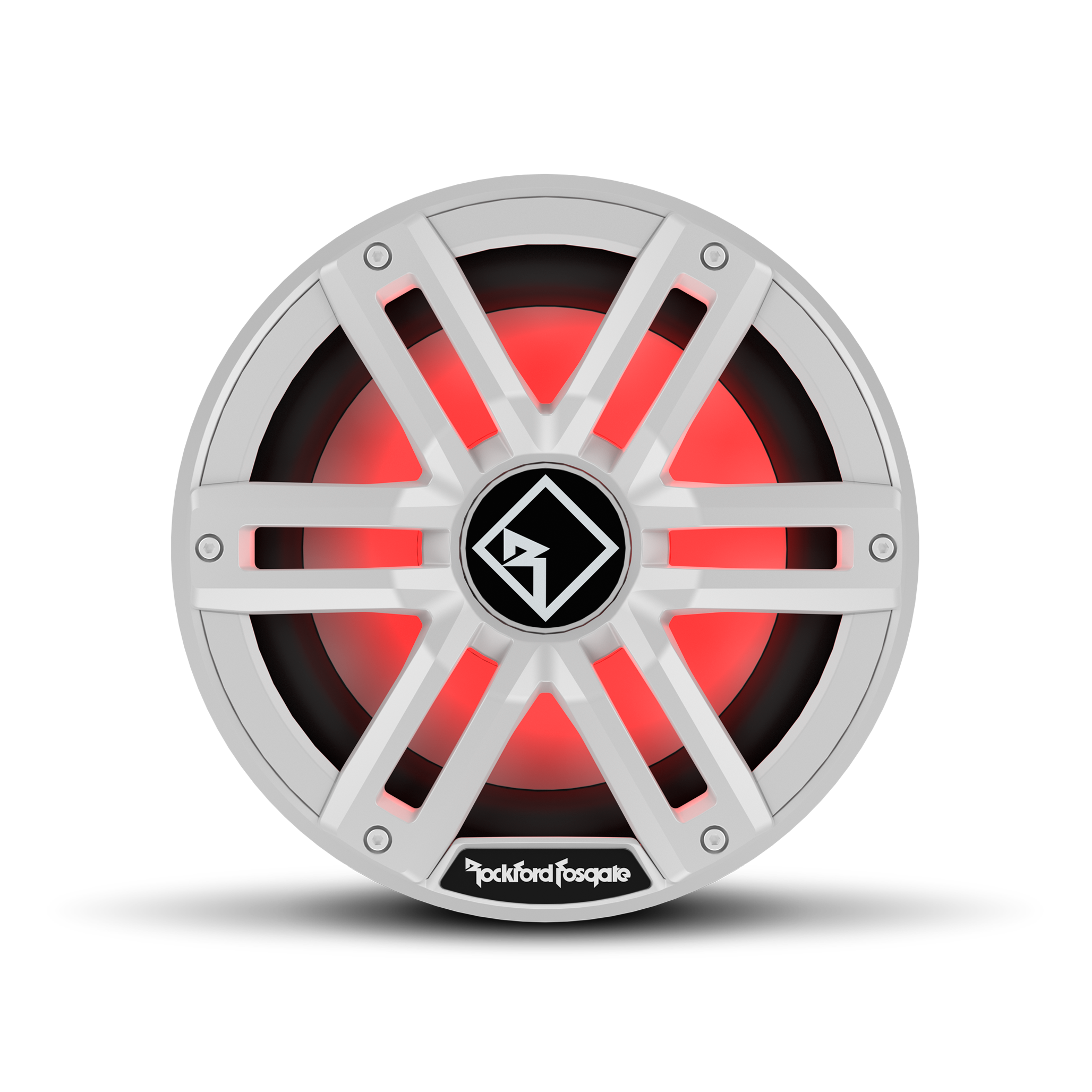

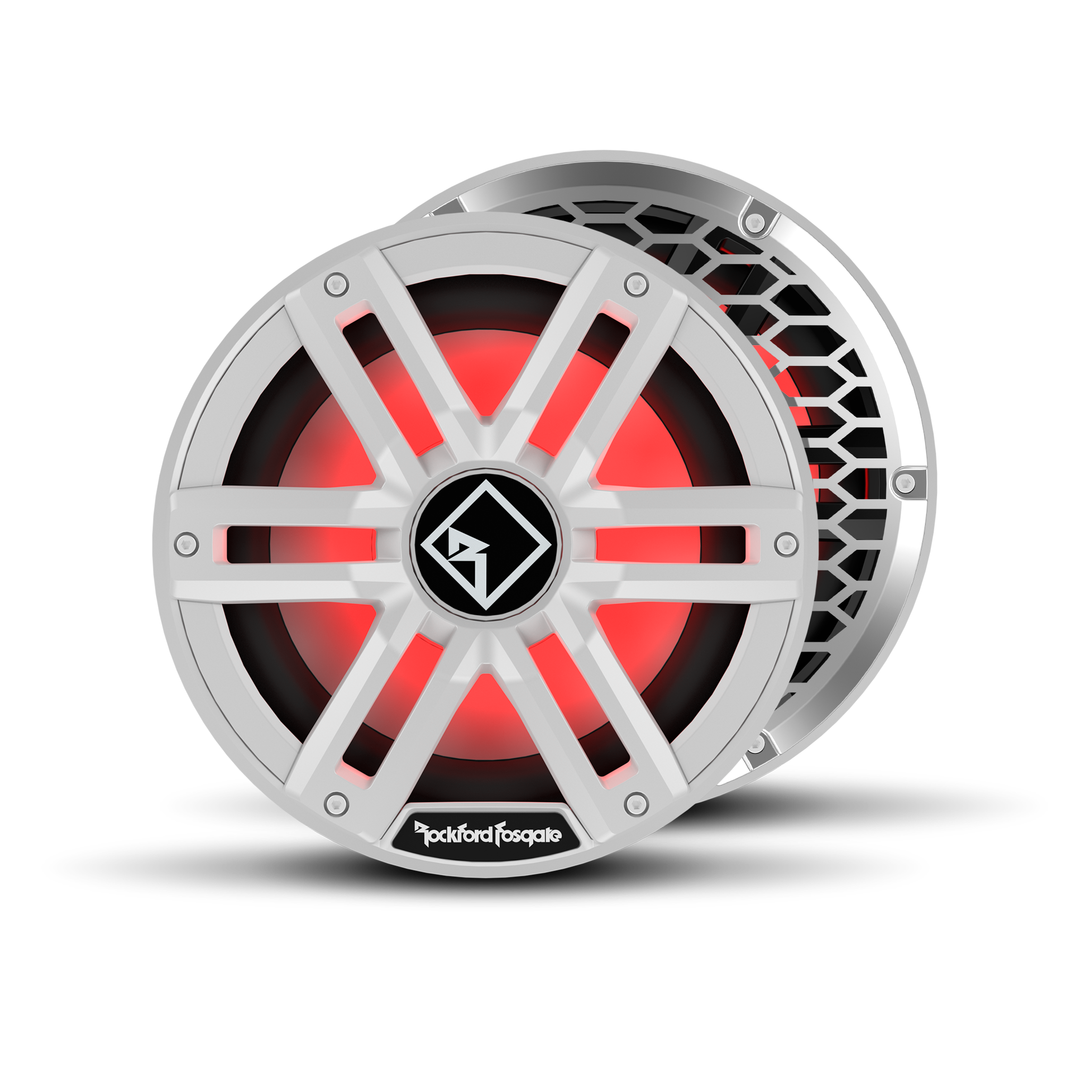

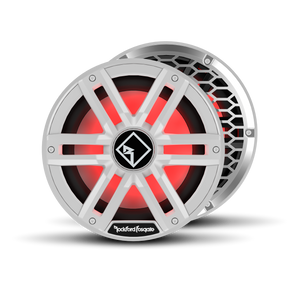

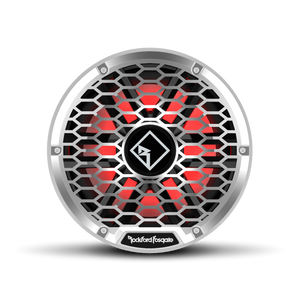

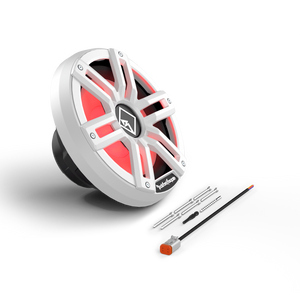

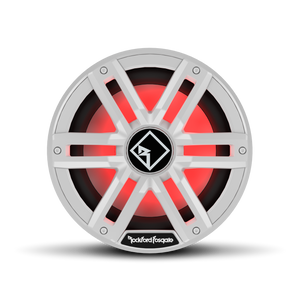

- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- DeutschTM connector front/rear silicone seal protects against water ingress
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Klippel Verified certification program delivers the best possible loudspeakers
- IPX6 Marine Grade for prevention of water intrusion
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- 2-Year Warranty
Specifications
- Power Handling (Watts RMS): 400 Watts
- Size: 10"
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Voice Coil Type: Dual Voice Coil
- Voice Coil Diameter: 1.95" (49.53 mm)
- Fs (Hz): 28
- Magnet Weight (oz): 32.9 oz. (0.9 Kg)
- Re (Ohms): 6.5
- Le (mH): 3.43
- Sd (cm2): 363
- Qms: 5.18
- Qes: 1.07
- Sealed Box Volume (Vb): 0.5 cu. ft. (14 Liters)
- Qts: 0.89
- Vas: 38.2
- SPL (dB @ 1w/1m): 86
- Xmax (mm): 12
- Woofer Displacement: 0.07 cu. ft. (2.03 Liters)
- Speaker Connector: DeutschTM and 1/8" Spade
- Cutout Diameter: 8.87 in. (225.3 mm)
- Mounting Depth: 4.24 in. (107.7 mm)
- Shipping Weight: 8.5 Lbs. (3.85 Kg)
