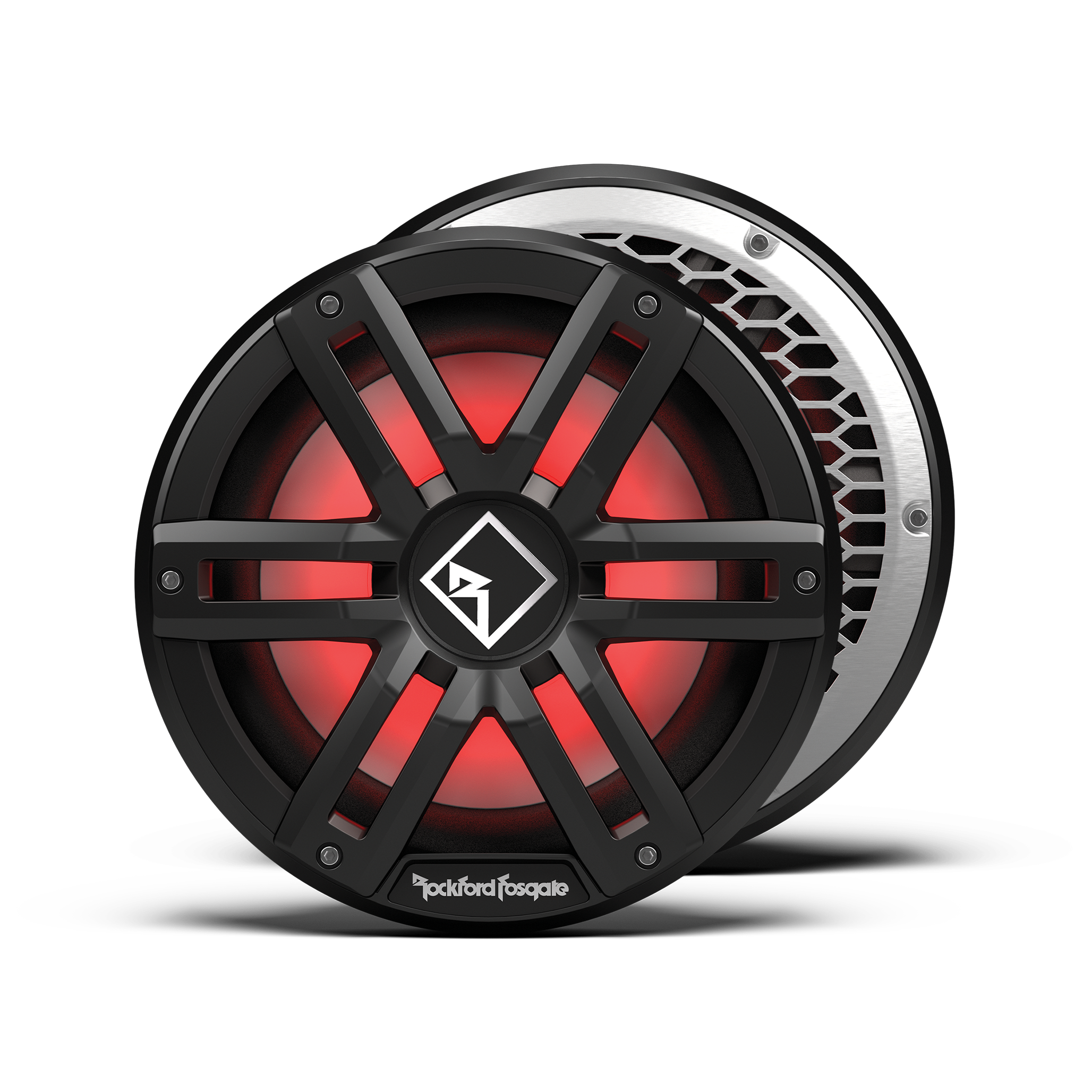

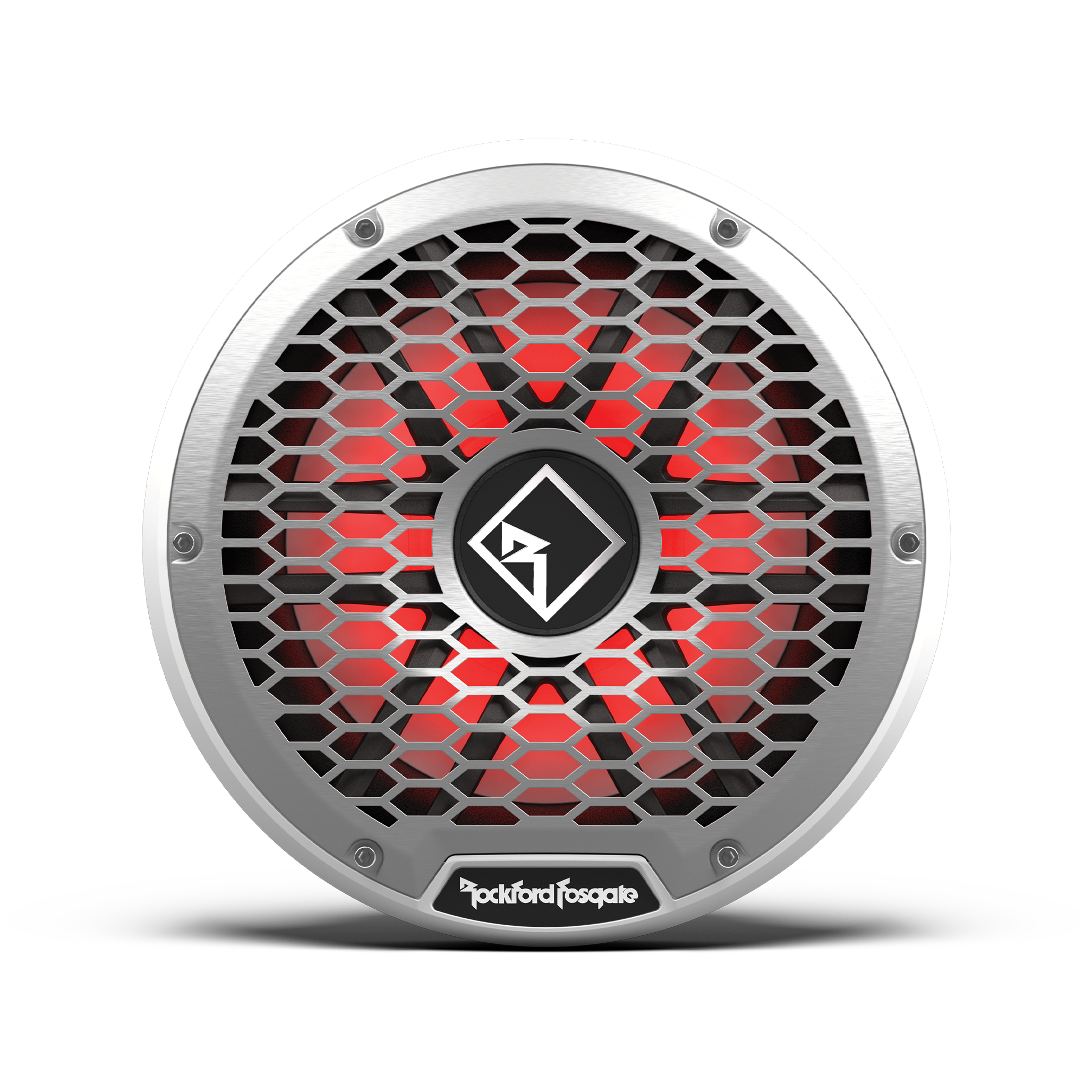

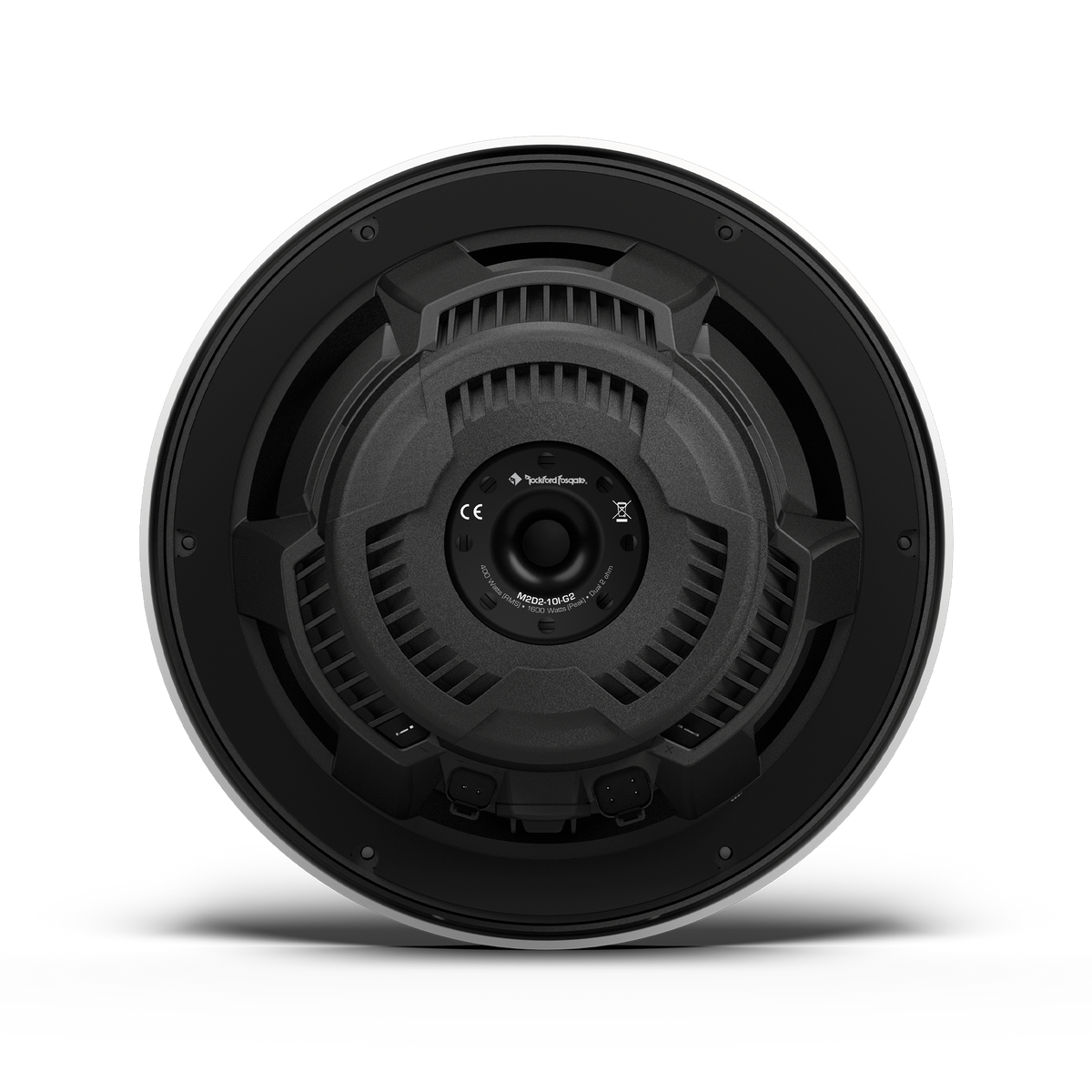

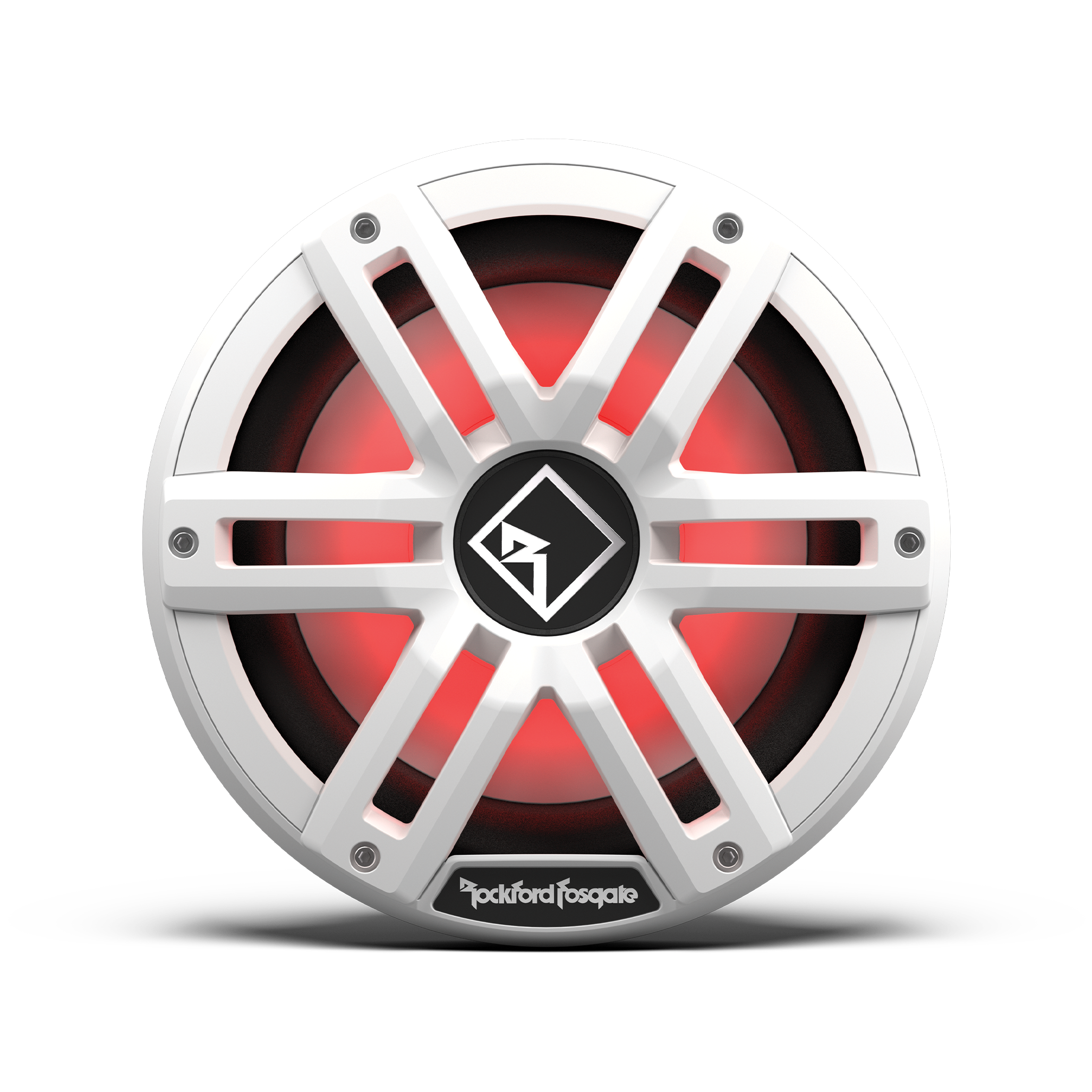

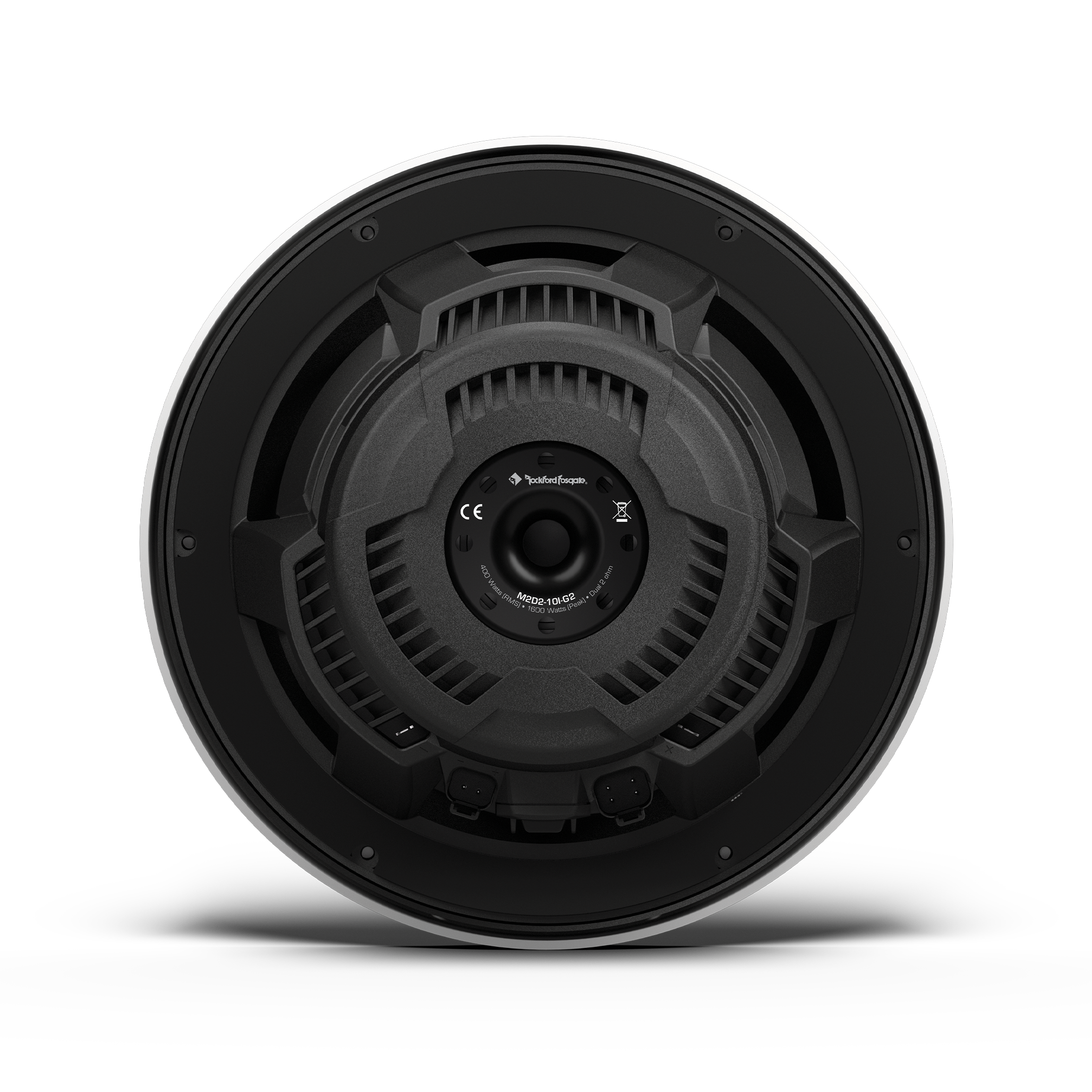

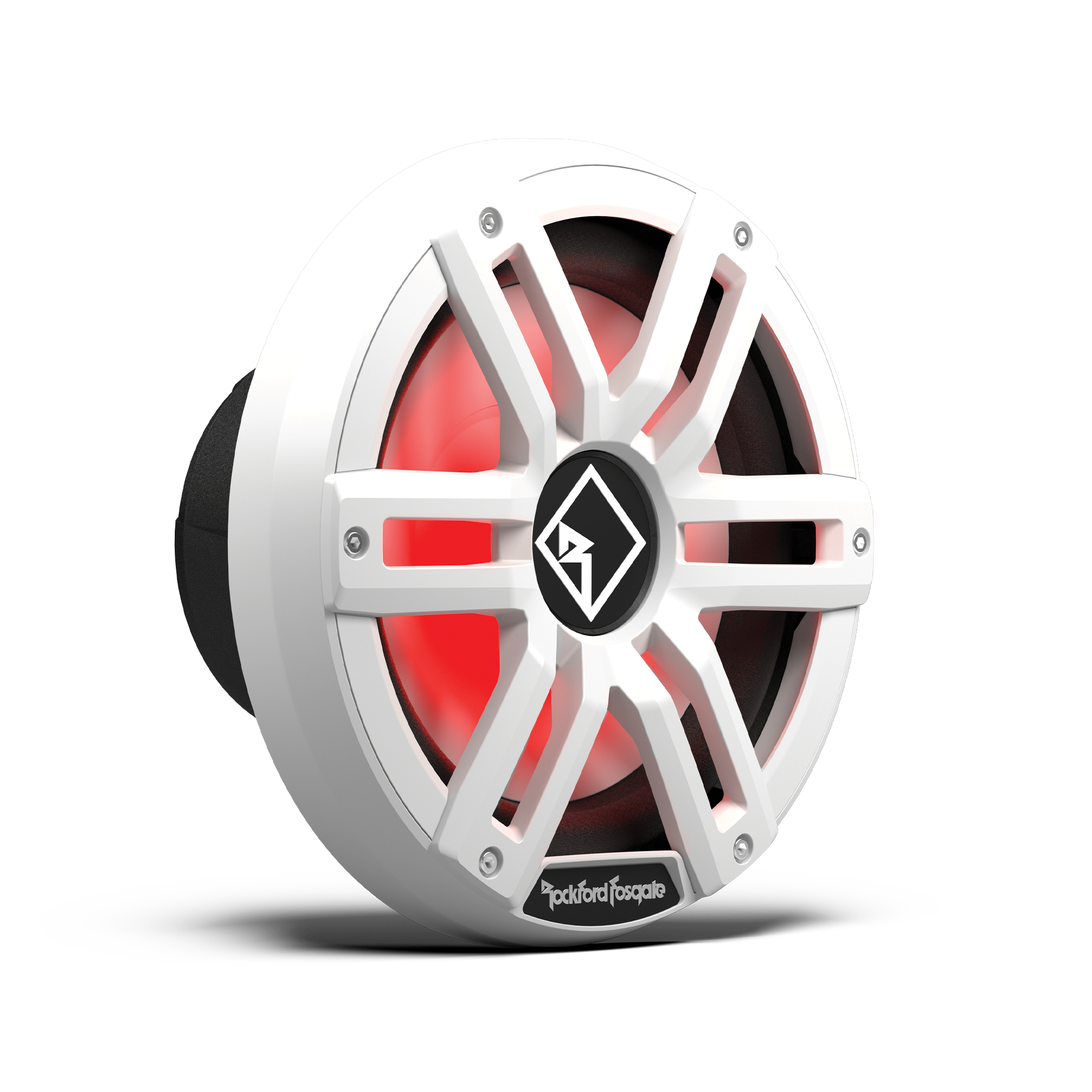

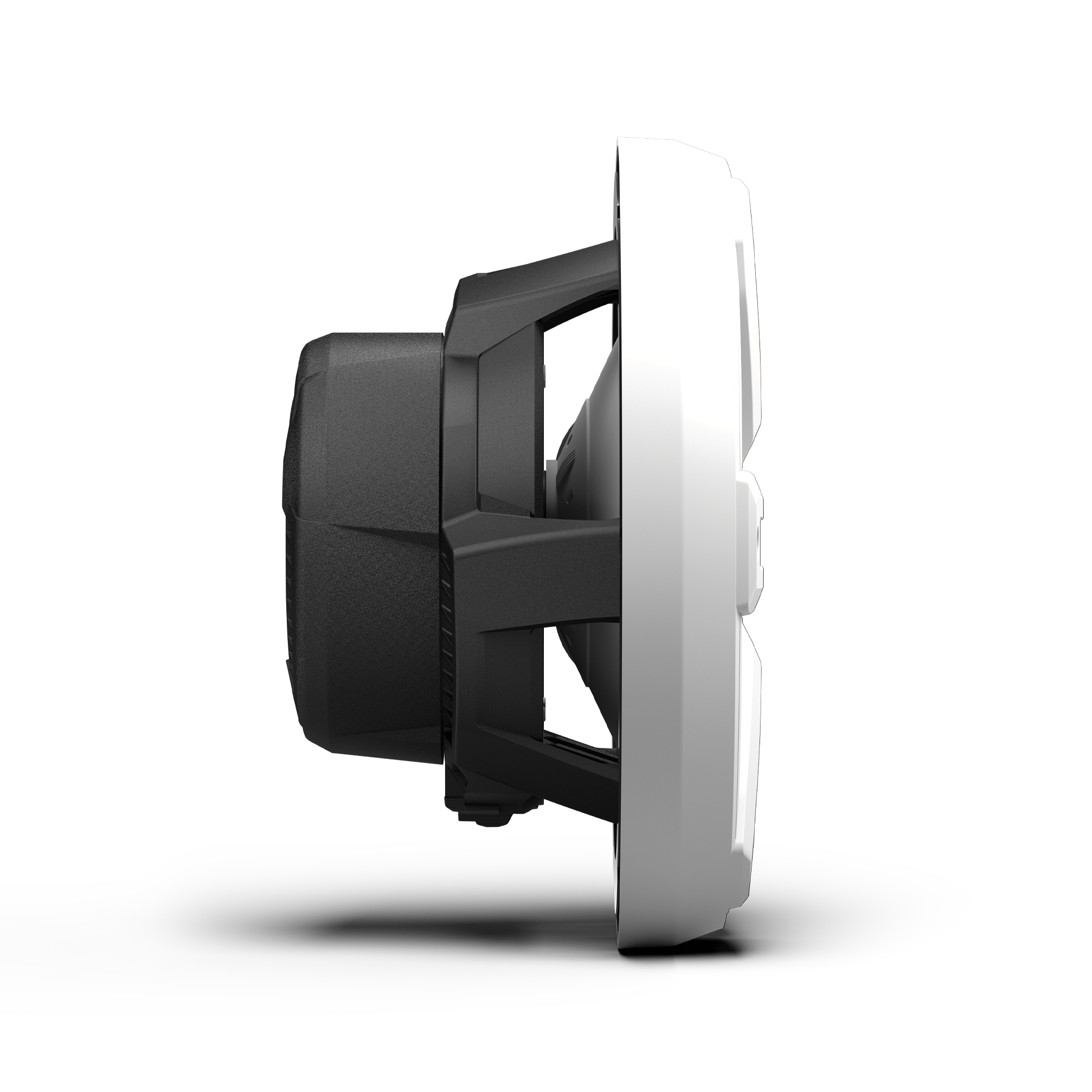

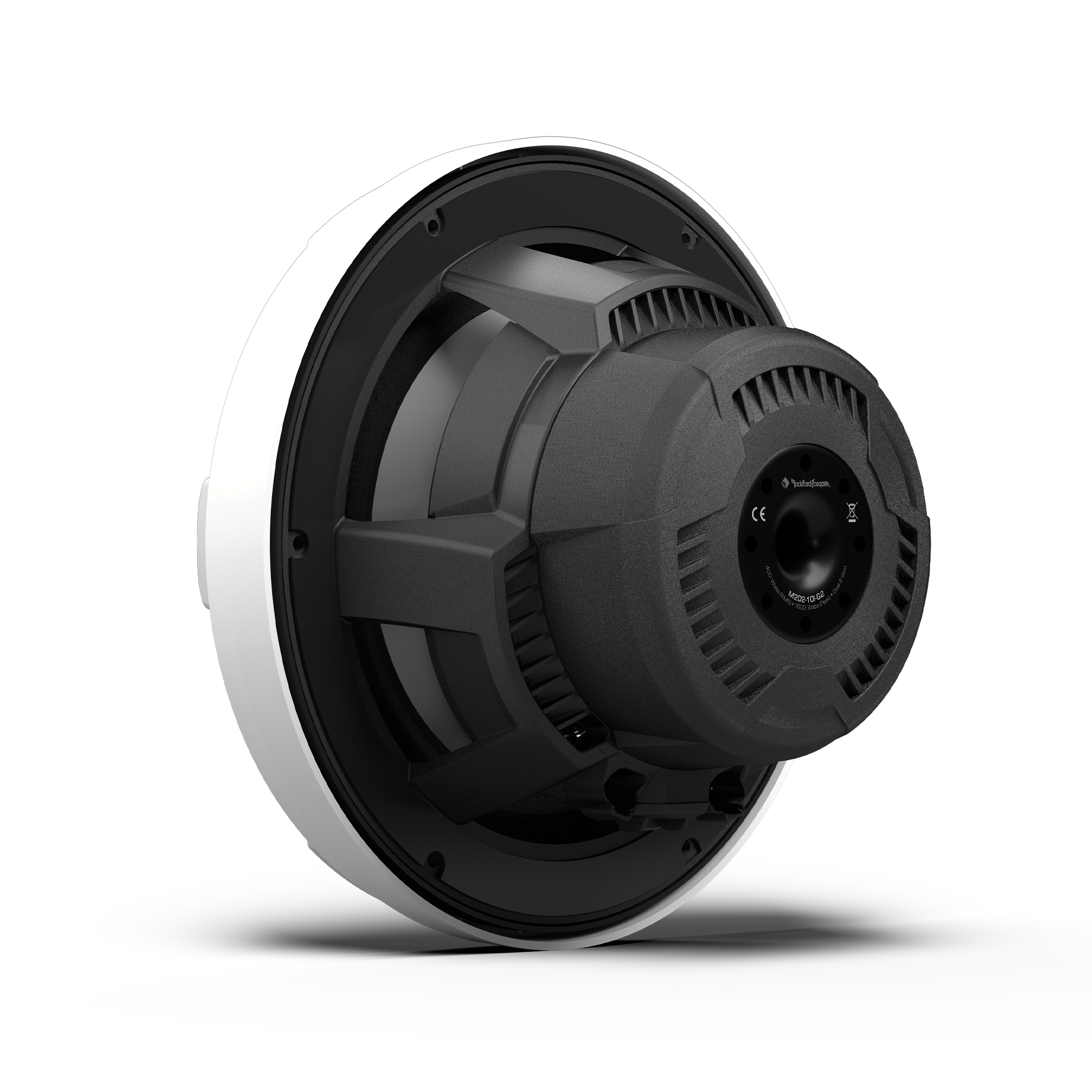

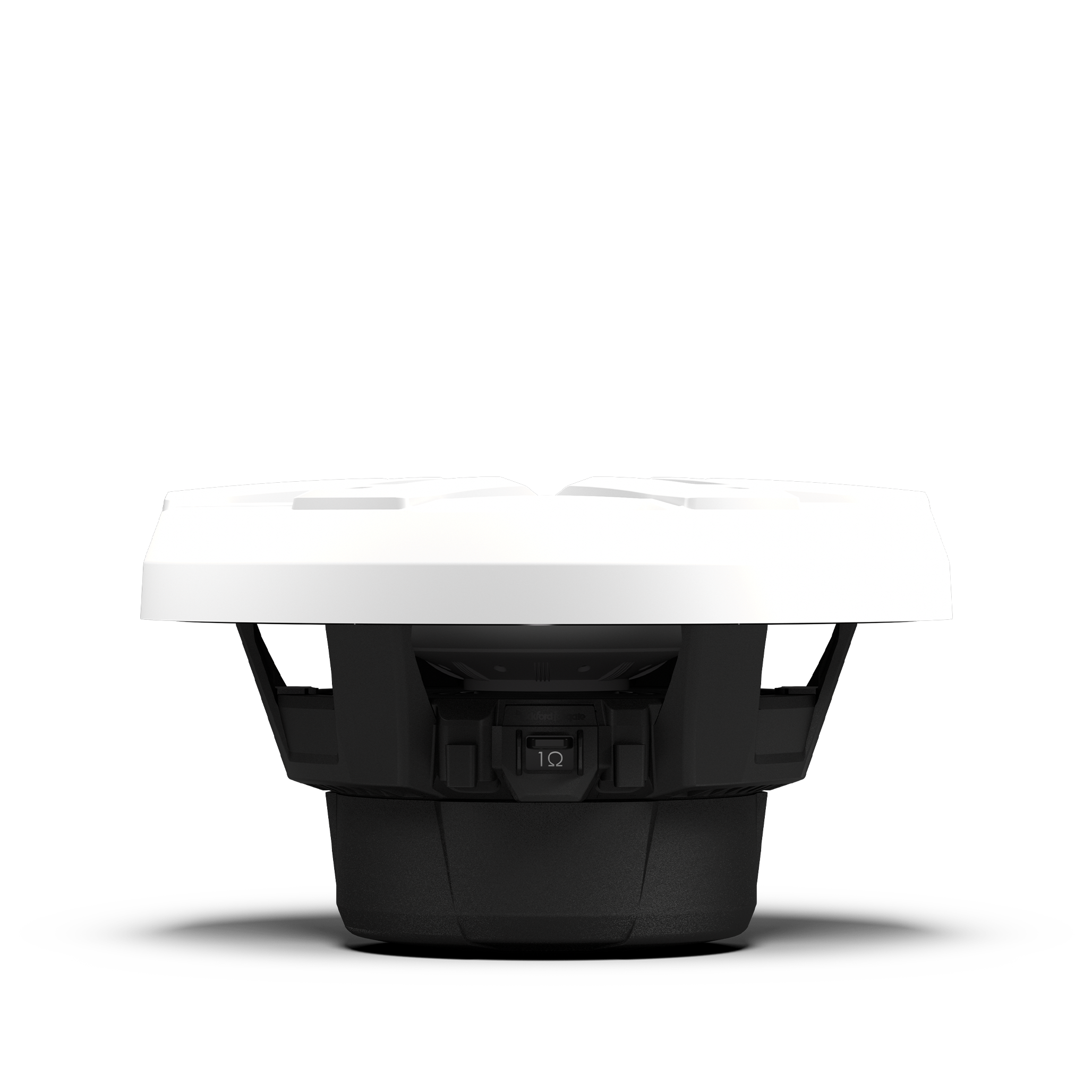

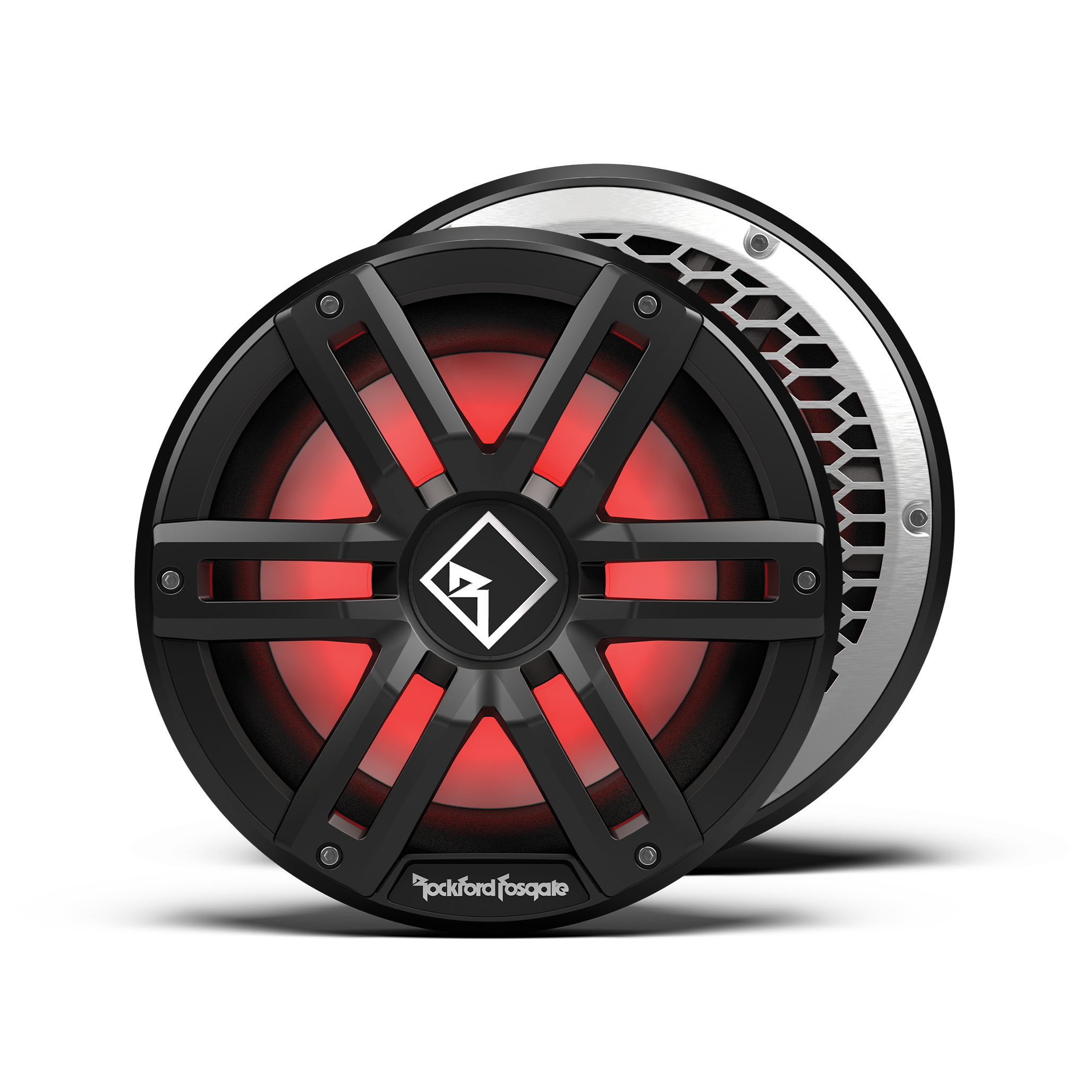

M2 10 DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2
M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2

M2 10′′ DVC 2Ω Color Optix™ Sealed Marine Subwoofer: Black Gen-2

The second generation M2 10-inch subwoofers create an unmatched audio experience, with class-leading output, complete on-water lighting...
SKU: M2D2-10SB-G2
Availability: Many In Stock
$439.99
$439.99
Please hurry! Only 0 left in stock
Subtotal: $439.99

Specifications

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Overview:
Optimized for small sealed enclosures when there is very little space for an enclosure COMSOL Multiphysics simulation software used to optimized suspension & motor assembly New vented T-yoke improves power and performance without bottoming VAST vertical attach surround technique increases effective radiating cone area up to 25% Chemically bonded co-molded surround for a stronger attachment Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors Vented motor design with water-repelling nano coated mesh screen Injection molded mineral filled polypropylene cone body with UV inhibitors Provides superb low and midrange frequency reproduction with smooth high frequency roll-off Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals Deutsch™ connector front/rear silicone seal protects against water ingress Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination VERSA impedance switch quickly allows series or parallel configuration without additional wiring Fully insulated silicone tinsel leads 100% UV Stable Centrex plastic grill Optically clear UV stable RGB Lighting Encapsulation Gold plated marine grade brass terminals provide a corrosion resistant connection Adjust color experience to suit your taste with Rockford Fosgate Color Optix™ controller (optional) 2-piece grille allows for interchangeable stainless-steel or "sport" option 2-Year Warranty
Bullets:
  • NCDI Surround: This improved surround uses a supercritical synthetic organic polymer created through an NDCI (Nano-Cell Direct Injection) molding process. This high efficiency design offers low distortion with low-end bass extension in a surround technology resistant to dry rot. Aluminum Spider Spacer: The spider spacer helps dissipate thermal build-up across the suspension by using heat-sinking aluminum material on the outside of the spider. VCCF (Voice Coil Composite Former): The voice coil former is comprised of a high-performance composite material (polyimide resin glass & epoxy resin glass fiber) rigorously tested to withstand extreme heat. This material has low magnetic susceptibility and is an insulator to prevent inductive effects and eddy currents, resulting in minimal motor distortion. Wet Wound Voice Coil: The Wet Wound Voice Coil technique is used for high temperature applications that – once baked – create a molecular cross-linked bond to eliminate air gaps between the windings. This offers several advantages, for high-power applications, including improved adhesion for durability, enhanced heat dissipation for higher power handling, and higher precision for reliability. Nanocoated Quad-Clamped Spider: The composite Aramid-Polyester spider features a liquid polymer with nanoparticles applied to the fabric to create a transparent protective layer. This allows the spider to breathe yet prevents water from passing through. It also includes four clamping rings to lock the spider to the landing, preventing it from lifting under high excursion conditions. Multi-Vent Pole Piece: The pole piece uses a voice coil direct venting array system to further dissipate heat generated by the voice coil. True Marine Ecosystem: Dual Integrated Deutsch™ and Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers. Element Ready™ | Subwoofers: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration. Color Optix™ Control: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App. VAST Surround - Subs: The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%. VERSA Switch: Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration. Flex Fit Basket - Marine: The slot mounted frame pattern allows fine-tuning of the marine speaker's mounting position. Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting. Water Resistant: IPX Ratings allow for the components to be directly sprayed with water without ingress. Corrosion Protection: Components are tested for salt spray corrosion resistance. Dust Resistant: Displays and motor structures are sealed tight so they look and sound as clear as possible no matter how many times you hit the trails. Stainless Hardware: Stainless hardware is used to its natural resistance to corrosion and rusting. This ensures electrical connections will not degrade over time due to exposure to the elements. Thermal Shock Resistant: Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out. UV Inhibitor Materials: Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with AS™ D4329 testing and certification procedures. Vibration Resistant: Components are able to withstand shock and vibration conditions common with outdoor vehicles. IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects. AS™ B117 & D4329 Tested: AS™ B117 & D4329 Tested AS™ G154 Testing: AS™ G154 500Hr Accelerated UV testing ISO60068-2-64 Vibration Testing: ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications. Grille Customization: With multiple grille options you can dial in your personalized-on water style all to match the look of your SXS or boat
Specifications:

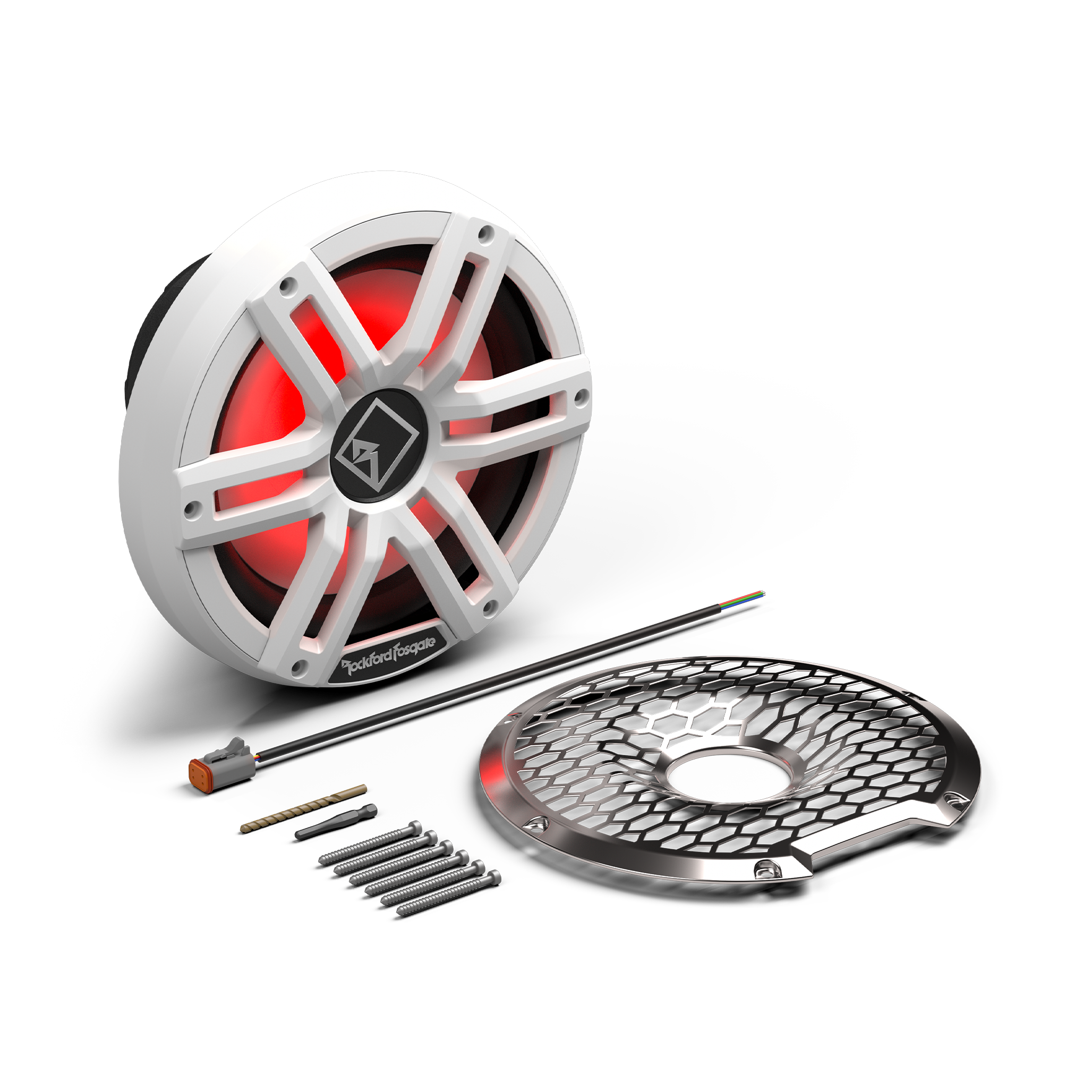

  • Size: 10′′ Voice Coil Type: Dual Voice Coil Frequency Response: 22 Hz - 250 Hz Nominal Impedance (Ohms) : 1Ω or 4Ω Switchable Power Handling (Watts RMS) : 400 Watts RMS 1600 Watts PEAK Voice Coil Diameter: 2′′ (51 mm) Magnet Weight (oz) : 55.04 oz. (1.56 Kg) Fs (Hz) : 29 Re (Ohms) : 3.4 Le (mH) : 3.21 Sd (cm 2 ) : 363 Qms: 7.71 Qes: 0.56 Qts: 0.52 Vas: 25 SPL (dB @ 1w/1m) : 83 Xmax (mm) : 13 Speaker Connector: Deutsch™ and 1/8′′ Spade Sealed Box Volume (Vb) : 0.5 cu. ft. (14.2 Liters) - 1.25 cu. ft. (35.4 Liters) Cutout Diameter: 8.98′′ (228 mm) Mounting Depth: 4.70′′ (119.35 mm) Woofer Displacement: 0.047 cu. ft. (1.33 Liters) In The Box: (6) 1025-71213-01: Black Grille Spacer (1) 1120-71212-01: Stainless Steel Grill (1) 1125-71208-01: 4.5mm x 80mmL Drill Bit (6) 1125-71237-01: 3.0mm x 60mmL Hex Screws (1) 1125-73494-01: 5.0mm x 40mmL Hex Bit (1) 1560-71095-01: 4-Wire RGB Harness 300mm Shipping Weight: 14.45 Lbs. (31.9 Kg)
