Overview

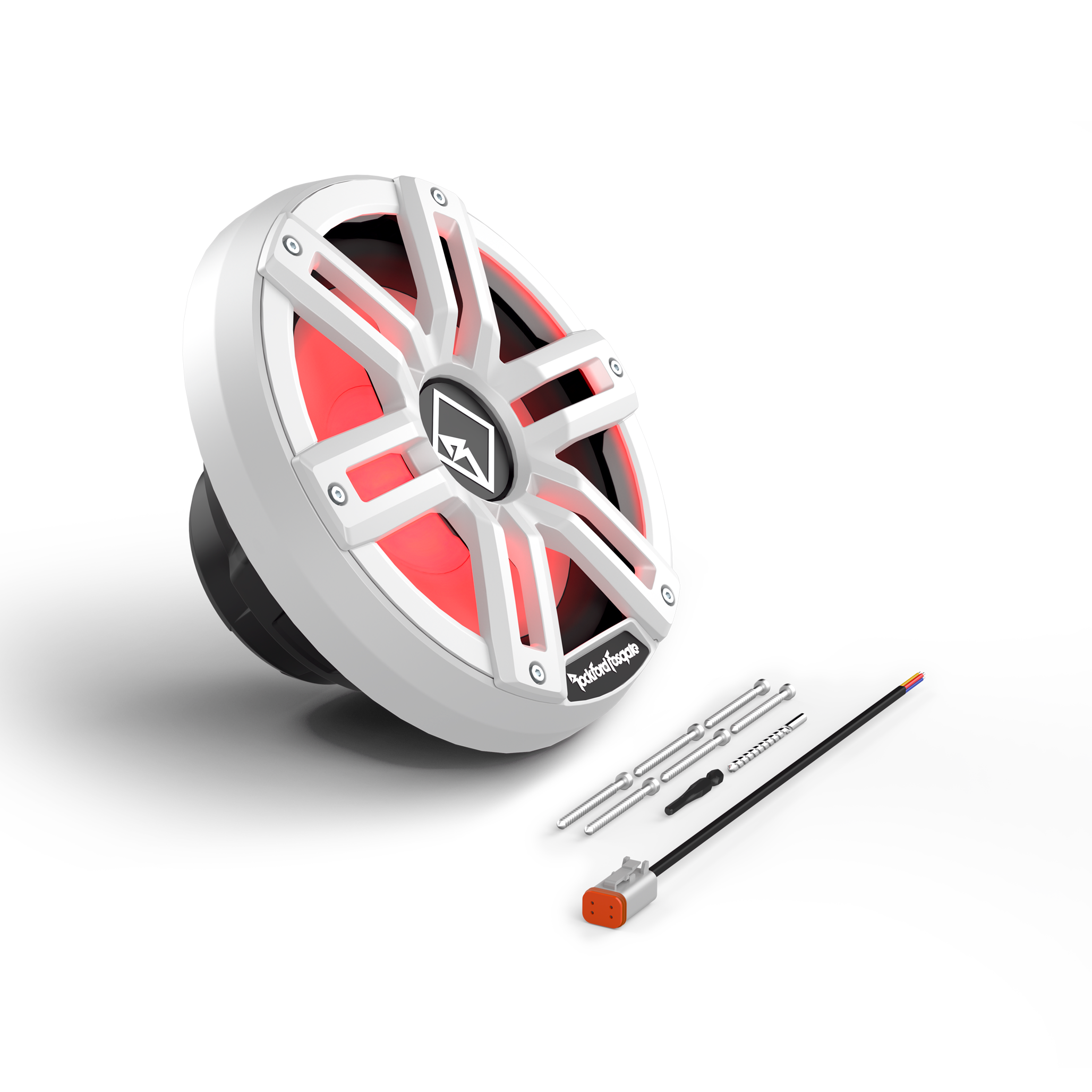

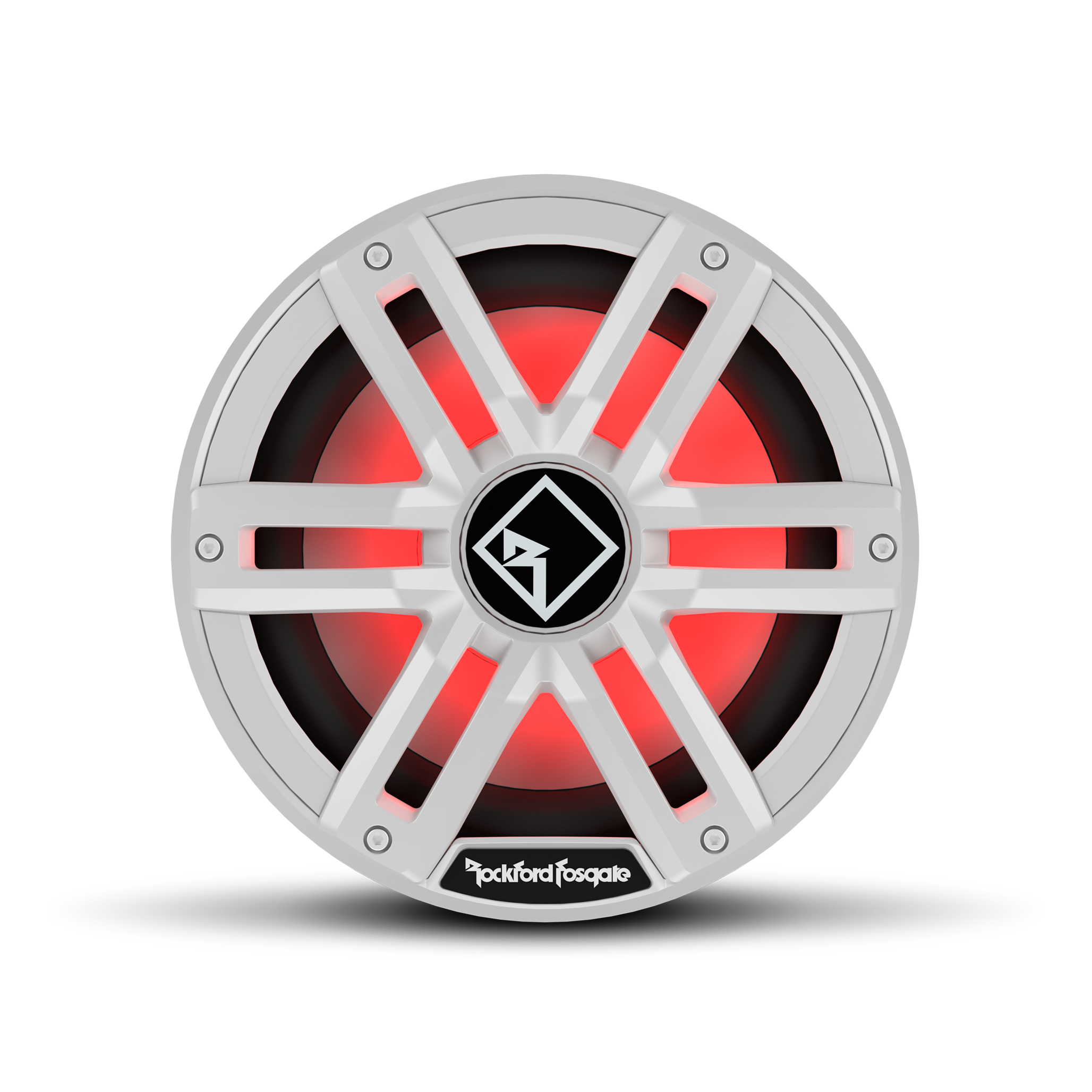

The M2D2-10S is a 10" DVC 2-Ohm Color Optix TM subwoofer that connects with our Rockford Fosgate Color Optix TM controller and RF ConnectTM App, allowing you to customize your own color patterns. Sold individually (1 each).
Features
- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- Optimized for small sealed enclosures when there is very little space for an enclosure
- Element Ready TM design protects against outdoor exposure

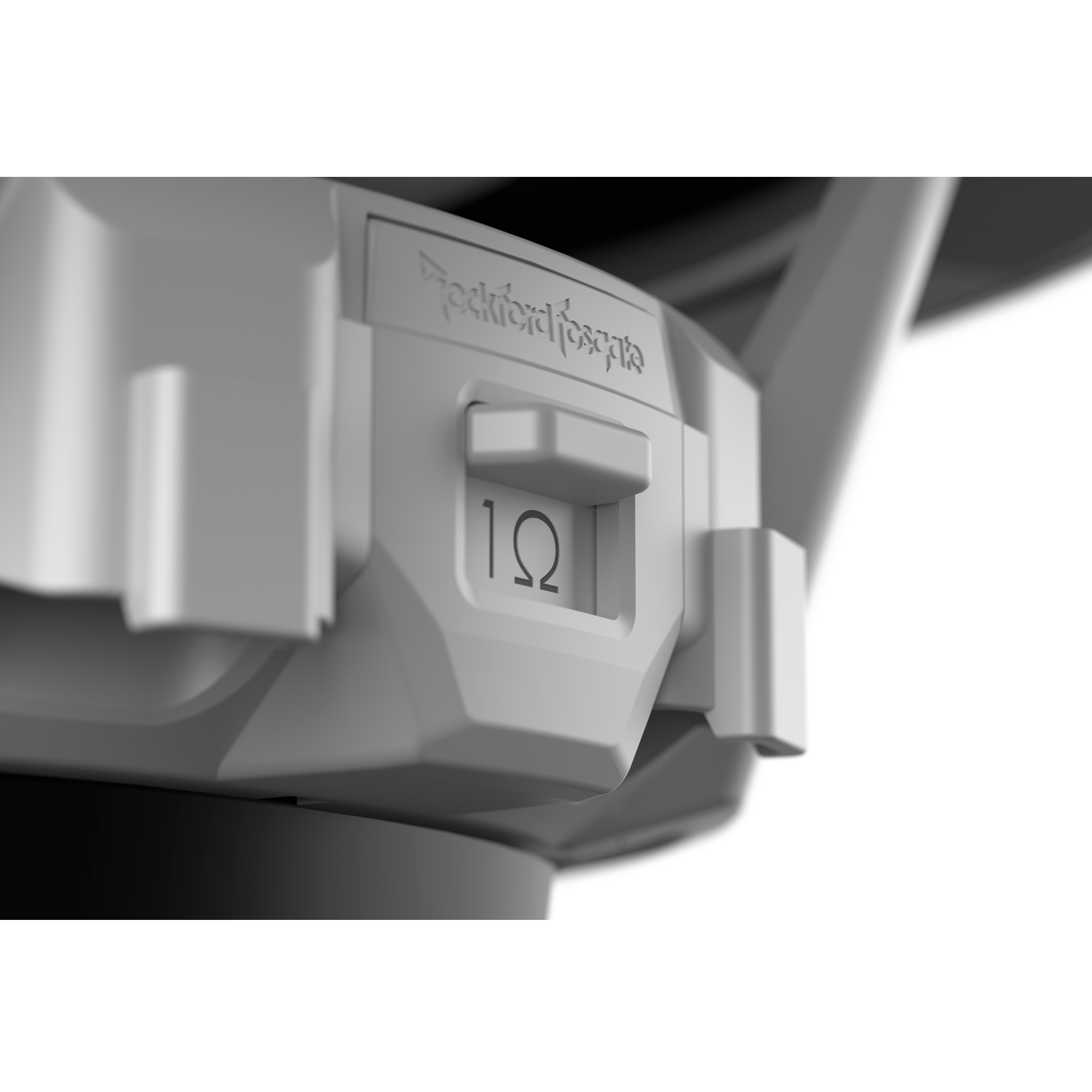

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Adjust color experience to suit your taste with Rockford Fosgate Color Optix TM controller (optional)
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals

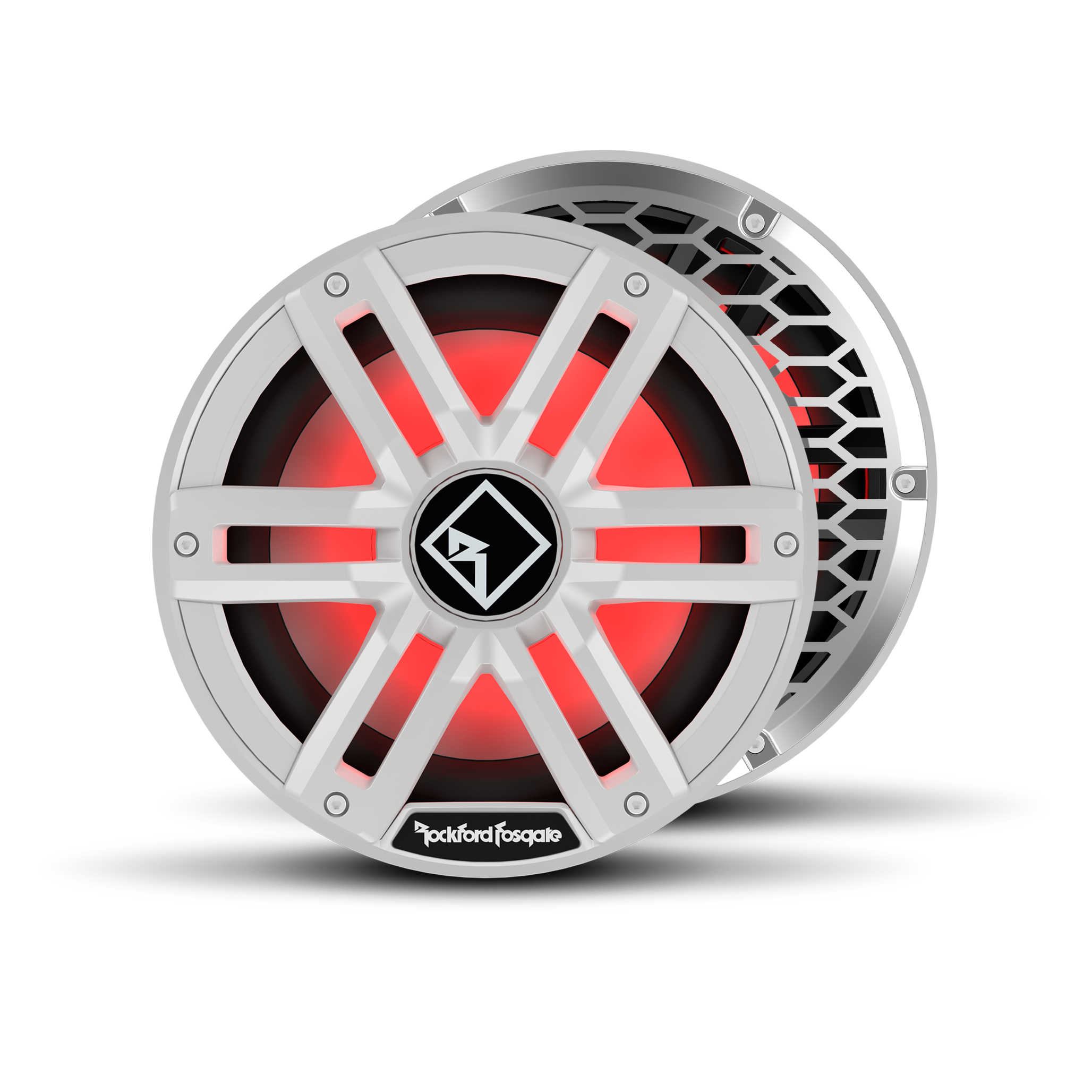

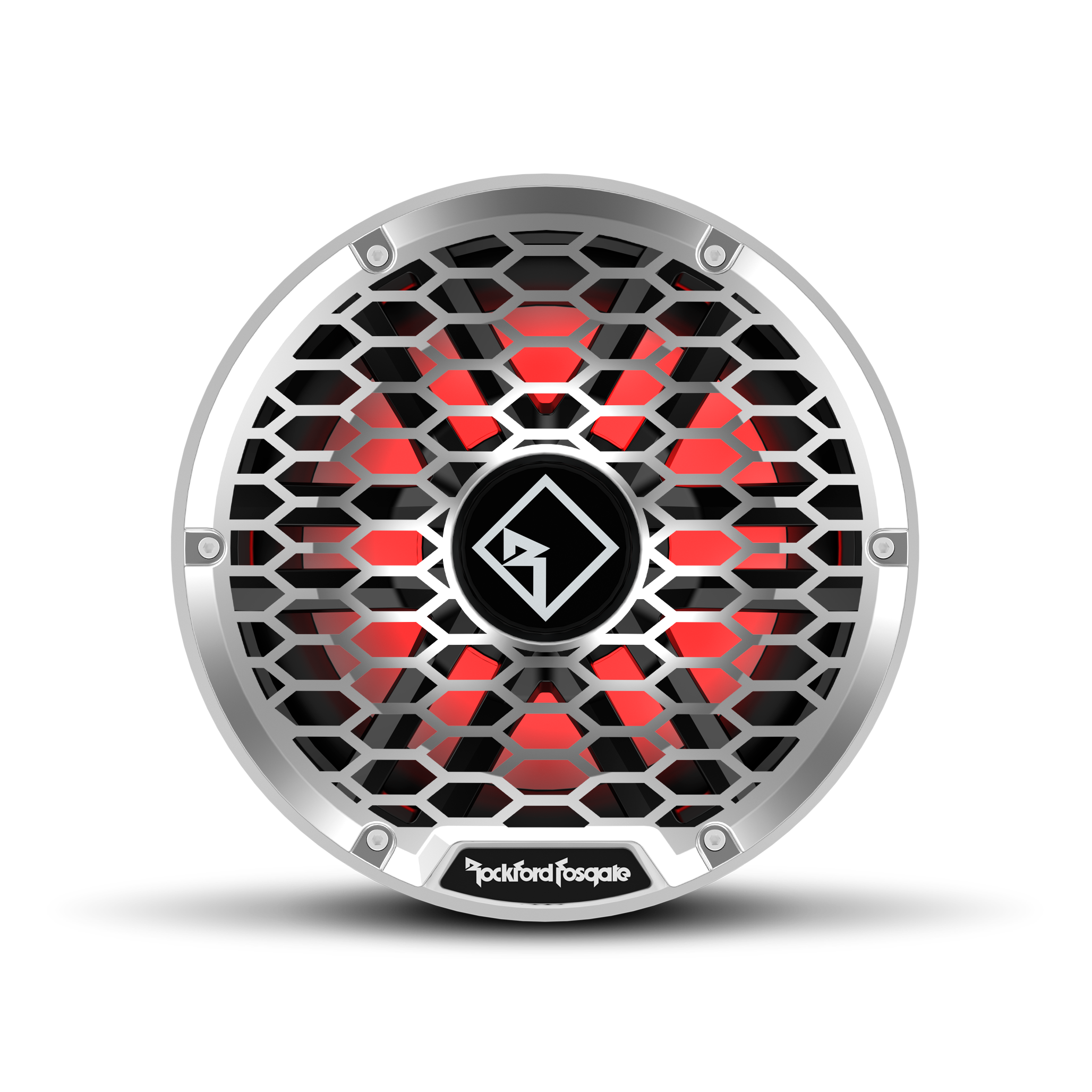

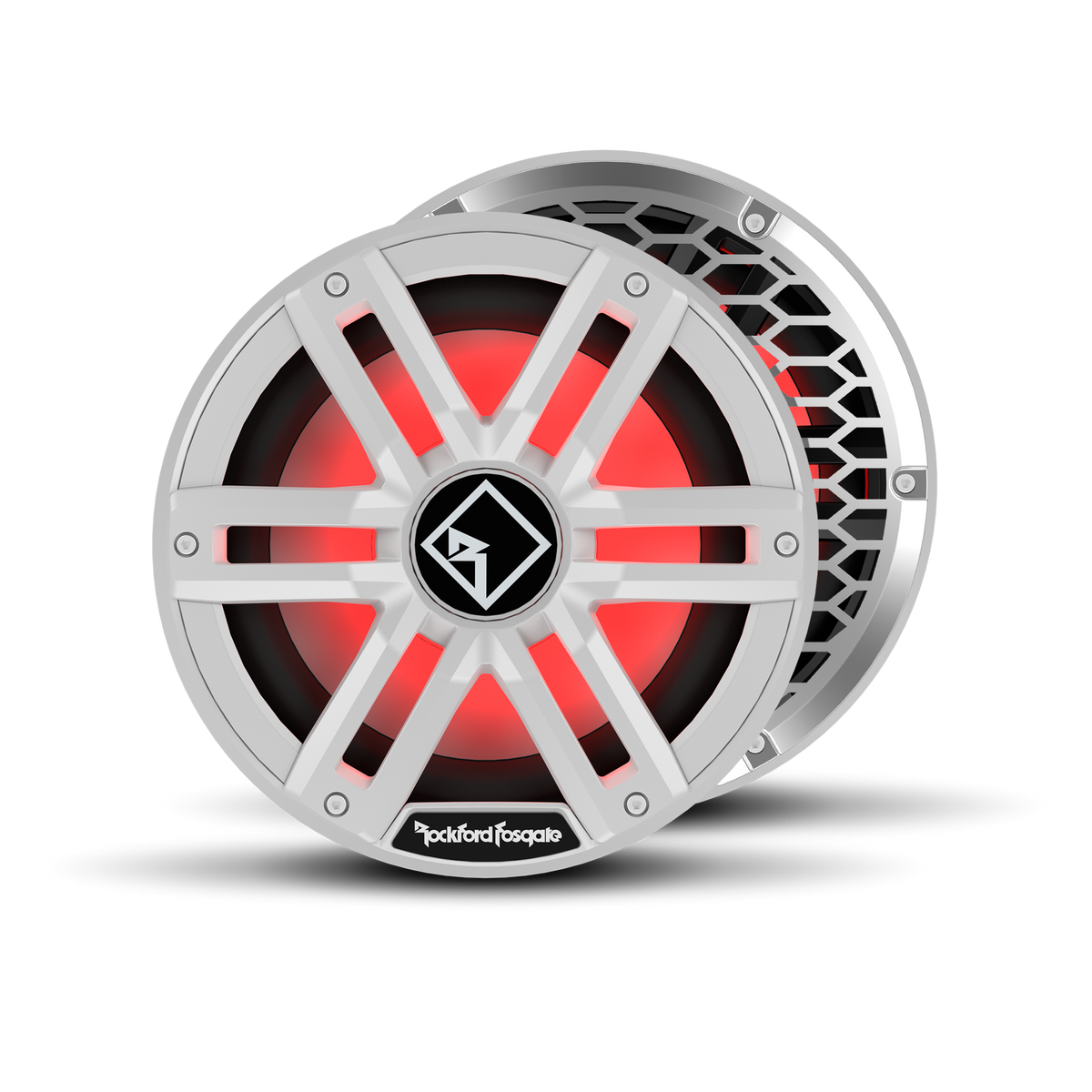

- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- DeutschTM connector front/rear silicone seal protects against water ingress
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Klippel Verified certification program delivers the best possible loudspeakers
- IPX6 Marine Grade for prevention of water intrusion
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- 2-Year Warranty
Specifications
- Size: 10"
- Voice Coil Type: Dual Voice Coil
- Le (mH): 3.43
- Sd (cm2): 363
- Re (Ohms): 3.3
- Fs (Hz): 28
- Magnet Weight (oz): 32.9 oz. (0.9 Kg)
- Voice Coil Diameter: 1.95" (49.53 mm)
- Power Handling (Watts RMS): 400 Watts
- Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
- Qms: 4.48
- Qes: 0.91
- Qts: 0.75
- Vas: 36.4
- SPL (dB @ 1w/1m): 86
- Sealed Box Volume (Vb): 0.5 cu. ft. (14 Liters)
- Xmax (mm): 12
- Woofer Displacement: 0.07 cu. ft. (2.03 Liters)
- Speaker Connector: DeutschTM and 1/8" Spade
- Cutout Diameter: 8.87" (225.3 mm)
- Mounting Depth: 4.24" (107.7 mm)
- Shipping Weight: 8.5 Lbs. (3.85 Kg)
