M1D4-10

Overview

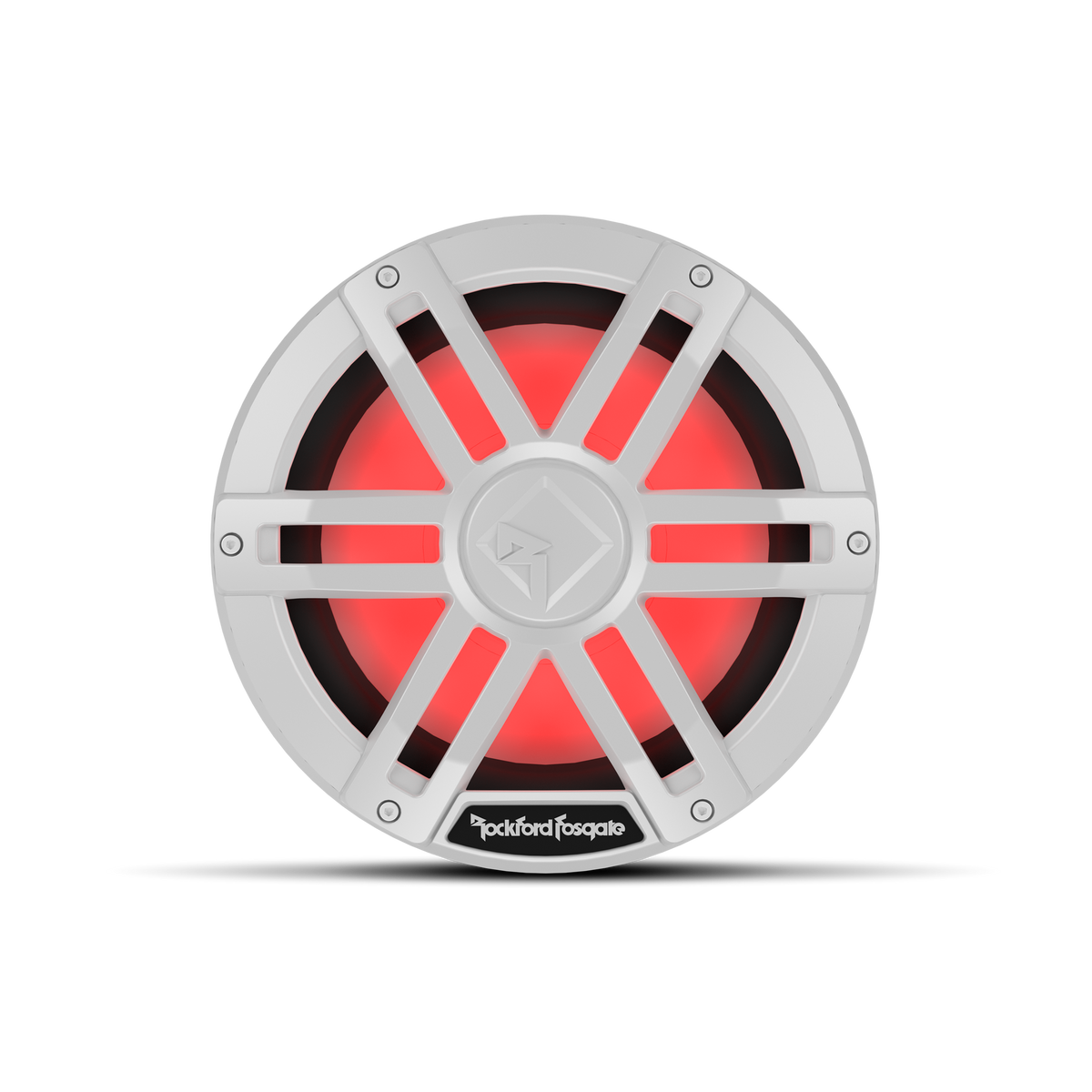

The M1D4-10 Color Optix TM 10" DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).

Features

• Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Optically clear UV stable RGB Lighting Encapsulation
• 2" (50mm) High Temp KaptonTM Woofer Voice Coil Former
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Fully insulated silicone tinsel leads

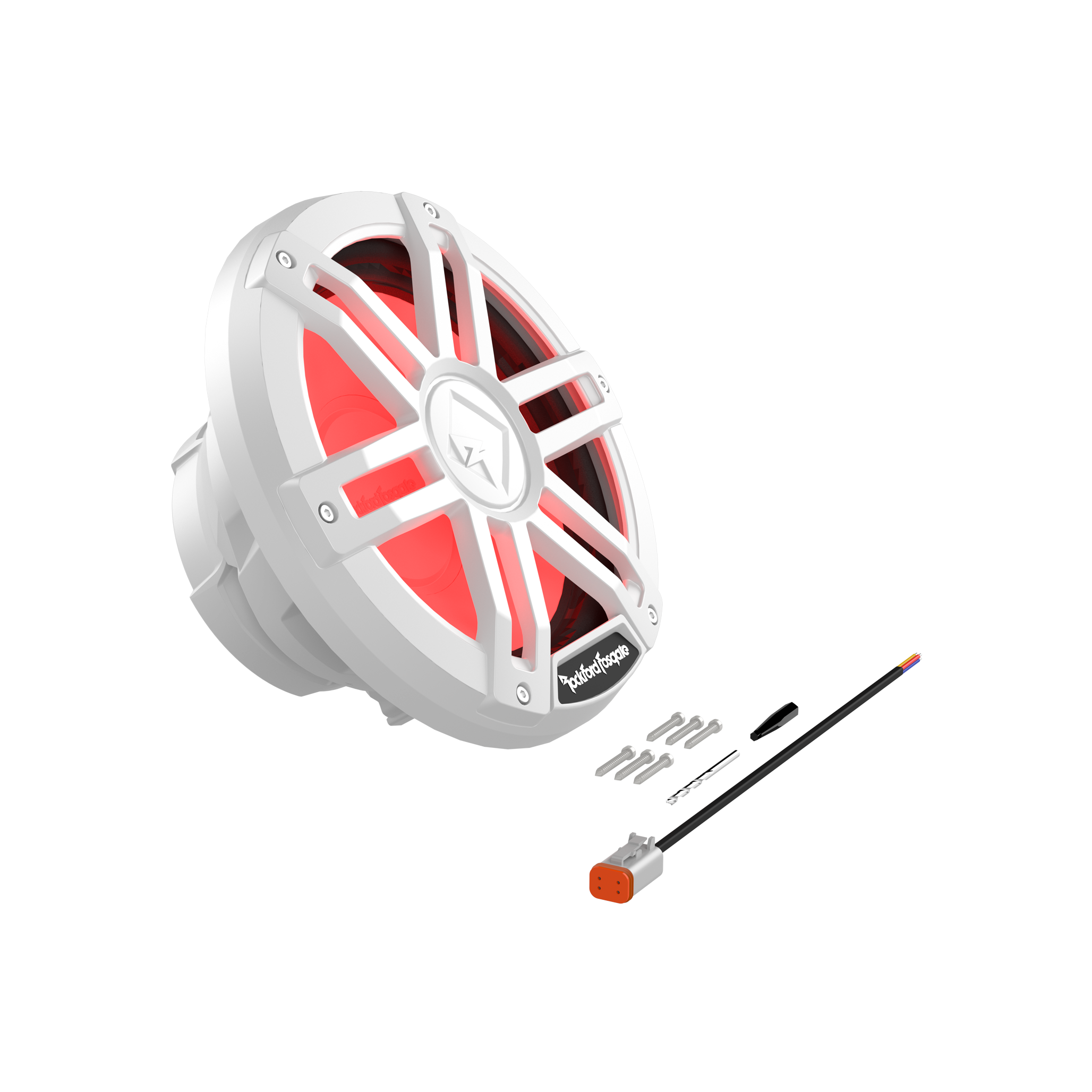

• Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
• 2-Year Warranty
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Co-molded surround and mineral filled polypropylene cone body
• Santoprene VAST Surround
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Zinc Nickel-plated Marine grade brass connection terminals
• Linear Synthetic Fiber Blend Spiders
• Vented motor design with water-repelling nano coated mesh screen

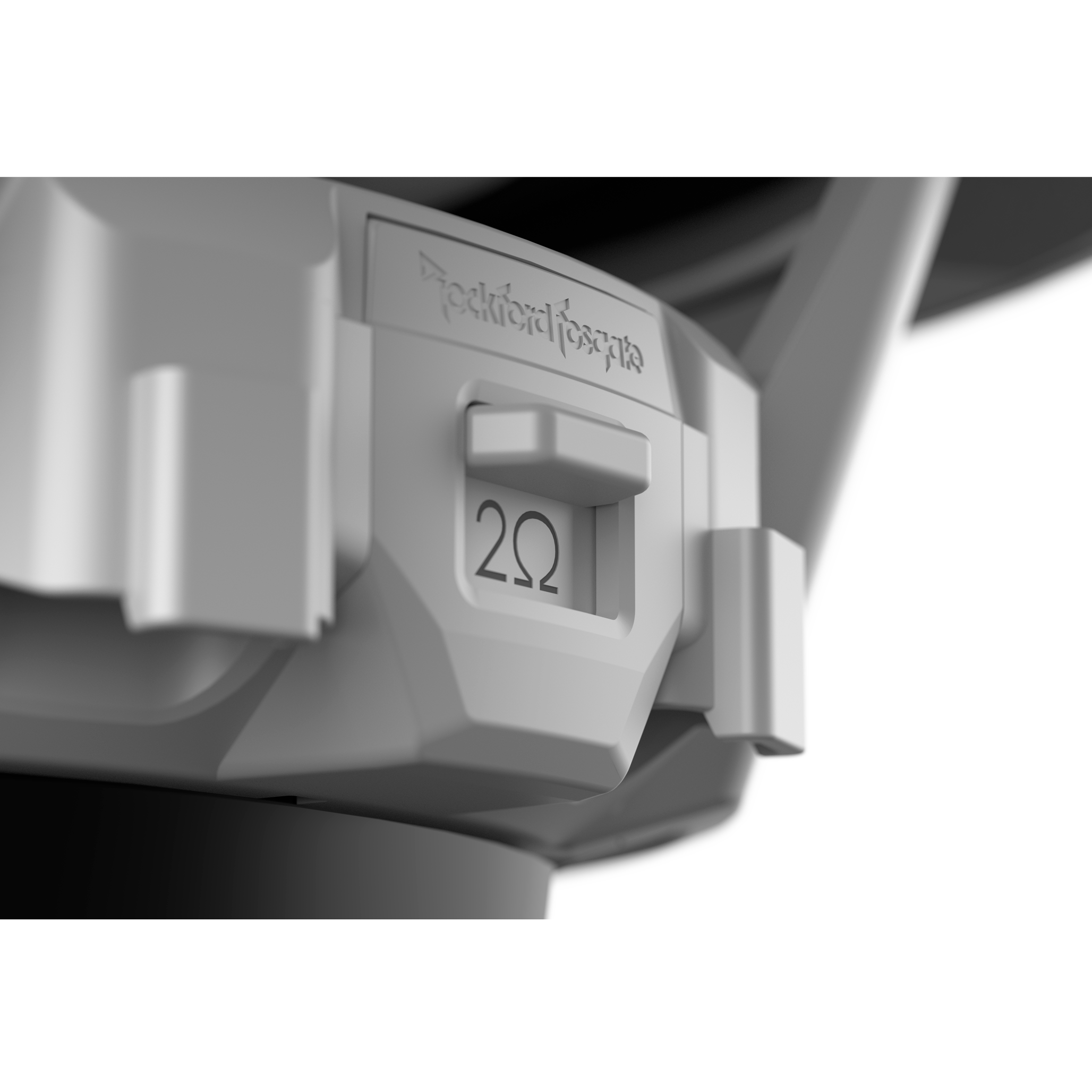

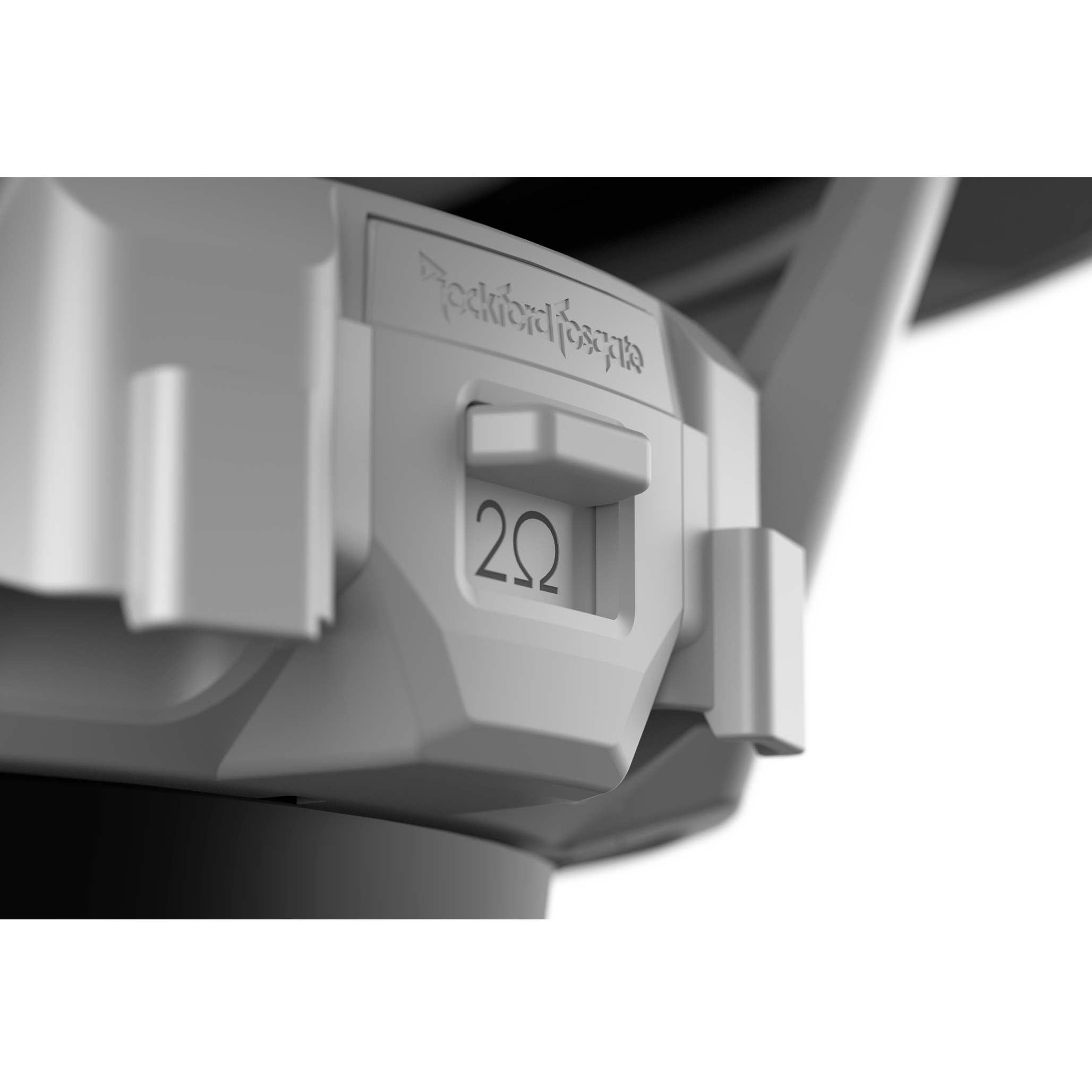

• VERSA impedance switch quickly allows series or parallel configuration without additional wiring

Specifications

• Size: 10"
• Voice Coil Type: Dual Voice Coil
• Frequency Response: 20 Hz - 750 Hz
• Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
• Power Handling (Watts RMS): 300 Watts RMS; 1200 Watts PEAK
• Magnet Weight (oz): 47.70 oz. (1.35 Kg)
• Voice Coil Diameter: 2" (50mm)
• Fs (Hz): 37
• Re (Ohms): 7.5
• Le (mH): 3.87
• Sd (cm2): 394.1
• Qms: 7.23
• Vented Box Volume (Vb): 1.45 cu. ft. (41.06 Liters)
• Sealed Box Volume (Vb): 1.1 cu. ft. (31.15 Liters)
• Qes: 0.51
• Qts: 0.47
• Vas: 39.3
• SPL (dB @ 1w/1m): 91.5
• Xmax (mm): 7
• Woofer Displacement: 0.10 cu. ft. (2.80 Liters)
• Speaker Connector: DeutschTM
• Cutout Diameter: 8.90 in. (226 mm)
• Mounting Depth: 4.23 in. (107.4 mm)
• Shipping Weight: 8.6 Lbs. (3.9 Kg)
