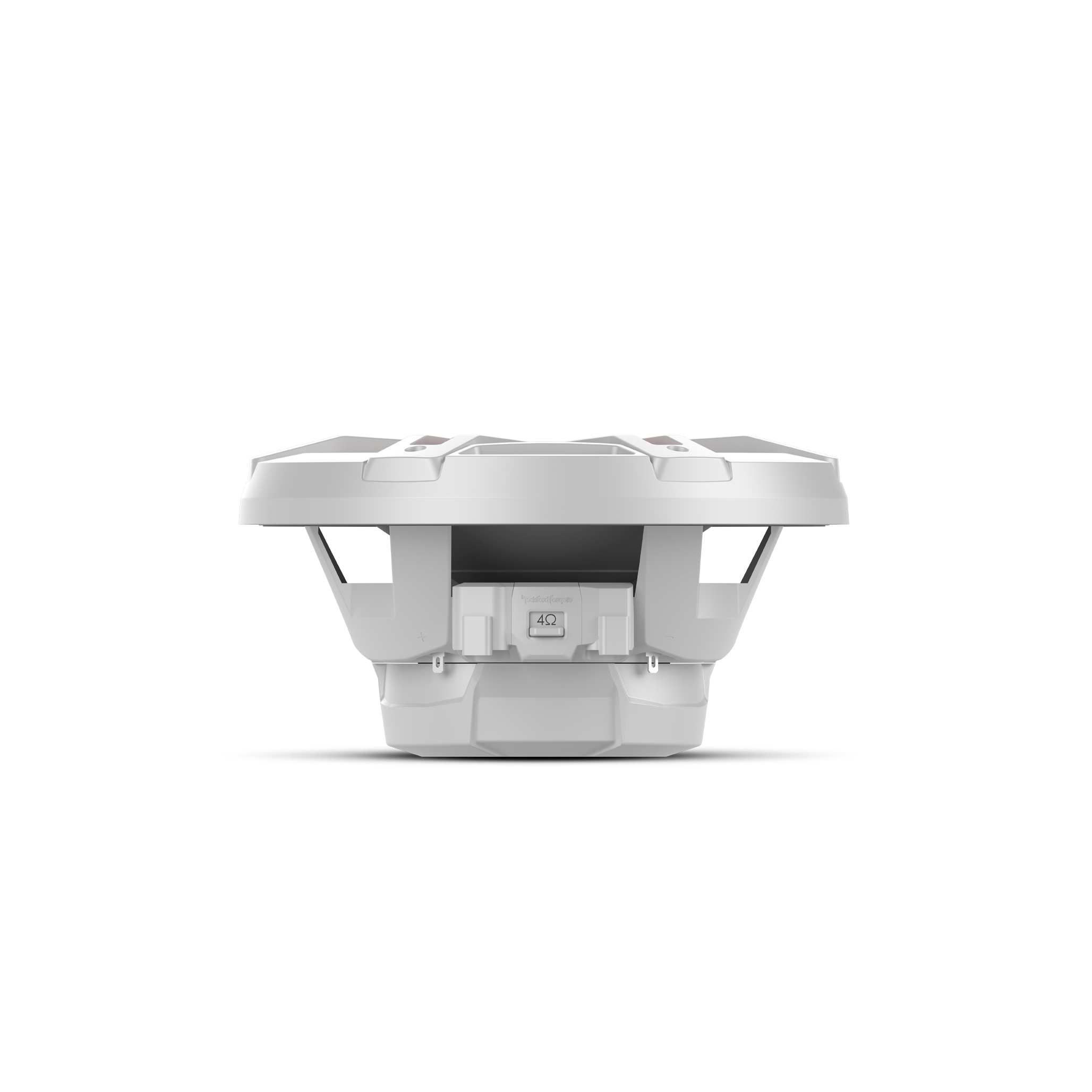

M1D2-8

Overview

The M1D2-8 Color Optix TM 8" DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, & light the way for your journey!

Features

• Optically clear UV stable RGB Lighting Encapsulation

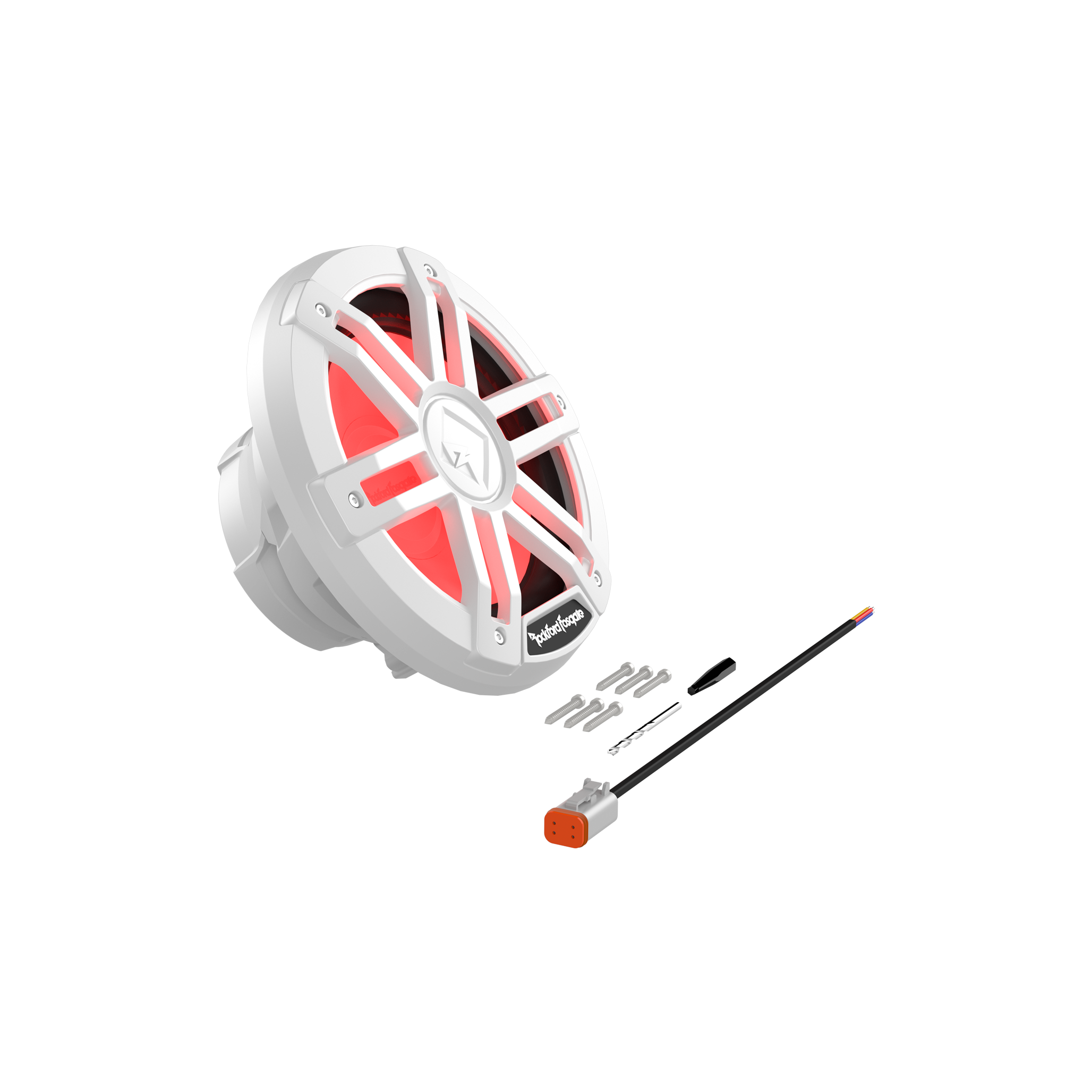

• Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• 1.5" (39mm) High Temp KaptonTM Woofer Voice Coil Former
• Vented motor design with water-repelling nano coated mesh screen
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Santoprene VAST Surround

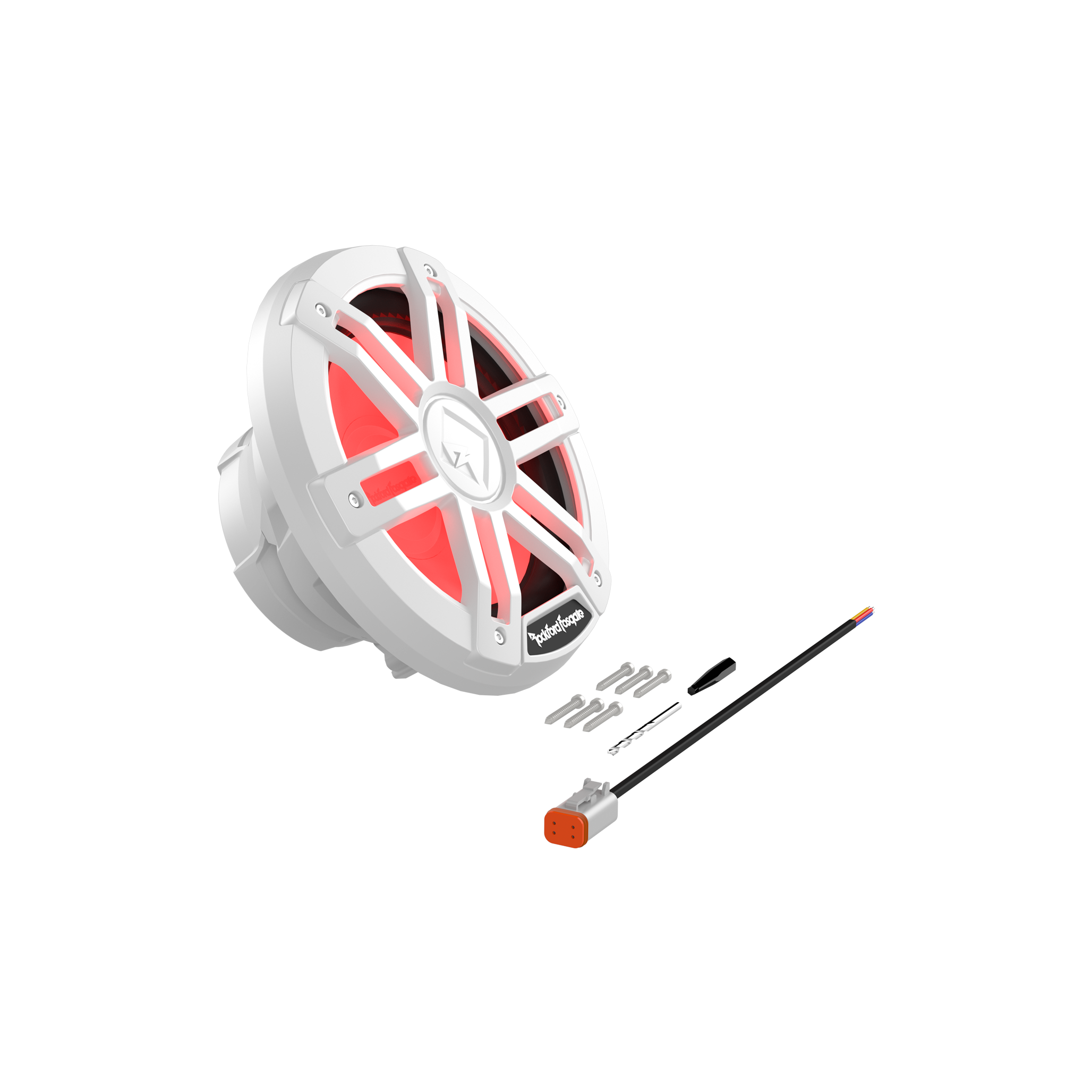

• Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
• Fully insulated silicone tinsel leads

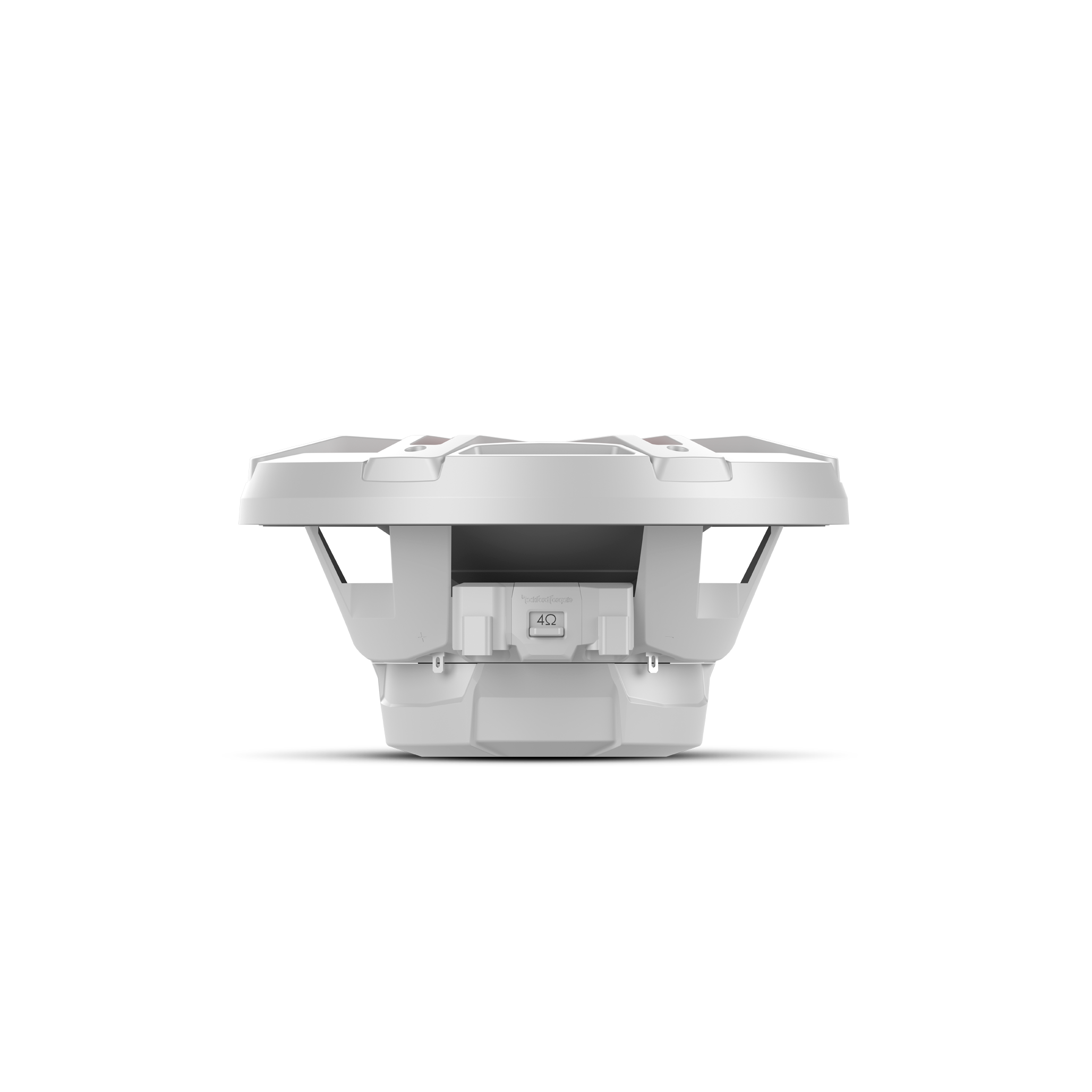

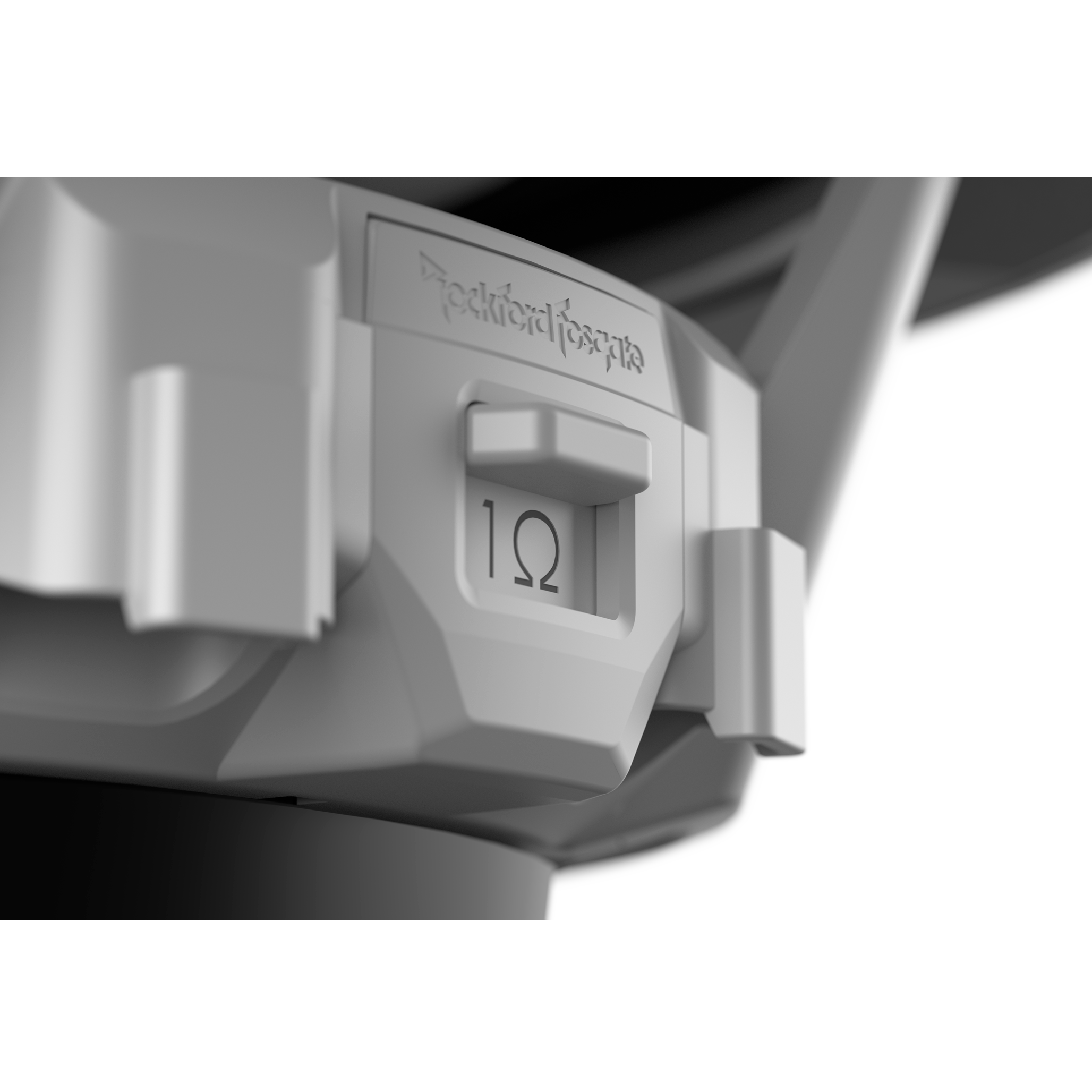

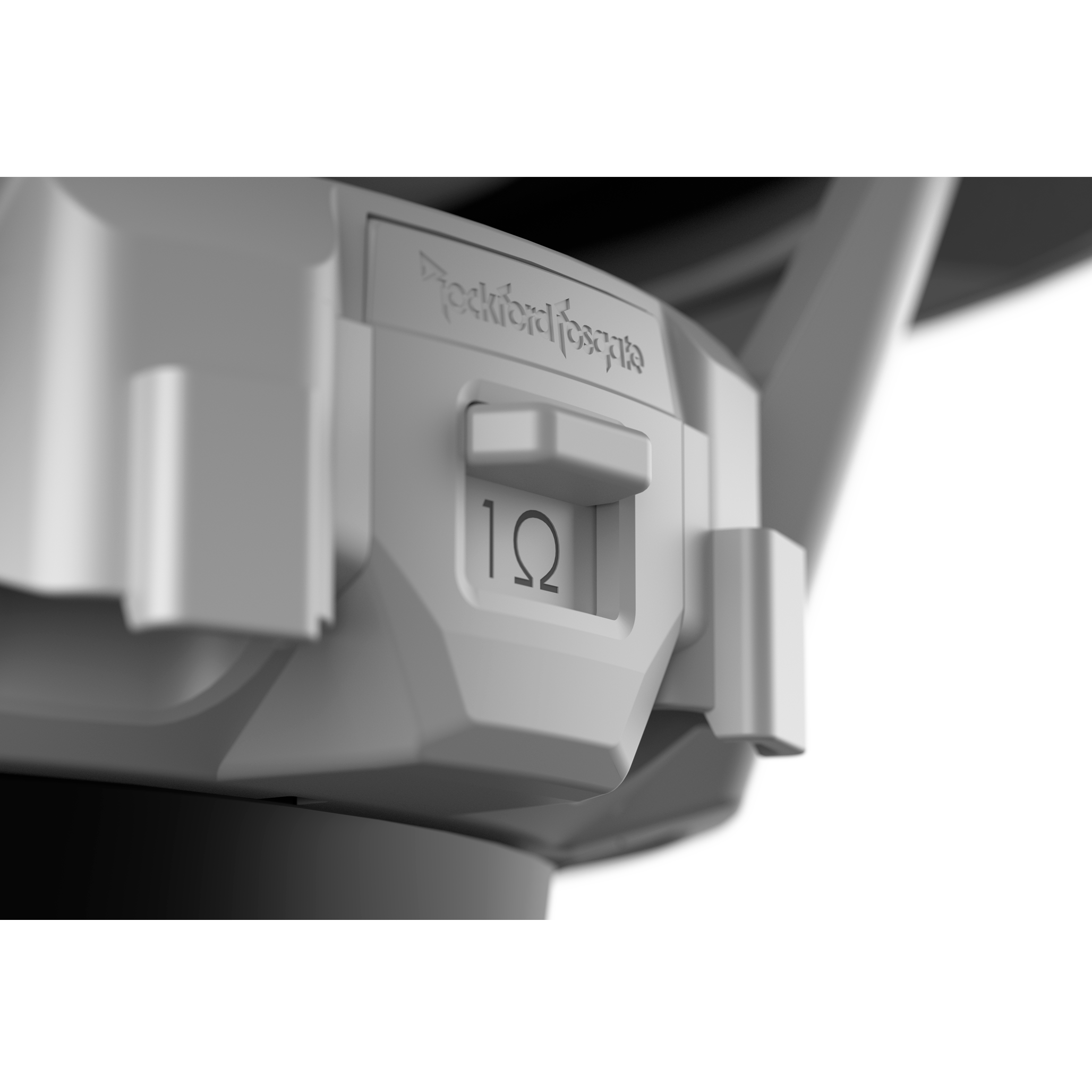

• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• Co-molded surround and mineral filled polypropylene cone body
• 2-Year Warranty
• Zinc Nickel-plated Marine grade brass connection terminals
• Linear Synthetic Fiber Blend Spiders

Specifications

• Size: 8"
• Voice Coil Type: Dual Voice Coil
• Speaker Connector: DeutschTM
• Voice Coil Diameter: 1.5" (38.6 mm)
• Frequency Response: 20 Hz - 750 Hz
• Magnet Weight (oz): 17.72 oz. (0.50 Kg)
• Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
• Power Handling (Watts RMS): 150 Watts RMS; 600 Watts PEAK
• Sd (cm2): 227
• Le (mH): 1.7
• Vas (Liters): 15.7
• Qms: 12.3
• Qts: 0.9
• Qes: 0.98
• Fs (Hz): 44.5
• Re (Ohms): 3.2
• SPL (dB @ 1w/1m): 87.5
• Cutout Diameter: 7.10 in. (180.4 mm)
• Woofer Displacement: 0.05 cu. ft. (1.41 Liters)
• Xmax (mm): 7
• Mounting Depth: 3.43 in. (87.1 mm)
• Shipping Weight: 4.6 Lbs. (2.10 Kg.)
