M1D2-12B
M1D2-12B
M1D2-12B
Overview

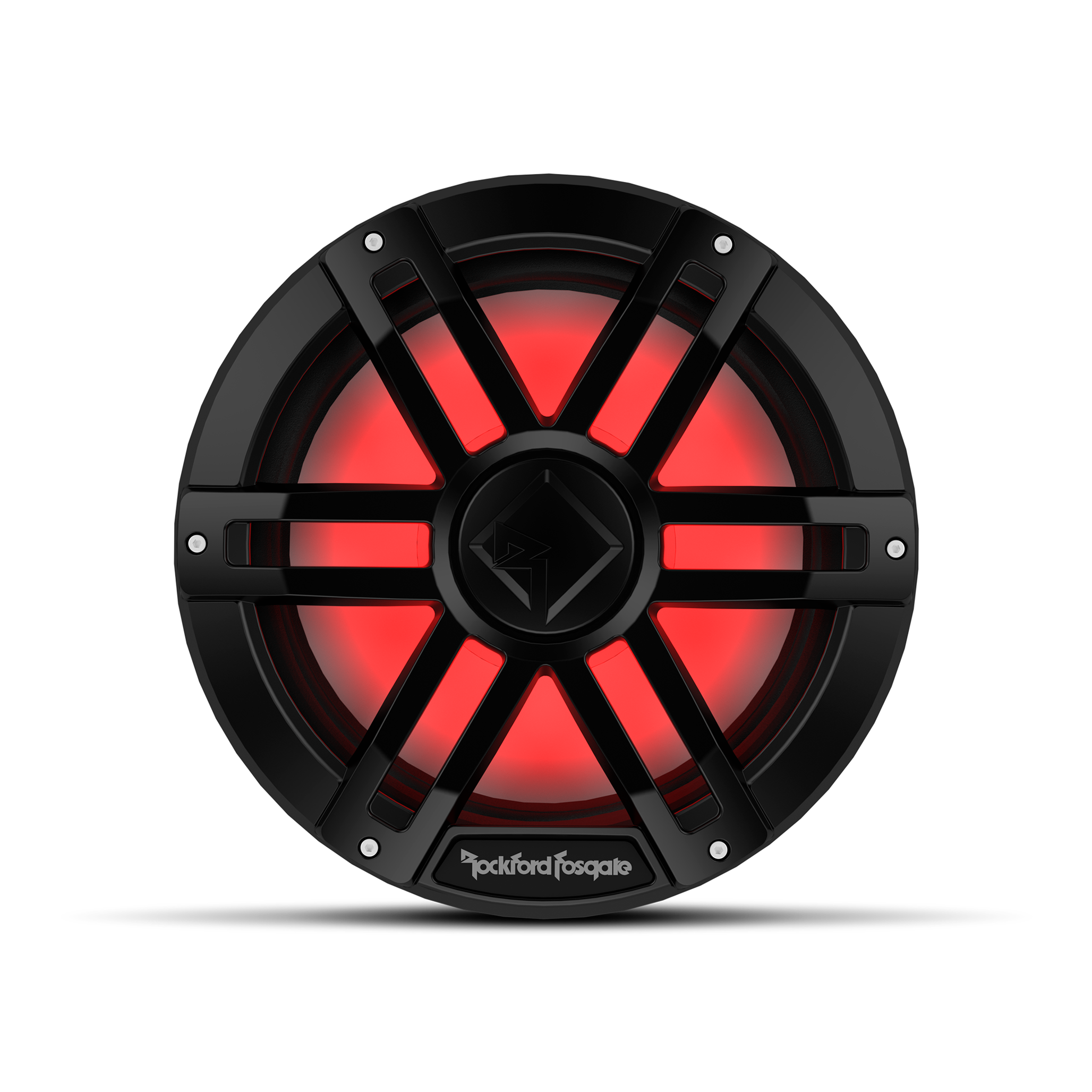

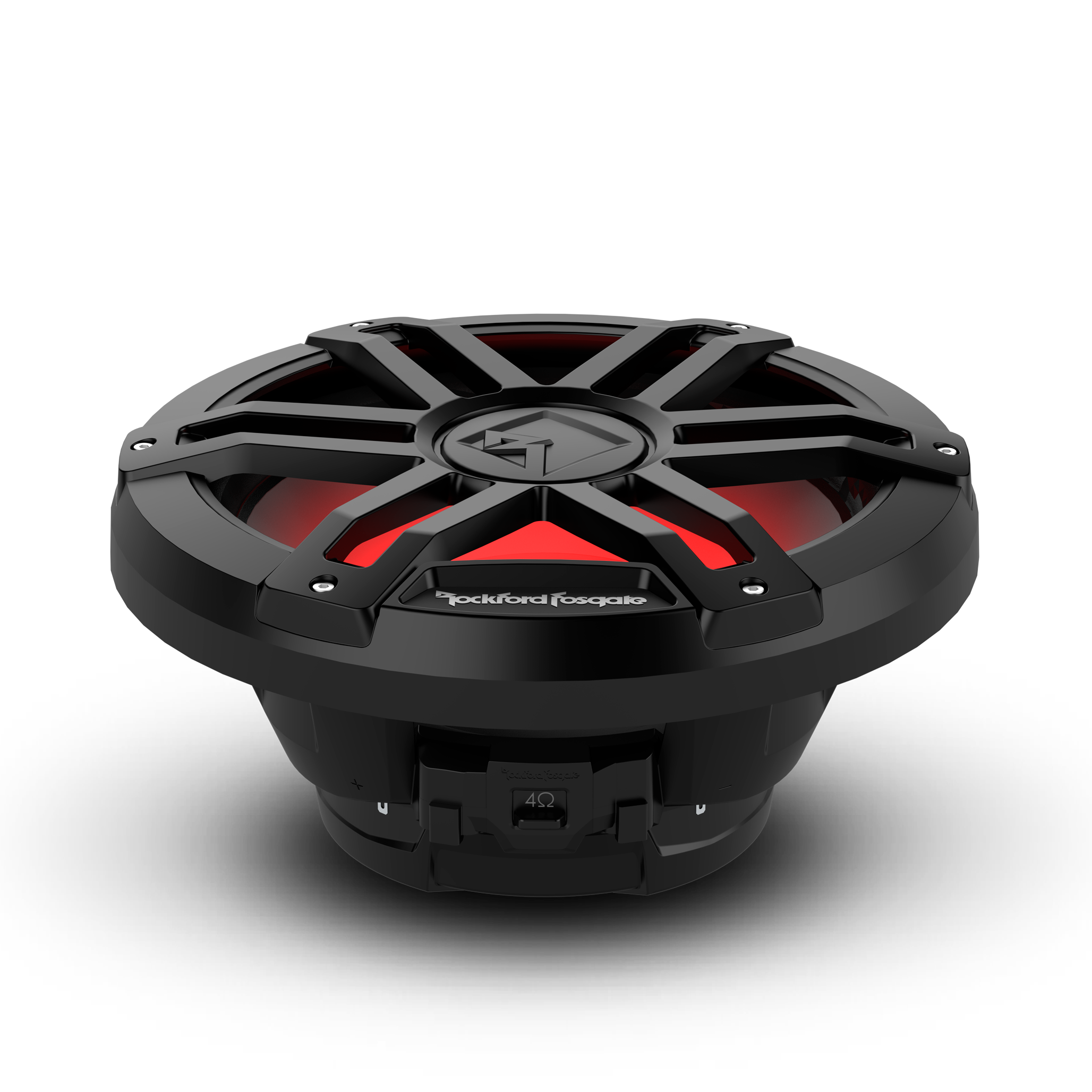

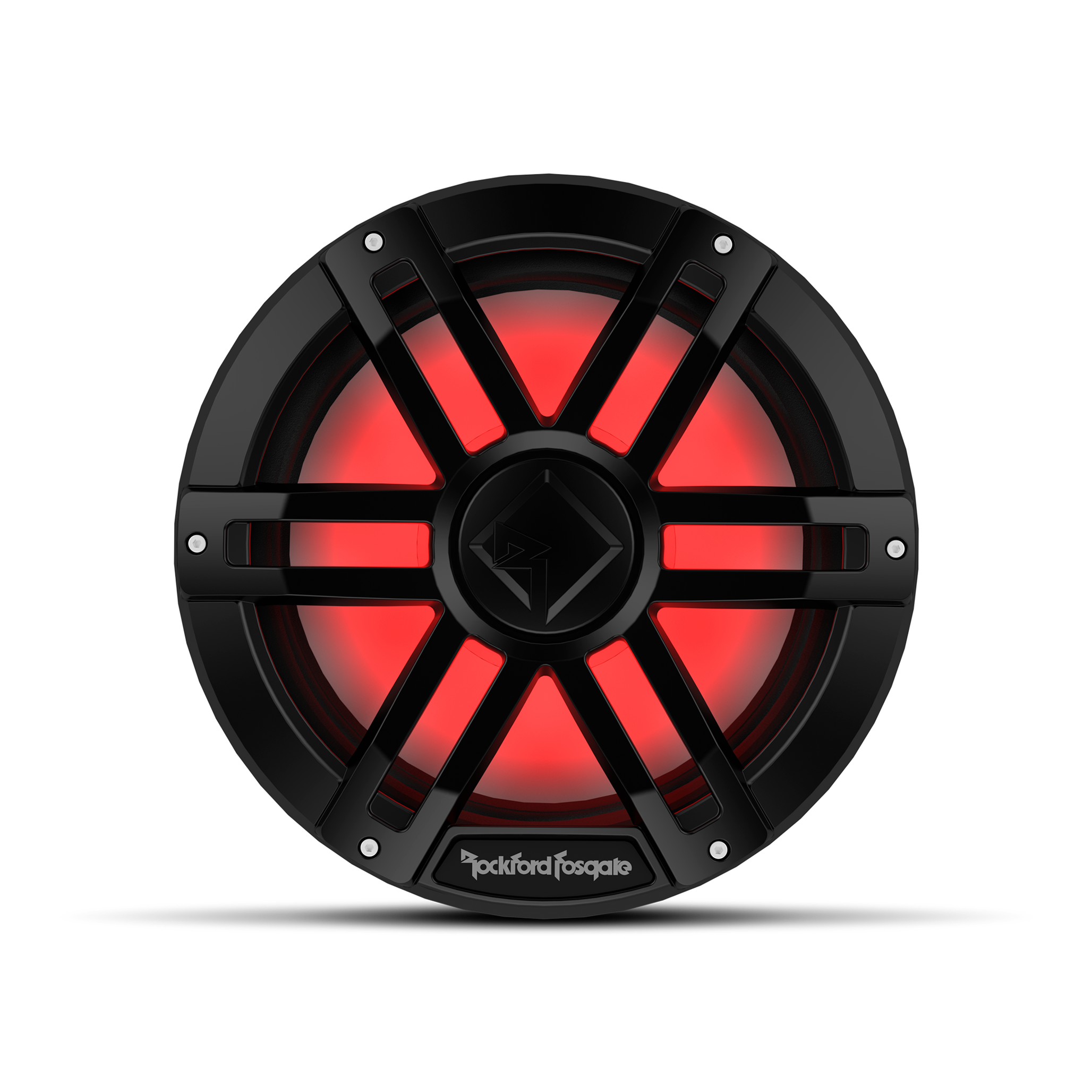

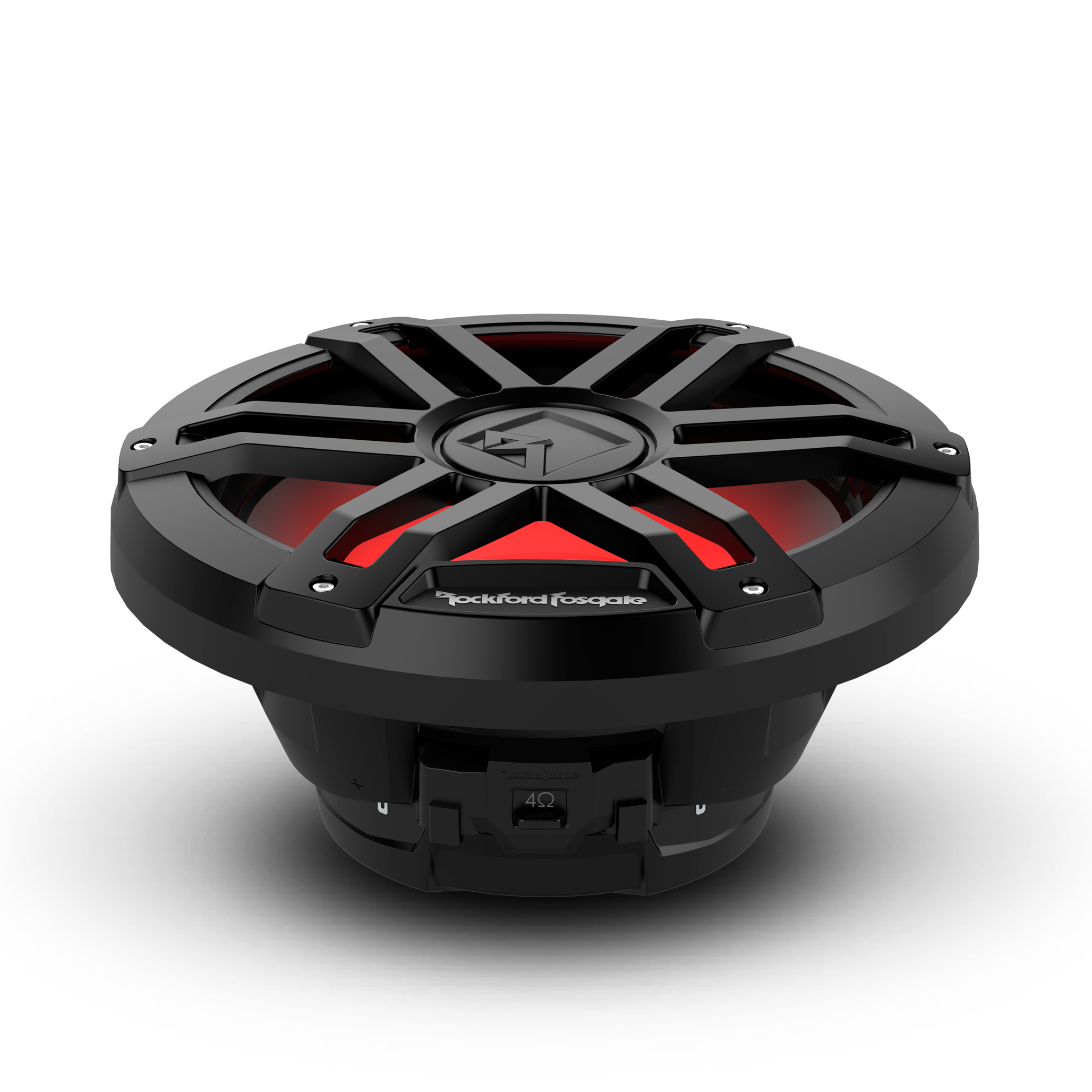

The M1D2-12B Color Optix TM 12" DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Features
- Optically clear UV stable RGB Lighting Encapsulation
- 2" (50mm) High Temp KaptonTM Woofer Voice Coil Former
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Zinc Nickel-plated Marine grade brass connection terminals
- Vented motor design with water-repelling nano coated mesh screen
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Santoprene VAST Surround

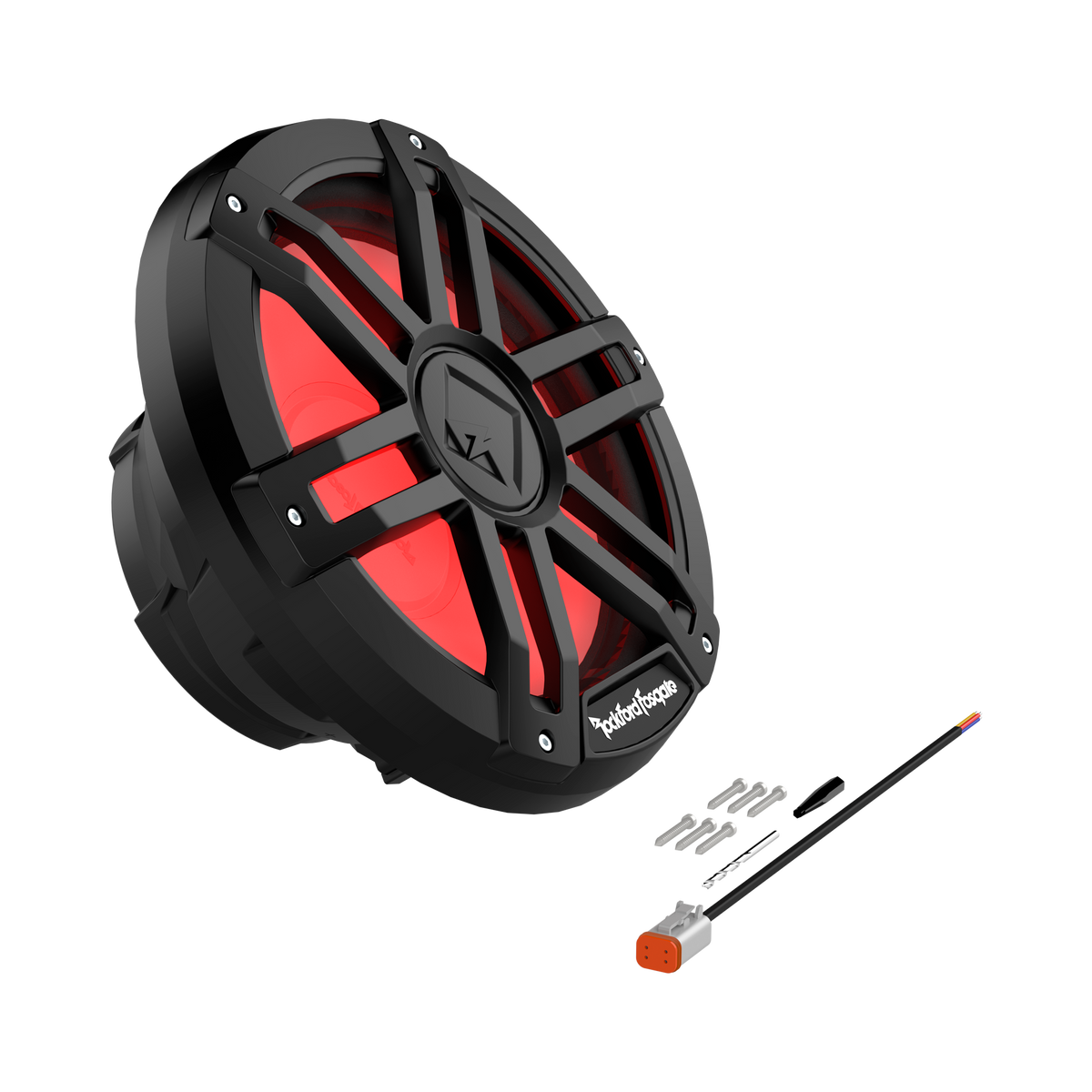

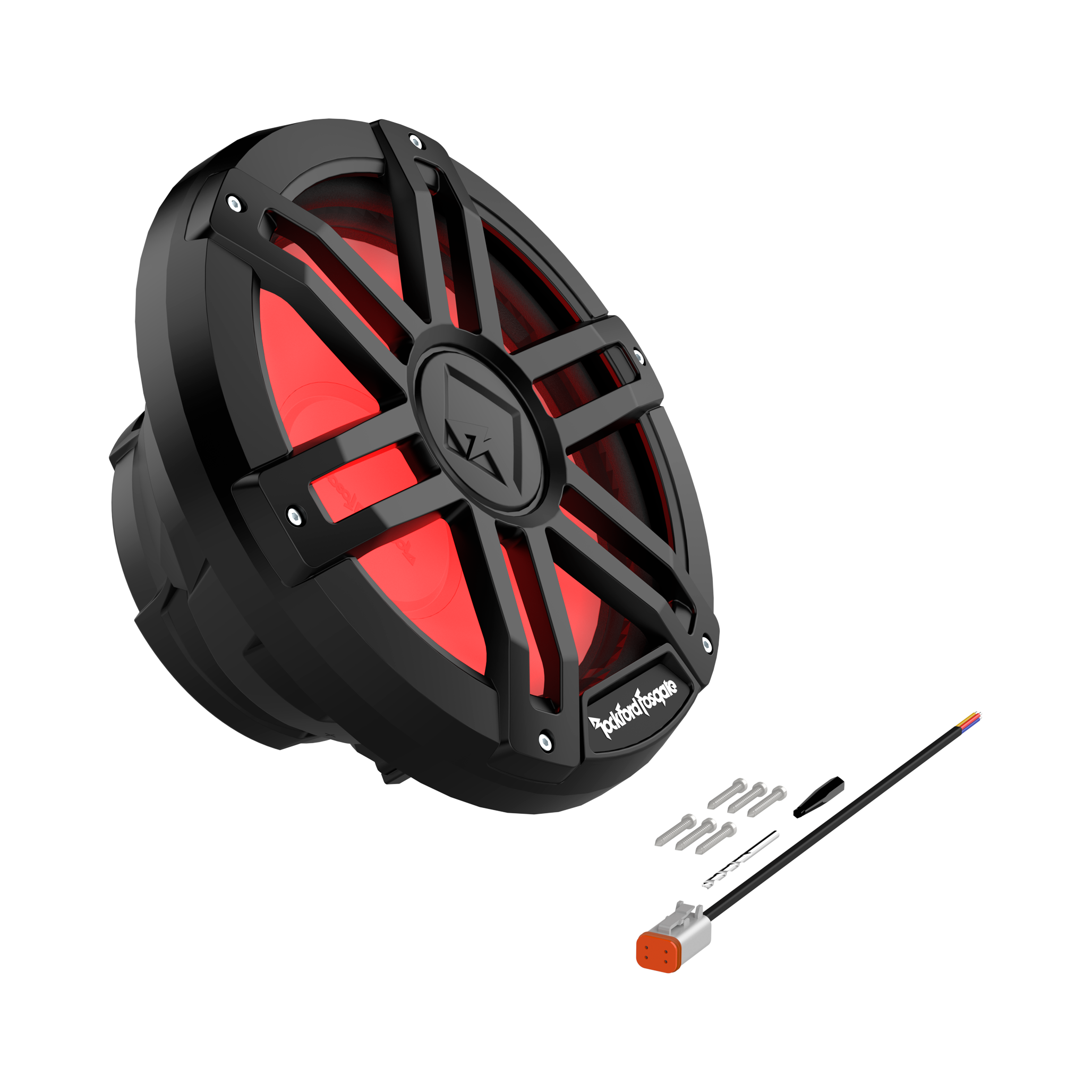

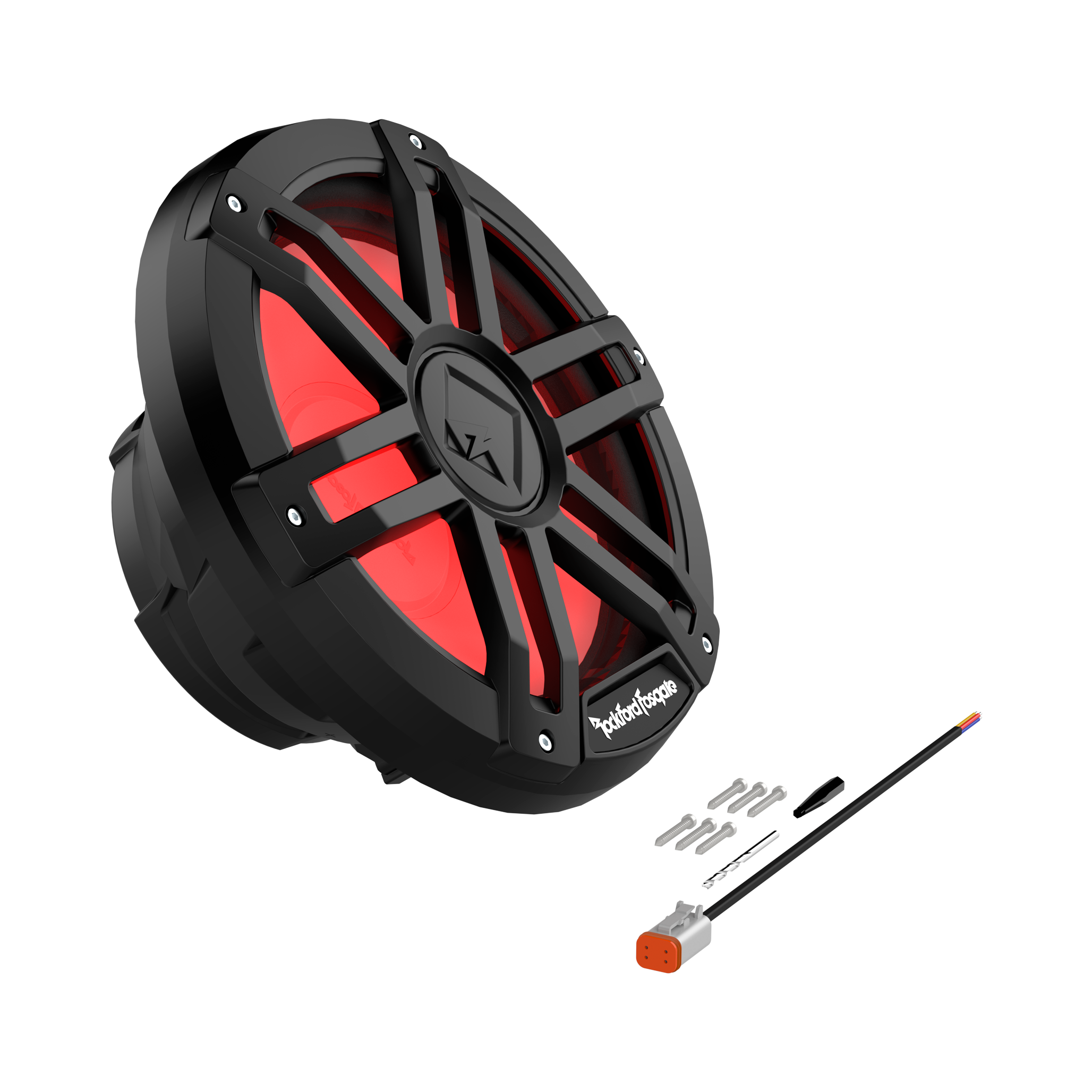

- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof

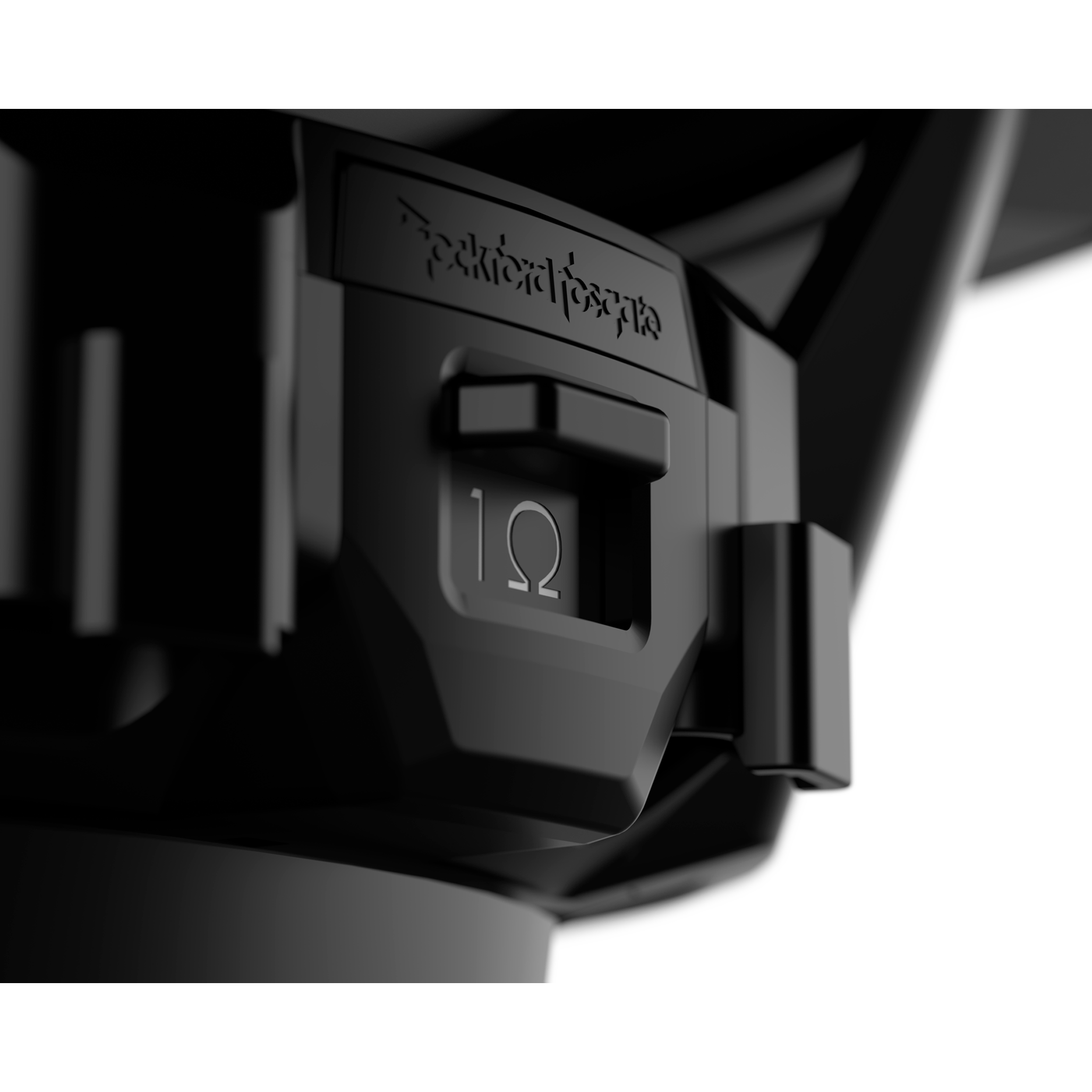

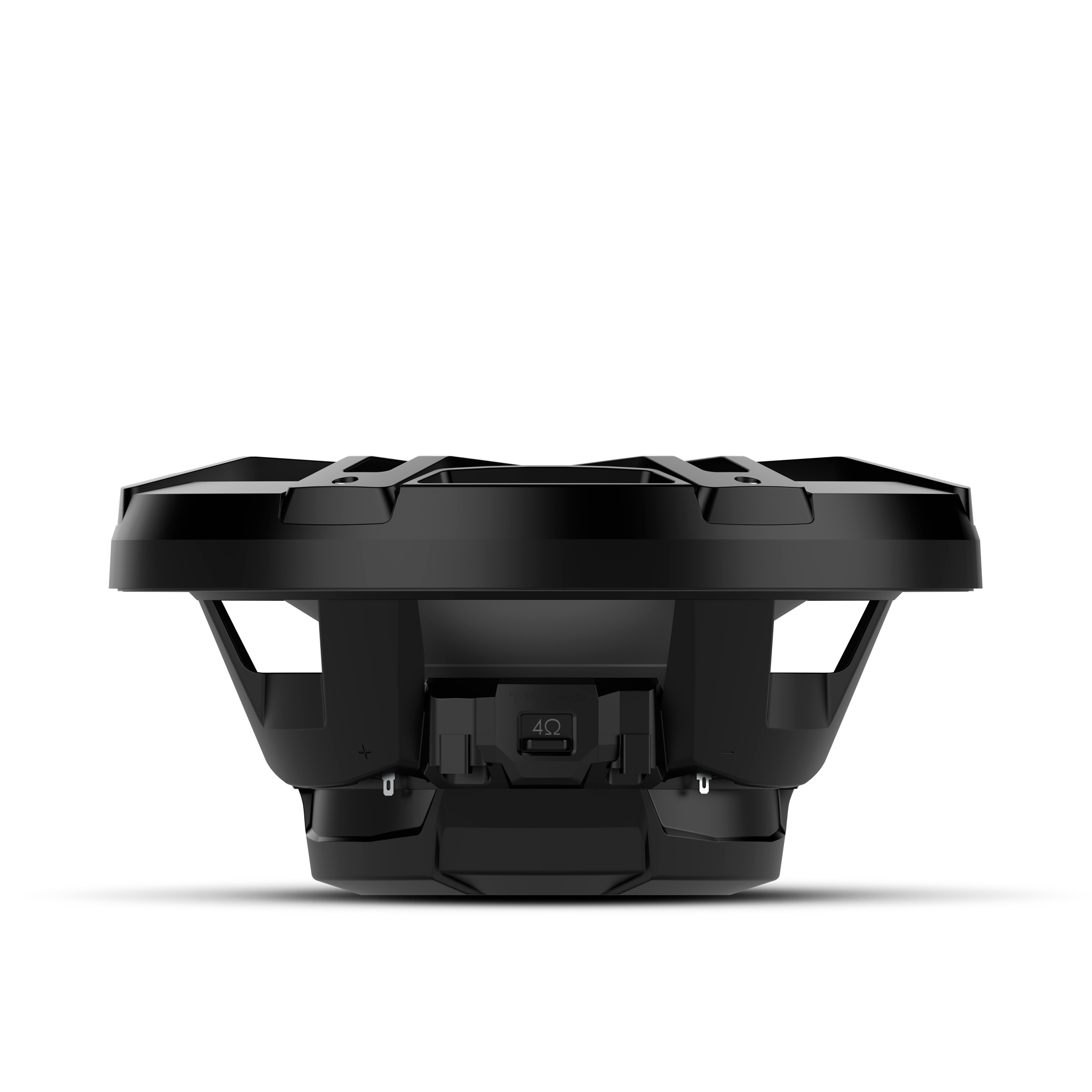

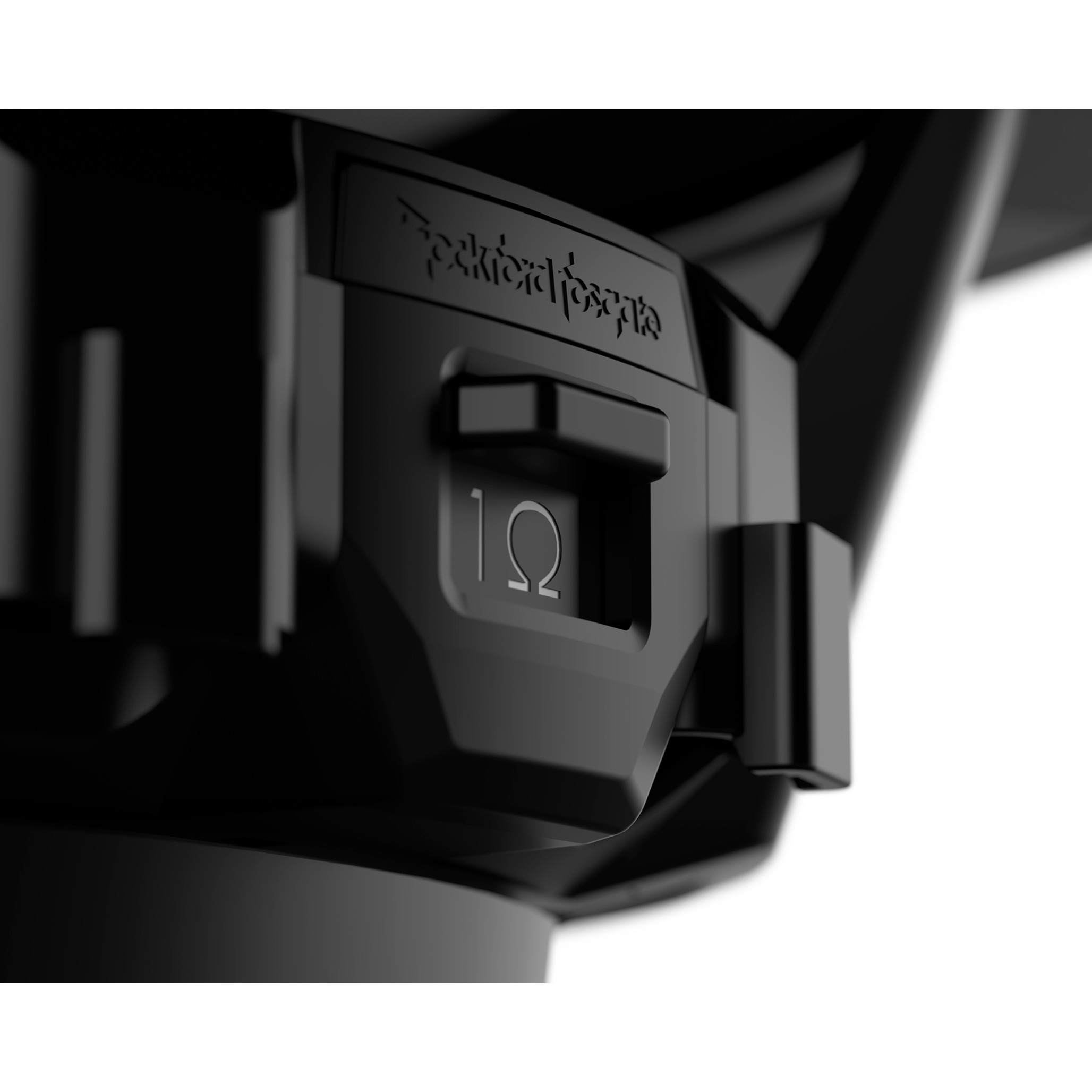

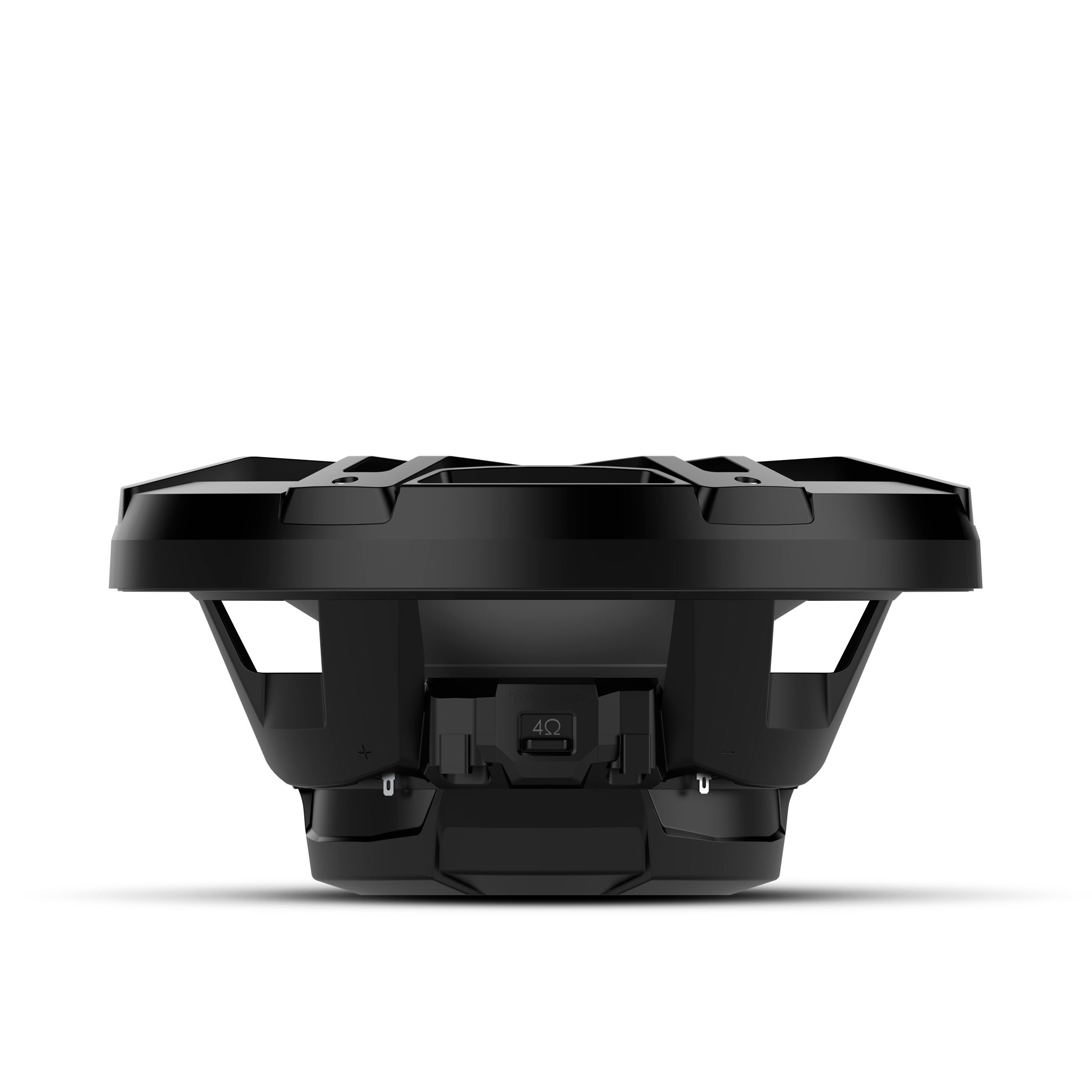

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral filled polypropylene cone body
- Linear Synthetic Fiber Blend Spiders
- Fully insulated silicone tinsel leads
- 2-Year Warranty
- Injection molded mineral filled polypropylene cone body with UV inhibitors
Specifications
- Size: 12"
- Voice Coil Type: Dual Voice Coil
- Frequency Response: 20 Hz - 750 Hz
- Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
- Power Handling (Watts RMS): 300 Watts RMS; 1200 Watts PEAK
- Magnet Weight (oz): 9 Lbs. (4.1 Kg.)
- Voice Coil Diameter: 2" (50 mm)
- Fs (Hz): 26
- Re (Ohms): 3.8
- Le (mH): 2.02
- Sd (cm2): 585.4
- Qms: 7.47
- Qes: 0.57
- Qts: 0.53
- Vas: 114.2
- SPL (dB @ 1w/1m): 92
- Xmax (mm): 6
- Woofer Displacement: 3.49 cu. ft. (0.12 Liters)
- Speaker Connector: DeutschTM
- Cutout Diameter: 10.85 in. (275.6 mm)
- Mounting Depth: 6.65 in. (169.1 mm)
- Shipping Weight: 9 Lbs. (4.1 Kg.)
