Overview

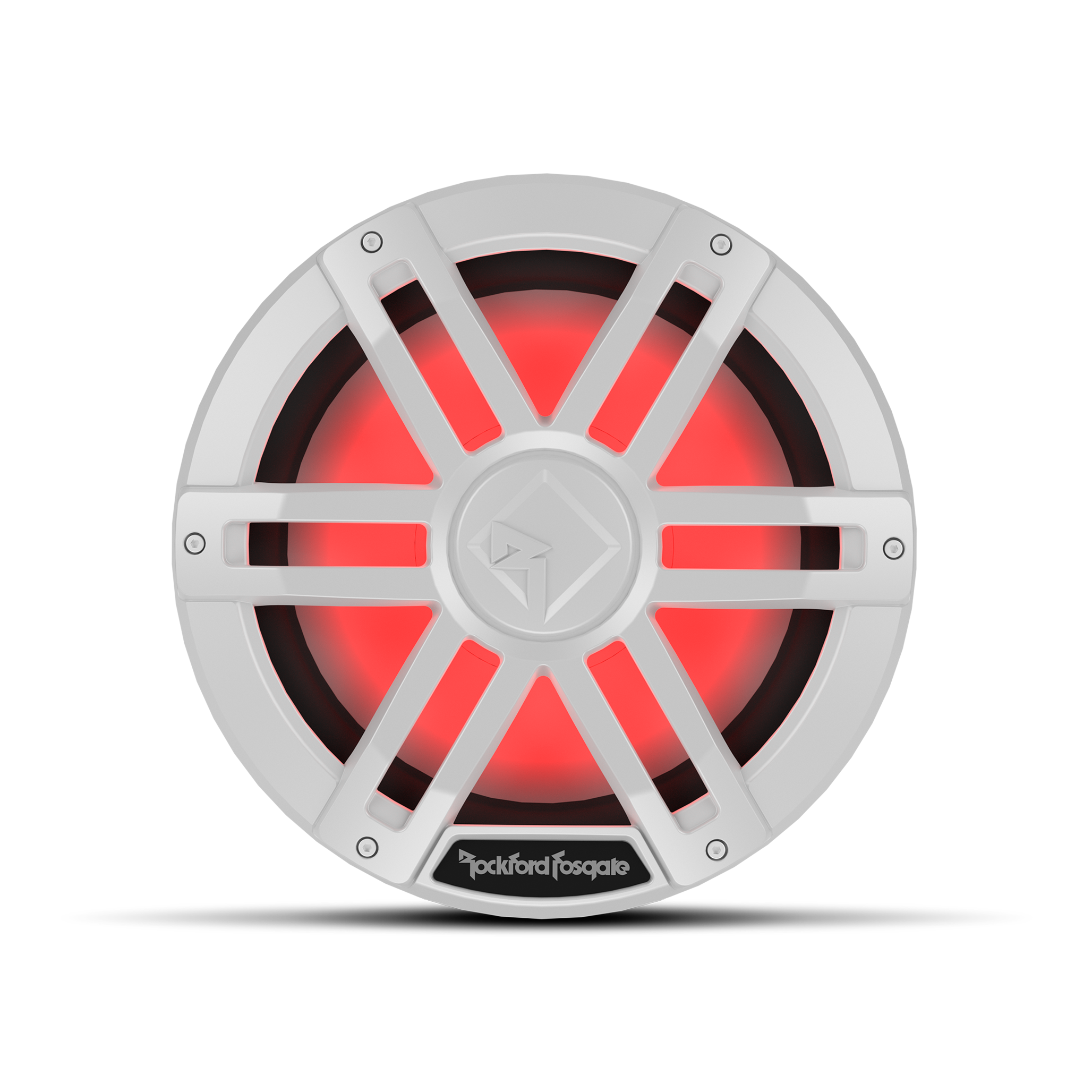

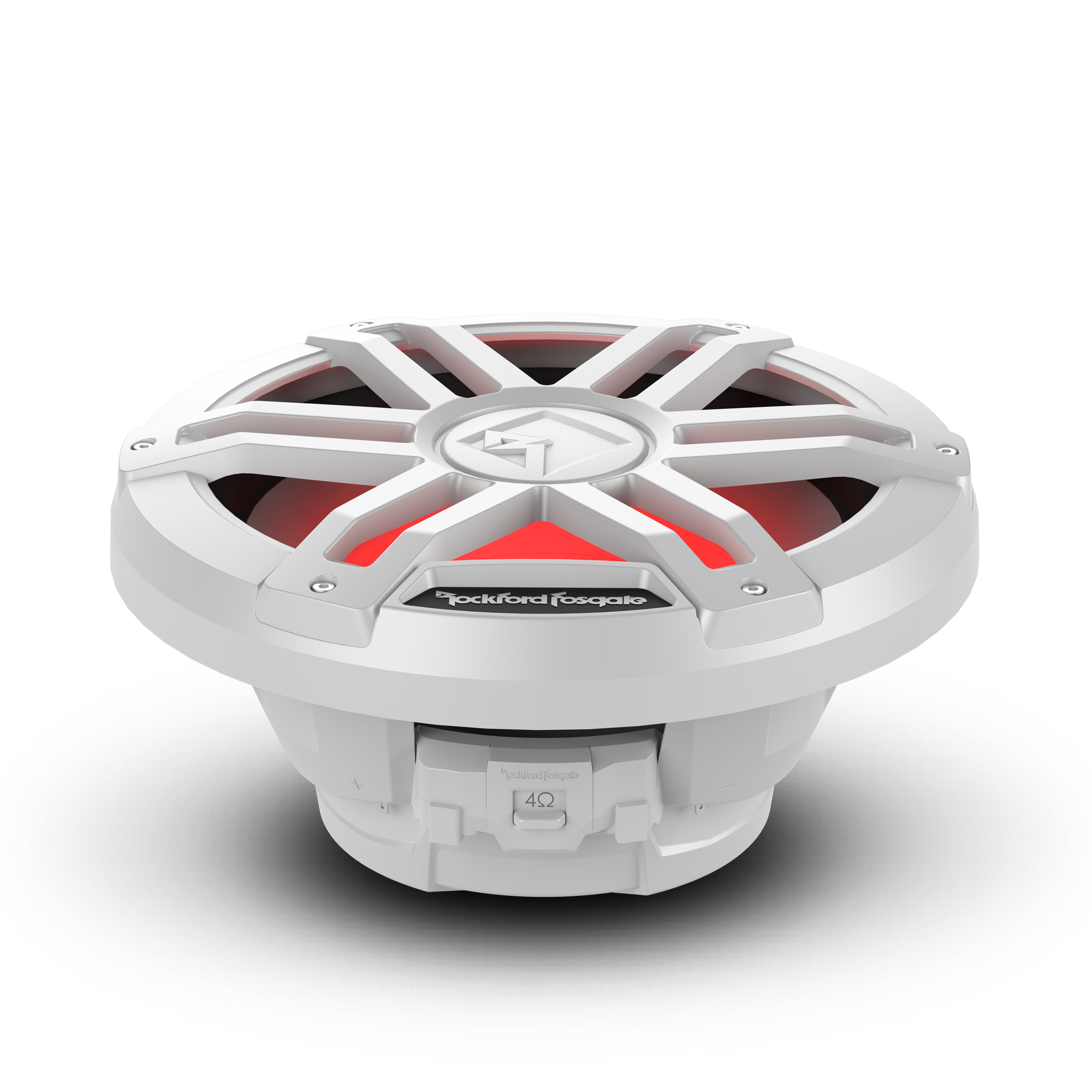

The M1D2-12 Color Optix TM 12" DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Features
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Optically clear UV stable RGB Lighting Encapsulation
- 2" (50mm) High Temp KaptonTM Woofer Voice Coil Former

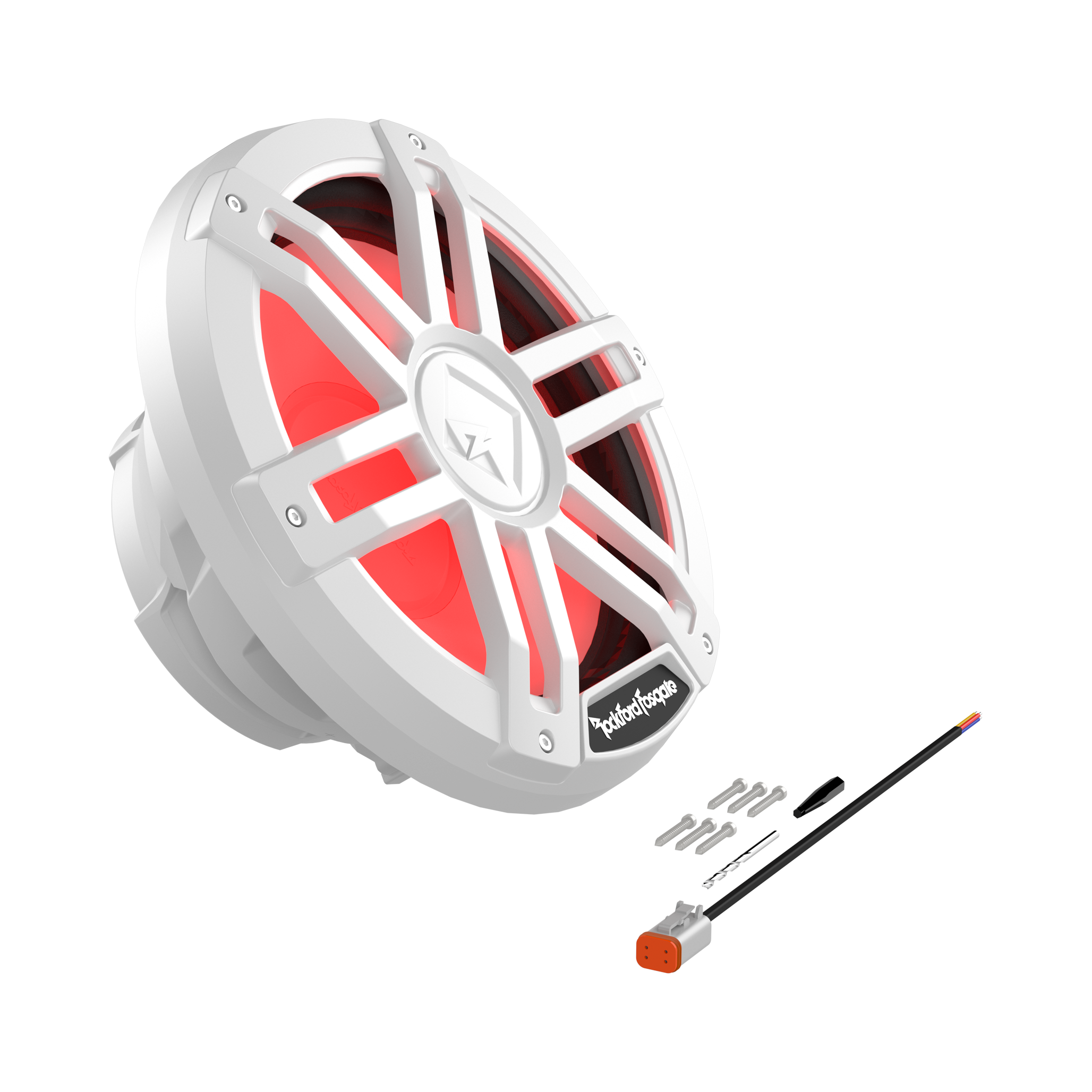

- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Vented motor design with water-repelling nano coated mesh screen
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- 2-Year Warranty
- Zinc Nickel-plated Marine grade brass connection terminals
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Linear Synthetic Fiber Blend Spiders
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Santoprene VAST Surround
- Co-molded surround and mineral filled polypropylene cone body
- Fully insulated silicone tinsel leads

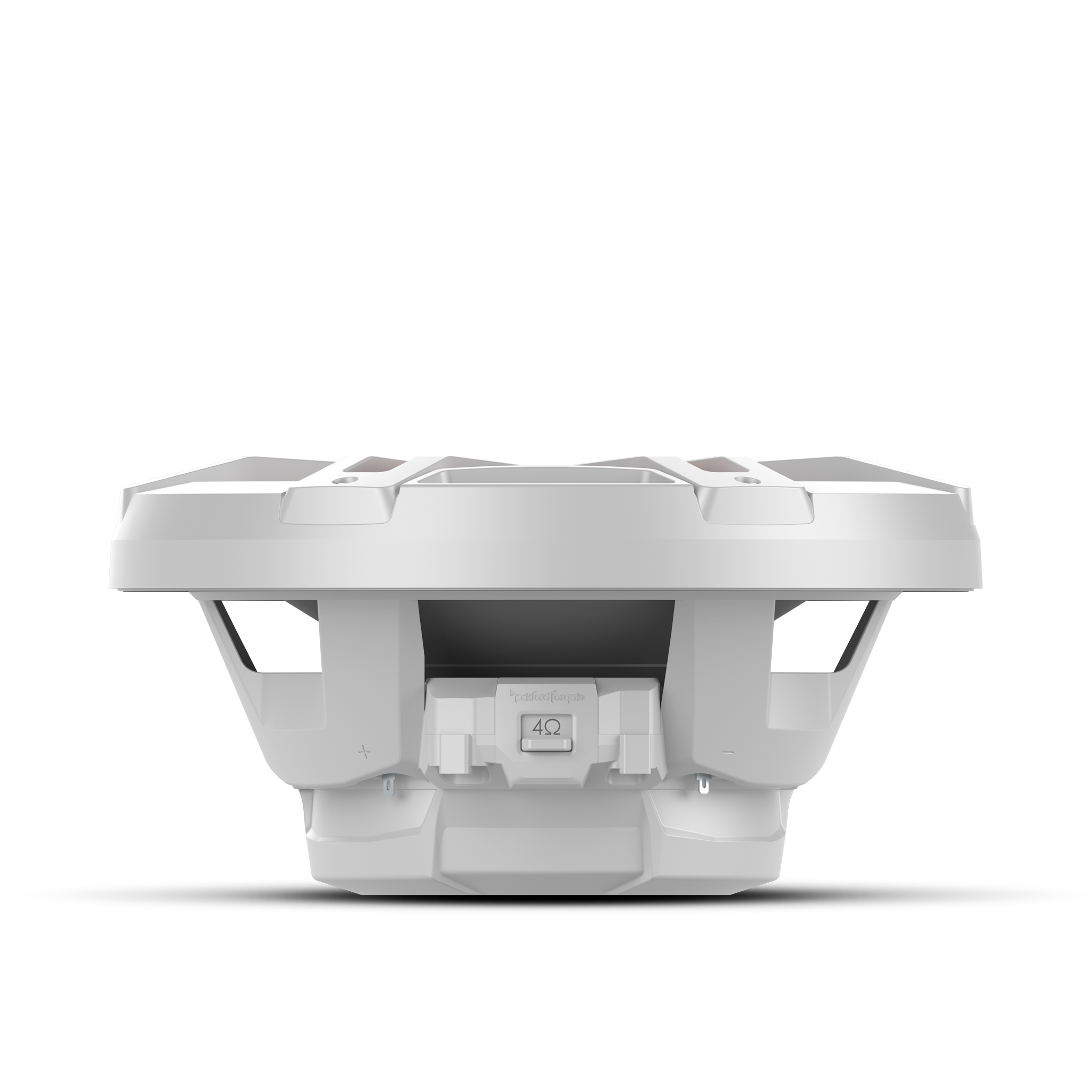

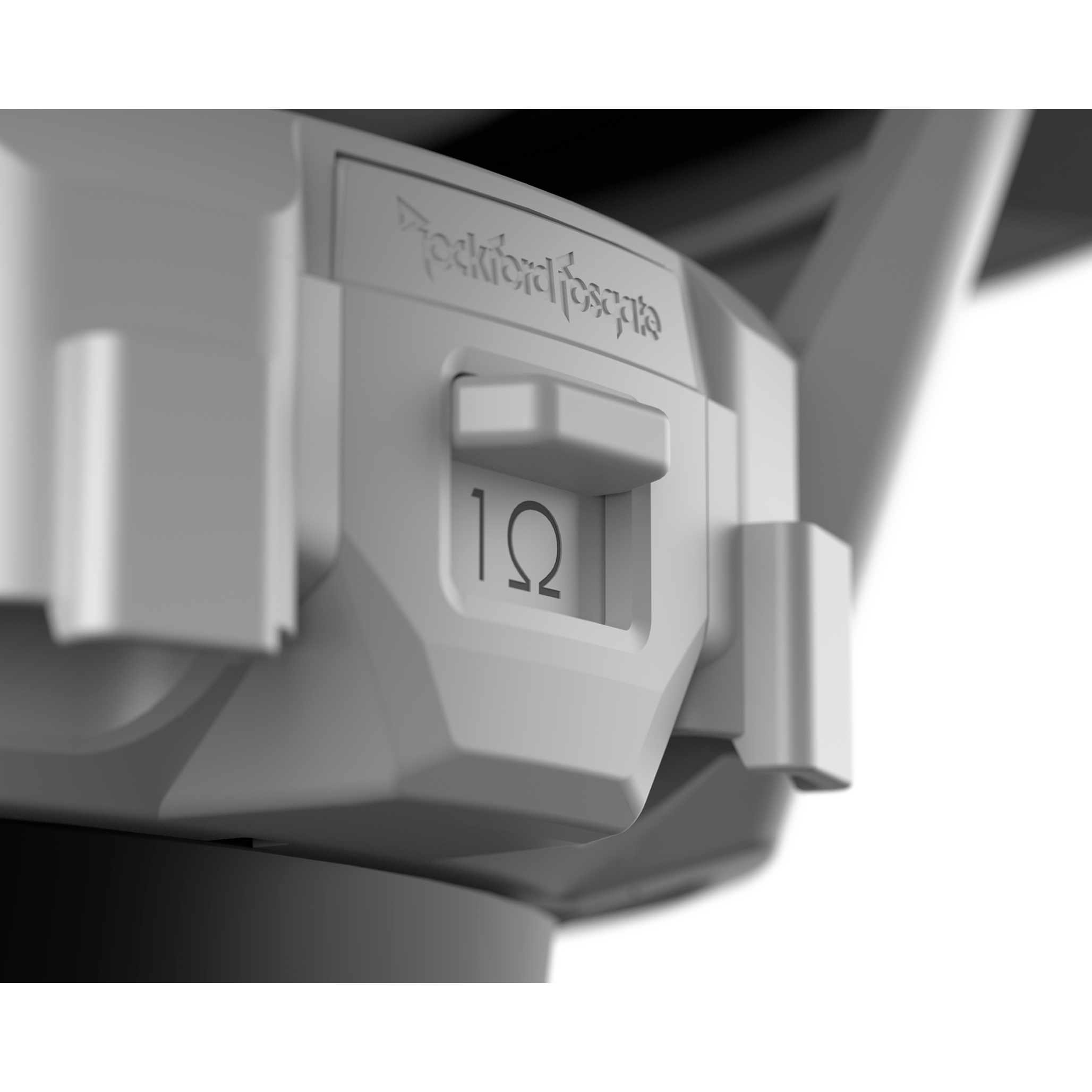

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
Specifications
- Voice Coil Type: Dual Voice Coil
- Le (mH): 2.02
- Frequency Response: 20 Hz - 750 Hz
- Re (Ohms): 3.8
- Fs (Hz): 26
- Magnet Weight (oz): 39.75 oz. (1.13 Kg)
- Voice Coil Diameter: 2" (50 mm)
- Power Handling (Watts RMS): 300 Watts RMS; 1200 Watts PEAK
- Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
- Size: 12"
- Sd (cm2): 585.4
- Qes: 0.57
- Qms: 7.47
- Qts: 0.53
- Vas: 114.2
- SPL (dB @ 1w/1m): 92
- Xmax (mm): 6
- Woofer Displacement: 3.49 cu. ft. (0.12 Liters)
- Speaker Connector: DeutschTM
- Cutout Diameter: 10.85 in. (275.6 mm)
- Mounting Depth: 6.65 in. (169.1 mm)
- Shipping Weight: 9 Lbs. (4.1 Kg.)
