Jeep JMID Tailgate Platinum Package
Jeep JMID Tailgate Platinum Package
Product Overview

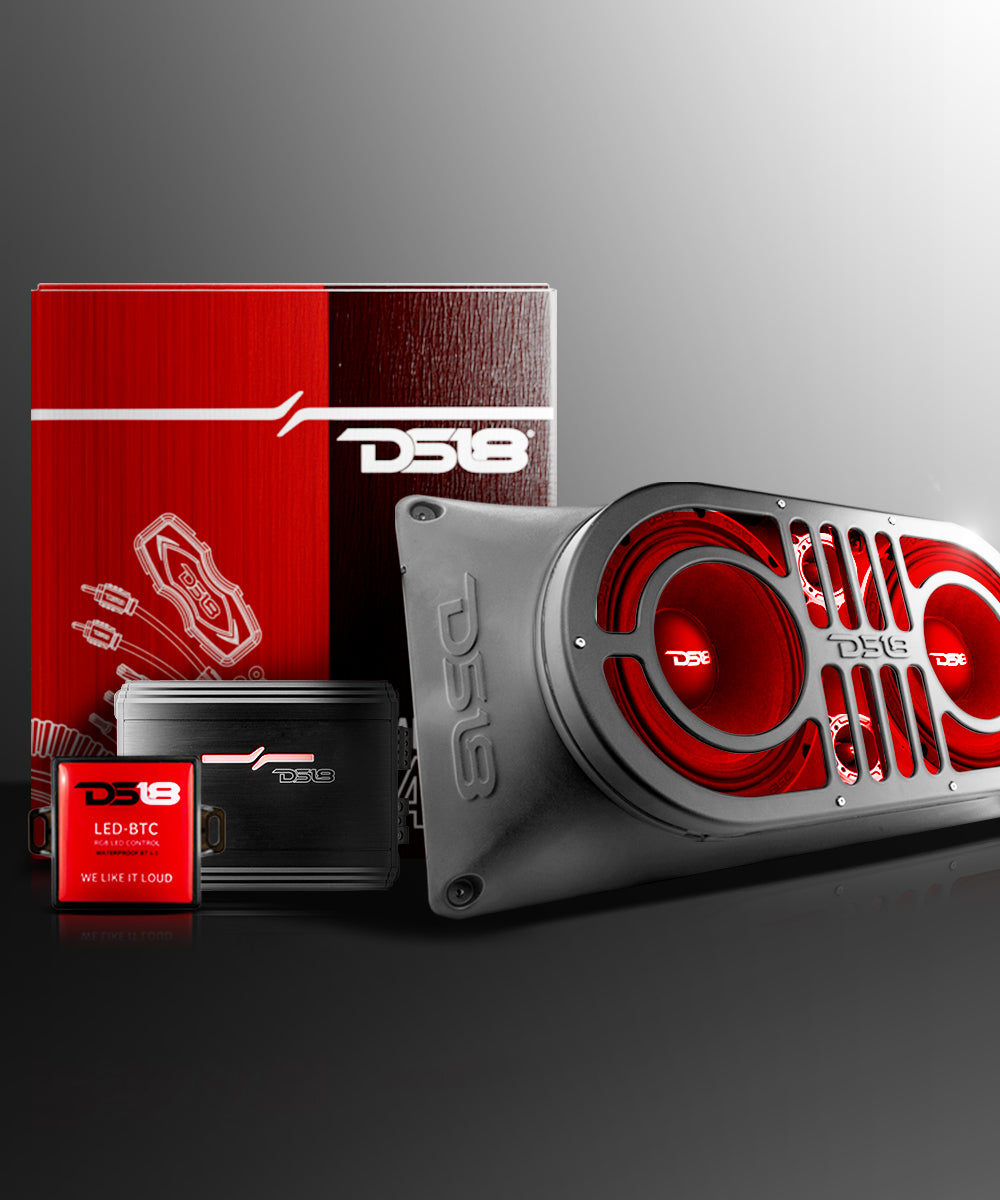

DS18 Jeep JMID Tailgate Platinum Package
DS18 is always finding ways for Jeepers to put LOUD audio in their builds in all kinds of unique ways. The JMID Package is the perfect solution for all Jeepers alike to add great sounding audio into their rides without sacrificing space all while having amazing show quality looks.
This Package comes with a highly durable plastic mold injected midrange enclosure that fits right on the back of your TJ, JK, or JL jeeps and holds two great sounding DS18 midrange 10s along with two high powered tweeters to back them up. Also included are RGB LEDs around the protective grill so you can match your pre-existing lighting or theme and you can change the colors easily with your phone with the included LED-BTC light controller.
To power these midranges and tweeters is a high powered DS18 amplifier picked out to match your speakers wattage perfectly so you get the most from your setup. We also include an Ampkit to easily install this DS18 powerhouse amp.
Highlights
- High strength plastic mold injected enclosure for two flat mount 10 inch midrange speakers and two tweeters.

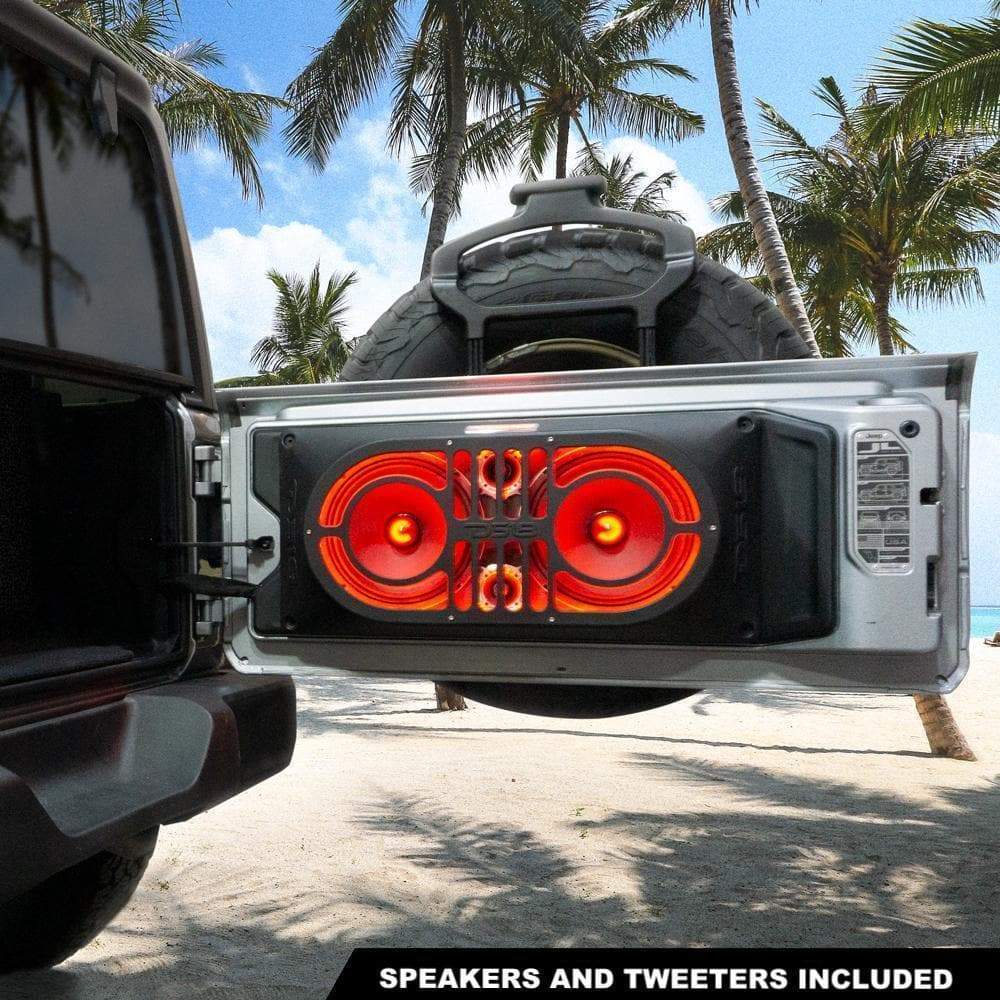

- Easily mountable on the rear gate of your JT, JK, or JL Jeep saving you space while getting maximum loudness.
- High powered amplifier especially picked to perfectly match the power needs of your setup with included amp kit.
- RGB LED lights included on the ensure grill to give you a nice aesthetic ambience to match your theme or existing light setup. LED-BTC controller included so you can easily change the colors with your phone
Package Includes

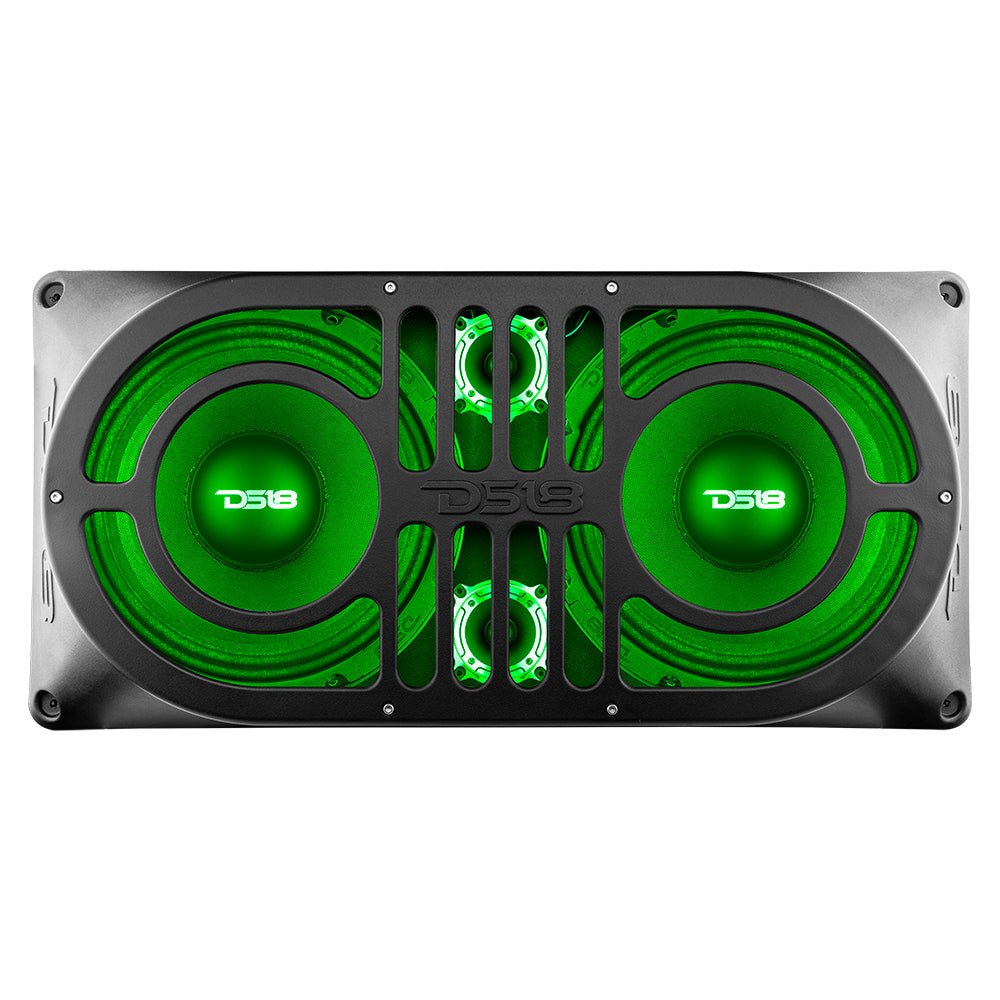

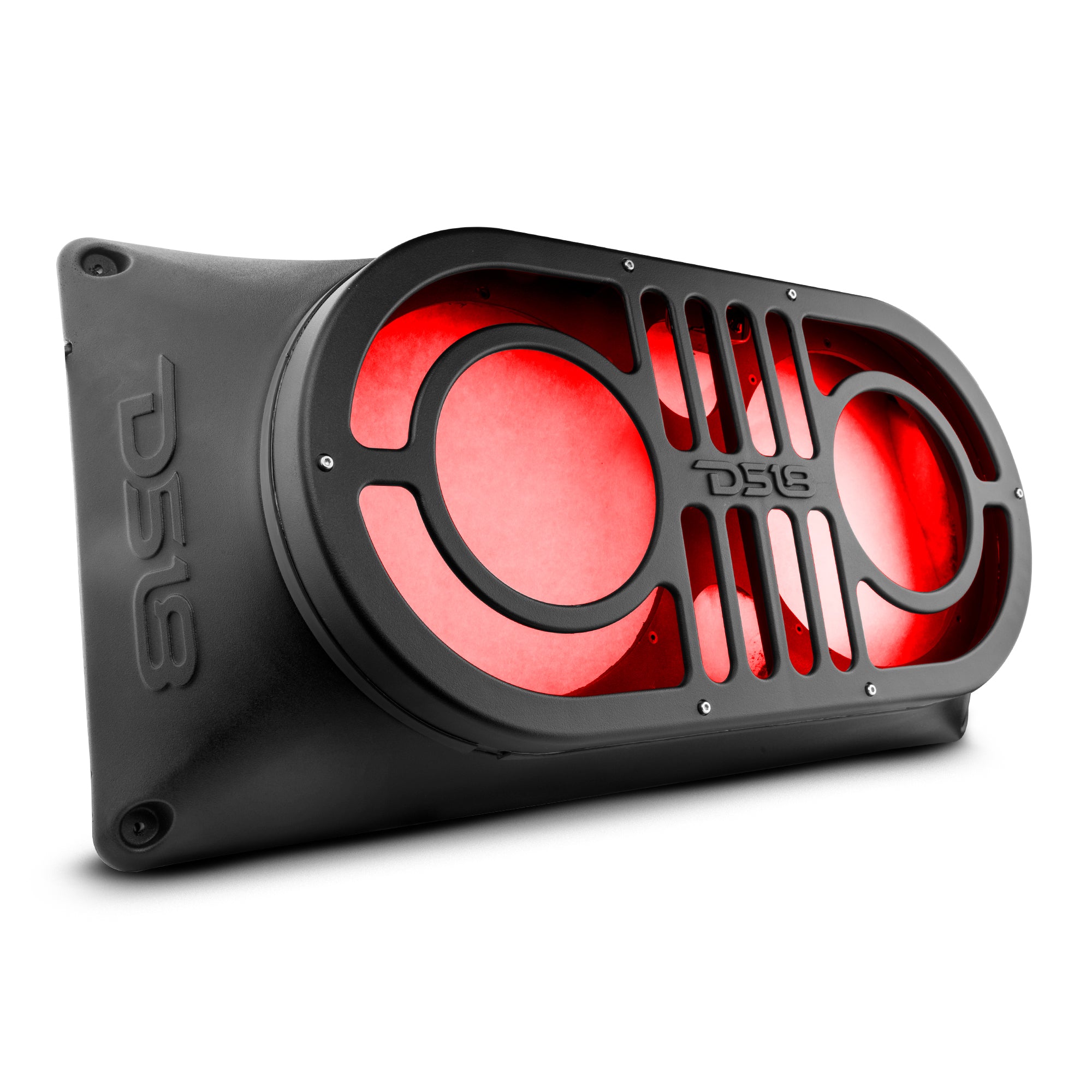

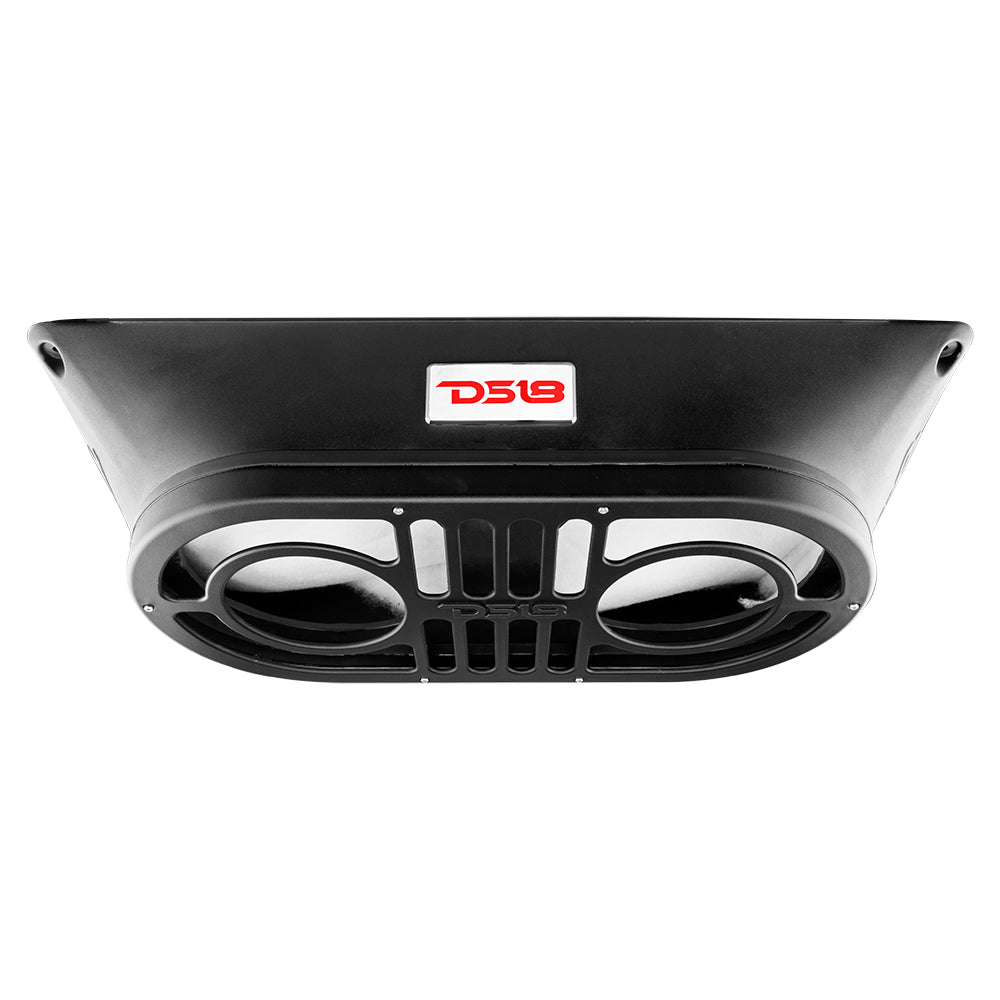

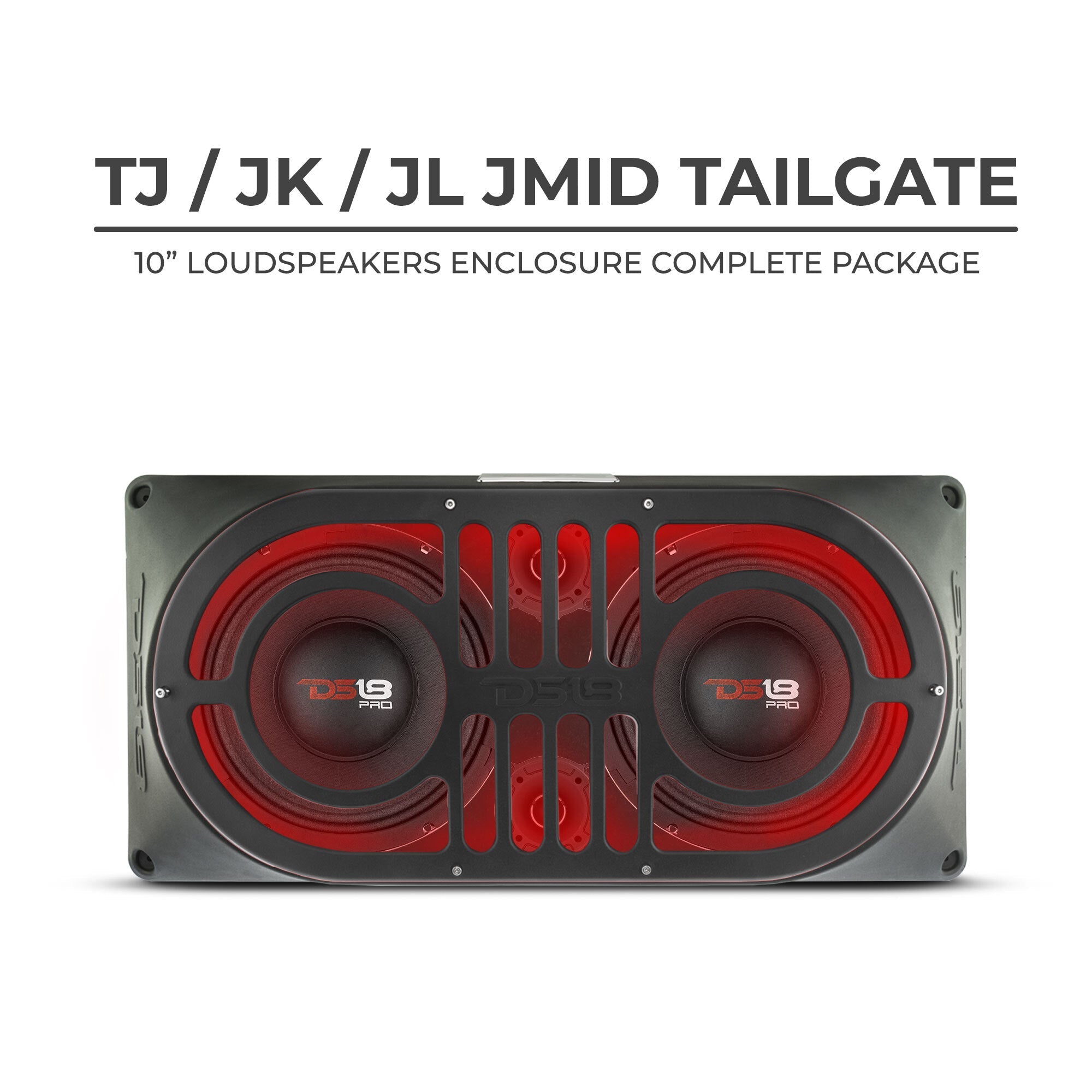

J-MID Unloaded Enclosure Box
- For Proper Use, Space Saving Install on Tailgate
- Size: D x W x H : 28.74" (730mm) / 13.77" (350mm) / 5.9" (150mm)
- 6 Core 1.5m Input Wires for RGB, Midrange Speakers and Tweeters
2 x PRO-X Series 10 inch.
- Kapton voice coil
- 4 or 8 Ohms
- 600-800 w MAX.

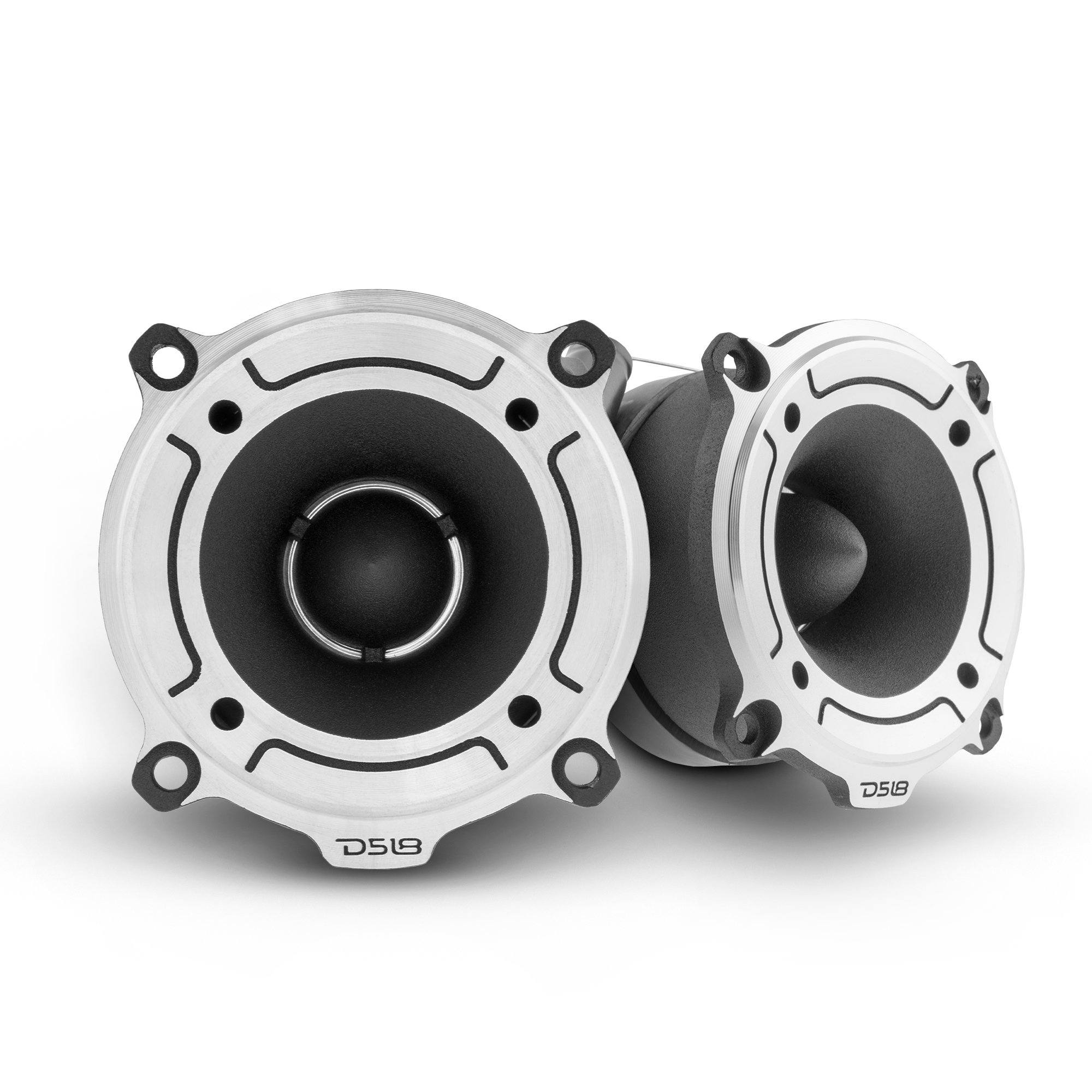

2 x PRO-TW120/ PRO-TWX1
- 4 Ohms
- 240w Max
- 1" Voice Coil
- Available in black or silver
1 x GEN-X FULL RANGE CLASS AB 4 CHANNEL AMPLIFIER
- 4 channel amplifier
1 x LED-BTC
- Module that will allow you to control lights via Bluetooth
- RGB lights will allow you to make any color

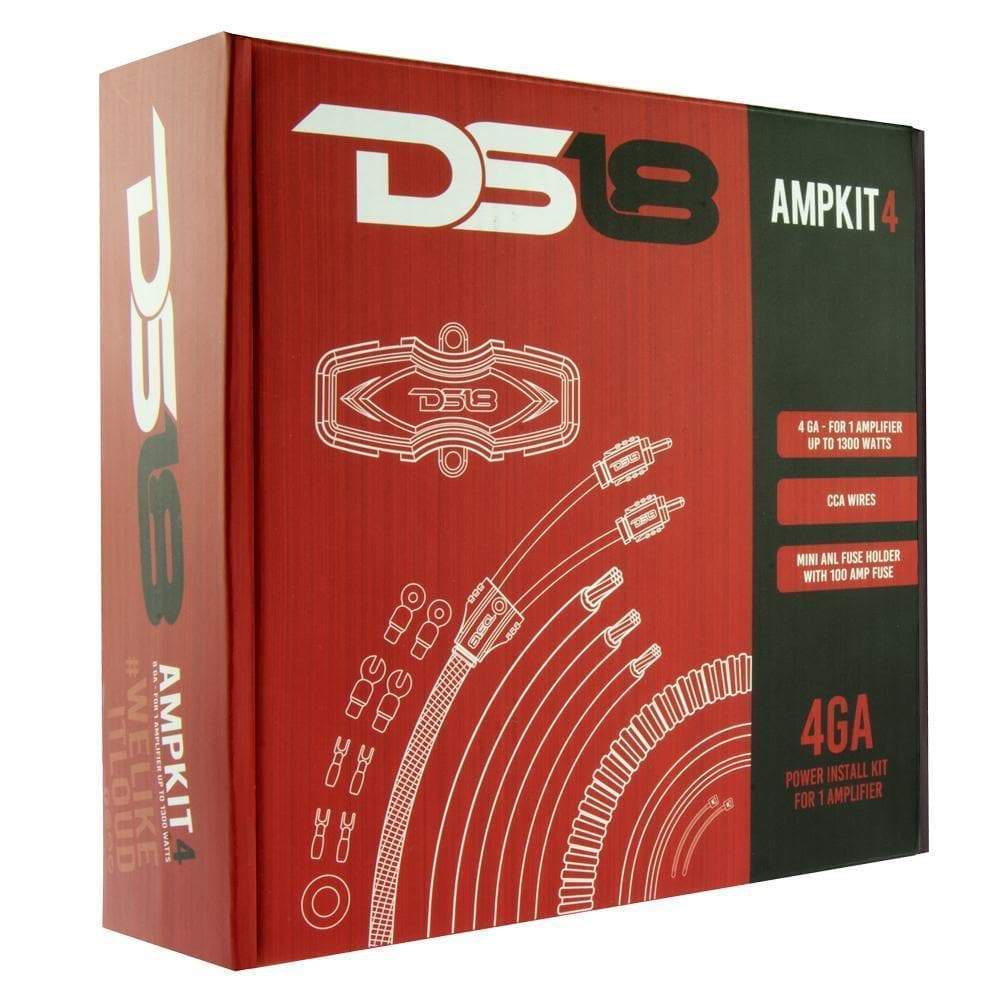

1 x AMPKIT
- Power, Ground, RCA and All Wires and Accessories Need to Run In Your Jeep
- CCA Wires

Key Features
- TJ,JK/JKU,JL/JLU Tailgate Loudspeaker Package
- 2 X 10" PRO Loudspeaker
- 2 X 3.8" Super Bullet Tweeters
- 1 X 4 Channel Amplifier
- 1 X Amp Kit
- 1 X LED Module
Specifications
| Compatible with | Jeep TJ, JK, JL |
|---|---|
| Houses | 2 x 10" Mid-Range / 2 x 3" Pro Tweeters |
| Colors available | Black |
| Dimensions D x W x H | 28.74 x 13.77 x 5.9 |
| Control lights via Bluetooth | Yes, LED-BTC Included |
| Amplifier Installation Wiring Kit Included | Yes, AMPKIT Included |
| Size | 10" |
| RMS Power | 300 Watts |
| MAX Power | 600 Watts |
| Frequency Response | 76-6.8KHz / 2KHz-20KHz / 20Hz-20KHz |
| Impedance | 4 Ohm / 8 Ohm / 4 Ohm |
| Sensitivity | 100.2dB / 103dB |
| Surround | Cloth Edge |
| Frame | Red Steel Basket |
| Cone | Non-Pressed Paper Cone |
| Magnet | Ferrite |
| Voice Coil Wire | CCAW |
| AES Power Handling | 60 Watts |
| Program Power Handling | 120 Watts |
| Peak Power Handling | 240 Watts |
| Recommended Hi Pass Crossover | 3 KHz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 1"/25.4 mm |
| Voice Coil Former Material | CCAW |
| Winding Material | Aluminum |
| Diaphragm Material | Aluminum |
| Total Watts (Peak) | 1800W |
| RMS Power @ 4 ohm | 4 x 150W |
| RMS Power @ 2 ohm | 4 x 230W |
| RMS Power @ 4 ohm Bridge | 2 x 430W |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4ohm | 81% |
| Damping Factor | 78 |
| Input Impedance | 22K |
| Channel Separation | 70dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.25-6V |
| High Level Input | NO |
| Selectable X-Over | LPF/FLAT/HPF |
| X-Over Filter Range | 50Hz-250Hz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | N/A |
| Phase Selector | NO |
| Amplifier Class | Digital (D) |
| Amplifier Type | 4CH Full Range |
| Number of Channels | 4CH |
| Minimum Impedance | 2 ohm St / 4 ohm Bridge |
| Led Indicator | Power / Protection / Clip |
| Power Input Terminal Size | 4 ga |
| Fuse Size | 2 X 40A |
| Remote Level Control | NO |
| Cooling Fan | NO |
| Voltmeter | NO |
| Thermal Protection | YES |
| Over-Load Protection | YES |
| DC Output Protection | YES |
| Short Circuit Output Protection | YES |
| Voltage Input Protection | YES |
| Clipping Protection | YES |
| Body Color / Finish | Matte black |
| Overall Length | 10.43" / 265mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 8.58" / 218mm |
| Gross Single Unit Weight | 1.6KG |
