ION Compact Full Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @ 4-ohm
Product Overview DS18 ION1000.4D ION Compact Full-Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @...
- $299.95
- $299.95
- Unit price
- per
Subtotal:
$299.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 ION1000.4D ION Compact Full-Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @ 4-ohm
Introducing DS18’s ION1000.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!

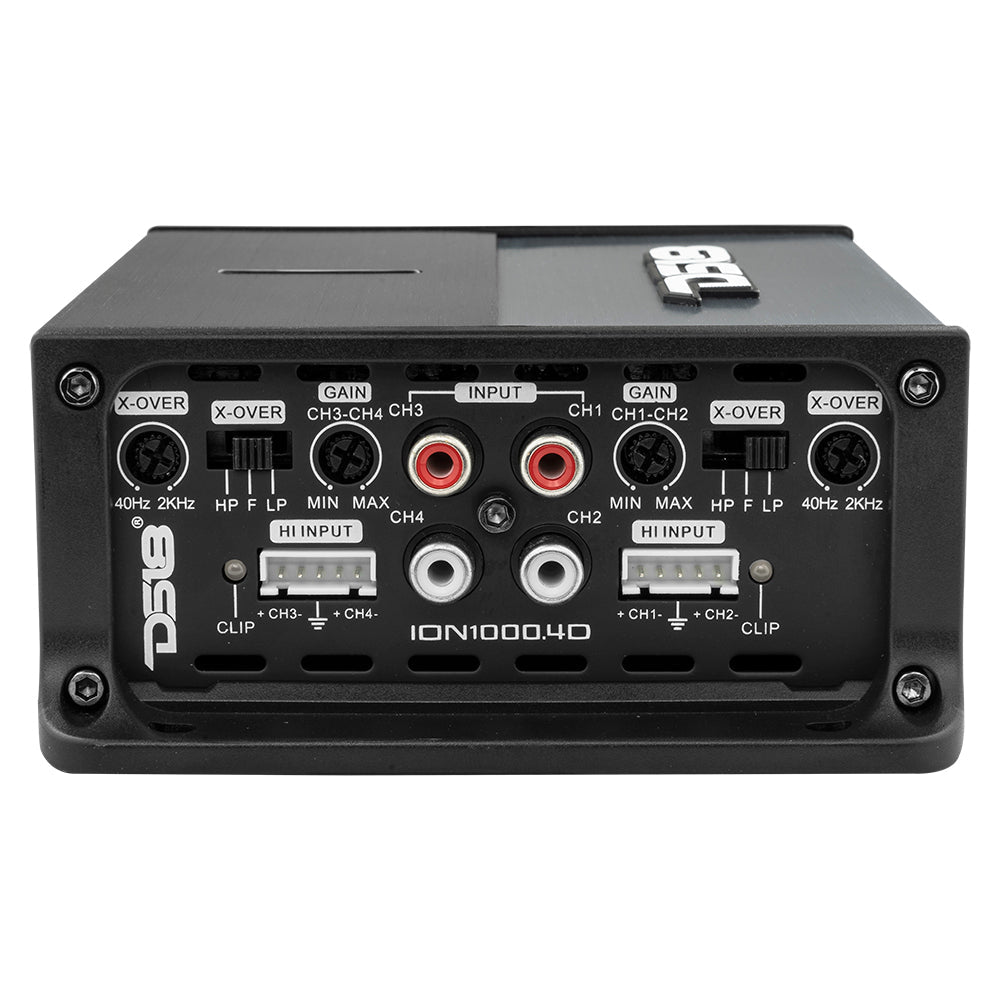

Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION1000.4D’s miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space.
The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies.

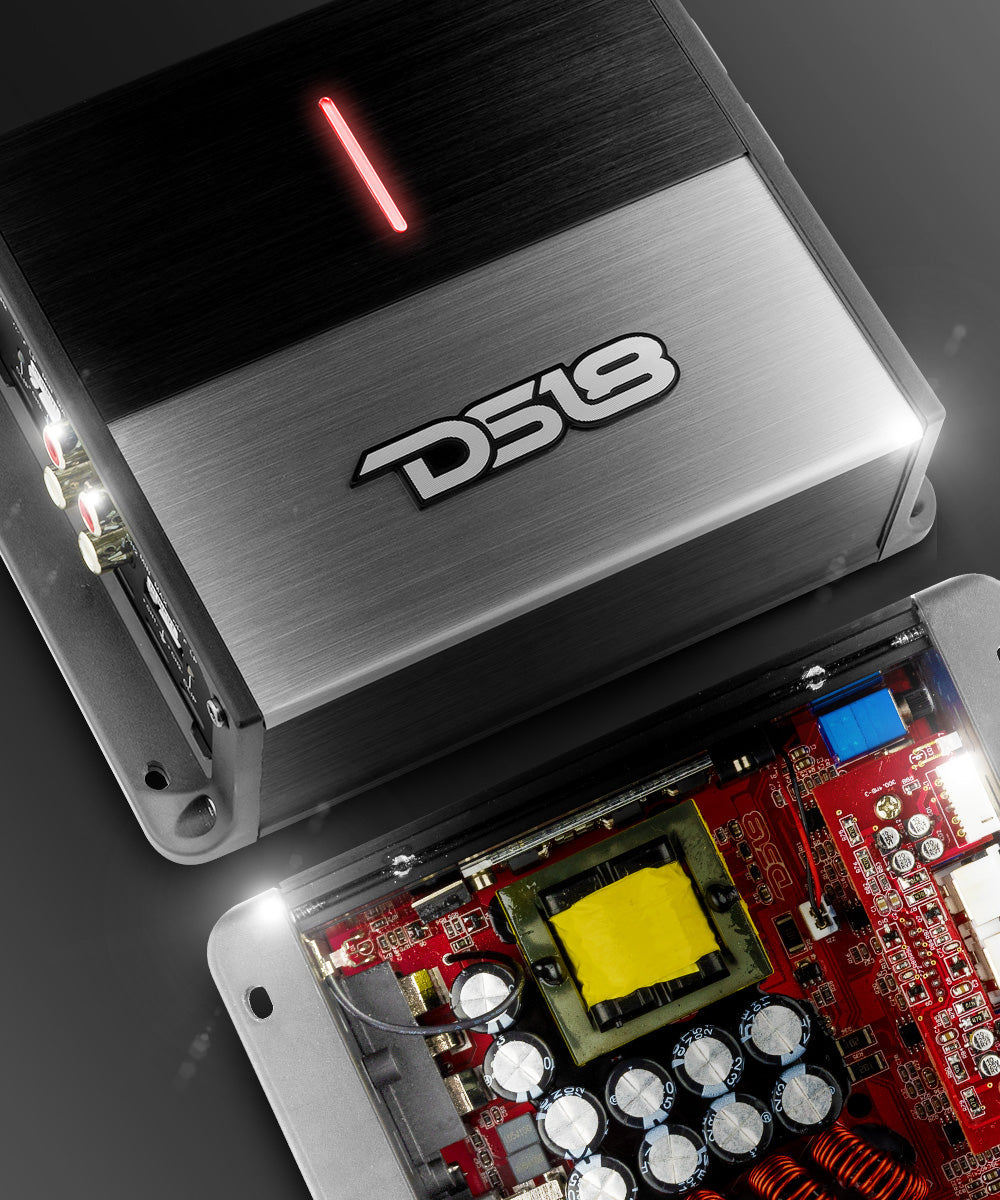

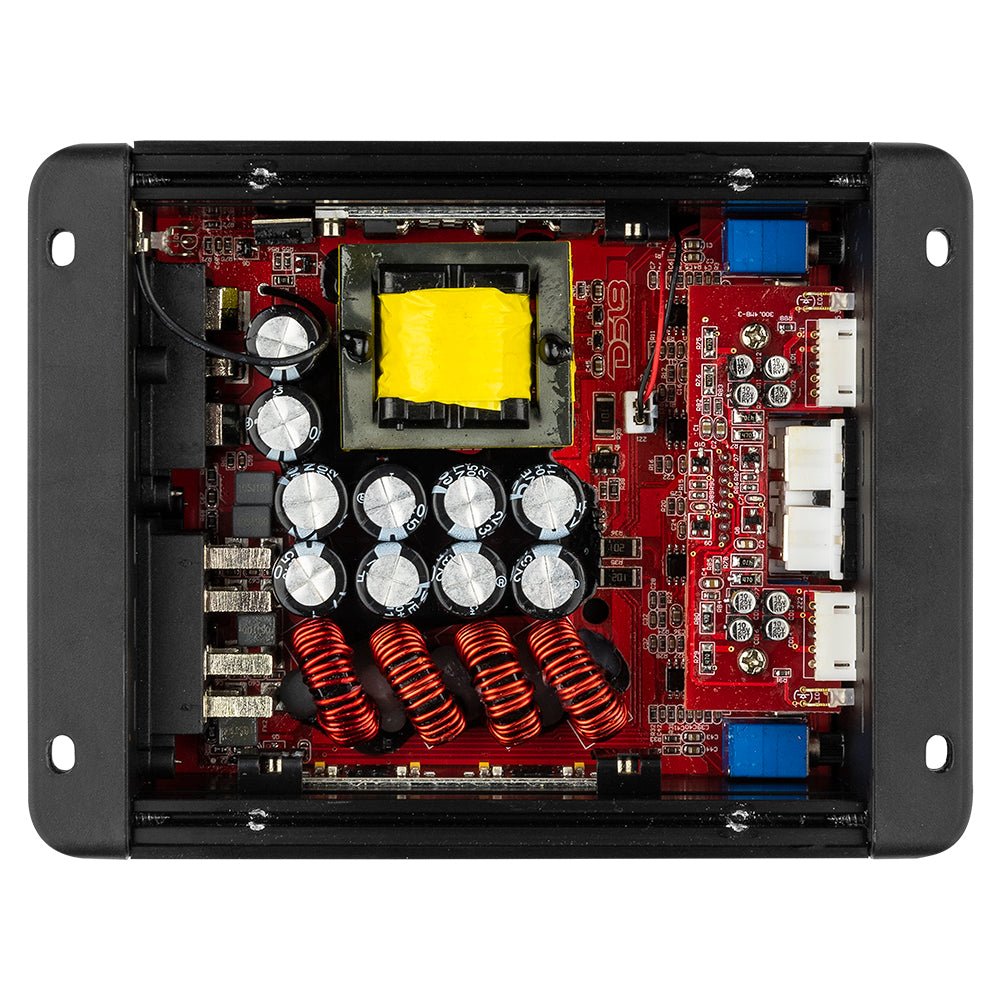

Surface mount component technology makes this amplifier highly resistant to vibrations, ensuring stable performance even on rough terrain. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability.
Safety was a top priority in the creation of DS18’s ION1000.4D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.
The ION1000.4D has power ratings of 2 X 500W at 4-ohm bridged, 2 x 250W at 2 ohms, and 4 x 150W at 4 ohms; perfect power ratings to turbocharge every component in your system!
Experience the power and precision of DS18’s ION1000.4D!
Key Features
- 4 Channel Full Range
- Class D
- 2 - 4 Ohm Stable
- 4 X 150 Watts @ 4 Ohm
- Power / Clip / Protection Indicator
- Compact
Specifications
| SKU | ION1000.4D |
|---|---|
| Total Watts (Peak) | 3000W |
| RMS Power @ 4 ohm | 4 x 150W |
| RMS Power @ 2 ohm | 4 x 250W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 2 x 500W |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 ohm | 88% |
| Damping Factor | 210 |
| Input Impedance | 27Kohms |
| Channel Separation | 59dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |
| Selectable X-Over | LPF/HPF/FULL |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | NO |
| Bass Boost Frequency | 45Hz |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Stereo |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm (St) / 4 Ohms (Bridge) |
| Led Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 4 AWG |
| Fuse Size | 80A (external) |
| Remote Level Control | No |
| Cooling Fan | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Aluminum Black / Silver |
| Hi-Level Speaker connector | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| High Efficiency Micro Digital Design | Yes |
| Overall Length | 6.14" / 156mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 2" / 52mm |
| Heatsink Length | 4.84" / 123mm |
| Gross Single Unit Weight | 0.8Kg |
