NXL 1-Channel Class D IP67 Waterproof Marine and Powersports NANO Amplifier
NXL 1-Channel Class D IP67 Waterproof Marine and Powersports NANO Amplifier
Product Overview

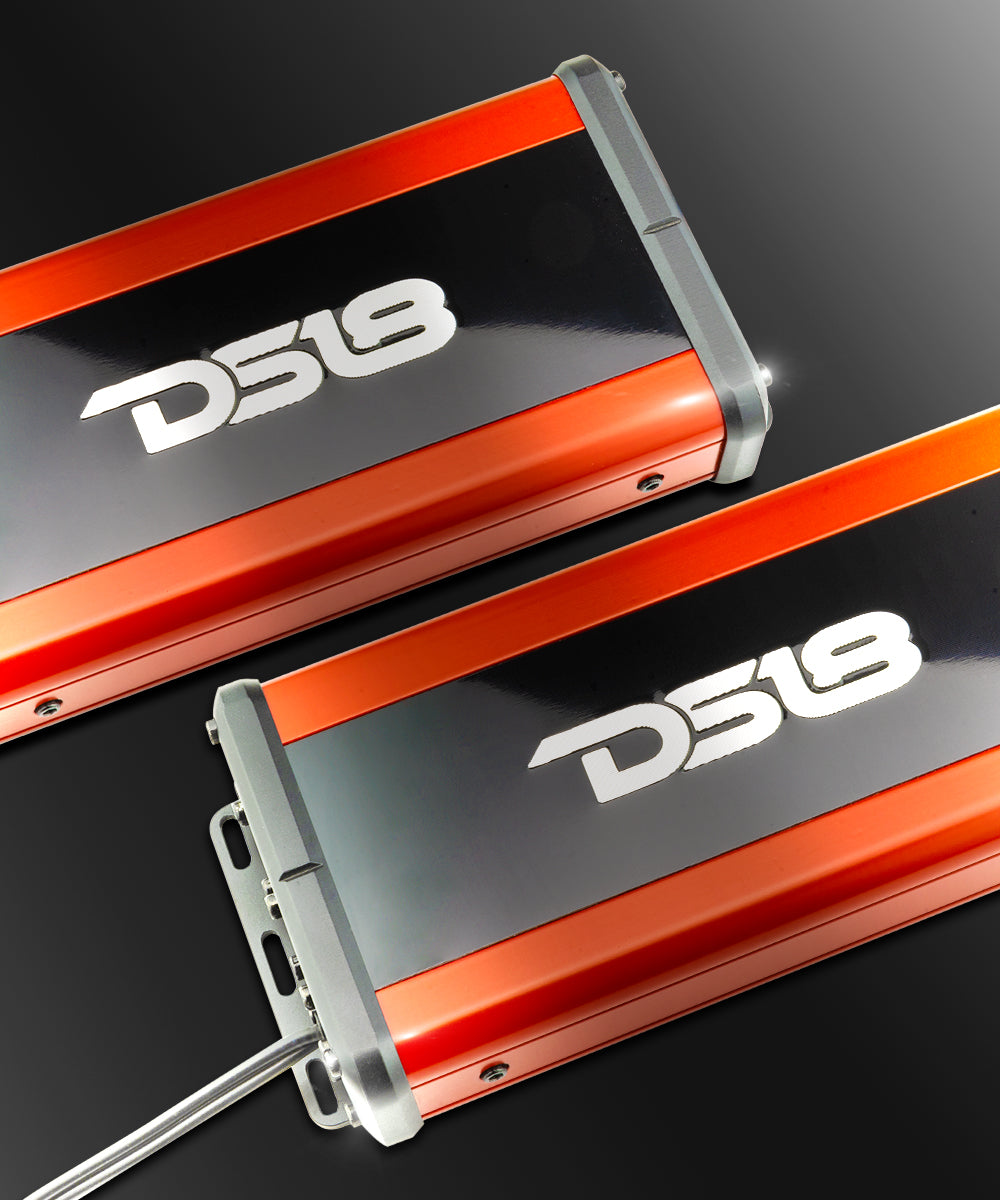

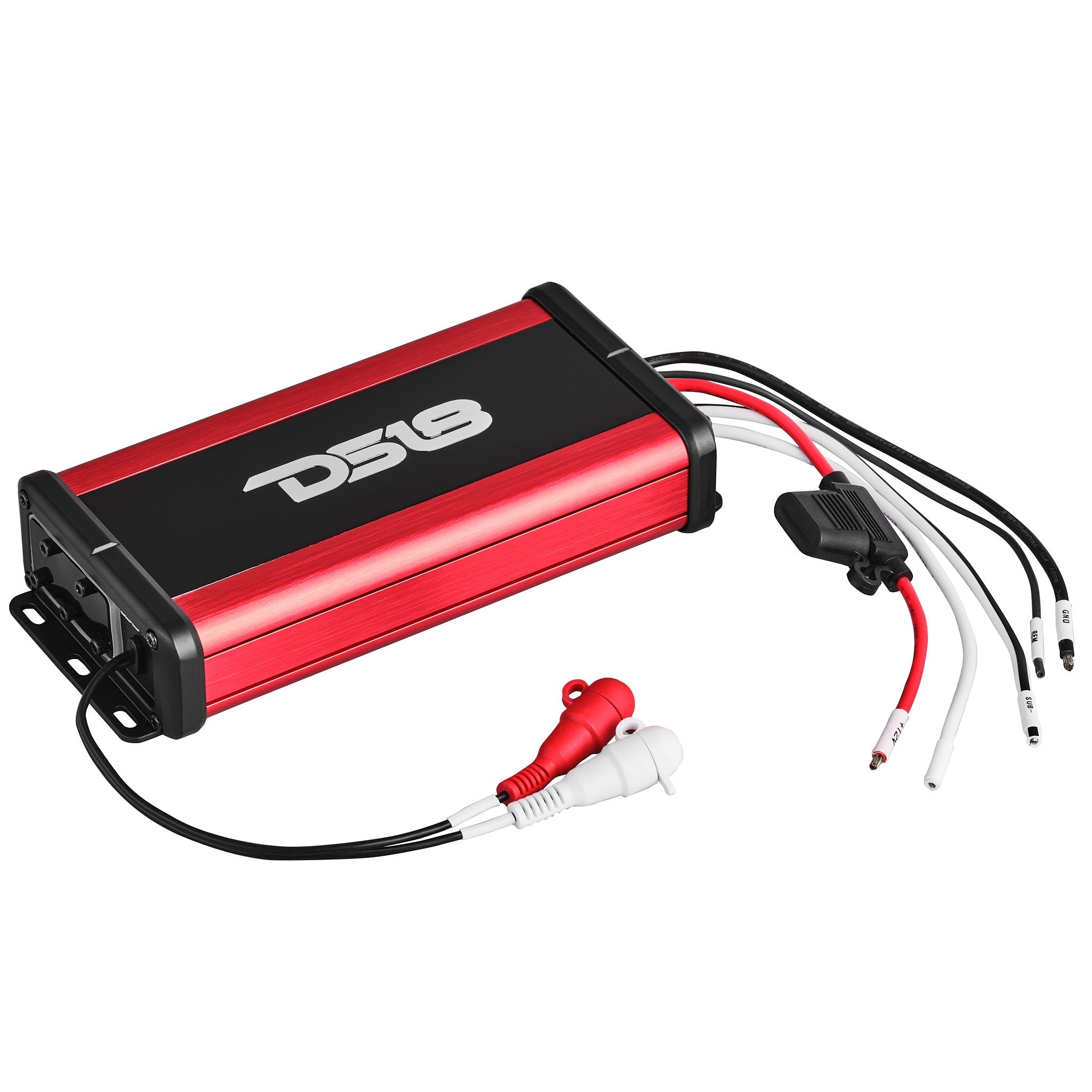

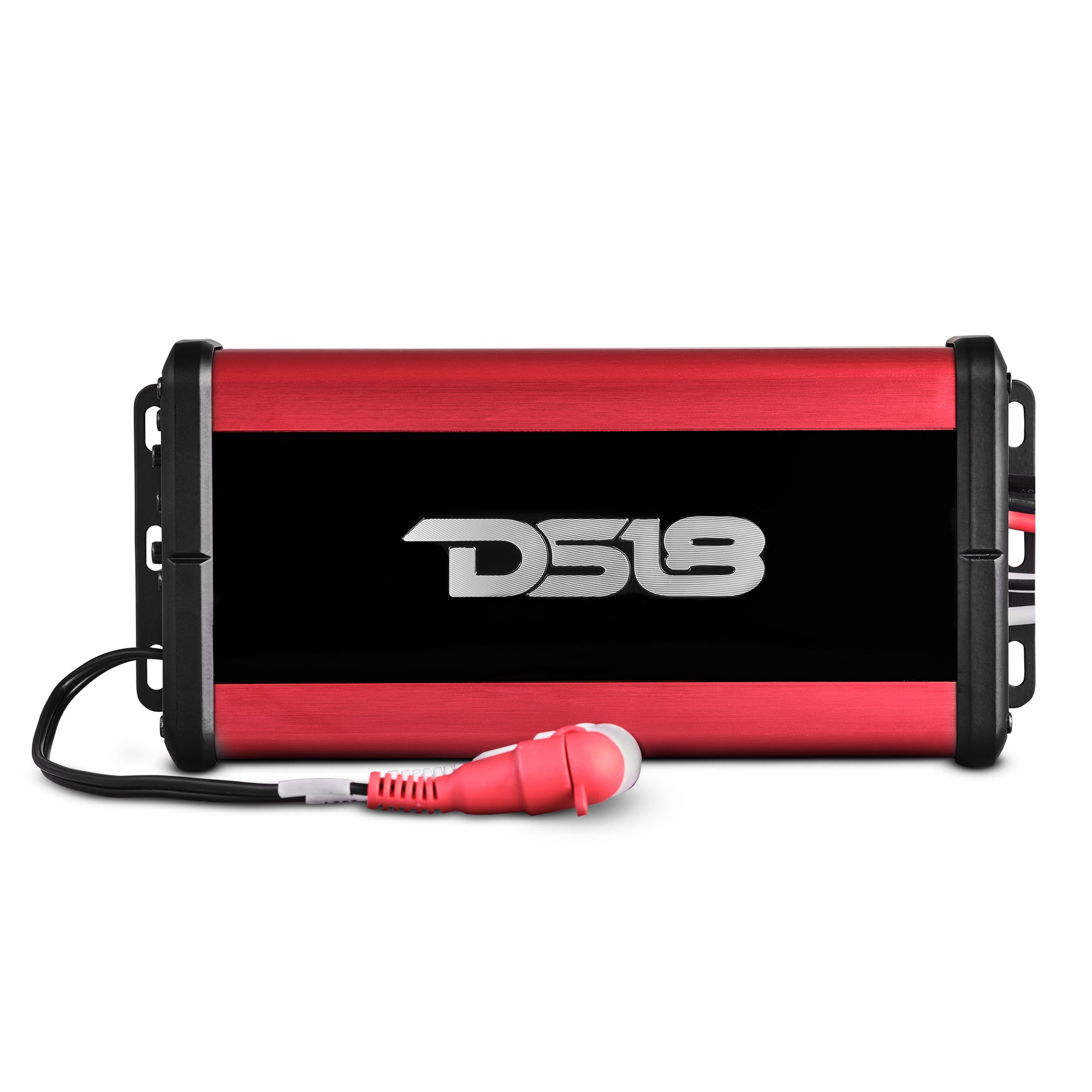

DS18 HYDRO NXL-N1 Nano Digital Marine 1-Channel Monoblock Boat, ATV, UTV Amplifier 1050 Watts
Whether you are the type of audio enthusiast that likes to hit the open road on his bike, ride the rough trails on your side by side, or cruise the open waters, you are going to need a powerful and waterproof rated amp that has a small footprint and also make great power.
DS18 has a line just for the job with the NXL series of amplifiers to power your whole system. These amps are very efficient, small, and have great power output. These amps come in 1 channel, 2 channel, 4 channel, and 5 channels to help you accommodate for all your different speaker setups without having to look further.
All units have stable and reliable 4-layer PCB layouts, IPX67 rated for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification. The NXL line of amps is what the serious outdoors person will need for their vehicle hands down!
AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE, WILL VOID WARRANTY
Highlights
- Stable and reliable 4 layers PCB layout design
- IPX67 Waterproof for Powersports applications
- Ultra compact size for easy installation
- Audio precision quality control verification
Technical Details
| Model: | NXL-N1 |
| Number of Channels: | 1 |
| Max Power | 1050W |
| Frequency Response: | 50Hz - 250Hz |
| 1 Ohm RMS Power (14.4V) Per Channel: | 1 x 350W |
| 2 Ohms RMS Power (14.4V) Per Channel: | 1 x 230W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 1 x 140W |
| Input Sensitivity: | 0.2V + 10V |
| Low Pass Filter: | 50Hz - 250Hz |
| Signal-to-Noise Ratio: | 90dB |
| Product Dimensions: (L x W x H) | 200 x 93.4 x 39.8 |
Key Features
- Marine Mono Block
- 1 Channel
- 1 X 350 Watts @ 1 Ohm
- Class D
- Micro
- Water Resistant IP67
Specifications
| SKU | NXL-N1 |
|---|---|
| Total Watts (Peak) | 1050W |
| RMS Power @ 4 ohm | 1 X 140W |
| RMS Power @ 2 ohm | 1 X 230W |
| RMS Power @ 1 ohm | 1 X 350W |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio 1W @ 4Ω | 90dB |
| Total Harmonic Distortion (THD) | 0.1% |
| Low Level Input Range | 200mV-5V |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50-250Hz |
| Bass Boost Range | 0-18dB |
| Bass Boost Frequency | 45Hz |
| Infrasonic Filter | 10-50Hz |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| LED Indicator | Power / Protection |

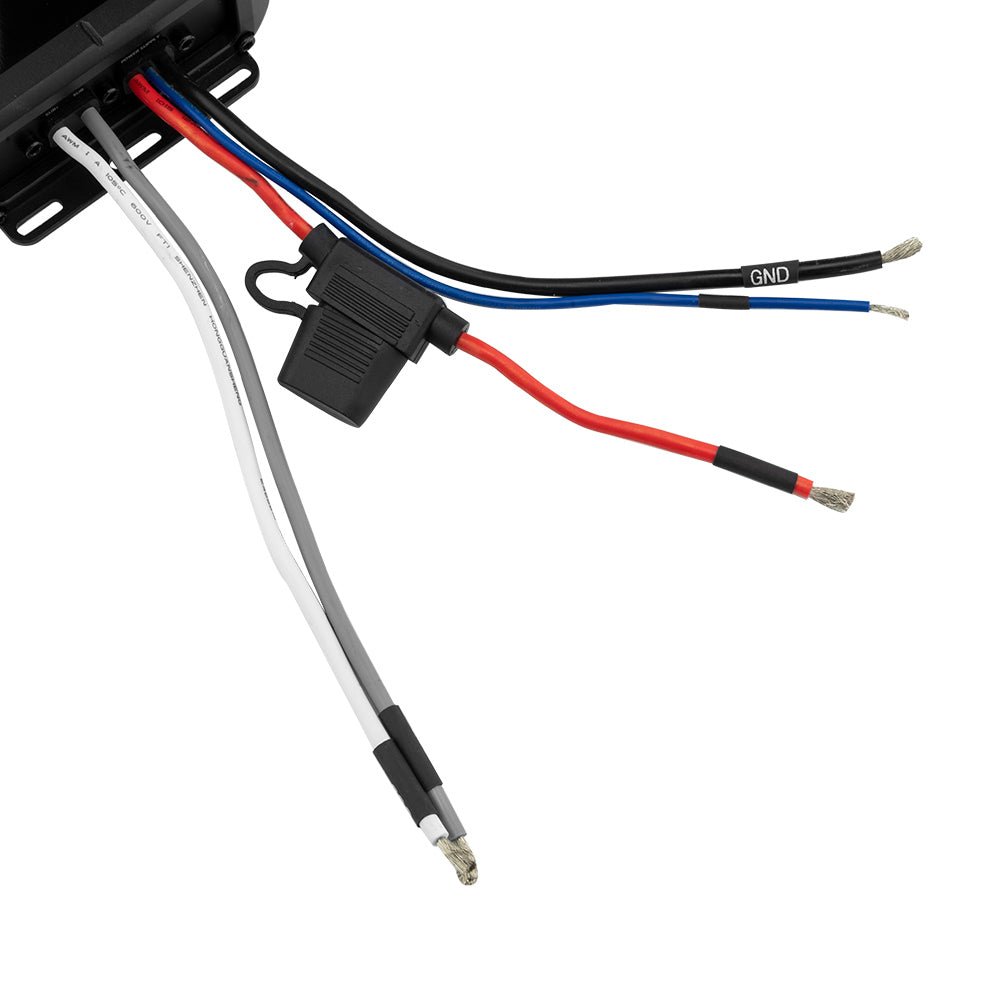

| Power Input Size | Wired 10Ga OFC |

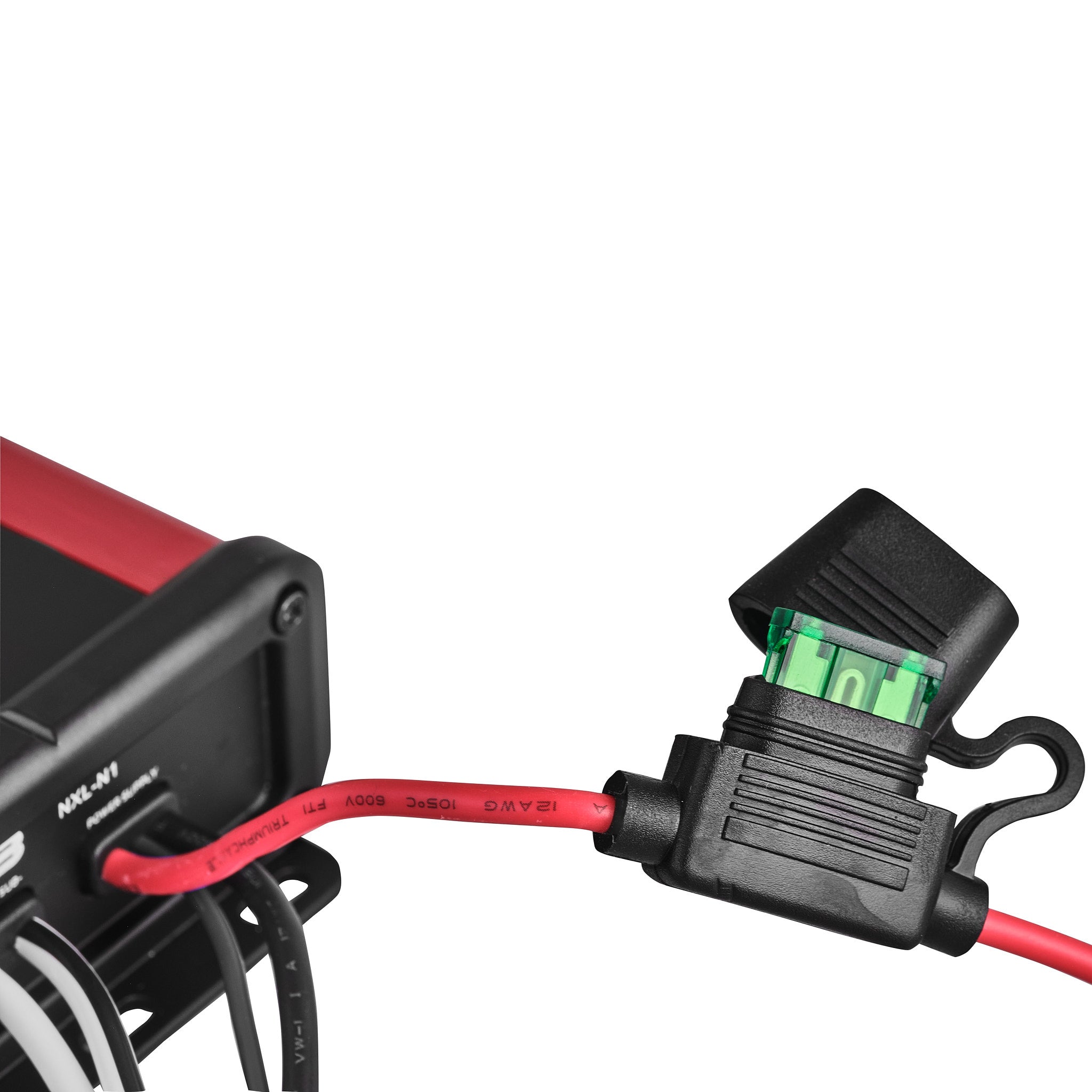

| Fuse Size | 30A |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (>15V) |
| Body Color | Aluminum Black and Red |
| Waterproof Rating | IPX67 |
| Latest Full Range Digital Design Based on IR Platform | Yes |
| Ultra Compact Design for Easy Installation | Yes |
| PCB Design with Stable and Reliable 4-Layer Layout | Yes |
| Quality Control Verification Using AP Instruments | Yes |
| Overall Length | 7.87" / 200mm |
| Overall Wide | 3.67" / 93.4mm |
| Overall Height | 1.56" / 39.8mm |
| Heatsink Length | 7.16" / 182mm |
| Gross Single Unit Weight | 2.14Lb / 974g |
| Product Weight | 2 lbs |
| Product Dimensions | 10.25 x 5 x 3 |
| M/C Weight | 25.5 lbs |
| M/C Dimensions | 16 x 11 x 10.75 |
| M/C QTY | 10 |
| Sold In | Piece |
