Product Overview
DS18 HYDRO NXL-8/WH 8" 2-Way Marine Water Resistant Speakers with Integrated RGB LED Lights 375 Watts - White
The NXL series is a hugely successful marine "Hydro" series line that will DS18 has put a huge amount of research and development into. These speakers not only look amazing, these waterproof speakers sound fantastic and project very far in open areas. This makes them a perfect choice for Boats, Off-Road, and anything with an open cabin that may get wet.
These high powered 2 way speakers will fill a full range of frequencies at a high volume with great sound precision and clarity. Along with great sounds you get great looks and included built in LED RGB lights that can match any color scheme you desire.
Highlights
- Strong and durable (IP67) waterproof construction making it perfect for boats, off-road, or any open cabin vehicle.
- The 2 way design brings forth a full range of crystal clear music at high volume with great sound quality.

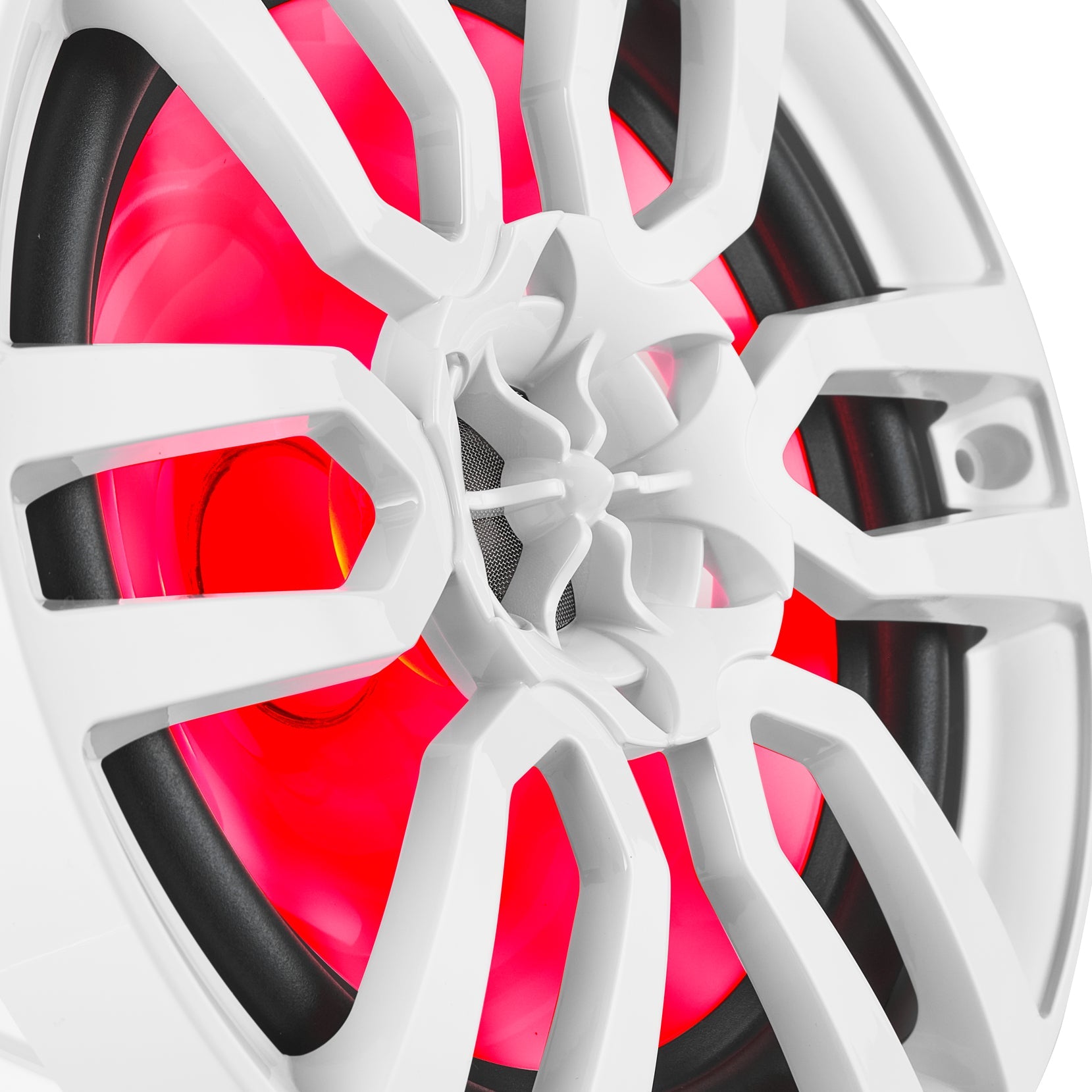

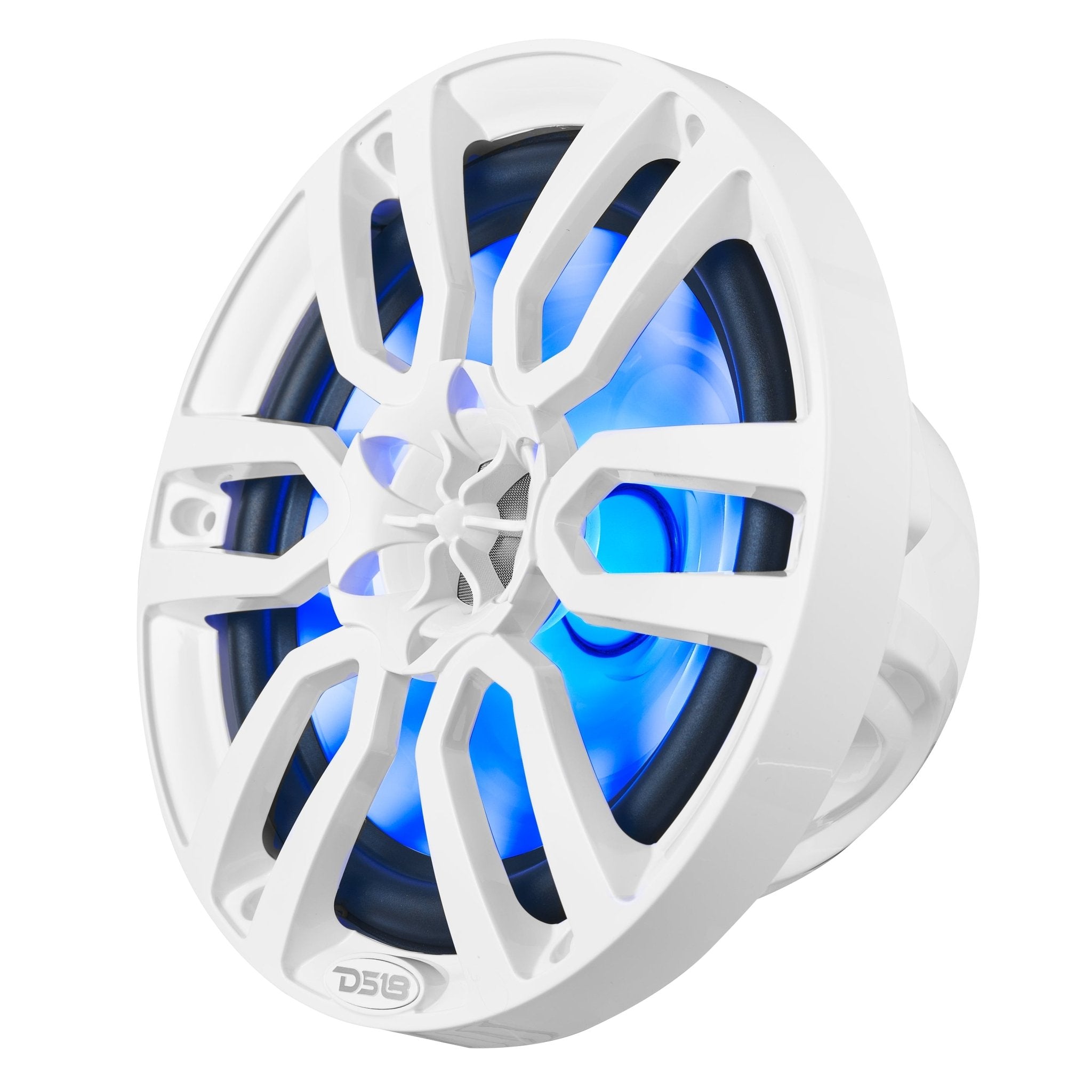

- Included built in RGB-LEDs so you can match your vehicle's color or theme for a show quality look.




Technical Details
| Model: | NXL8 |
| Size: | 8" |
| RMS Power: | 125W |
| MAX Power: | 375W |
| Magnet Type: | Y35 Ferrite Main Magnet & Reverse Neodymium |
| Sensitivity: | 93dB at 1 w/m |
| Nominal Impedance: | 4 ohm |
| Frequency Response: | 35Hz - 23KHz |
| Mounting Depth: | 3.11"/79mm |
| Cut-out Diameter: | 7.09"/180mm |
| Overall Diameter: | 8.58"/218mm |
| Overall Height: | 4.45"/113mm |

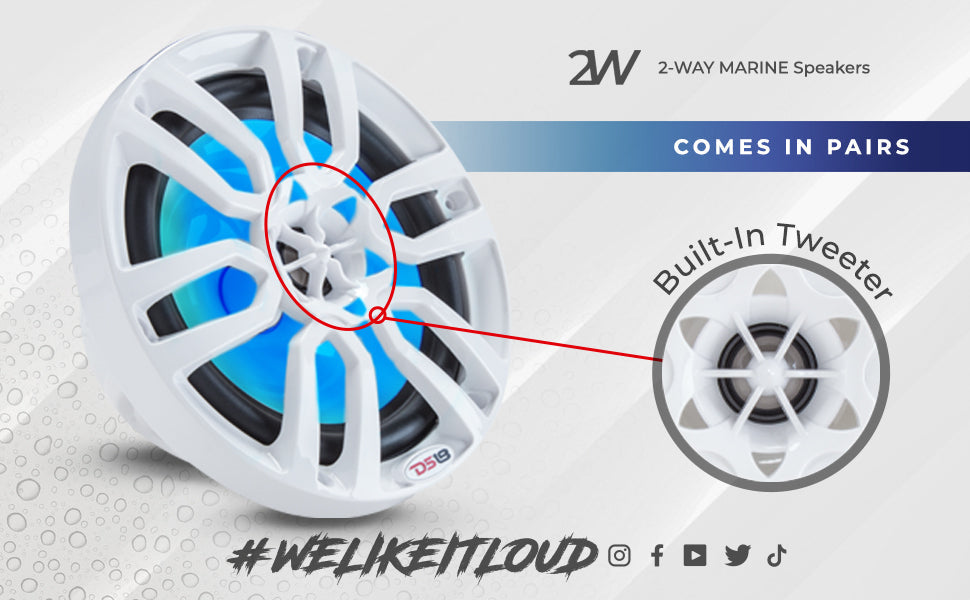

| Tweeter Size: | 25mm Titanium Dome PEI Surround |
| Features: | Integrated RGB LED lighting IP65 Marine Grade Compliant Specifications 100% UV Stable High Temp Injection molded composite High gloss injection molded composite ASA grills with UV coating |
Key Features

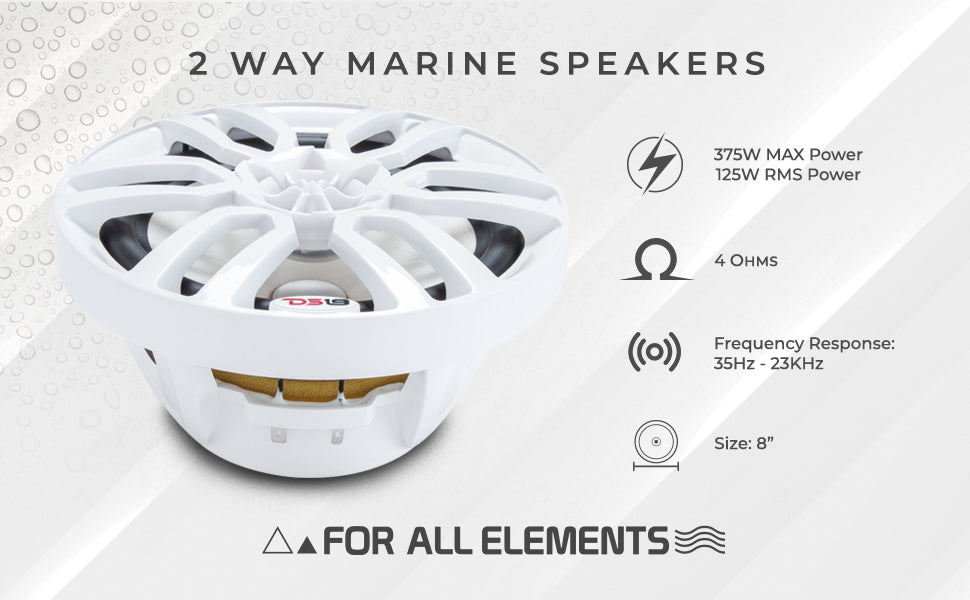

- 8" 2-Way Marine Speaker
- RMS Power: 125 Watts / 4-Ohm
- Ferrite & Neodymium Magnets

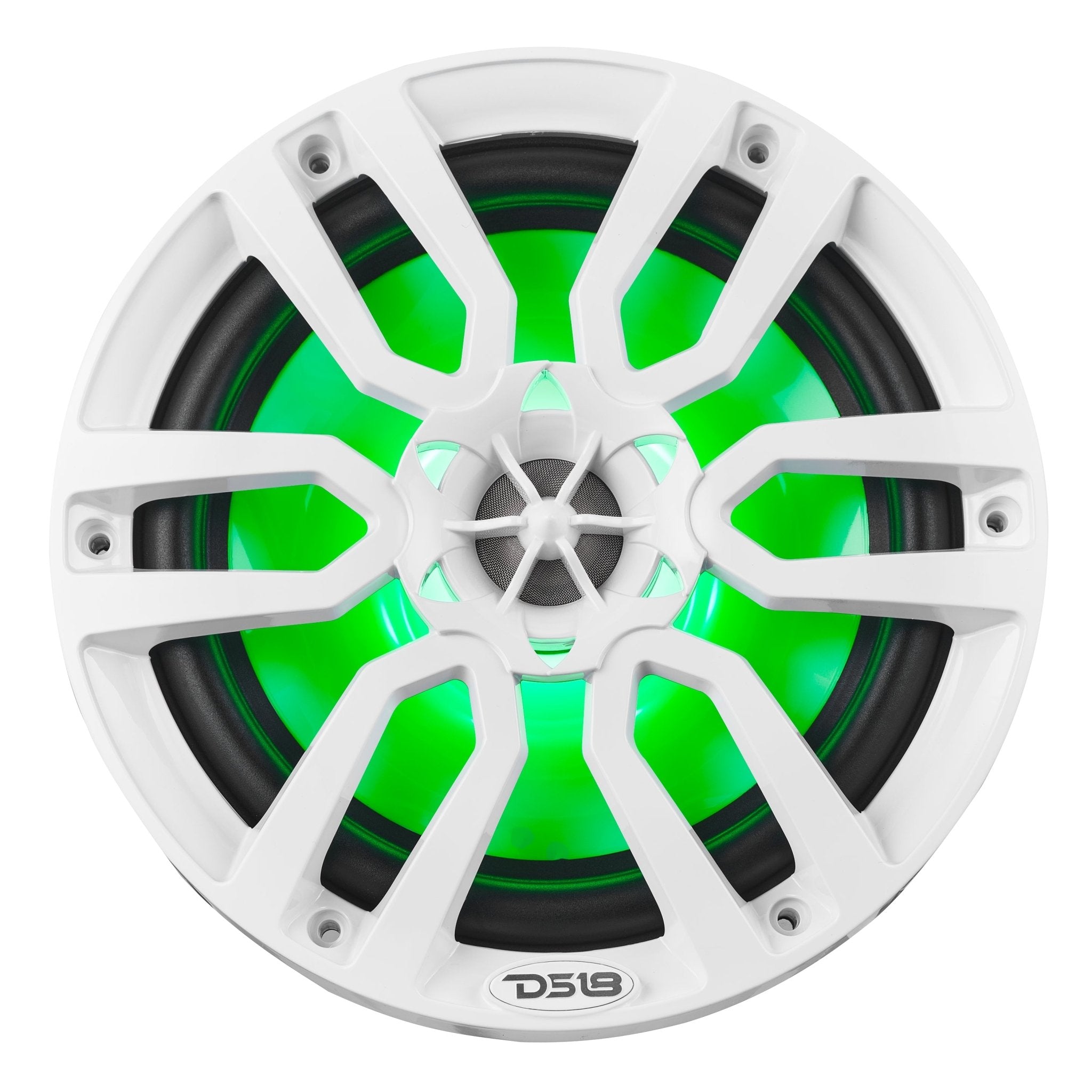

- RGB LED Light
- Water Resistant IP65

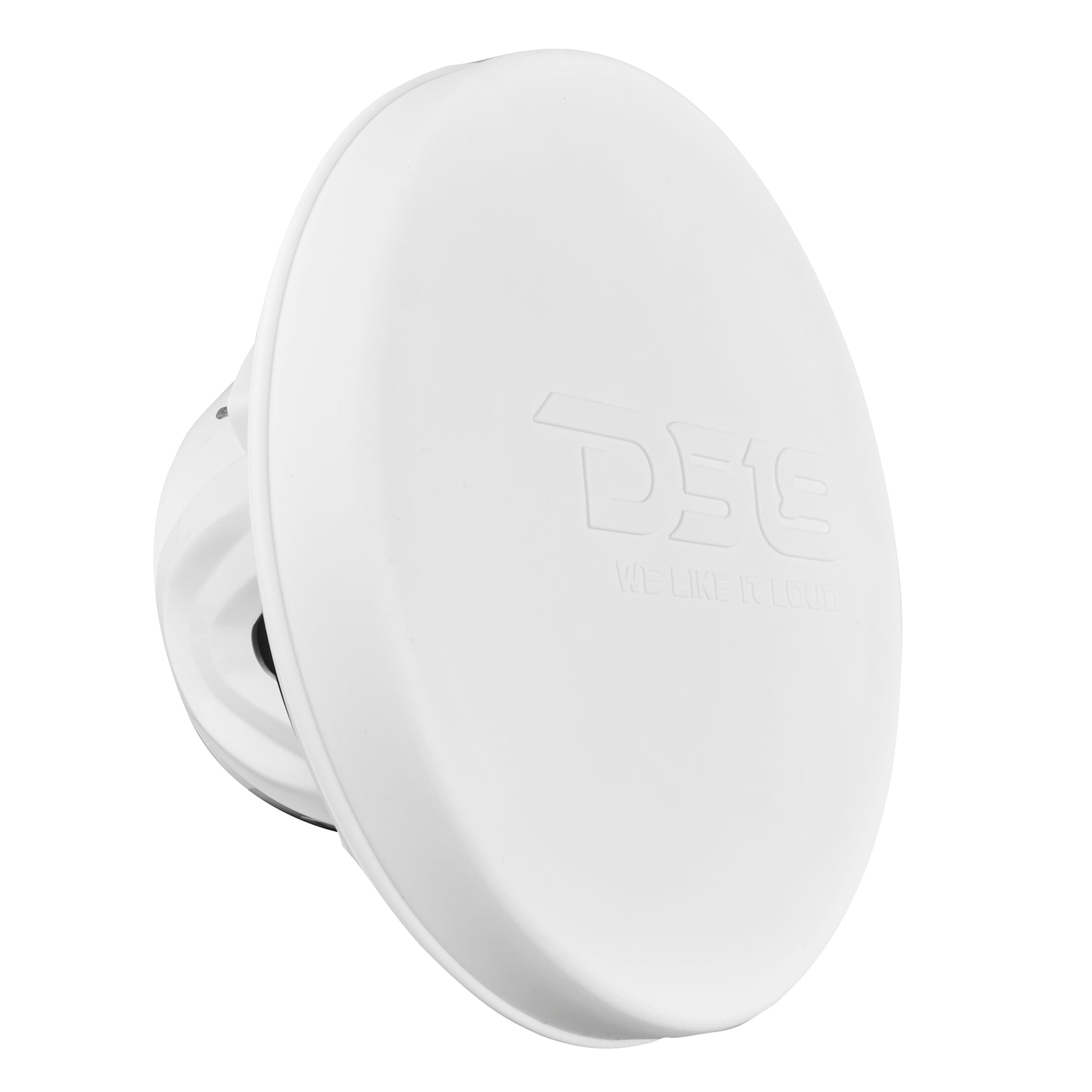

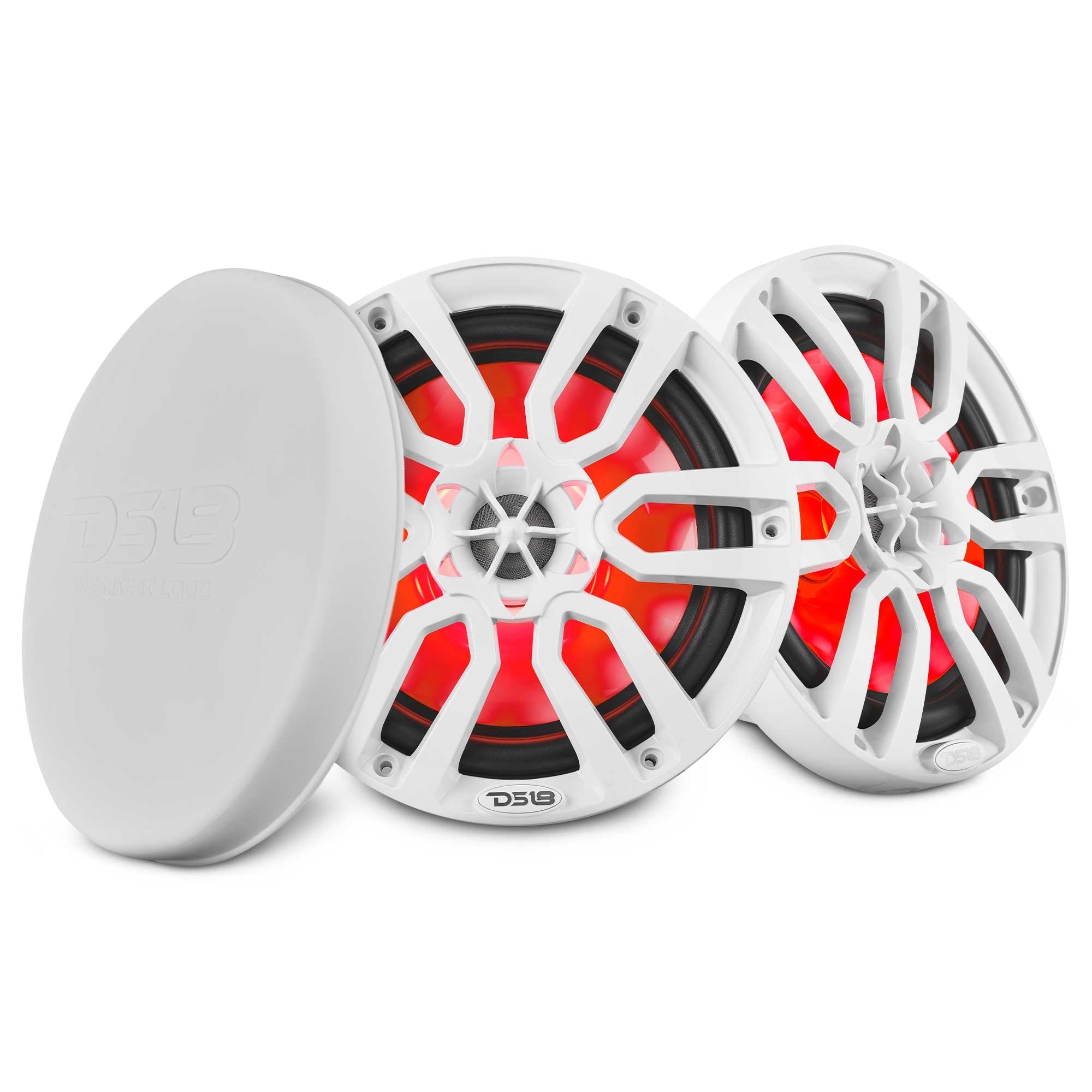

- Silicone Covers Included
Specifications
| SKU | NXL-8/WH |
|---|---|
| Nominal Diameter | 8" / 203mm / 1" / 25.4mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 125W |
| MAX Power Handling | 375W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 35Hz-23KHz |
| Recommended HI Pass Crossover | 50 Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite ASA with UV Protection coating |
| Pair | Yes |
| Color / Finish | Glossy White |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection coating |
| Magnet Material | Ferrite+Neodymium / Neodymium (N38H) |
| Magnet Weight | 24oz + 0.32oz / 0.54oz |
| Diaphragm Material | Titanium + PEI Surround |
| Equivalent Volume Vas | 66.7L / 2.35ft3 |
| Excursion (one way) Xmax | 8.5 mm |
| Free Air Resonance Fs | 56Hz |
| Mechanical Factor Qms | 7.701 |
| Electrical Factor Qes | 0.899 |
| Total Factor Qts | 0.805 |
| Moving Mass Mms | 7.265g |
| Compliance Cms | 1.119mm/N |
| Bl Factor Bl | 2.98 |
| Voice Coil Inductance Le | 0.49mH |
| Cone Area Sd | 206.12cm2 |
| DC Resistance Re | 3.15ohms |
| Efficiency Bandwidth Product EBP | 62.2 |

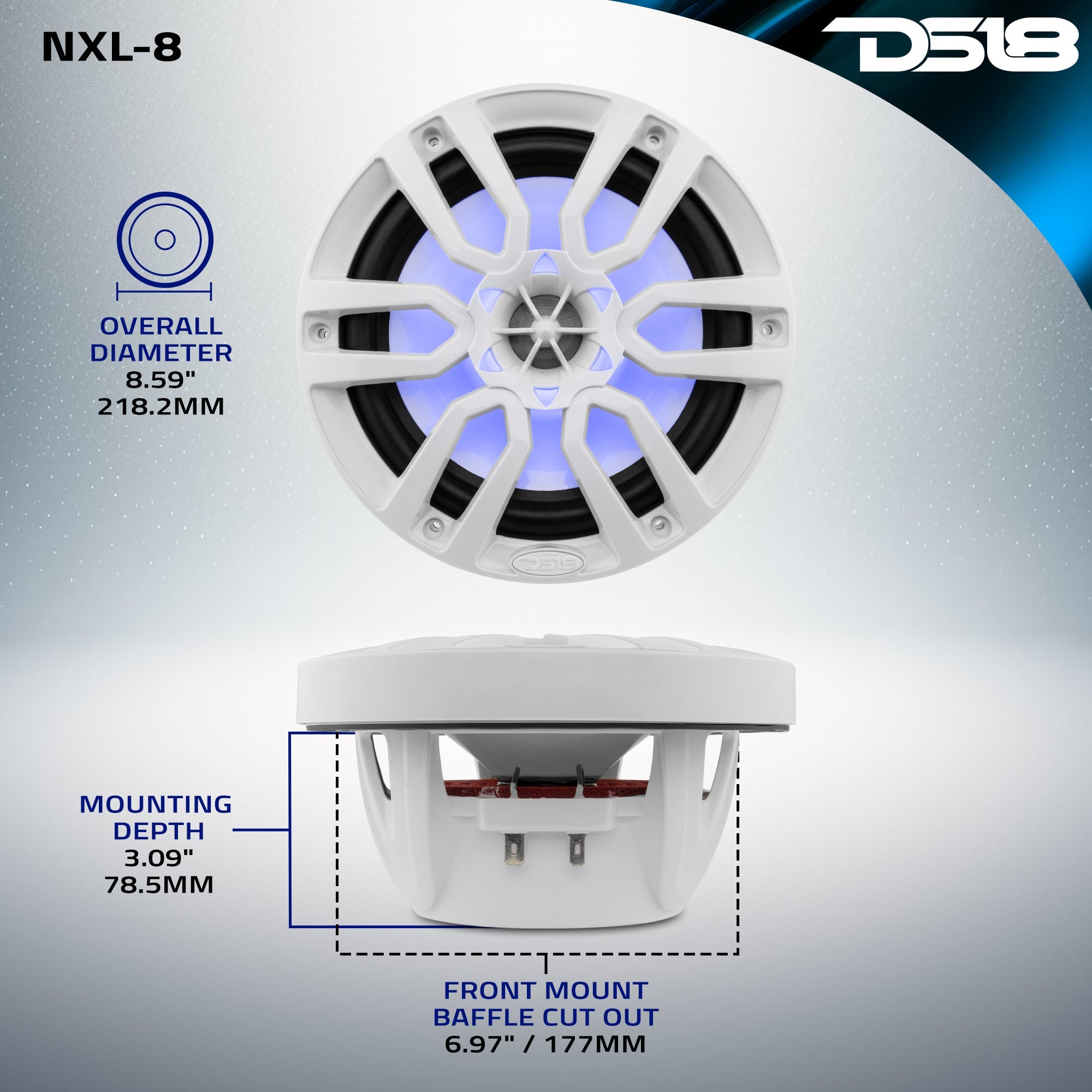

| Overall Diameter | 8.59" / 218.2mm |
| Overall Depth | 4.45" / 113mm |
| Front Mount Baffle Cutout | 6.97" / 177mm |
| Mounting Depth | 3.09" / 78.5mm |
| Motor Diameter | 4.32" / 110mm |
| Gross Single Unit Weight (lb) | 10.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 20.25 x 10.25 x 5.5 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 22.5 |
| Master Carton Dimensions W x L x H (Inches) | 20.5 x 11 x 11 |
