NXL 8" 2-Way Coaxial Marine Speaker with LED RGB Lights | 125W RMS 4-Ohm

Availability: In stock SKU: NXL-8/BK
Regular price $264.95 Sale price $211.96

NXL 8" 2-Way Coaxial Marine Speaker with LED RGB Lights | 125W RMS 4-Ohm - DS18

NXL 8" 2-Way Coaxial Marine Speaker with LED RGB Lights | 125W RMS 4-Ohm

$211.96

Product Overview

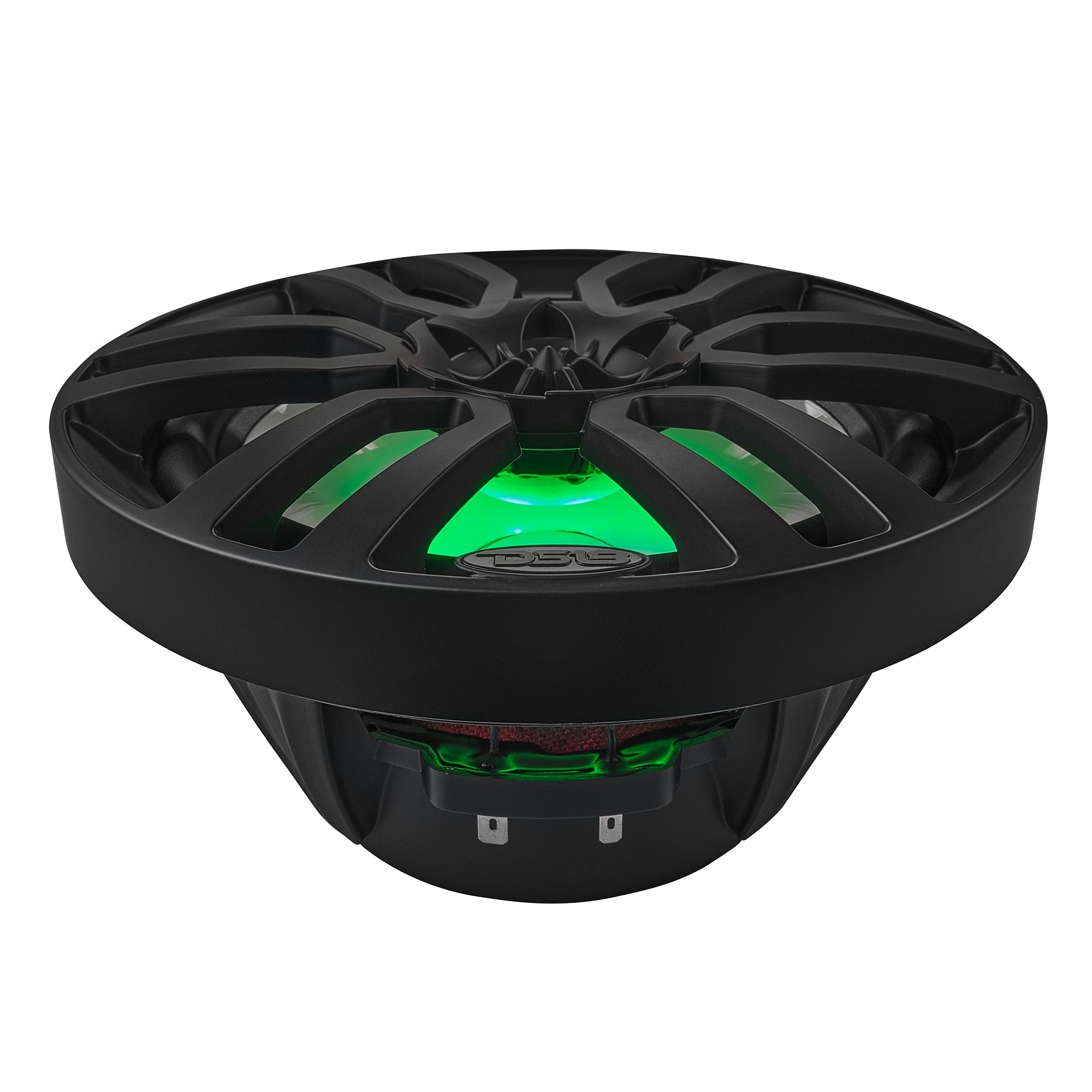

DS18 NXL-8
8” 2-Way Marine Speakers with RGB LED Lights

Take marine audio to the next level with DS18’s NXL-8! Designed to withstand the harshest marine and off-road conditions, these speakers deliver unstoppable performance in any environment.

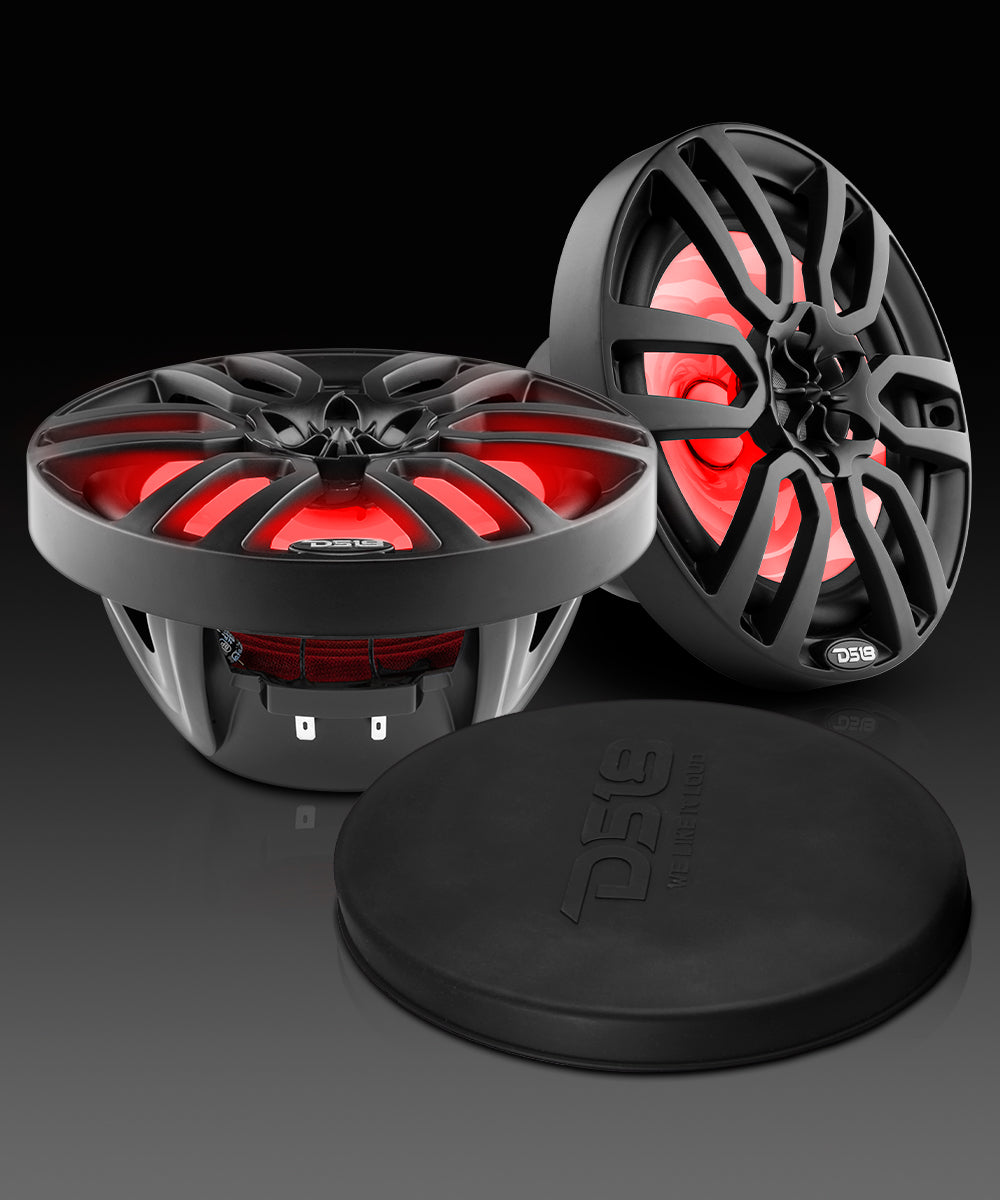

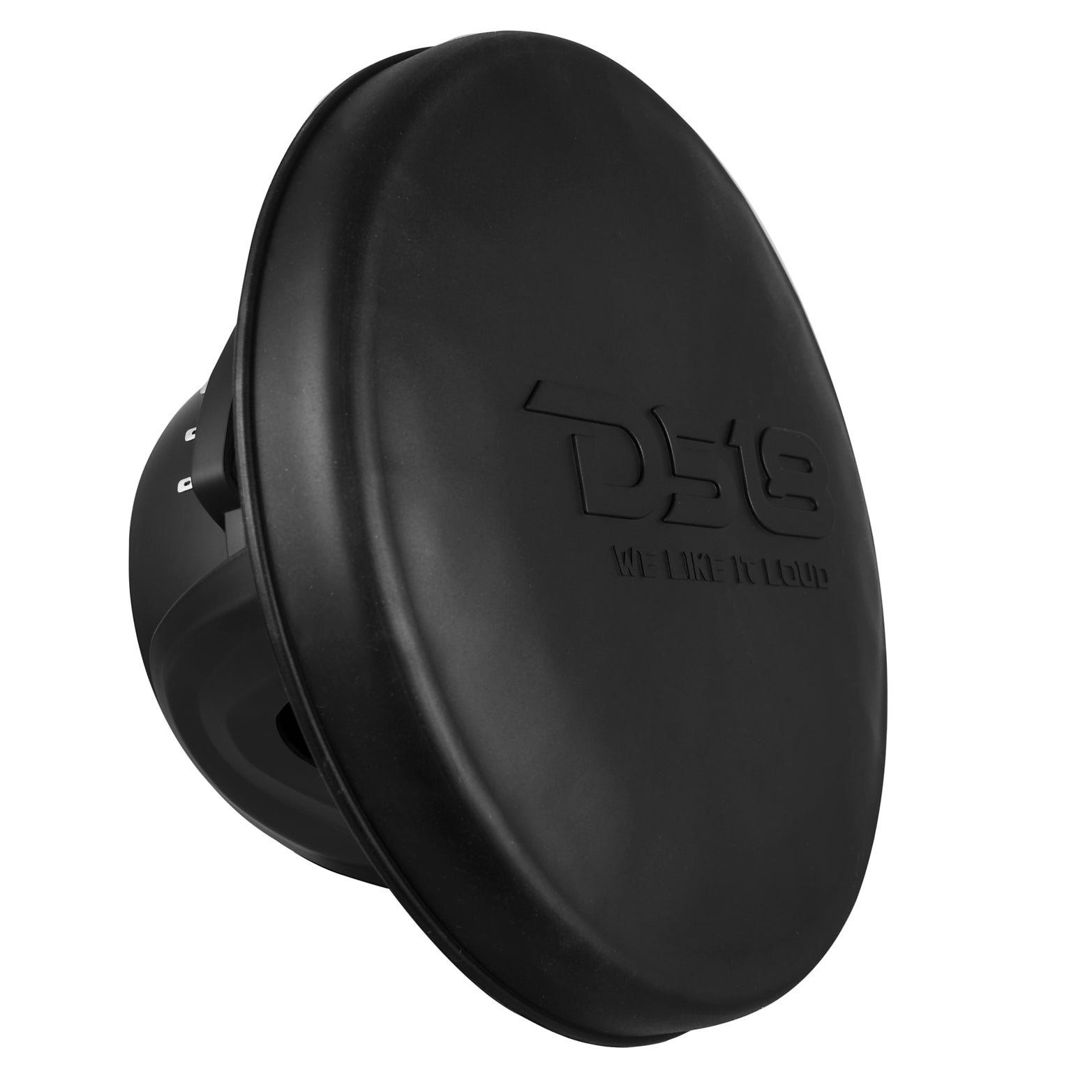

With IP65 Marine Grade Certification, the NXL-8 defies the corrosive effects of saltwater, UV rays, and extreme temperatures. The high-temp injection-molded composite construction and ASA grills with UV coating guarantee resistance, while the new silicone cover make these speakers tougher than ever.

Powerful audio is at your fingertips, with 125W RMS and 375W MAX power handling. The Y35 Ferrite Main Magnet, Reverse Neodymium technology, and a 25mm Titanium Dome Tweeter combine to provide an advanced 2-way design that captures the full range of frequencies with precision. The 93dB sensitivity at 1w/m guarantees crystal-clear playback, even at low volumes.

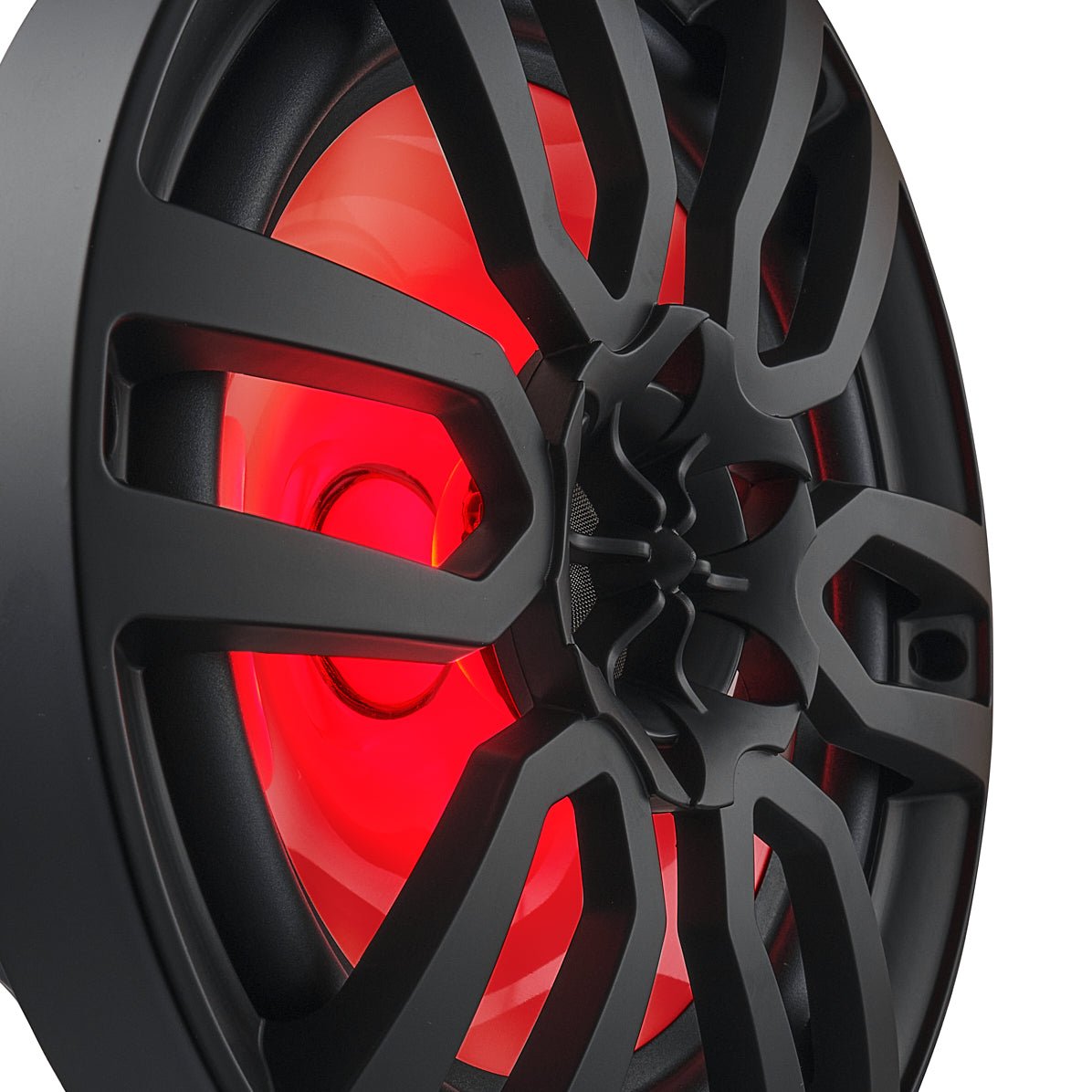

Your system isn’t just heard—it’s felt. The integrated RGB LED lighting creates a vibrant, customizable light show, letting you match your audio system to your vibe. Sync it effortlessly with DS18’s LED-BTC controller (sold separately) for total control of your system.

The NXL Series is the go-to for high-performance marine audio. Order yours and make your marine system LOUD today!

Key Features

  • 8" 2-Way Marine Speaker
  • RMS Power: 125 Watts
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnets
  • RGB LED Light
  • Water Resistant IP65

Specifications

SKU NXL-8/BK
Nominal Diameter 8" / 203mm / 1" / 25.4mm
Nominal Impedance 4 Ohm
RMS Power Handling 125W
MAX Power Handling 375W
Sensitivity (1w/1m) 93dB
Frequency Response 35Hz-23KHz
Recommended HI Pass Crossover 50 Hz
UV Compliant Yes, 100% Stable
Marine Grade Type IP65
RGB LED Yes, RGB integrated
Grill Type Injection Molded Composite ASA with UV Protection coating
Pair Yes
Color / Finish Matte Black
Voice Coil Diameter 1.2" / 30.5mm / 1" / 25.4mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Injection Molded Polypropylene + UV Compliant
Surround Material Butyl (Rubber)
Basket Material High Temp Injection Molded Composite with UV Protection coating
Magnet Material Ferrite+Neodymium / Neodymium (N38H)
Magnet Weight 24oz + 0.32oz / 0.54oz
Diaphragm Material Titanium + PEI Surround
Equivalent Volume Vas 66.7L / 2.35ft3
Excursion (one way) Xmax 8.5 mm
Free Air Resonance Fs 56Hz
Mechanical Factor Qms 7.701
Electrical Factor Qes 0.899
Total Factor Qts 0.805
Moving Mass Mms 7.265g
Compliance Cms 1.119mm/N
Bl Factor Bl 2.98
Voice Coil Inductance Le 0.49mH
Cone Area Sd 206.12cm2
DC Resistance Re 3.15ohms
Efficiency Bandwidth Product EBP 62.2

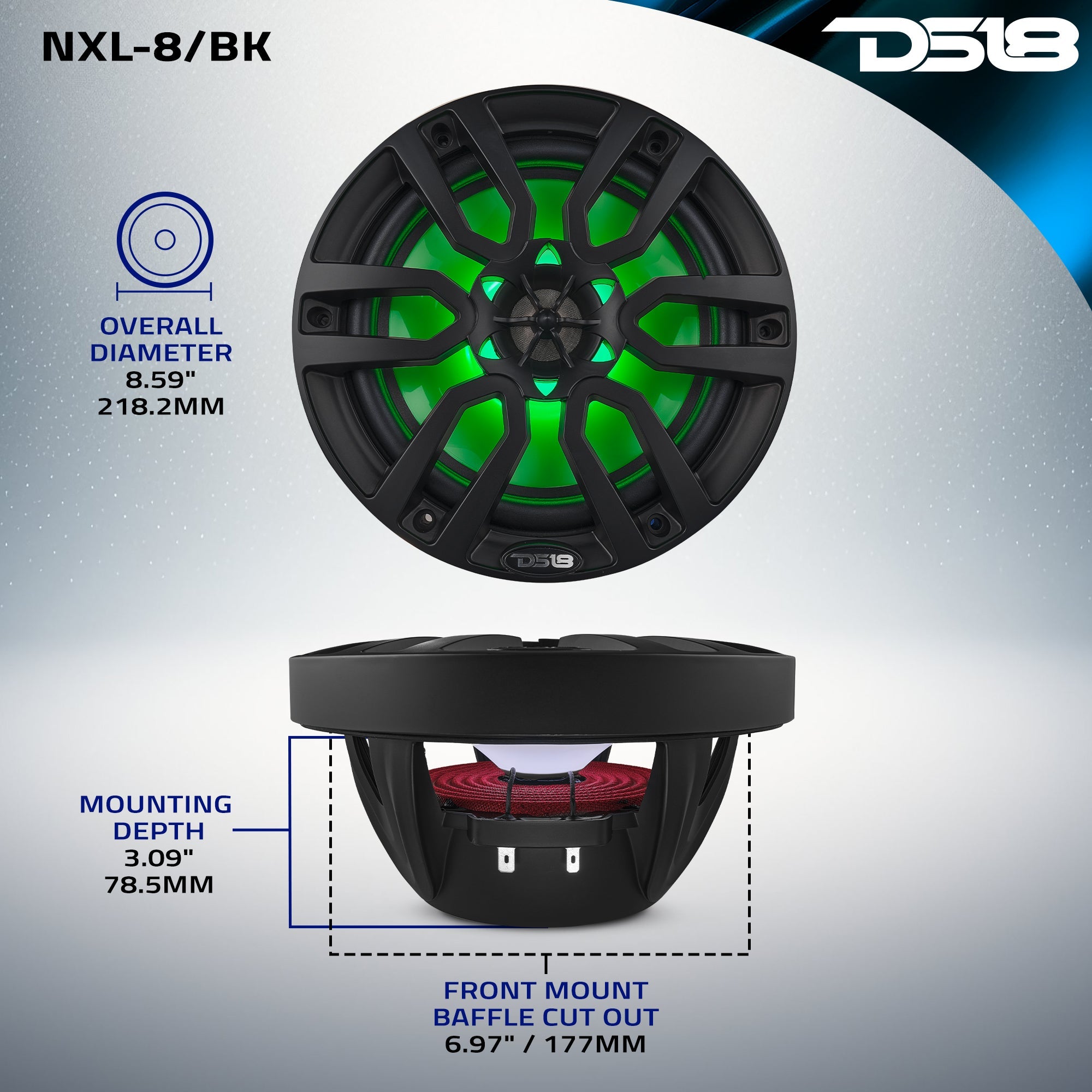

Overall Diameter 8.59" / 218.2mm
Overall Depth 4.45" / 113mm
Front Mount Baffle Cutout 6.97" / 177mm
Mounting Depth 3.09" / 78.5mm
Motor Diameter 4.32" / 110mm
Gross Single Unit Weight (lb) 10.5
Single Unit Box Dimensions W x L x H (Inches) 20.25 x 10.25 x 5.5
Quantity of Units in Master Carton 2
Gross Master Carton Weight (lb) 22.5
Master Carton Dimensions W x L x H (Inches) 20.5 x 11 x 11
