Product Overview
Overview

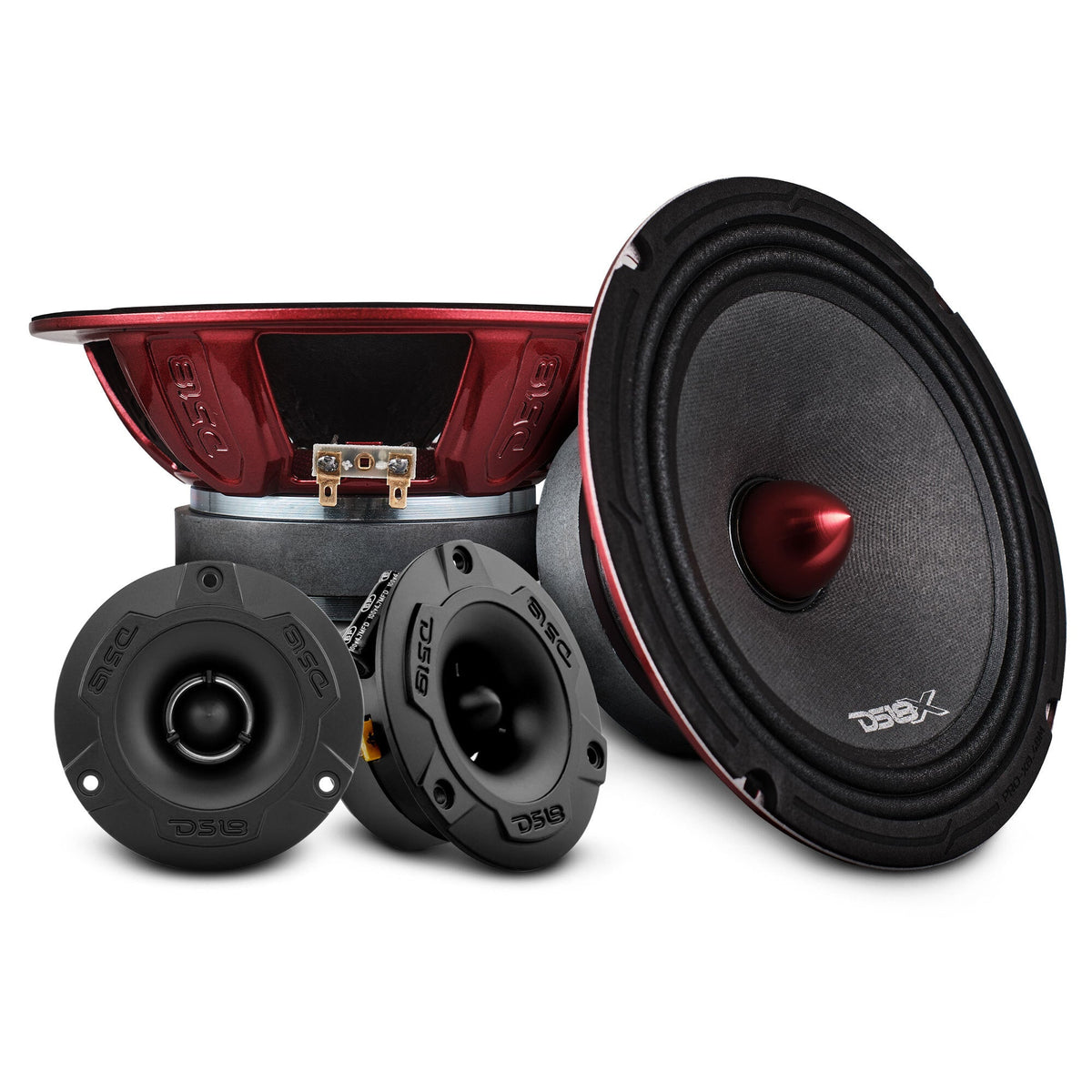

DS18 PRO-X8.4BMPK Loudspeakers and Tweeters Package Including a Pair of PRO-X8.4BM + a Pair of PRO-TW1X/BK
Blasting in NEW for 2020, DS18 has listened to our fans and brought yet another amazing package to the public. It hard to find a high quality and high-powered set of components, much less find a component pro audio set. Well, those days are long-gone because we now offer some of our best-selling pro audio speakers in an easy all in one package that will leave your ears tingling! We have paired our ever popular PRO-X8.4BM 8 pro audio midrange speakers with our PRO-TWX1/BK super tweeters so you can now buy everything included together and don have to mess around with picking and choosing the right combo.

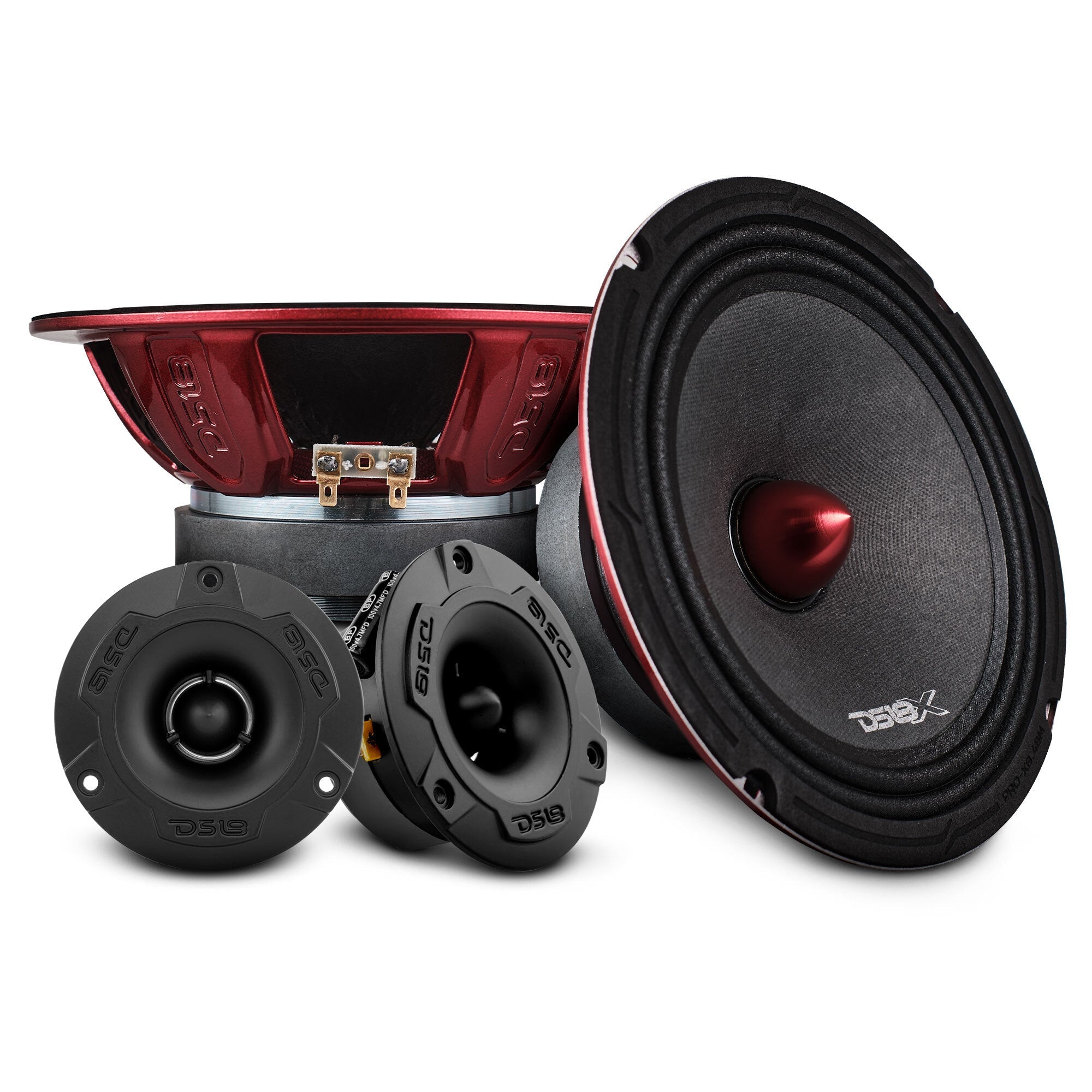

What's in the box?

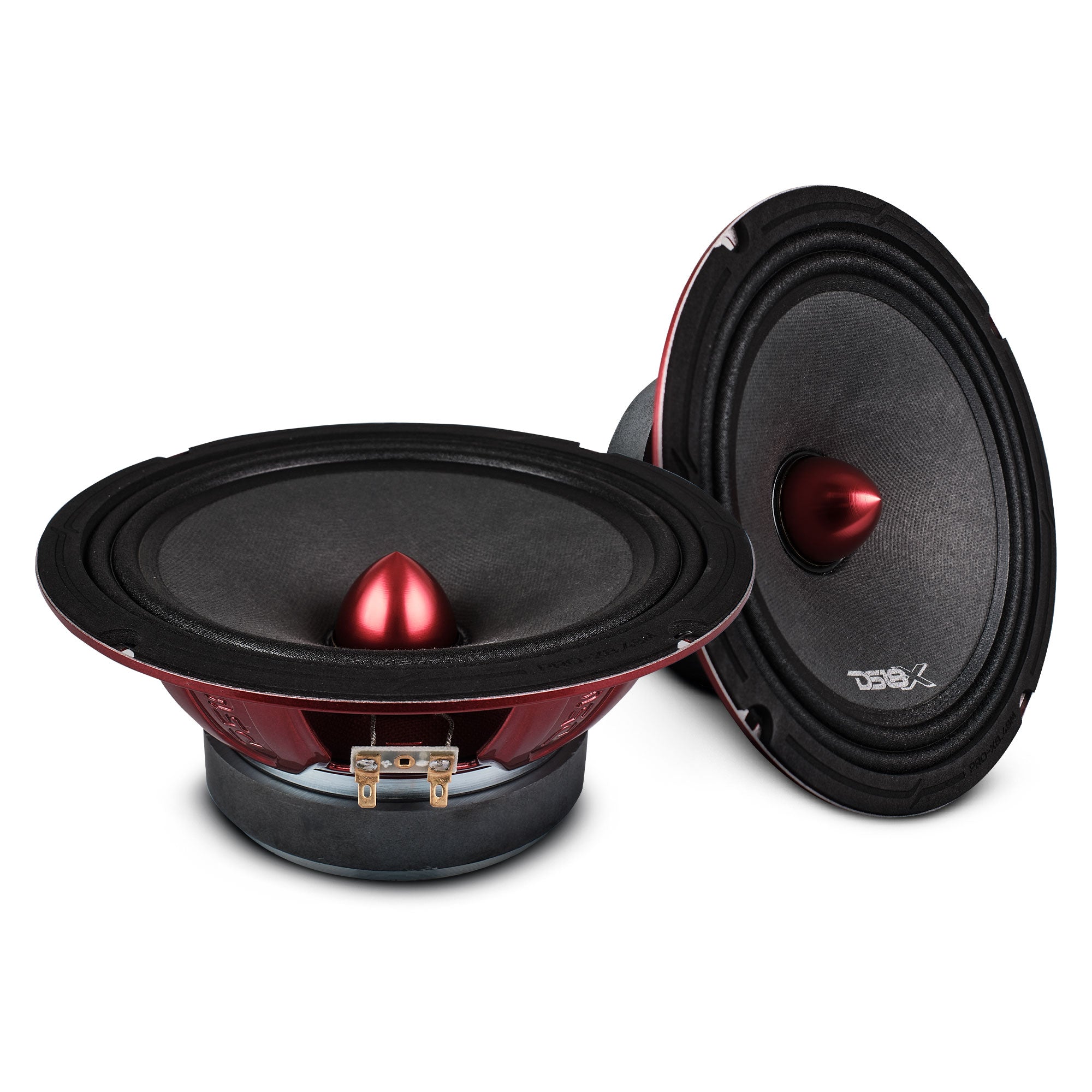

- Pair Midrange Loudspeaker 8" (PRO-X8.4BM)
- Pair Super Bullet Tweeter 1" Built In Crossover (PRO-TWX1/BK)
Highlights
- Pro audio component package including two high powered bullet tweeter mids along with two high powered tweeters.
- These two speakers compliment each other and have been picked by DS18 professionals to produce the greatest sound together.
- With the correct amp, this will be a very loud addition to any audio system easily drowning out the competition.
Technical Details
Download PRO-X8.4BMPK Product Manual

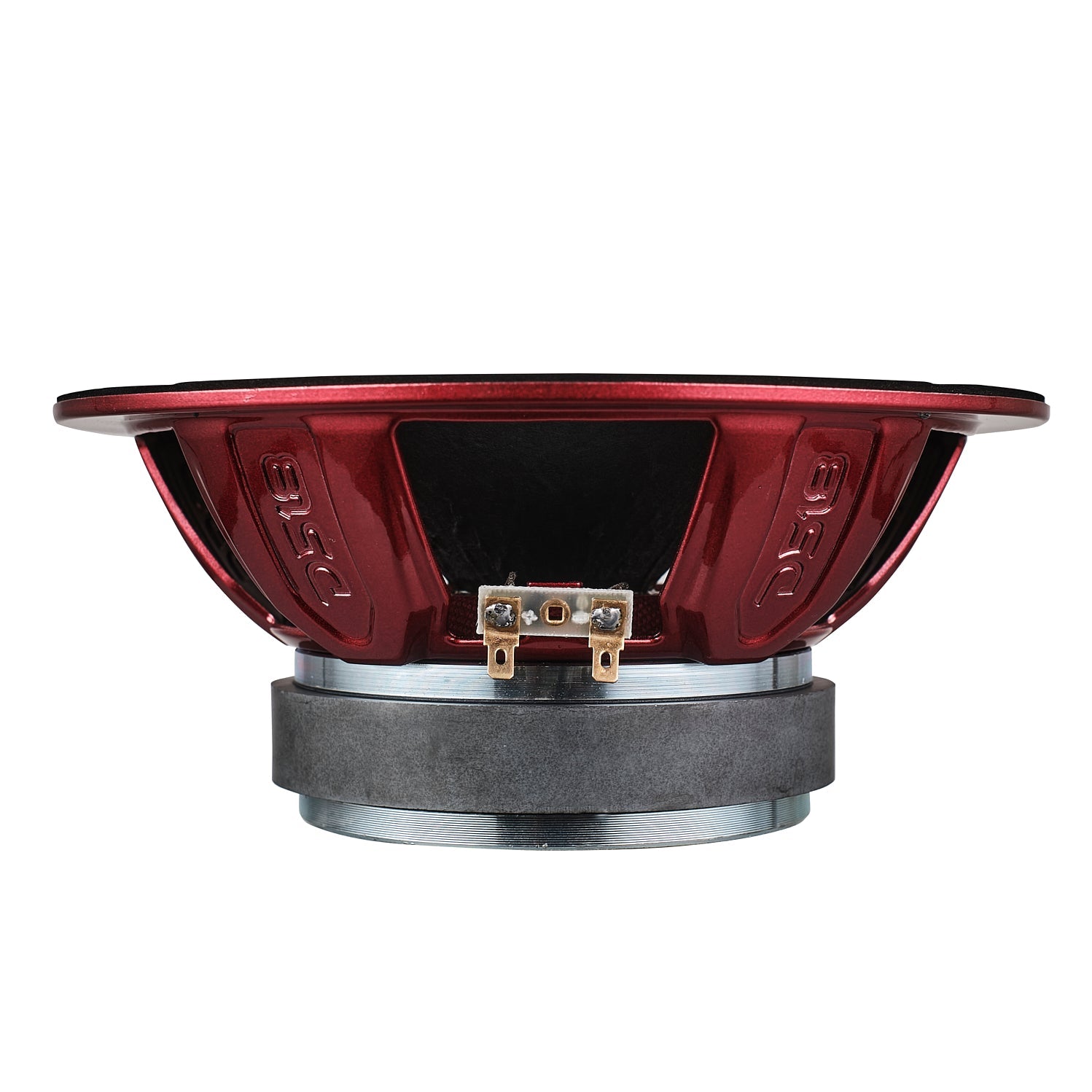

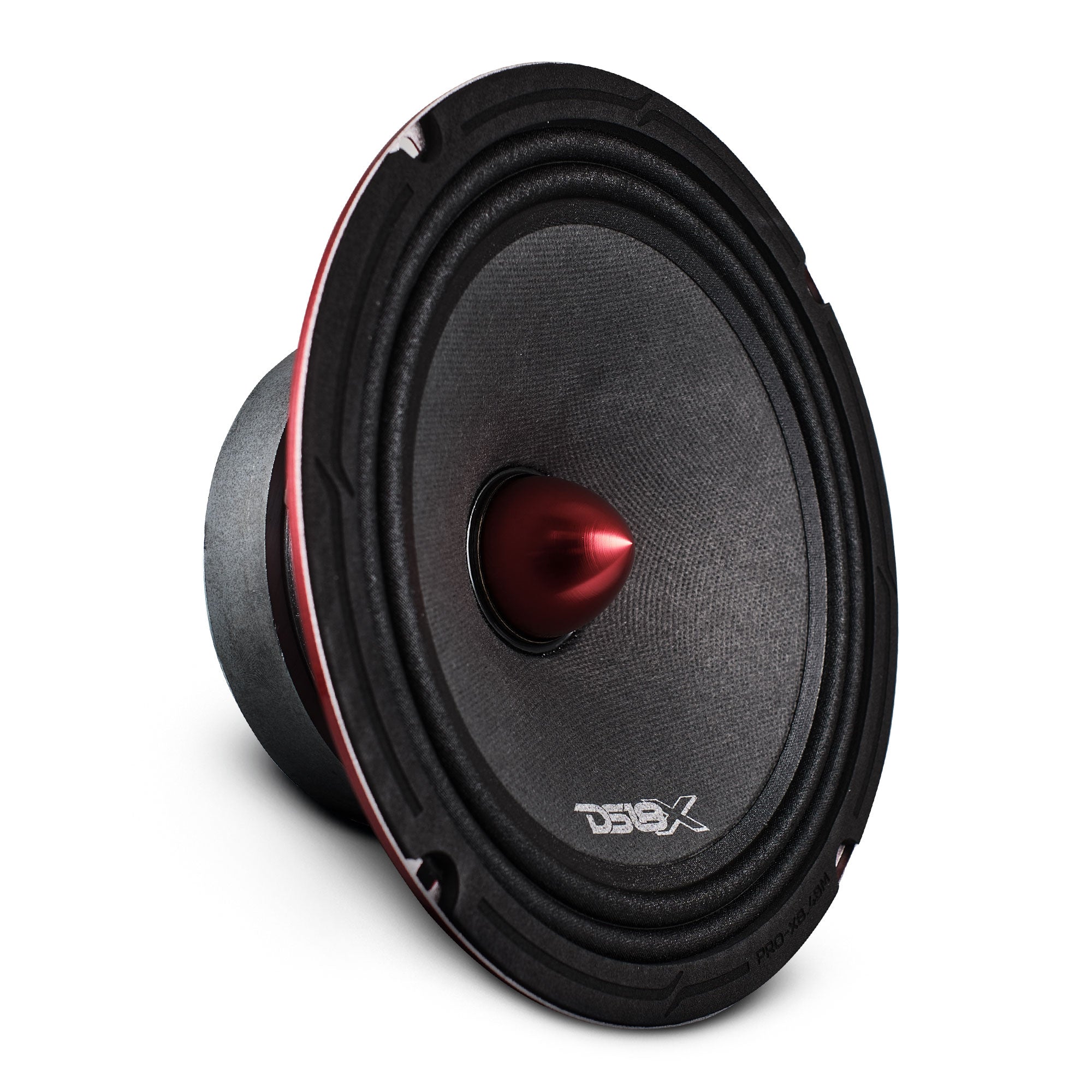

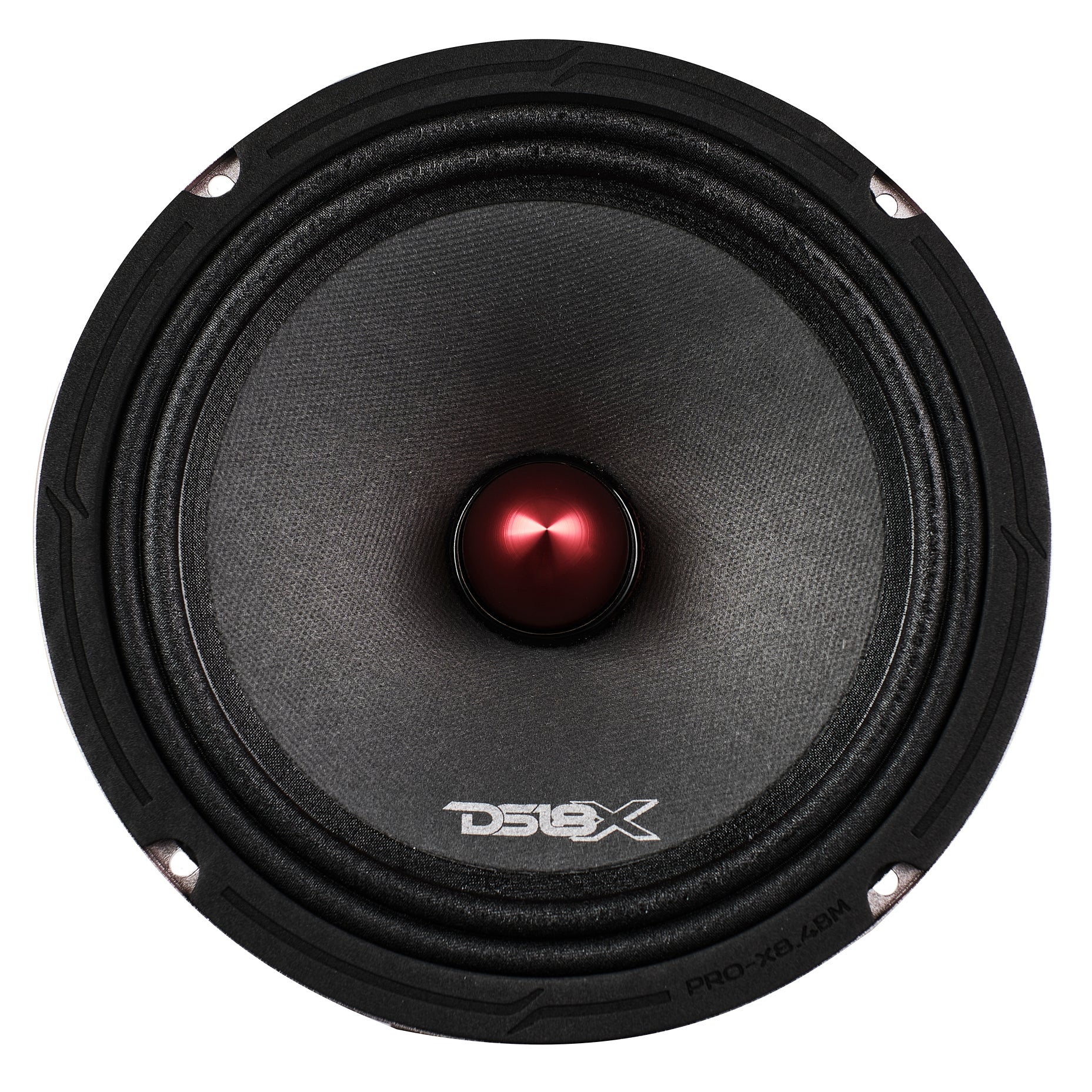

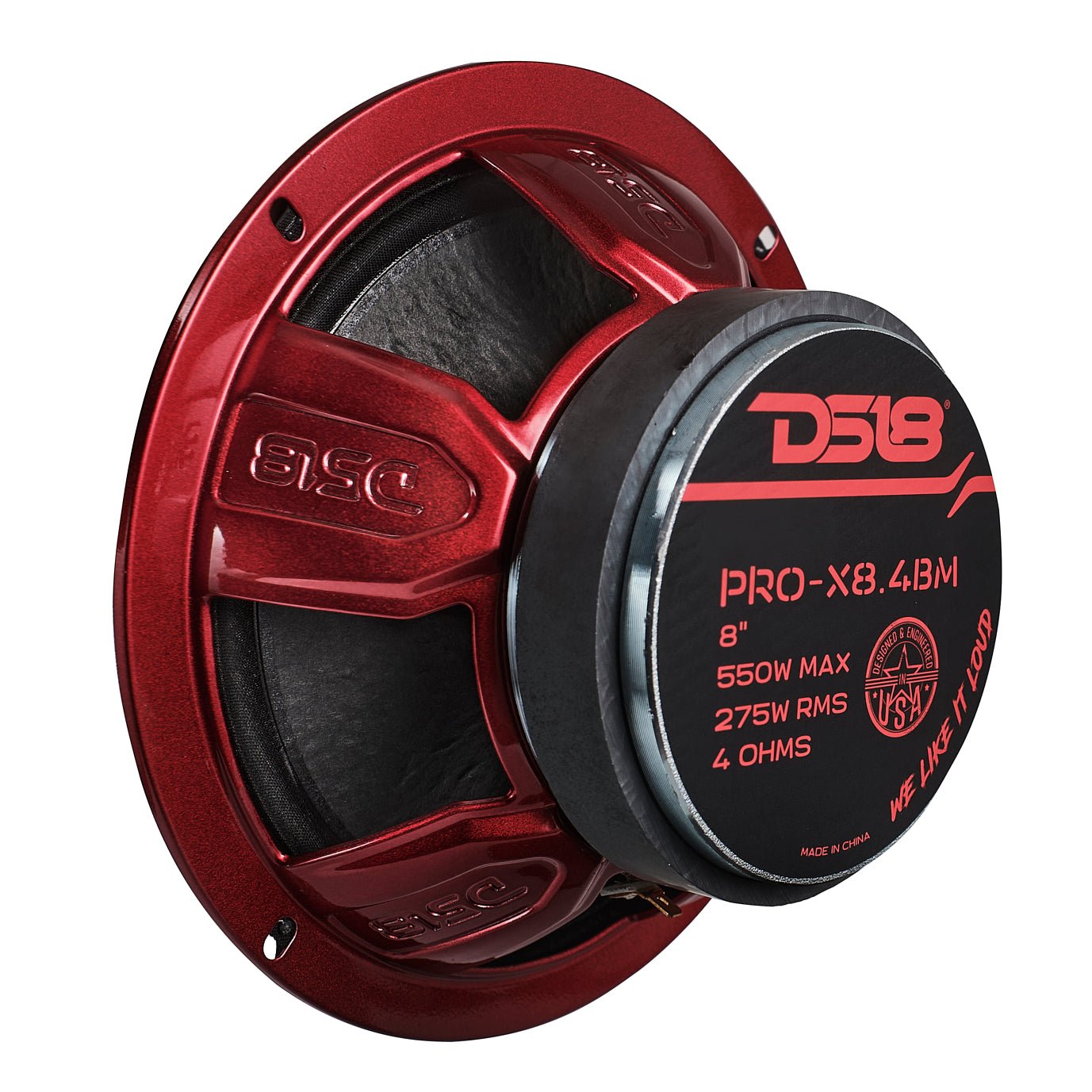

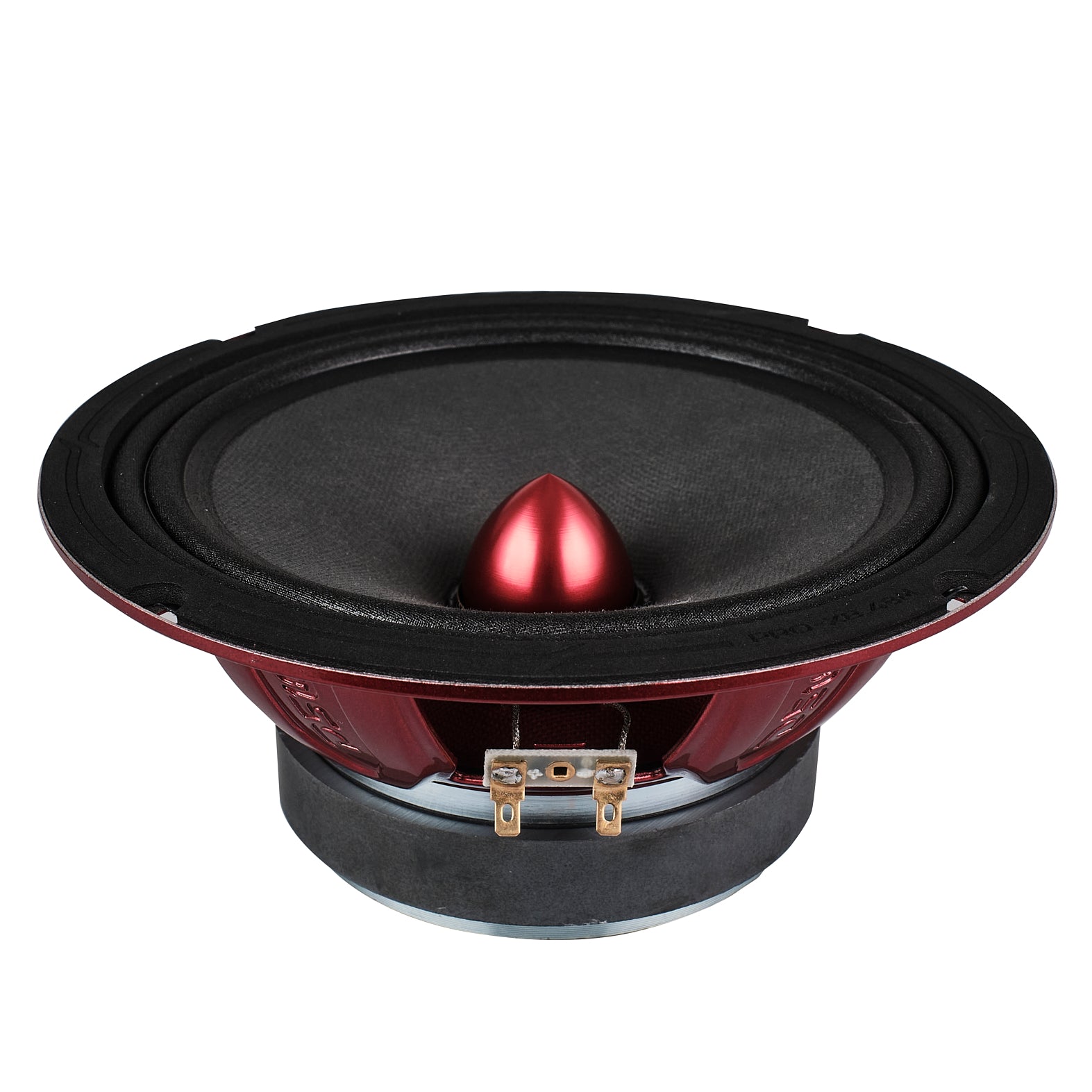

| Model: | PRO-X8.4BM |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 275W |
| MAX Power: | 550W |

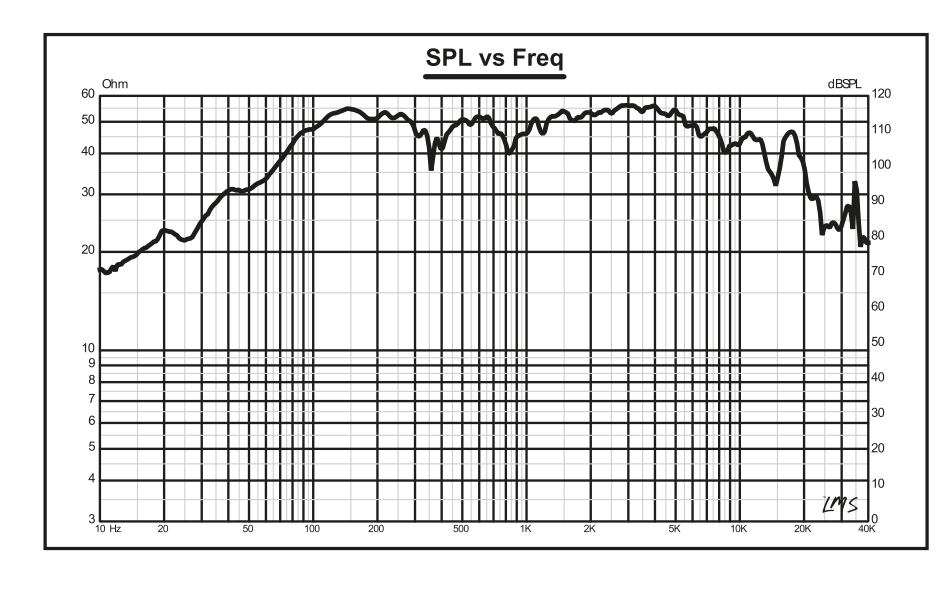

| Frequency Response: | 93Hz - 16KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |

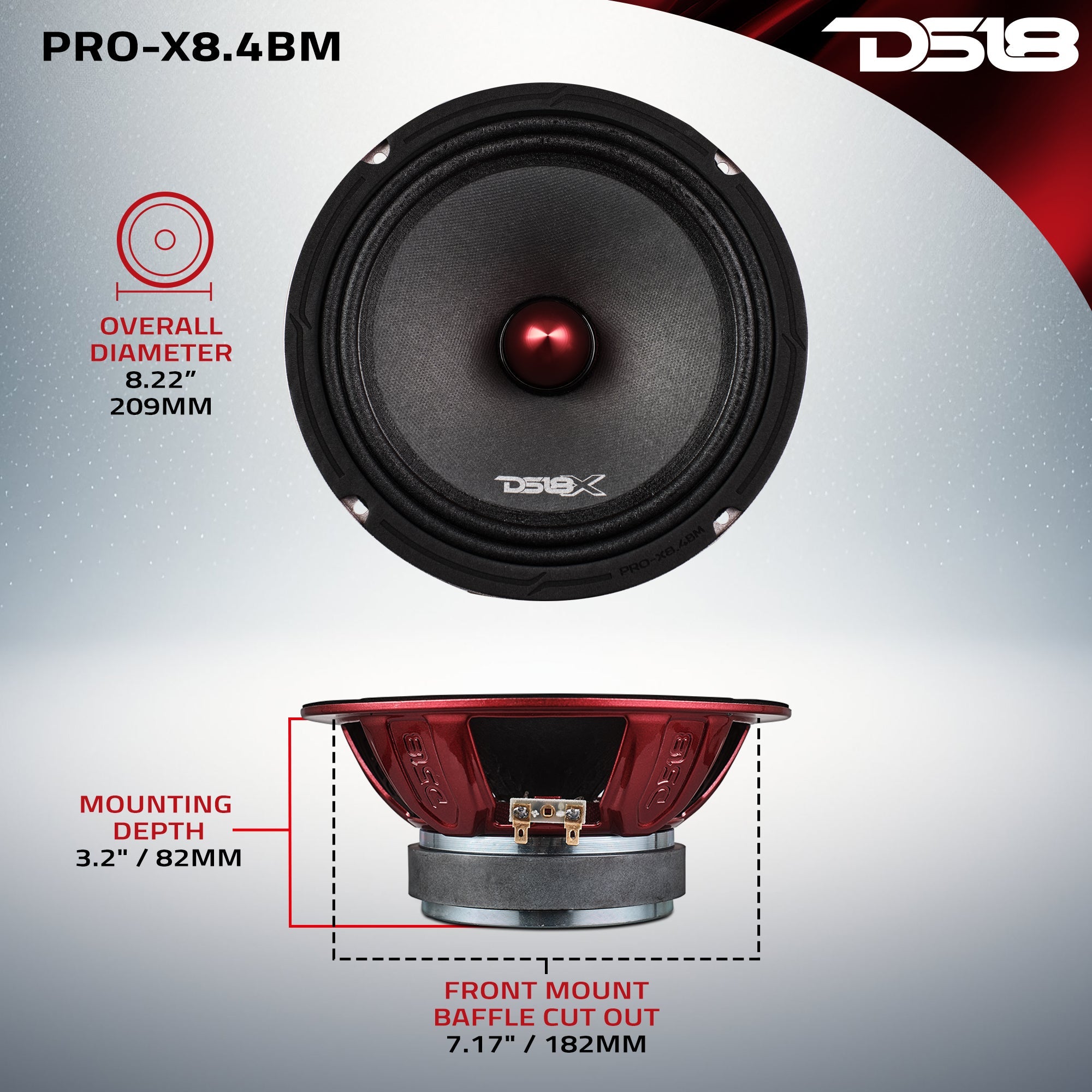

| Diameters | |
| Voice Coil Size: | 1.5" |
| Magnet Size: | 30 oz |
| Mounting Depth: | 3.11" / 79mm |
| Cut-Out Dimension: | 7.16" (182mm) |

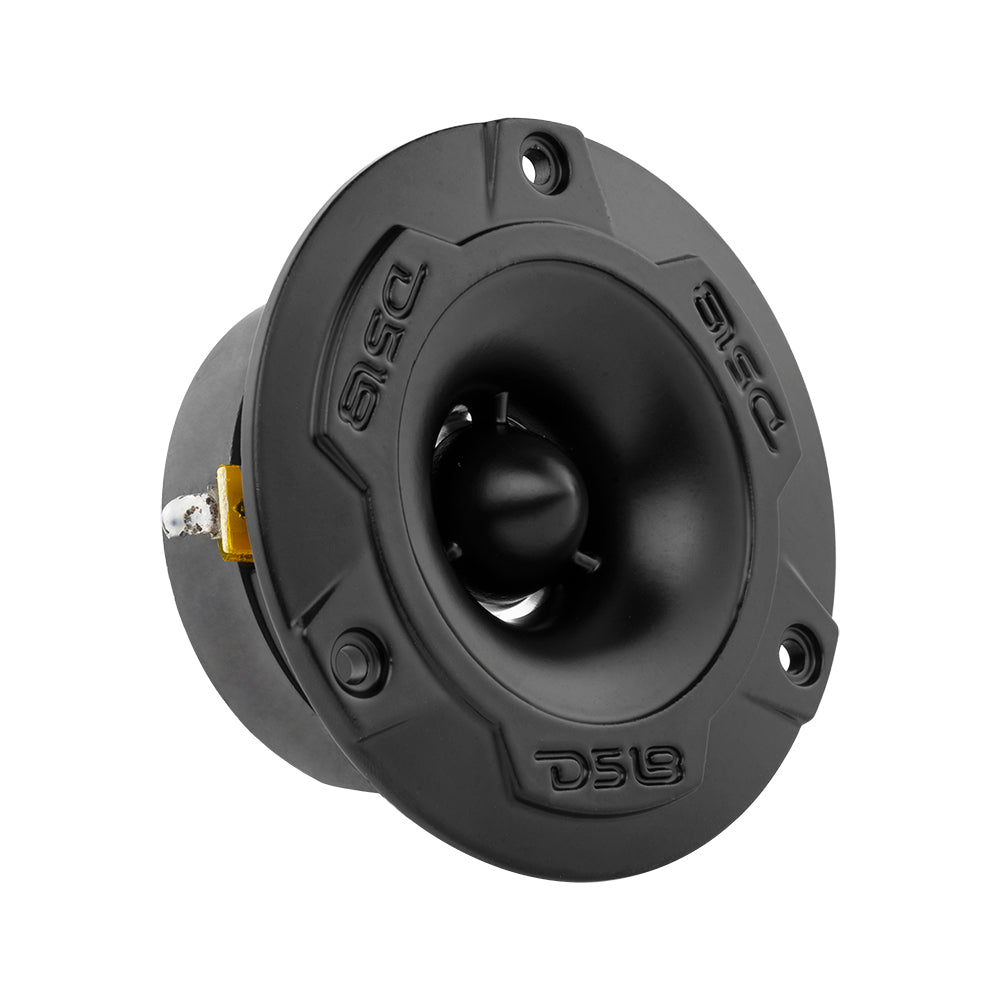

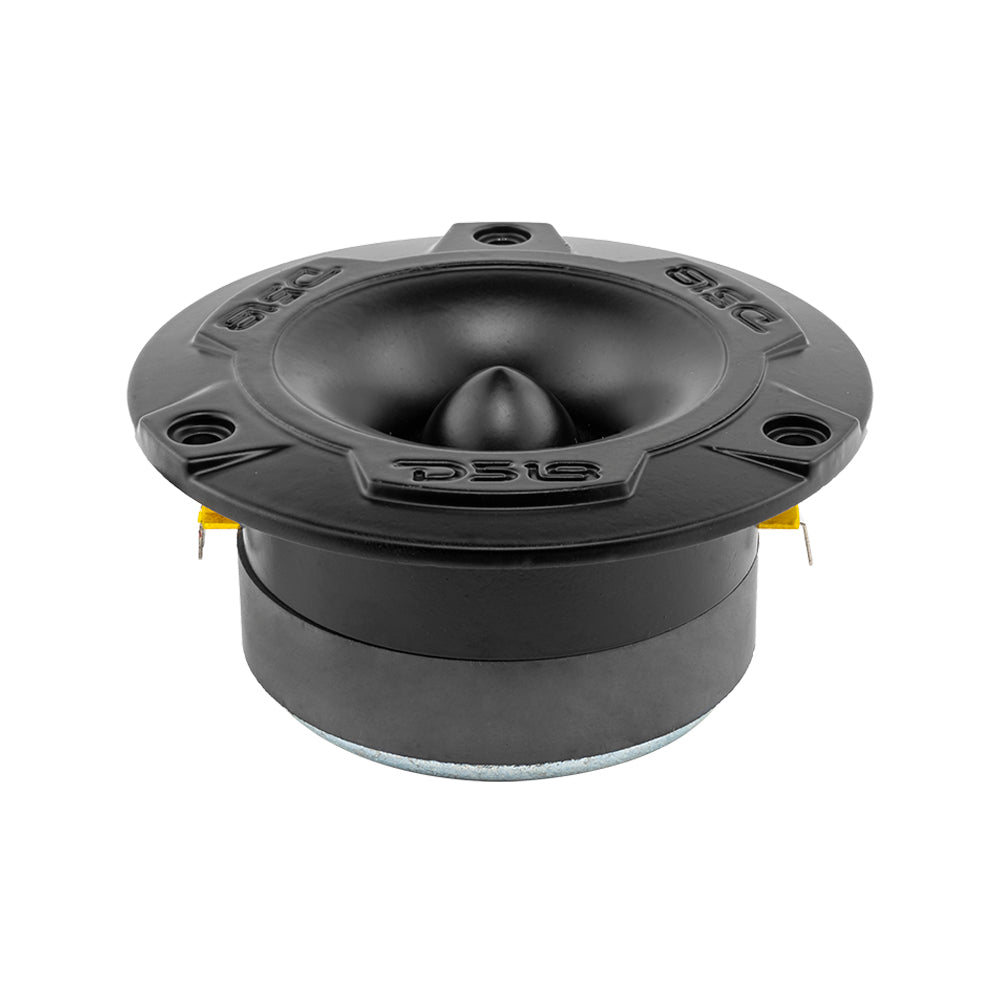

| Model: | PRO-TWX1/BK |
| Type: | Super Bullet Tweeter |
| RMS Power: | 120 Watts |
| MAX Power: | 240 Watts |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 103dB |
| Impedance: | 4 Ohms |
| Frequency Response: | 3.5KHz - 20KHz |
| Package Quantity: | 2 |

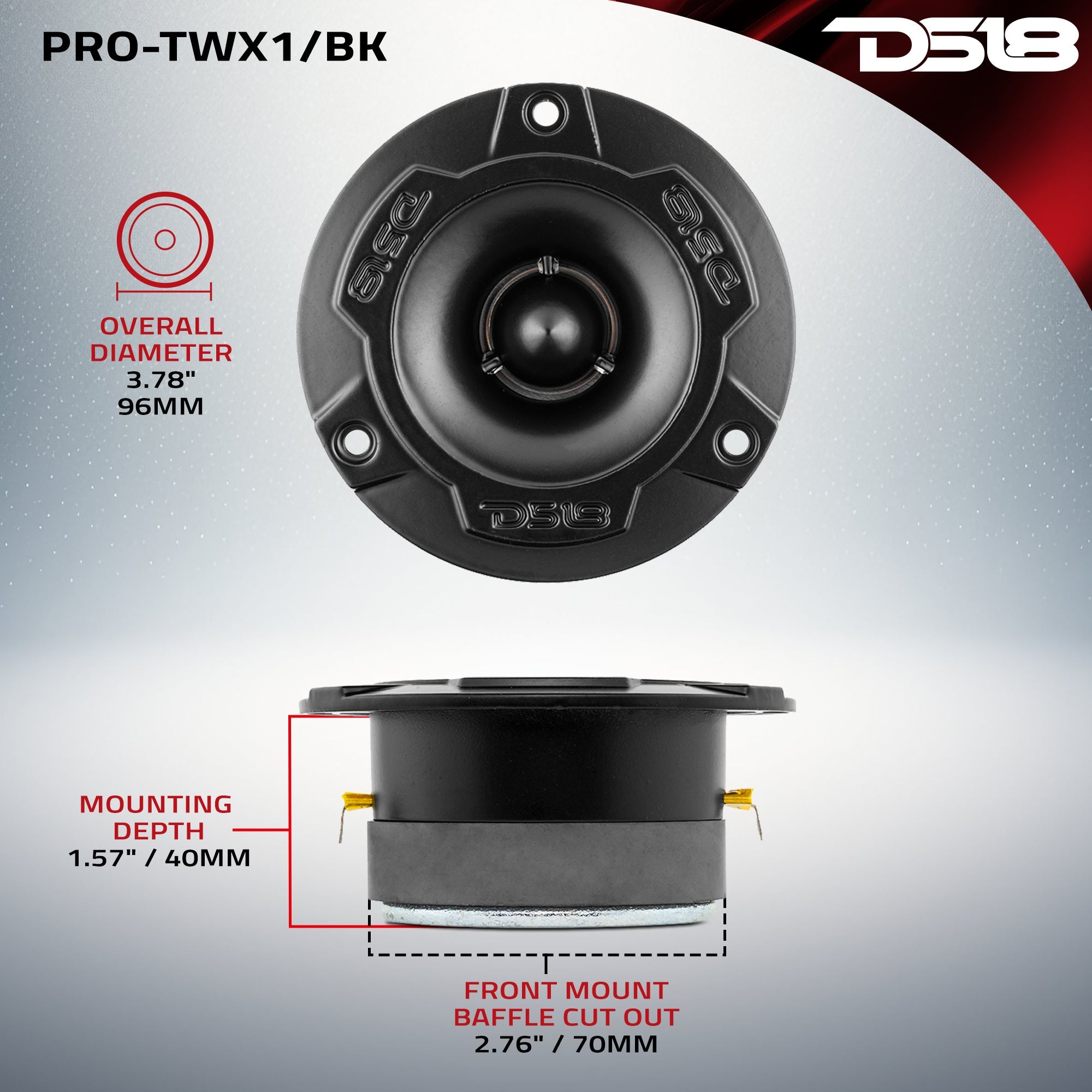

| MEASUREMENTS | |
| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78"/ 45mm |
| Front Mount Baffle cutout | 2.76"/ 70mm |
| Mounting Depth | 1.57"/ 40mm |
Key Features
- 8" Mid-Range and Tweeter Package
- 8" Mid-Range X 2 (PRO-X8.4BM) 97dB
- 3.78" Super Bullet Tweeter X 2 (PRO-TWX1/BK) 103dB
- MAX Power: 550 Watts(W) 240 Watts(T)
- RMS Power: 275 Watts(W) 120 Watts(T)
- Ferrite Magnet / Impedance: 4-Ohm
Specifications
| SKU | PRO-X8.4BMPK |
|---|---|
| Nominal Diameter | 8" / 203.2 mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 275 WATTS |
| Maximum Power Handing | 550 WATTS |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 93Hz-16KHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Voice Coil Diameter | 1.5" / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 30 oz |
| Vas | 26.60 LTR |
| Xmax | 9.3 mm |
| Fs | 93 Hz |
| Qms | 9.275 |
| Qes | 0.589 |
| Qts | 0.552 |
| Re | 3.2 ohms |
| Overall Diameter | 8.23" / 209 mm |
| Front Mount Baffle Cutout | 7.17" / 182 mm |
| Mounting Depth | 3.11" / 79 mm |
| Overall Depth | 3.38" / 86 mm |
| Product Weight | 83 lbs |
| Product Dimensions | 21 x 12.5 x 12.5 |
| M/C Weight | 83 lbs |
| M/C Dimensions | 21 x 12.5 x 12.5 |
| M/C QTY | 0 |
| Sold In | Piece |
