3” Super Bullet Tweeter with 1” Titanium Voice Coil and Neodymium Magnet | 120W RMS 4-Ohm
Product Overview DS18 GTX23” Super Bullet Tweeter With 1” Titanium Voice Coil and Neodymium Magnet The GTX2...
- $53.95
- $53.95
- Unit price
- per
Subtotal:
$53.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
DS18 GTX2
3” Super Bullet Tweeter With 1” Titanium Voice Coil and Neodymium Magnet
The GTX2 is DS18’s compact 3" super bullet tweeter, built to slice through any mix with clean, piercing highs!
Titanium Clarity
A 1" titanium voice coil and KSV former deliver ultra-clean treble at high volume, with 100dB sensitivity. Rated at 60W AES, 120W program, and 240W peak, the GTX2 brings pro-level output in a compact footprint.
Light, Efficient, Powerful
The 38x14mm neodymium magnet delivers high magnetic force with low weight—giving you explosive high-frequency response without adding bulk to your build.
Built to Fit Any Custom Build

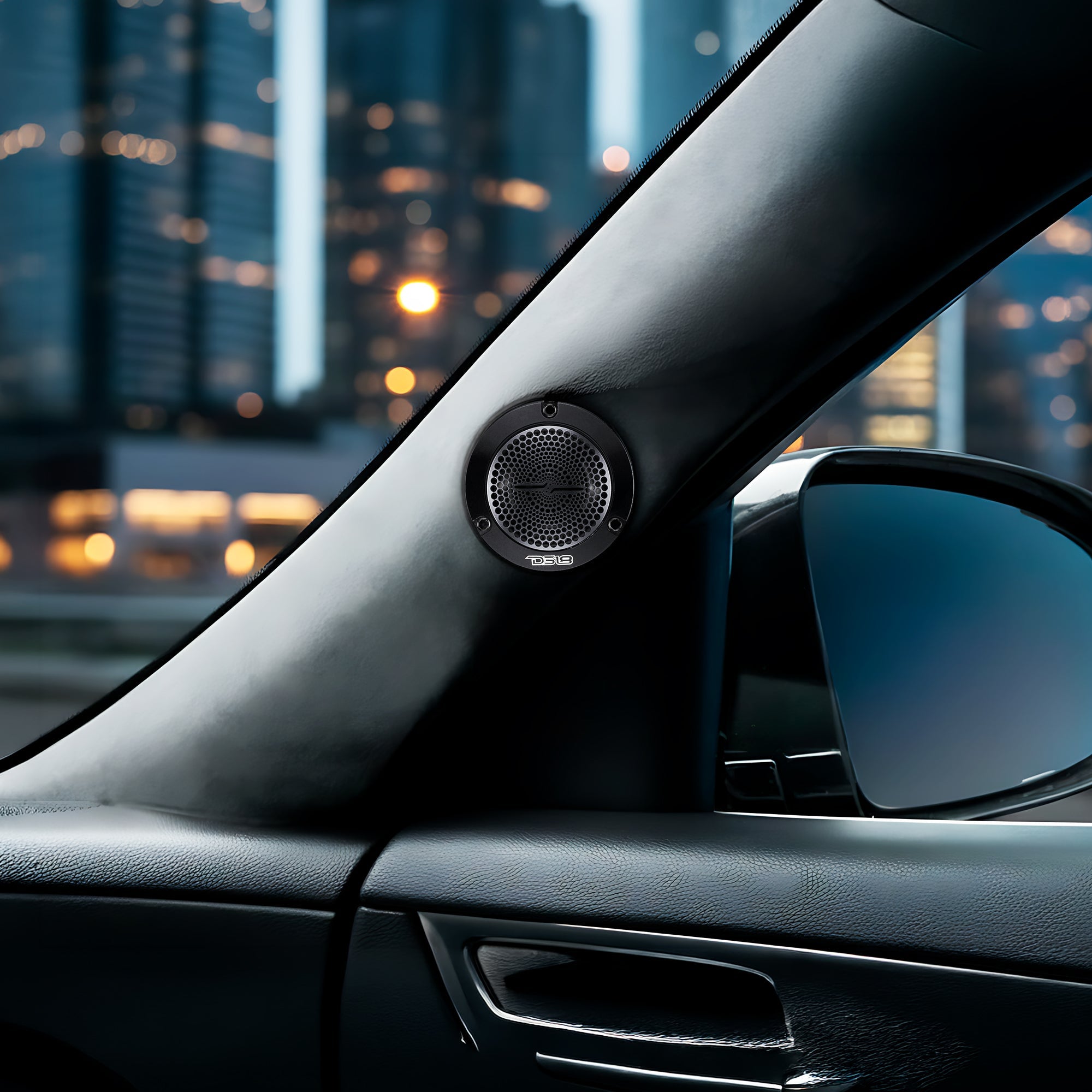

At just 1.46” mounting depth and 2.9” overall diameter, the GTX2 fits almost anywhere, dash pods, A-pillars, custom enclosures: making it perfect for cars, and SPL builds.
Wide Frequency Range
Plays from 650Hz to 20kHz, giving you coverage across mid-high and super-high frequencies. A 2kHz high-pass crossover is recommended for max protection and performance.
Perfect For Any System
Pick your style, GTX2/BK (Black) or GTX2/SL (Silver), for the perfect match to your aesthetic and system theme.
The DS18 GTX2 is compact, clean, and made to scream. Add it to your setup for high-output treble that cuts through anything.
Key Features
- 1" Titanium Voice Coil for ultra-clean, high-volume treble
- Compact 3" Super Bullet Tweeter with lightweight neodymium magnet
- High Power Handling: 60W AES, 120W program, 240W peak
- Ultra-Slim Fit: 1.46" mounting depth for versatile custom installs
- Wide Frequency Range from 650Hz–20kHz for crisp mid-high and high-frequency coverage
Specifications
| Nominal Diameter | 3" / 76mm |
|---|---|
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 100dB |
| Frequency Response | 650Hz-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Size | 38x14mm |
| Body Material | Aluminum |
| Body Color / Finish | Black |

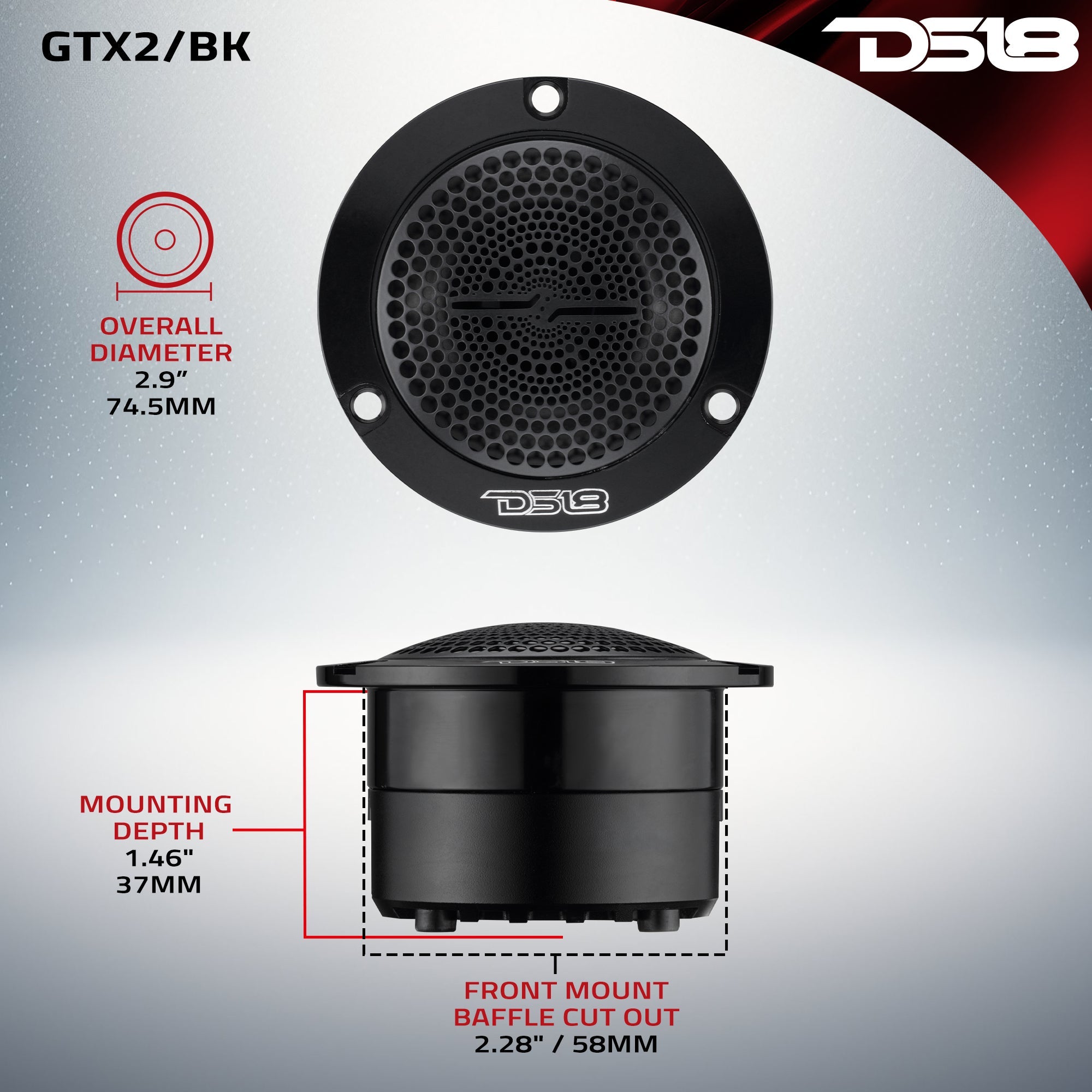

| Overall Diameter | 2.9" / 74.5mm |
| Overall Depth | 1.8" / 48mm |
| Front Mount Baffle Cutout | 2.28" / 58mm |
| Mounting Depth | 1.46" / 37mm |
