GEN-X 10" Subwoofer with Carbon Fiber Dust Cap | 600W RMS Dual 4-Ohm Voice Coils
Product Overview DS18 GEN-X104DCF10" Subwoofer with Carbon Fiber Dust Cap and Dual 4-Ohm Voice Coils The GEN-X104DCF...
- $224.95
- $224.95
- Unit price
- per
Subtotal:
$224.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

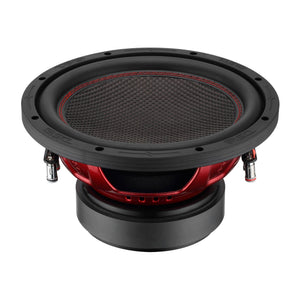

DS18 GEN-X104DCF
10" Subwoofer with Carbon Fiber Dust Cap and Dual 4-Ohm Voice Coils
The GEN-X104DCF brings real DS18 performance to your daily build. This 10" subwoofer combines high-efficiency output and durable construction for a clean, low-end punch in compact or multi-sub setups.
Serious Power
The GEN-X104DCF delivers 600W RMS and peaks at 1200W. It performs well in both sealed or ported enclosures — for tighter, more accurate bass go sealed: but, if you like it LOUD ported is the way to go.
Proven Build
The non-pressed paper cone is paired with a carbon fiber dust cap for improved stiffness and a sleek, aggressive look. A ferrite magnet (81 oz) and a durable 2" black aluminum voice coil give this sub the muscle it needs to handle any high-performance setups.
Dual 4-Ohm Voice Coils for Wiring Flexibility
Whether you’re wiring to 2Ω or 8Ω, the dual 4Ω coils give you the flexibility to pair with multiple subs or match with a wide range of amplifiers.
Optimized for Daily Bass
With a frequency response of 25–250Hz and a recommended low-pass crossover at 120Hz, this sub is tailored for rich, deep bass response.
Get punchy with DS18’s GEN-X104DCF.
Key Features
- 600W RMS Power – Delivers clean, powerful bass with authority
- Dual 4-Ohm Coils – Easy wiring and system flexibility
- Carbon Fiber Dust Cap – Stronger cone with aggressive styling
- Sealed or Ported Use – Tight or loud bass on demand
- Rugged Construction – Engineered for long-term daily use and reliability
Specifications
| Nominal Diameter | 10" / 254mm |
|---|---|
| Nominal Impedance | 4 + 4 ohms |
| RMS Power Handling | 600W |
| MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 92 dB |
| Frequency Response | 25Hz-250Hz |
| Recommended Low-Pass Crossover | 120 Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non Pressed Paper |
| Dust Cap Material | Carbon Fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color / Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 81 oz |
| Equivalent Volume | 23.67L / 0.835ft3 |
| Excursion (one way) | 10.5mm |
| Free Air Resonance | 37Hz |
| Mechanical Factor | 5.07 |
| Electrical Factor | 0.76 |
| Total Factor | 0.66 |
| Moving Mass | 140.16g |
| Compliance | 0.13mm/N |
| BL Factor | 9.26 |
| Voice Coil Inductance | 0.38mH |
| Diaphragm Area | 352.99cm2 |
| DC Resistance | 3.2 + 3.2 Ohms |
| Efficiency Bandwidth Product | 48.6 |

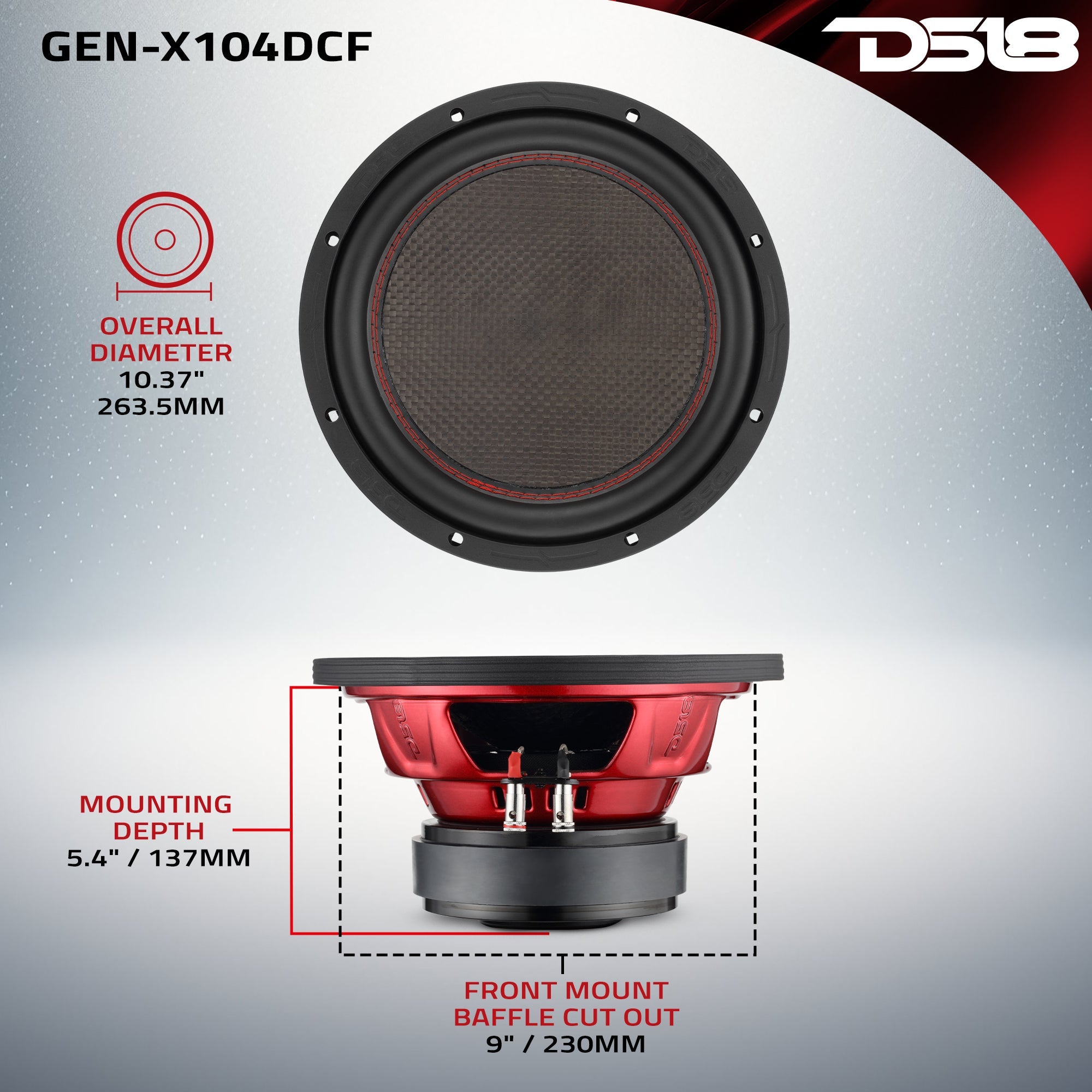

| Overall Diameter | 10.37" / 263.5mm |
| Overall Depth | 6" / 152mm |
| Front Mount Baffle Cutout | 9" / 230mm |
| Mounting Depth | 5.4" / 137mm |
| Motor Diameter | 6.1" / 155mm |
