Flush Mount / Surface Mount 6 Channel Class D Amplifier With Acrylic Cover for Custom Installation 6 X 180 Watts RMS @ 4 Ohm
Flush Mount / Surface Mount 6 Channel Class D Amplifier With Acrylic Cover for Custom Installation 6 X 180 Watts RMS @ 4 Ohm
Product Overview

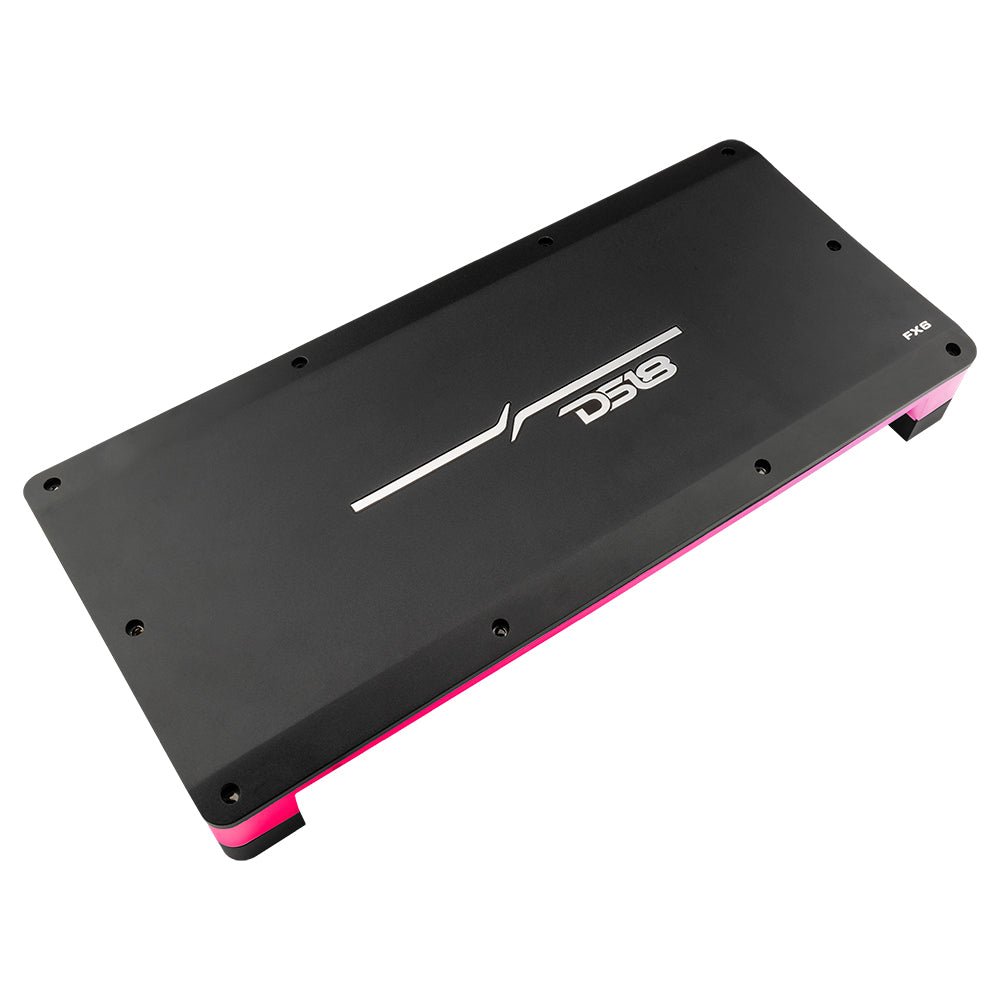

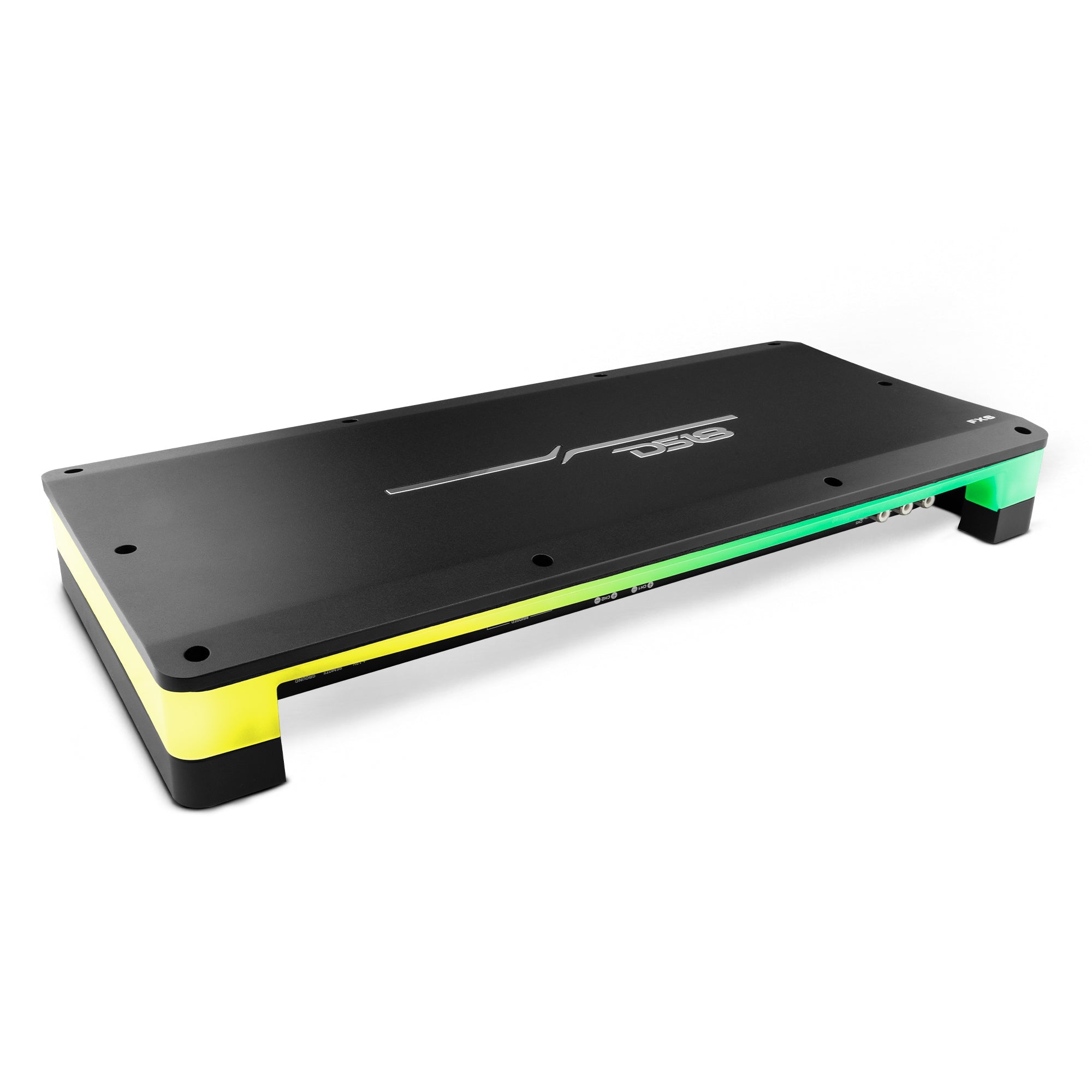

DS18 FX6 Flush Mount 6 Channel Amplifier With Acrylic Cover for Custom Installation
Enhance your car audio system with DS18’s FX6!
Designed and manufactured for professional car audio applications, this amplifier delivers exceptional power and high-quality sound while maintaining a small footprint for easy installation.

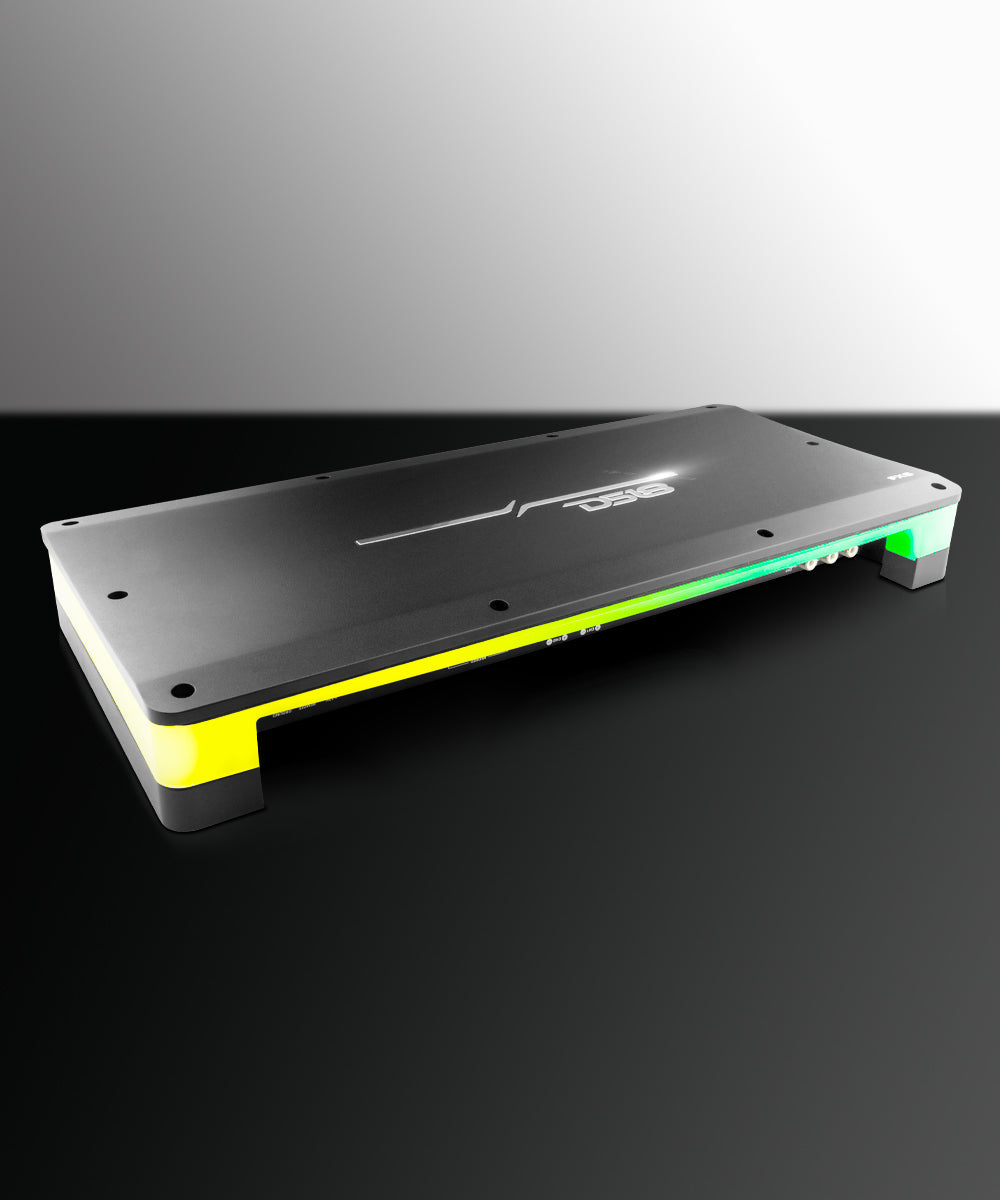

What sets the FX Series apart is its versatile installation options. Unlike ordinary amplifiers, these amplifiers come equipped with a surface mount adapter, allowing for both flush and surface installation. This feature provides flexibility in positioning the amplifier, making it perfect for custom car audio builds. Not only does it guarantee optimal performance without compromising on space or aesthetics, but it also incorporates mesmerizing Digital LED lights that add a touch of style and flair to your car audio setup.
Let's talk power! DS18’s FX6 delivers an impressive MAX power of 4500W. With RMS power outputs of 6 x 180W at 4 ohms, 6 x 250W at 2 ohms, and 3 x 500W at 4 ohms bridge, you can expect nothing less than thunderous sound quality.
In addition to its impressive power capabilities, this amplifier also offers a wide range of audio features. With a frequency response of 20Hz-20KHz, a signal-to-noise ratio of 80dB, and a damping factor of 80, you can enjoy a full spectrum of sound with exceptional clarity. The selectable X-Over feature allows you to customize your audio experience, while the bass boost range and frequency allow you to fine-tune your system to your liking.
Upgrade your car audio system with DS18’s FX6 and experience unmatched power, versatility, and sound quality!
*The FX Series adapters are not designed to be water-resistant. Please exercise caution to prevent water contact with the RGB LEDs, as exposure may result in a short circuit*
Key Features
- 6 Channel Full Range

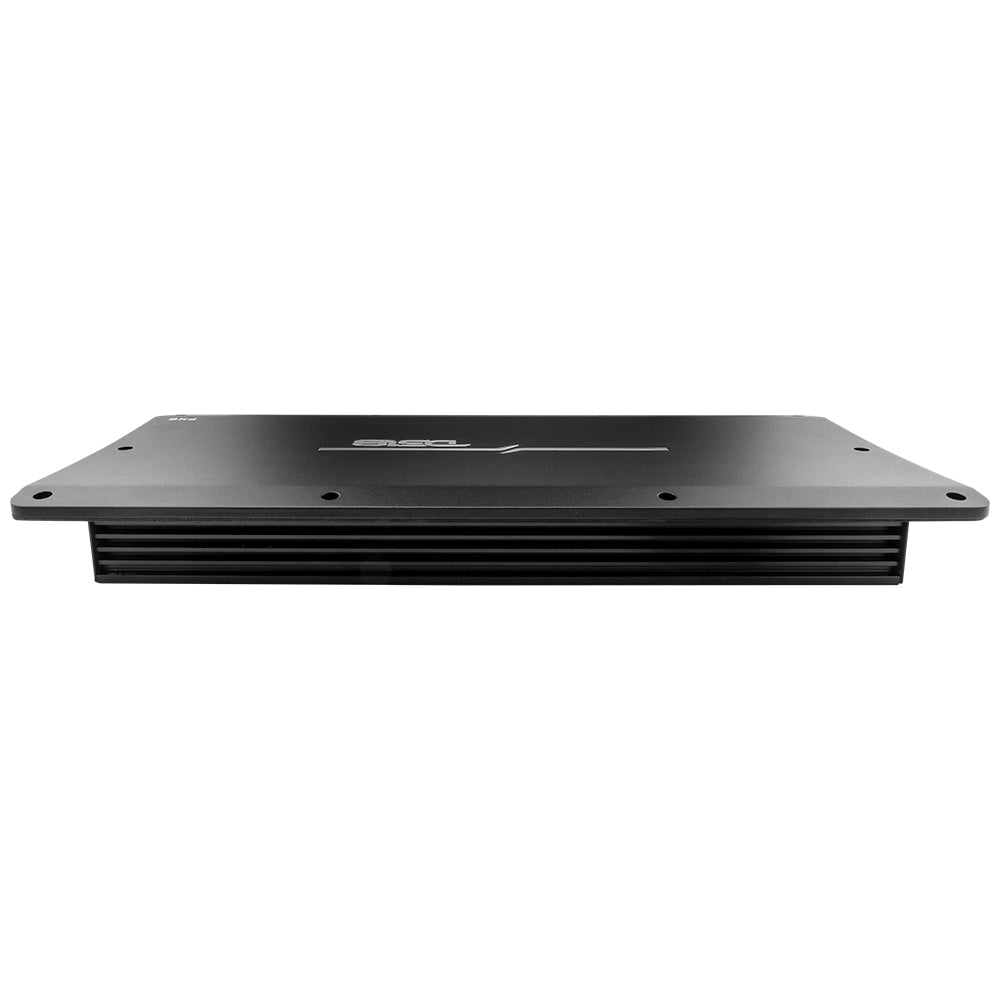

- Flush Mount / Surface Mount
- 6 X 180 Watts RMS @ 4 Ohm
- CLASS D

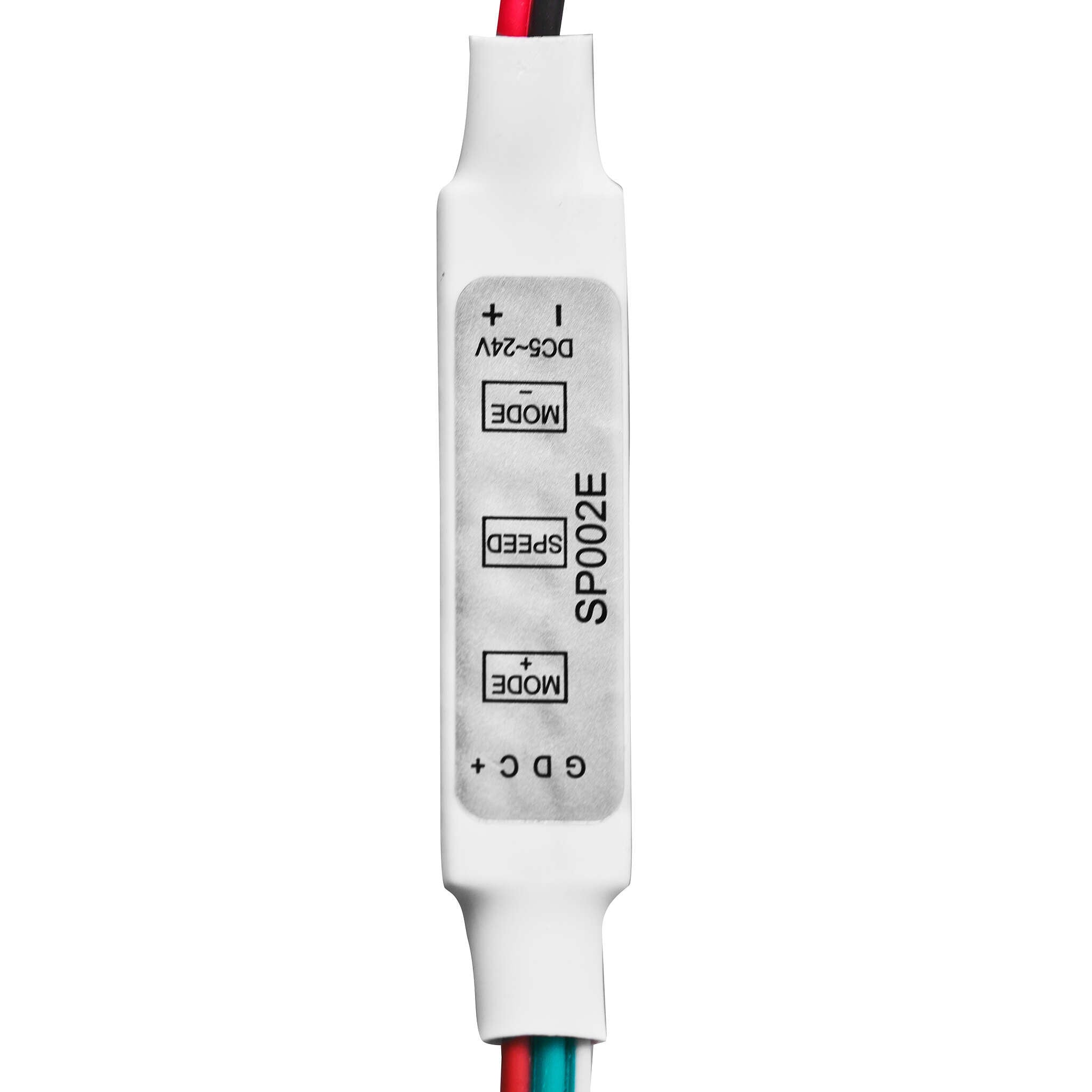

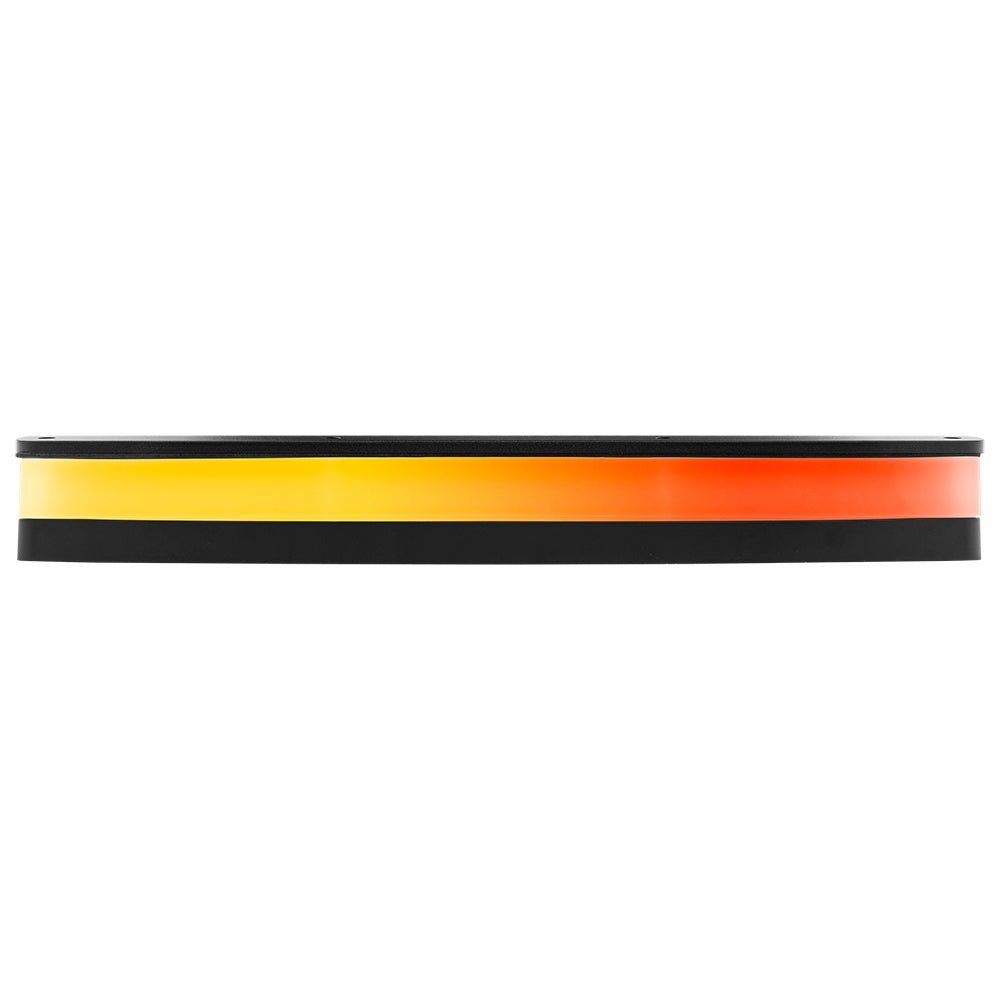

- Digital Dream LED Lights
- Built in Crossover / Water Resistant IP65
Specifications
| SKU | FX6 |
|---|---|
| Total Watts (Peak) | 4500W |
| RMS Power @ 4 ohm | 6 x 180W |
| RMS Power @ 2 ohm | 6 x 250W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 3 x 500W |
| Frequency Response | 20Hz-20KHZ |
| Signal to Noise Ratio | 80dB |
| Efficiency @ 4ohm | 79% |
| Damping Factor | 80 |
| Input Impedance | 28Kohms |
| Channel Separation | 60dB |
| Total Harmonic Distortion (THD) | 0.19% |
| Low Level Input Range | 0.3-6V |
| High Level Input | N/A |
| Selectable X-Over | LPF/HPF/FULL |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | 0~12dB |
| Bass Boost Frequency | 50Hz |
| Infrasonic Filter | N/A |
| Phase Selector | N/A |
| Amplifier Class | Digital (D) |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 6 |
| Minimum Impedance | 2 Ohm Stereo / 4 Ohm Bridge |
| Led Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 4 Ga |
| Fuse Size | 120A (External) |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (8.5-16.8V) |
| Clipping Protection | Yes |
| Body Color / Finish | Black Aluminum |
| Input Channel Selectable | Yes (2/4/8 Channels) |
| Remote Level Control with Clip Indicator and Metal Case | No |
| RCA Low Level Output | No |
| Tiffany RCA Connector | Yes |
| Very High Efficiency Digital Circuit Design | Yes |
| PCB with Anti-Corrosion Protection Coating | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |

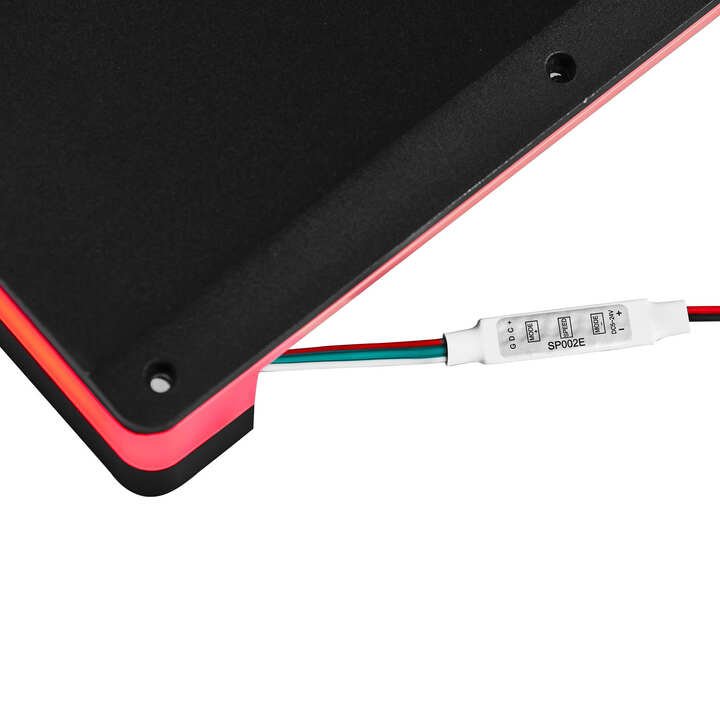

| Surface Mounting with Digital Chasing LED Adapter | Yes (Included) |
| Waterproof Rating | IP65 (Flush Mounting) |
| Body Length | 14.25" / 362mm |
| Body Width | 4.7" / 120mm |
| Overall Height | 1.85" / 47mm |
| Heatsink Length | 16" / 406mm |
| Heatsink Width | 7.2" / 182mm |
| Mounting Hole | 14.5"x5.8" / 370x147mm |
| Mounting Depth | 1.5" / 39mm |
| Gross Single Unit Weight | 3.2Kg |
