Product Overview
FRP-1.5K/BL
Compact Full Range Class D 1-Channel Amplifier
Full-Range Performance

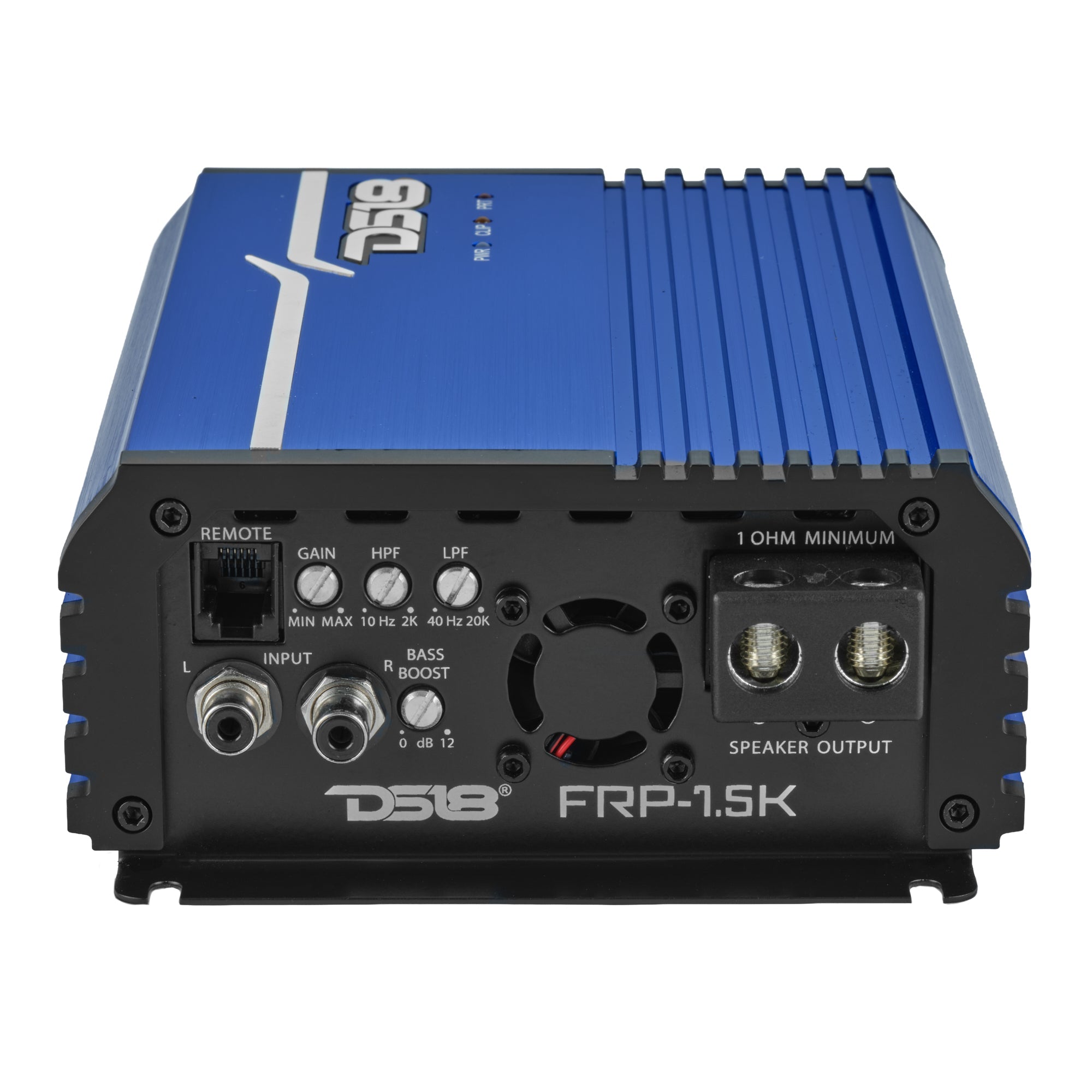

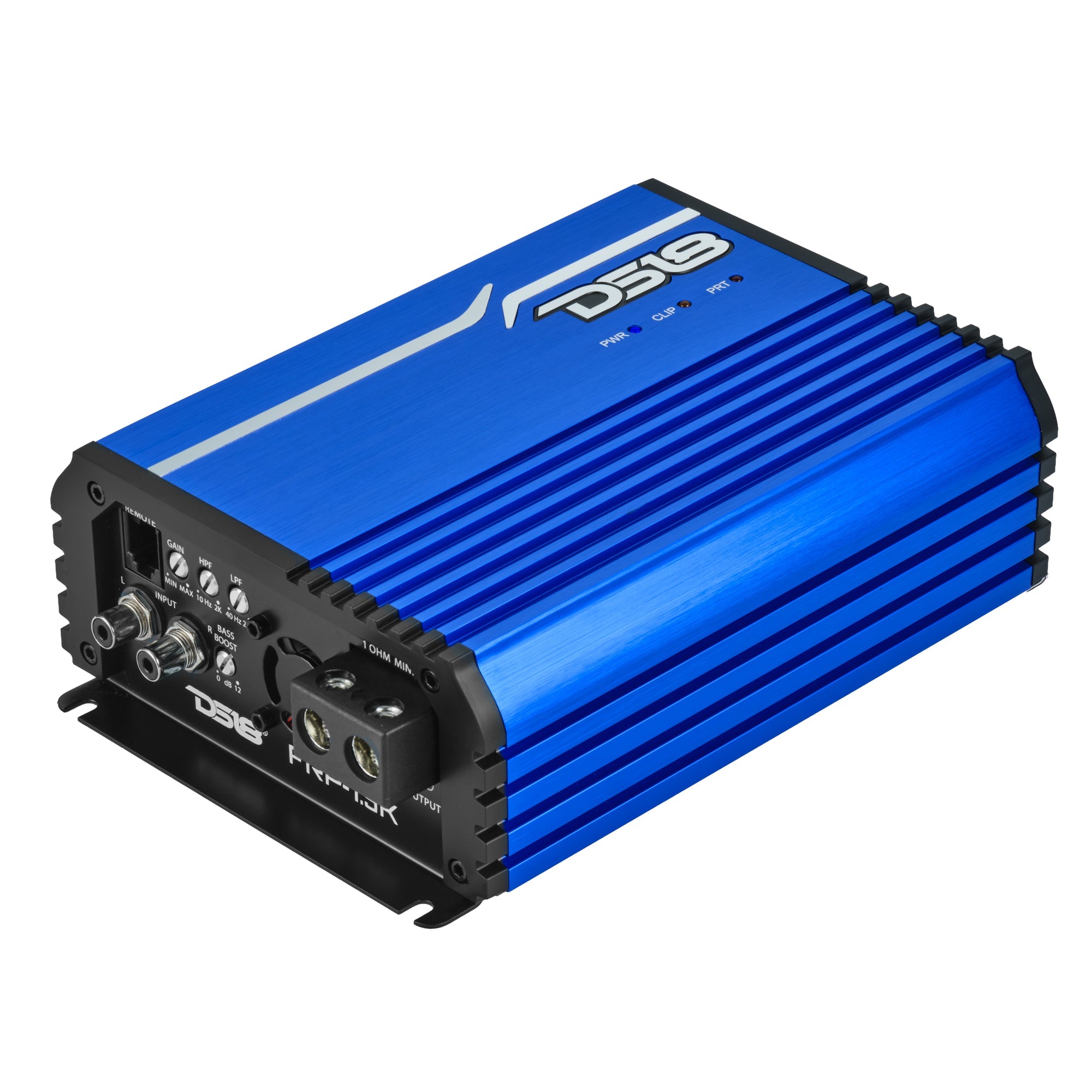

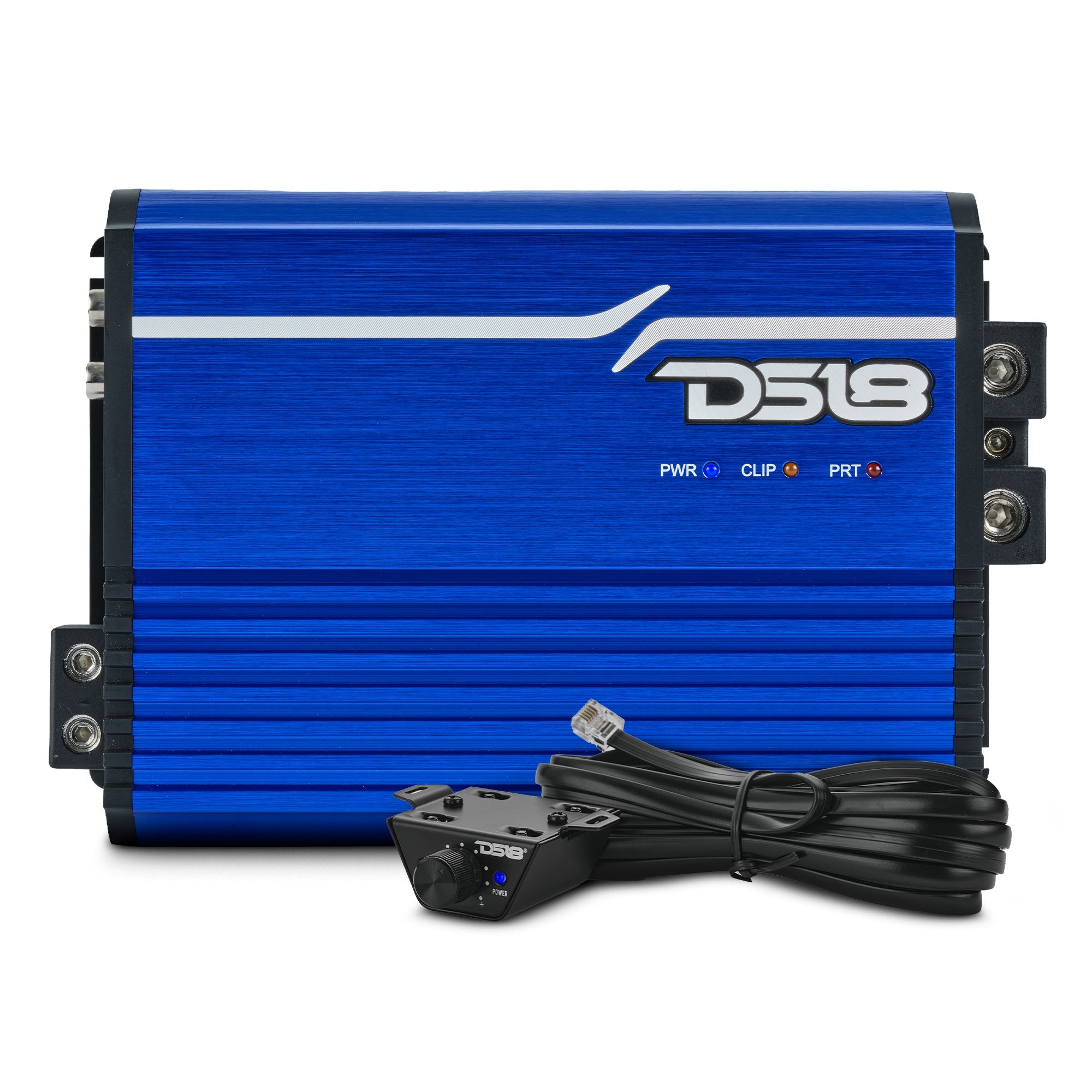

The FRP-1.5K/BL is a compact full-range Class D 1-channel amplifier, part of the FRP series of amplifiers, giving you the power to amplify the loudest audio gear in your sound system.
Compact Power
This amp comes with a MAX power of 1800W (at 1 ohm), with RMS ranging from 500W to 1500W. And with a frequency response of 10Hz-20kHz, your speakers and tweeters will have no problem reaching their full potential whenever you need to pump up the volume.
Party Without Worry
Smart Cooling ensures your FRP-1.5K/BL amp never gets too hot when handling all your audio gear. It also comes with an array of protections, keeping your amp from clipping, short circuiting, or over-loading.
Sleek Features
Featuring a sleek finish, this amp also comes with an LED clip indicator and quality control verification, letting you always stay in control and make sure everything is working and running as intended.
Made for Sound
If you want to upgrade your car audio and take it to the next level, look no further than DS18. Whether you’re throwing a party or enjoying a drive, DS18 FRP amps have everything you need to power your sound system.
Key Features
- Full-Range Class D Monoblock
- 1,500W RMS at 1 Ohm
- Compact High-Power Design
- Smart Cooling System
- Remote Level Control
- Clip, Short Circuit, and Overload Protection
Specifications
| RMS Power @ 4 ohms | 500W |
|---|---|
| RMS Power @ 2 ohms | 900W |
| RMS Power @ 1 ohm | 1500W |
| MAX Power @ 1 ohm (Burst) | 1800W |
| Frequency Response | 10Hz-20kHz |
| Signal to Noise Ratio | 90dB |
| Efficiency @ 4ohm | 92% |
| Damping Factor | 90 |
| Input Impedance | 10K Ω |
| Total Harmonic Distortion (THD) | 0.5% |
| Low Level Input Range | 400mV-6V |
| High Level Input | No |
| Selectable X-Over | Band-Pass |
| X-Over Filter Range | HP: 10Hz-2KHz / LP: 40Hz-20KHz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 50Hz |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Monoblock |
| Number of Channels | 1CH |
| Minimum Impedance | 1 Ω |
| Led Indicator | Power / Protect / Clipping |

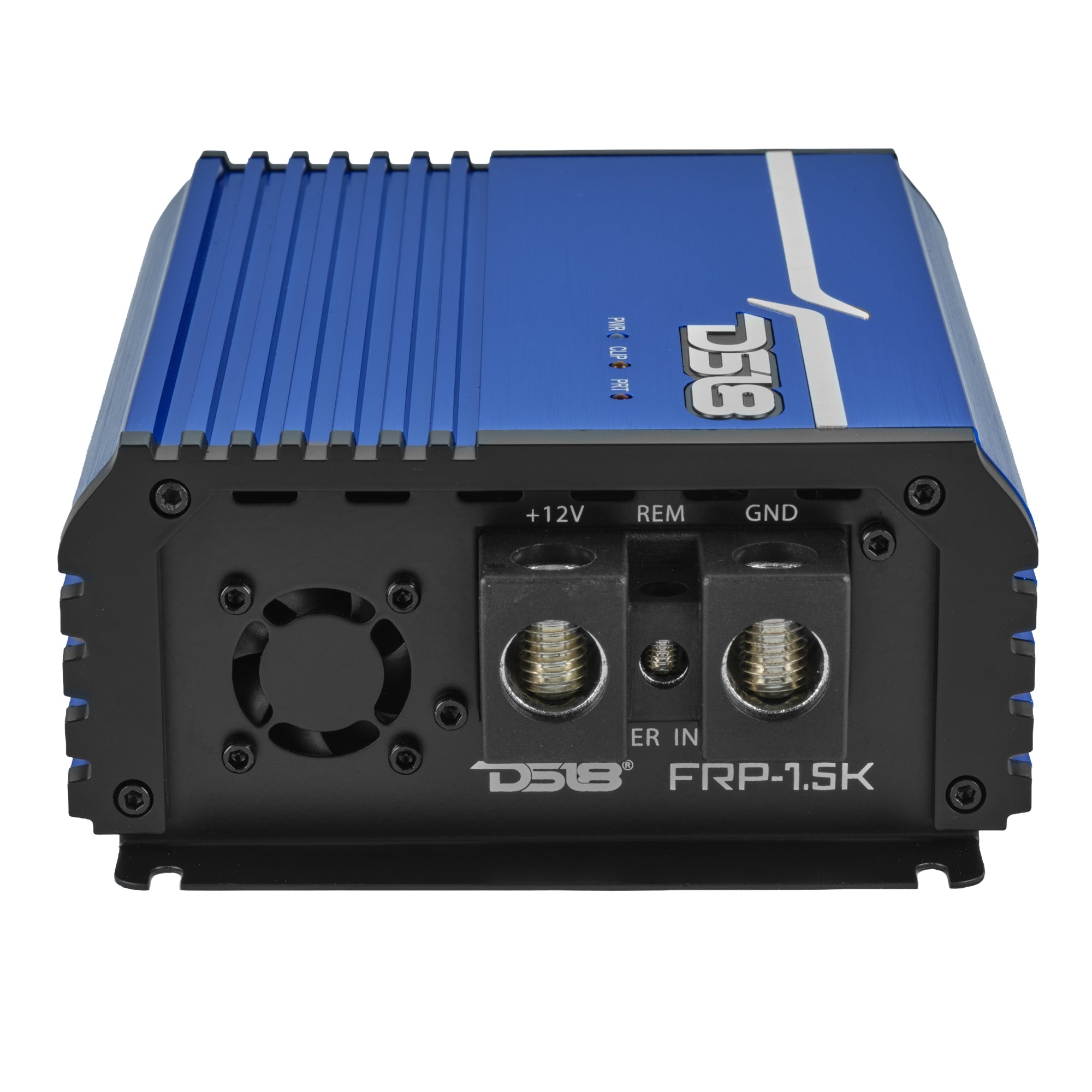

| Power Input Terminal Size | 0GA |
| Fuse Size (Recommended) | 130A |
| Cooling Fan | Yes (Smart Cooling x 2) |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Blue / Red / Titanium |
| Compact Size to Easy Installation for Any Applications | Yes |

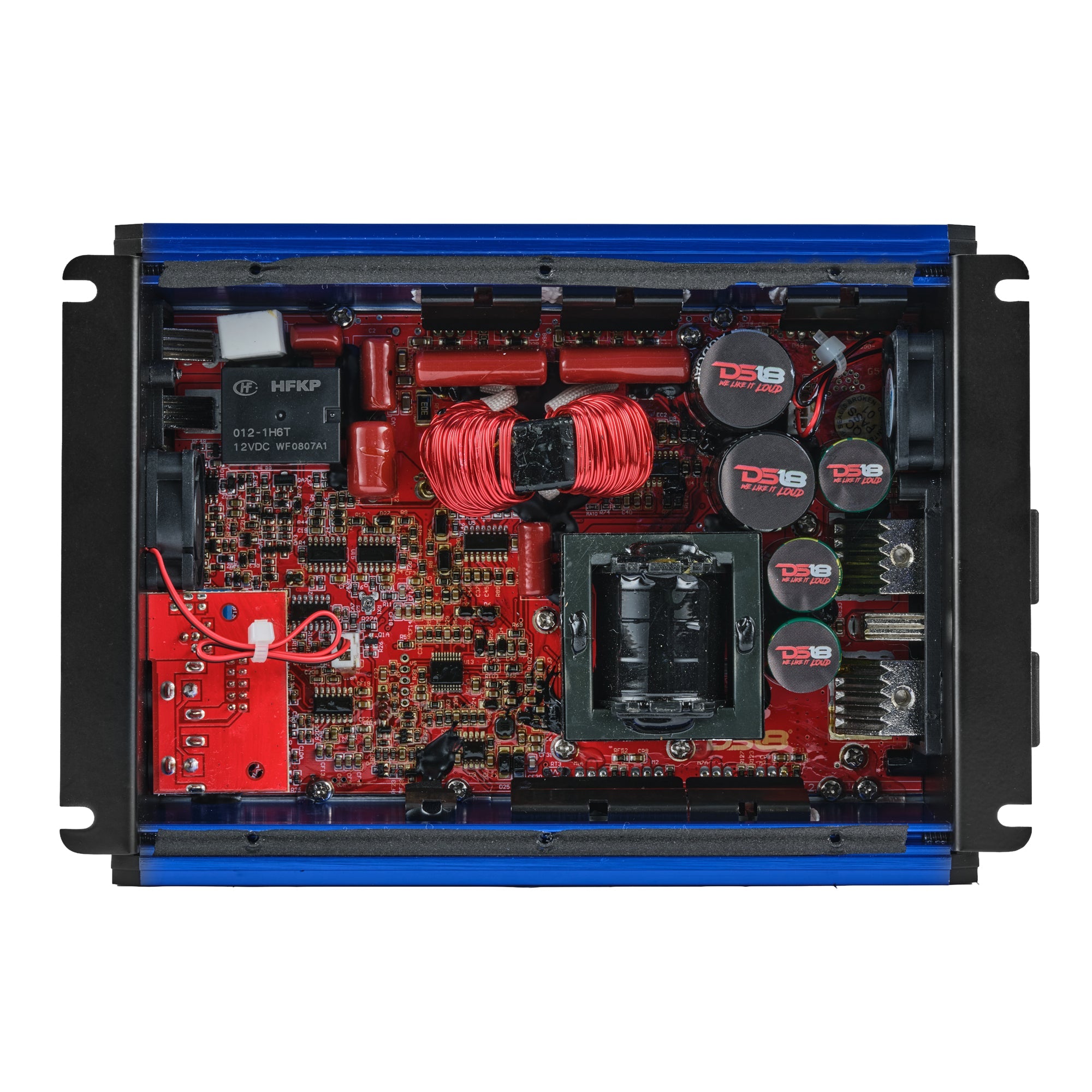

| Stable/Reliable Four Layers Traces PCB Design | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| Metal Knobs with Click Steps | Yes |

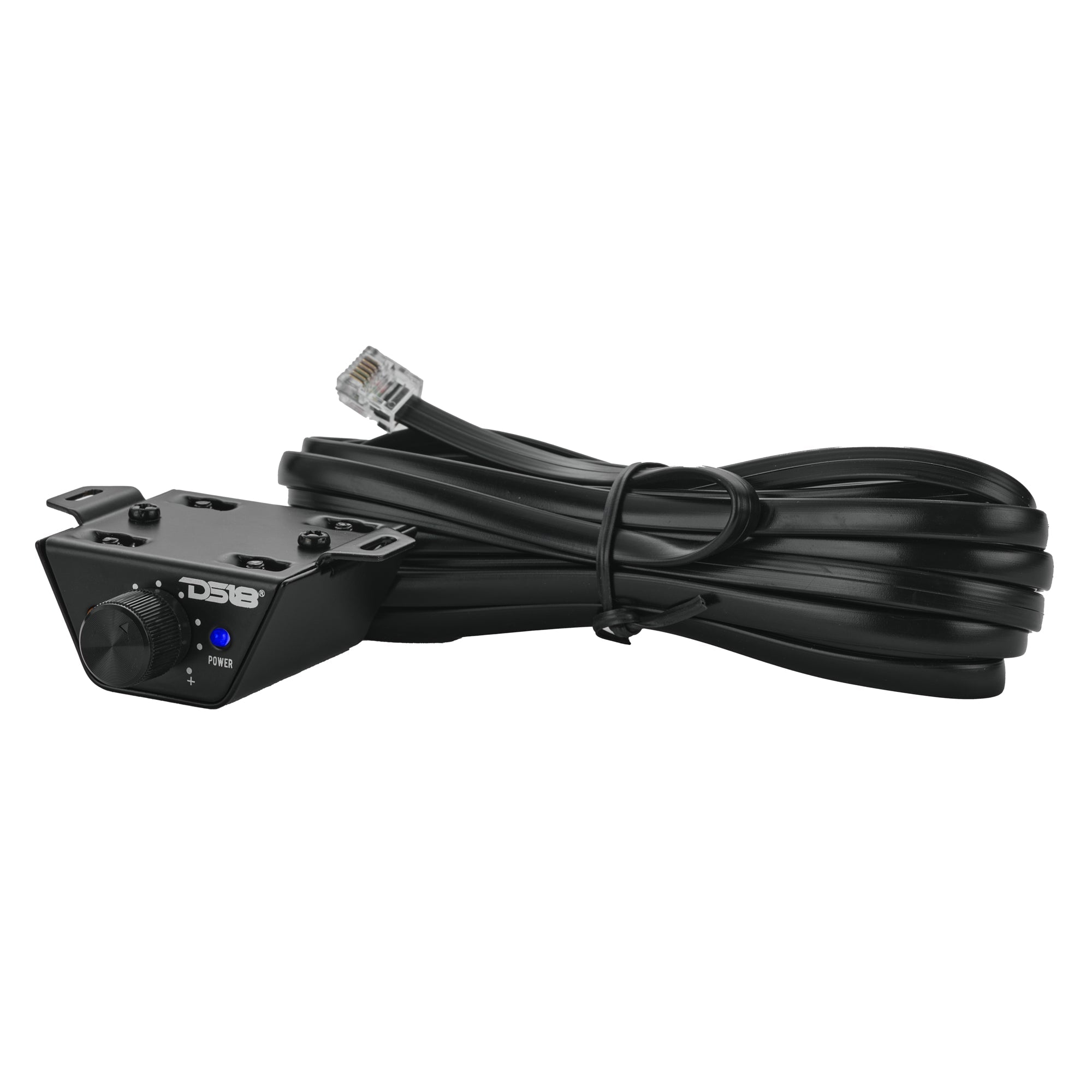

| Remote Level Control with Clip Indicator | Included |
| Remote Level Control with Clip Indicator and Voltmeter | Optional |
| Overall Length | 8" / 203mm |
| Overall Width | 5.5" / 140mm |
| Overall Height | 2.36" / 60mm |
| Heatsink Length | 6.7" / 170mm |
| Gross Single Unit Weight | 1.96kg |
