Product Overview

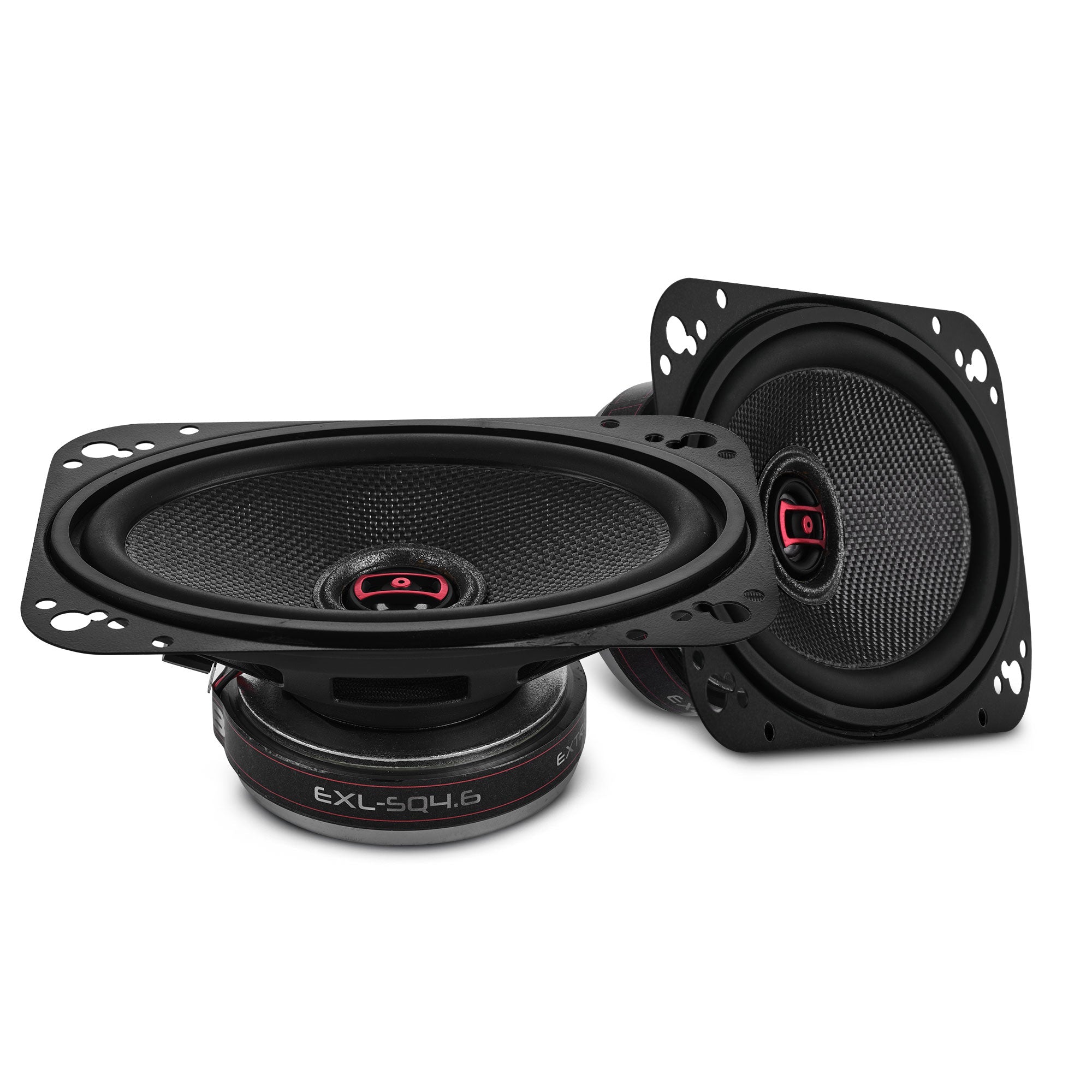

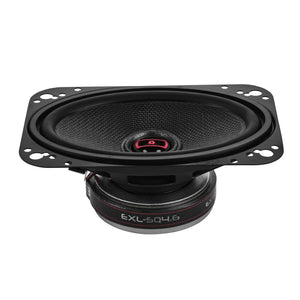

4x6” 2-Way Coaxial Speaker
The EXL-SQ4.6 is your new weapon of choice for smooth detail that slices through road noise with ease.
Tuned for Precision
Handling up 60W RMS and 260W MAX, the EXL-SQ4.6 transforms any ride into a rolling soundstage. With a frequency response from 80Hz to 22kHz, you’ll hear every detail like never before.
Built with Purpose
The EXL-SQ4.6’s glass fiber cone and rubber surround deliver responsive low-end with pro-grade clarity. The 1” ASV voice coil stays cool under pressure, while the 9oz barium magnet drives smooth, consistent sound.
Clear Highs That Cut Through
Equipped with a 0.8” neodymium tweeter and a Mylar diaphragm, the highs stay bright and distortion-free — even at high speeds.
Rugged by Design
Housed in a black steel basket, the EXL-SQ4.6 is built tough for the road. And yes, the grilles are included.
Level up your setup with DS18’s EXL-SQ4.6!
Key Features
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
Specifications
| Nominal Diameter | 4x6" / 101.6x152.4mm / 0.8? / 20.3mm |
|---|---|
| Nominal Impedance | 3 ohm |
| RMS Power Handling | 60W |
| MAX Power Handling | 260W |
| Sensitivity (1w/1m) | 87 dB |
| Frequency Response | 80Hz - 22KHz |
| Recommended HI Pass Crossover | 100Hz |
| Number of ways | 2-way |
| Pair or Single | Pair |
| Grill Included | No |
| Voice Coil Diameter | 1? / 25.5mm / 0.5" / 13mm |
| Voice Coil Former Material | ASV |
| Winding Material | Copper |
| Cone Material | Glass Fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Barium / Neodymium |
| Magnet Weight | 9 Oz |
| Equivalent Volume | 3.6L / 0.12ft3 |
| Free Air Resonance | 96Hz |
| Mechanical Factor | 4.964 |
| Electrical Factor | 1.136 |
| Total Factor | 0.924 |
| DC Resistance | 2.8 ohm |
| Diaphragm Material | Mylar |

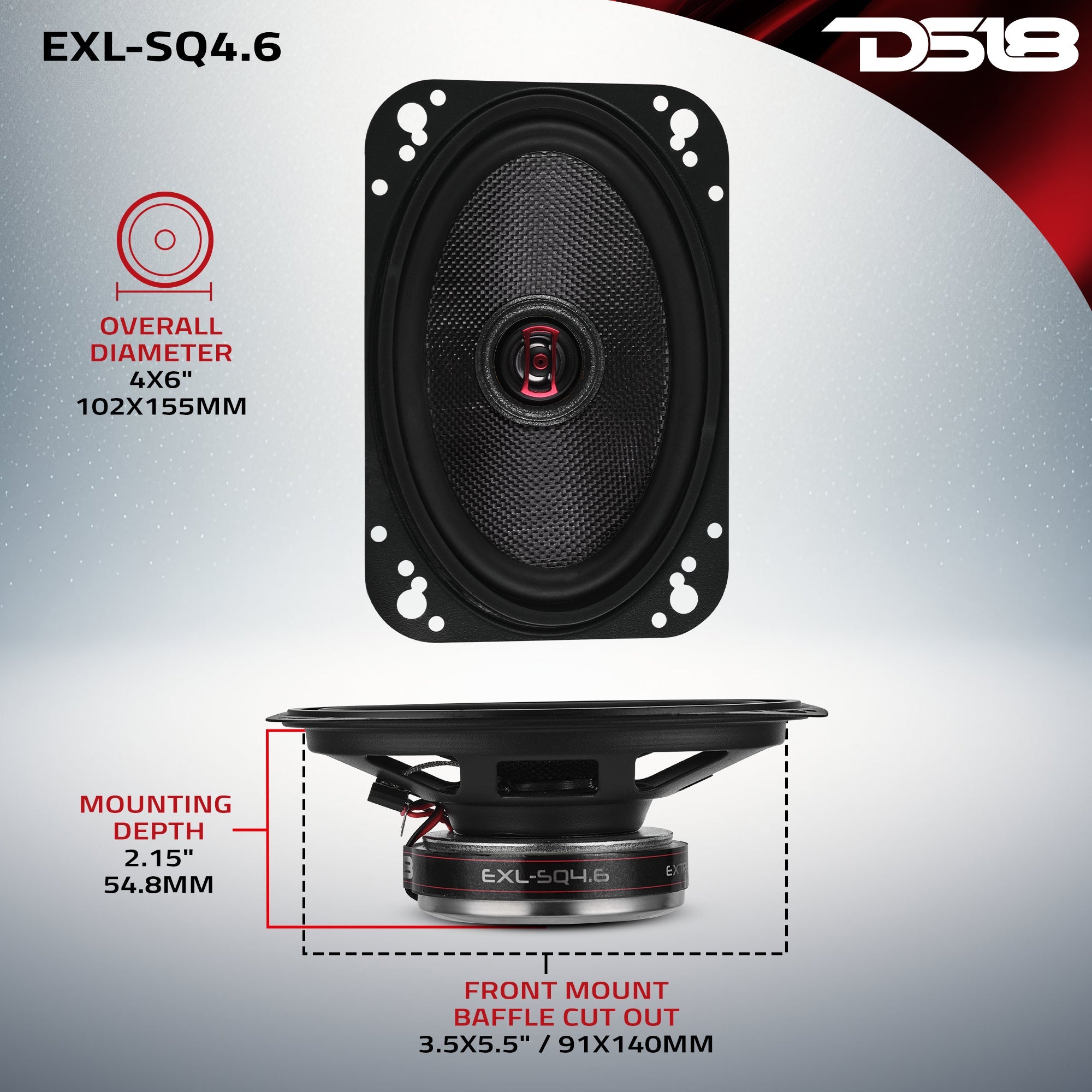

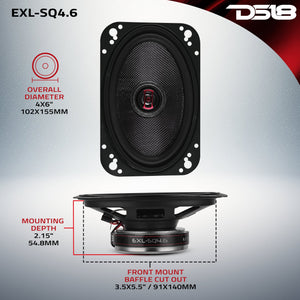

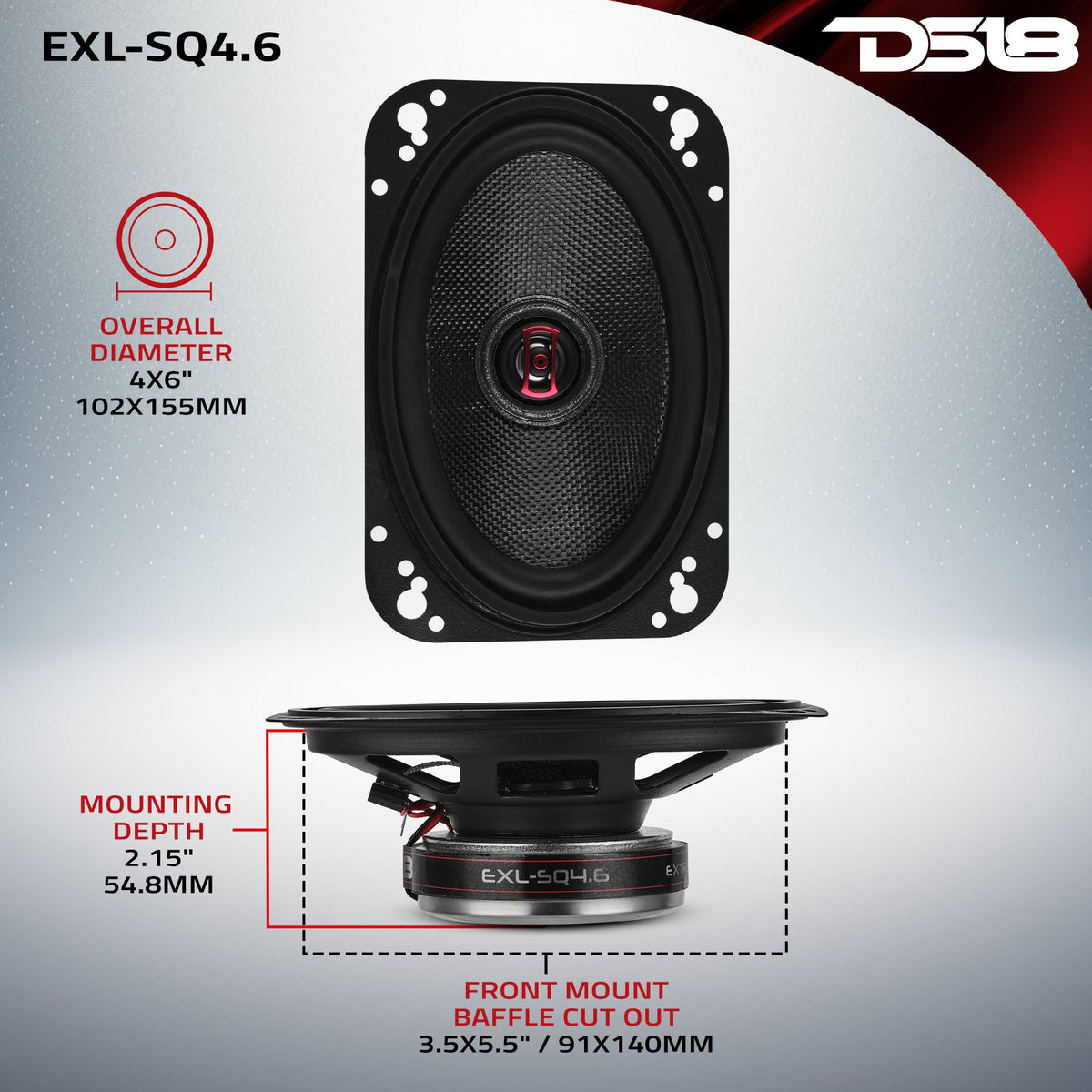

| Overall Diameter | 4x6" / 102x155mm |
| Overall Depth | 2.37" / 60.4mm |
| Front Mount Baffle Cutout | 3.5x5.5" / 91x140mm |
| Mounting Depth | 2.15" / 54.8mm |
| Motor Diameter | 3.14" / 80mm |
