ZXI 6.5" 2- Way Component Speaker System with Kevlar Cone | 120 Watts Rms 4-Ohm
Product Overview DS18 ZXI-62C Glass Fiber Cone 6.5" 2-Way Component Speaker Set 240 Watts 4-Ohm DS18's ZXI line...
Vendor:
DS18
Manufacturer SKU
ZXI-62C
Availability:
In Stock
Product Type:
Component Speaker Systems
- $167.95
- $167.95
- Unit price
- per
Subtotal:
$167.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

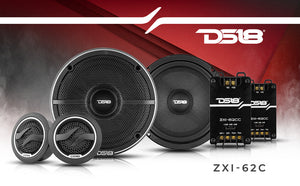

DS18 ZXI-62C Glass Fiber Cone 6.5" 2-Way Component Speaker Set 240 Watts 4-Ohm

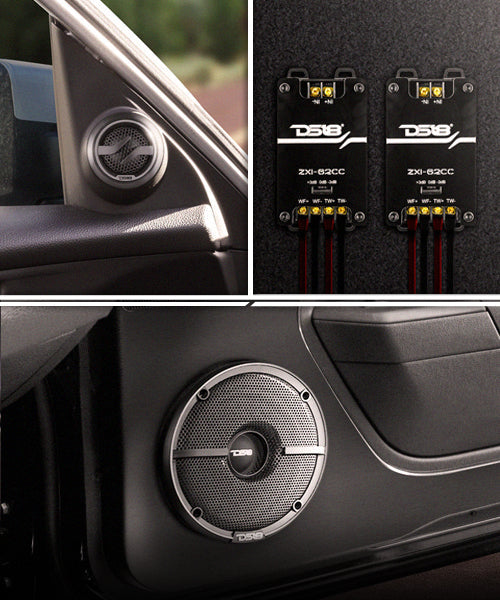

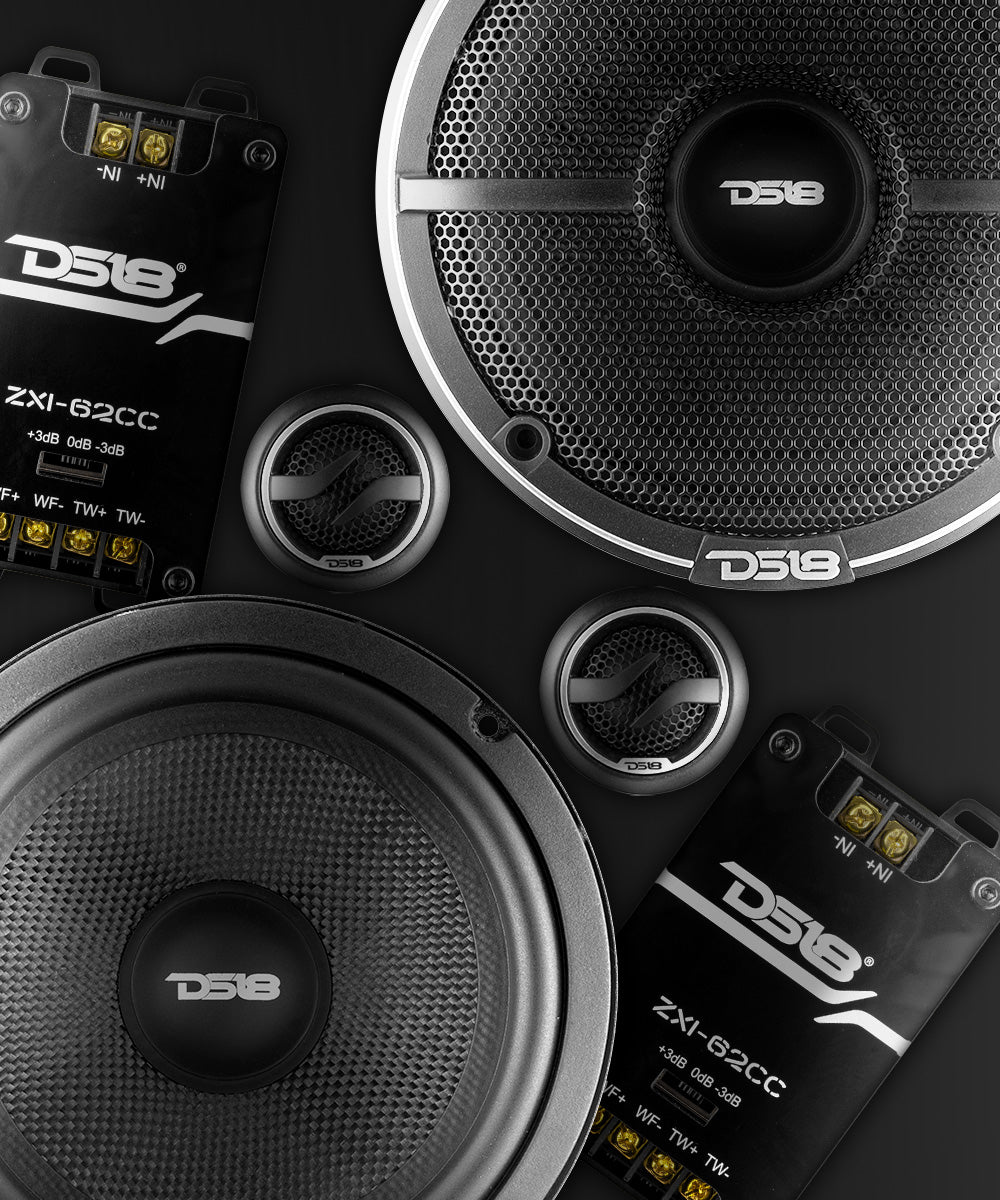

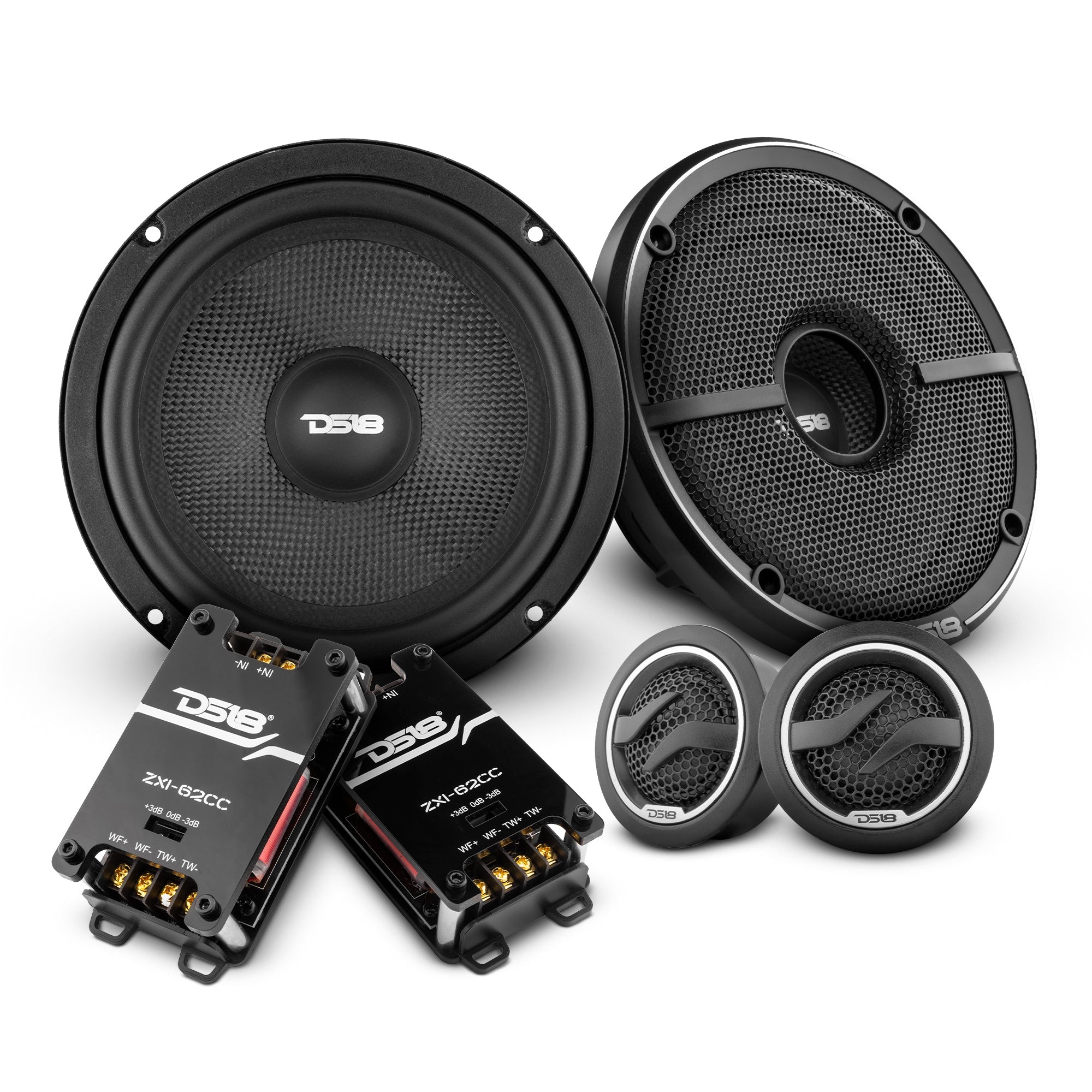

DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This component set includes a one-way 6.5" that takes 120w RMS and 240 Max watts. It has a 88 dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. Also included is a 30w RMS tweeter that can either be mounted on the grill assembly, or in another location of your choosing. The included DS18 passive crossover will get your frequency just right for the best sound available. These speakers are an amazing choice for your average every day to extreme audiophile!
Highlights
- Highly durable and extremely loud design built for the average to extreme audio systems.
- Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
- Component design will bring a full range of frequencies to your ears and with great sound quality.
Technical Details
| General Specifications | |
| Nominal Diameter | 6.5” / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handing | 80W |
| MAX Power Handing | 240W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 40Hz - 20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |

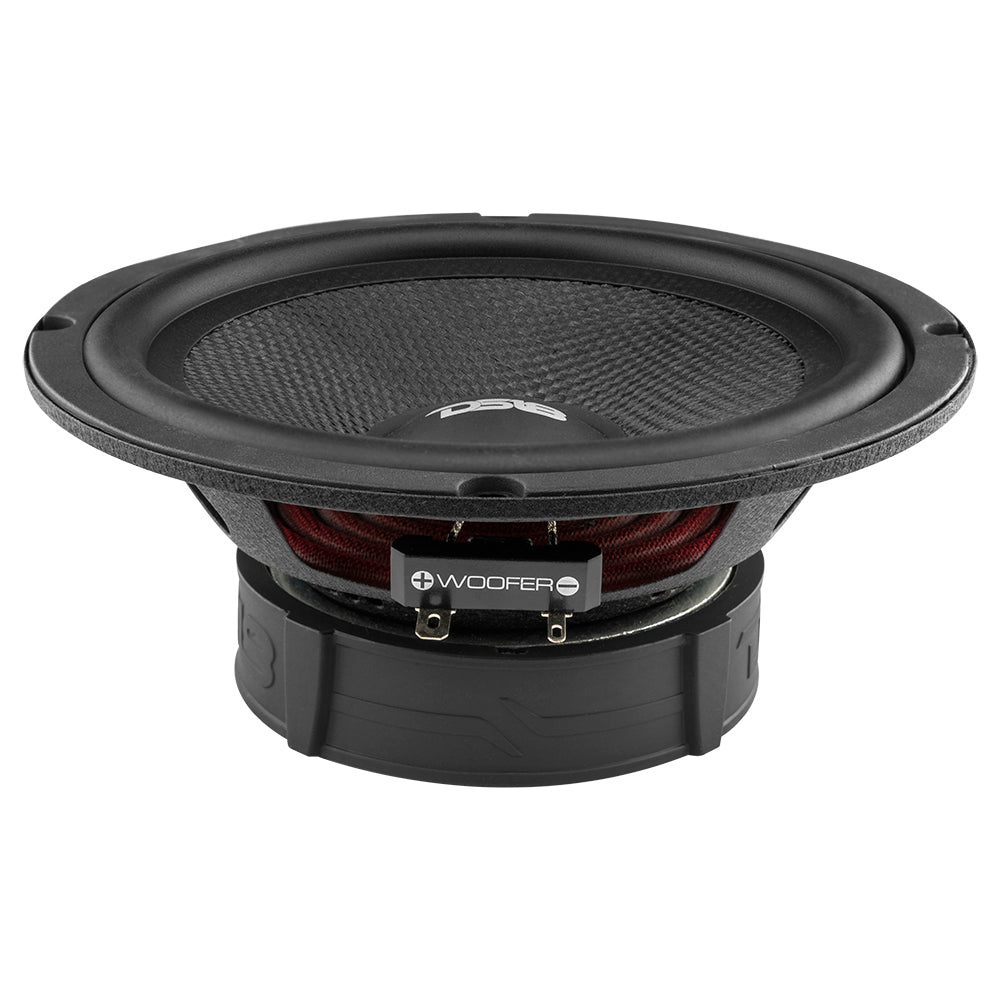

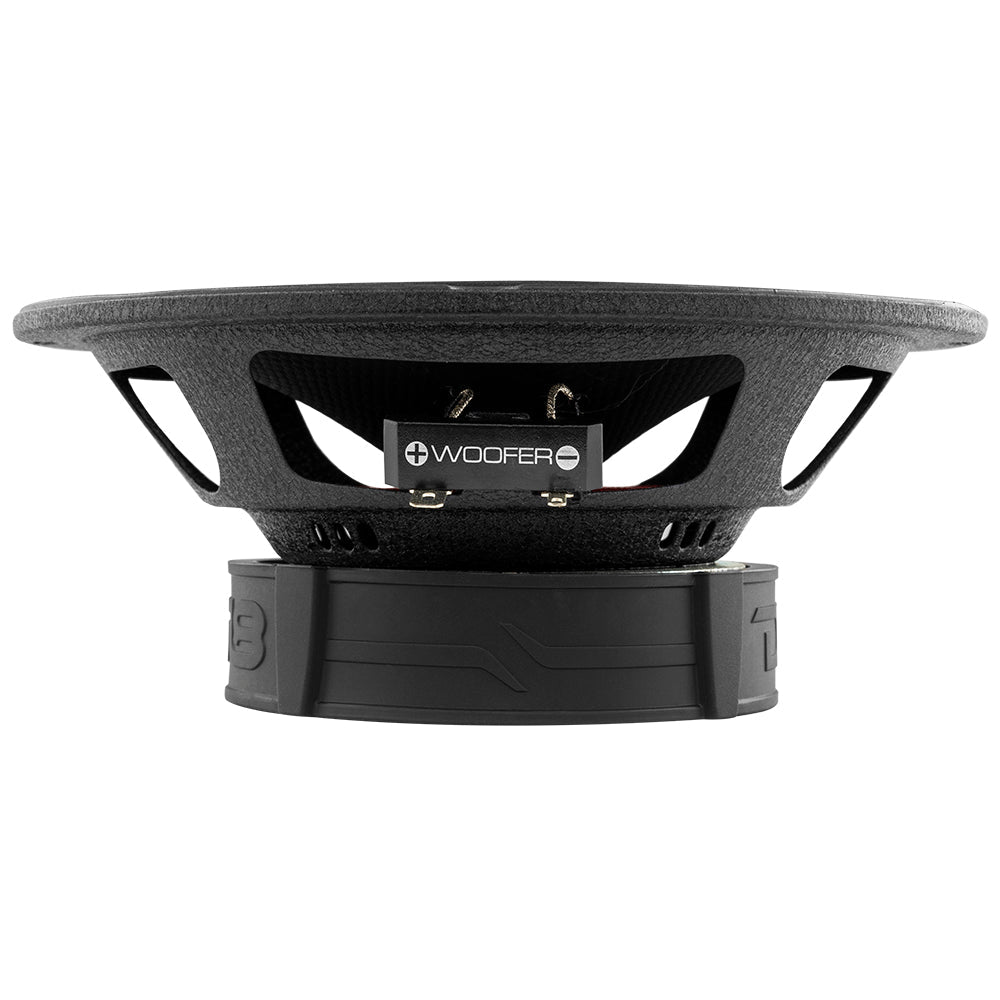

| Woofer Specifications: | |
| Voice Coil Diameter | 1” / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 14.4 oz / 410g |

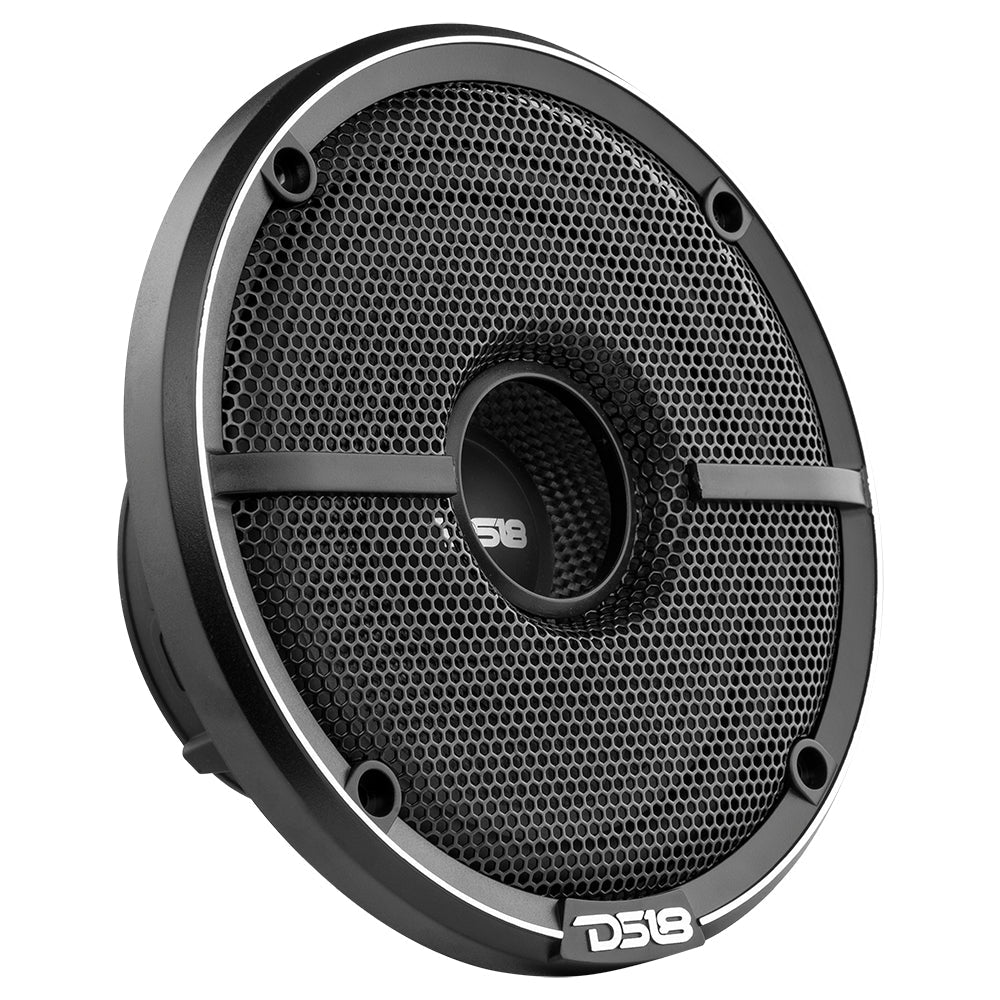

| Grill Included | Yes |
| Pair | Yes |

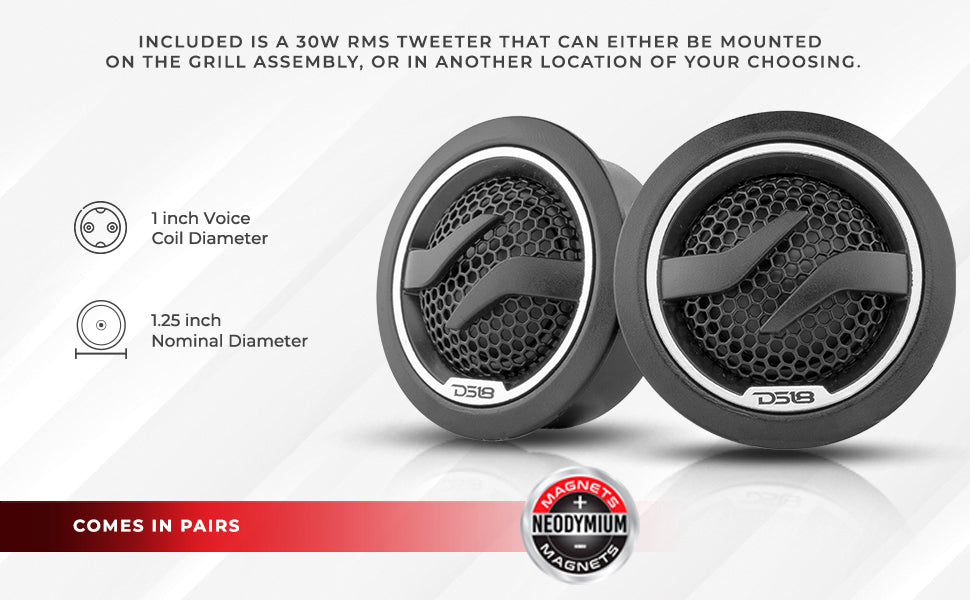

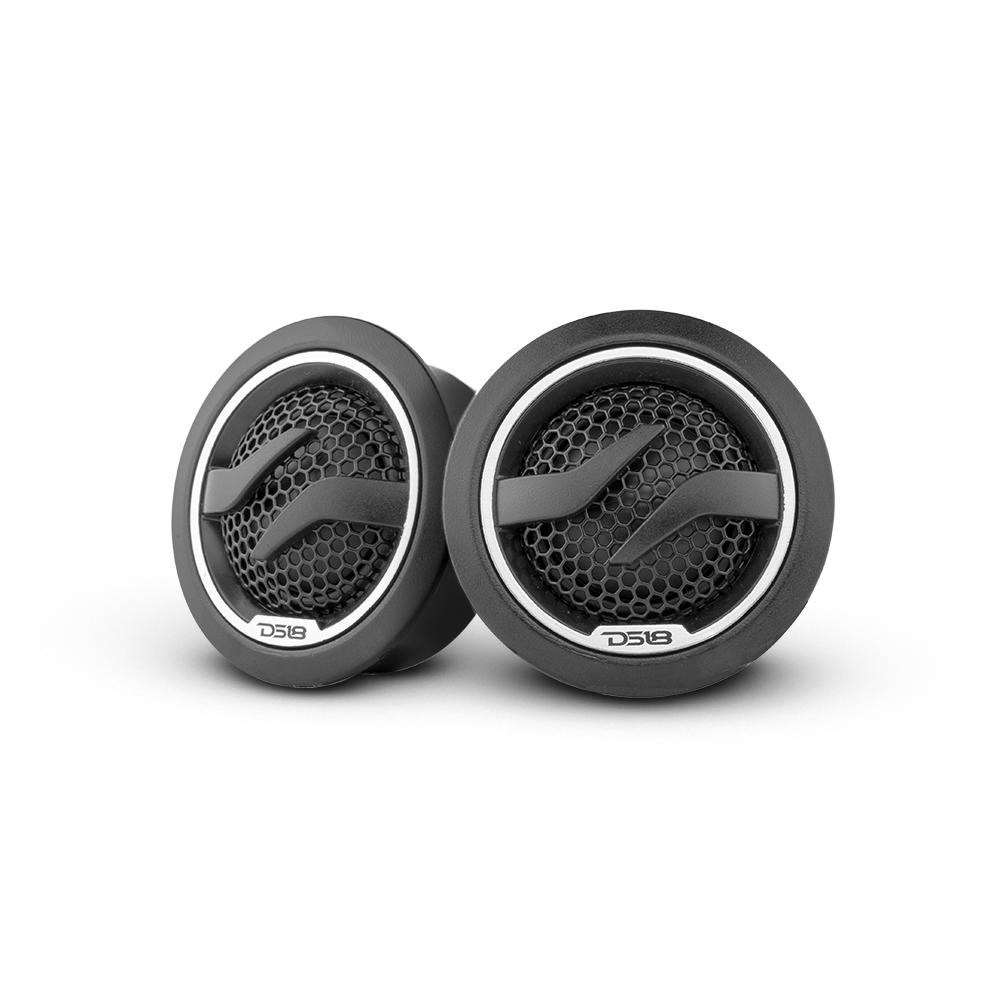

| Tweeter Specifications: | |
| Nominal Diameter | 1.25" (31.7mm) |
| Voice Coil Diameter | 1"(25.5mm) |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | SILK |
| Magnet Material | Neodymium |
| Magnet Weight | 0.46 oz / 13g |
| Pair | Yes |

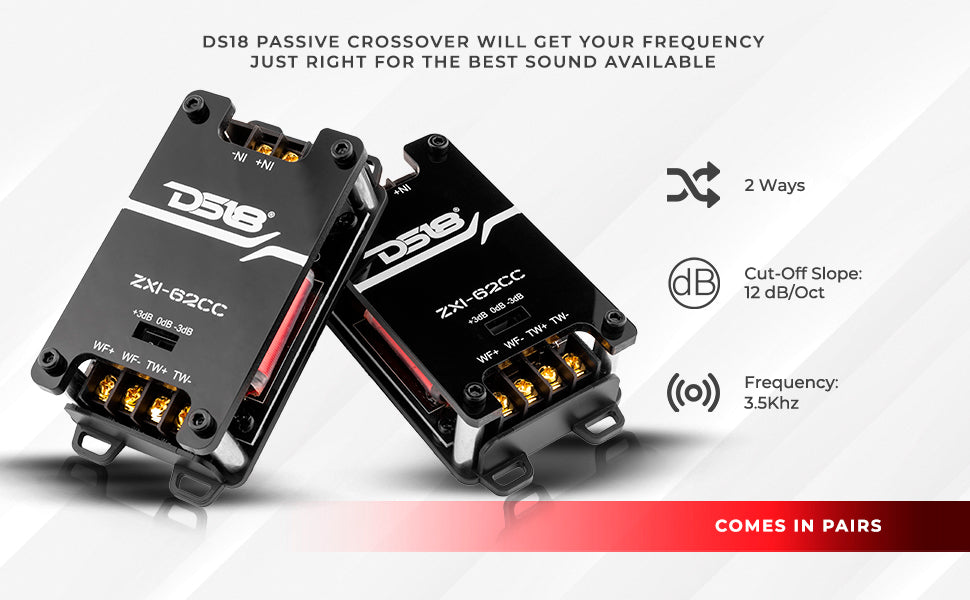

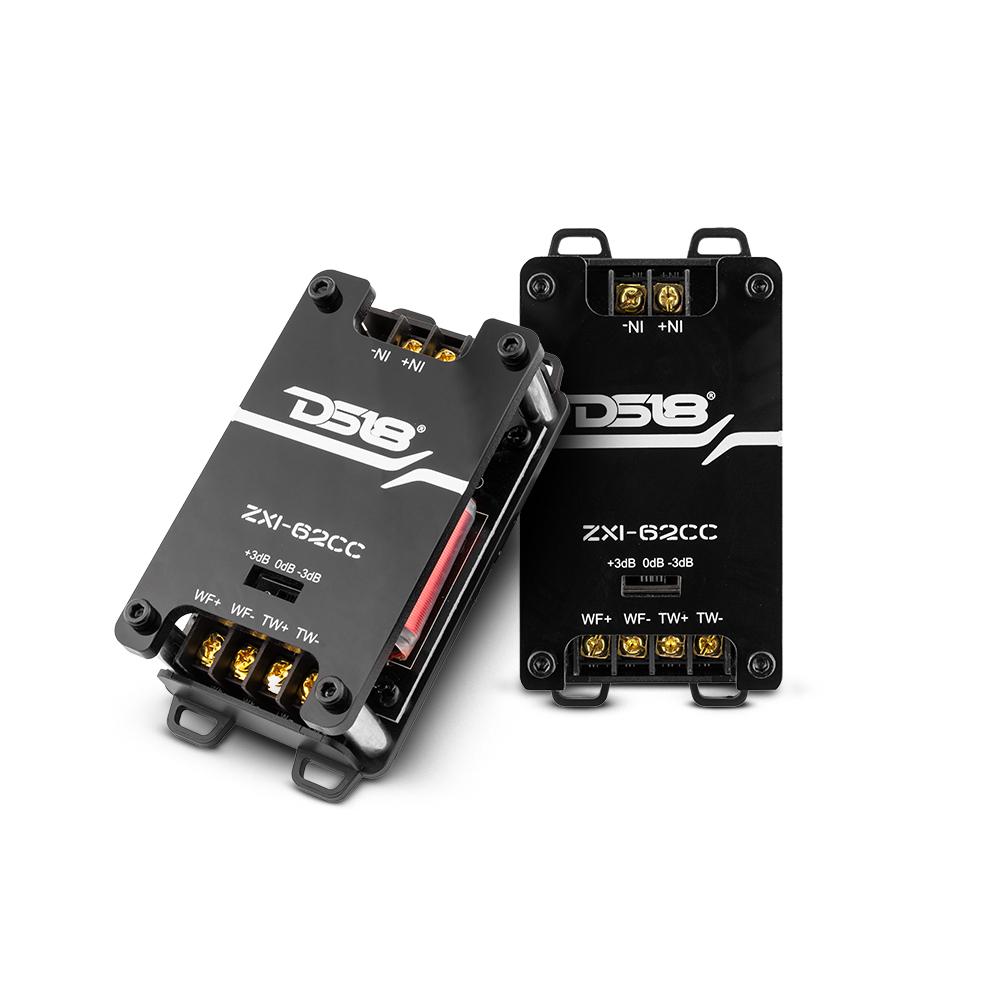

| Crossover Specifications & Features | |
| Passive Crossover Ways | 2 Ways |
| Frequency Crossover point | 3.5Khz |
| Cut-Off Slope | 12 dB/Oct |
| Tweeter Attenuation | (+/- 3dB) |
| Capacitor Type | NP |
| Coil Type | KSV |
| Terminal Type | Screw-On |
| Housing Material | ABS / Acrylic |
| Adjustments | Tw Attenuation |
| Extra Features | Pt Tw protection |
| Pair | Yes |
| Thiele & Small Parameters | |
| Equivalent Volume | 10.36L |
| Excursion (one way) | 2.7mm |
| Free Air Resonance | 64Hz |
| Mechanical Factor | 9.5 |
| Electrical Factor | 0.85 |
| Total Factor | 0.78 |
Key Features
- 6.5" 2-Way Component
- MAX Power: 240 Watts
- RMS Power: 120 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ Crossover ~ 88dB
Specifications
| SKU | ZXI-62C |
|---|---|
| Nominal Diameter | 6.5 Inches / 165 mm / 31.7 mm (1.25 inch) |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 120 WATTS |
| MAX Power Handing | 240 WATTS |
| Sensitivity | 88 dB |
| Frequency Response | 40 Hz - 20 KHz |
| Recommended HI Pass | 60 Hz |
| Speaker Type | 2-Way |
| Voice Coil Diameter | 25.5 mm (1 inch) |
| Voice Coil Former Material | KSV / ASV |
| Winding Material | EISV / EISVM |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite / Neodymium |
| Magnet Weight | 14.4 oz / 410 g / 13 g / 0.46 oz |
| Grill Included | Yes |
| Pair | Yes |
| Diaphragm Material | SILK |
| Passive Crossover Ways | 2 Ways |
| Frequency Crossover point | 3.5 Khz |
| Cut-Off Slope | 12 dB / Oct |
| Tweeter Attenuation | (+/- 3 dB) |
| Capacitor Type | NP |
| Coil Type | KSV |
| Housing Material | ABS / Acrylic |
| Adjustments | Tw Attenuation |
| Extra Features | Pt Tw protection |
| Vas | 10.36 LTR |
| Xmax | 2.7 mm |
| Fs | 64 Hz |
| Qms | 9.50 |
| Qes | 0.85 |
| Qts | 0.78 |
| Product Weight | 7 lbs |
| Product Dimensions | 16 x 10.75 x 3.5 |
| M/C Weight | 29.5 lbs |
| M/C Dimensions | 22 x 17 x 7.75 |
| M/C QTY | 4 |
| Sold In | Pair |
