Product Overview

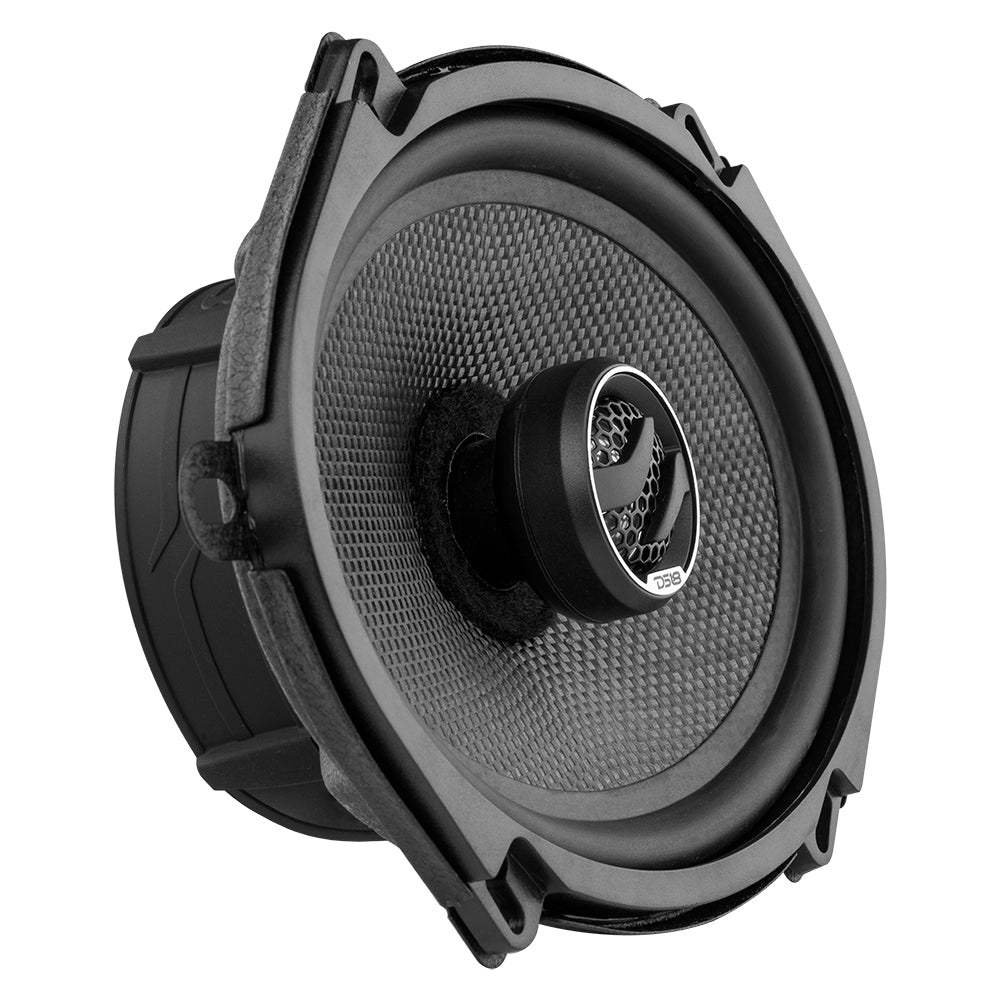

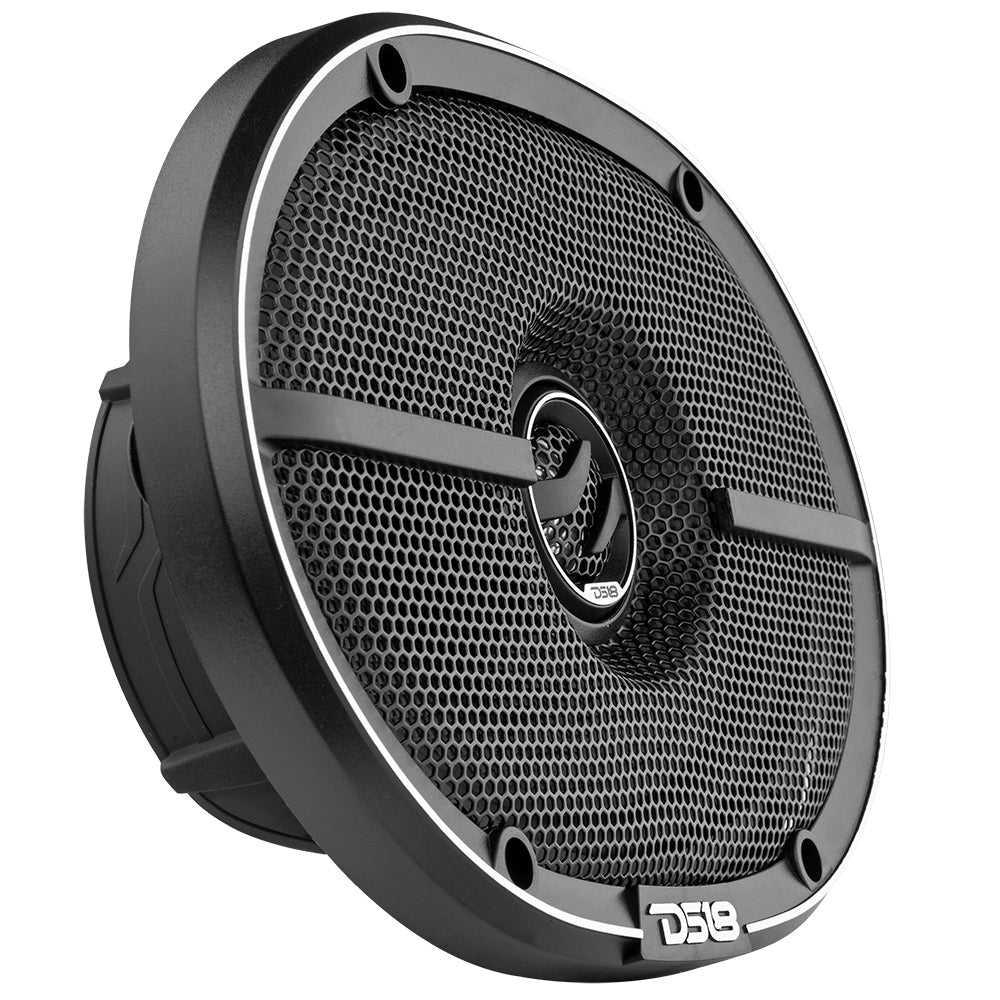

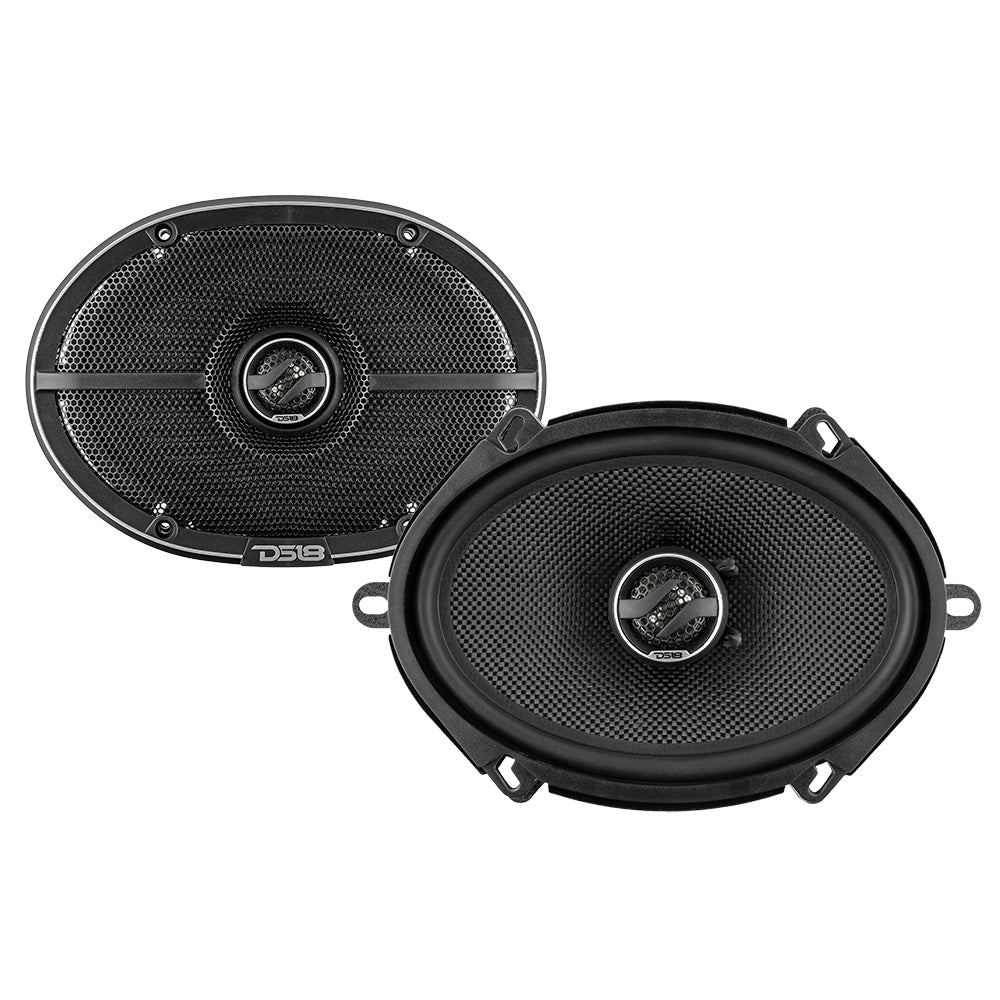

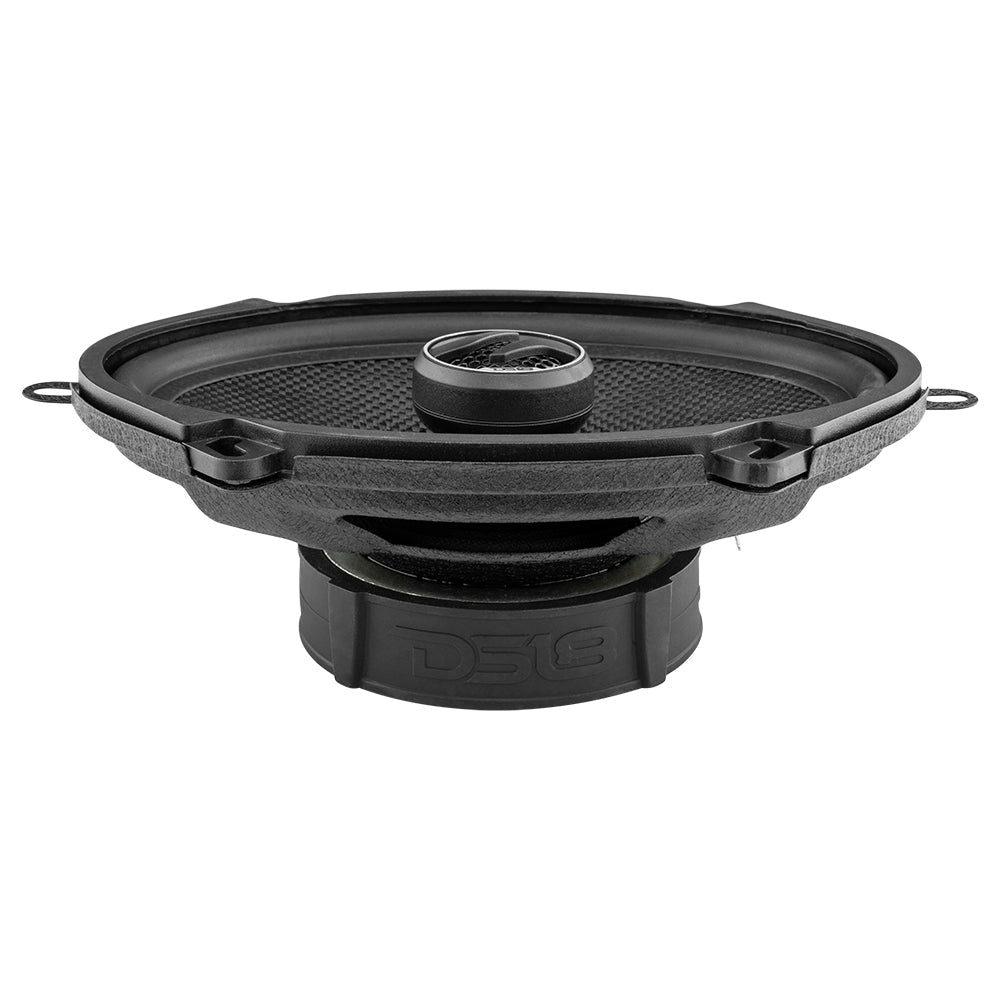

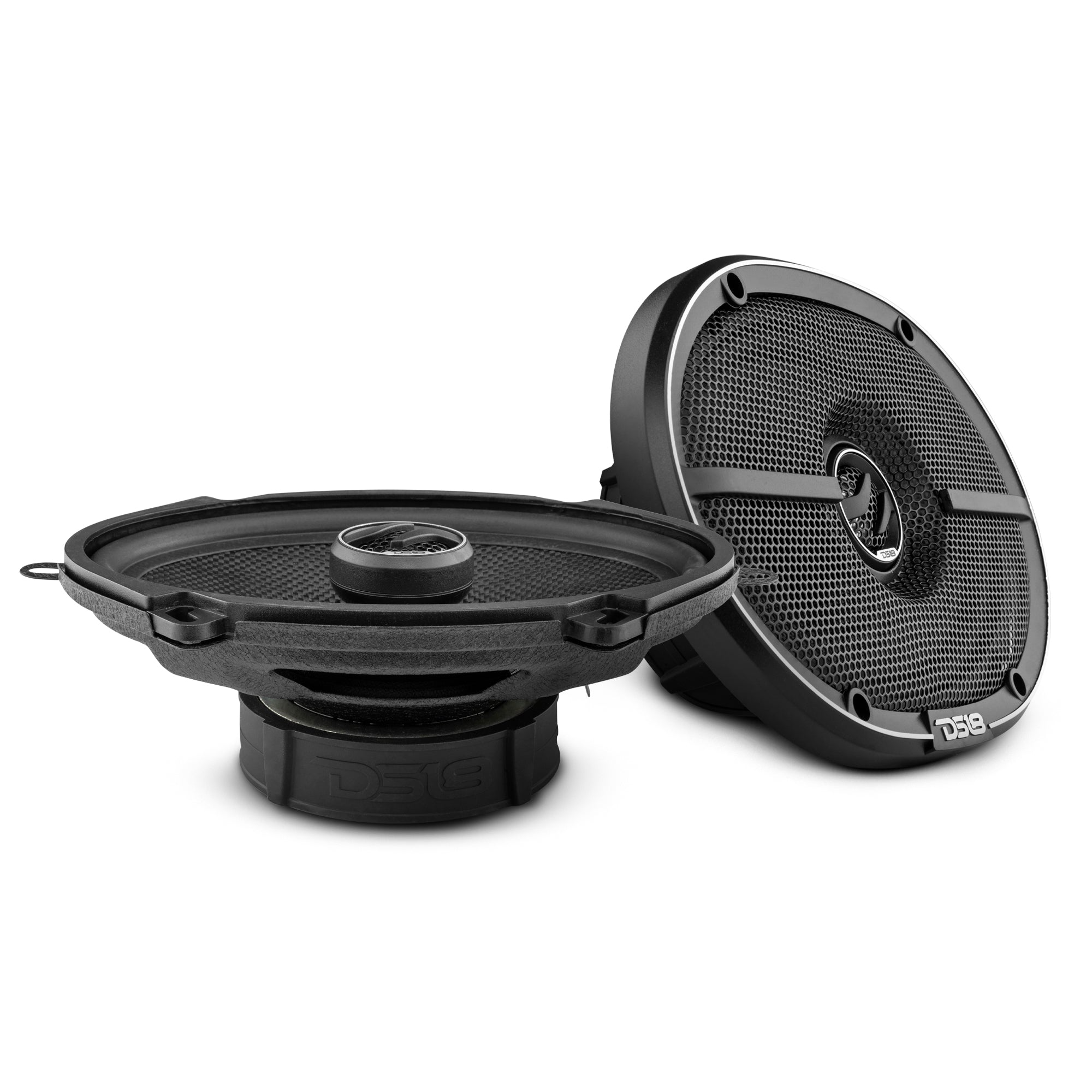

DS18 ZXI-574 Glass Fiber Cone 5x7" 2-Way Coaxial Car Speaker 210 Watts 4-Ohm
DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2 - way 5x7" takes 70w RMS and 210w Max watts and with a 91dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!
Highlights
- Highly durable and extremely loud design built for the average to extreme audio systems.

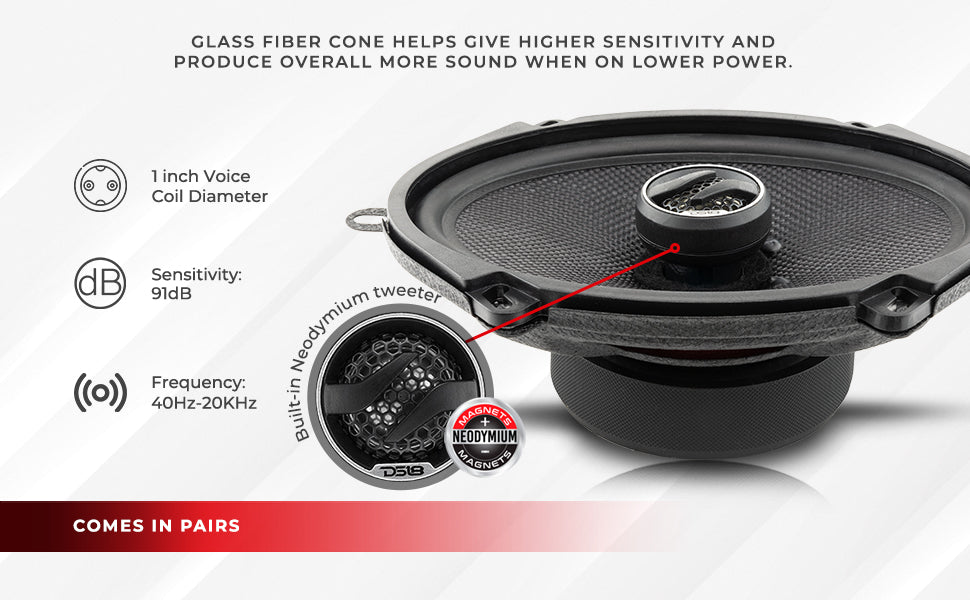

- Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
- 2 - way design will bring a full range of frequencies to your ears and with great sound quality.
Technical Details
| Nominal Diameter | 5x7” |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 70 Watts |
| MAX Power Handling | 210 Watts |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 40Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 14.46 oz / 410g |
| TWEETER | |
| Nominal Diameter | 1" / 25.4mm |
| Voice Coil Diameter | 0.8"/ ø20.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 0.3 oz / 8.5g |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 8.6L |
| Excursion (one way) | 2.7mm |
| Free Air Resonance | 68Hz |
| Mechanical Factor | 7.04 |
| Electrical Factor | 1.28 |
| Total Factor | 1.08 |
| Mechanical Mass | 16.1g |
| Mechanical Compliance | 258.7mm/N |
| BL Factor | 4.6 |
| Voice Coil Inductance | 228mH |
| Cone Area | 153.5cm2 |
| DC Resistance | 3.5 ohm |
| Mechanical Mass w/o air | 14g |

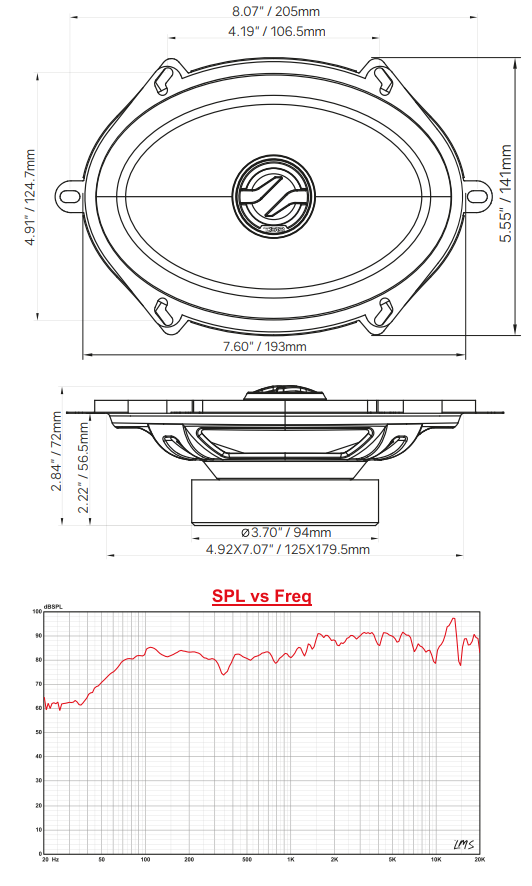

| MEASUREMENTS | |
| Overall Diameter | 5.55x7.60” / 141x193mm |
| Overall Depth | 3.07" / 78mm |
| Front Mount Baffle Cutout | 4.92x7.07”/ 125x179.5mm |
| Mouting Depth | 2.22” / 56.5mm |
| Motor Diameter | 3.70” / 94mm |
Key Features

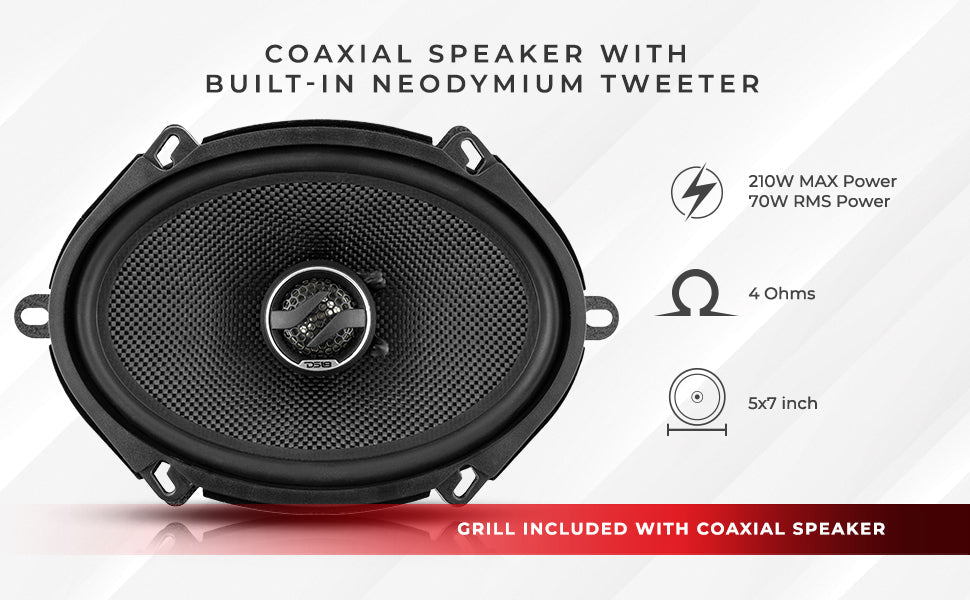

- 5X7" 2-Way Coaxial
- MAX Power: 210 Watts
- RMS Power: 70 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 91dB
Specifications
| SKU | ZXI-574 |
|---|---|
| Nominal Diameter | 5 x 7 Inches / 25.4 mm (1 inch) |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 70 WATTS |
| MAX Power Handing | 210 WATTS |
| Sensitivity | 91 dB |
| Frequency Response | 40 Hz - 20 KHz |
| Recommended Hi Pass | 60 Hz |
| Speaker Type | 2-Way |
| Voice Coil Diameter | 25.5 mm (1 inch) / 20.4 mm (0.8 inch) |
| Voice Coil Former Material | KSV |
| Winding Material | EISV / EISVM |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite / Neodymium |
| Magnet Weight | 14.46 oz / 410 g / 8.5 g / 0.3 oz |
| Diaphragm Material | PEI |
| Vas | 8.66 LTR |
| Xmax | 2.7 mm |
| Fs | 68 Hz |
| Qms | 7.04 |
| Qes | 1.28 |
| Qts | 1.08 |
| Mms | 16.1 g |
| Cms | 258.7 mm / N |
| BL | 4.66 |
| Le | 228 mH |
| Sd | 153.5 cm2 |
| Re | 3.5 ohm |
| Mmd | 14 g |

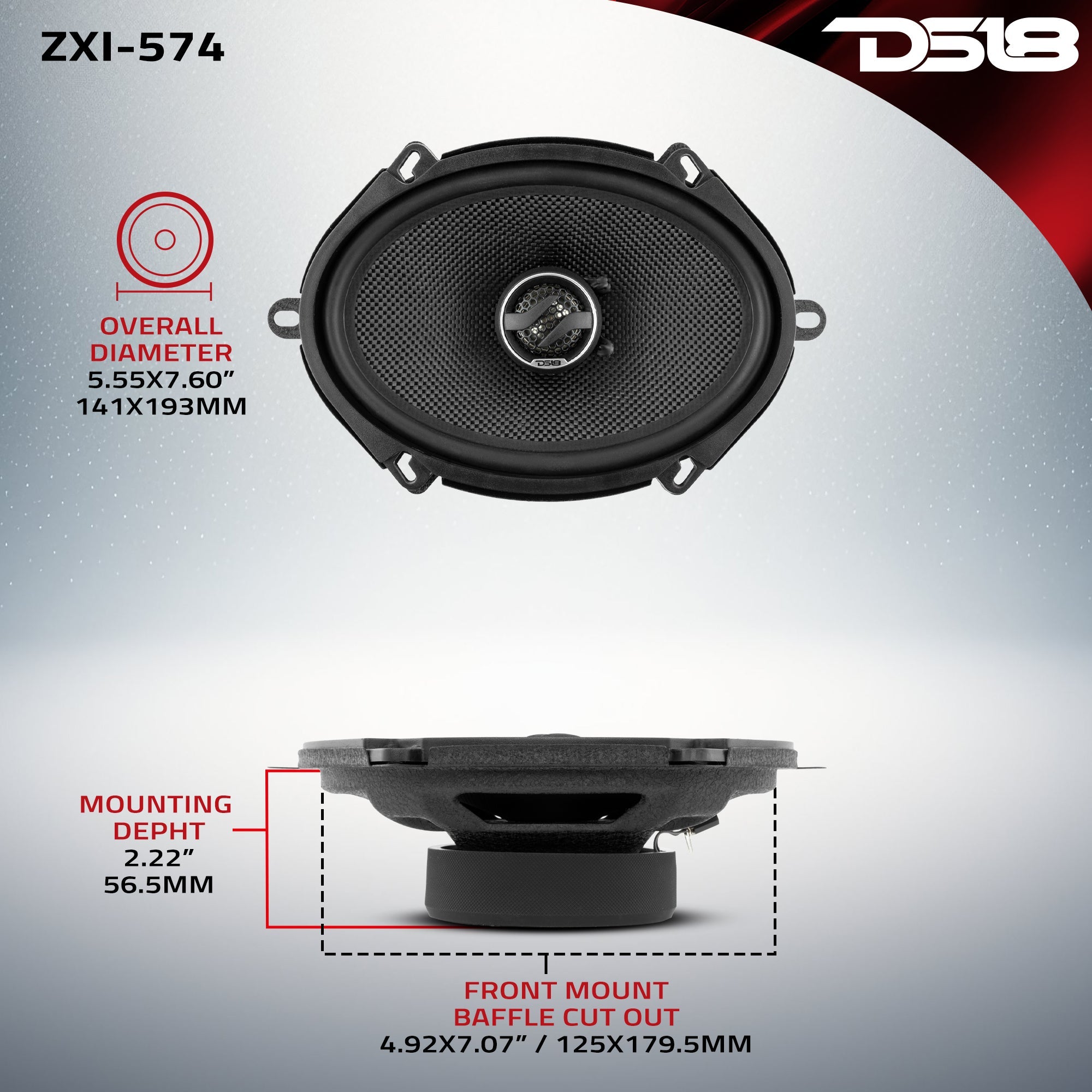

| Overall Diameter | 5.55 x 7.60 inch (141 x 193 mm) |
| Overall Depth | 72 mm (2.84 inch) |
| Front Mount Baffle Cutout | 125 x 179.5 mm (4.92 x 7.07 inch) |
| Mounting Depth | 56.5 mm (2.22 inch) |
| Motor Diameter | 94 mm (3.70 inch) |
| Product Weight | 6 lbs |
| Product Dimensions | 14 x 9.5 x 3.75 |
| M/C Weight | 36 lbs |
| M/C Dimensions | 20 x 14.75 x 11.75 |
| M/C QTY | 6 |
| Sold In | Pair |
