Product Overview

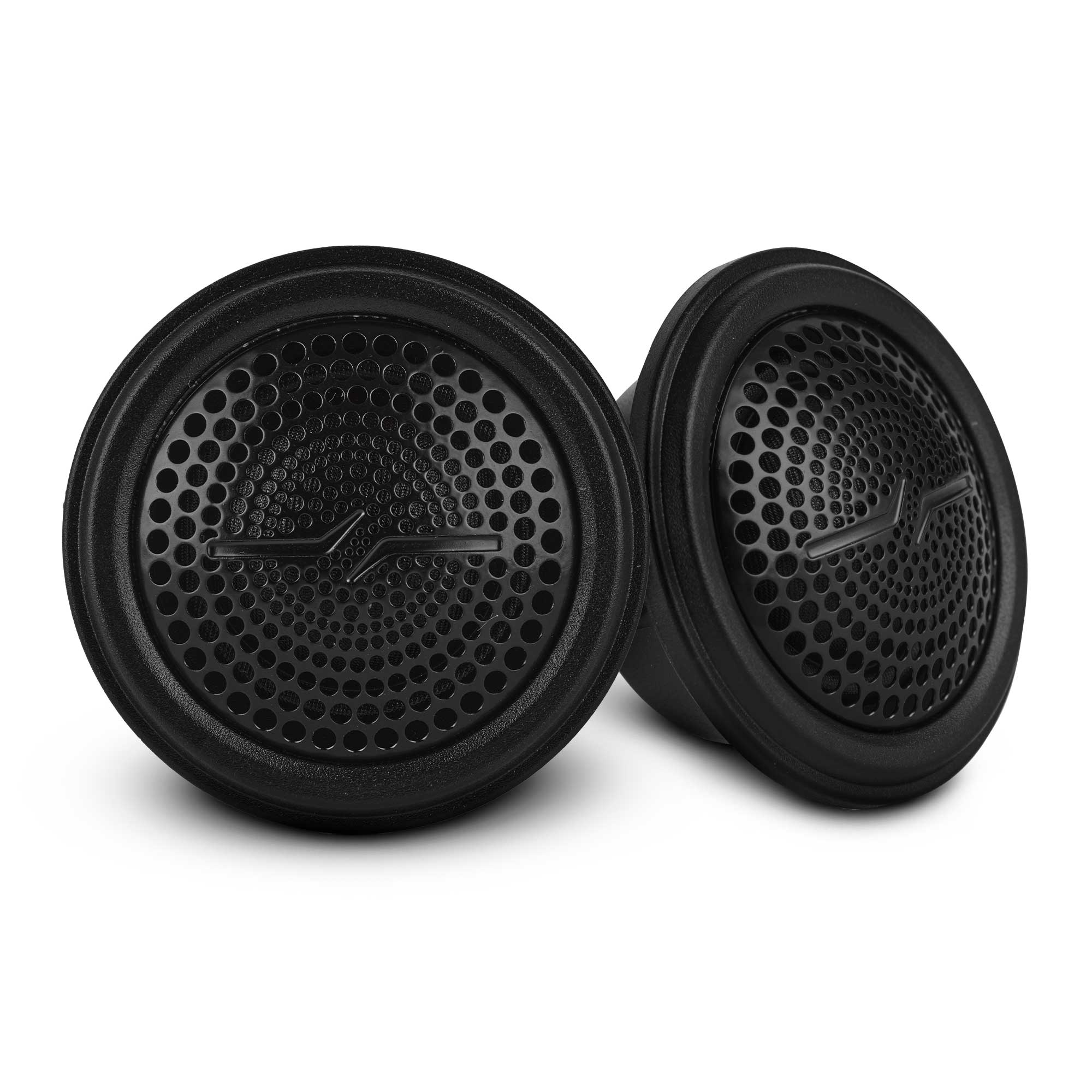

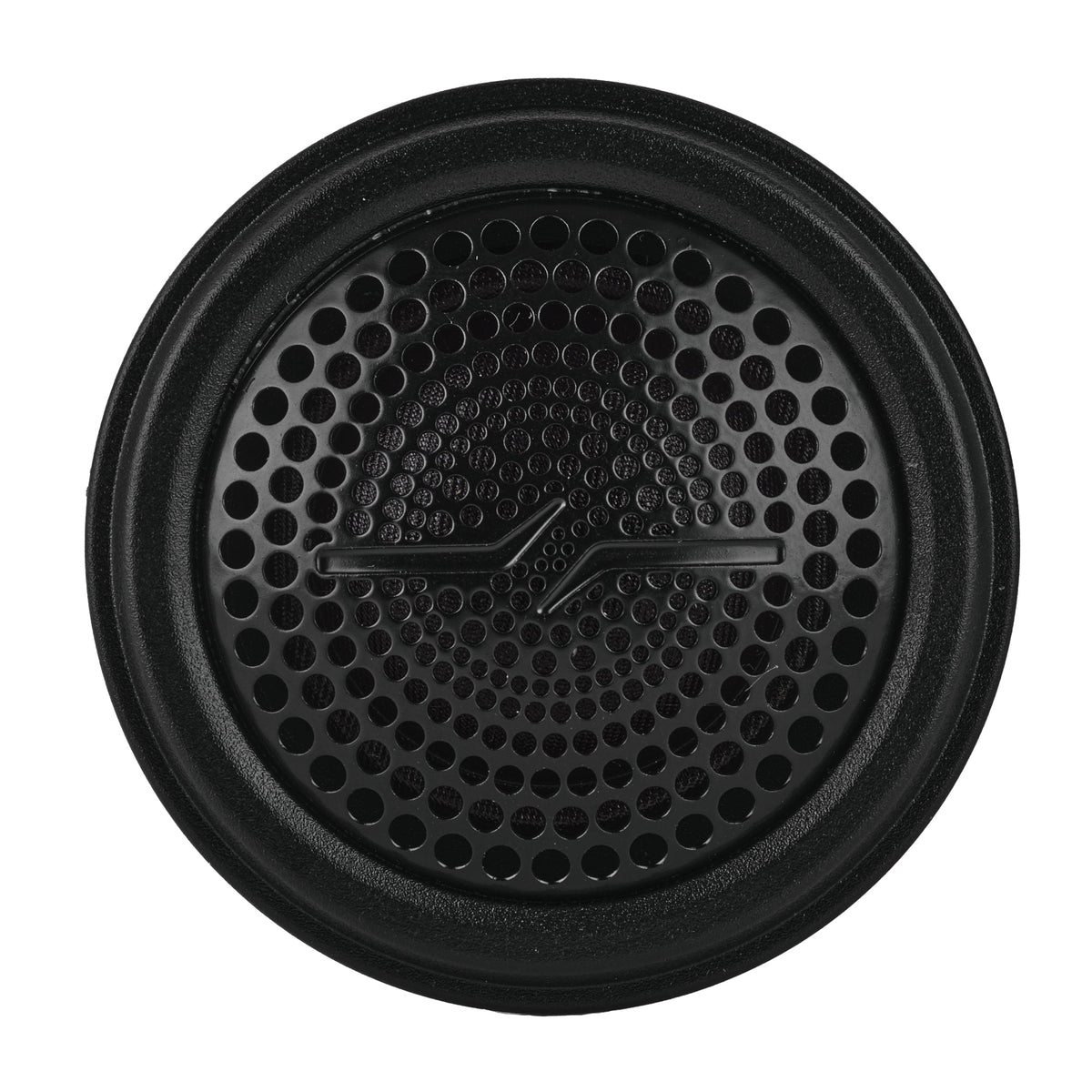

2" Silk Dome Tweeter with Neodymium Magnet (Pair)
The DXQTS delivers clear, natural highs from 800Hz up to 20kHz, perfect for enhancing your system’s high-frequency response. Its 2-inch silk dome diaphragm produces smooth sound without harshness, ensuring easy listening over long sessions.
Powerful and Efficient
Rated at 30W RMS and 60W MAX, with 90dB sensitivity, this tweeter packs a punch while remaining efficient. The neodymium magnet provides strong magnetic force in a compact design, helping deliver precise high-frequency output.
Built to Last
With a durable ABS housing and compact size (only 0.6” mounting depth), the DXQTS fits easily into most factory or custom locations. The included 2.2µF bass blocker capacitor protects the tweeter and optimizes sound clarity.
Upgrade to DS18’s DXQTS tweeters and experience crisp, clean sound that makes every session a concert!
Key Features
- 2" Silk Dome Tweeter
- Neodymium Magnet
- RMS Power: 30 Watts (60 Watts Peak)
- ABS Body Material
- Impedance: 4 Ohm - 90dB
Specifications
| Nominal Diameter | 2" / 51mm |
|---|---|
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 60W |
| RMS Power Handling | 30W |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 800Hz-20KHz |
| Recommended Hi Pass Crossover | 3.8KHz |
| Sold In Pair or Single | Pair |
| Filter (Bass Blocker) | 2.2uf/50v |
| Body Material | ABS |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black |
| Voice Coil Diameter | 1" / 25mm |
| Voice Coil Former Material | ASV |
| Winding Material | CCAW |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Size / Weight | 0.5 Oz / 14g |

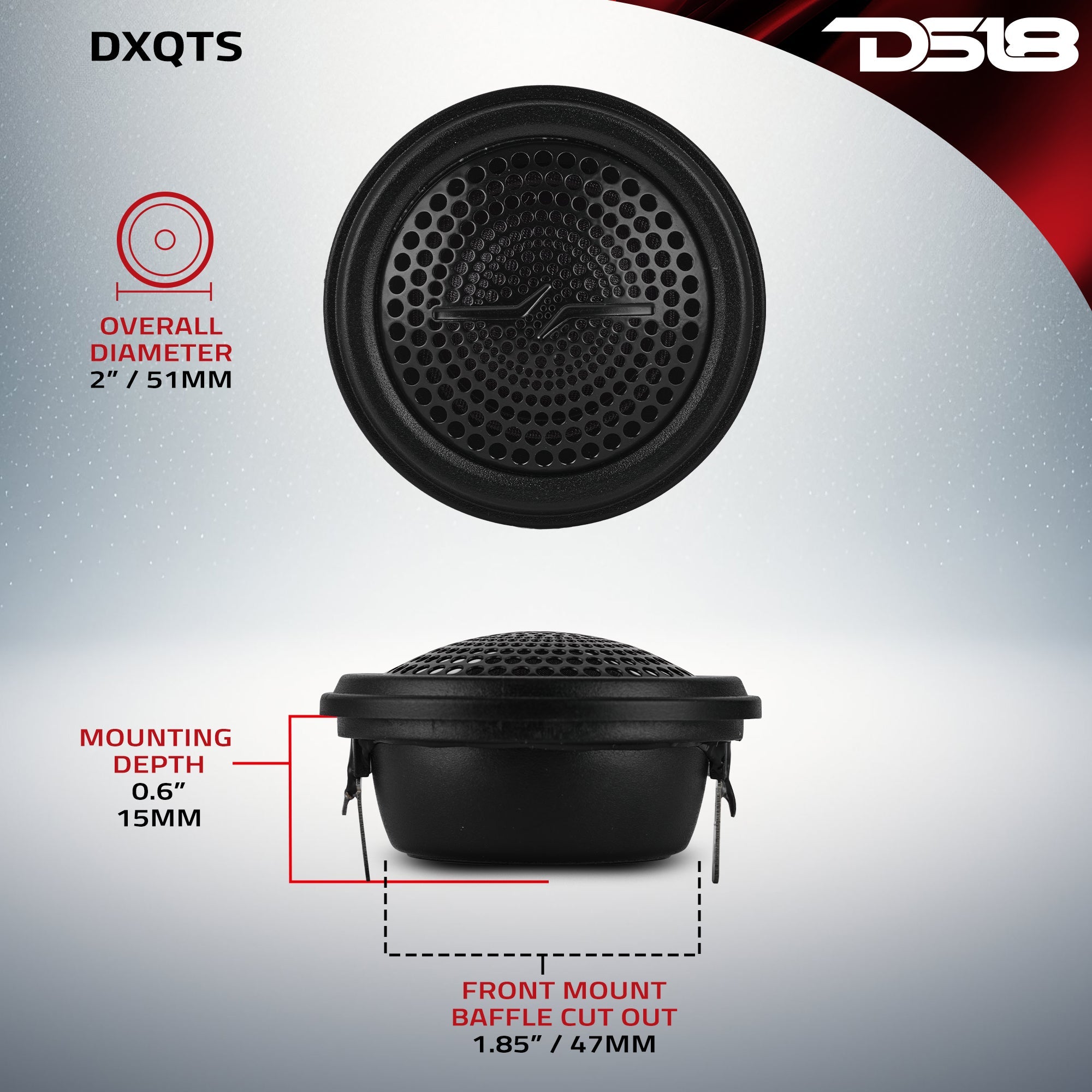

| Overall Diameter | 2" / 51mm |
| Overall Depth | 1" / 25.5mm |
| Front Mount Baffle Cutout | 1.85" / 47mm |
| Mounting Depth | 0.6" / 15mm |
