DXQ 6.5" 3-Way Component Speaker Set with Neodymium Magnet and Yellow Straw + Composite Foam Cone | | 180W RMS 4-Ohm
Product Overview 6.5" 3-Way Component Speaker Set with Neodymium Magnet and Yellow Straw + Composite Foam Cone...
Vendor:
DS18
Manufacturer SKU
DXQ6C3N
Availability:
In Stock
Product Type:
Component Speaker Systems
- $899.95
- $899.95
- Unit price
- per
Subtotal:
$899.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
6.5" 3-Way Component Speaker Set with Neodymium Magnet and Yellow Straw + Composite Foam Cone
The DXQ6C3N is a complete audio solution for professional-grade sound. This 3-way system covers a wide frequency range from 35Hz to 20kHz for an immersive, detailed listening experience.

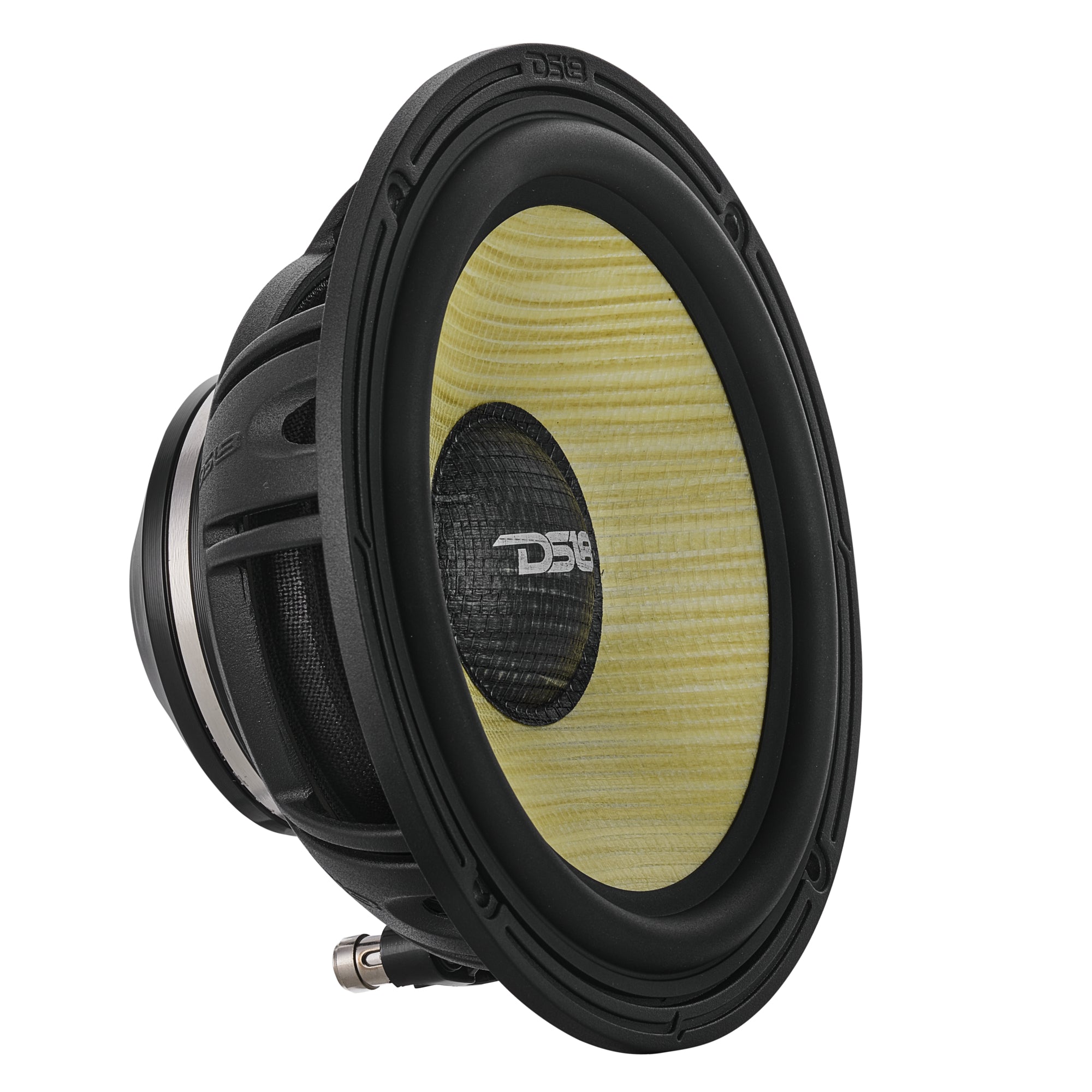

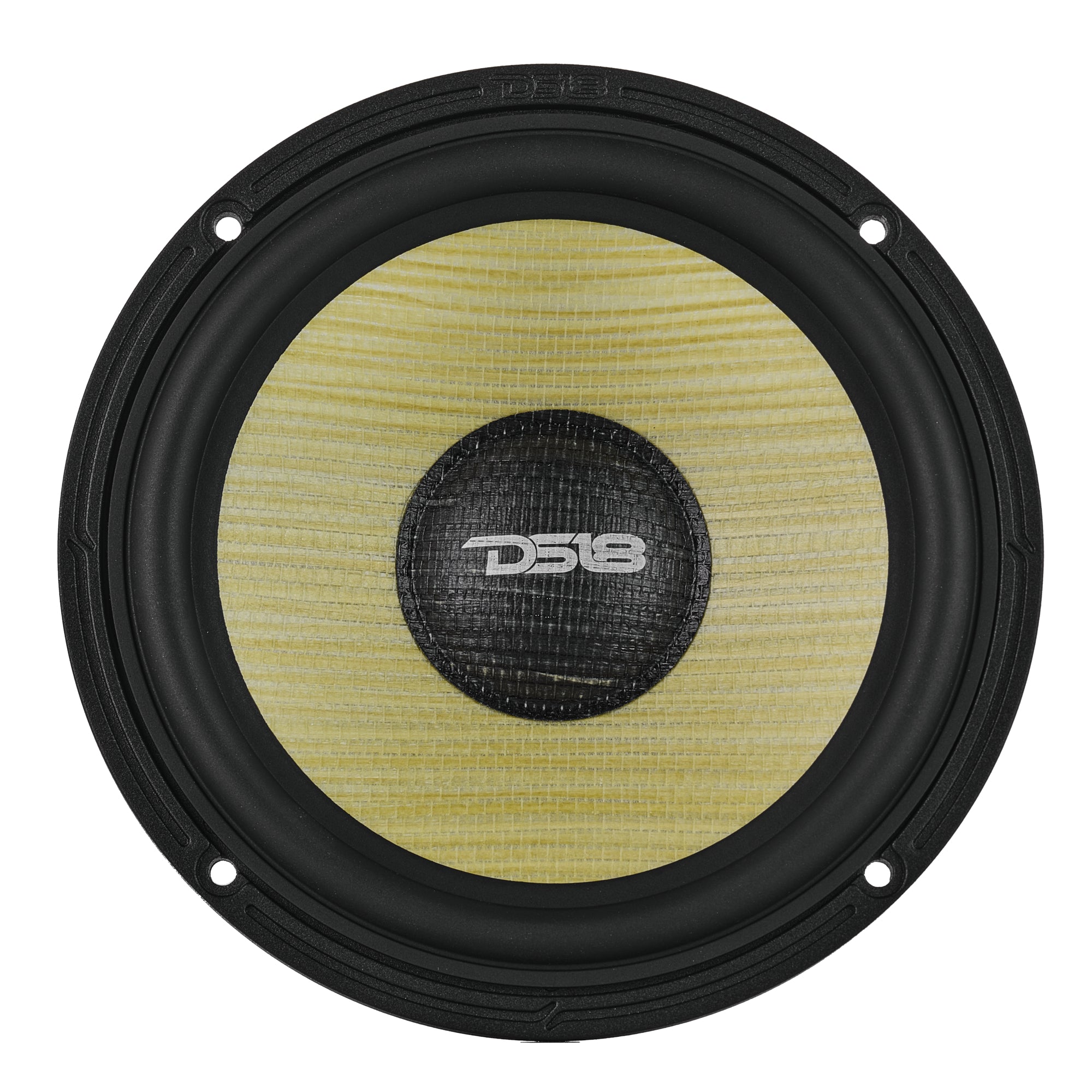

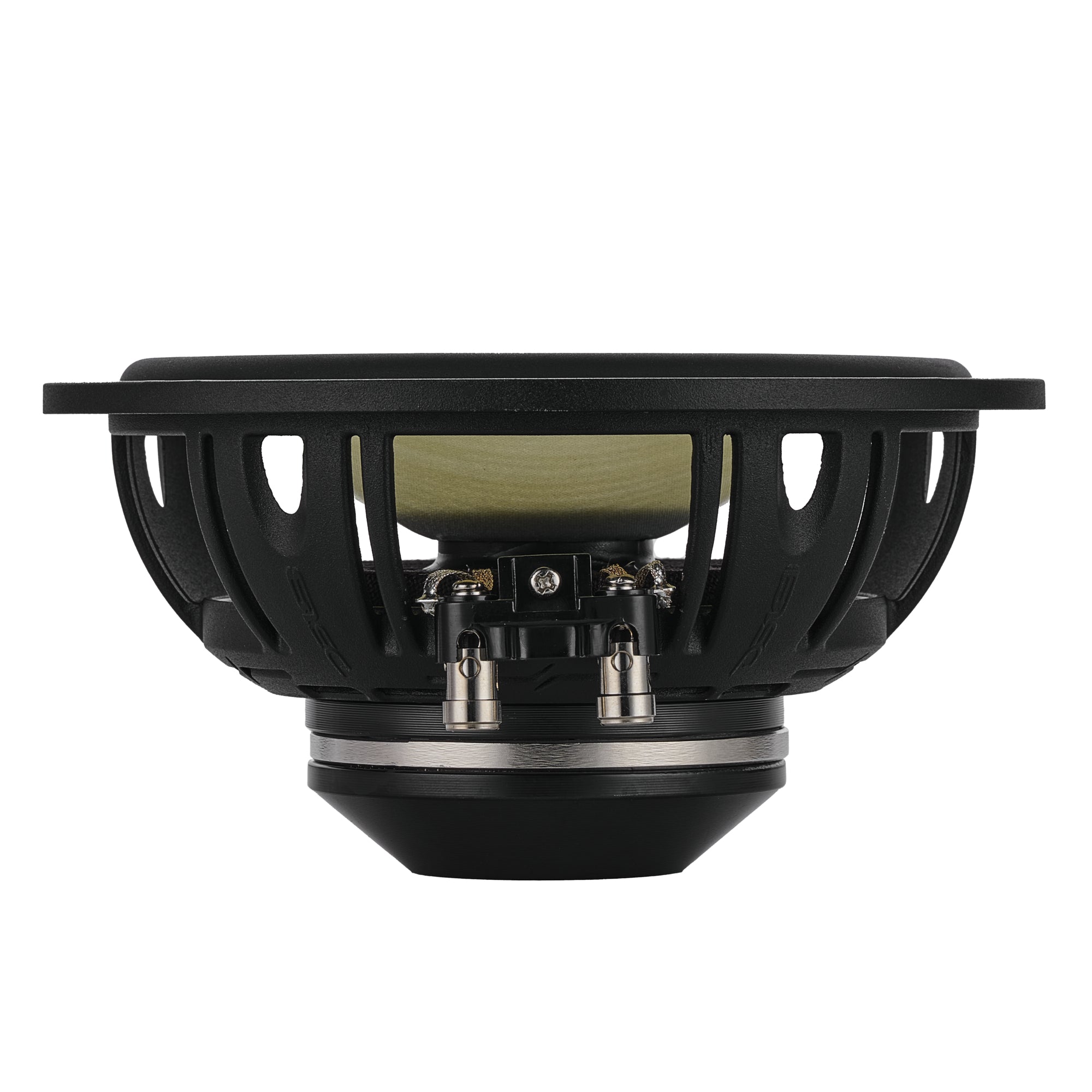

Powerful 6.5” Woofer
The foundation of this system is the 6.5-inch woofer, crafted with a yellow straw and composite foam cone designed for a lightweight yet rigid diaphragm. This combination provides tight, accurate bass and mid-bass response while minimizing distortion and maximizing durability.

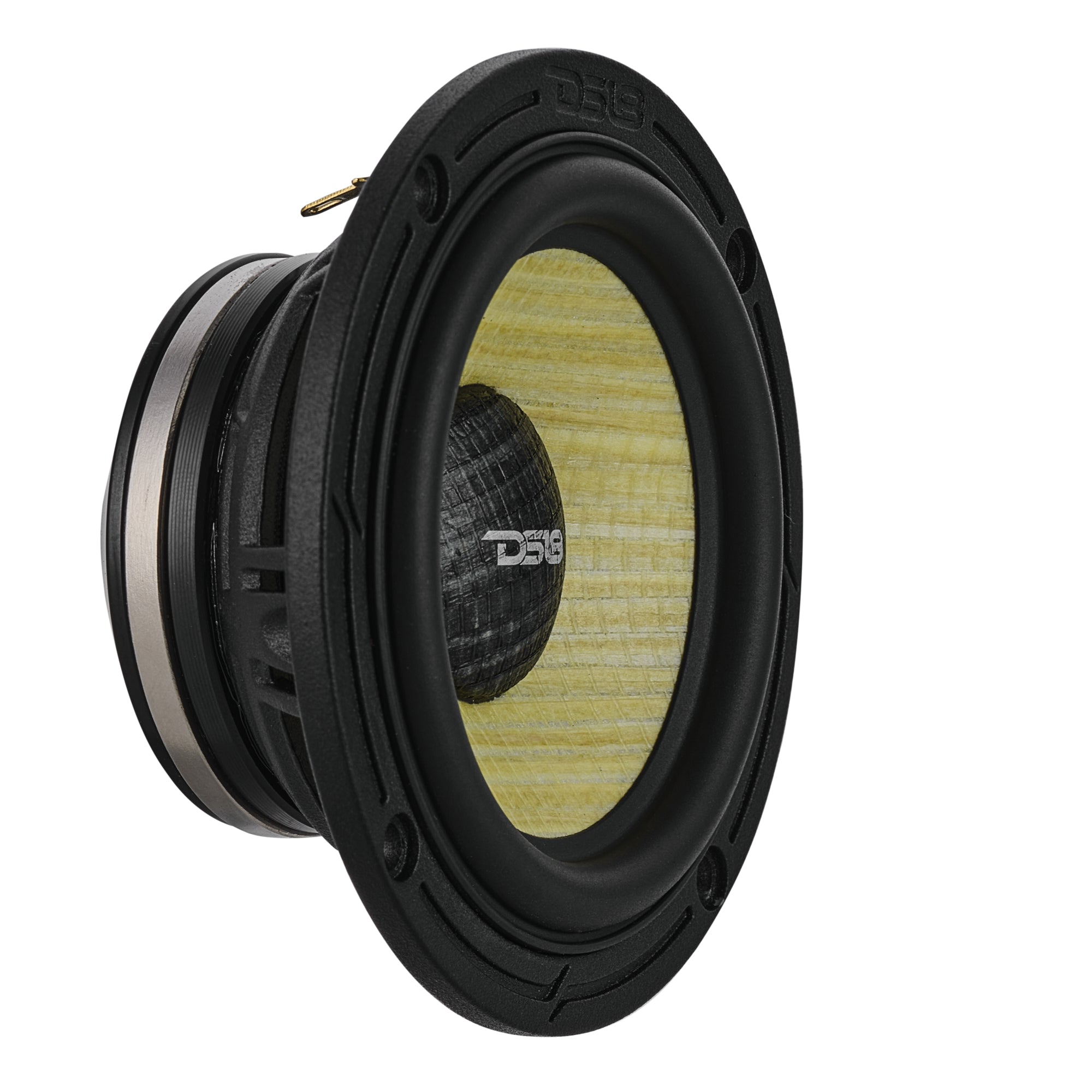

Clear and Natural Midrange

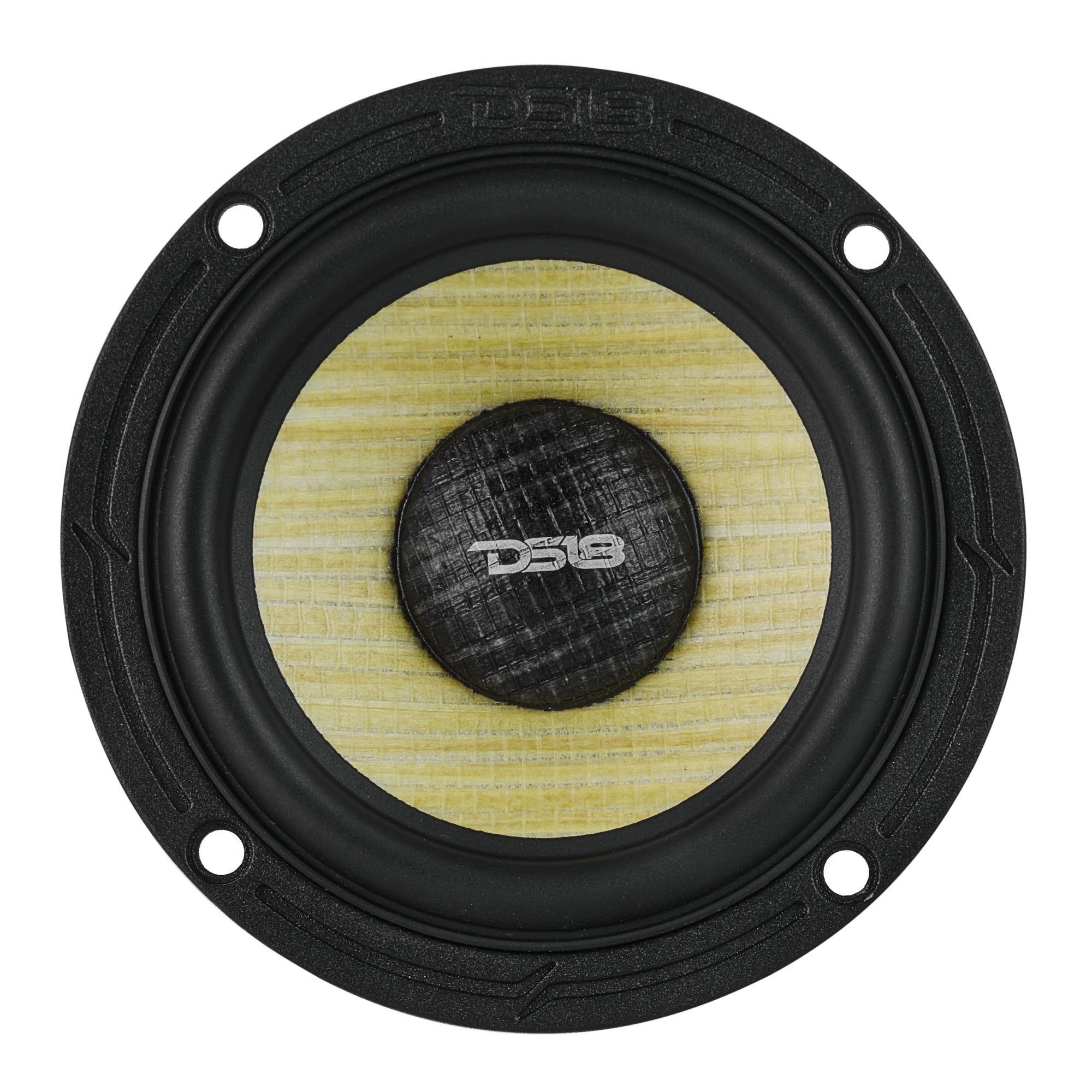

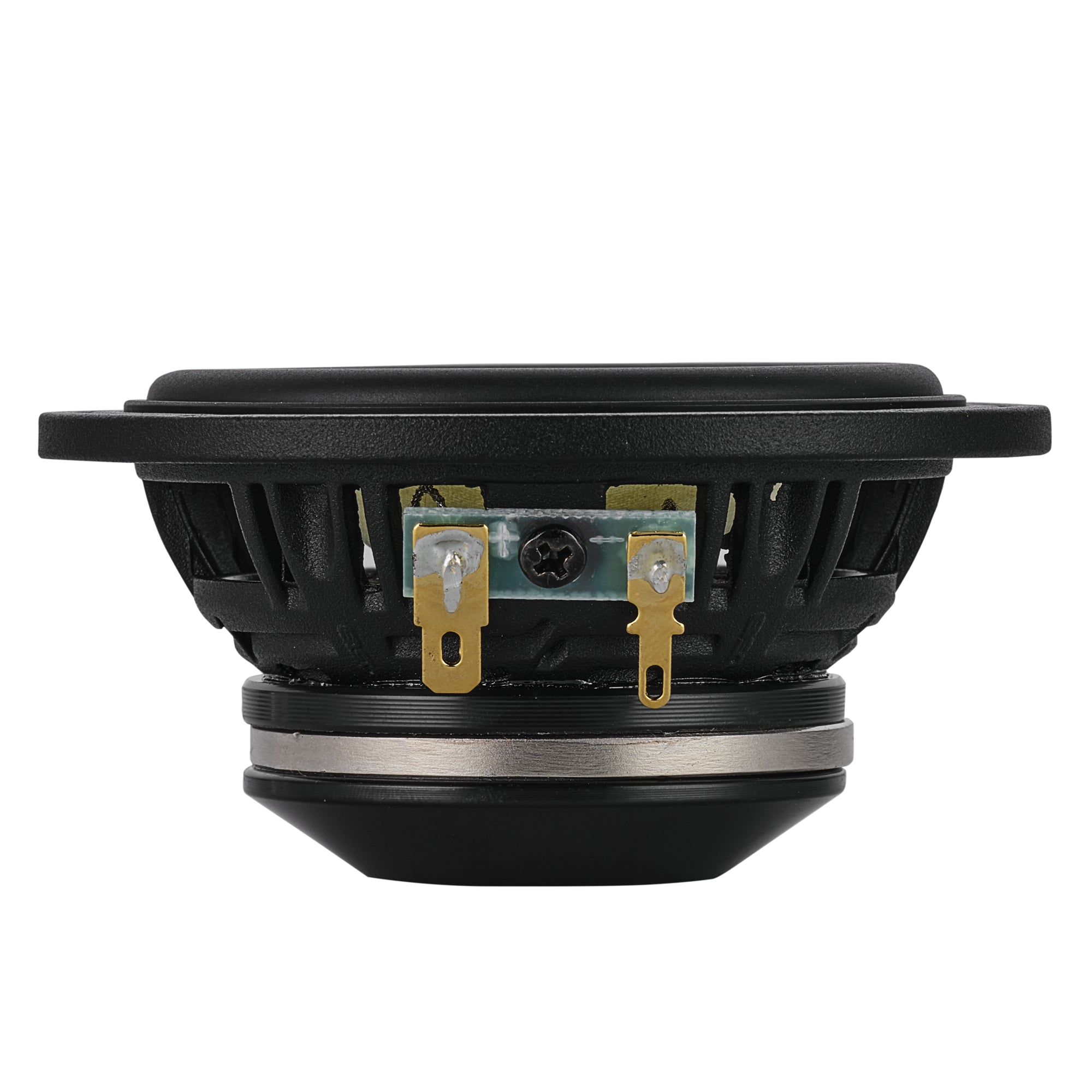

The 3.5-inch neodymium midrange driver bridges the gap perfectly. Its composite cone delivers smooth, natural sound that reproduces vocals and instruments with incredible clarity.

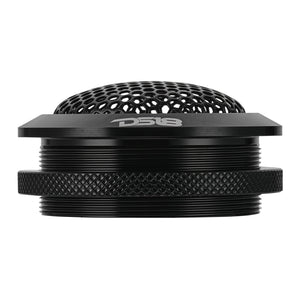

Bright and Detailed Tweeter

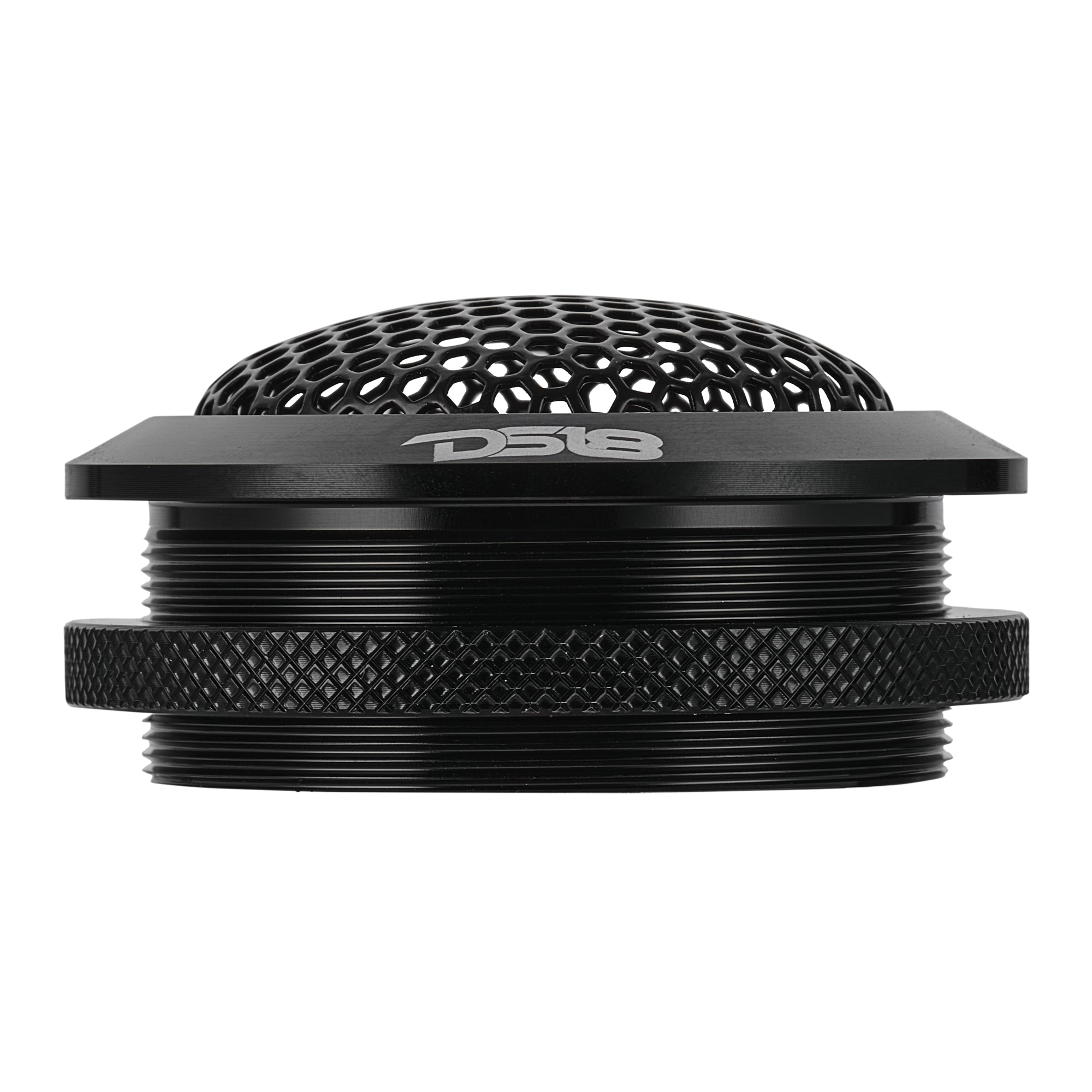

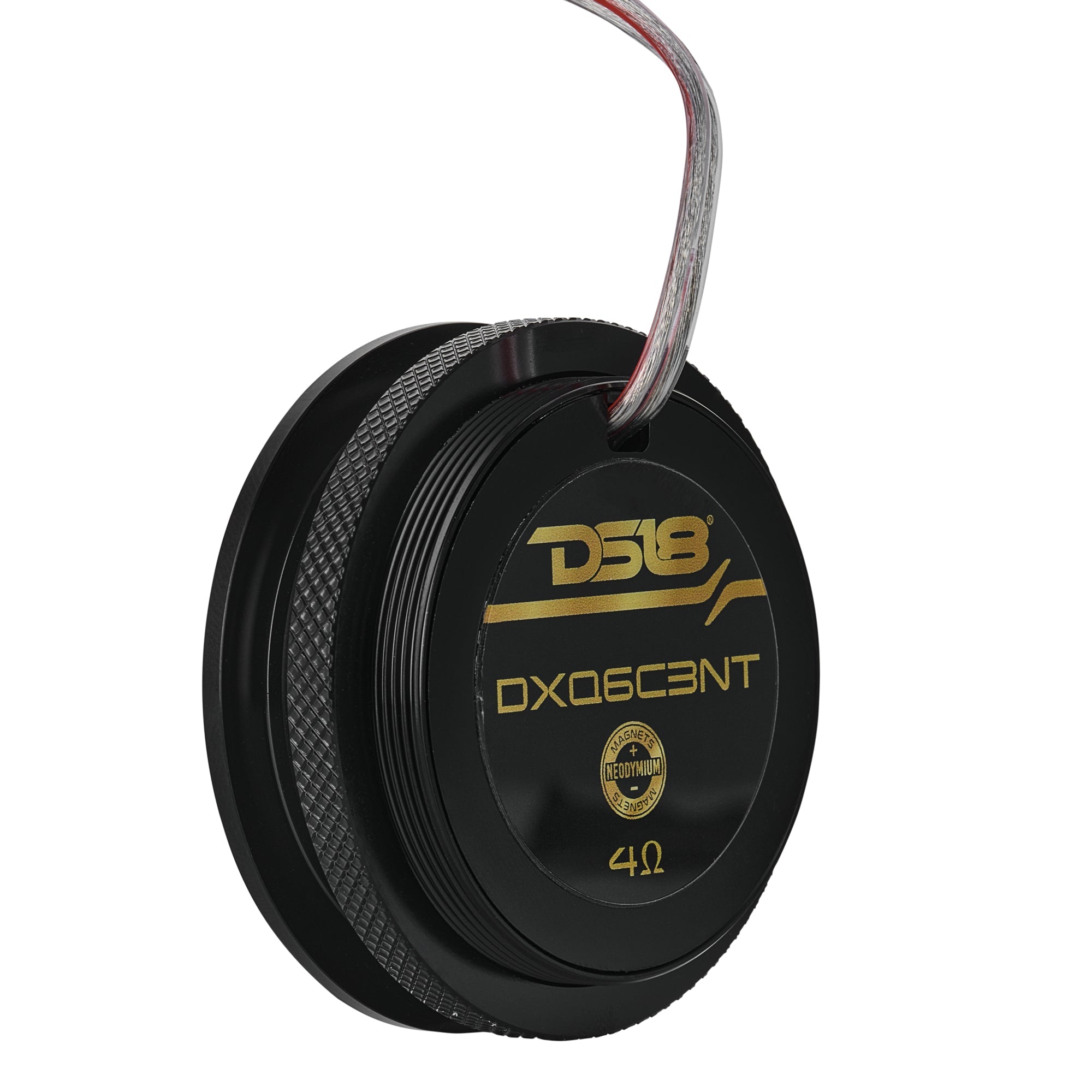

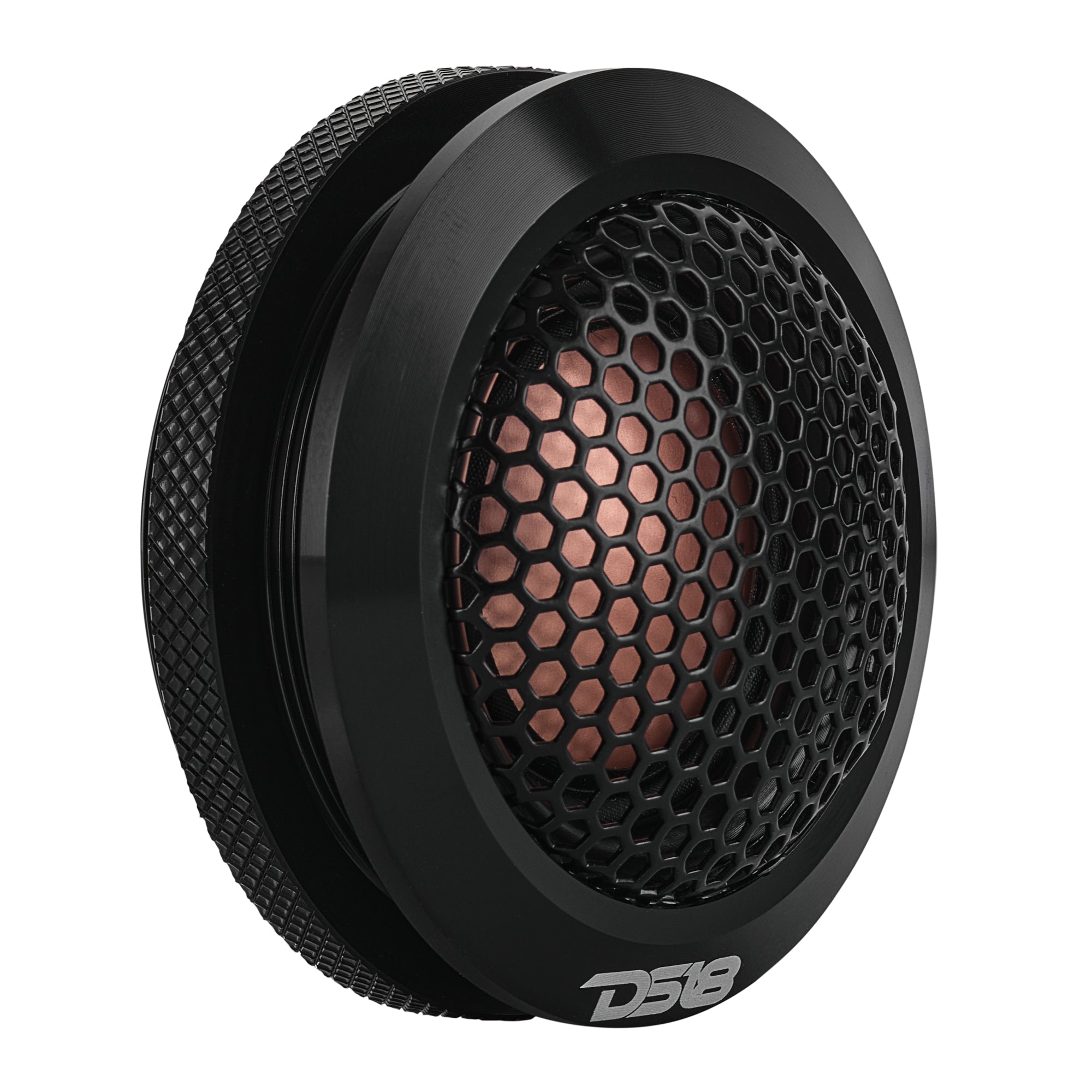

Completing the set is the 2.2-inch silk dome tweeter with a powerful neodymium magnet. Its lightweight design allows for fast transient response and crisp detail that cuts through road noise. The tweeter’s silk diaphragm produces smooth highs without harshness.

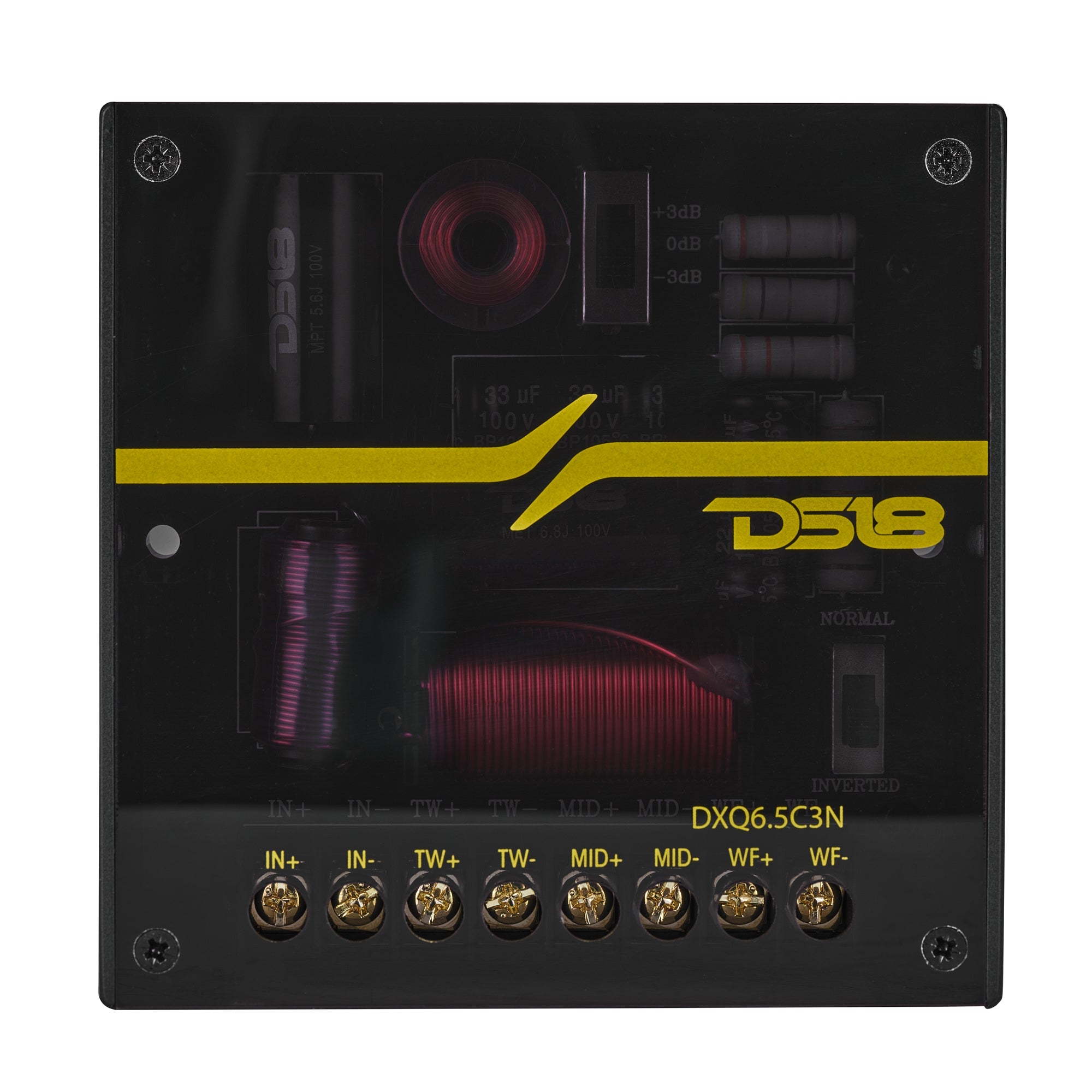

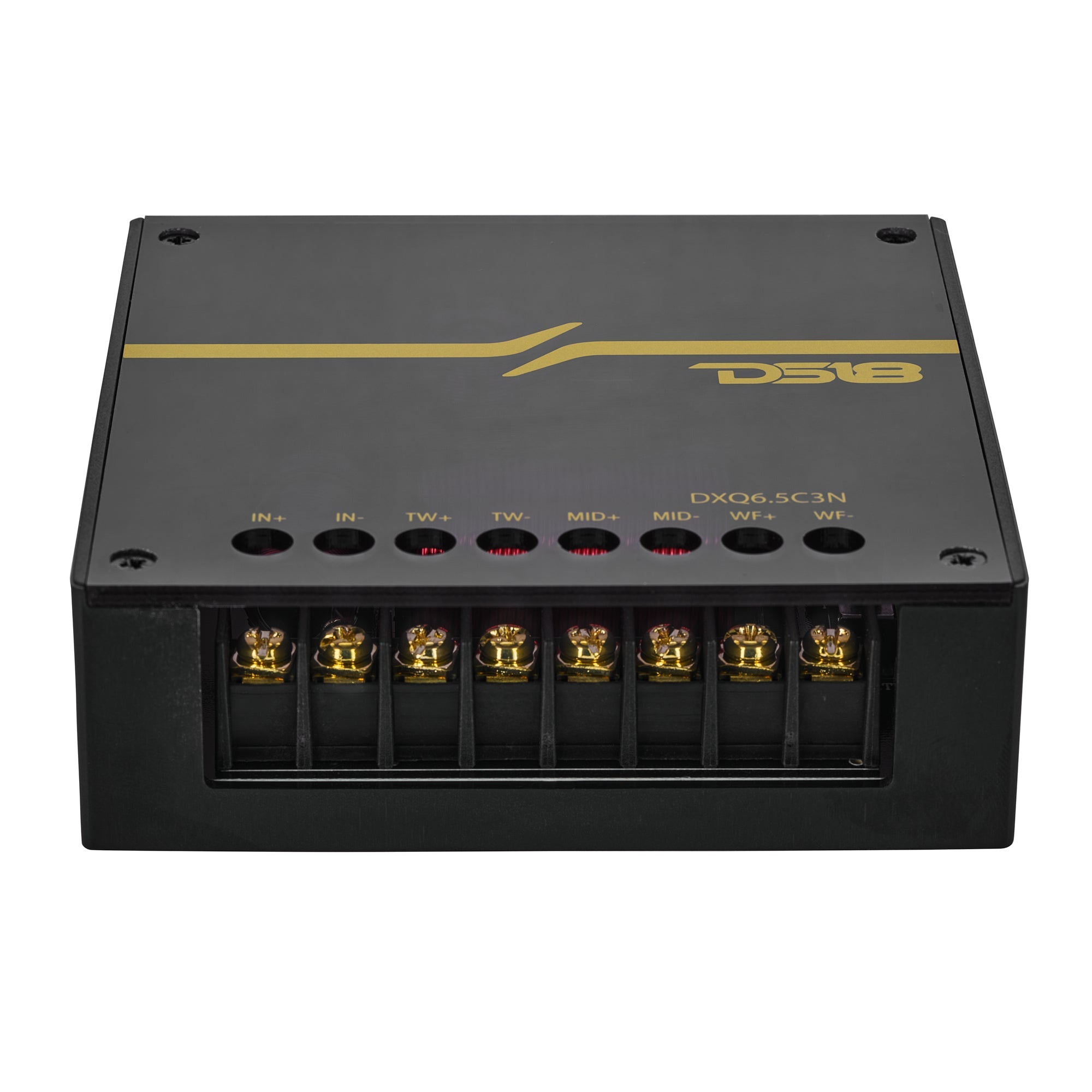

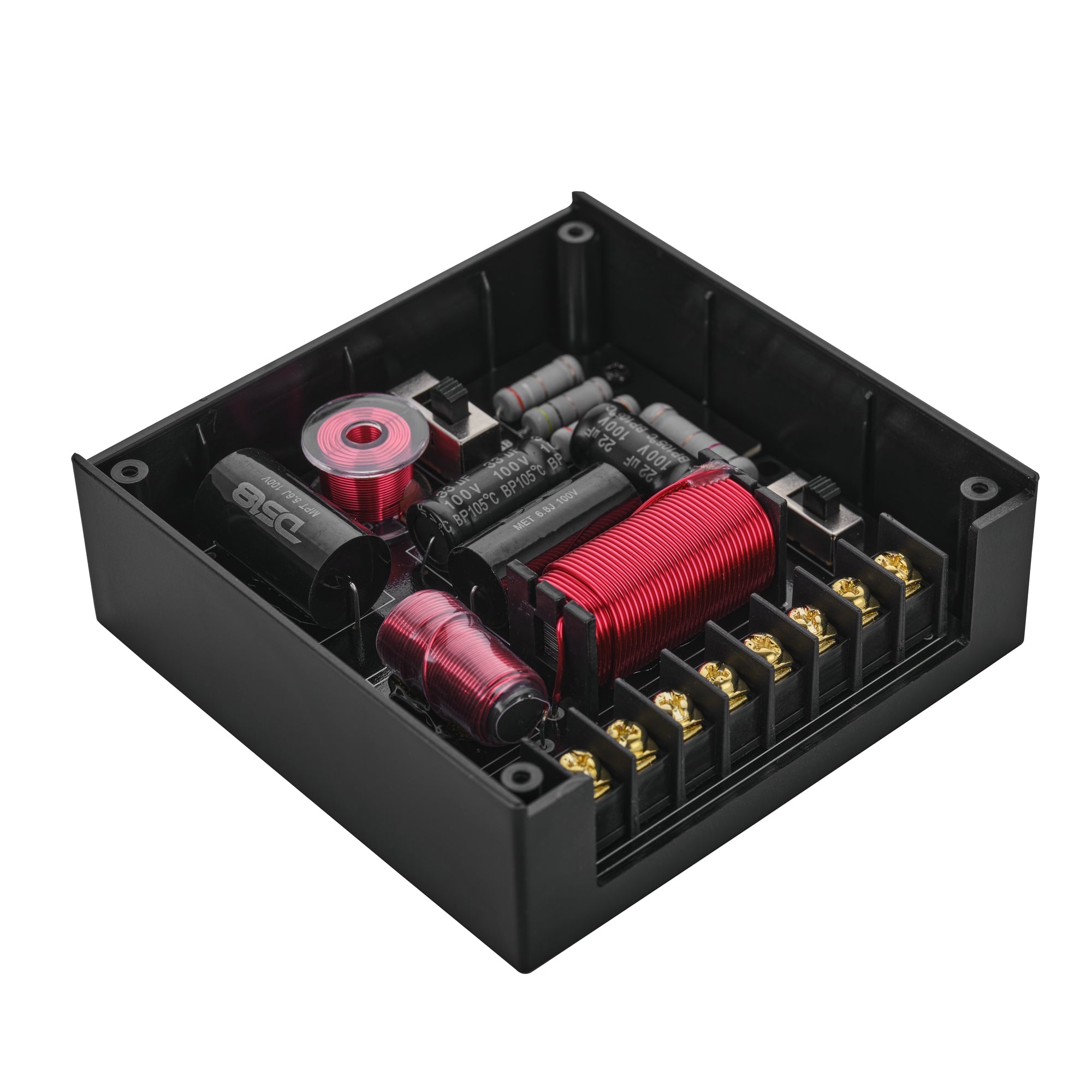

Precision Crossover Network
A carefully designed 3-way passive crossover separates the frequencies between the woofer, midrange, and tweeter. With points at 800Hz and 3.8kHz, the crossover ensures each driver performs optimally across the entire spectrum.
Easy Installation
With a mounting depth of just 3.4" for the woofer, and compact sizes for the midrange and tweeter, the DXQ6C3N fits most factory locations and custom setups effortlessly.
Complete Your Soundstage
DS18’s DXQ6C3N offers professional-grade sound quality that transforms every ride.
Key Features
- Premium Yellow Straw And Composite Foam Cone
- Neodymium Magnets
- High Power Handling 180W RMS / 360W Peak
- Wide Frequency Response

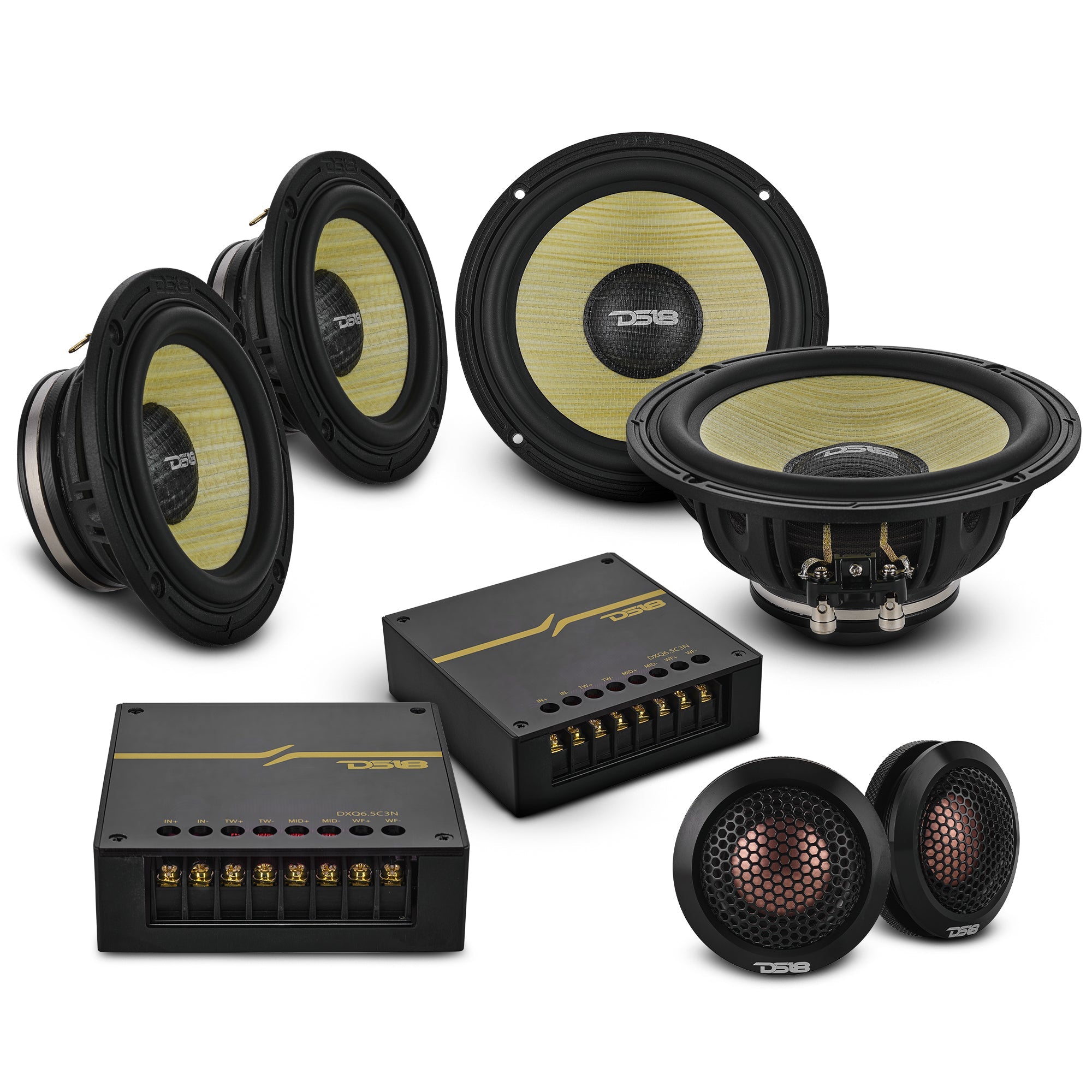

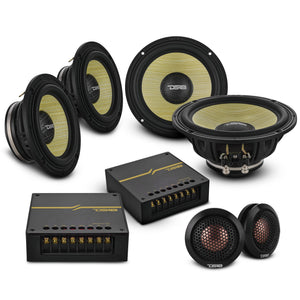

- 2x Woofers / 2x Midranges / 2x Tweeters / 2x Crossovers
Specifications
| SKU | DXQ6C3N |
|---|---|
| Nominal Diameter | 6.5" + 3.5" / 165 + 91mm / 6.5" / 165mm / 3.5" / 91mm / 2.2" / 58mm |
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 360W / 160W / 80W |
| RMS Power Handling | 180W / 80W / 40W |
| Sensitivity (1w/1m) | 91dB / 88dB / 95.2dB |
| Frequency Response | 35Hz-20KHz / 35Hz-12KHz / 120Hz-20KHz / 920Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 3 |
| Sold in Pair or Single | Pair |
| Grill Included | No |
| Voice Coil Diameter | 1.4" / 35.5mm / 1" / 25mm / 1.1" / 28mm |
| Voice Coil Former Material | Kapton / TIL / KVC |
| Winding Material | SV / CCAW |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Black Straw |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Neodymium / Neodymium / Neodimio |
| Magnet Weight | 3.1 oz / 1.1 oz / 0.4 oz / 11.3g |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push / 14Ga |
| Equivalent Volume | 10.8L / 1.413L |
| Excursion (one way) | 5mm / 2mm |
| Free Air Resonance | 55Hz / 86Hz |
| Mechanical Factor | 13.087 / 8.112 |
| Electrical Factor | 0.428 / 0.407 |
| Total Factor | 0.414 / 0.387 |
| Mechanical Mass | 21.504g / 3.765g |
| Mechanical Compliance | 0.396 mm/N / 0.907mm/N |
| BL Factor | 7.764 / 4.062 |
| Voice Coil Inductance | 0.085 mH / 0.066 mH |
| Cone Area | 138.93 cm? / 33.18 cm? |
| DC Resistance | 3.5 ohms / 3.3 ohms |
| Mechanical Mass w/o air | 19.654g / 3.549g |
| Diaphragm Material | Titanium |
| Body Material / Color | Aluminum / Black |
| Passive Crossover Ways | 3-Ways |
| Frequency Crossover Point | 800Hz (Mid) / 3.8KHz (TW) |
| Power Handling | 300W |
| Cut-Off Slope | 6dB/Oct (Mid) 12dB/Oct (TW) |
| Tweeter Attenuation | (+/-) 3dB |
| Capacitor Type | METAC Film |
| Coil Type | Inductor |
| Terminal Type | Screw Terminals |
| Housing Material | ABS + Acrylic |
| Adjustments | TW Att |
| Extra Features | Speaker Phase Selector |
