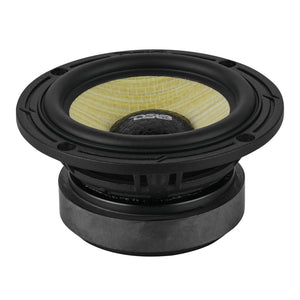

DXQ 3.5” Midrange Speaker with Yellow Straw + Composite Foam Cone | 60W RMS 4-Ohm
DXQ 3.5” Midrange Speaker with Yellow Straw + Composite Foam Cone | 60W RMS 4-Ohm
Product Overview
3.5” Midrange Speaker with Yellow Straw + Composite Foam Cone
The DXQ3.5 delivers crisp and clear midrange frequencies with exceptional detail and accuracy. Engineered with a yellow straw and composite foam cone, expect distortion-free audio reproduction for vocals and instruments.
Power Handling & Sensitivity
Rated at 60W RMS and 120W MAX, this driver offers 88dB sensitivity and a wide frequency response from 120Hz to 20kHz, balancing power and clarity perfectly.
Durable Construction
Featuring a 1-inch TIL voice coil with copper-clad aluminum winding, rubber surround, and a sturdy aluminum basket: the DXQ3.5 provides reliable heat dissipation and long-lasting performance.
Easy Installation
With a compact 1.5-inch mounting depth and 2.9-inch cutout diameter, this midrange driver fits easy in most custom car audio setups.
Upgrade to DS18’s DXQ3.5 and experience music with sharp clarity and precision!
Key Features
- Premium Yellow Straw and Composite Foam Cone
- High Power Handling 60W RMS / 120W Peak
- Ferrite Magnets
- 1" TIL Voice Coil
- Wide Frequency Response
Specifications
| Nominal Diameter | 3.5" / 91mm |
|---|---|
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 120W |
| RMS Power Handling | 60W |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 120Hz-20KHz |
| Recommended HI Pass Crossover | 160Hz |

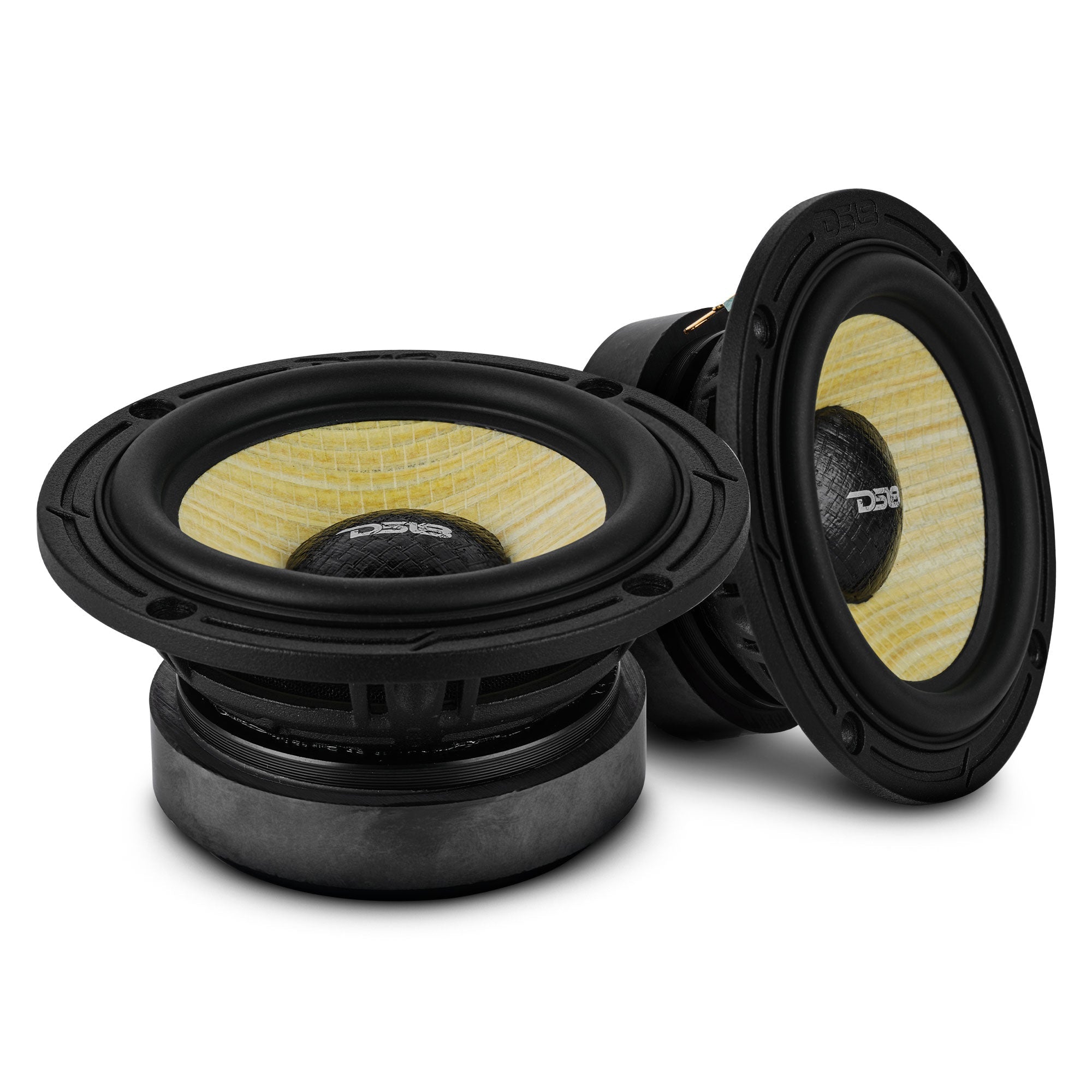

| Sold in Pair or Single | Pair |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Spade |
| Voice Coil Diameter | 1" / 25mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Yellow Straw |
| Surround Material | Rubber Edge |
| Leads Connection Type | Direct to coil |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 5.5 oz |
| Equivalent Volume | 1.338L |
| Excursion (one way) | 2mm |
| Free Air Resonance | 88.7 Hz |
| Mechanical Factor | 9.688 |
| Electrical Factor | 0.856 |
| Total Factor | 0.794 |
| Mechanical Mass | 3.746g |
| Mechanical Compliance | 0.859 mm/N |
| BL Factor | 2.833 |
| Voice Coil Inductance | 0.133 mH |
| Cone Area | 33.18 cm2 |
| DC Resistance | 3.3 ohms |
| Mechanical Mass w/o air | 3.53g |

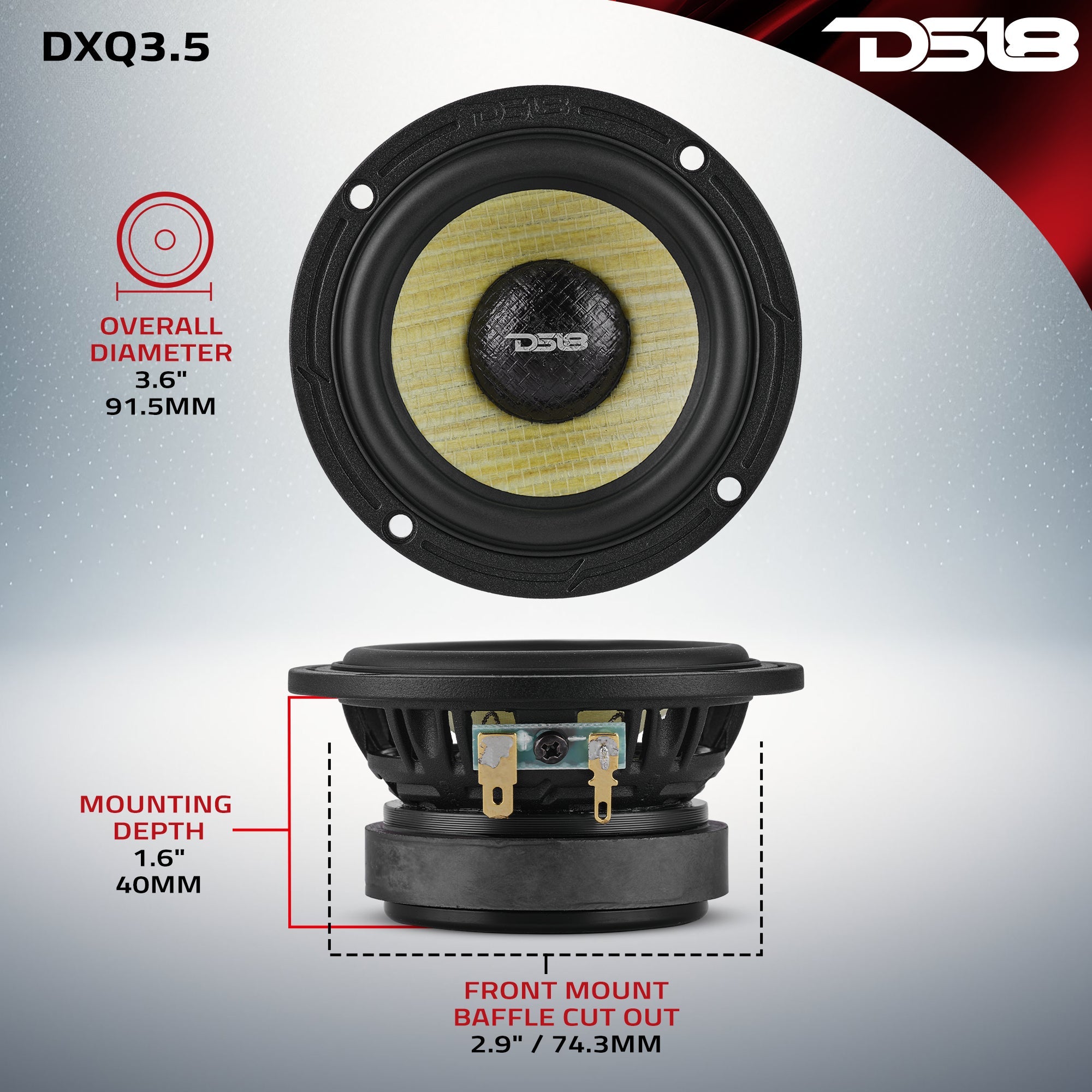

| Overall Diameter | 3.6" / 91.5mm |
| Overall Depth | 1.8" / 47.8mm |
| Front Mount Baffle Cutout | 2.9" / 74.3mm |
| Mounting Depth | 1.6" / 40mm |
| Motor Diameter | 2.5" / 65mm |
