Product Overview

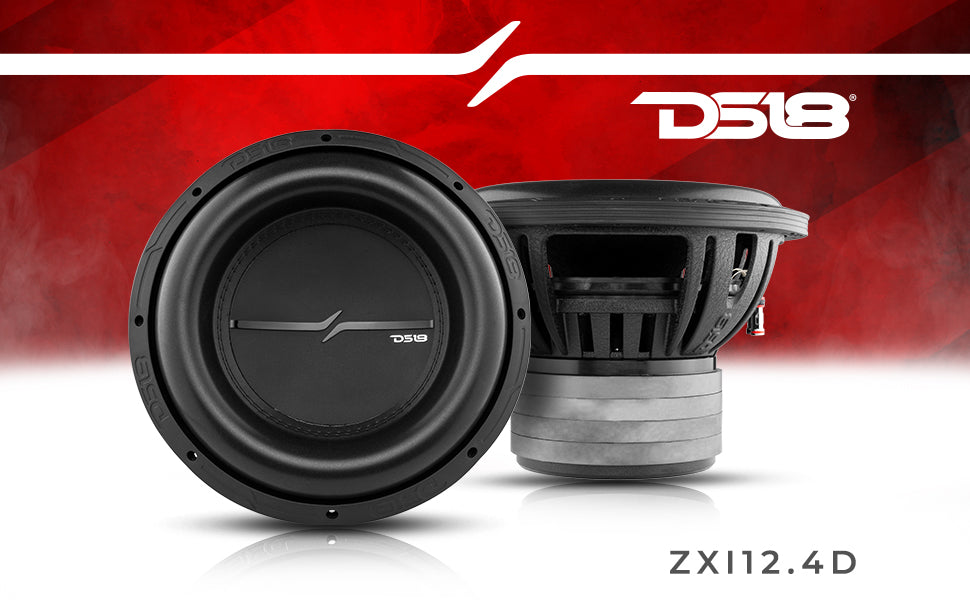

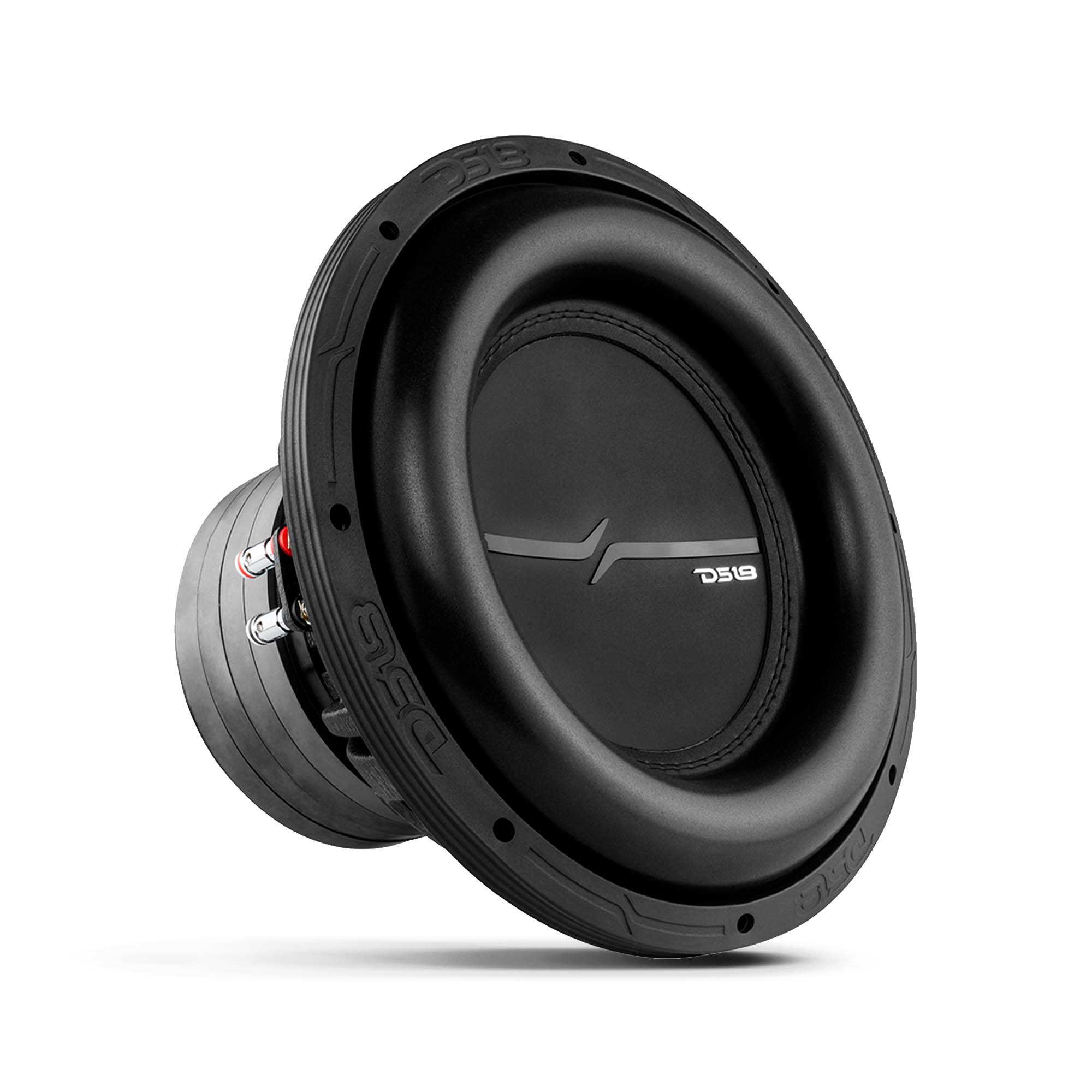

DS18 ZXI12.4D High Excursion 12" Car Subwoofer
2000 Watts 4-Ohm DVC, Quad Stacked Magnets
More Power, More Bass!
Designed to provide thumping power that shakes everyone’s mirrors, the ZXI12.4D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 3-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency, while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 1.8KHz down to 10Hz with incredible clarity and accuracy!
Order the DS18 ZXI12.4D today to turn up the bass with thunderous power!
Powerful Bass!
The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZX112.4D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 89.2 dB. This sub is also conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling, making it capable of handling anything you throw at it!
Product Highlights

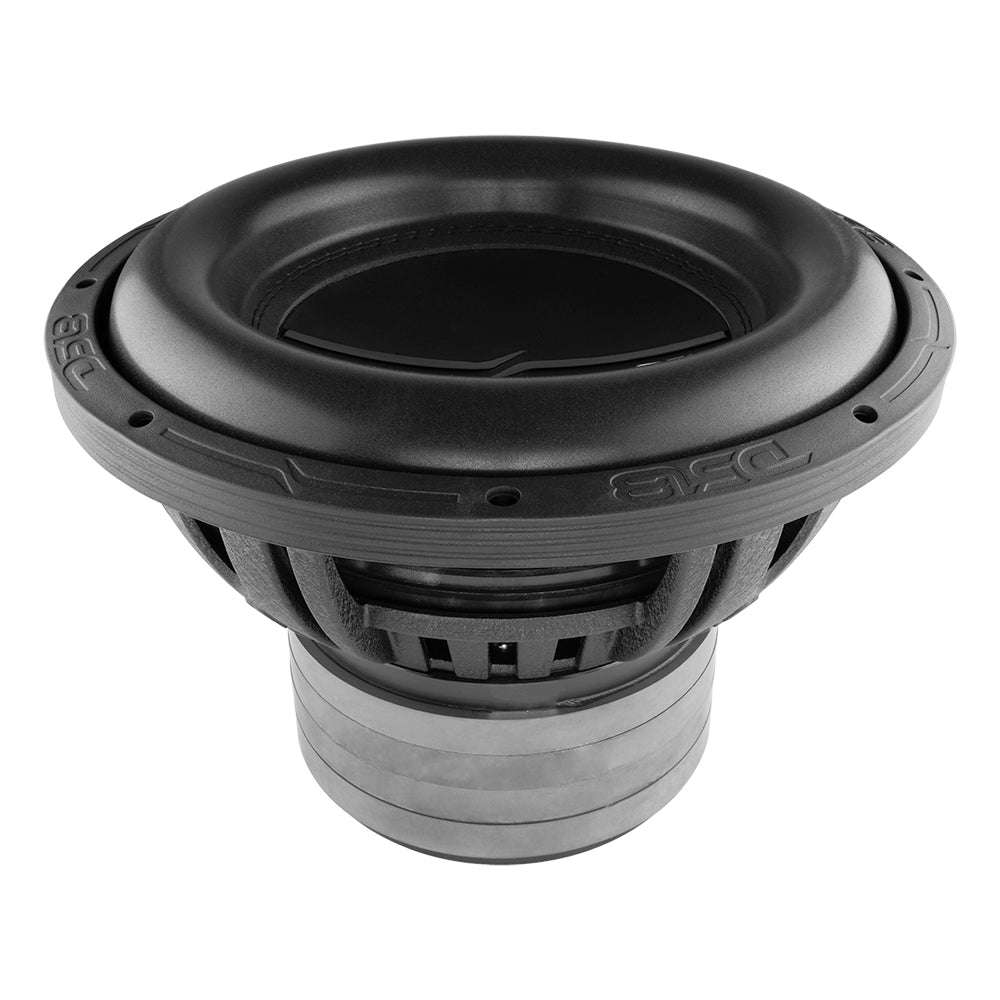

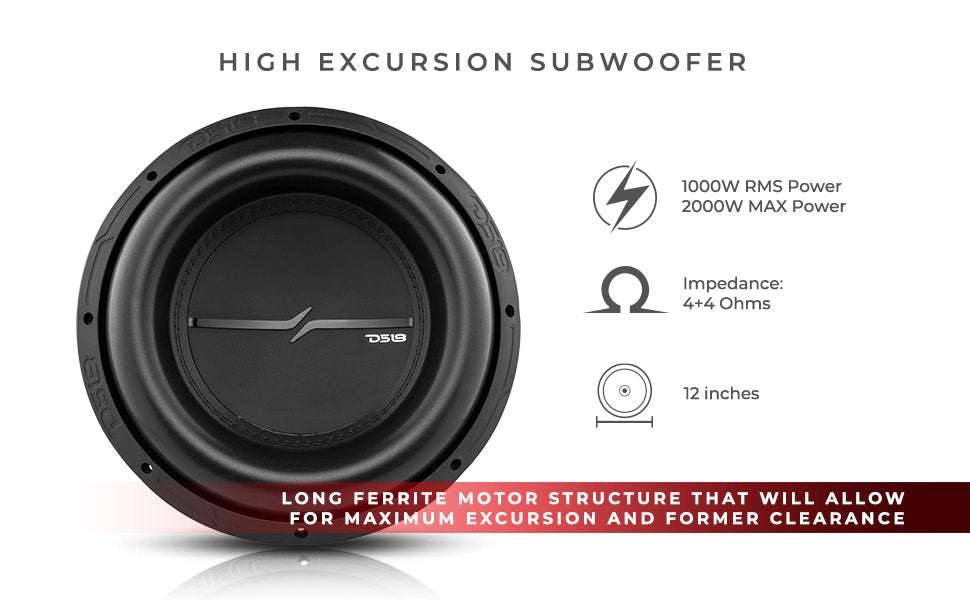

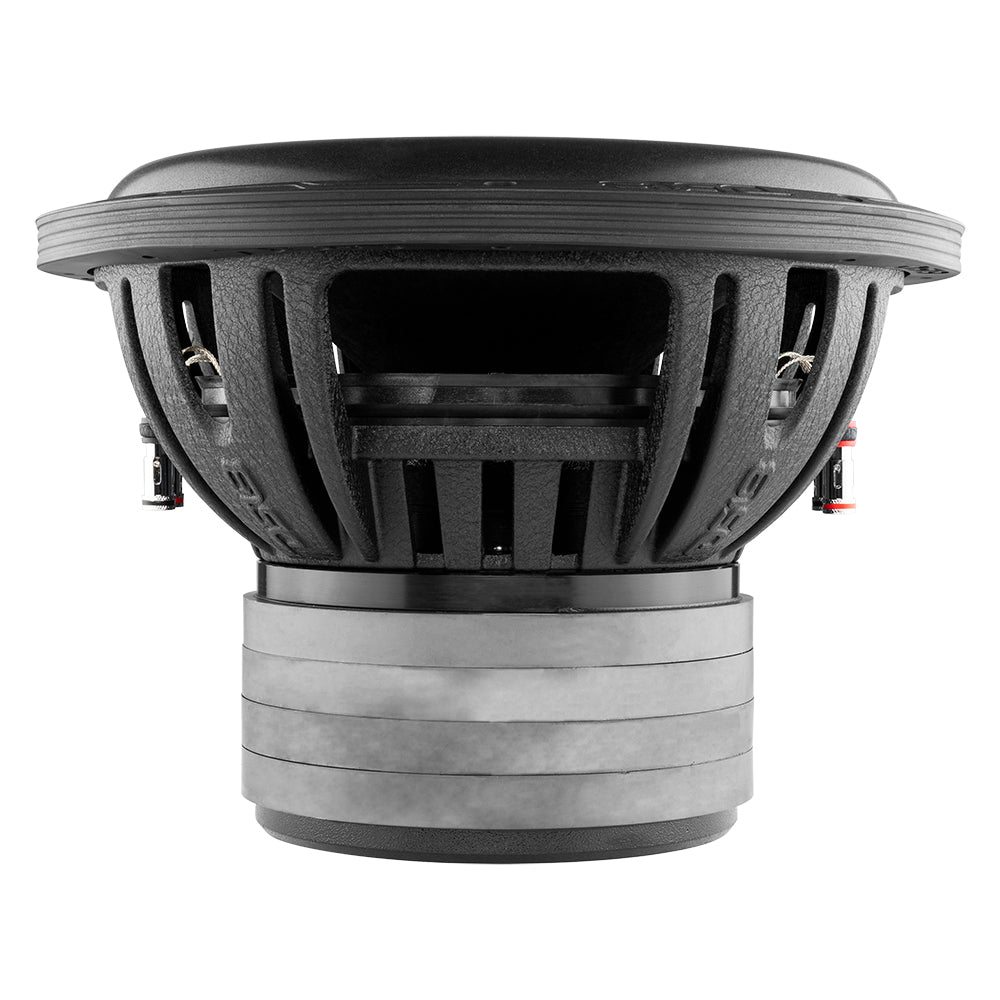

- Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets.

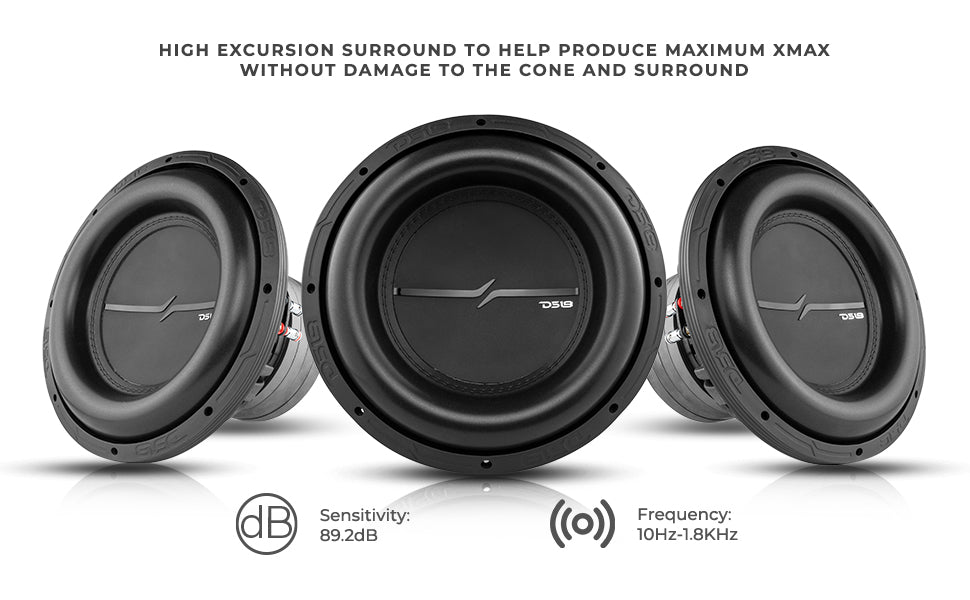

- High Excursion Surround to help produce maximum a 32mm (one-way) XMAX without damage to the cone and surround.
- Conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling so you can get the high-powered thunderous bass you crave.

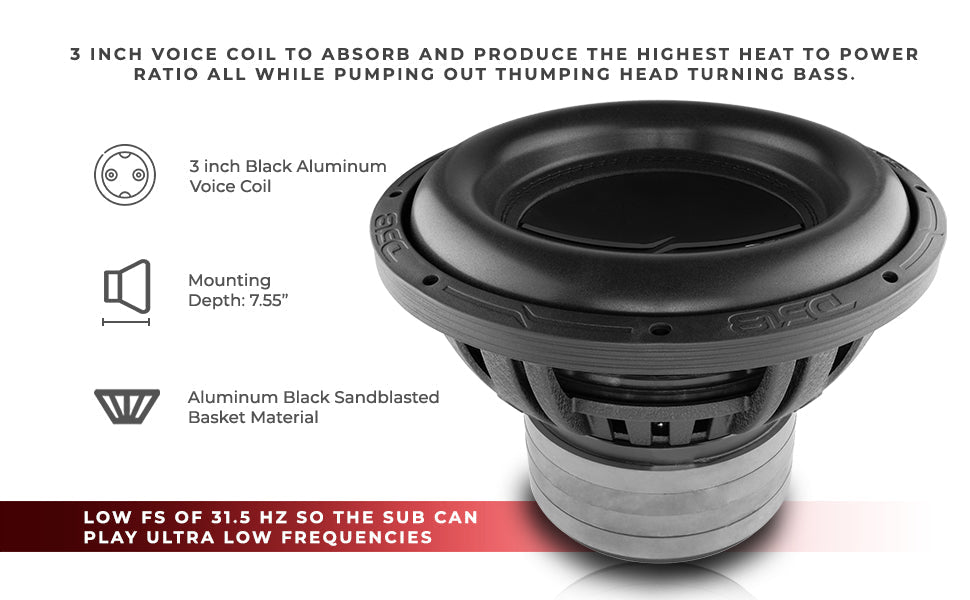

- 3-inch voice coil to absorb and produce the highest heat to power ratio all while pumping out thumping head turning bass.
- Low FS of 31.4Hz so the sub can play ultra-low frequencies all while still retaining the versatility of a traditional subwoofer.
- Ultra-low frequency response of 10Hz-1.8KHz to ensure great lows and you will be able to have hard hitting bass that plays with authority.
Technical Details
| Nominal Diameter | 12" |
| Nominal Impedance | 4 + 4 Ohms |
| RMS Power Handling | 1000 Watts |
| MAX Power Handling | 2000 Watts |
| Motor: | |
| Voice Coil Diameter | 3" (76.5mm) |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Motor | Ferrite |
| Measurements | |
| Overall depth | 9.13" |
| Mounting depth | 7.55" |
| Overall width | 12.55" |
| Cutout Diameter | 11.1" |
| XMAX | 32mm one way 64mm total |
| FS | 31.4Hz |
Key Features
- 12" High Excursion Subwoofer
- MAX Power: 2000 Watts
- RMS Power: 1000 Watts
- Impedance: 4-Ohm 3" DVC

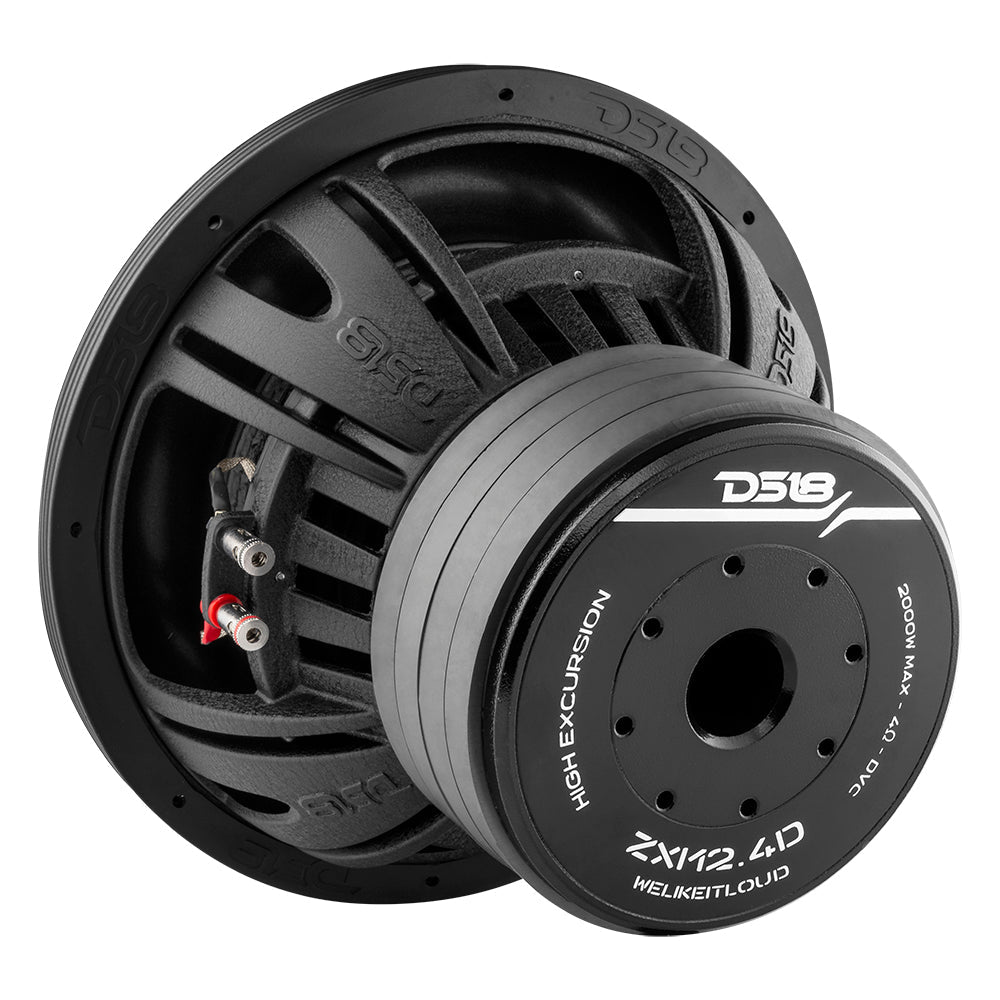

- Quad Stacked Ferrite Magnet
- 89.2dB
Specifications
| SKU | ZXI12.4D |
|---|---|
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 4 + 4 ohms |
| RMS Power Handling | 1000W |
| Maximum Power Handling | 2000W |
| Sensitivity (1w/1m) | 89.2dB |
| Frequency Response | 15Hz-1.8KHz |
| Recommended Lo Pass Crossover | 90Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 224 Oz (4 x 56 oz) |
| Displacement Volume | 3.99L / 0.14 ft3 |
| Equivalent Volume Vas | 15.63L / 0.55ft3 |
| Free Air Resonance Fs | 31Hz |
| Mechanical Factor Qms | 5.274 |
| Electrical Factor Qes | 0.594 |
| Total Factor Qts | 0.534 |
| Moving Mass Mms | 238.433g |
| Compliance Cms | 0.065mm/N |
| Bl Factor Bl | 14.55 |
| Voice Coil Inductance Le | 12.89 mH |
| Diaphragm Area Sd | 530.93cm2 |
| DC Resistance Re | 4.0+4.0 ohms |
| Efficiency Bandwidth Product EBP | 52.1 |
| Sealed Internal Volume | 21.2L / 0.75ft3 |
| Sealed Box Output Response F3 | 42Hz |
| Ported Internal Volume | 39.6L / 1.4ft3 |
| Port Size *Square (W x H x Long) | 1.23" x 12.28" x 24.35" / 32.1 x 312 x 618.4mm |
| Port Tuning Frequency FB | 32Hz |
| Ported Box Output Response F3 | 26Hz |

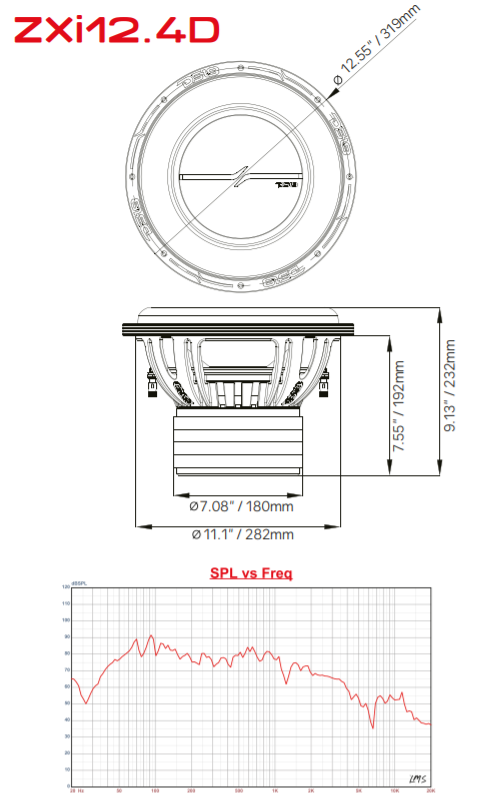

| Overall Diameter | 12.55" / 319mm |
| Overall Depth | 9.13" / 232mm |
| Front Mount Baffle Cutout | 11.1" / 282mm |
| Mounting Depth | 7.55" / 192mm |
| Motor Diameter | 7.08" / 180mm |
| Gross Single Unit Weight | 35 |
| Dimensions W x L x H | 14.5 x 14.75 x 11.5 |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight | 35 |
| Master Carton Dimensions W x L x H | 14.5 x 14.75 x 11.5 |
